2ACQM-HRC2-BT01-AHMS RC2

SES-imagotag GmbH I Kalsdorfer Straße 12 I A-8072 Fernitz/Mellach - AUSTRIA FB: FN350927w I HG : Graz I UID : ATU65936017 T. +43 (0) 5 98 09-400 I F. +43 (0) 5 98 09-900 I E. [email protected] I www.ses-imagotag.com Hermes GEN 2 (Protocol RAN 2.0) Hardware Installation Manual Latest changes: 15.09.2022 SES-imagotag GmbH I Kalsdorfer Straße 12 I A-8072 Fernitz/Mellach - AUSTRIA FB: FN350927w I HG : Graz I UID : ATU65936017 T. +43 (0) 5 98 09-400 I F. +43 (0) 5 98 09-900 I E. [email protected] I www.ses-imagotag.com Introduction The Hermes Gen 2 is a design based on a 3-wire bus for power and data which is built into an aluminium rail. Rail displays are using mechanical contact to connect to the bus. The Rail Controller includes a radio component to receive and send wireless transmissions to the Access Point. The radio is based on Bluetooth Low Energy (BLE) technology and is operating in the 2.4 GHz ISM band. The protocol implementation is called “RAN2.0” Table of content Introduction ............................................................................................................................................. 2 Components ............................................................................................................................................ 3 Hardware Setup ....................................................................................................................................... 4 Safe handling of lithium batteries ........................................................................................................... 7 SES-imagotag GmbH I Kalsdorfer Straße 12 I A-8072 Fernitz/Mellach - AUSTRIA FB: FN350927w I HG : Graz I UID : ATU65936017 T. +43 (0) 5 98 09-400 I F. +43 (0) 5 98 09-900 I E. [email protected] I www.ses-imagotag.com Components • Rail - aluminium rail + 3-wire bus • Rail Controller – “bridge” between radio and 3-wire bus of the rail • Battery pack – non-rechargeable • Rail Displays – E-ink displays • BLE Access Point – transmitter device Figure 1 – Rail, Rail Controller, Battery Pack, Rail Displays Figure 2 - Rail Displays Figure 3 - Rail Controller & Battery Pack Figure 4 - BLE Access Point SES-imagotag GmbH I Kalsdorfer Straße 12 I A-8072 Fernitz/Mellach - AUSTRIA FB: FN350927w I HG : Graz I UID : ATU65936017 T. +43 (0) 5 98 09-400 I F. +43 (0) 5 98 09-900 I E. [email protected] I www.ses-imagotag.com Hardware Setup 1) Plugging Rail Controller into Rail Figure 5 - Plug Rail Controller into Rail Figure 6 - Plugged Rail with Rail Controller SES-imagotag GmbH I Kalsdorfer Straße 12 I A-8072 Fernitz/Mellach - AUSTRIA FB: FN350927w I HG : Graz I UID : ATU65936017 T. +43 (0) 5 98 09-400 I F. +43 (0) 5 98 09-900 I E. [email protected] I www.ses-imagotag.com 2) Supplying Rail with power (plugging Battery Pack) Figure 7 - Rail with Rail Controller and Battery Pack Figure 8 - Connect Rail with Rail Controller and Battery Pack Figure 9 - After connecting, the LED of the Rail Controller flashes in magenta colour (subject to change) SES-imagotag GmbH I Kalsdorfer Straße 12 I A-8072 Fernitz/Mellach - AUSTRIA FB: FN350927w I HG : Graz I UID : ATU65936017 T. +43 (0) 5 98 09-400 I F. +43 (0) 5 98 09-900 I E. [email protected] I www.ses-imagotag.com 3) Plugging Rail Displays into the Rail Figure 10 - Plugging Rail Displays into Rail SES-imagotag GmbH I Kalsdorfer Straße 12 I A-8072 Fernitz/Mellach - AUSTRIA FB: FN350927w I HG : Graz I UID : ATU65936017 T. +43 (0) 5 98 09-400 I F. +43 (0) 5 98 09-900 I E. [email protected] I www.ses-imagotag.com Safe handling of lithium batteries / HMS PU2 Warning/Info: • Battery may explode or catch fire if misused. • If expose damaged battery to water, try to recharge battery or when mixing it with used or other battery types, it may explode or leak and cause personal injury. • Do not disassemble, open battery, incinerate, or expose to high temperature above 212°F (100°C). • Keep away from Children. If swallowed, promptly see doctor. • Batteries used for HMS PU2 have passed the test UN 38.3 and are classified as non-dangerous good Certification This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION TO USERS Changes or modifications not expressly approved by the party responsible for compliance could void the user`s authority to operate the equipment. FCC rules apply to the following products: HMS RD1/160 (Model: HRDX-0160-Y) , HMS RD1/220 (Model: HRDX-220-Y), HMS RC1 (Model: HRCX-BT01-Y) This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil estconforme aux CNR d’Innovation, Sciences et Développement économique Canadaapplicables aux appareils radio exempts de licence. L’exploitation est SES-imagotag GmbH I Kalsdorfer Straße 12 I A-8072 Fernitz/Mellach - AUSTRIA FB: FN350927w I HG : Graz I UID : ATU65936017 T. +43 (0) 5 98 09-400 I F. +43 (0) 5 98 09-900 I E. [email protected] I www.ses-imagotag.com autoriséeaux deux conditions suivantes: 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si lebrouillage est susceptible d’en compromettre le fonctionnement. IC standards apply to the following products: HMS RD1/160 (Model: HRDX-0160-Y) , HMS RD1/220 (Model: HRDX-220-Y), HMS RC1 (Model: HRCX-BT01-Y)

Page 1/1 CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 September 05 th , 2022 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, SES-imagotag GmbH (FRN: 0023782022) requests confidentiality for the following products: FCC ID Number Product: Title/Model o Product Code: HRC2-BT01-A / FCC: 2ACQM-HRC2-BT01-A For the product stated above, we request that the following information be held Long-Term confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: “folder: Hardware” 2. Block diagram, Operational description submitted as Equipment Authorization For the product stated above, we request that the following information be held Short-Term confidential: 1. External photos 2. Test setup photos 3. Internal photos 4. User ́manual The above exhibits contain SES-imagotag GmbH trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our Smart Tagging System. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Philipp Jauck, Head of IP Management & Regulatory Compliance SES-imagotag GmbH Kalsdorfer Strasse 12 8072 Fernitz-Mellach, Austria Mobil: +43 664 88252901 [email protected] www.ses-imagotag.com

Coverletter: SES-Imagotag GmbH wants to get FCC-Certification for the following device: HRC2-BT01-A. The unit will get the following FCC-ID: 2ACQM-HRC2-BT01-A Regarding the “URGENT CLARIFICATION - FCC Area of Concern-Antenna Gain Information” from 2022-08-26: The max. antenna gain in the band of operation is hereby made public: 2.43 dBi (rail controller stand alone without a shelf label rail) 2.21 dBi (with a shelf label rail) Details are given in the Operational Description. List of documents: Exhibit Thema File Exhibit 01 Label and placement label_and_placement.pdf Exhibit 02 Not needed -------------------- ° Exhibit 03 External Photos photos_external.pdf * Exhibit 04 Block Diagrams ContRC002A00C_BlockDiagram_v1.1.pdf * Exhibit 05 Schematic Diagrams ContRC002A00C_Schematics_v1.1.pdf Exhibit 06 Testreport 2022-IN-AT-TICL-E-EX-000299-FG- 001_signed_2x_noPhotos.pdf ° Exhibit 07 Test Set-up Photos photos_setup.pdf ° Exhibit 08 User Manual Hermes_installation_manual.pdf ° Exhibit 09 Internal Photos photos_internal.pdf Exhibit 10 Informations -------------------- Exhibit 11 RF exposure see test report * Exhibit 12 Operational Description Antenna information for Urgent Clarification Hermesv2_operational_description.pdf SESimagotag_report_202209 Exhibit 13 Cover letter Request for confidentiality Production tolerance for RF exposure This file Long Term - Short Term Confidentiality Request_FCC_HRC2-BT01- A_20220905_signed.pdf Production tolerance FCC_HRC2-BT01 -A.pdf For the Exhibits marked with ‘*’ SES-imagotag GmbH requested Long-Term Confidentiality and for exhibits marked with ‘°’ SES-imagotag GmbH requested Short-Term Confidentiality according to 47 CFR 0.457 and 0.459 of the FCC rules because these are sensitive parts owned by this company and include much of know-how or sensitive data, it will not be provided to the public. The labelling on some photos may be not the actual status. The correct labelling is shown on the label photo in Exhibit 1.

Production Tolerance Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 19.09.2022 TO WHOM IT MAY CONCERN The new FCC RF Exposure evaluation procedures require the consideration of production tolerance, see"447498 D04 lnterim General RF Exposure Guidance v01". Regarding our product Product code: HRC2-8T01 -A FCC lD: 2ACQM- HRC2-8T01-A We declare that the production tolerance for the transmit power is not more than: 2 dB Philipp Jauck, Head of lP Management & Regulatory Compliance SES-imagotag GmbH Kalsdorfer Strasse 12 807 2 F ernifz-Mel lach, Austria Mobil: +43 664 88252901 phi lipp.jauck@ses-imagotag. com wvtrw. ses-i ma g otag. co m ses tmOgotog SES-imagotag GmbH Kalsdorfer StraBe 12 8072 Fernitz-Mellach

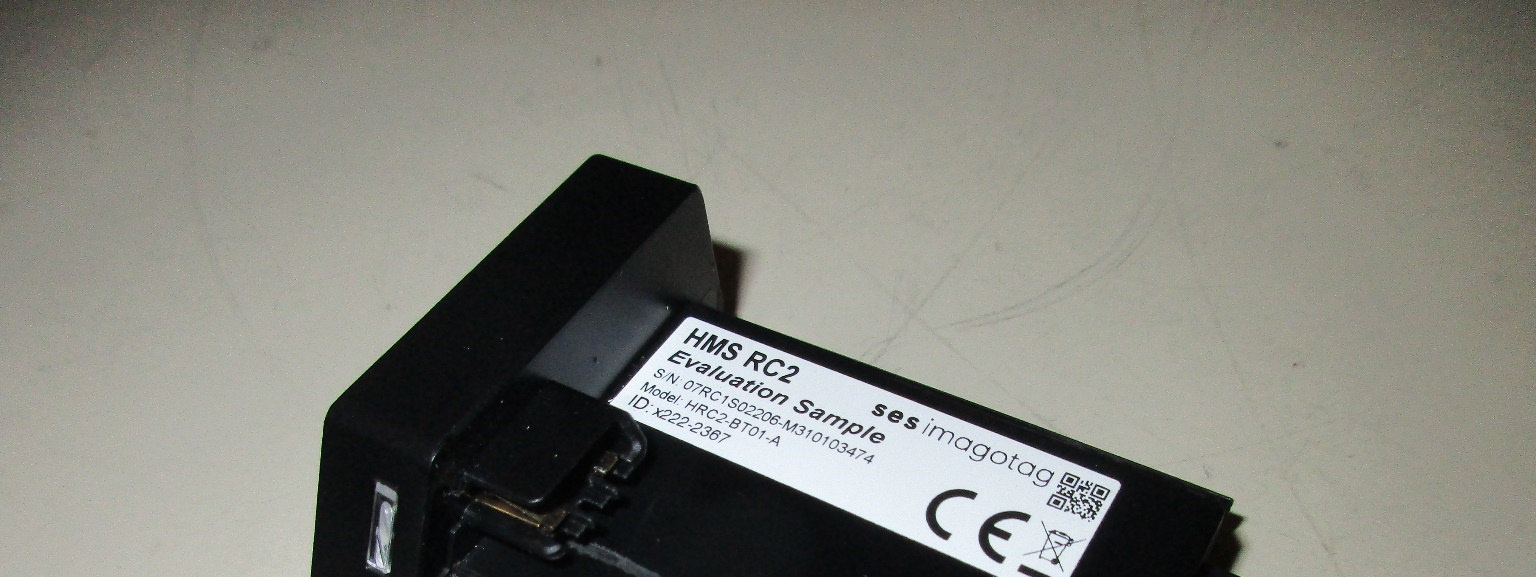

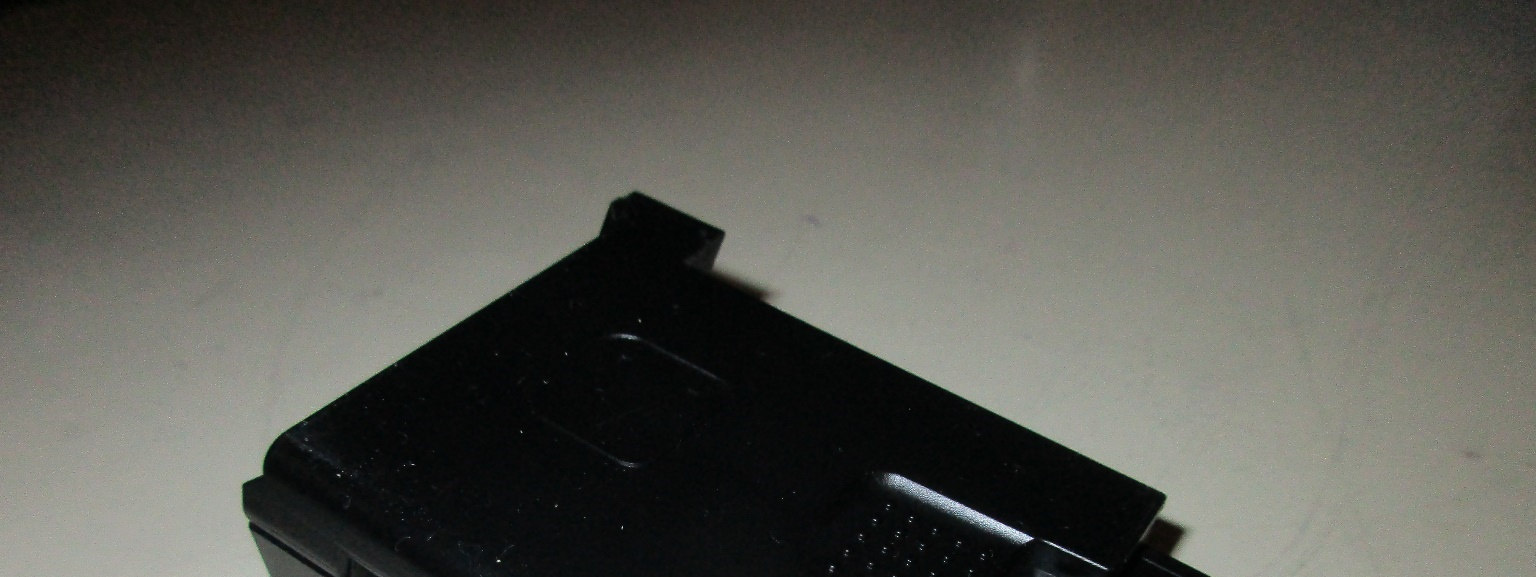

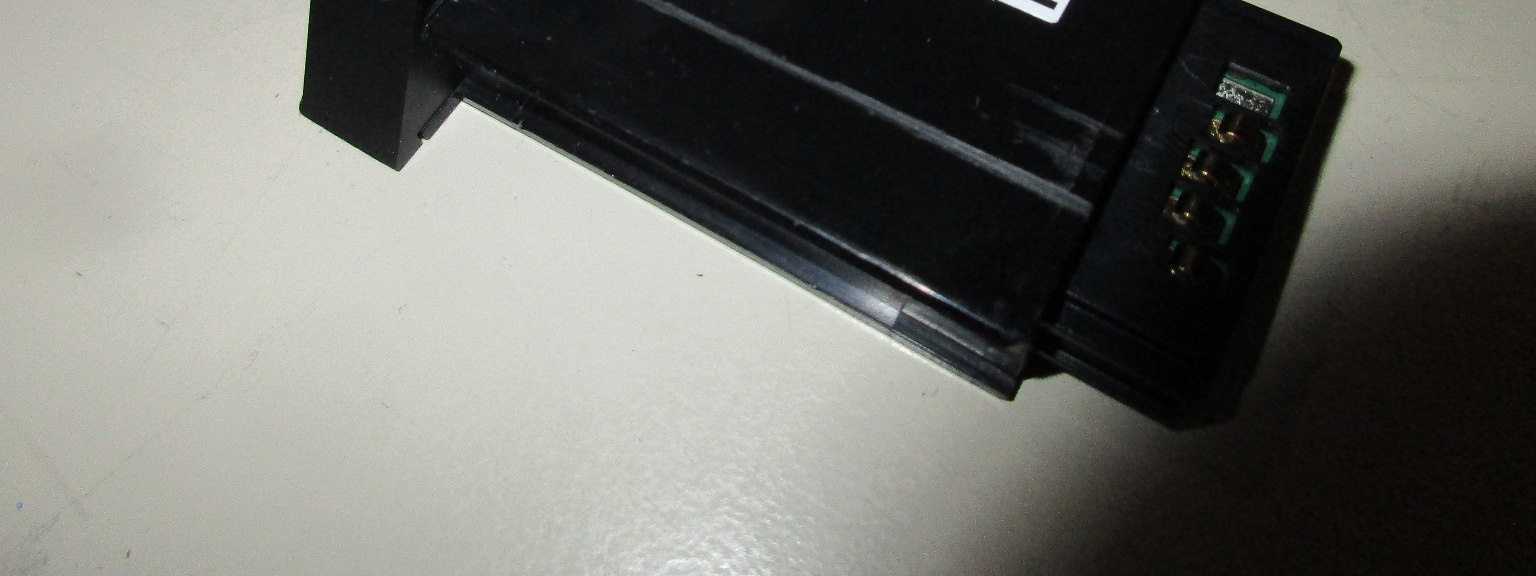

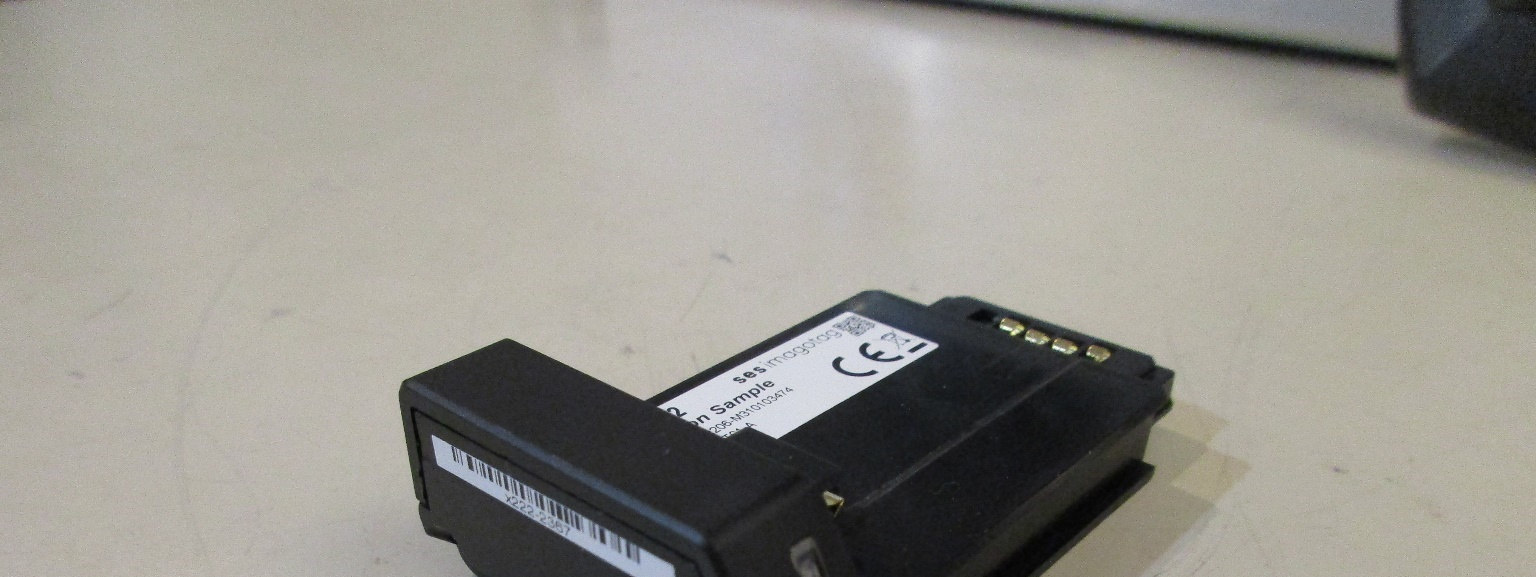

www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_de Rev00 Anlage 2 Fotodokumentation Beschreibung: Rail controller view #1 Geschäftsbereich: Industrie & Energie Prüfberichtsnummer: 2022-IN-AT-TICL-E- EX-000299-FG-001 Seite: 2 von 24 Datum: 16.09.2022 www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_de Rev00 Anlage 2 Fotodokumentation Beschreibung: Rail controller view #2 Geschäftsbereich: Industrie & Energie Prüfberichtsnummer: 2022-IN-AT-TICL-E- EX-000299-FG-001 Seite: 3 von 24 Datum: 16.09.2022 www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_de Rev00 Anlage 2 Fotodokumentation Beschreibung: Rail controller view #3 Geschäftsbereich: Industrie & Energie Prüfberichtsnummer: 2022-IN-AT-TICL-E- EX-000299-FG-001 Seite: 4 von 24 Datum: 16.09.2022

www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_de Rev00 Anlage 2 Fotodokumentation Beschreibung: Rail controller view #1 Geschäftsbereich: Industrie & Energie Prüfberichtsnummer: 2022-IN-AT-TICL-E- EX-000299-FG-001 Seite: 2 von 24 Datum: 16.09.2022

www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_de Rev00 Anlage 2 Fotodokumentation Beschreibung: Case opened Geschäftsbereich: Industrie & Energie Prüfberichtsnummer: 2022-IN-AT-TICL-E- EX-000299-FG-001 Seite: 5 von 24 Datum: 16.09.2022 www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_de Rev00 Anlage 2 Fotodokumentation Beschreibung: PCB view #1 Geschäftsbereich: Industrie & Energie Prüfberichtsnummer: 2022-IN-AT-TICL-E- EX-000299-FG-001 Seite: 6 von 24 Datum: 16.09.2022 www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_de Rev00 Anlage 2 Fotodokumentation Beschreibung: PCB view #2 Geschäftsbereich: Industrie & Energie Prüfberichtsnummer: 2022-IN-AT-TICL-E- EX-000299-FG-001 Seite: 7 von 24 Datum: 16.09.2022 www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_de Rev00 Anlage 2 Fotodokumentation Beschreibung: PCB detailed view #1 Geschäftsbereich: Industrie & Energie Prüfberichtsnummer: 2022-IN-AT-TICL-E- EX-000299-FG-001 Seite: 8 von 24 Datum: 16.09.2022 www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_de Rev00 Anlage 2 Fotodokumentation Beschreibung: PCB detailed view #2 Geschäftsbereich: Industrie & Energie Prüfberichtsnummer: 2022-IN-AT-TICL-E- EX-000299-FG-001 Seite: 9 von 24 Datum: 16.09.2022

www.tuv.at | [email protected] | TÜV ® DN: FM-INE-EMV-EMC-0100a_en Page 1 of 31 2022-IN-AT-TICL-E-EX-000299-FG-001.docx Rev04 TEST REPORT of the accredited test laboratory TÜV Nr.: 2022-IN-AT-TICL-E-EX-000299-FG-001 TÜV AUSTRIA SERVICES GMBH Test laboratory for EMC Ing. Andreas Malek examined by / Testing Laboratory TÜV AUSTRIA SERVICES GMBH Official seal 16.09.2022 Ing. Michael Emminger approved by / Testing Laboratory TÜV AUSTRIA SERVICES GMBH A publication of this test report is only permitted literally. Copying or reproduction of partial sections needs a written permission of TÜV AUSTRIA SERVICES GMBH. The results of this test report only refer to the provided equipment. Applicant: SES-imagotag GmbH Kalsdorfer Strasse 12 A – 8072 Fernitz-Mellach Tested Product: Electronic shelf labelling system Product Name: HMS RC2 Model: HRC2-BT01-A FCC ID: 2ACQM-HRC2-BT01-A IC ID: 12154A-HRC2BT01A Manufacturer: SES-imagotag GmbH Kalsdorfer Strasse 12 A – 8072 Fernitz-Mellach Output power 8,51 mW eirp power supply: 3 VDC via Battery Frequency range: 2402 - 2480 MHz Channel separation: 2 MHz Accredited Standards: FCC: 47 CFR Part 15 (eCFR 06.09.2022) RSS-102 Issue 5, March 2015 RSS-247 Issue 2, February 2017 ANSI C63.10-2013 TÜV AUSTRIA SERVICES GMBH Office: Deutschstrasse 10 1230 Vienna/Austria T: +43 5 0454-5100 F: +43 5 0454-6505 E: [email protected] W: www.tuv.at Business Area Industry & Energy Austria Technik TÜV ® Testing Laboratory, Inspection Body, Certification Body, Calibration Laboratory, Verifizierungsstelle Notified Body 0408 Non-executive Board of Directors: KR DI Johann Marihart Management: DI Dr. Stefan Haas Mag. Christoph Wenninger Registered Office: Deutschstrasse 10 1230 Vienna/Austria Branch Offices: www.tuv.at/standorte Company Register Court / - Number: Vienna / FN 288476 f Bank Details: IBAN AT131200052949001066 BIC BKAUATWW VAT ATU63240488 DVR 3002476 www.tuv.at | [email protected] | TÜV ® Test report number: 2022-IN-AT-TICL-E-EX-000299-FG-001 Date: 16.09.2022 Ambient temperature: 23°C Relative humidity: 49% DN: FM-INE-EMV-EMC-0100a_en Page 2 of 31 2022-IN-AT-TICL-E-EX-000299-FG-001.docx Rev04 Contents Designation PAGE 1. Applicant 3 2. Description of EUT 4 3. Standards / Final result 5 4. Test results List of measurements according to 47 CFR 15 and RSS-247 4.1 Test object data 6 4.2 Number of channels and channel spacing 7 4.3 6 dB Bandwidth 8 – 10 4.4 99% dB Bandwidth 11 – 13 4.5 Maximum Peak RF Power Output 14 4.6 Power Spectral Density 15 – 17 4.7 Emissions in restricted bands 18 – 27 4.8 RF Exposure 28 – 31 Appendix Designation PAGES 1 Test equipment used 5 2 Photodocumentation 24 www.tuv.at | [email protected] | TÜV ® Test report number: 2022-IN-AT-TICL-E-EX-000299-FG-001 Date: 16.09.2022 Ambient temperature: 23°C Relative humidity: 49% DN: FM-INE-EMV-EMC-0100a_en Page 3 of 31 2022-IN-AT-TICL-E-EX-000299-FG-001.docx Rev04 1. Applicant Company: SES-imagotag GmbH Department: Product & Project Manager Address: A – 8072 Fernitz-Mellach; Kalsdorfer Strasse 12 Contact person: Mrs. Tamara Risek Gmajnic EUT received on: 06.09.2022 Tests were performed on: 06.09. & 08.09.2022 www.tuv.at | [email protected] | TÜV ® Test report number: 2022-IN-AT-TICL-E-EX-000299-FG-001 Date: 16.09.2022 Ambient temperature: 23°C Relative humidity: 49% DN: FM-INE-EMV-EMC-0100a_en Page 4 of 31 2022-IN-AT-TICL-E-EX-000299-FG-001.docx Rev04 2. Description of EUT EUT: Electronic shelf labelling system Product Name: HMS RC2 Model: HRC2-BT01-A Serial Number: 07RC1S02206-M310103474 Manufacturer: SES-imagotag GmbH Description: SES-imagotag GmbH provided the following configuration for the measurements: Prototype with special firmware for continuous transmission mounted on the largest available rail or even not mounted (stand-alone). If mounted on the rail, various displays with model codes HRD2- 0160-A and HRD2-0220-A were mounted on the rail, to show compliance with mounted displays as well. Operating mode: The measurements were carried out at the following running states: test-firmware running, transmitting continuously Technical data EUT: Rated voltage: 3VDC Rated frequency: DC Mains voltage during the tests: 3VDC Climatic conditions in the emc laboratory: Relative humidity: 49% Temperature: 23°C www.tuv.at | [email protected] | TÜV ® Test report number: 2022-IN-AT-TICL-E-EX-000299-FG-001 Date: 16.09.2022 Ambient temperature: 23°C Relative humidity: 49% DN: FM-INE-EMV-EMC-0100a_en Page 5 of 31 2022-IN-AT-TICL-E-EX-000299-FG-001.docx Rev04 3. Standards / Final result Name Title Deviation Result FCC: 47 CFR Part 15 (eCFR 06.09.2022) RADIO FREQUENCY DEVICES none OK RSS-247 Issue 2, February 2017 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices none OK ANSI C63.10-2013 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices none OK Result: Opinions and interpretation of testing laboratory OK: EUT passed NOK: EUT failed www.tuv.at | [email protected] | TÜV ® Test report number: 2022-IN-AT-TICL-E-EX-000299-FG-001 Date: 16.09.2022 Ambient temperature: 23°C Relative humidity: 49% DN: FM-INE-EMV-EMC-0100a_en Page 6 of 31 2022-IN-AT-TICL-E-EX-000299-FG-001.docx Rev04 4. TEST RESULTS 4.1. TEST OBJECT DATA General EUT Description 2.1033 (c) Technical description 2.1033 (4) Type of emission: 1M04F1D – Channel spacing 2 MHz 2.1033 (5) Frequency range: 2402 to 2480 MHz (channel center frequencies). 2.1033 (6) Power range and Controls: The maximum peak output power is 8,51 mW and there is no power regulation. 2.1033 (7) Maximum output power rating: 8,51 mW. 2.1033 (8) DC Voltage and Current: 3V DC RSS-135 This standard does not apply to: 1.1.(a) a receiver that scans radio frequencies for the purpose of enabling its associated transmitter to avoid transmitting in an occupied frequency but which does not have the capability of decoding the message (e.g. converting it to audio voice) contained in the radio signal Worst case Spurious Emissions: 47…

Text truncated - open the document above for the full version.

www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_de Rev00 Anlage 2 Fotodokumentation Beschreibung: Test setup Emissions below 30 MHz Geschäftsbereich: Industrie & Energie Prüfberichtsnummer: 2022-IN-AT-TICL-E- EX-000299-FG-001 Seite: 21 von 24 Datum: 16.09.2022 www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_de Rev00 Anlage 2 Fotodokumentation Beschreibung: Test setup Emissions 30 MHz - 1 GHz Geschäftsbereich: Industrie & Energie Prüfberichtsnummer: 2022-IN-AT-TICL-E- EX-000299-FG-001 Seite: 22 von 24 Datum: 16.09.2022 www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_de Rev00 Anlage 2 Fotodokumentation Beschreibung: Test setup Emissions above 1 GHz Geschäftsbereich: Industrie & Energie Prüfberichtsnummer: 2022-IN-AT-TICL-E- EX-000299-FG-001 Seite: 23 von 24 Datum: 16.09.2022 www.tuv.at | [email protected] | TÜV ® DN- FM-INE-EMV-ALL-Anl2_de Rev00 Anlage 2 Fotodokumentation Beschreibung: Test setup Emissions above 1 GHz standalone (without Rail) Geschäftsbereich: Industrie & Energie Prüfberichtsnummer: 2022-IN-AT-TICL-E- EX-000299-FG-001 Seite: 24 von 24 Datum: 16.09.2022 --- END OF TEST REPORT ---
