2ACRL-X297Infotainment Headunit

1 Notes: Graphics may not be properly depicted in this document due to formatting conversion. Please refer to the pdf format for the intended graphics. Fisker X297 User Guide Steering Wheel Media Controls The left steering wheel controls relate to media, audio, and voice commands. 1. Voice Assistant. See Voice Assistant, page 20. 2. Forward/Next 3. Back/Previous 4. Telephone control. See Making and Receiving Phone Calls, page 13. 5. Volume control Scroll up/down to control media volume. Press to mute/unmute. 2 Media and Audio Overview On the Central Touchscreen, select . From the main Music menu, press to select between Radio, Bluetooth, or streaming audio services, allowing you to directly control and personalize your apps. Note: Many third-party media applications require a data connection and login information, and some services are subscription-based. Refer to the provider for more information. The player for selected media appears at the bottom of the Central Touchscreen. Searching media content Most music applications have a Search bar you can use to find specific content. The on-screen keyboard will automatically appear when you tap in the Search bar field. Adding to Favorites Press the icon next to a song or station to add it to your Favorites list for that audio application. 3 INFOTAINMENT Radio ## Image to be updated; DAB missing Choose between FM and DAB (Digital Audio Broadcasting) radio, or select Favorites to access your personalized list. Radio settings Press in the upper right corner of the Radio screen to access DAB settings and customize your preferences. Audio Streaming Services Integration On the Central Touchscreen, ## for a list of available third-party media. Note: Many third-party media applications require a data connection and login information, and some services are subscription-based. Refer to the provider for more information. Playing Media from Devices The infotainment system can also play media from devices connected to your vehicle via USB or paired via Bluetooth® (see Pairing a Bluetooth® Device, page 9). Select Bluetooth to browse to your connected device, then press it to open options. INFOTAINMENT Maps and Navigation 4 Audio Settings On the Central Touchscreen, select > Audio to access your vehicle’s audio settings. Select from three customized Equalizer Presets, then touch and drag the slider to adjust a setting. Swipe up on the screen to scroll down and access Sound Stage. From here, you can select the area where you wish to direct the sound system output. If equipped, you can also press to turn 3D Sound Expansion On or Off. INFOTAINMENT Maps and Navigation 5 Navigation Overview To access maps and navigation, select on the Central Touchscreen. This screen will display your current location on the map whenever a data connection is present. See Connectivity, page 17. Navigating To navigate to a location, you can select a destination in several ways: • Tap in the search field to bring up the on-screen keyboard and enter an address. • Tap on the map to select a location. • Tap to select your Home location. See Setting Home and Favorite Destinations, page 7. • Tap to select a location from your Favorites list. See Setting Home and Favorite Destinations, page 7. • Tap to locate nearby charging stations. • Tap for a listing of nearby food and drink locations. INFOTAINMENT Maps and Navigation 6 When you select a location, you can press Route to view or modify the route, and press Drive when you are ready to begin navigating. At this point, audible and visual turn-by- turn navigation begins, and is displayed both on the Central Touchscreen (as shown above) and on the Driver Display (see Driver Display Overview). Adjusting the Map The map centers around your current location by default. The map can be rotated, panned, or zoomed in and out via the Central Touchscreen. Use the icons around the map as follows: • Tap to open navigation settings. See Navigation Settings, page 7. • Tap to mute/unmute audible navigation directions. • Any time the map is manipulated, tap to return to your current position. • Tap to stop navigating. INFOTAINMENT Maps and Navigation 7 Setting Home and Favorite Destinations Common destinations such as your Home or Workplace can be designated accordingly in the system, allowing you quick access within the Navigation menus. ## More info needed from Fisker Offline Mode When your vehicle does not have an available wireless internet connection, the navigation system will pull from any existing map data that was previously downloaded. Any resulting information displayed will not include live traffic conditions. Map Updates When a data connection is present, updated maps are automatically downloaded to your vehicle via an OTA map update. To ensure your system has the latest information, make sure your vehicle is regularly connected to a network. See Connectivity, page 17. Navigation Settings Tap on the Navigation screen for options: Map settings • Buildings in 3D: Tap to toggle On or Off. • Downloaded Maps: Tap to view the list of maps downloaded to your vehicle. INFOTAINMENT Maps and Navigation 8 Planning & Travel settings Use this menu to select features you wish to avoid on your route. INFOTAINMENT Phone and Smart Devices 9 Bluetooth® Compatibility When in operating range, you can pair a Bluetooth®-capable phone with your vehicle for hands-free use. Bluetooth® usually supports a wireless connection of approximately 30 feet (9 m), although range can vary based on atmospheric conditions and the device used. To use your phone with the vehicle, you must pair it first. See Pairing a Bluetooth® Device, page 9. Up to ten devices can be paired to the vehicle, and two devices can be connected simultaneously. For example, if you own one phone for personal use and another for work, you can connect both to your vehicle and send or receive hands- free calls from either one. Note: Other Bluetooth®-capable devices can also be paired to your vehicle for use…

Text truncated - open the document above for the full version.

Non-SDR-Statement Date: 2022-12-29 Federal Communications Commission Authorization and Evaluation Division FCC ID: 2ACRL-X297 ATTESTATION FCC ID: 2ACRL-X297 Product: Infotainment Headunit Model: X297 Regarding the SDR application guide (KDB442812 D01 SDR Apps Guide v02r03), our answer to the following five questions can be used for determining our device is not an SDR: 1. Can the RF parameters of the device be altered through software? Yes. 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? No, 3. Is the device capable of operating in any other in any other way than granted, or will be, granted? No. 5. Does the manufacturer elect SDR? No Sincerely, Jack Zhang / Manager Harman Automotive Electronic Systems (Suzhou) Co., Ltd

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Harman Automotive Electronic Systems (Suzhou) Co., Ltd Address: No125 Fangzhou Rd, Suzhou SIP, Jiangsu, China City: Suzhou SIP Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2ACRL-X297 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: 12/29/2022 Name and signature of applicant: Jack Zhang Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

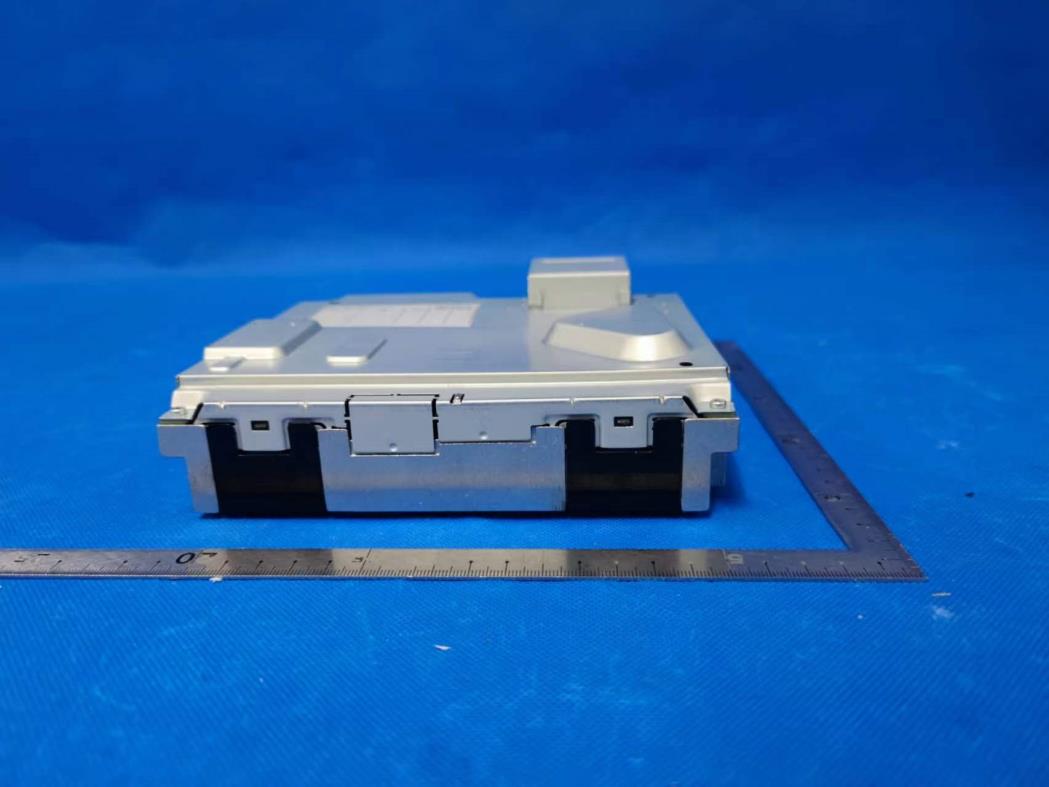

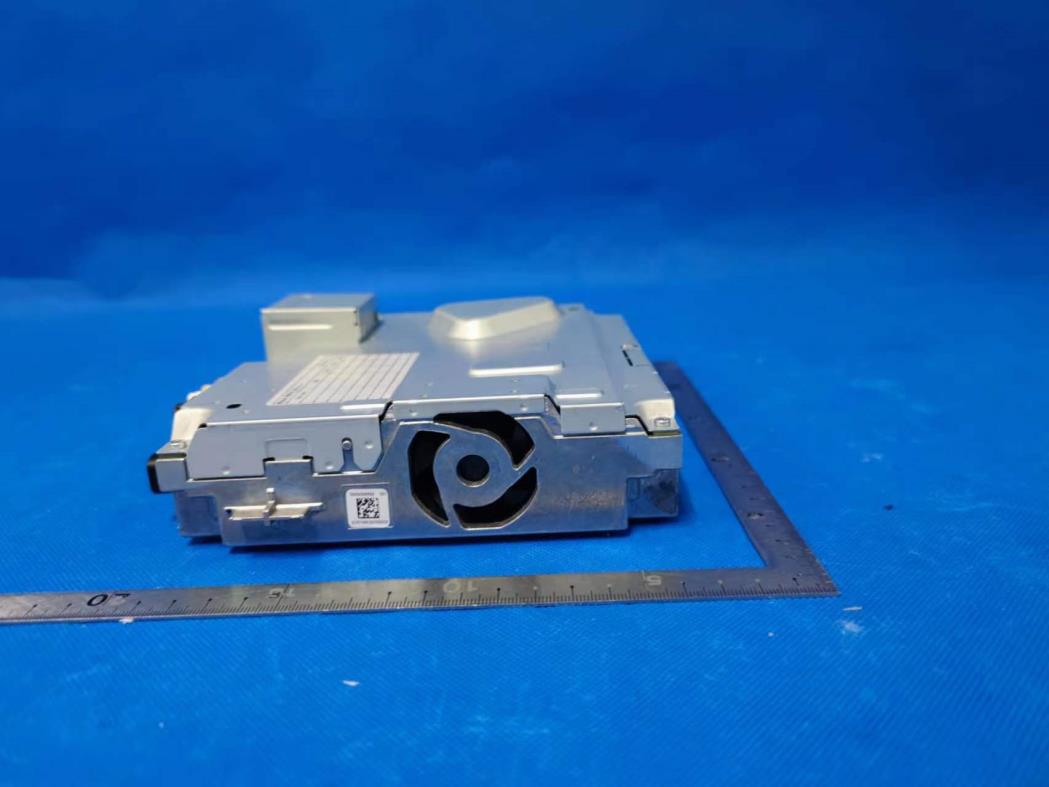

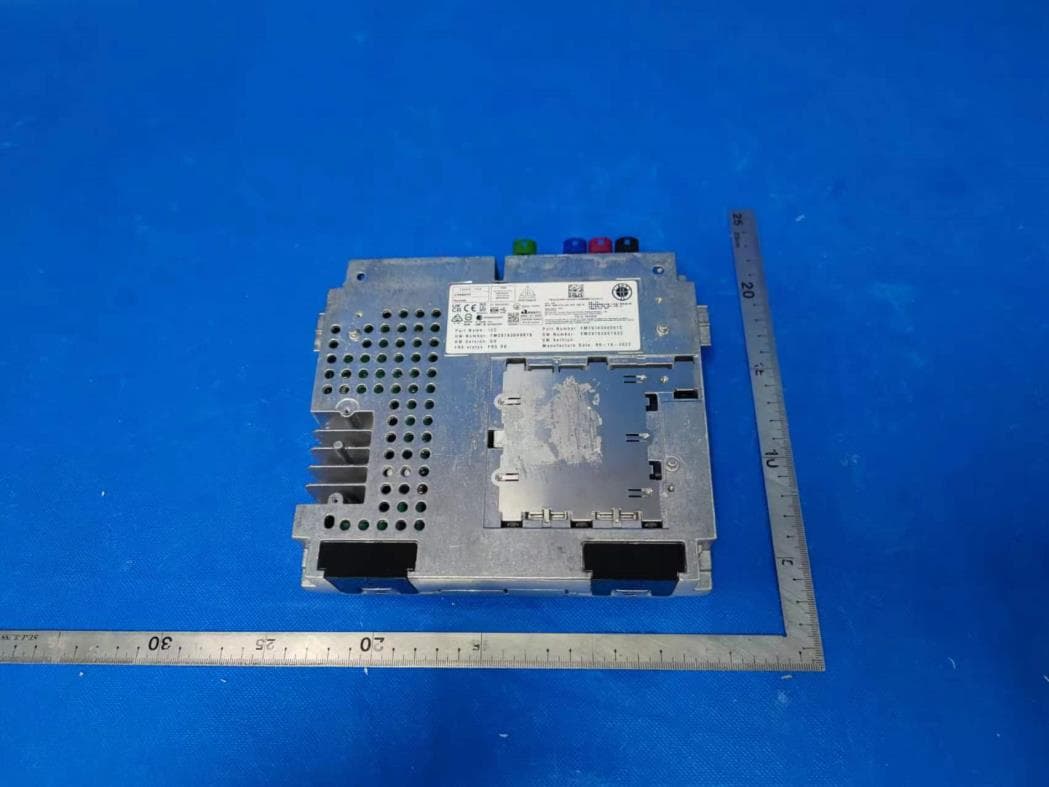

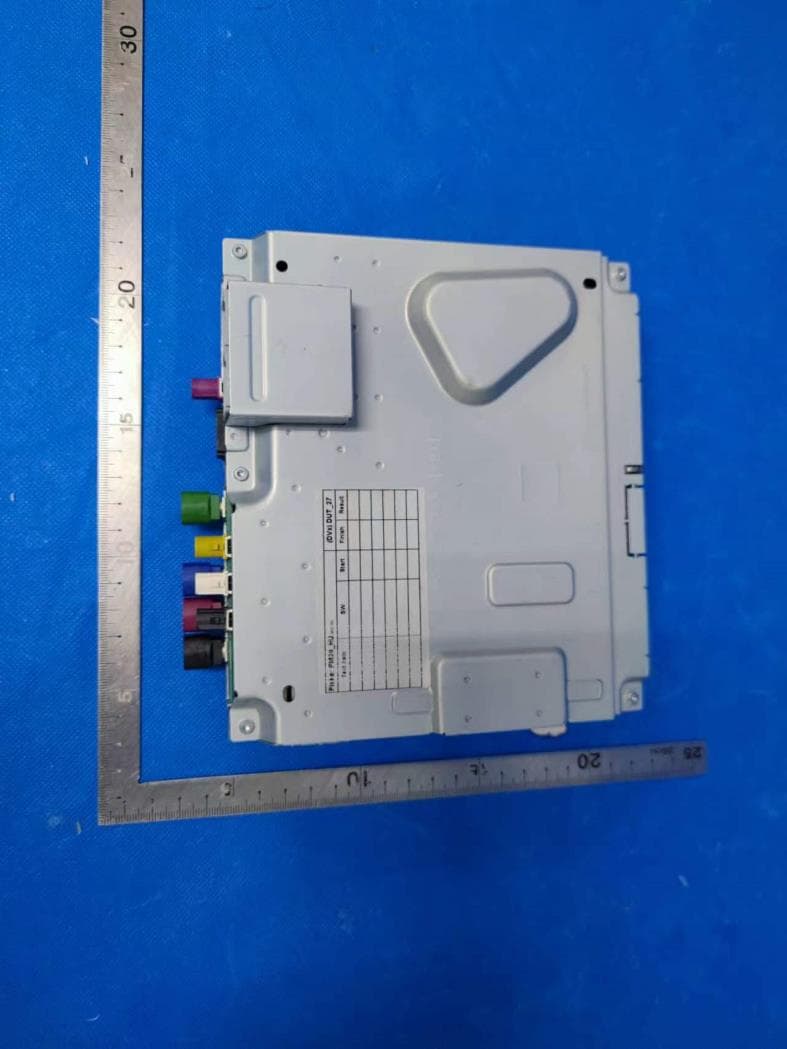

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-External Photo Page 1 / 3 External Photographs (1) EUT Photo (2) EUT Photo DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-External Photo Page 2 / 3 (3) EUT Photo (4) EUT Photo DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-External Photo Page 3 / 3 (5) EUT Photo (6) EUT Photo

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-Internal Photo Page 1 / 5 Internal Photographs (1) EUT Photo (2) EUT Photo DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-Internal Photo Page 2 / 5 (3) EUT Photo (4) EUT Photo DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-Internal Photo Page 3 / 5 (5) EUT Photo (6) EUT Photo DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-Internal Photo Page 4 / 5 (7) EUT Photo (8) EUT Photo DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-Internal Photo Page 5 / 5 (9) EUT Photo (10) EUT Photo

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Test report No: 22A0738R-RF-US-P20V01 FCC Exposure TEST REPORT Product Name Infotainment Headunit FCC ID 2ACRL-X297 Trademark HARMAN Model and /or type reference X297 Applicant ́s name / address Harman Automotive Electronic Systems (Suzhou) Co., Ltd. No.125, Fangzhou Road, Suzhou Industrial Park, Jiangsu Province, China 215024 Test method requested, standard FCC 47CFR §2.1091 Verdict Summary IN COMPLIANCE Documented By (name / position & signature) Jun Xu/ Project Engineer Approved by (name / position & signature) Jack Zhang/ Manager Date of issue 2022-12-20 Report template No Template_FCC-MPE-RF-V1.0 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-US-P20V01 Page 2 / 12 INDEX page Competences and Guarantees ................................................................................................................................... 3 General conditions ...................................................................................................................................................... 3 Environmental conditions............................................................................................................................................ 3 Possible test case verdicts ......................................................................................................................................... 4 Abbreviations .............................................................................................................................................................. 4 Document History ....................................................................................................................................................... 5 Remarks and Comments ............................................................................................................................................ 5 1. RF Exposure Evaluation .................................................................................................................................... 9 1.1. Limits ................................................................................................................................................................. 9 1.2. Test Procedure ................................................................................................................................................ 11 1.3. Test Result of RF Exposure Evaluation .......................................................................................................... 11 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-US-P20V01 Page 3 / 12 COMPETENCES AND GUARANTEES DEKRA is a testing laboratory competent to carry out the tests described in this report. In order to assure the traceability to other national and international laboratories, DEKRA has a calibration and maintenance program for its measurement equipment. DEKRA guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated in the report and it is based on the knowledge and technical facilities available at DEKRA at the time of performance of the test. DEKRA is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA. GENERAL CONDITIONS Test Location No. 99, Hongye Road, Suzhou Industrial Park Suzhou, 215006, P.R. China Date(receive sample) Oct. 19, 2022 Date (start test) Oct. 21, 2022 Date (finish test) Nov. 29, 2022 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or Competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA. ENVIRONMENTAL CONDITIONS The climatic conditions during the tests are within the limits specified by the manufacturer for the operation of the EUT and the test equipment. The climatic conditions during the tests were within the following limits: Ambient temperature 15 °C – 35 °C Relative Humidity air 30% - 60% If explicitly required in the basic standard or applied product / product family standard the climatic values are recorded and documented separately in this test report. DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-US-P20V01 Page 4 / 12 POSSIBLE TEST CASE VERDICTS Test case does not apply to test object N/A Test object does meet requirement P (Pass) / PASS Test object does not meet requirement F (Fail) / FAIL Not measured N/M ABBREVIATIONS For the purposes of the present document, the following abbreviations apply: EUT : Equipment Under Test QP : Quasi-Peak CAV : CISPR Average AV : Average CDN : Coupling Decoupling Network SAC : Semi-Anechoic Chamber OATS : Open Area Test Site BW : Bandwidth AM : Amplitude Modulation PM : P…

Text truncated - open the document above for the full version.

Fisker X297 ANTENNA TEST REPORT 1. Product Overview & Dimension WLAN Antenna (2.4-2.5GHz, 5.15-5.85GHz) BT / WLAN Antenna (2.4-2.5GHz, 5.15-5.85GHz) 2. Test Result BT WLAN Antenna Efficiency WLAN Antenna Efficiency 3. Radiation Pattern BT WLAN Antenna 2450MHz 5550MHz BT WLAN Antenna _ 2450MHz BT WLAN Antenna _ 5550MHz WLAN Antenna 2450MHz 5550MHz WLAN Antenna _ 2450MHz WLAN Antenna _ 5550MH 4. Isolation Better than -25dB for all band 5. Matching BT/WLAN Antenna WLAN Antenna

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Test report No: 22A0738R-RF-US-P06V02 FCC & ISED TEST REPORT Product Name Infotainment Headunit Model and /or type reference X297 Trademark HARMAN FCC ID 2ACRL-X297 IC 12339A-X297 Applicant ́s name / address Harman Automotive Electronic Systems (Suzhou) Co., Ltd. No.125, Fangzhou Road, Suzhou Industrial Park, Jiangsu Province, China 215024 Test method requested, standard FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 RSS-Gen Issue 5 /RSS-247 Issue 2 Verdict Summary IN COMPLIANCE Tested by (name / position & signature) Jun Xu/Project Engineer Approved by (name / position & signature) Jack Zhang/ Manager Date of issue 2023-01-06 Report Version V1.1 Report template No Template_FCC 15.247-RF-V1.0 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-US-P06V02 Page 2 / 106 INDEX page General conditions ............................................................................................................................................................ 5 Environmental conditions .................................................................................................................................................. 5 Possible test case verdicts ................................................................................................................................................ 6 Abbreviations..................................................................................................................................................................... 6 Document History .............................................................................................................................................................. 7 Remarks and Comments .................................................................................................................................................. 7 Used Equipment ................................................................................................................................................................ 8 Uncertainty ........................................................................................................................................................................ 9 1 General Information ............................................................................................................................................... 10 1.1 General Description of the Item(s) ............................................................................................................... 10 1.2 Antenna Information .................................................................................................................................... 11 1.3 Channel List ................................................................................................................................................. 12 2 Description of Test Setup....................................................................................................................................... 13 2.1 Operating mode(s) used for tests ................................................................................................................ 13 2.2 Auxiliary equipment / Test software for the EUT ......................................................................................... 13 2.3 Test Configuration / Block diagram used for tests ....................................................................................... 14 2.4 Testing process ........................................................................................................................................... 15 3 Verdict summary section ........................................................................................................................................ 16 3.1 Standards .................................................................................................................................................... 16 3.2 Deviation(s) from the Standard(s) / Test Specification(s) ............................................................................ 16 3.3 Overview of results ...................................................................................................................................... 17 3.4 Test Facility .................................................................................................................................................. 19 4 Test Results ........................................................................................................................................................... 20 4.1 Conducted Emission .................................................................................................................................... 20 4.1.1 Limit ................................................................................................................................................... 20 4.1.2 Test Setup ......................................................................................................................................... 20 4.1.3 Test Procedure .................................................................................................................................. 20 4.1.4 Test Data ........................................................................................................................................... 21 4.2 Emissions in restricted frequency bands ..................................................................................................... 22 4.2.1 Limit ........................................................................................................…

Text truncated - open the document above for the full version.

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-US-P06V02 Page 79 / 106 4.9.4 Test Data Test Mode Tx On (ms) Tx Off (ms) VBW (kHz) Tx On + Tx Off (ms) Duty Cycle (%) Mode 1 2.86 3.40 0.35 6.26 45.69 Mode 2 2.86 3.38 0.35 6.24 45.83 Mode 3 2.86 3.40 0.35 6.26 45.69 Note 1: T means the minimum transmission duration over which the transmitter is on and is transmitting at its maximum power control level for the tested mode of operation. Mode 1 CH39 2441MHz Mode 2 CH39 2441MHz Mode 3 CH39 2441MHz DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-US-P06V02 Page 80 / 106 4.10 Band Edge VERDICT: PASS 4.10.1 Limit Standard FCC Part 15 Subpart C Paragraph 15.247(d) ,15.209 Frequency bands (MHz) Detector Limit (dBμV/m) RBW (MHz) Distance (m) 2310-2390 2483.5-2500 PK 74 1 3 AV 54 1 3 Note: The field strength of emissions appearing within these frequency bands shall not exceed the limits. 4.10.2 Test Setup 4.10.3 Test Procedure Test Method References Rule Chapter Description DA 00-705 N/A duty cycle correction factor ANSI C63.10 6.10 Band-edge testing ANSI C63.10 6.10.5 Restricted-band band-edge measurements ANSI C63.10 6.10.6 Marker-delta method ANSI C63.10 6.4 Radiated emissions from unlicensed wireless devices below 30 MHz ANSI C63.10 6.5 Radiated emissions from unlicensed wireless devices in the frequency range of 30 MHz to 1000 MHz ANSI C63.10 6.6 Radiated emissions from unlicensed wireless devices above 1 GHz DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-US-P06V02 Page 81 / 106 4.10.4 Test Data Profile: 22A0738R Page No.: 1 Engineer: YuLiu Site: AC5 Time: 2022/11/17 - 23:01 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_00167055(1-18GHz)2022 Polarity: Horizontal EUT: INFOTAINMENT HEADUNIT Power: DC 12V Note: Mode1:Transmit at 2402MHz by DH5 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2390.000 44.675 10.591 -29.325 74.000 34.084 PK DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-US-P06V02 Page 82 / 106 Profile: 22A0738R Page No.: 2 Engineer: YuLiu Site: AC5 Time: 2022/11/17 - 23:03 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_00167055(1-18GHz)2022 Polarity: Horizontal EUT: INFOTAINMENT HEADUNIT Power: DC 12V Note: Mode1:Transmit at 2402MHz by DH5 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2390.000 32.978 -1.106 -21.022 54.000 34.084 AV DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-US-P06V02 Page 83 / 106 Profile: 22A0738R Page No.: 3 Engineer: YuLiu Site: AC5 Time: 2022/11/17 - 23:04 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_00167055(1-18GHz)2022 Polarity: Vertical EUT: INFOTAINMENT HEADUNIT Power: DC 12V Note: Mode1:Transmit at 2402MHz by DH5 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2390.000 46.005 11.921 -27.995 74.000 34.084 PK DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-US-P06V02 Page 84 / 106 Profile: 22A0738R Page No.: 4 Engineer: YuLiu Site: AC5 Time: 2022/11/17 - 23:06 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_00167055(1-18GHz)2022 Polarity: Vertical EUT: INFOTAINMENT HEADUNIT Power: DC 12V Note: Mode1:Transmit at 2402MHz by DH5 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2390.000 32.958 -1.126 -21.042 54.000 34.084 AV DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-US-P06V02 Page 85 / 106 Profile: 22A0738R Page No.: 5 Engineer: YuLiu Site: AC5 Time: 2022/11/17 - 23:09 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_00167055(1-18GHz)2022 Polarity: Horizontal EUT: INFOTAINMENT HEADUNIT Power: DC 12V Note: Mode1:Transmit at 2480MHz by DH5 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2483.500 45.615 11.124 -28.385 74.000 34.491 PK DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-US-P06V02 Page 86 / 106 Profile: 22A0738R Page No.: 6 Engineer: YuLiu Site: AC5 Time: 2022/11/17 - 23:13 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_00167055(1-18GHz)2022 Polarity: Horizontal EUT: INFOTAINMENT HEADUNIT Power: DC 12V Note: Mode1:Transmit at 2480MHz by DH5 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 * 2483.500 32.514 -1.977 -21.486 54.000 34.491 AV DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-US-P06V02 Page 87 / 106 Profile: 22A0738R Page No.: 7 Engineer: YuLiu Site: AC5 Time: 2022/11/17 - 23:15 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_00167055(1-18GHz)2022 …

Text truncated - open the document above for the full version.

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 22A0738R-RF-US-Test Photo Page 1 / 2 FCC&IC Test Photographs Description: Radiated emission Below 1GH…

Text truncated - open the document above for the full version.
