2ACRLH094Car Infotainment

HI BasicHeadunitManual HMI Spec Team Faceplate on theheadunit No.NameDetail description • Use to adjust the power ON / OFF or volume of the product. • To make the AV OFF state,pressPOWER/VOL knobin the power on state. • To make the AV ON state,press POWER/VOL knobin the AV OFF. • To make the PowerOFF state,Long press in the POWER ON state. • To make thePOWER ON state, press POWER/VOL knobin the power OFF. • To adjust volume,turn POWER/VOL left or right. 1 23 1POWER/VOL • Use to adjust the power ON / OFF or volume of the product. • To make the AV OFF state,pressPOWER/VOL knobin the power on state. • To make the AV ON state,press POWER/VOL knobin the AV OFF. • To make the PowerOFF state,Long press in the POWER ON state. • To make thePOWER ON state, press POWER/VOL knobin the power OFF. • To adjust volume,turn POWER/VOL left or right. 2RADIO Switch to the radio application. Toggledthe radio each band is activated whenever pressing the button. Toggled Order FM > AM > DMB 3MEDIA Switch to available media application. Wheneverpressing this button, Media is activated with toggled. Toggled Order Disc > Jukebox(Audio) > Jukebox(Video) > Front USB/Front iPod/CarPlay/Android Auto(Audio last mode (either USB/iPod or Pandora or CarPlay or AndroidAuto))>Front USB (Video)>Rear USB /Rear /Audio last mode (either USB/iPod or Pandora)>RearUSB (Video)>AUX>Bluetooth Audio Faceplate on the headunit No.NameDetail description 1 SEEK Down / TRACK Up Radio :Seek next or previous radio channel. Media :Play next or previous media song. 2MAP Go to the current vehicle map screen is located Map screen :Announce the requirement guidance. Other screen :Go to the Map screen with current position. 12345 2MAP Go to the current vehicle map screen is located Map screen :Announce the requirement guidance. Other screen :Go to the Map screen with current position. 3PHONE Unconnected BT device state: The headunit shows the Bluetooth setting screen BT connected state :The headunit shows the Bluetooth call history. 4BLUELINK The headunit shows the Blue Link mode. 5DISP Short press DISP Switches the display on/off. Long press DISP Shows the setup screen of display settings, with focus on “Illumination (Daylight)” This is also valid when the front monitor was off. 6Tune Radioplayback mode: Increase or Decrease radio frequency. DMB playback mode: Increase or Decrease the DMB channel Media playback mode(DISC, Jukebox, USB, iPod mode) •Rotate the knob : Displays previous or next song information. •Press the knob: Play selected song. CCP and RRC Controller 1 2 3 Menu 4 Menu 5 67 8 No.NameDetail description 1HOME Go to the Home Screen. 2BACK Go back to one level up in the menu tree. 3MENU(OPT) Open the menus. 4Controller Rotate or Move / Push •Press the CCP : Activate the focused menu. •Rotate/Move the CCP : Move the focused item. (Rotating the R/P will move the cursor through lists and spellers. Turning the controller clockwise (cw) in a list moves the cursor down. Turning the controller counter clockwise (ccw) leads to upwards movement of the cursor. ) No.NameDetail description 5HOME Calls up the Home Screen.on rear screen. 6BACK Takes the user one level up in the menu tree.on rear screen 7MENU(OPT) On an Application Screen, if the user presses the HK MENU the Menu opens.on rear screen 8Controller Rotate or Move / Push Activate or move the focused item on rear screen. No.NameDetail description RRC Controller 2 3 1 5 4 6 No.NameDetail description 1MODE Switch available media application. Whenever pressing this button, Media are toggled. Note FM→ AM→ DMB/SiriusXM/DAB→ DVDP(CDDA or VCD or DVD or DATA)->Jukebox(Audio)-> Jukebox(Video)-> Front USB/Front iPod/CarPlay/Android Auto(Audio last mode (either USB/iPod or Pandora or CarPlay or Android Auto)-> Front USB (Video)-> Rear USB /Rear iPod (Audio last mode (either USB/iPod or Pandora)-> Rear USB (Video)-> AUX->Bluetooth Audio last mode (either BT Audio or BT Pandora) 2MUTE Mute/unmutethe system 3DISP-L Turn on/off the rear lift screen 4DISP-R Turn on/off the rear right screen 5 SEEK UP/DOWN Switching to next/prev. channel in preset list (if the user is not in the Radio application a OSD pop-up with the changed channel will be shown.) 6VOL Left / right volume by turning adjustable No.NameDetail description 4 SEEK UP/DOWN Switching to next/prev. channel in preset list (if the user is not in the Radio application a OSD pop-up with the changed channel will be shown.) No.NameDetail description 1PTT(VR) Under VR: skip voice guide and wait command Waiting VR: reset waiting time and wait command again Steering Wheel Key 1 2 34 56 5Send Short Press • Nodevices paired /connected Display a popup that no BT phone is connected •device connected Show dial pad Long Press • Nodevices paired /connected Display a popup that no BT phone is connected •device connected Redial (last outgoing call) 6End •Incoming call Reject incoming call •2nd incoming call Reject incoming call and keep 1st call, •Active call Hang up call •1 call active, 1 call on hold Hang up active call, activate call on hold 2MODE Short Press Switch available Radioand media application. Wheneverpressing this button, Media are toggled. FM→ AM→ DMB/SiriusXM/DAB→ DVDP(CDDA or VCD or DVD or DATA)->Jukebox(Audio)-> Jukebox(Video)-> Front USB/Front iPod/CarPlay/Android Auto(Audio last mode (either USB/iPod or Pandora or CarPlay or Android Auto)-> Front USB (Video)-> Rear USB /Rear iPod (Audio last mode (either USB/iPod or Pandora)-> Rear USB (Video)-> AUX->Bluetooth Audio last mode (either BT Audio or BT Pandora) Long Press AV OFF with beep sound 3VOL Scroll up/ down Left / right volume by turning adjustable Push mutes/unmutes the system No.NameDetail description Room Mirror Key 2 3 1 1 BlueLink Call Connecting bluelink center assistant 2 TBD 3 SOS Connecting blue link emergencyassistance. N o. NameDetail description 1Mainbar Sub menusin selected application 2 Main Content Area The main window is the major interaction area. 3 Assista…

Text truncated - open the document above for the full version.

Statement of Type-Equality Statement of Type-Equality P.AVN3.0 STD Statement of Type-Equality STATEMENT OF TYPE-EQUALITY P.AVN3.0 STD The company HARMAN Automotive Electronic Systems (Suzhou) Co., Ltd, located at No. 125,Fangzhou Road, SIP, Suzhou, Jiangsu, China, as being the manufacturer of the products-P.AVN3.0 STDwhich include7variants: H082, H085,H092, H093, H094, H095,H096 Herebyconfimed that the products are type equal products and differetonlyin the tunercomponents which is designed for different taget countries.The7variants share same main board and same tuner board. H082H085H092H095H093H094H096 NavigationYYYY DAB (Digital Audio Broadcasting) YY SDARS (Satellite Digital Audio Radio Service Y RSE (Rear Seat Entertainment) YYYYY Target Market ROW +Brazil ROW ROW +Brazil ROWEU EU+ Russia Canada Y—The variant support this function N—The variant doesn’t support this function Statement of Type-Equality No.Connector BE H082 BE H085 BE H092 BE H095 BE H093 BE H094 BE H096 1NavigationYYYY 2 LVDS1-Front display YYYYYYY 3LVDS2-Rear displayYYYYY 4LVDS3-Rear displayYYYYY 5LVDS InYYYYYYY 6USB1-FrontYYYYYYY 7USB2-RearYYYYYYY 8USB3-external DVDYYYYYYY 9AM\FM1YYYYYYY 10FM2YYYYYYY 11Tuner(DAB/T-DMB)YY 12Tuner (SDARS)Y

Harman Automotive Electronic Systems (Suzhou) Co., Ltd No125 Fangzhou Rd, Suzhou SIP, Jiangsu, China 022311 – 6 Authority to Act as Agent Date: Oct 15, 2015 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: GUANGZHOU GRG METROLOGY&TEST CO.,LTD. is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 9 Months By: Danie Hong (Signature 1 ) (Print name) Title: Regulatory Compliance Engineer On behalf of: Harman Automotive Electronic Systems (Suzhou) Co., Ltd (Company Name) Telephone: +86 512 62554740 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Harman Automotive Electronic Systems (Suzhou) Co., Ltd No125 Fangzhou Rd, Suzhou SIP, Jiangsu, China 022311 – 6 Request for Confidentiality Date: _ Oct 13, 2015____ Subject: Confidentiality Request for: 2ACRLH094 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term √ Permanent Block Diagrams Short Term Permanent External Photos Short Term Permanent* 2 Internal Photos Short Term √ Permanent Operation Description/Theory of Operation Short Term √ Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term √ Permanent Schematics Short Term Permanent Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ _Harman Automotive Electronic Systems (Suzhou) Co., Ltd__ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __0_ _ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Danie Hong (Signature/Title 3 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.”

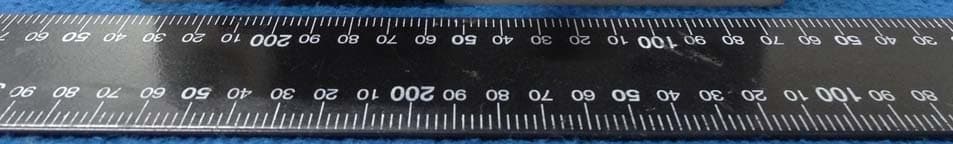

External Photos:

Label location

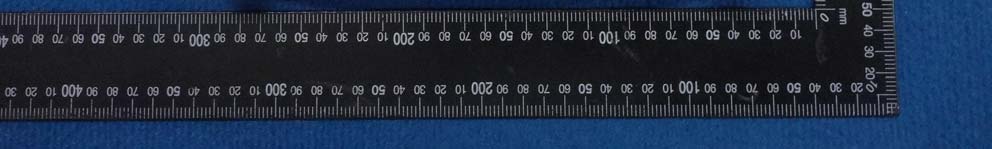

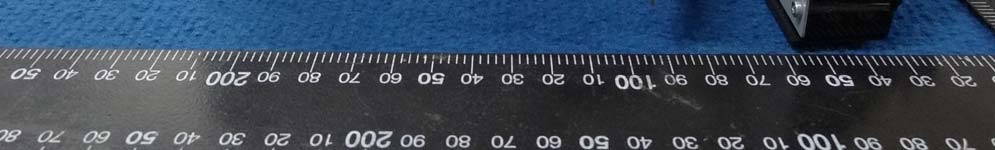

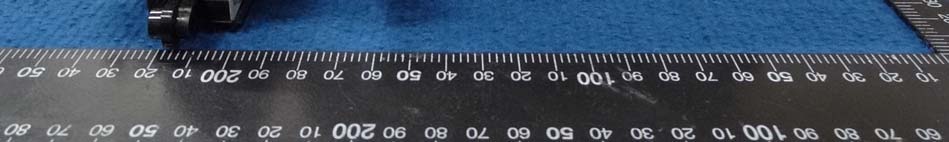

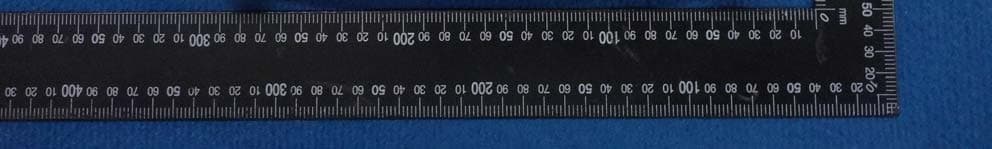

Internal Photos Antenna Location BT Location

RF Exposure Compliance Requirement 1. LIMITS According 447498 D01 General RF Exposure Guidance v05r01 Appendix A SAR Test Exclusion Thresholds for 100 MHz– 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The equation and threshold in section 4.3.1 must be applied to determine SAR test exclusion. Frequency Distance(mm) SAR Test Exclusion Threshold 2450MHz 5 10mW(10dBm) 2. EUT RF Exposure The Max Conducted Peak Output Power is 2.2dBm (1.66mW) in 2402MHz of 8DPSK; The max antenna gain of this antenna is 0.1dBi. 0.1dB logarithmic terms convert to numeric result is nearly 1.02. EIRP= P x G = 1.66mW x 1.02 = 1.69 mW. SAR requirement :S=10mw EIRP < S So the SAR report is not required.

Report No.: EM201500591-3 Application No.: ZJ00068937 Page 55 of 66 IC ID: 12339A-H096 APPENDIX A: PHOTOGRAPH OF THE TEST ARRANGEMENT RSE（Below 1GHz） RSE（Above 1GHz） Report No.: EM201500591-3 Application No.: ZJ00068937 Page 56 of 66 IC ID: 12339A-H096 CE
