2ACRLBEL005Car infotainment system model NLI HU with model variants BE L003, BE L004, BE L005

- 11 - To Whom It may Concern: FCC-ID: 2ACRLBEL005 IC: 12339A-BEL005 FCC Statements FCC § 15.19 Labelling requirements This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC § 15.21 Information to user Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. INDUSTRY CANADA Statements Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The above mentioned statements and paragraphs will be placed in a prominent location in the final user manual. Final manual is not available at the time of certification. Signature Date: 10/3/2014 Aa authorized/ NAME AND TITLE (Please print or type): Aleksey Yevdokymov Dipl. Ing . Testing and cerification project manager 7 layers AG, Borsigstrasse 11, D- 40880 Ratingen, Germany Phone:+49 (0)2102 749 387 Fax: +49 (0)2102 749 350 Email: [email protected] .

- 2 -



















!
"#$%







&
'
(   )##
$**$

' &




! "#$"#%&''()&''*)&''+  , %-&''+  %.-((/,&''+
+

,

-


+
$)

$).
/



&
'
0- 1
&
2


+&
0+1-3
)
43
- &
5
-
/





4 6
/
6 +-

6 (

6 7
! 7


+- 6
/
0

 -
$
"$#
3

8
#*$
&)
6 ,
9-
6 8
9-
6 :
+7
9-
6 ;


:-



&

5 7
 7


/

-
7
- -
2


+&
0+1-3
)
4







7 7  &)
:-






7 7  &
/

 &


-
7 )
:-
7

/
-

 -

- /

-
77

7
< /
/


7  )

!

-



/
&
-
&

5 )





- 1
=









&
>&
:

  /
7 <
  )





"$#

Statement of Type-Equality HARMAN AUTOMOTIVE ELECTRONIC SYSTEMS (SUZHOU) CO., LTDpage 1 of 6 CONFIDENTIAL / ALL RIGHTS RESERVED Statement of Type-Equality Level C MODEL NLI HU Statement of Type-Equality HARMAN AUTOMOTIVE ELECTRONIC SYSTEMS (SUZHOU) CO., LTDpage 2 of 6 CONFIDENTIAL / ALL RIGHTS RESERVED STATEMENT OF TYPE-EQUALITY LEVEL C The company HARMAN Automotive Electronic Systems (Suzhou) Co., Ltd, located at No. 125, Fangzhou Road, SIP, Suzhou, Jiangsu, China, as being the manufacturer of the products--Level C which include 3 variants: BE L003, BE L004, BE L005, hereby confimed that the products are type equal products and differe only in the tuner components which is designed for different taget countries. The 3 variants share same main board and same tuner board. BE L003BE L004BE L005 NavigationYYY DAB (Digital Audio Broadcasting) NYN SDARS (Satellite Digital Audio Radio Service NNY Y—The variant support this function N—The variant doesn’t support this function The following photos show the different and components placement for these 3 variants: Page 3: Tuner connector Page 4: Tuner board Page 5: Main PCB plate (Front side) Page 6: Main PCB plate (Back side) Statement of Type-Equality HARMAN AUTOMOTIVE ELECTRONIC SYSTEMS (SUZHOU) CO., LTDpage 3 of 6 CONFIDENTIAL / ALL RIGHTS RESERVED BE L003 (Level C Navigation only) BE L004 (Level C Navigation+DAB) BE L005 (Level C Navigation+SDARS) Statement of Type-Equality  HARMAN AUTOMOTIVE ELECTRONIC SYSTEMS (SUZHOU) CO., LTD page 4 of 6 CONFIDENTIAL / ALL RIGHTS RESERVEDThe BE L003, BE L004 and BE L005 have the same tuner board and differe only in the tuner components which is designed for differ ent taget countries. BE L003 BE L004 BE L005 DAB module HD RadioModule SDARSModule Statement of Type-Equality  HARMAN AUTOMOTIVE ELECTRONIC SYSTEMS (SUZHOU) CO., LTD page 5 of 6 CONFIDENTIAL / ALL RIGHTS RESERVEDBE L003, BE L004, BE L005 have the same main PCB plat e and same components. (Front side) Statement of Type-Equality  HARMAN AUTOMOTIVE ELECTRONIC SYSTEMS (SUZHOU) CO., LTD page 6 of 6 CONFIDENTIAL / ALL RIGHTS RESERVEDBE L003, BE L004, BE L005 have the same main PCB plat e and same components. (Rear side)

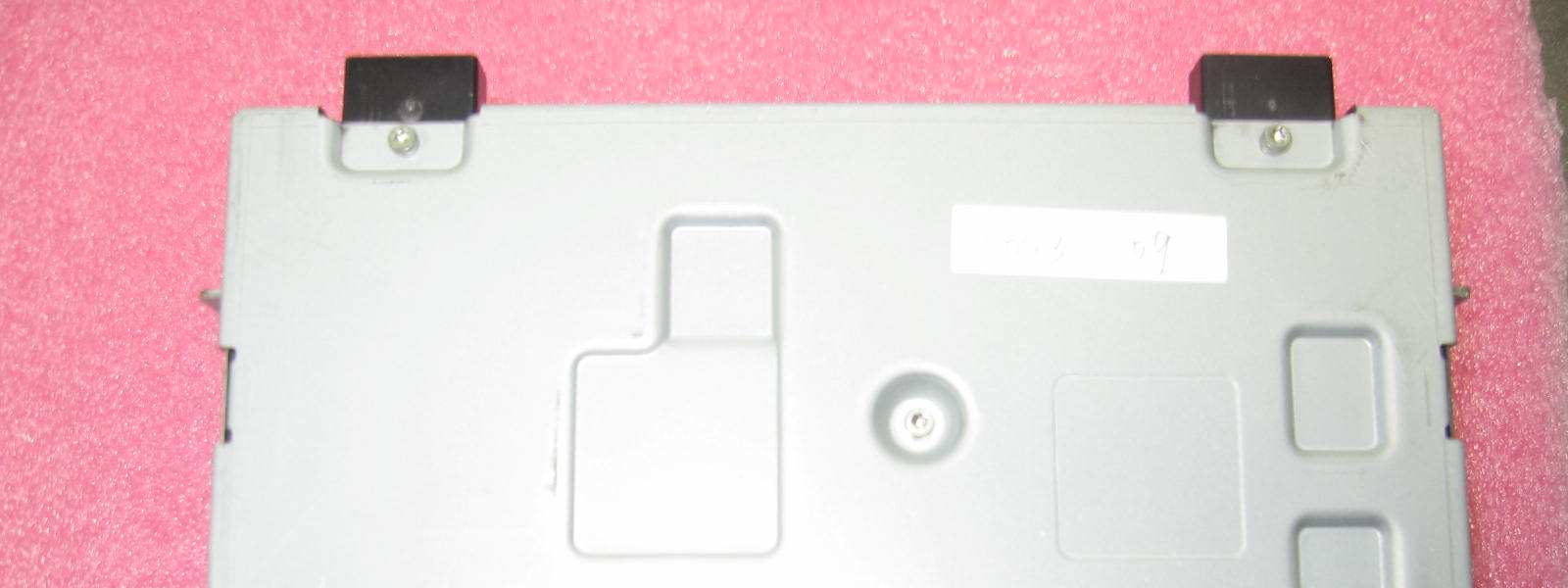

BE L003 external photo. FCC ID 2ACRLBEL005

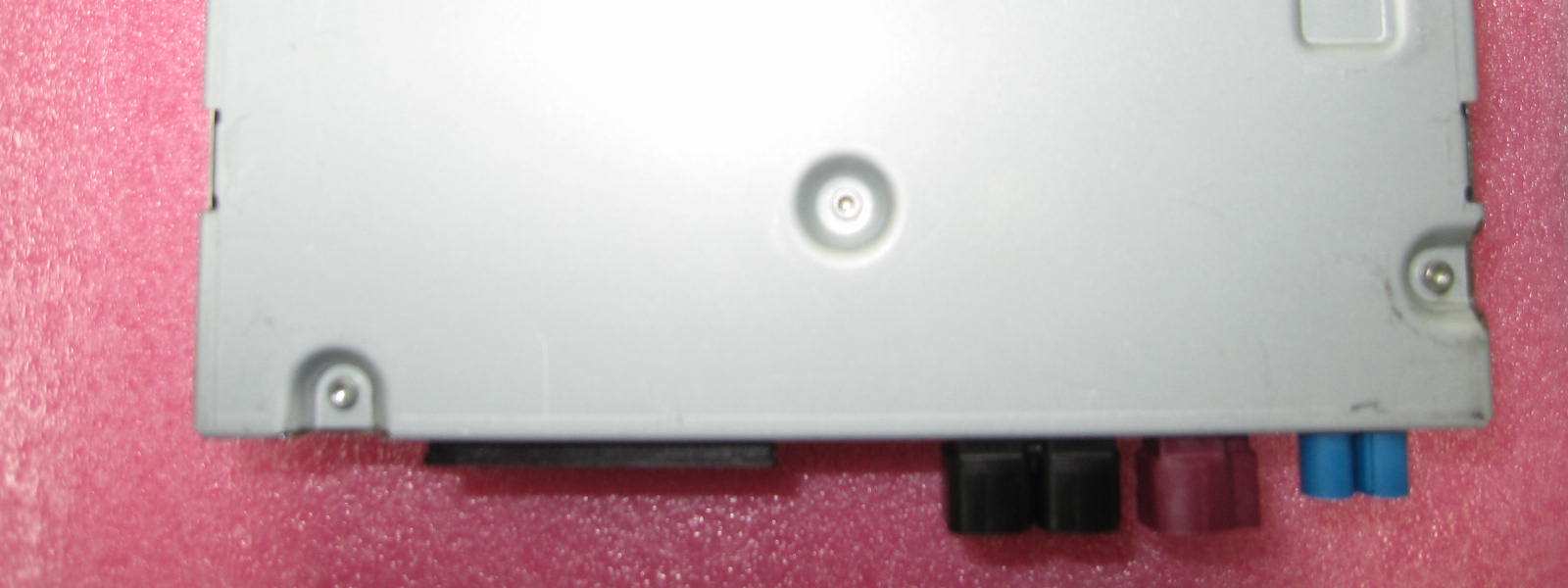

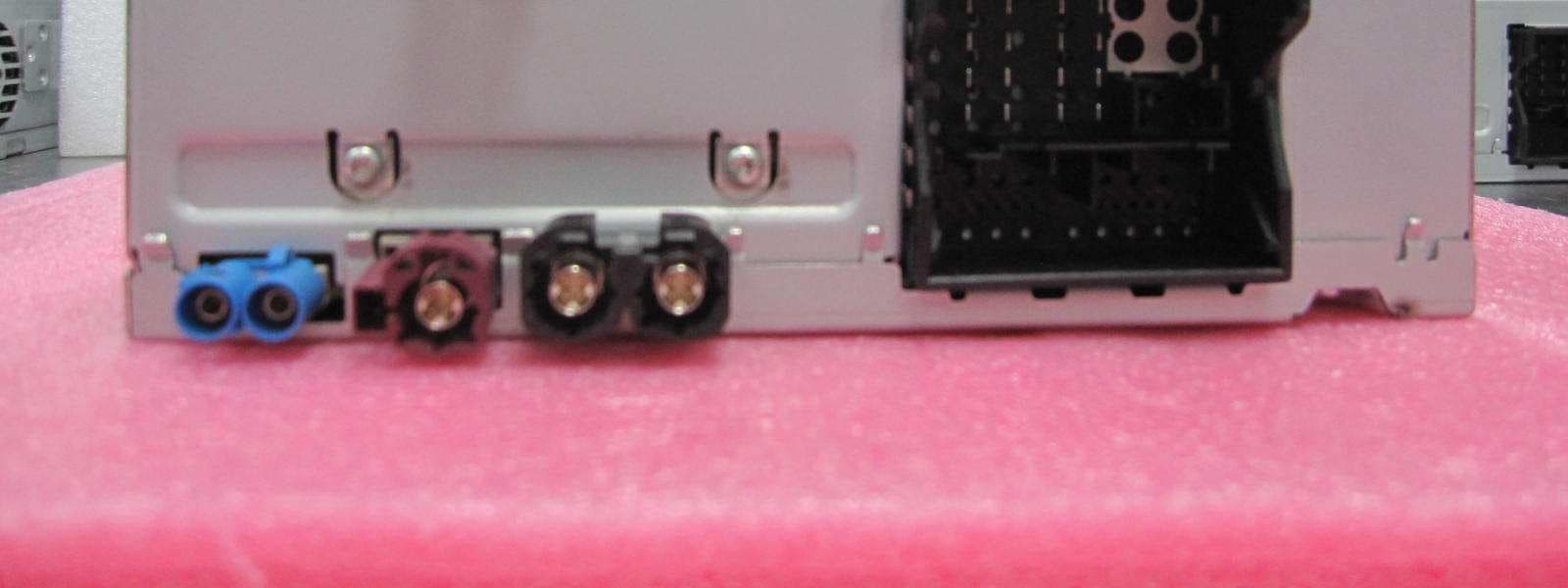

BE L004 external photos. FCC ID 2ACRLBEL005

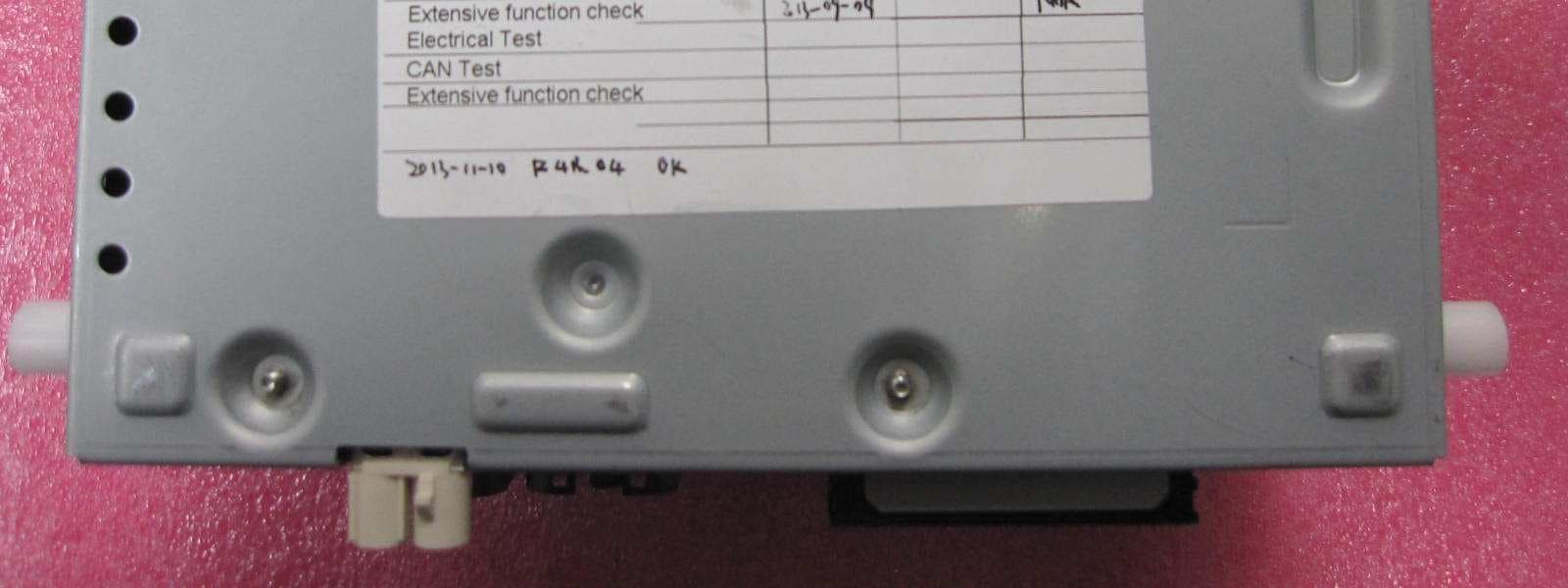

BE L005 external photos. FCC ID 2ACRLBEL005

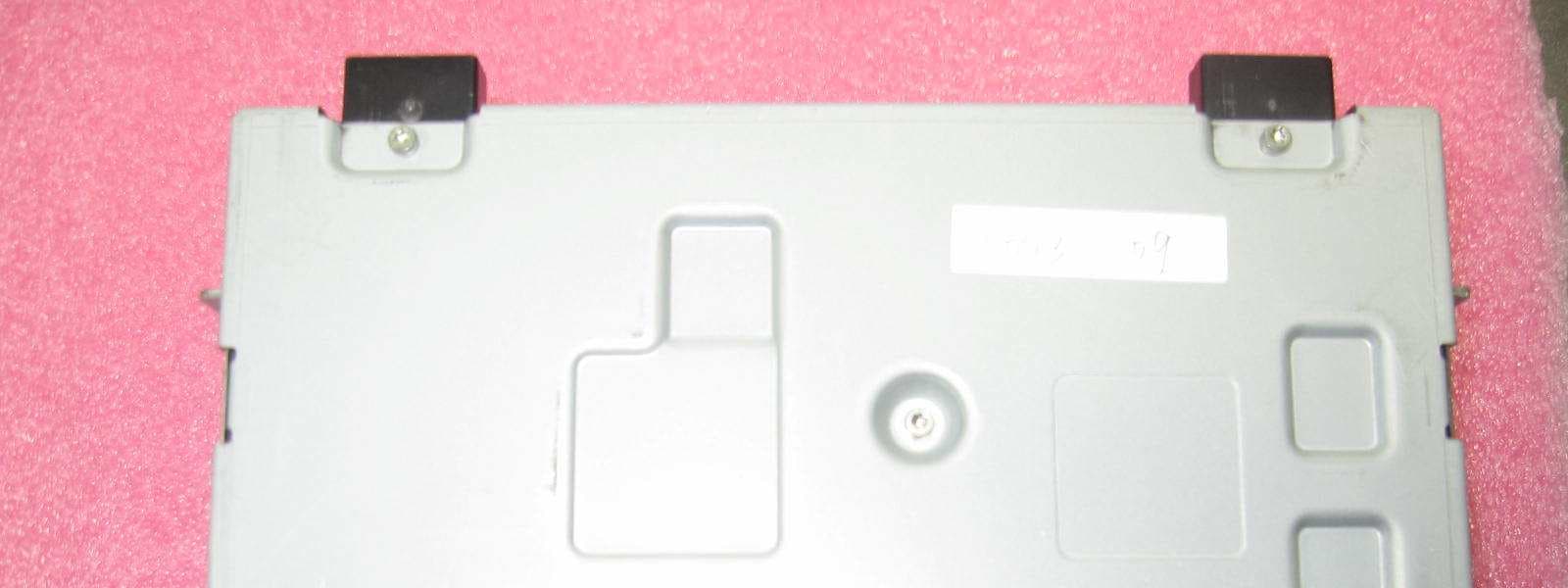

BE L003 internal photos. FCC ID 2ACRLBEL005 The same board also inside BEL003. Photo without shielding

BE L004 internal photos. FCC ID 2ACRLBEL005

BE L005 internal photos. FCC ID 2ACRLBEL005

- 4 - Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 MPE calculation. USA FCC and Inductry Canada IC application . Project MDE_HARMAN_1303_LevC _BT Model BE L003, BE L004, BE L005 7 layers AG Borsigstr.11 40880 Ratingen Germany 03 October 2014 FCC-ID: 2ACRLBEL005 IC ID: 12339A-BEL005 Maximum Permissible Exposure as specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure Frequency range (MHz) Power density (mW/cm²) 300 – 1,500 f/1500 1,500 – 100,000 1.0 Antenna information : 2400.0 MHz- 2483.5 MHz: Bluetooth PCB Antenna: Type: Internal Polarization: Linear Impedance: 50 Ohm Frequency: 2.4 to 2.5GHz Gain: -5 dB VSWR: <2.5 Calculations The output power at antenna input terminal: fcc conducted, incl antenna gain .PSK Modulation:-4.04 dBm (0.39 mW) ; FSK modulation-7.14 dBm(0.19mW) [Worst Case Selection Model L004 has been considered as worst case, due to highest output power value]. Prediction distance R: 20 cm Prediction frequency :2480 MHz MPE limit S: 1 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = P*G / (4 π ππ πR²) S = power density; P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna (20cm) - 5 - P= 0.96 dBm =(1.25 )mW G= -5.00 dBi S = 0.00007847478683 mW/cm² Calculated maximum Power density (S) Limit Verdict 0.00007847478683 mW/cm² 1.0 mW/cm² Pass Yours sincerely ___________________________ Aleksey Yevdokymov, Testing and certification project manager. Ratingen, 3 October 2014

Final Report on Model: NLI HU (Types: BE L003, BE L004, BE L005) MDE_HARMAN_1303_FCCe_LevelC acc. to Title 47 CFR chapter I part 15 subpart C FCC ID: 2ACRLBEL005 Report Reference: October 16, 2014 Date: Reference: MDE_HARMAN_1303_FCCe_LevelC acc. to Title 47 CFR chapter I part 15 subpart C FCC ID: 2ACRLBEL005 2Test Object Data 2.1 General OUT Description The following section lists all OUTs (Object's Under Test) involved during testing. OUT: NLI HU (Type: BE L003) Manufacturer: Please see applicant dataCompany Name: Contact Person:- ValueParameter name Parameter List: -5.0 (dBi)Antenna Gain 13.5 (V)DC Power Supply 2480 (MHz)highest channel (BT) 2402 (MHz)lowest channel (BT) 2441 (MHz)mid channel (BT) OUT: NLI HU (Type: BE L004) Manufacturer: Please see applicant dataCompany Name: Contact Person:- ValueParameter name Parameter List: -5.0 (dBi)Antenna Gain 13.5 (V)DC Power Supply 2480 (MHz)highest channel (BT) 2402 (MHz)lowest channel (BT) 2441 (MHz)mid channel (BT) OUT: NLI HU (Type: BE L005) Manufacturer: Please see applicant dataCompany Name: Contact Person:- ValueParameter name Parameter List: -5.0 (dBi)Antenna Gain 13.5 (V)DC Power Supply 2480 (MHz)highest channel (BT) 2402 (MHz)lowest channel (BT) 2441 (MHz)mid channel (BT) Page 4 of 45 Reference: MDE_HARMAN_1303_FCCe_LevelC acc. to Title 47 CFR chapter I part 15 subpart C FCC ID: 2ACRLBEL005 2.2 Detailed Description of OUT Samples Sample : ac01 OUT IdentifierNLI HU (Type: BE L005) Sample Descriptionconducted sample HW StatusD Sample SW StatusR12 Low VoltageLow Temp.9 V-40 °C High Temp.High Voltage16 V+70 °C Normal Temp.Nominal Voltage13.5 V+25 °C Sample : ba01 OUT IdentifierNLI HU (Type: BE L003) Sample Descriptionconducted sample HW StatusD Sample SW StatusR12 Sample : bb01 OUT IdentifierNLI HU (Type: BE L003) Sample Descriptionradiated sample Serial No.0007063 HW StatusD Sample SW StatusR12 Sample : cc01 OUT IdentifierNLI HU (Type: BE L005) Sample Descriptionradiated sample HW StatusD Sample SW StatusR12 Low VoltageLow Temp.9 V-40 °C High Temp.High Voltage16 V+70 °C Normal Temp.Nominal Voltage13.5 V+25 °C Page 5 of 45 Reference: MDE_HARMAN_1303_FCCe_LevelC acc. to Title 47 CFR chapter I part 15 subpart C FCC ID: 2ACRLBEL005 Sample : db01 OUT IdentifierNLI HU (Type: BE L004) Sample Descriptionconducted sample Serial No.0007297 HW StatusD Sample SW StatusR12 Low VoltageLow Temp.9 V-40 °C High Temp.High Voltage16 V+70 °C Normal Temp.Nominal Voltage13.5 V+25 °C Sample : dd01 OUT IdentifierNLI HU (Type: BE L004) Sample Descriptionradiated sample Serial No.0007294 HW StatusD Sample SW StatusR12 Low VoltageLow Temp.9 V-40 °C High Temp.High Voltage16 V+70 °C Normal Temp.Nominal Voltage13.5 V+20 °C Page 6 of 45 Reference: MDE_HARMAN_1303_FCCe_LevelC acc. to Title 47 CFR chapter I part 15 subpart C FCC ID: 2ACRLBEL005 2.3 OUT Features Features for OUT: NLI HU (Type: BE L003) Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 BTEUT supports Bluetooth data rate of 1 Mbps with GFSK modulation in the band 2400 MHz - 2483.5 MHz DCThe OUT is powered by or connected to DC EDR2EUT supports Bluetooth using data rate of 2 Mbps with PI/4 DQPSK modulation in the band 2400 MHz - 2483.5 MHz EDR3EUT supports Bluetooth using data rate of 3 Mbps with 8DPSK modulation in the band 2400 MHz - 2483.5 MHz IantIntegral Antenna: permanent fixed antenna, which may be built-in, designed as an indispensable part of the equipment TantCtemporary antenna connector, which may be only built-in for testing, designed as an example part of the equipment Features for OUT: NLI HU (Type: BE L004) Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 BTEUT supports Bluetooth data rate of 1 Mbps with GFSK modulation in the band 2400 MHz - 2483.5 MHz DCThe OUT is powered by or connected to DC EDR2EUT supports Bluetooth using data rate of 2 Mbps with PI/4 DQPSK modulation in the band 2400 MHz - 2483.5 MHz EDR3EUT supports Bluetooth using data rate of 3 Mbps with 8DPSK modulation in the band 2400 MHz - 2483.5 MHz IantIntegral Antenna: permanent fixed antenna, which may be built-in, designed as an indispensable part of the equipment TantCtemporary antenna connector, which may be only built-in for testing, designed as an example part of the equipment Features for OUT: NLI HU (Type: BE L005) Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 BTEUT supports Bluetooth data rate of 1 Mbps with GFSK modulation in the band 2400 MHz - 2483.5 MHz DCThe OUT is powered by or connected to DC EDR2EUT supports Bluetooth using data rate of 2 Mbps with PI/4 DQPSK modulation in the band 2400 MHz - 2483.5 MHz EDR3EUT supports Bluetooth using data rate of 3 Mbps with 8DPSK modulation in the band 2400 MHz - 2483.5 MHz IantIntegral Antenna: permanent fixed antenna, which may be built-in, designed as an indispensable part of the equipment Page 7 of 45 Reference: MDE_HARMAN_1303_FCCe_LevelC acc. to Title 47 CFR chapter I part 15 subpart C FCC ID: 2ACRLBEL005 Features for OUT: NLI HU (Type: BE L005) Allowed ValuesDesignationDescriptionSupported Value(s) TantCtemporary antenna connector, which may be only built-in for testing, designed as an example part of the equipment 2.4 Setups used for Testing For each setup a relation is given to determine if and which samples and auxiliary equipment is used. The left side list all OUT samples and the right side lists all auxiliary equipment for the given setup. Sample No.Sample DescriptionAE No.AE Description Setup No. List of OUT samplesList of auxiliary equipment AC01_L005 (Level C (BE 005)) ac01conducted sampleSample: BA01_L003 (Level C (BE L003)) ba01conducted sampleSample: BB01_L003 (Level C (BE L003) radiated setup) bb01radiated sampleSample: CC01_L005 (Level C (BE L005) radiated setup) cc01radiated sampleSample: DB01_L004 (Level C (BE L004)) db01conducted sampleSample: DD01_L004 (Level C (radiated setup)) dd01radiated sampleSample: Page 8 of 45 Reference: MDE_HARMAN_1303_F…

Text truncated - open the document above for the full version.

Test Laboratory: 7Layers AG Borsigstrasse 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7 layers AG Aufsichtsratsvorsitzender h Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Peter Mertel USt-IdNr h VAT No.: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com Dr. H. Ansorge Photo Report on Test Setups For report MDE_HARMAN_1303_FCCd_LevelC Report Reference: MDE_HARMAN_1303_FCCd_LevelC_Setup_Photos Version: 2014-10-01 FCC ID: 2ACRLBEL005 Test report Reference: MDE_HARMAN_1303_FCCd_LevelC_Setup_Photos Page 2 of 5 Photo 1: Test setup for radiated measurements, EUT in horizontal position Enclosure, semi-anechoic chamber, below 30 MHz, intentional radiator §15 Test report Reference: MDE_HARMAN_1303_FCCd_LevelC_Setup_Photos Page 3 of 5 Photo 2: Test setup for radiated measurements, EUT in vertical position Enclosure, semi-anechoic chamber, 30 MHz to 1 GHz, intentional radiator §15 Test report Reference: MDE_HARMAN_1303_FCCd_LevelC_Setup_Photos Page 4 of 5 Photo 3: Test setup for radiated measurements, EUT in horizontal position Enclosure, fully-equipped anechoic chamber, 1-18 GHz §15 Test report Reference: MDE_HARMAN_1303_FCCd_LevelC_Setup_Photos Page 5 of 5 Photo 4: Test setup for radiated measurements, EUT in horizontal position Enclosure, fully-equipped anechoic chamber, 18-25 GHz. §15
