2ACVG-BXOBAKA GMT DIGITAL REMOTE THERMOMETER BLACK

KN128 REMOTE TIMER INSTRUCTIONS_revisions.indd 19/22/14 12:21 PM KA GMT DIGITAL REMOTE THERMOMETER BLACK KN128 REMOTE TIMER INSTRUCTIONS_revisions.indd 29/22/14 12:21 PM FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Shuanghe Electron instrument Co.,Ltd. Dayin Industrial Park Yuanqu Rd. 11#,Yuyao,Zhejiang,China Confidentiality Request Letter Page 1 of 1 Rev 2.0 December 30, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID:2ACVG-BXOBA We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________________________ Client’s name / title: Leon Chen / MANAGER Contact information / address: Dayin Industrial Park Yuanqu Rd. 11#,Yuyao,Zhejiang,China Contact Email: [email protected] ContactPhone: 0574-62915945 ContactFax: 0574-62913278

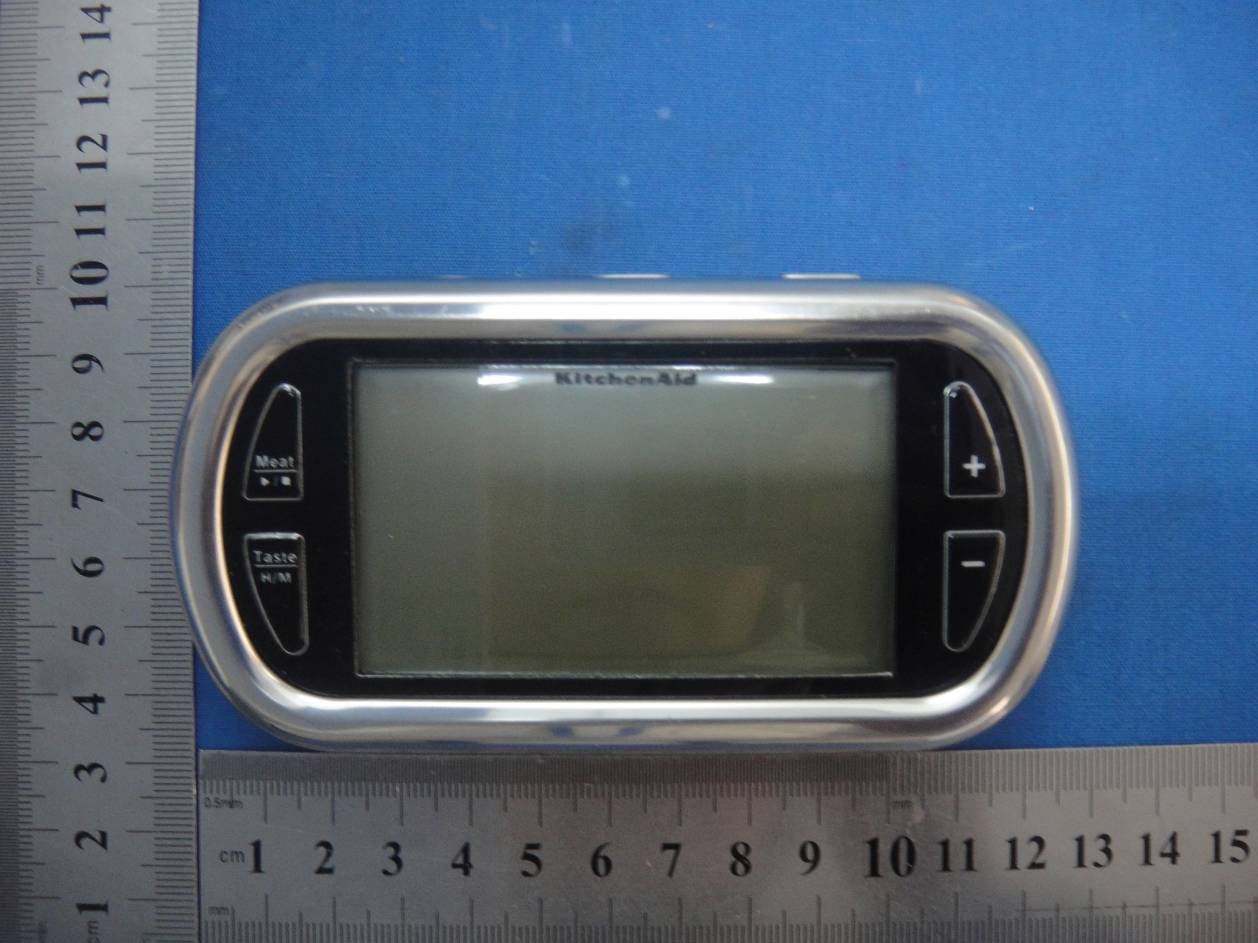

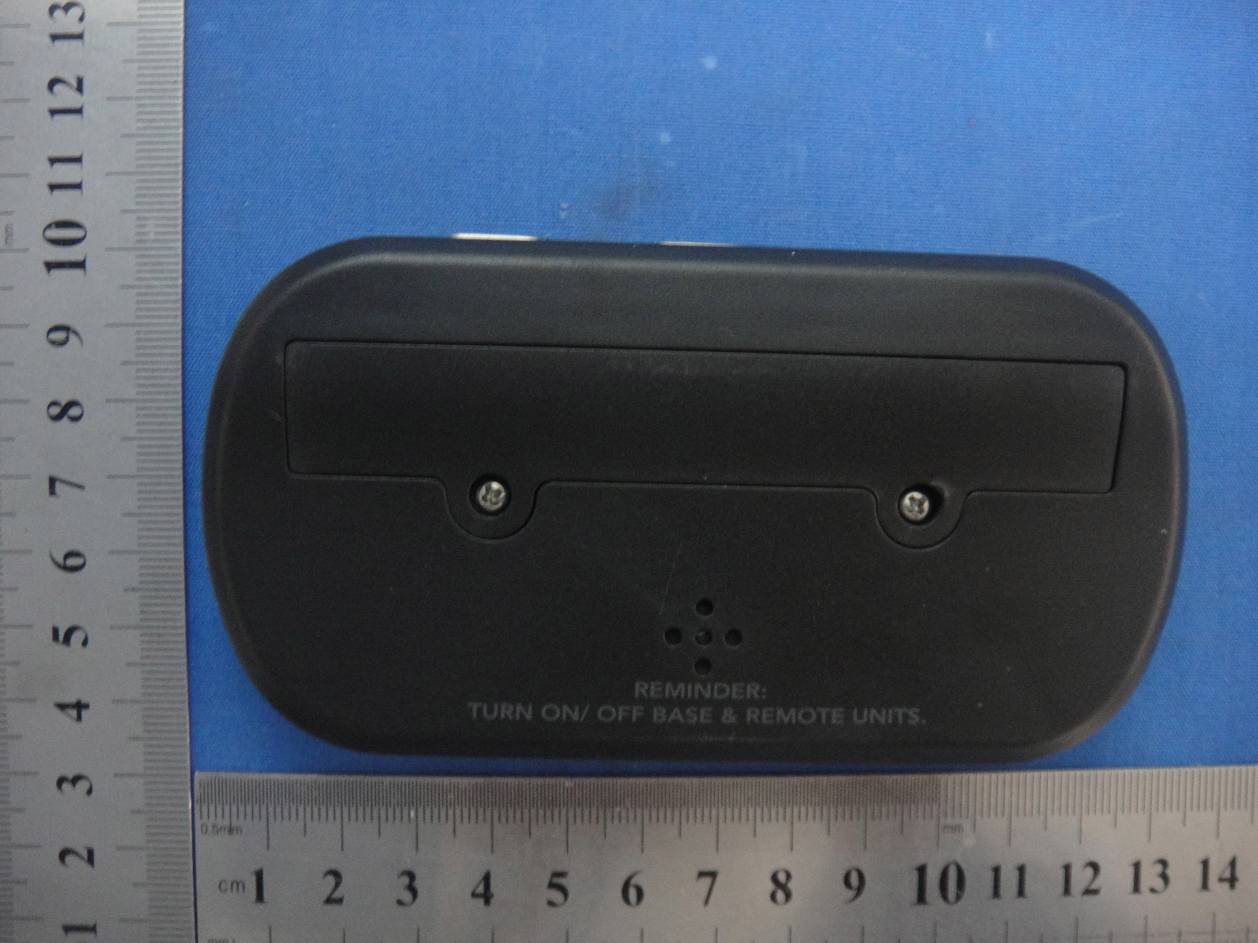

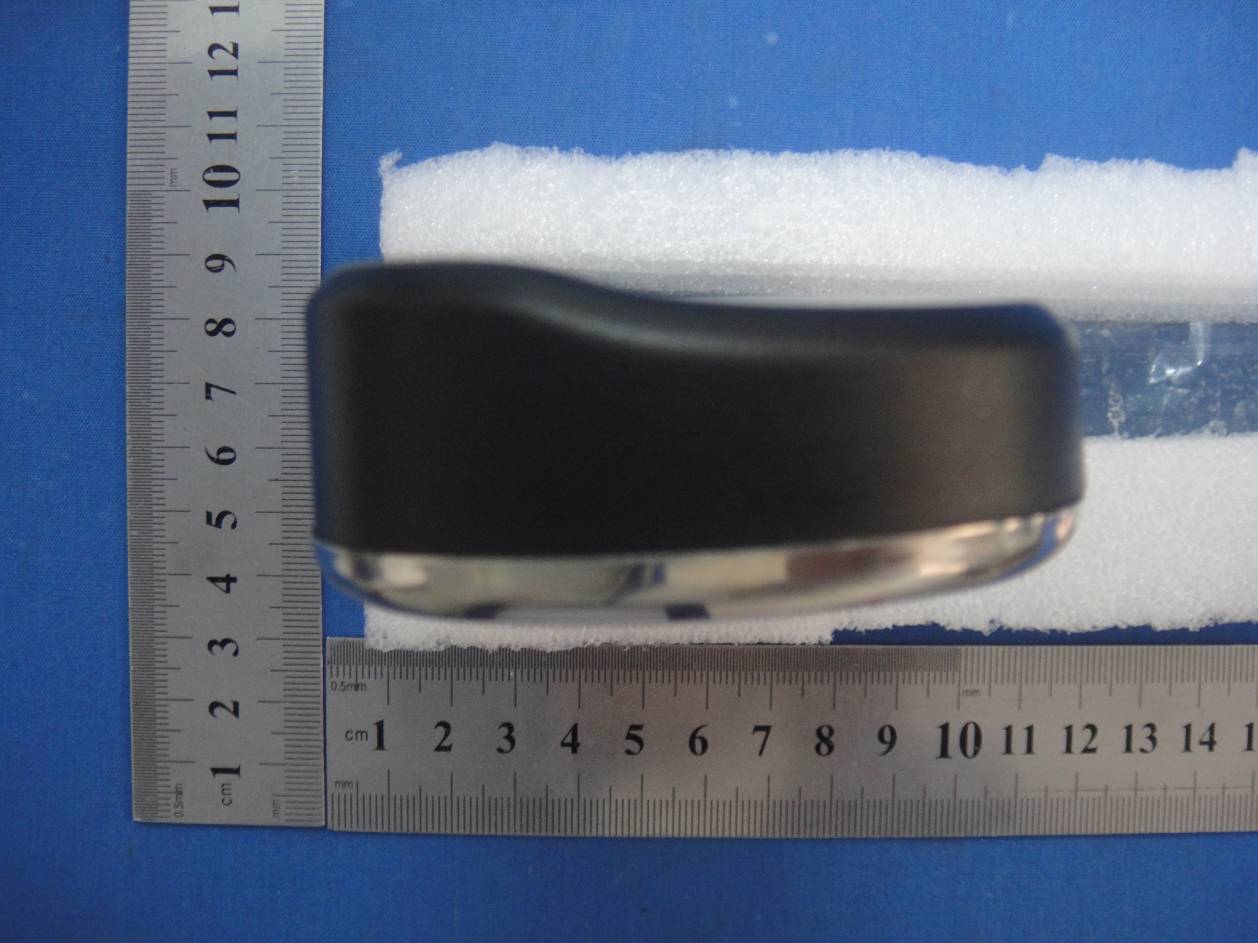

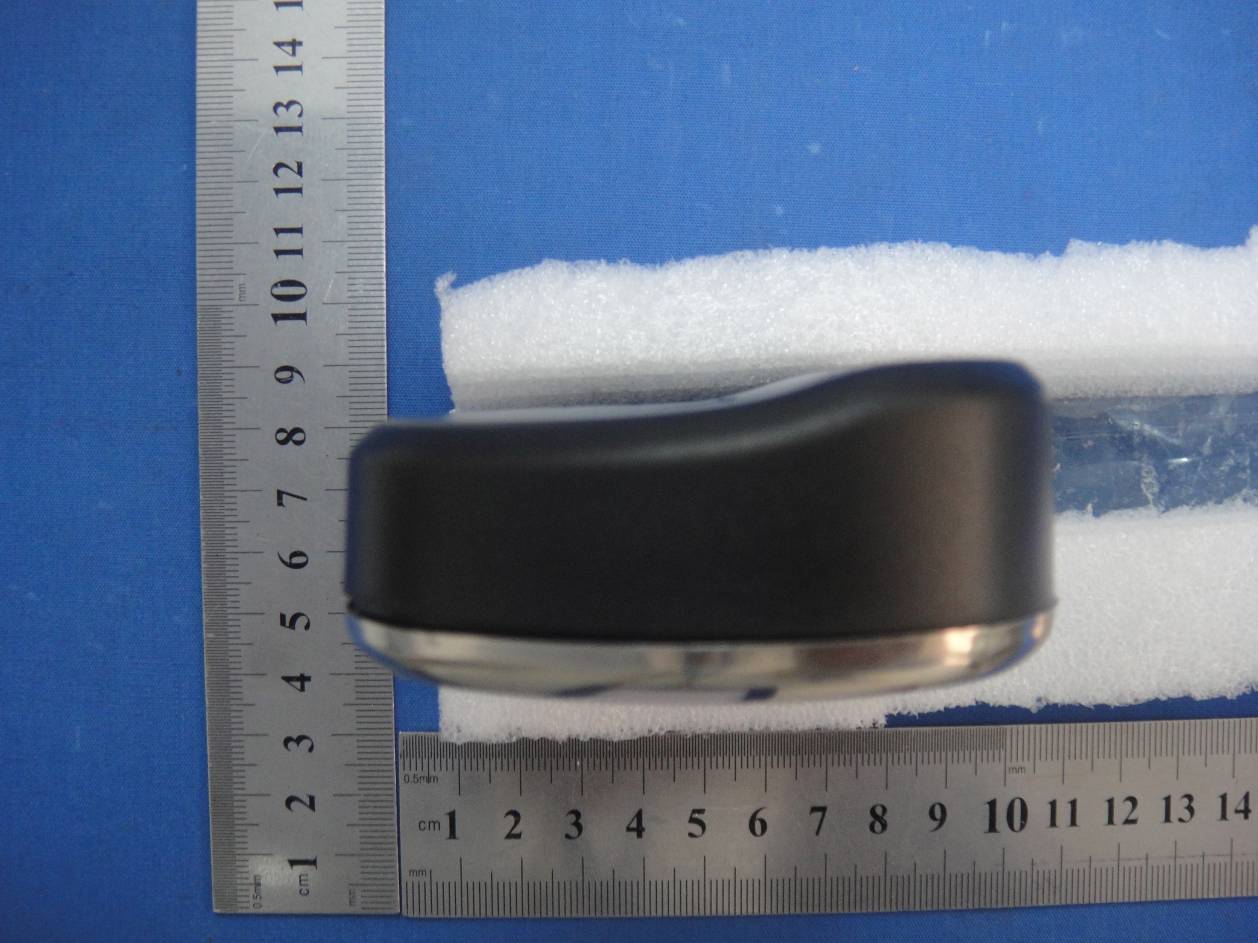

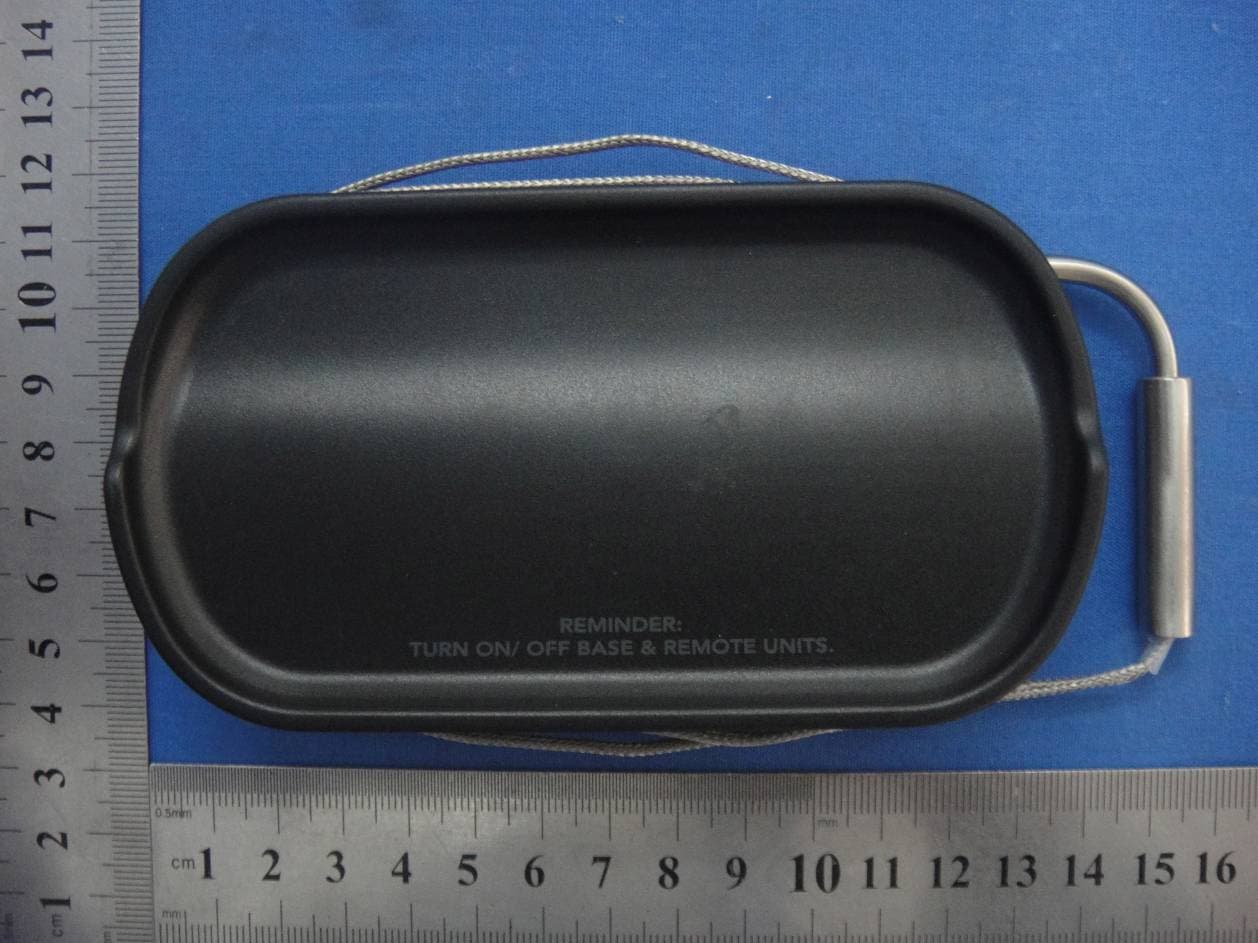

External Photo

FCC Certification Label FCC ID:2ACVG-BXOBA Label Location on EUT label size:high 0.5cm, Wide:1.5 cm EUT View/ FCC ID Label Location

Internal Photo RX Antenna

FCC PART 15 CLASS B EMI MEASUREMENT AND TEST REPORT For Shuanghe Electron instrument Co.,Ltd. Dayin Industrial Park Yuanqu Rd. 11#,Yuyao,Zhejiang,China FCC ID:2ACVG-BXOBA KN128BXOBA This Report Concerns: Original Report Equipment Type: KA GMT DIGITAL REMOTE THERMOMETER BLACK Test Engineer: Lisa Chen Report No.: BSL20141230-2 Receive EUT Date/Test Date: December 20, 2014 / December 20- December 30, 2014 Reviewed By: Sky Zhang Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of BSL Testing Co.,LTD. This report must not be used by the client to claim product certification, approval,or endorsement by NVLAP, NIST or any agency of the US Government. FCC ID:2ACVG-BXOBA Page 2/14 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 3 1.1. Report information............................................................................................................ 3 2. PRODUCT DESCRIPTION ...................................................................................................... 4 2.1. EUT Description ............................................................................................................... 4 2.2. Block Diagram of EUT Configuration ............................................................................. 4 2.3. Figure 1 EUT Setup Support Equipment List................................................................... 4 2.4. Test Conditions .................................................................................................................5 2.5. TEST Results SUmmary................................................................................................... 5 3. TEST EQUIPMENT USED ....................................................................................................... 6 4. CONDUCTED EMISSION TEST............................................................................................. 7 4.1. Block Diagram of Test Setup............................................................................................ 7 4.2. Test Standard .................................................................................................................... 7 4.3. Conducted Emission Limit(Class B) ................................................................................ 8 4.4. EUT Configuration on Test .............................................................................................. 8 4.5. Operating Condition of EUT ............................................................................................ 8 4.6. Test Procedure ..................................................................................................................8 4.7. Test Result ........................................................................................................................ 8 5. RADIATED EMISSION MEASUREMENT ........................................................................... 9 5.1. Block Diagram of EUT Configuration ............................................................................. 9 5.2. Test Standard .................................................................................................................... 9 5.3. Radiated Emission Limit(Class B) ................................................................................. 10 5.4. EUT Configuration on Test ............................................................................................ 10 5.5. Operating Condition of EUT .......................................................................................... 10 5.6. Test Procedure ................................................................................................................ 11 5.7. Test Result ...................................................................................................................... 11 FCC ID:2ACVG-BXOBA Page 3/14 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must not be used to indicate or imply that BSL approves recommends or endorses the manufacture, supplier or use of such product/equipment, or that BSL in any way guarantees the later performance of the product/equipment. 1.1.2.The sample/s mentioned in this report is/are supplied by Applicant, BSL therefore assumes no responsibility for the accuracy of information on the brand name, model number, origin of manufacture or any information supplied. 1.1.3.Additional copies of the report are available to the Applicant at an additional fee. No third part can obtain a copy of this report through BSL, unless the applicant has authorized BSL in writing to do so. Test Facility - The test site used to collect the radiated data is located on the address of BSL Testing Co.,LTD. (FCC Registered Test Site Number: 191509) on NO. 24, ZH Park, Nantou, Shenzhen, 518000 China The Test Site is constructed and calibrated to meet the FCC requirements. The reported uncertainty of measurement y U,where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2,providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Conducted Emission Test +/-1.25dB 2 RF Power, Conducted +/-0.20dB 3 Spurious emissions, conducted +/-0.33dB 4 All emissions, radiated (<1G) +/-3.47dB 5 All emissions, radiated (>1G) +/-3.82dB 6 Temperature +/-0.5dB 7 Humidity +/-2% FCC ID:2ACVG-BXOBA Page 4/14 2. PRODUCT DESCRIPTION 2.1. EUT Description Applicant : Shuanghe Electron instrument C…

Text truncated - open the document above for the full version.

Radiated emissions test
