2ACVG-STG-RWEATHER STATION-RX

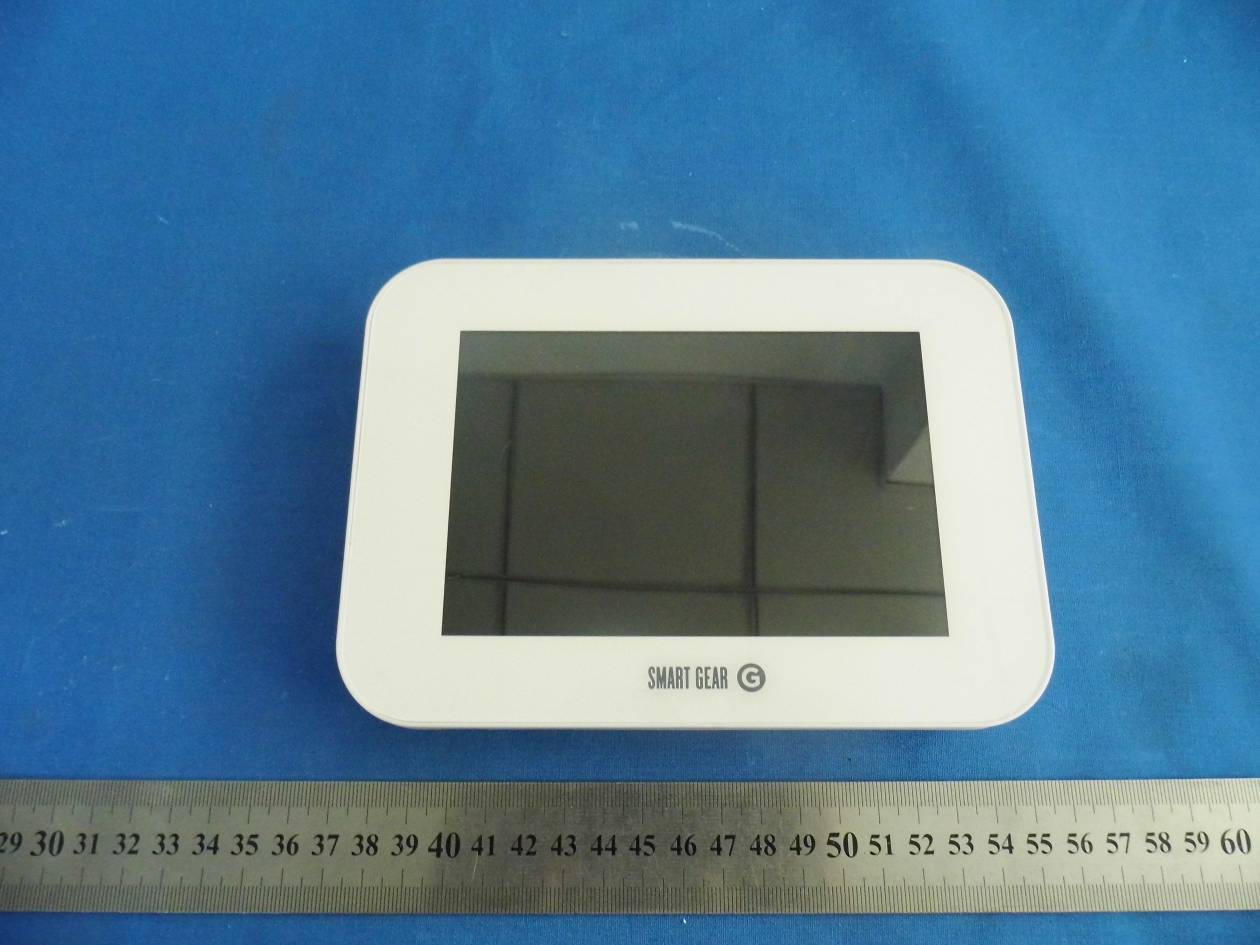

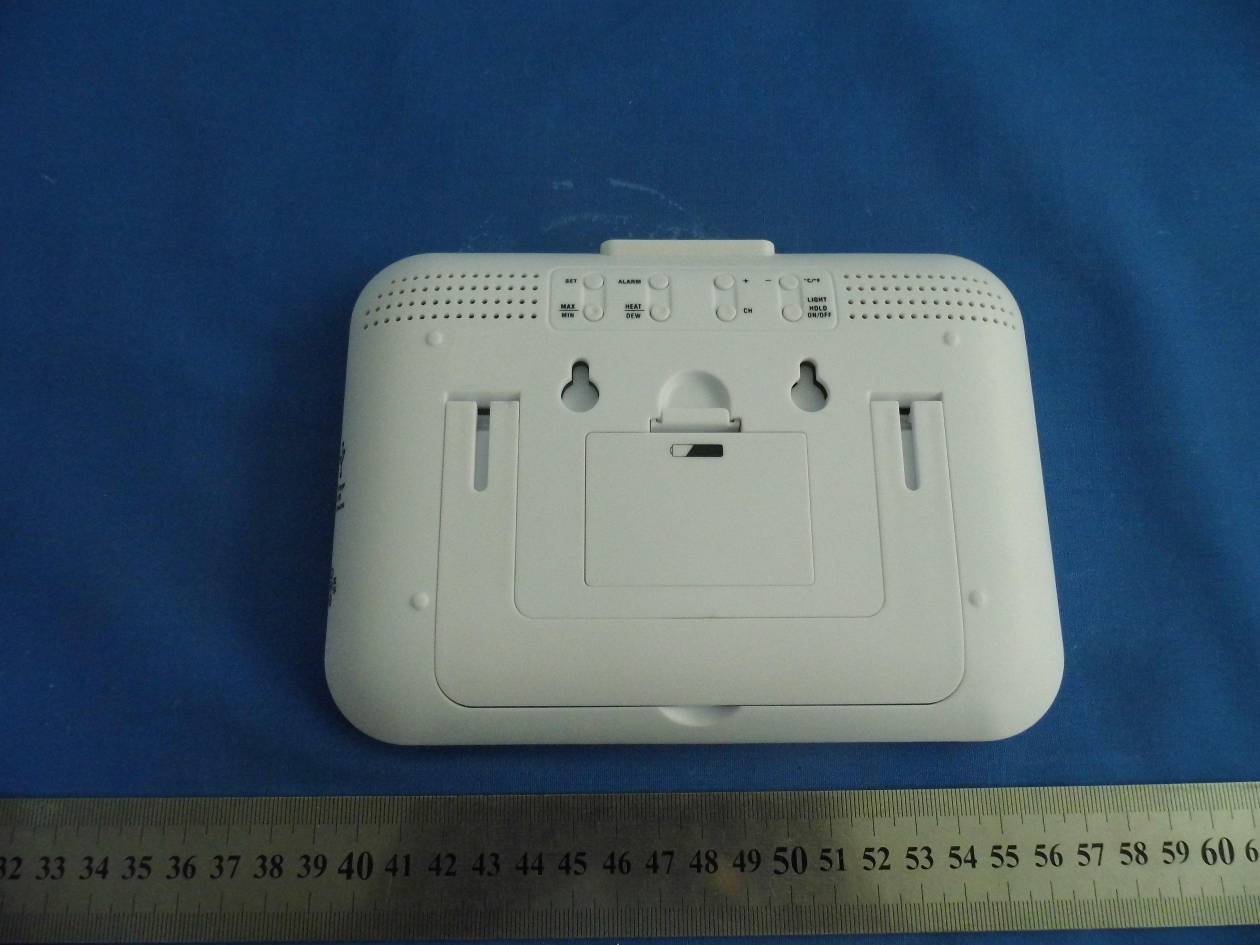

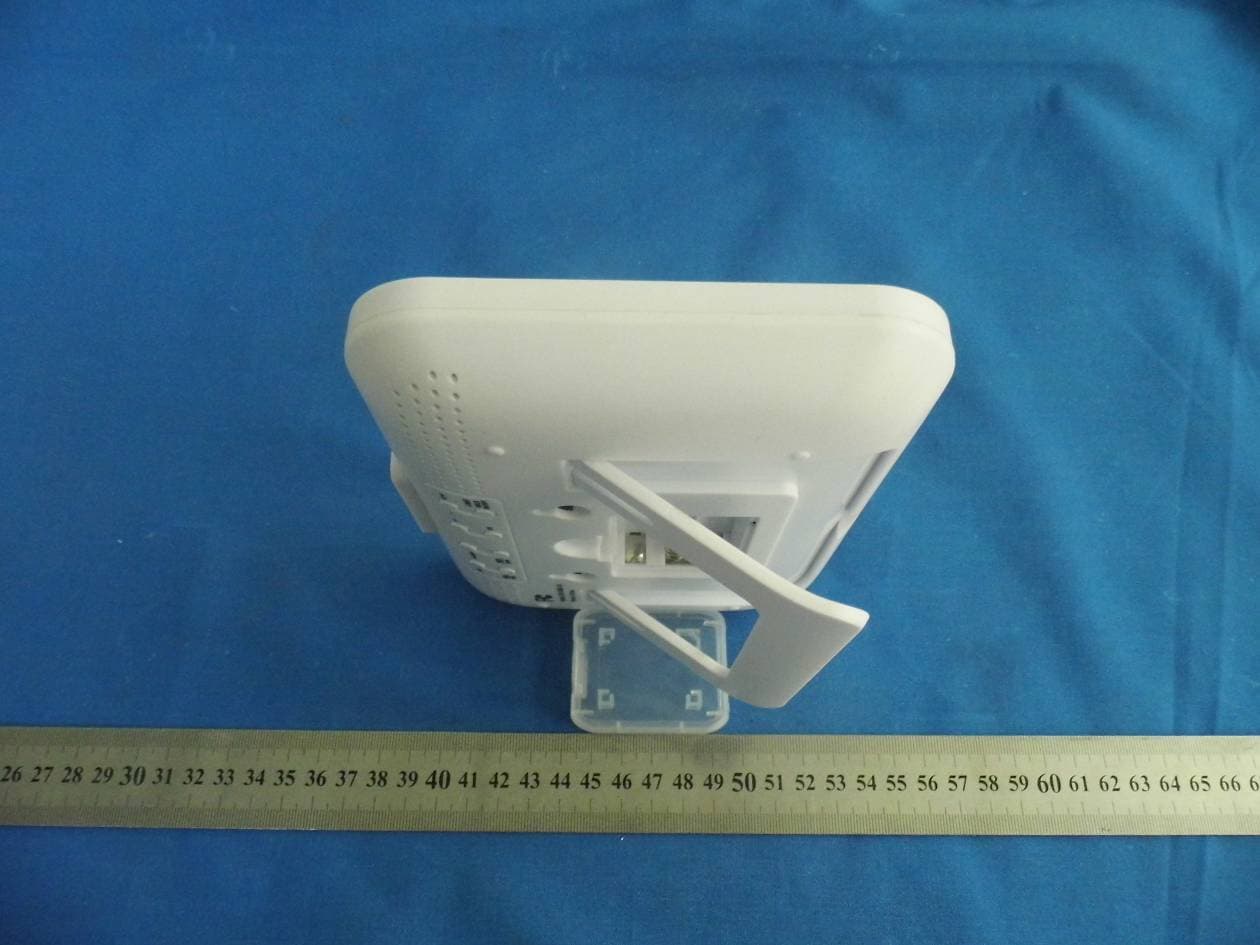

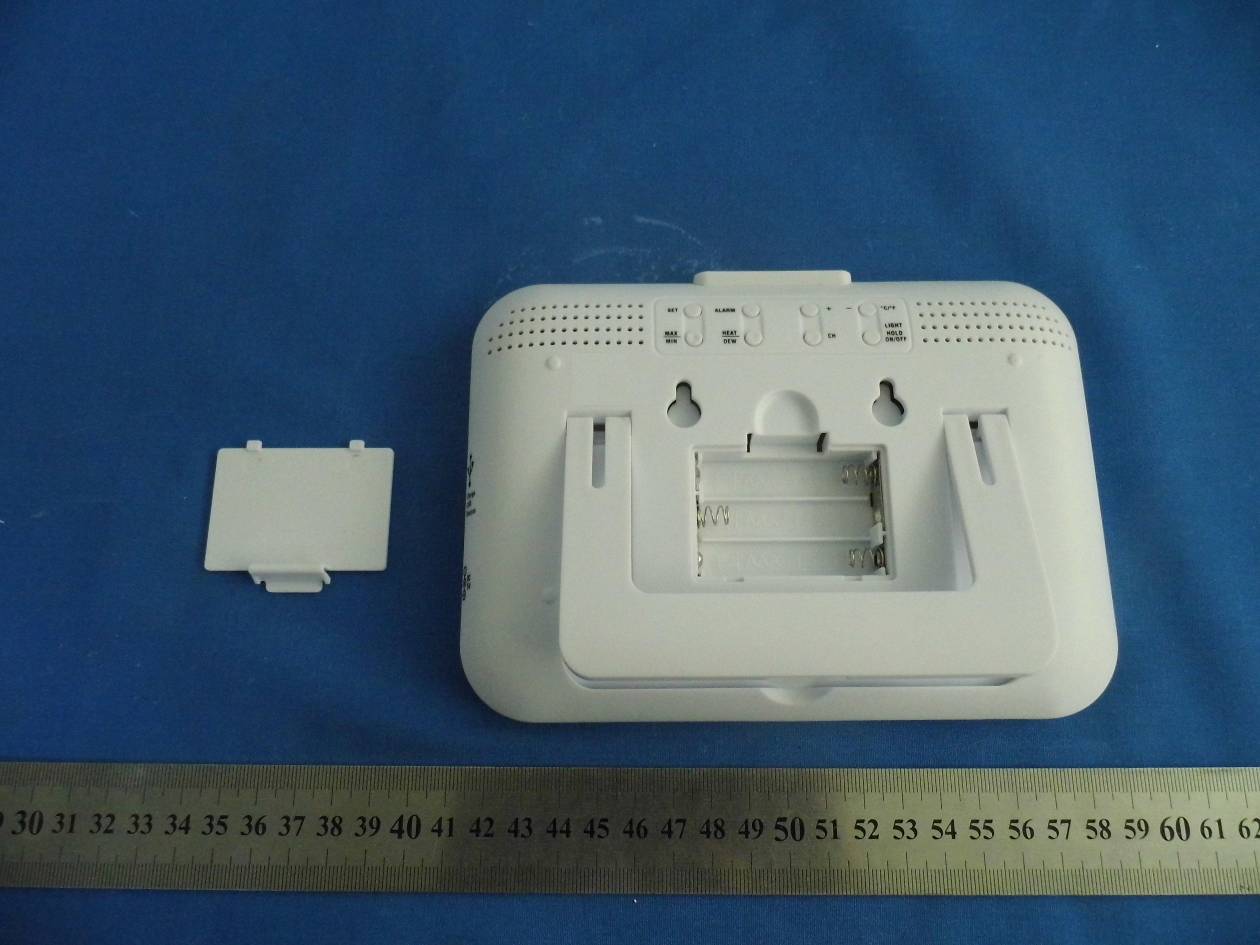

SAFETY INFORMATION/ WARNING: DO NOT mix old and new batteries. DO NOT mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. DO NOT dispose of batteries in fire. Batteries may explode or leak. Please dispose of batteries properly. Remove batteries for long term storage. Batteries could leak causing corrosion. INDOOR/OUTDOOR WIRELESS WEATHER STATION Remove the battery cover on the back of the Wireless Weather Station. Insert 3 AAA 1.5V batteries (not included) as indicated by the polarity symbols (+ and -) see Fig. A. Replace the battery cover. REMOTE SENSOR TRANSMITTER Remove the battery cover on the back of the Remote Sensor Transmitter. Insert 2 AAA 1.5V batteries (not included) as indicated by the polarity symbols (+ and -) see Fig. B. Replace the battery cover. SETUP STEP BY STEP INSTRUCTIONS STEP 1 OPTIONAL BATTERY OPERATION: Insert 3 NEW AAA batteries (not included) following the instructions for battery installation. Observe the correct polarity (+and -). The Wireless Weather Station will light up and show, indoor temperature, humidity and channel 1. STEP 2 Insert the 5-volt a/c power adapter into the adaptor port on the side of the Wireless Weather Station (fig. C). Plug the a/c power adapter into a wall outlet for continuous backlight (ON/OFF), and dimmer feature. Backlight will illuminate for 8 seconds when using only battery power with a press/release of the SNOOZE/LIGHT button. STEP 3 Ensure that the transmitter is within 10 feet of the Weather Station. Insert 2 NEW AAA batteries (not included) into remote sensor transmit- ter. Observe the correct polarity (+and -) Fig. B. The TX switch is set to Channel 1 by default, see Fig B. Confirm channel 1 is selected. Within 3 minutes the Weather Station will beep and then show readings in the outdoor temperature area on the Wireless Weather Station LCD. Note:Use Alkaline batteries (or Lithium for temperatures below - 20°F/ -28.8°C). POSITIONING THE REMOTE SENSOR TRANSMITTER Once the Wireless Weather Station shows the outdoor temperature, place it and the transmitter in the desired locations and wait approximately 1-hour before permanently mounting the transmitter to ensure that there is proper reception. The transmitter should be mounted vertically, in a shaded, protected area, at least 6 feet from the ground to avoid damage and ensure accurate readings. The transmitter is water resistant, not waterproof and should not be placed anywhere it will become submerged in water or subject to standing water or snow. BATTERY INSTALLATION Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at 1-800-254-0111. Fig. A OPERATING INSTRUCTIONS Fig. B WALL MOUNT Choose a shaded location (under an overhang) for the transmitter that is within the confirmed wireless reception range of the Weather Station for accuracy. Install one mounting screw (not included) into a wall leaving approximately ½ of an inch (12.7mm) extended. Place the hanging hole (on the back of the transmitter) onto the mounting screw and gently slide the transmitter down to secure it. BUTTON FUNCTIONS: Button Press and Release FunctionsHold 3-5 seconds Move through program menu. Confirm setting. . View Alarm. Activate/Deactivate Alarm. Alarm Set Enter program menu set time, date, etc. SET ALARM 1 step forward (set-up). + Select temperature in °C/°F 1 step backward (setup). Fast backward (setup).-/°C/°F 1-time MAX values 2-times MIN values Resets all MIN / MAX values.MIN/MAX 1-time Heat Index 2-times Dew Point HEAT/DEW Switch channels outdoor (multiple transmitters) Search for remote transmitter.CH Activates backlight when using only batteries. Trigger snooze alarm LIGHT/SNOOZE Dim backlight for night time.Dim backlight for night time. Turn continuous backlight ON or OFF (a/c adapter). LIGHT HOLD ON/OFF IMPORTANT: For true temperature and humidity readings, mount the transmitter out of direct sunlight on a North-facing wall or in any other well shaded area like under an eave or deck rail. The maximum transmitting range in open air is over 200-feet (60 meters). Obstacles such as walls, windows, stucco, concrete, and large metal objects can reduce the range. Place the transmitter at least 6 feet in the air to improve signal transmission. SAFETY INFORMATION/ WARNING: DO NOT mix old and new batteries. DO NOT mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. DO NOT dispose of batteries in fire. Batteries may explode or leak. Please dispose of batteries properly. Remove batteries for long term storage. Batteries could leak causing corrosion. INDOOR/OUTDOOR WIRELESS WEATHER STATION Remove the battery cover on the back of the Wireless Weather Station. Insert 3 AAA 1.5V batteries (not included) as indicated by the polarity symbols (+ and -) see Fig. A. Replace the battery cover. REMOTE SENSOR TRANSMITTER Remove the battery cover on the back of the Remote Sensor Transmitter. Insert 2 AAA 1.5V batteries (not included) as indicated by the polarity symbols (+ and -) see Fig. B. Replace the battery cover. SETUP STEP BY STEP INSTRUCTIONS STEP 1 OPTIONAL BATTERY OPERATION: Insert 3 NEW AAA batteries (not included) following the instructions for battery installation. Observe the correct polarity (+and -). The Wireless Weather Station will light up and show, indoor temperature, humidity and channel 1. STEP 2 Insert the 5-volt a/c power adapter into the adaptor port on the side of the Wireless Weather Station (fig. C). Plug the a/c power adapter into a wall outlet for continuous backlight (ON/OFF), and dimmer feature. Backlight will illuminate for 8 seconds when using only battery power with a press/release of the SNOOZE/LIGHT button. STEP 3 Ensure that the transmitter is within 10 feet of the Weather Station. Insert 2 NEW AAA batteries (not included) into remote sensor transmit- ter. Observe the correct polarity (+…
