2ACWIWD32FC224LED TV

USER’S MANUAL MANUEL DE L’UTILISATEUR MANUAL DEL USUARIO WD32FC2240 www.wes tinghouseelectronics.com Wes tinghouse Electronics, LLC Diamond Bar, CA SE-UM-3205-1501 S/N: 1 En TABLE OF CONTENTS 1 Important Safety Instructions 2 2Safety Information3 3Preparation What's Included4 Front View5 Rear View6 Installing the Stand7 Removing the Stand for Wall-Mounting 7 Remote Control8 4 Connecting External Devices 9 5 Customizing TV Settings Initial Setup10 Navigating the Setup Settings 11 APPS12 Media 13 Viewing JPEG 13 Viewing MJPEG14 Source14 Setup 15 Settings15 Audio16 Picture17 Channel18 Time18 Lock19 Network20 6Parental Control22 7Troubleshooting24 8Maintaining25 9Specification26 10 OTT APP Service 27 2 En • Read these instructions – All the safety and operating instructions should be read before this product is operated. • Keep these instructions – The safety and operating instructions should be retained for future reference. • Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. • Follow all instructions – All operating and use instructions should be followed. • Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments/accessories specified by the manufacturer. • Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. • Unplug this apparatus during lightning storms or when unused for long periods of time. • Unplug this apparatus during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power - supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • Please keep the unit in a well-ventilated environment. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus should not be exposed to dripping or splashing. Objects filled with liquids, such as vases should not be placed on apparatus. WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable. WARNING: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. This product contains electrical or electronic materials. The presence of these materials may,if not disposed of properly, have potential adverse effects on the environment and human health. Presence of this label on the product means it should not be disposed of as unsorted waste and must be collectedseparately. As a consumer, you are responsible for ensuring that this product is disposed of properly. This product meets ENERGY STAR ® guidelines for energy efficiency. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. ENERGY STAR is a registered mark owned by the U.S. government. IMPORTANT SAFETY INSTRUCTIONS Licensing and Patent Information This WESTINGHOUSE product may be covered by one or more U.S. and foreign patents and patent applications. 3 En To ensure reliable and safe operation of this equipment, please carefully read all the instructions in this user guide, especially the safety information below. Electrical Safety • The TV set should only be connected to a main power supply with voltage that matches the label at the rear of the product. • To prevent overload, do not share the same power supply socket with too many other electronic components. • Do not place any connecting wires where they may be stepped on or tripped over. • Do not place heavy items on any connecting wire, which may damage the wire. • Hold the main plug, not the wires, when removing from a socket. • During a thunderstorm or when not in using the television for long periods, turn off the power switch on the back of the television. • Do not allow water or moisture to enter the TV or power adapter. Do not use in wet, moist areas, such as bathrooms, steamy kitchens or near swimming pools. • Pull the plug out immediately, and seek professional help if the main…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Shenyang Tongfang Multimedia Co., Limited 2015.06.13 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Shenyang Tongfang Multimedia Co., Limited _____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description：LED TV model name: WD32FC2240 Additional Model: WD32FC2300 FCC ID: 2ACWIWD32FC224 Sincerely, Client’s signature Client’s name / title ：Yu.Li / Engineer Contact information / address ：No. 10 Nanping East Road HunNan New District Shenyang, LiaoNing Province P.R. China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 Shenyang Tongfang Multimedia Co., Limited 2015/06/14 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACWIWD32FC224 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title ：Yu.Li / Engineer Contact information / address ：No. 10 Nanping East Road HunNan New District Shenyang, LiaoNing Province P.R. China

Shenyang Tongfang Multimedia Co., Limited **************************************************************************** I, the undersigned, hereby confirm that any of our production units bearing the following models numbers are said to be identical in cosmetics, materials, PCB layout, electrical, mechanical, and physical design, including software/firmware . The Just appearance different, the PCB boards inside are identical. FCC ID： 2ACWIWD32FC224 1) Model No.: WD32FC2240 2）Model No.: WD32FC2300 Client’s signature ： Client’s name / title ：Yu.Li / Engineer Contact information / address ：No. 10 Nanping East Road HunNan New District Shenyang, LiaoNing Province P.R. China ****************************************************************************

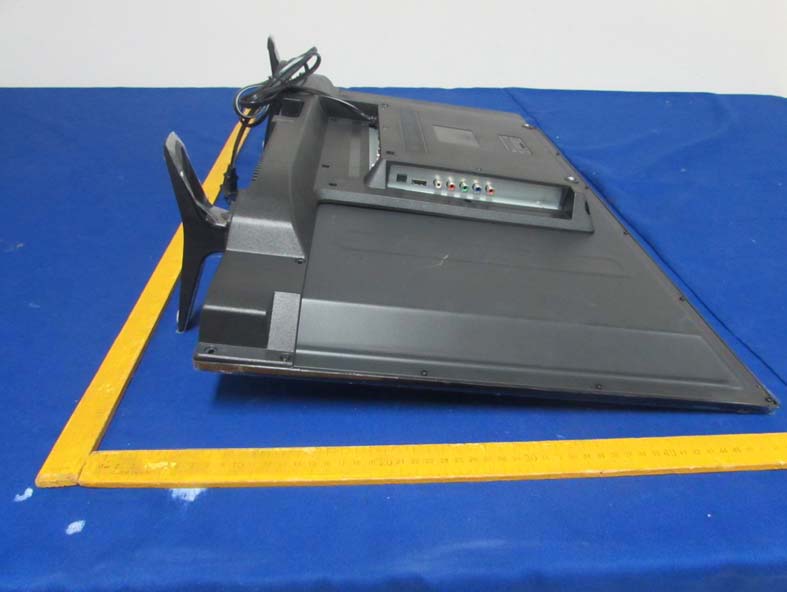

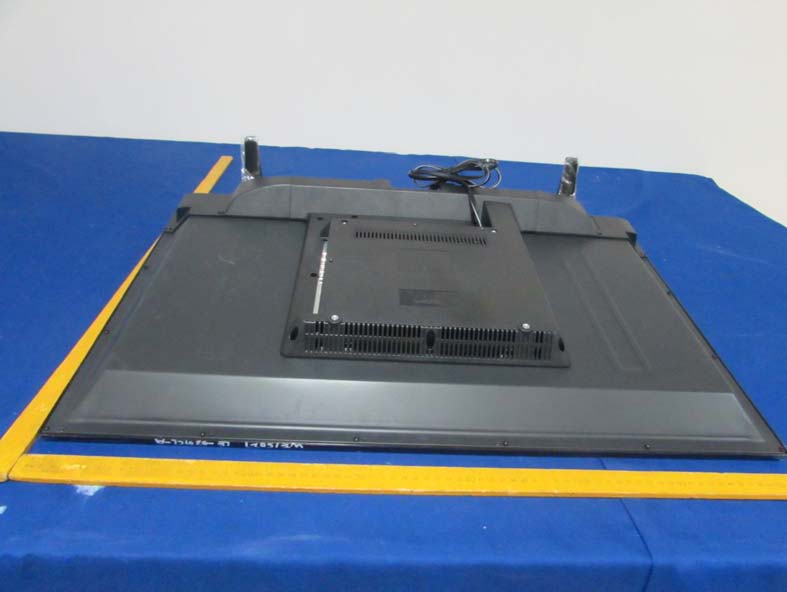

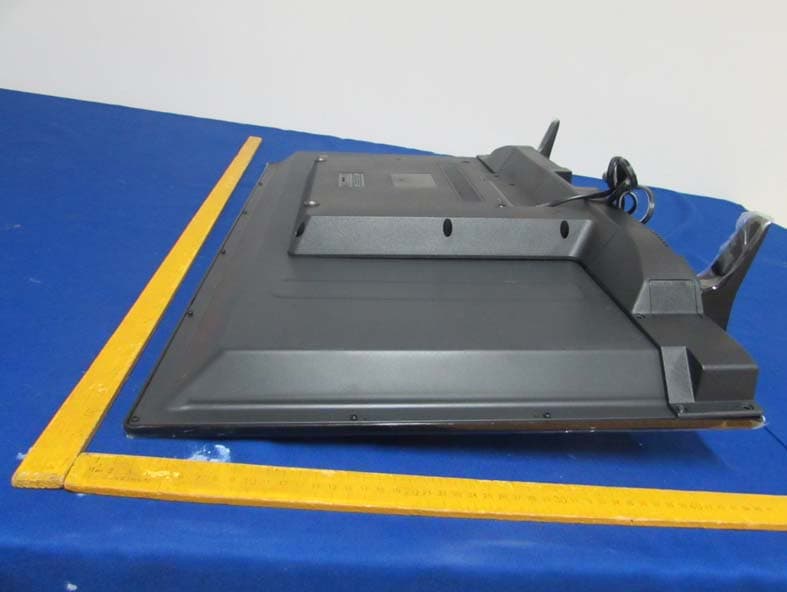

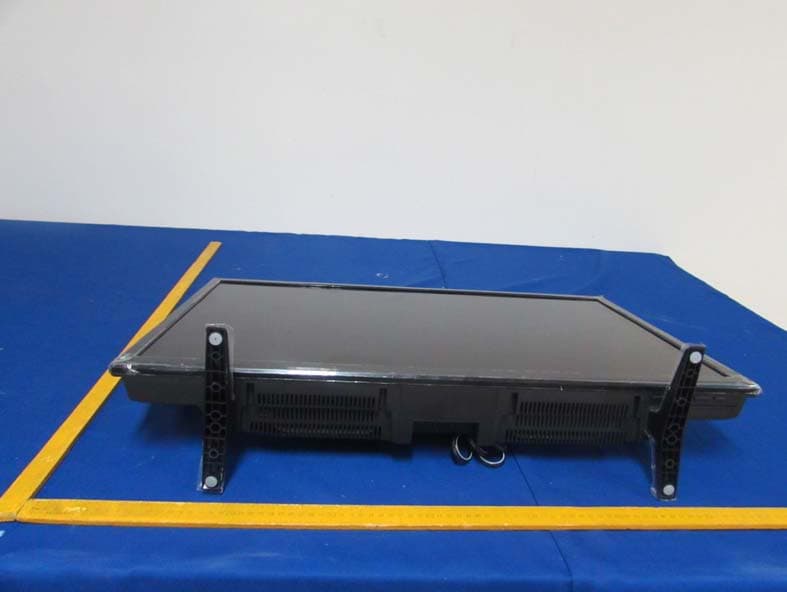

FCC ID˖2ACWIWD32FC224 (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 146 of 152 11 PHOTOS OF EUT External Photos M/N: WD32FC2240 FCC ID˖2ACWIWD32FC224 (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 147 of 152 External Photos M/N: WD32FC2240 FCC ID˖2ACWIWD32FC224 (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 148 of 152 External Photos M/N: WD32FC2240 FCC ID˖2ACWIWD32FC224 (677HFKQRORJ\&R/WG5HSRUW1R(67(5 Page 149 of 152 External Photos M/N: WD32FC2240
