TELPAD HC7 USER MANUAL 1 GETTING STARTED 01 1.1 About your Telpad 02 2 TELPAD INTRODUCTION 03 2.1 Getting to know your Telpad 04 2.2 Product Specification 07 2.3 Installation 09 2.3.1Basic Connection 09 2.3.2Installing the dock battery 10 2.3.3Docking and undocking the Tablet 10 3 TABLET FUNCTIONS 11 3.1 Turning the Tablet on or off 12 3.1.1To turn on your Tablet 12 3.1.2 To turn the Tablet off 12 3.2 Charging the battery 13 3.2.1Charging the Tablet battery 13 3.2.2Charging the dock battery 13 3.3 Working with the key 14 3.3.1Working the physical keys 14 3.3.2 Working the touchscreen keys 14 3.4 Using the touchscreen 15 3.5 Home screen 16 3.5.1Getting to know the Home screen 16 3.5.2Extended Home screens 17 3.5.3Customizing the Home screen 17 3.6 Locking and unlocking the screen 18 3.6.1Locking the screen 18 3.6.2Unlocking the screen 18 3.6.3Setting up a screen lock 18 3.6.4Setting a screen timeout period 18 3.7 Inputting text 19 3.7.1Entering text using the onscreen keyboard 19 3.7.2Cutting or copying text 20 3.8 Opening and switching applications 21 3.9 Accessing the Settings 21 3.10 Languages & input method & account setting 22 3.11 Setting the date and time 23 3.11.1 To automatically set date and time 23 3.11.2 To manually set date and time 23 3.12 Installing or removing the microSD card 24 3.13 Connecting or disconnecting from a computer using USB 25 3.14 Connecting the Tablet to a TV 26 3.15 Wireless networks 27 3.15.1 Opening Wi-Fi settings 27 3.15.2 Turning Wi-Fi on or off 27 3.15.3 Connecting to a Wi-Fi network 28 3.15.4 Turning open network notification on or off 28 3.15.5 Adding a Wi-Fi Network 28 3.15.6 Forgetting a Wi-Fi network 29 3.16 Bluetooth 30 3.16.1 Opening Bluetooth settings 30 3.16.2 Turning Bluetooth on or off 30 3.16.3 Changing the Bluetooth name of your Tablet 30 3.16.4 Connecting to Bluetooth devices 31 3.16.5 Disconnecting from or unpairing a Bluetooth device 31 3.17 Google Services 32 3.17.1 Creating a Google Account 32 3.17.2 Using Play Store 33 3.17.3 Searching for Applications 33 3.17.4 Installing an Application 33 3.17.5 Uninstalling an Application 34 3.17.6 Backing up and restoring apps and settings from a Google account 34 3.18 E-mail 34 3.18.1 Opening E-mail 34 3.18.2 Adding and deleting e-mail accounts 3 5 3.19 Using the Camera 37 3.20 Home control 38 3.20.1 IR Universal remote Initial Configuration 38 3.20.2 IR Learning 39 3.20.3 Reservation 40 3.20.4 Reservation Setup 41 3.20.5 Mobile remote control 42 3.20.6 Motion detection 45 3.21 Home care 47 3.22 Wifidisplay 54 3.22.1 Source 54 3.22.2 Sink 56 3.22.3 Attentions 58 3.23 DLNA 60 3.23.1 Wi-Fi connection 60 3.22.2 The brief introduction of interactions between tablet and modile phone 63 4 THE CONNECTION BETWEEN DOCK PHONE AND TABLE 67 4.1 Voice call Services 68 4.1.1 Making a call 68 4.1.2 Answering a call 69 4.1.3 Ending a call 69 4.1.4 Selecting area code 69 4.1.5 Favorites 70 4.1.6 Memo 70 4.1.7 Importing/exporting contacts 70 4.1.8 Changing ringtones 71 4.1.9 Contacts 71 4.2 Dock phone entertainment functions 73 4.2.1The speaker box function 73 4.3 Dock Phone Wifi Function 77 4.3.1 Interface Specification 77 4.3.2 Function and Configuration of WI-FI router 77 4.3.3 Wi-Fi router configuration interface 78 4.3.4 Setting of wired broadband internet parameters 79 4.3.5 WiFi basic setting 82 4.3.6 The restoration of wireless router to factory setting 82 4.3.7 To charge through dock phone USB 5V output 82 5 BASIC TROUBLESHOOTING FOR THE TELPAD 83 5.1 Tablet not powering up 84 5.2 No dial tone 84 5.3 Distorted audio on speaker 84 5.4 Tablet Dialler cannot make a call 84 5.5 No audio response in the Handset 84 6 FAQs 85 7 WARNINGS AND PRECAUTIONS 91 8 PERSONAL INFORMATION AND DATA SECURITY 96 9 LEGAL NOTICE 98 10 DISCLAIMER OF WARRANTIES 100 11 INDEX 102 1 GETTING STARTED 1.1 About your TELPAD The Telpad is the world’s first Tablet and landline in one, a device that that not only gives you access to basic communication services, but also brings to your home a world of productivity and entertainment – powered by Android™, the world’s leader in smartphone technology. With its stunning 7 inch touchscreen display, sleek design, built-in camera & Wi-Fi, and access to hundreds of thousands of free and paid Android™ Apps, the Telpad is definitely a device you will want to become acquainted with to be able to maximize its full set of features! 02 2 TELPAD INTRODUCTION 2.1 Getting to know your TELPAD 14 15 16 17 18 14.15.16.17.18. 04 19 20 21 22 23 24 25 26 27 28 19.20.21.22.23.24.25.26.27.28. 05 Accessories USB Data Cable Coiled Phone Cord Phone Line HDMI Converter USB Charger USB Power Cable DC4.0 Battery 29 30 31 32 33 34 29.30.31.32.33.34. 06 2.2 Product Specificiation GENERAL SPECIFICATIONS AND DISPLAY DIMENSION 114 mm x 193 mm x 10 mm 7 Inch HD IPS (1280X800) DISPLAY AND RESOLUTION Android™ 4.2.2 SYSTEM SOFTWARE Wi-Fi - 802.11b/g/n 24-bit AIR INTERFACE Capacitive 5-Points-Touch MULTI-TOUCH PANEL 3 Standard Soft Keys: Home, Back, Recent Applications PRIMARY KEYPADDISPLAY COLOR DEPTH CONNECTIVITY BLUETOOTH Bluetooth 4.0 + EDR Micro USB OTG USB HDMI V 1.4A / Supports 3D output DIGITAL TV OUT Built-in-speaker SPEAKER Built-in-microphone MICROPHONE 3-Axis Accelerometer for UI Auto Rotate Ambient Light sensor SENSOR Standard 3.5 mm headphone jack AUDIO OUT HANDSET PSTN Support (POTS) RJ9 (4P4C) Built-in SPEAKER Built-in MICROPHONE 07 SMART DIALER PSTN Call HoldSpeed DialSpeakerVolume Adjustment COMMUNICATION AND ORGANIZER EMAIL Protocols: SMTP, POP3 and IMAP4 Supports Exchange Calendar, Contacts synchronous MEDIA PERFORMANCE VIDEO DECODINGAUDIO DECODING 3GPP2, 3GPP, RMV, TS, 3GP, VOB, AVI, MP4, FLV, WMV, MKVAAC, AMR, APE, FLAC, MID, MP3, OGG, WAV, WMA PICTURE FORMATS STREAMING MEDIA JPEG, JPG, BMP, PNGRTSP/HTTP, Support Download play, Progressive play BATTERY AND POWER TABLET BATTERY STD Lithium-Ion Polymer battery, 5500 mAh rechargeable STD Lithium-Ion Polymer battery, 1000 mAh rechargeable DOCK BATTERY Input - …

Text truncated - open the document above for the full version.

AURA TECHNOLOGY LIMTED AURA TECHNOLOGY LIMTED FCC ID: 2ACWO-HC7-M DATE: Nov 26, 2014 We, AURA TECHNOLOGY LIMTED don’t provide any controls or software to allow the operation outside of the USA frequency band when we sell this product in USA. The product only use frequency band from 2412-2462MHz in USA. Sincerely yours, AURA TECHNOLOGY LIMTED Lisa He / Quality Engineer Fax: +86-0755-86706280 Tel: +86-0755-86706282-810 E-mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 <2014-11-26> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ACWO-HC7-M Telpad For the product stated above, we request permanent confidentiality for exhibits which contain Operational Description, Block Diagram, Schematics, Parts Lists or Tune Up Information. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (signed) Name: Lisa He Company: AURA TECHNOLOGY LIMTED Address: FLAT/RM810, Star House, 3 Salisbury Road, Tsimshatsui, Hong Kong Phone: +86-0755-86706282-810 Fax: +86-0755-86706280 Email: [email protected]

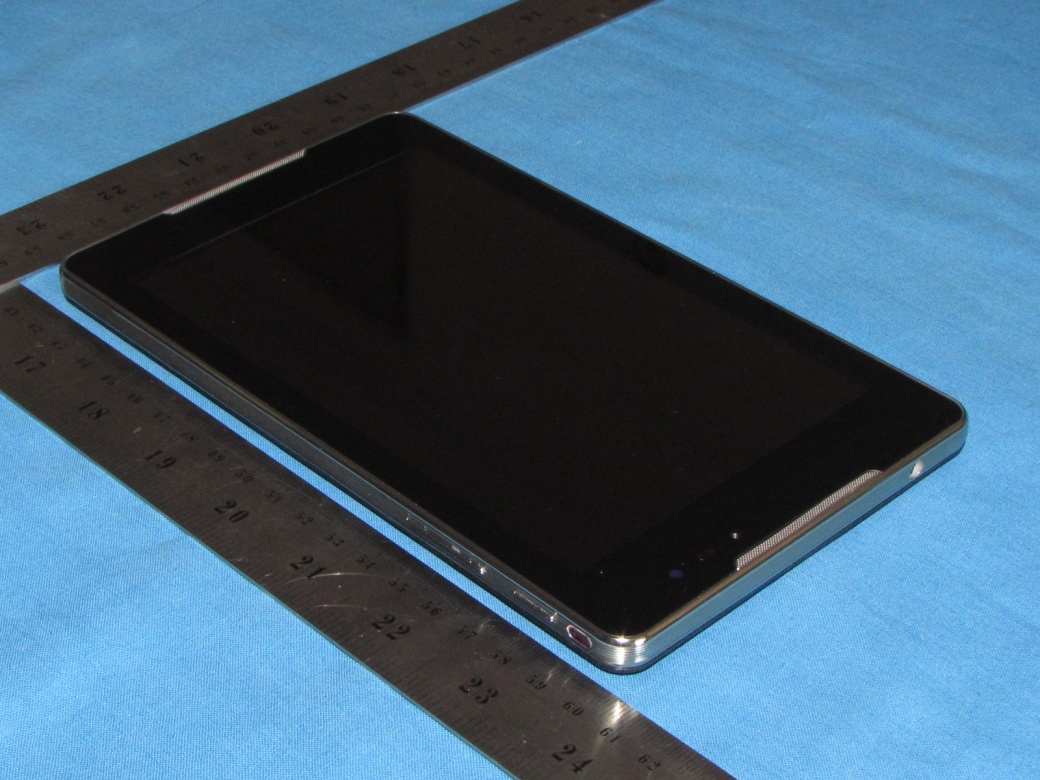

External photos of The EUT

FCC ID Label and Label Location FCC ID Label: AURA TECHNOLOGY LIMTED Model: HC7 FCC ID:2ACWO-HC7-M This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label Location:

Internal Photos of The EUT WLAN/BT Antenna

Report No.: A1411096076-SAR TEST REPORT Report Reference No. ..................... : FCC ID. ........................................... : A1411096076-SAR 2ACWO-HC7-M Compiled by ( position+printed name+signature) .. : File administrators Tony Li Supervised by ( position+printed name+signature) .. : Technique principal Robin Fang Approved by ( position+printed name+signature) .. : Manager James Wu Date of issue ..................................... : Dec,04 2014 Representative Laboratory Name .... : Shenzhen CTL Electron Technology Co., Ltd. Address............................................. : A0402, Block 1, Kefa Industrial District, Huanguan Nan Rd, Xintian community, Guanlan, Baoan, Shenzhen, China Testing Laboratory Name ................. : The Testing and Technology Center for Industrial Products of Shenzhen Entry-Exit Inspection and Quarantine Bureau Address............................................. : No.289, 8th Industry Road, NanshanDistrict,Shenzhen,Guangdong Applicant’s name ............................ : AURA TECHNOLOGY LIMTED Address............................................. : FLAT/RM810, Star House, 3 Salisbury Road, Tsimshatsui, Hong Kong Test specification .......................... : Standard ........................................... : ANSI C95.1–1999 47CFR §2.1093 TRF Originator .................................. : Shenzhen CTL Electron Technology Co., Ltd. Master TRF ....................................... : Dated 2012-06 Shenzhen CTL Electron Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Electron Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Electron Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Telpad Trade Mark ....................................... : / Manufacturer .................................... : SHENZHEN KWANG SUNG ELECTRONICS CO.,LTD Model/Type reference ....................... : HC7 Listed Models .................................. : / Rating ............................................... : DC 3.70V/DC 5.0V adapter from AC120V/60Hz Android Version ................................ : Android 4.2.2 Result ................................................ : PASS Page 2 of 55 Report No.: A1411096076-SAR T E S T R E P O R T Test Report No. : A1411096076-SAR Dec,04 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Telpad Model /Type : HC7 Listed Models : / Applicant : AURA TECHNOLOGY LIMTED Address : FLAT/RM810, Star House, 3 Salisbury Road, Tsimshatsui, Hong Kong Manufacturer : SHENZHEN KWANG SUNG ELECTRONICS CO.,LTD Address : Shitoushan Industrial Zone, Shi Yan Town, Baoan District, Shenzhen, PRC Test Result PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Page 3 of 55 Report No.: A1411096076-SAR ** Modifited History ** Revison Description Issued Data Remark Revsion 1.0 Initial Test Report Release 2014-11-28 James Wu Revsion 1.1 Revised SAR Test Description2014-12-04 James Wu Page 4 of 55 Report No.: A1411096076-SAR Contents 1. TEST STANDARDS 5 2. SUMMARY 6 2.1. General Remarks 6 2.2. Product Description 6 2.3. Statement of Compliance 6 2.4. Equipment under Test 7 2.5. Short description of the Equipment under Test (EUT) 7 2.6. EUT configuration 7 2.7. TEST Configuration 7 2.8. Note 8 3. TEST ENVIRONMENT 9 3.1. Address of the test laboratory 9 3.2. Test Facility 9 3.3. Environmental conditions 9 3.4. SAR Limits 9 3.5. Equipments Used during the Test 10 4. SAR MEASUREMENTS SYSTEM CONFIGURATION 11 4.1. SAR Measurement Set-up 11 4.2. DASY5 E-field Probe System 12 4.3. Phantoms 13 4.4. Device Holder 14 4.5. Scanning Procedure 14 4.6. Data Storage and Evaluation 15 4.7. Tissue Dielectric Parameters for Head and Body Phantoms 16 4.8. Tissue equivalent liquid properties 17 4.9. System Check 17 4.10. SAR measurement procedure 18 5. TEST CONDITIONS AND RESULTS 22 5.1. Conducted Power Results 22 5.2. Simultaneous TX SAR Considerations 23 5.3. SAR Measurement Results 26 5.4. SAR Measurement Variability 27 5.5. Measurement Uncertainty (300MHz-3GHz) 27 5.6. System Check Results 29 5.7. SAR Test Graph Results 30 6. CALIBRATION CERTIFICATE 31 6.1. Probe Calibration Ceriticate 31 6.2. D2450V2 Dipole Calibration Ceriticate 42 6.3. DAE4 Calibration Ceriticate 50 7. TEST SETUP PHOTOS 53 8. EXTERNAL PHOTOS OF THE EUT 55 Page 5 of 55 Report No.: A1411096076-SAR 1. TEST STANDARDS The tests were performed according to following standards: IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 KHz to 300 GHz. It specifies the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20 cm of the user in the uncontrolled environment. IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. KDB 447498 D01 Mobile Portable RF Exposure v05r01: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB865664 D01 SAR measurement 100 MHz to 6 GHz v01r02: SAR Measurement Requirements for 100 MHz to 6 GHz KDB865664 D02 SAR Reporting v01: RF Exposure Compliance Reporting and Documentation Considerations KDB248227: SAR measurement procedures for 802.112abg transmitters FCC Part 2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices KDB 616217 D04 SAR for laptop and Internet Tablets v01: SAR Evaluation Considerations for Lap…
