2ACWW1300133BBluetooth module(Dual mode)

HULU ROBOTICS TECHNOLOGY COMPANY LIMITED

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jun 13, 2015
Application Purpose: Original Equipment
Date of Application: Jun 13, 2015
Equipment Note: Bluetooth module(Dual mode)
Frequency Range: 2402.00000000 - 2480.00000000
Company: HULU ROBOTICS TECHNOLOGY COMPANY LIMITED
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Bluetooth (Dual Mode) Operation Instruction 1. Pin instruction Pin name Type Electric level Description Remarks VCC 5V power input terminal GND 5V power ground wire TX OUTPUT 5V Serial port communication output terminal RX INPUT 5V Serial port communication input terminal DTR OUTPUT 5V Data terminal ready RST INPUT 5V Module resetting pin; low electric level being effective 2. Function introduction The function of Bluetooth (Dual Mode) is to transfer Bluetooth communication to serial port communication, namely to transfer the received Bluetooth data to serial port data output and send out the received serial port data in Bluetooth mode. It is duplex communication and it is compatible with Bluetooth 2.1+EDR and 4.0 protocols. When using Bluetooth 2.1+EDR protocol communication, the highest speed within 10 meters can be up to 8K bps, while the communication speed of 4.0 protocol can be up to about 1K bps. 3. Operation instruction (1) Install our APP control software in your mobile equipment (like cell phone); (2) Insert Bluetooth module into the socket interface of wireless module of mCore main control panel. After the power is on, the indicating lamp in the module is in off state for the first three to four seconds and then becomes in twinkling state. The twinkling indicating lamp means that Bluetooth module has not been connected with your equipment. After your equipment is connected with the module, the indicating lamp will keep in on state. (3) When the module indicating lamp twinkles, turn on the Bluetooth of your equipment and search Bluetooth device, and select the Bluetooth device named “Makeblock” to make the connection among the found device. (4) After successful connecting, open APP software installed in the first step and then you can start to control the main control panel of mCore. 4.Specifications Dimension: 30mm*20mm*14mm (Length x Width x Height) Software Version: V1.1 Hardware Version: V1.1 5. FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2ACWW1300133B Or Contains FCC ID: 2ACWW1300133B ” when the module is installed inside another device, the user manual of this device must contain below warning statements; 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product

External Photos

ID Label/Location Info

Label : Specifications: Text is White in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location on EUT: FCC ID:2ACWW1300133B Label Location

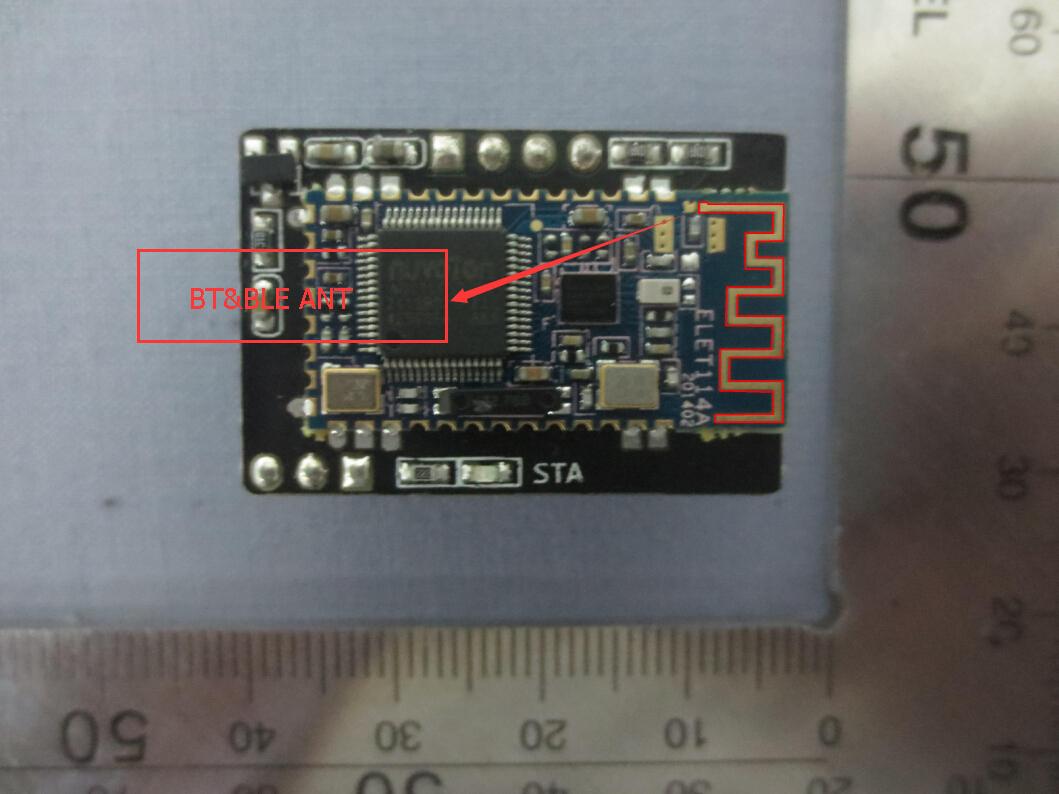

Internal Photos

RF Exposure Info

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2442 MHz 6.21dBm（ 4.18mW） output power] (4.18mW /5mm) ·[√2.442 (GHz)]= 1.3 <3.0 for 1-g SAR Then SAR evaluation is not required

Test Report

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCIS15050031102 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC REPORT (BLE) Applicant: Hulu Robotics Technology Company Limited Address of Applicant: Unit A, 3/F, Cheong Sun Tower, 116-118 Wing Lok Street, Sheung Wan, Hong Kong Equipment Under Test (EUT) Product Name: Bluetooth module (Dual mode) Model No.: MBK-Bluetooth module-Dual mode FCC ID: 2ACWW1300133B Applicable standards: FCC CFR Title 47 Part 15.247 Date of sample receipt: 11 May., 2015 Date of Test: 11 May., 2015 to 01 Jun., 2015 Date of report issued: 01 Jun., 2015 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No: CCIS15050031102 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500311RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 37 2 Version Version No. Date Description 00 01 Jun., 2015 Original Prepared by: Date: 01 Jun., 2015 Report Clerk Reviewed by: Date: 01 Jun., 2015 Project Engineer Report No: CCIS15050031102 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500311RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 37 3 Contents Page 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 TEST SUMMARY .................................................................................................................................................. 4 5 GENERAL INFORMATION .................................................................................................................................. 5 5.1 CLIENT INFORMATION ............................................................................................................................................ 5 5.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 5.3 TEST ENVIRONMENT AND MODE ............................................................................................................................ 7 5.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................ 7 5.5 LABORATORY FACILITY .......................................................................................................................................... 7 5.6 LABORATORY LOCATION ....................................................................................................................................... 7 5.7 TEST INSTRUMENTS LIST ....................................................................................................................................... 8 6 TEST RESULTS AND MEASUREMENT DATA ................................................................................................ 9 6.1 ANTENNA REQUIREMENT: ...................................................................................................................................... 9 6.2 CONDUCTED EMISSION ....................................................................................................................................... 10 6.3 CONDUCTED OUTPUT POWER ............................................................................................................................ 13 6.4 OCCUPY BANDWIDTH .......................................................................................................................................... 15 6.5 POWER SPECTRAL DENSITY ............................................................................................................................... 18 6.6 BAND EDGE ......................................................................................................................................................... 20 6.6.1 Conducted Emission Method...................................................................................................................... 20 6.6.2 Radiated Emission Method ......................................................................................................................... 22 6.7 SPURIOUS EMISSION ...........................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No: CCIS15050031101 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500311RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 62 of 64 7 Test Setup Photo Radiated Spurious Emission Report No: CCIS15050031101 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150500311RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 63 of 64 Conducted Emission
