2AD2W-FSSA5707-in-1 Professional Sensor (915MHz Transmitter)

6-Day Forecast WI-FI Weather Station With 7-in-1 Professional Sensor Model: C6093A/C3135A User Manual This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. 3 TABLE OF CONTENTS 1. INTRODUCTION ..................................................................4 1.1 QUICK START GUIDE ......................................................... 5 2. PRE INSTALLATION ...............................................................5 2.1 CHECKOUT .................................................................. 5 2.2 SITE SELECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3. GETTING STARTED ...............................................................6 3.1 WIRELESS 7-IN-1 SENSOR ..................................................... 6 3.1.1 INSTALL RAIN GAUGE FUNNEL ...........................................7 3.1.2 INSTALL RECHARGEABLE BATTERIES ....................................7 3.1.3 ADJUST THE SOLAR PANEL .............................................8 3.1.4 INSTALL MOUNTING POLE ...............................................9 3.1.5 DIRECTION ALIGNMENT ................................................10 3.1.6 POINTING THE WIRELESS 7-IN-1 SENSOR TO SOUTH .....................10 3.2 SYNCHRONIZING ADDITIONAL WIRELESS SENSOR(S) (OPTIONAL) ............... 10 3.2.1 OPTIONAL SENSORS ..................................................10 3.3 RECOMMENDATION FOR BEST WIRELESS COMMUNICATION .................... 12 3.4 SETUP THE CONSOLE ....................................................... 12 3.4.1 POWER UP THE DISPLAY CONSOLE .....................................12 3.4.2 SETUP DISPLAY CONSOLE .............................................13 3.4.3 SYNCHRONIZING WIRELESS 7-IN-1 SENSOR .............................13 3.4.4 DATA CLEARING .......................................................13 4. DISPLAY CONSOLE FUNCTIONS AND OPERATION ...................................14 4.1 SCREEN DISPLAY ........................................................... 14 4.2 DISPLAY CONSOLE KEYS .................................................... 14 4.3 CONSOLE FEATURES ........................................................ 15 4.3.1 MULTI-DAY WEATHER FORECAST FOR TODAY & NEXT 5 DAY ...............15 4.3.2 HIGH / LOW TEMPERATURE FOR TODAY & NEXT 5 DAYS ...................16 4.3.3 AVERAGE TEMPERATURE FORECAST WITH CHANCE OF RAIN FOR TODAY & NEXT 5 DAYS ................................................................16 4.3.4 OUTDOOR TEMPERATURE, HUMIDITY & TEMPERATURE INDEX ............17 4.3.5 INDOOR / CHANNELS TEMPERATURE & HUMIDITY ........................17 4.3.6 MULTI-CHANNEL AND SCROLL MODE FOR OPTIONAL SENSORS ............18 4.3.7 WATER LEAK (OPTIONAL LEAK SENSOR) ................................18 4.3.8 WIND ................................................................19 4.3.9 BAROMETRIC PRESSURE ..............................................21 4.3.10 RAIN .................................................................21 4.3.11 LIGHT INTENSITY, UV INDEX & SUNBURN TIME ...........................21 4.3.12 AIR QUALITY ..........................................................22 4.3.13 SKY CONDITION .......................................................23 4.3.14 MAXIMUM / MINIMUM RECORDS ........................................23 4.3.15 MOON PHASE .........................................................24 4.3.16 SUNRISE / SUNSET & MOON RISE / MOON SET TIME ......................24 4.3.17 WIRELESS SENSOR SIGNAL RECEIVING .................................24 4.3.18 TIME SYNCHRONIZE STATUS ...........................................24 4.3.19 WI-FI CONNECTION STATUS ............................................25 4.4 OTHER SETTING ............................................................ 25 4.4.1 TIME, DATE AND GENERAL SETTING ....................................25 4.4.2 UNIT SETTING ........................................................25 4.4.3 BACK LIGHT ..........................................................26 4.4.4 SET VIEWING ANGLE OF THE DISPLAY ...................................26 5. CREATE PWL ACCOUNT & SETUP WI-FI CONNECTION OF CONSOLE ..................26 5.1 CREATE PWL ACCOUNT AND ADD NEW DEVICE IN PWL .......................... 26 6. CONNECT CONSOLE TO WI-FI .....................................................28 6.1 CONSOLE IN ACCESS POINT MODE ........................................... 28 6.2 CONNECT TO THE CONSOLE ................................................. 28 6.3 SETUP…

Text truncated - open the document above for the full version.

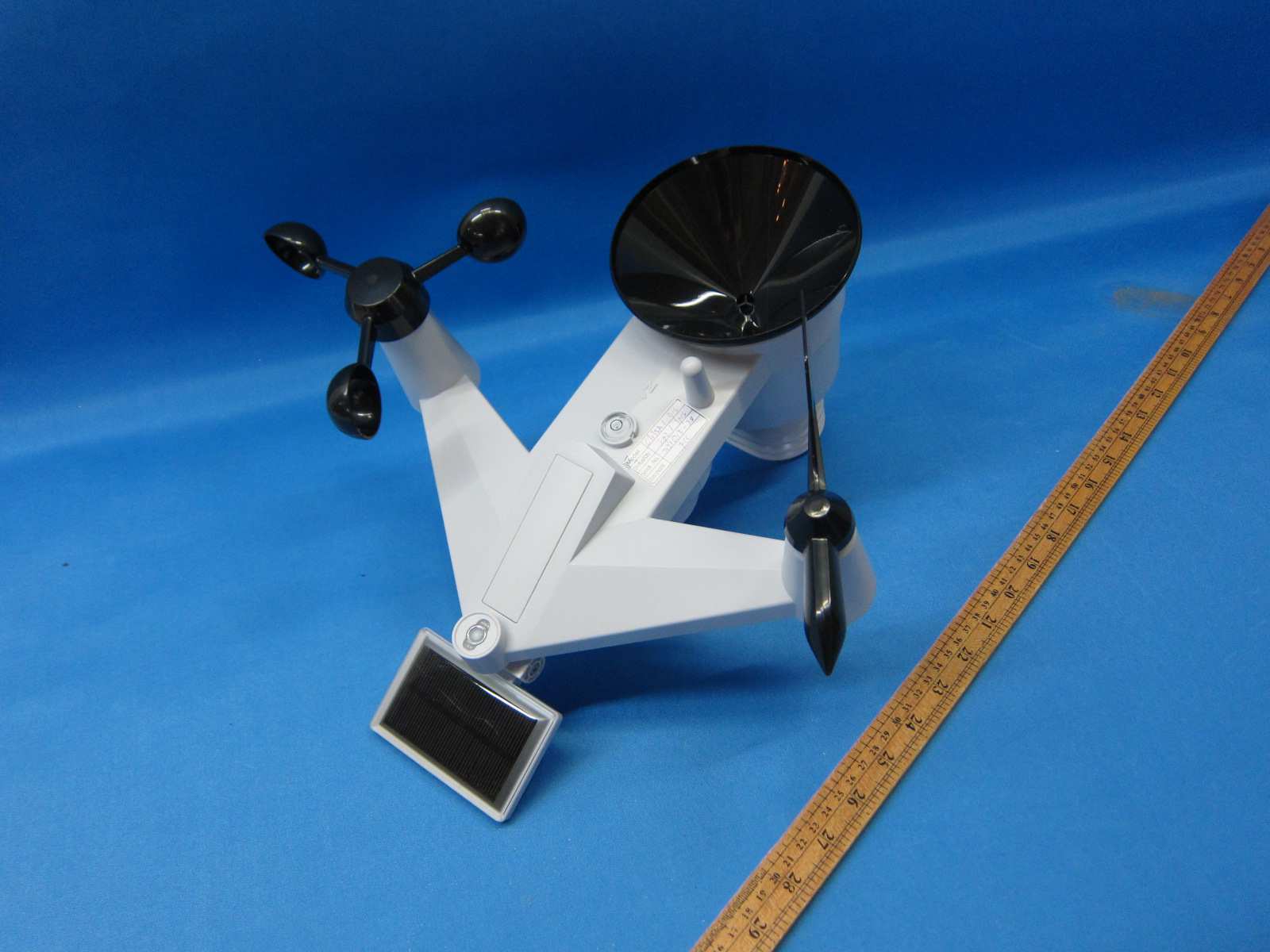

INTERTEK TESTING SERVICE Report No.: HK21071560 Equipment Photographs (External)

This article is the property of CCL Electronics Ltd (CCL) and is intended to use as conceptual study, product introduction etc. Any unauthorized usage either in electronic or hardcopy format will be strictly prohibited. CCL reserves all rights to raise legal action to any illegal manipulation of this article. 菲林线图Productsize:322x296x217mmBattery:AAx3 修改日期 00 / 00 / 00 设计编号 Logia WZY 客 户 设计 产品编号 描述 F01-V0 C3135A 比例:A0 /11 Unit:mm RDD-008-A0 EMBOSS 2AD2W-FSSA570 This device compli es with Par t 15 of the FCC R ules. Opera tion is subject t o the following tw o condition s: ( 1) th is d evice ma y not cau se harmful interfer e nce, a nd ( 2) th is device must accept any interference rece i ved, includ i ng inter ference that may cause undes i re d opera tion. UVLASER Logo Size: 30.4 x 10 mm 设计日期 21 / 04 / 09 This article is the property of CCL Electronics Ltd (CCL) and is intended to use as conceptual study, product introduction etc. Any unauthorized usage either in electronic or hardcopy format will be strictly prohibited. CCL reserves all rights to raise legal action to any illegal manipulation of this article. 设计日期 21 / 04 / 09 修改日期 00 / 00 / 00 设计编号 客 户 设计 产品编号 描述 F01-V0 C3135A 比例:A0 /11 Unit:mm RDD-008-A0 菲林效果图 Logia WZY 2AD2W- FSSA570 Th i s de vice com pli es with Par t 15 of the FCC R ules. Op eration is subject t o the f ollowing tw o condition s: ( 1) th is d evice ma y not cause ha rmful inter fer e nce, and (2) th is d evice must accept any interference r ece ived , inc lud i ng interference th at may cause undes i red opera ti o n. INJECT COL: #331626(GRAY) SPRAY COL: NIL WORD & SYMBOL: UV LASER ENGRAVING FONTS: NIL INJECT COL: JM3018(BLACK) SPRAY COL: NIL SILKSCREEN COL: NIL INJECT COL: CLEAR

INTERTEK TESTING SERVICE Report No.: HK21071560 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK21071560 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK21071560 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK21071560 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK21071560 Equipment Photographs (Internal)

INTERTEK TESTING SERVICES RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the 915MHz portion of the Wireless Transmitter of tested model: FSSA570, the measured EIRP power was within its production tolerance: -35 dBm (Minimum) and -5 dBm (Maximum).The antenna gain is 0 dBi = 1.00 (num gain) and its maximum source-based time-averaging duty factor is 100%. From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The EIRP Power = -5 dBm = 0.316 mW The EIRP Power source-based time-averaging output power = (0.316 * 1) mW = 0.316 mW The power density at 20cm = 0.316 / 4πR 2 = 0.000063 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the unit at least 20cm from nearby persons.”

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 17 TEST REPORT Report No.: 21071560HKG-001 C&A Marketing Inc. Application For Certification (Original Grant) FCC ID: 2AD2W-FSSA570 Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Wong Kwok Yeung, Kenneth Assistant Supervisor Date: August 24, 2021 TEST REPORT C&A Marketing Inc. Intertek Report No: 21080304HKG-001 Page 2 of 17 GENERAL INFORMATION Grantee: C&A Marketing Inc. Grantee Address: 114 Tived Lane East, Edison, New Jersey, 08837, United States. Contact Person: Chaim Piekarski Tel: 848-244-2000 Fax: 959-244-2361 e-mail: [email protected] Manufacturer: CCL Electronics Ltd. Manufacturer Address: Unit 1-3, 9/F., Wang Lung Industrial Building, 11 Lung Tak Street, Tsuen Wan, N.T., Hong Kong. Brand Name: Logia Model: FSSA570 Additional Model: N/A Type of EUT: Transmitter Description of EUT: 7-in-1 Professional Sensor (915MHz Transmitter) Serial Number: N/A FCC ID: 2AD2W-FSSA570 Date of Sample Submitted: July 28, 2021 Date of Test: July 28, 2021 to August 04, 2021 Report No.: 21080304HKG-001 Report Date: August 24, 2021 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT C&A Marketing Inc. Intertek Report No: 21080304HKG-001 Page 3 of 17 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2020 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT C&A Marketing Inc. Intertek Report No: 21080304HKG-001 Page 4 of 17 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description ................................................................................................... 5 1.2 Related Submittal(s) Grants ....................................................................................... 5 1.3 Test Methodology ...................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION ..................................................................................... 6 2.1 Justification ................................................................................................................ 6 2.2 EUT Exercising Software ............................................................................................. 6 2.3 Special Accessories .................................................................................................... 6 2.4 Measurement Uncertainty ......................................................................................... 6 2.5 Support Equipment List and Description .................................................................... 6 3.0 EMISSION RESULTS ....................................................................................................... 7 3.1 Field Strength Calculation .......................................................................................... 7 3.2 Radiated Emission Configuration Photograph ............................................................ 8 3.3 Radiated Emission Data ............................................................................................. 8 4.0 EQUIPMENT PHOTOGRAPHS ...................................................................................... 11 5.0 PRODUCT LABELLING .................................................................................................. 11 6.0 TECHNICAL SPECIFICATIONS ....................................................................................... 11 7.0 INSTRUCTION MANUAL .............................................................................................. 11 8.0 MISCELLANEOUS INFORMATION ...............…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK21071560 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK21071560 Configuration Photographs Worst-Case Radiated Emissions (Rear View)
