2AD2W-LOWS510BOWireless Weather Sensor (915MHz Transmitter)

5-IN-1 WIRELESS WEATHER STATION WITH WI-FI USER GUIDE LOWSC510WB 2 Thank you for purchasing the Logia ™ 5-in-1 Wireless Weather Station with WI-FI. This User Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this User Guide may void the limited warranty. Please read all directions before using the product and retain this guide for reference. This product is intended for household use only. It is not intended for commercial use. This product is covered by a limited one-year warranty. Coverage is subject to limits and exclusions. See warranty for details. SAFETY PRECAUTIONS PRODUCT FEATURES PACKAGE CONTENTS DISPLAY CONSOLE OVERVIEW LCD DISPLAY OVERVIEW WIRELESS WEATHER SENSOR OVERVIEW WIRELESS WEATHER SENSOR SETUP DISPLAY CONSOLE SETUP CREATE YOUR WEATHER SERVER ACCOUNT & SET UP WI-FI CONNECTION CREATE YOUR WEATHERCLOUD ACCOUNT SET UP WI-FI CONNECTION ADVANCED SETTINGS VIA WEB INTERFACE VIEW YOUR WEATHER DATA IN WEATHER UNDERGROUND VIEW YOUR WEATHER DATA IN WEATHERCLOUD OTHER CONSOLE SETTINGS AND FUNCTIONS SETTING THE ALARM WIND READOUTS WEATHER FORECAST BAROMETRIC PRESSURE RAINFALL WEATHER ALERT SETTINGS CARE AND MAINTENANCE SPECIFICATIONS QUESTIONS? 3 4 5 6 7 8 10 13 15 17 18 20 22 22 24 26 28 30 30 31 32 34 35 39 TABLE OF CONTENTS 3 SAFETY PRECAUTIONS 1. Do not let children use or play with this device. It is not a toy. 2. Do not use any attachments not supplied or recommended by the manufacturer. 3. Do not place the appliance near open flames or heat sources. Fire, electric shock, product damage, or injury might occur. 4. Do not mix old and new batteries in the display unit. 5. A low battery symbol will appear in the OUT or CH sections of the LCD display when battery power is low on the console or weather sensor, respectively. Be sure to change the batteries promptly to ensure the proper operation of the weather station. 6. Do not subject the display unit to excessive force or shock (do not throw the unit!), dust, extreme high or low temperatures, or humidity/moisture. These can cause the unit to stop functioning as well as present the risk of shock, fire, or other hazards. 7. Do not cover the ventilation holes on the display with newspapers, curtains, or any other items. 8. Never immerse the display in water! If you spill any liquid on the display, dry it immediately with a soft, lint-free cloth. 9. Do not use abrasive or corrosive materials to clean the display. 10. Do not tamper with the display or the weather vane’s internal components. This invalidates your limited warranty. 11. Placing this product on certain types of wood may result in unintended damage to the finish, for which Logia™ will not be responsible. Consult your furniture manufacturer’s instructions for information on wood care. 12. Do not dispose of old batteries as unsorted municipal waste. Make sure to dispose of them properly according to your local guidelines. 13. The main display console is only intended for use indoors. QUESTIONS OR PROBLEMS? CONTACT US! Email: [email protected] or call: 1-833-815-0568 www.logiaweatherstation.com 4 PRODUCT FEATURES 1. Wireless 5-in-1 weather sensor measures wind speed, wind direction, rainfall, temperature, and humidity. 2. No calibration needed! The product is fully pre-calibrated and mostly assembled; all you need to do is install it and sync with the included display console. 3. Provides precise weather and environmental information directly from your own backyard, instead of relying on a national weather station. 4. Color LCD display with dimmable backlight. 5. Can alert you to excessively high/low indoor or outdoor temperatures or humidity, high wind speeds, extreme drops in barometric pressure, high heat indexes, low wind chills, and high/low dew points. 6. Syncs with installed WI-FI and online weather servers (Weather Undergound and Weathercloud) to help you store and track weather data in your area, plus view live weather statistics and historical weather trends. 5 PACKAGE CONTENTS WI-FI SENSORRESETREFRESH MAX/MINHISTORYCHANNEL BARO UNIT 1. Wireless Weather Sensor (1) 2. Mounting Pole (1) Plastic Exterior 3. Mounting Clamp (1) 4. Mounting Base (1) 5. Large Mounting Screws (4) 6. Large Hexagonal Nuts (4) 7. Large Washers (4) 8. Small Screws (2) 9. Small Hexagonal Nuts (2) 10. Rubber Pads for Mounting Clamp 11. Display Console with Kickstand (1) 12. Display Console Battery (1) 13. Display Console Power Cable (1) 14. User Guide 1 2 5 7 8 6 9 4 3 10 11 12 13 14 6 DISPLAY CONSOLE OVERVIEW MAIN CONSOLE OVERVIEW 1. Kickstand 2. SNOOZE button 3. CHANNEL button 4. HISTORY button 5. MAX/MIN button 6. WIND button 7. INDEX button 8. BARO button 9. RAIN button 10. LCD Display (See overview on page7 11. CLOCK SET button 12. ALARM button 13. Wall mount notch 14. ALERT button 15. button 16. button 17. Power connection 18. 12/24 button 19. °C/°F button 20. BARO UNIT button 21. SENSOR/WI-FI button 22. REFRESH button 23. Battery compartment 24. OFF/LO/HI button 25. RESET button WI-FI SENSORRESETREFRESH MAX/MINHISTORYCHANNEL BARO UNIT WI-FI SENSORRESETREFRESH MAX/MINHISTORYCHANNEL BARO UNIT 1 2 345678910171819202122232425 111213141516 7 LCD DISPLAY OVERVIEW 1. Temperature & humidity (indoor/CH) 2. Weather forecast 3. Time, date, & moon phase 4. Wind speed & direction 5. Temperature & humidity (outdoor) 6. Barometer 7. Rainfall 8. Weather index LCD DISPLAY Display section: 1. Indoor / CH temperature & humidity 2. Weather forecast 3. Time, calendar & moon phase 4. Wind direction & speed 5. Outdoor temperature & humidity 6. Barometer 7. Rainfall 8. Weather index WIRELESS 5-IN-1 WEATHER SENSOR 1. Rain collector 2. Balance indicator 3. Antenna 4. Wind cups 5. Mounting pole 6. Radiation shield 7. Wind vane 8. Mounting base 9. Mounting clamp 10. Red LED indicator 11. [ RESET ] key 12. Battery door 13. Screws 1 2 3 5 8 9 4 7 6 12 10 11 13 1 4 5 6 7 8 2 3…

Text truncated - open the document above for the full version.

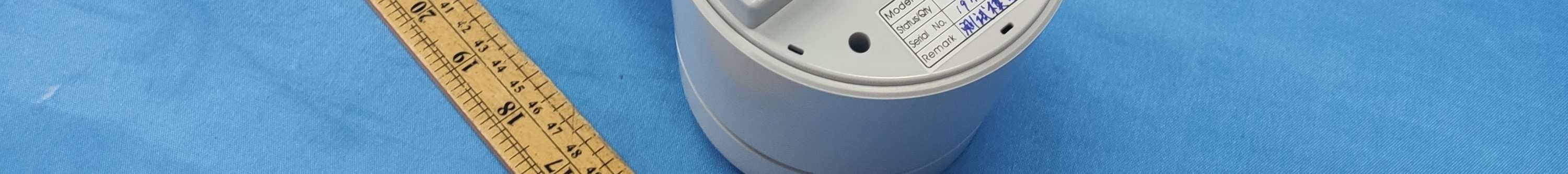

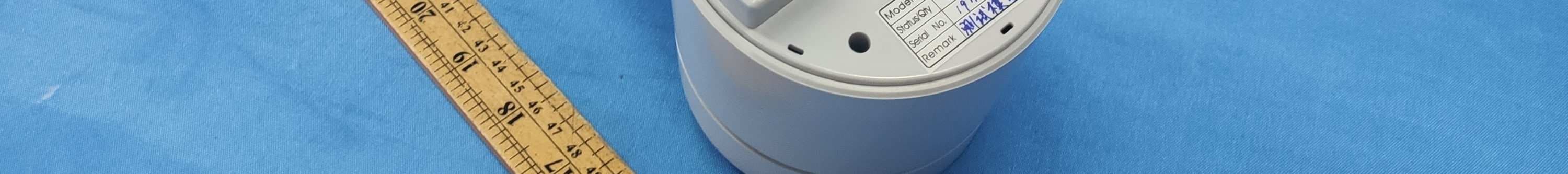

INTERTEK TESTING SERVICE Report No.: HK19120923 Equipment Photographs (External)

and is intended to use as conceptual study, product introduction etc. ੅ߥি֣6XUJ[IZYO`K ^^SS(GZZKX_ ''^ 䇴䇗㕌 ਭ 䇗 䇴 ᡭ     ᇘ ӝ૷㕌 ਭᨅ䘦 & $ )RU)&& ∊ׁ$  +3(599 䇴䇗ᰛ ᵕ  ;<2'9+8+4-8'</4- FCC ID: 2AD2W-LOWS510BO MADE IN CHINA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation. ؤ᭯ᰛ ᵕ  136 mm

INTERTEK TESTING SERVICE Report No.: HK19120923 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK19120923 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK19120923 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK19120923 Equipment Photographs (Internal)

INTERTEK TESTING SERVICE Report No.: HK19120923 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK19120923 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK19120923 Equipment Photographs (Internal)

INTERTEK TESTING SERVICES RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the 915MHz portion of the Wireless Weather Sensor of tested model: LOWS510BO, the measured EIRP power was within its production tolerance: -13 dBm (Minimum) and -4 dBm (Maximum).The antenna gain is 0 dBi = 1.00 (num gain) and its maximum source-based time-averaging duty factor is 100%. From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The EIRP Power = -4 dBm = 0.4 mW The EIRP Power source-based time-averaging output power = (0.4 * 1) mW = 0.4 mW The power density at 20cm = 0.4 / 4πR 2 = 0.00008 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the unit at least 20cm from nearby persons.”

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 16 TEST REPORT Report No.: 19120923HKG-001 C&A Marketing Inc. Application For Certification (Original Grant) FCC ID: 2AD2W-LOWS510BO 915MHz Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: January 08, 2020 TEST REPORT C&A Marketing Inc. Intertek Report No: 19120923HKG-001 Page 2 of 16 GENERAL INFORMATION Grantee: C&A Marketing Inc. Grantee Address: 114 Tived Lane East, Edison New Jersey 08837 United States Contact Person: Chaim Piekarski Tel: 848-244-2000 Fax: 848-244-2361 e-mail: [email protected] Manufacturer: CCL Electronics Ltd. Manufacturer Address: Unit 1-3, 9/F., Wang Lung Industrial Building, 11 Lung Tak Street, Tsuen Wan, N.T., Hong Kong. Brand Name: Logia Model: LOWS510B Type of EUT: Transmitter Description of EUT: Wireless Weather Sensor (915MHz Transmitter) Serial Number: N/A FCC ID: 2AD2W-LOWS510BO Date of Sample Submitted: December 30, 2019 Date of Test: December 30, 2019 to January 08, 2020 Report No.: 19120923HKG-001 Report Date: January 08, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT C&A Marketing Inc. Intertek Report No: 19120923HKG-001 Page 3 of 16 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2018 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT C&A Marketing Inc. Intertek Report No: 19120923HKG-001 Page 4 of 16 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description ................................................................................................... 5 1.2 Related Submittal(s) Grants ....................................................................................... 5 1.3 Test Methodology ...................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION ..................................................................................... 6 2.1 Justification ................................................................................................................ 6 2.2 EUT Exercising Software ............................................................................................. 6 2.3 Special Accessories .................................................................................................... 6 2.4 Measurement Uncertainty ......................................................................................... 6 2.5 Support Equipment List and Description .................................................................... 6 3.0 EMISSION RESULTS ....................................................................................................... 7 3.1 Field Strength Calculation .......................................................................................... 7 3.2 Radiated Emission Configuration Photograph ............................................................ 8 3.3 Radiated Emission Data ............................................................................................. 8 4.0 EQUIPMENT PHOTOGRAPHS ...................................................................................... 11 5.0 PRODUCT LABELLING .................................................................................................. 11 6.0 TECHNICAL SPECIFICATIONS ....................................................................................... 11 7.0 INSTRUCTION MANUAL .............................................................................................. 11 8.0 MISCELLANEOUS INFORMATION ................................…
