Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
WI-FI weather station with 7-In-1 professional sensor Model: C6081A User Manual * POLE IS FOR ILLUSTRATION PURPOSE. IT'S NOT INCLUDED. ABOUT THIS USER’S MANUAL This symbol represents a warning. To ensure safe use, always adhere to the instructions described in this documentation. This symbol is followed by a user’s tip. PRECAUTIONS - Keep and reading the “User manual” is highly recommended. The manufacturer and supplier cannot accept any responsibility for any incorrect readings, export data lost and any consequences that occur should an inaccurate reading take place. - This product is designed for use in the home only as indication of weather conditions. This product is not to be used for medical purposes or for public information - Do not subject the unit to excessive force, shock, dust, temperature or humidity. - Do not cover the ventilation holes with any items such as newspapers, curtains etc. - Do not immerse the unit in water. If you spill liquid over it, dry it immediately with a soft, lint-free cloth. - Do not clean the unit with abrasive or corrosive materials. - Do not tamper with the unit’s internal components. This invalidates the warranty. -Placement of this product on certain types of wood may result in damage to its finishing for which manufacturer will not be responsible. Consult the furniture manufacturer’s care instructions for information. - Only use fresh batteries. Do not mix new and old batteries. -Only use attachments / accessories specified by the manufacturer. - Images shown in this manual may differ from the actual display. - When disposing of this product, ensure it is collected separately for special treatment. - Dispose of used batteries according to the instructions. - CAUTION! risk of explosion if battery is replaced by an incorrect type. - The socket-outlet shall be installed near the equipment and easily be accessible. - The contents of this manual may not be reproduced without the permission of the manufacturer. -Technical specifications and user manual contents for this product are subject to change without notice. - When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards. - This product is not a toy. Keep out of the reach of children. - The console is intended to be used only indoors. - Place the console at least 20cm from nearby persons. - The console shall be used with the adaptor that included in the packaging. - This device is only suitable for mounting at height < 2m. TABLE OF CONTENTS INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 CONSOLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 LCD DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 WIRELESS INDOOR HYGRO-THERMO SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . 2 WIRELESS 7-IN-1 SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 INSTALLATION AND SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 INSTALL WIRELESS 7-IN-1 SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 INSTALL WIRELESS INDOOR SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 SETUP THE CONSOLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 SYNCHRONIZING ADDITIONAL WIRELESS SENSOR(S) (OPTIONAL) . . . . . . . . . . . . . . .6 POINTING THE WIRELESS 7-IN-1 SENSOR TO SOUTH . . . . . . . . . . . . . . . . . . . . . . . 6 CREATE WEATHER SERVER ACCOUNT & SETUP WI-FI CONNECTION . . . . . . . . . . . . . . . . 7 CREATE WEATHER UNDERGROUND ACCOUNT . . . . . . . . . . . . . . . . . . . . . . . . . .7 CREATE WEATHERCLOUD ACCOUNT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 SETUP WI-FI CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 SETUP THE WEATHER SERVER CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . 11 ADVANCE SETTING IN WEB INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 VIEW YOUR WEATHER DATA IN WUNDERGROUND . . . . . . . . . . . . . . . . . . . . . . . 13 VIEW YOUR WEATHER DATA IN WEATHERCLOUD . . . . . . . . . . . . . . . . . . . . . . . . 13 FIRMWARE UPDATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 OTHER SETTING & FUNCTIONS OF THE CONSOLE . . . . . . . . . . . . . . . . . . . . . . . . . 14 MANUAL CLOCK SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 MOON PHASE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 SUNRISE & SUNSET TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 SETTING ALARM TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 ACTIVATING ALARM AND TEMPERATURE PRE-ALARM FUNCTION . . . . . . . . . . . . . . . 16 TEMPERATURE / HUMIDITY FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 TREND INDICATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 WIND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 WEATHER INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 WEATHER FORECAST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 BAROMETRIC PRESSURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 RAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 LIGHT INT…
Text truncated - open the document above for the full version.

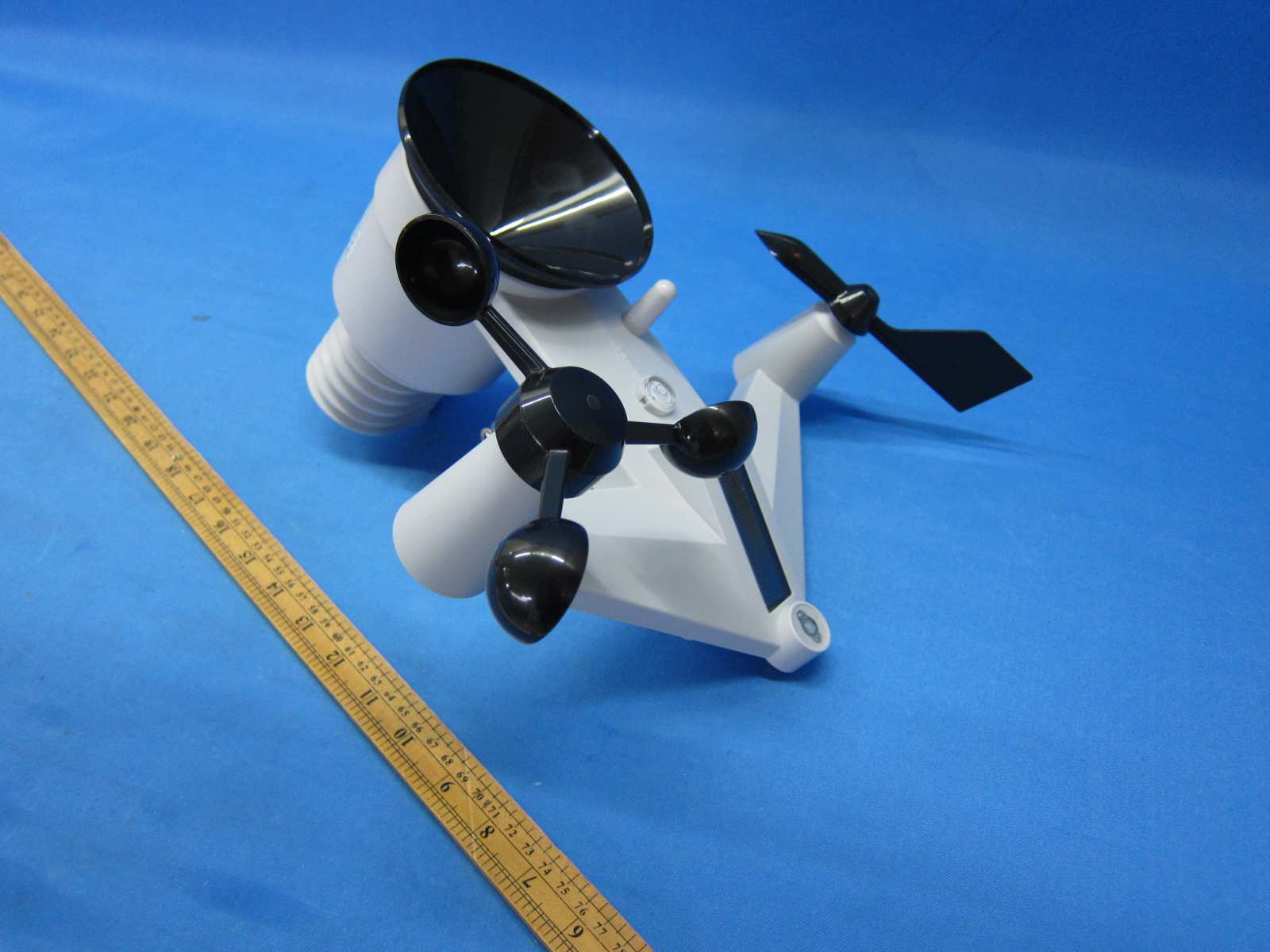

INTERTEK TESTING SERVICE Report No.: HK20070384 Equipment Photographs (External)
This article is the property of CCL Electronics Ltd (CCL) and is intended to use as conceptual study, product introduction etc. Any unauthorized usage either in electronic or hard copy format will be strictly prohibited. CCL reserv es all rights to raise legal action to any illegal manipulation of this article. ؤ᭯ᰛᵕ 䇴䇗㕌ਭ &&/ ᇘᡭ 䇴䇗 ӝ㕌ਭᨅ䘦 )9 &$ ∊ׁ$ 1 1 Unit:mm 5''$ ֣ߧݼߥ 䇴䇗ᰛᵕ :=< SILKSCREEN COL: TEXT-PMS425C(GRAY) 2AD2W-LOWSC710SWBO Th is device com p lies with Part 15 o f the FCC Rules. Operation i s subje ct to the following two cond itions: (1) this device may not cause harmful interference, and (2) this device must accept any in terference received, including inter ference that may cause undesired operation. INJECT COL: #331626(GRAY) SPRAY COL: NIL WORD & SYMBOL: UV LASER ENGRAVING FONTS: NIL INJECT COL: JM3018(BLACK) SPRAY COL: NIL SILKSCREEN COL: NIL INJECT COL: CLEAR 6 cm
INTERTEK TESTING SERVICE Report No.: HK20070384 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20070384 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20070384 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20070384 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20070384 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20070384 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK20070384 Equipment Photographs (Internal)
Analysis Report Report No.: 20070384HKG-001 The equipment under test (EUT) is the 7-In-1 Professional Sensor (915MHz Transmitter) of the WI-FI weather station. The EUT is powered by 4.5VDC (3X 1.5V "AA" batteries). The EUT will transmit RF signal to the corresponding receiver and the receiver will display the weather information on the screen of the receiver. According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 82.2 dBμV/m at 3m in frequency 915MHz, thus; It below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (0.915) mW = 15.7 mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 15.7mW is 107.2dBuV/m @3m Since maximum field strength plus production tolerance < = 107.2dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.
2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 16 TEST REPORT Report No.: 20070384HKG-001 C&A Marketing Inc. Application For Certification (Original Grant) FCC ID: 2AD2W-LOWSC710SWBO Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Lead Engineer Wong Kwok Yeung, Kenneth Senior Lead Engineer Date: July 20, 2020 TEST REPORT C&A Marketing Inc. Intertek Report No: 20070384HKG-001 Page 2 of 16 GENERAL INFORMATION Grantee: C&A Marketing Inc. Grantee Address: 114 Tived Lane East, Edison, New Jersey, 08837, United States. Contact Person: Chaim Piekarski Tel: 848-244-2000 Fax: 959-244-2361 e-mail: [email protected] Manufacturer: CCL Electronics Ltd. Manufacturer Address: Unit 1-3, 9/F., Wang Lung Industrial Building, 11 Lung Tak Street, Tsuen Wan, N.T., Hong Kong. Brand Name: Logia Model: LOWSC710SWB Type of EUT: Transmitter Description of EUT: 7-In-1 Professional Sensor Serial Number: N/A FCC ID: 2AD2W-LOWSC710SWBO Date of Sample Submitted: July 09, 2020 Date of Test: July 09, 2020 to July 17, 2020 Report No.: 20070384HKG-001 Report Date: July 20, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 Certification. TEST REPORT C&A Marketing Inc. Intertek Report No: 20070384HKG-001 Page 3 of 16 SUMMARY OF TEST RESULT Test Specification Reference Results Radiated Emission Radiated Emission on the Bandedge 15.249 Pass Radiated Emission in Restricted Bands 15.205 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2019 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT C&A Marketing Inc. Intertek Report No: 20070384HKG-001 Page 4 of 16 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description ................................................................................................... 5 1.2 Related Submittal(s) Grants ....................................................................................... 5 1.3 Test Methodology ...................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION ..................................................................................... 6 2.1 Justification ................................................................................................................ 6 2.2 EUT Exercising Software ............................................................................................. 6 2.3 Special Accessories .................................................................................................... 6 2.4 Measurement Uncertainty ......................................................................................... 6 2.5 Support Equipment List and Description .................................................................... 6 3.0 EMISSION RESULTS ....................................................................................................... 7 3.1 Field Strength Calculation .......................................................................................... 7 3.2 Radiated Emission Configuration Photograph ............................................................ 8 3.3 Radiated Emission Data ............................................................................................. 8 4.0 EQUIPMENT PHOTOGRAPHS ...................................................................................... 11 5.0 PRODUCT LABELLING .................................................................................................. 11 6.0 TECHNICAL SPECIFICATIONS ....................................................................................... 11 7.0 INSTRUCTION MANUAL .............................................................................................. 11 8.0 MISCELLANEOUS INFORMATION ..........................................................…
Text truncated - open the document above for the full version.
INTERTEK TESTING SERVICE Report No.: HK20070384 Equipment Photographs (Radiated)
2/F., Garment Centre, · Hong Kong
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 915 MHz - 915 MHz | - |
