2AD2WCUBEPLUSDigital Camera

Wi-Fi HD Action Camera Caméra d’Action HD Wi-Fi | Action Camera HD Wi-Fi | WLAN HD Action-Kamera | Cámara de Acción HD Wi-Fi | Câmara de Ação HD Wi-Fi USER GUIDE GUIDE DE L’UTILISATEUR | MANUALE UTENTE | BEDIENUNGSANLEITUNG | GUÍA DE USUARIO | GUIA DO UTILIZADOR Hello and welcome to the Polaroid Cube + ™ camera. Let’s get started. Bonjour et bienvenue dans l’univers de la caméra Polaroid Cube + ™ . Démarrons. Ciao, e benvenuto nella fotocamera Polaroid Cube + ™ . Cominciamo. Herzlich willkommen bei der Polaroid Cube + ™ Kamera. Es kann losgehen. Hola y bienvenido al mundo de Polaroid Cube + ™ . Empecemos. Olá e sejam bem-vindos à Polaroid Cube + ™ . Vamos começar. EN FR IT DE ES PT EN What’s in the Box Get to Know Your Polaroid Cube + Camera Using Your Polaroid Cube + Camera FR Que trouve-t-on dans la boîte Découvrez votre caméra Polaroid Cube + Utilisation de votre caméra Polaroid Cube + IT Cosa c’è nella confezione Impara a conoscere la tua Fotocamera Polaroid Cube + Utilizzare la tua Fotocamera Polaroid Cube + DE Was ist in der Box Deine Polaroid Cube + Kamera Bedienung Deiner Polaroid Cube + Kamera ES Qué hay en la caja Conozca su cámara Polaroid Cube + Usando su cámara Polaroid Cube + PT O que há dentro da caixa Conheça a sua câmara Polaroid Cube + Usar a sua câmara Polaroid Cube + 6 7 10 XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX Overview [only EN chapter has been updated] 6 | ENEN | 7 What’s in the Box Polaroid Cube + ™ Wi-Fi HD Action Camera Micro USB Cable1. Lens 2. Microphone 3. Magnet Get to Know Your Polaroid Cube + ™ Camera 1 2 3 8 | ENEN | 9 4. Wi-Fi Button 5. Multifunction Button 6. LED Top View 7. MicroSD Slot 8. Micro USB Port 9. Rear Cover Latch Back View 5 4 6 9 8 7 10 | ENEN | 11 On and Off SD Card Installing the Cube + App Connecting to Wi-Fi Photos and Videos Using the App Video Still Photo Photo Burst Time-Lapse Slow Motion Editing Video, Time-Lapse and Slow Motion Capturing Stills from Video Adjusting Other Settings Saving, Sharing and Printing Connecting to a Different Cube Changing Your Passcode Battery and Charging Understanding the LED Functions Warnings Table of Contents XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX XX (App section to be re-ordered and edited) 12 | ENEN | 13 Using Your Polaroid Cube + ™ Camera On Hold the multifunction button until the LED turns green and you hear 3 beeps. All set! Off Hold multifunction button until the LED turns off and you hear 1 long beep followed by 1 short beep. SD Card A microSD card must be present for your Polaroid Cube + to work. To insert a microSD card, lift the rear door and with the metal contacts facing up, insert the card and gently push in until you hear a click. To remove a card, gently push the card in, release and the card will slide back out. If no microSD card is present, your camera will beep continuously and the LED will blink orange until a new microSD card is inserted. When your microSD memory is almost full (1GB remaining), the LED will blink alternating orange and red. Once the SD card is completely full you’ll hear a single short beep and you will no longer be able to take photos or videos. The LED will blink orange and red until the microSD card is removed or data is transferred from the camera. 14 | ENEN | 15 Your Polaroid Cube+ camera can accommodate microSD cards with storage capacities up to 128GB. We suggest using microSD cards Class 10 and above. Cards lower than Class 6 may cause slower recording/reading speed as well as other unexpected issues. Install the Polaroid Cube + App Downloading the Polaroid Cube+ app will allow you to access many advanced functions of your Cube+ camera and will also allow you to use your smartphone as a viewfinder. Download the Polaroid Cube+ app from the App Store and follow the onscreen instructions to set up your account and sync to your camera. For FAQs, trouble shooting or customer service, go to www.polaroidcube.com/support Connecting to Wi-Fi Press and hold the Wi-Fi button. You’ll hear one long beep and the LED will blink blue as it connects. – Go to the Settings menu on your smartphone. – Select the Wi-Fi menu. – Select the CUBE+ – XXXXXXXX (the 8-digit number will vary). – When prompted, input the Polaroid Cube+ standard Wi-Fi password “1234567890”. It may take up to 5 seconds for the Wi-Fi connection to be established. While connected, the LED will blink a low-intensity blue. To disconnect from Wi-Fi, press and hold the 16 | ENEN | 17 Wi-Fi button until you hear a long beep and the LED stops blinking blue. Let’s Take Photos and Videos Still Photos Press the multifunction button once. You’ll hear a short beep and the LED will blink red once. Video Double press the multifunction button. You’ll hear two short beeps and the LED will blink red while you are recording. To stop recording, press the button. You’ll hear a single short beep and the LED will return to a solid green. Using the App to Take Photos and Videos Open the Polaroid Cube+ app. After setting up your account/signing in, you’ll be taken to the Viewfinder screen. The screen automatically opens up to video capture. To change to another capture mode, tap the mode icon in the left bottom corner of the screen. Icons of other photo/video modes will appear across the bottom of the screen. Tap the preferred icon to access that mode. Your account settings can be adjusted at any time in the Camera Detail screen of the Cube+ app. Tap or swipe down the small bar located at the top of the viewfinder screen to reach these settings. 18 | ENEN | 19 720p at 30 or 60fps. 00:00:00 Video Time: Displays video length. [slow motion icon] Slow Motion [Icon 3.2A.2 Still & Photoburst] Tap once to begin slow-motion capture. [icon 3.2B.5 Video] Tap once to end slow-motion capture. [icon 3.2B.4 & 5 Time-lapse & Slow Motion] Resolution: Slow motion is captured at 720p/120fps. For more details, see page 189. Video Tap once to begin recording video. Tap once to stop recording video. Tap to capture a still imag…

Text truncated - open the document above for the full version.

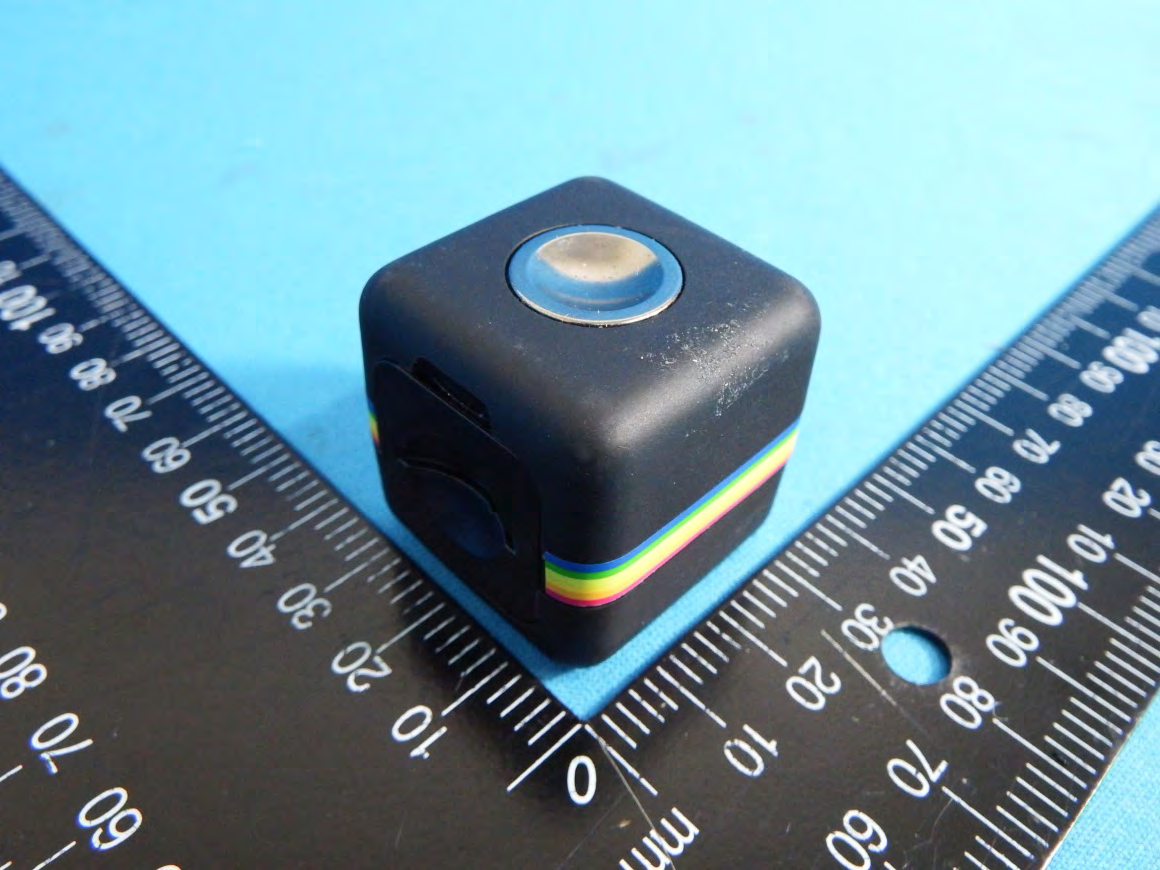

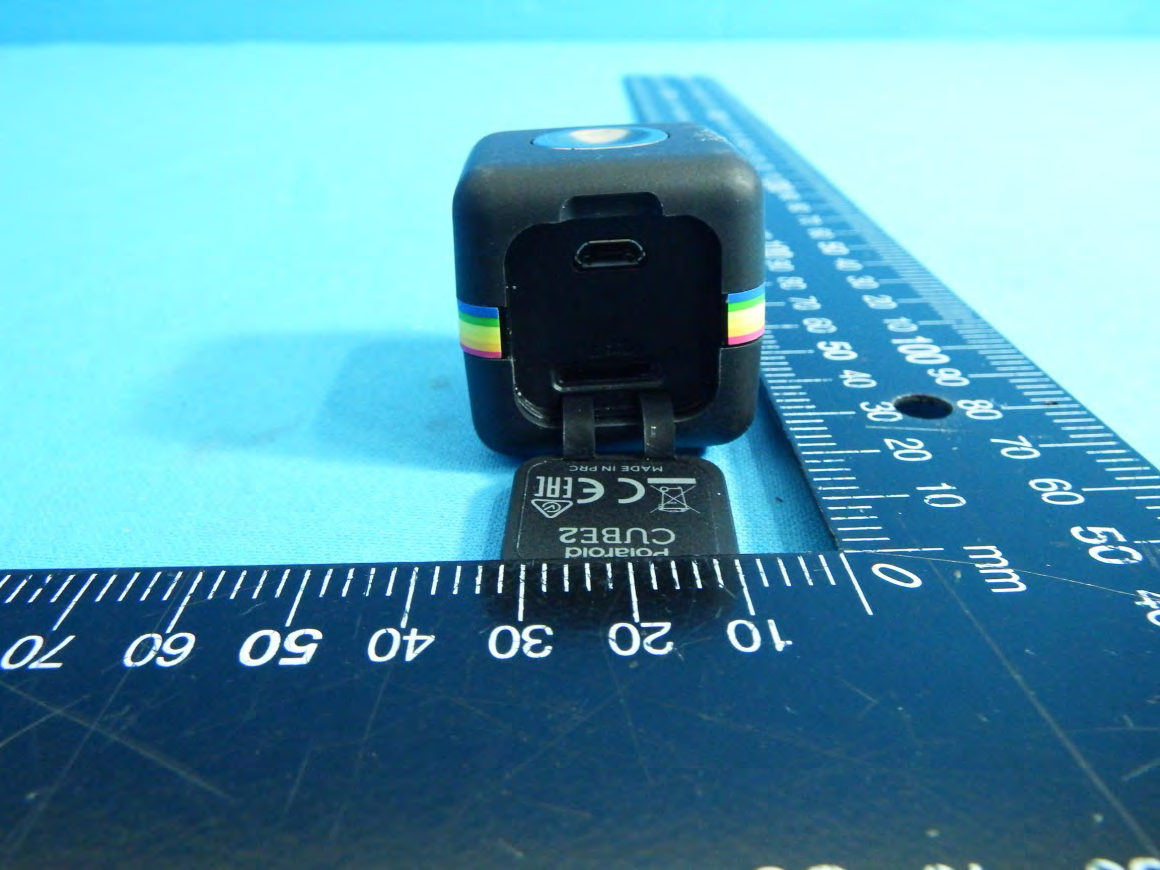

Report No. : EP572429 SPORTON International Inc. Page Number : B1 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT Report No. : EP572429 SPORTON International Inc. Page Number : B2 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B3 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B21 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

Report No. : EP572429 SPORTON International Inc. Page Number : B4 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B5 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B6 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B7 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B8 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B9 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B10 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B11 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B12 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B13 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B14 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B15 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B16 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B17 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B18 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B19 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B20 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP572429 SPORTON International Inc. Page Number : B21 of B22 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

FCC SAR Test Report Report No. : FA572429 SPORTON INTERNATIONAL INC. Page No. : 1 of 29 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC SAR Test Report Equipment : Digital Camera Brand Name : Polaroid Model No. : Cube Plus FCC ID : 2AD2WCUBEPLUS Standard : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 Applicant Manufacturer : C & A Marketing Inc. 2 Bergen Turnpike Ridgefield Park, NJ 07660, USA Chicony Electronics (Dong Guan ) Co.,Ltd. San Zhong Guan Li Qu, Qingxi Town, Dongguan City Guangdong 523651 China The product sample received on Aug. 14, 2015 and completely tested on Sep. 02, 2015. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Kevin Liang / Assistant Manager FCC SAR Test Report Report No. : FA572429 SPORTON INTERNATIONAL INC. Page No. : 2 of 29 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 STATEMENT OF COMPLIANCE .......................................................................................................... 5 1.1 Guidance Standard ................................................................................................................................ 5 1.2 Testing Location Information .................................................................................................................. 5 1.3 Device Category and SAR Limits ........................................................................................................... 6 2 EQUIPMENT UNDER TEST (EUT) ....................................................................................................... 7 2.1 General Information ................................................................................................................................ 7 2.2 Maximum Tune-up Limit & Conducted RF Output Power ...................................................................... 8 (Unit: dBm) .......................................................................................................................................................... 8 3 RF EXPOSURE LIMITS ......................................................................................................................... 9 3.1 Uncontrolled Environment ...................................................................................................................... 9 3.2 Controlled Environment .......................................................................................................................... 9 4 SPECIFIC ABSORPTION RATE (SAR) .............................................................................................. 10 4.1 Introduction ........................................................................................................................................... 10 4.2 SAR Definition ...................................................................................................................................... 10 5 SYSTEM DESCRIPTION AND SETUP ............................................................................................... 11 5.1 E-Field Probe ....................................................................................................................................... 12 5.2 E-Field Probe Specification .................................................................................................................. 12 5.3 E-Field Probe Calibration ..................................................................................................................... 13 5.4 Data Acquisition Electronics (DAE) ...................................................................................................... 13 5.5 Robot .................................................................................................................................................... 14 5.6 Measurement Server ............................................................................................................................ 15 5.7 Phantom ............................................................................................................................................... 15 6 MEASUREMENT PROCEDURES ....................................................................................................... 16 6.1 Spatial Peak SAR Evaluation ............................................................................................................... 16 6.2 Power Reference Measurement .......................................................................................................... 17 6.3 Area Scan ............................................................................................................................................. 17 6.4 Zoom Scan ........................................................................................................................................... 18 6.5 Volume Scan Procedures ..................................................................................................................... 18 6.6 Power Drift Monitoring .......................................................................................................................... 18 7 TEST EQUIPMENT LIST ..................................................................................................................... 19 8 SYSTEM VERIFICATION .................................................................................................................... 20 8.1 Tissue Simulating Liquids ..................................................................................................................... 20 8.2 Tissue Ver…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report No. :FA572429 SPORTON INTERNATIONAL INC. Page No. : A1 of A1 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Plots of System Performance Check Test Laboratory: Sporton International Inc. SAR Testing Lab Date: 2015/8/20 System Check_B2450_150820 DUT: Dipole 2450MHz D2450V2_ SN: 929 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: B2450_150820 Medium parameters used: f = 2450 MHz; ı = 2.002 S/m; İ r = 51.299; ȡ = 1000 kg/m 3 Ambient Temperature烉23.1 ΥļơLiquid Temperature烉22.3 ɗ DASY5 Configuration: - Probe: EX3DV4 - SN3976; ConvF(7.26, 7.26, 7.26); Calibrated: 2015/2/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2015/2/20 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 20.2 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 99.80 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 27.8 W/kg SAR(1 g) = 13.2 W/kg; SAR(10 g) = 6.09 W/kg Maximum value of SAR (measured) = 20.3 W/kg

FCC SAR Test Report Report No. :FA572429 SPORTON INTERNATIONAL INC. Page No. : B1 of B1 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 APPENDIX B. Plots of SAR Measurement Test Laboratory: Sporton International Inc. SAR Testing Lab Date: 2015/8/20 P02 802.11b_Front Face_0cm_Ch1 DUT: 572429 Communication System: WLAN_2.4G; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: B2450_150820 Medium parameters used: f = 2412 MHz; ı = 1.954 S/m; İ r = 51.423; ȡ = 1000 kg/m 3 Ambient Temperature烉23.1 ΥļơLiquid Temperature烉22.3 ɗ DASY5 Configuration: - Probe: EX3DV4 - SN3976; ConvF(7.26, 7.26, 7.26); Calibrated: 2015/2/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2015/2/20 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch1/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.432 W/kg Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.88 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.637 W/kg SAR(1 g) = 0.339 W/kg; SAR(10 g) = 0.174 W/kg Maximum value of SAR (measured) = 0.447 W/kg Test Laboratory: Sporton International Inc. SAR Testing Lab Date: 2015/8/20 P03 802.11b_Rear Face_0cm_Ch1 DUT: 572429 Communication System: WLAN_2.4G; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: B2450_150820 Medium parameters used: f = 2412 MHz; ı = 1.954 S/m; İ r = 51.423; ȡ = 1000 kg/m 3 Ambient Temperature烉23.1 ΥļơLiquid Temperature烉22.3 ɗ DASY5 Configuration: - Probe: EX3DV4 - SN3976; ConvF(7.26, 7.26, 7.26); Calibrated: 2015/2/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2015/2/20 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch1/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.304 W/kg Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.33 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.387 W/kg SAR(1 g) = 0.214 W/kg; SAR(10 g) = 0.104 W/kg Maximum value of SAR (measured) = 0.286 W/kg Test Laboratory: Sporton International Inc. SAR Testing Lab Date: 2015/8/20 P04 802.11b_Edge1_0cm_Ch1 DUT: 572429 Communication System: WLAN_2.4G; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: B2450_150820 Medium parameters used: f = 2412 MHz; ı = 1.954 S/m; İ r = 51.423; ȡ = 1000 kg/m 3 Ambient Temperature烉23.1 ΥļơLiquid Temperature烉22.3 ɗ DASY5 Configuration: - Probe: EX3DV4 - SN3976; ConvF(7.26, 7.26, 7.26); Calibrated: 2015/2/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2015/2/20 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch1/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.322 W/kg Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.78 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.434 W/kg SAR(1 g) = 0.224 W/kg; SAR(10 g) = 0.107 W/kg Maximum value of SAR (measured) = 0.314 W/kg Test Laboratory: Sporton International Inc. SAR Testing Lab Date: 2015/8/20 P05 802.11b_Edge2_0cm_Ch1 DUT: 572429 Communication System: WLAN_2.4G; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: B2450_150820 Medium parameters used: f = 2412 MHz; ı = 1.954 S/m; İ r = 51.423; ȡ = 1000 kg/m 3 Ambient Temperature烉23.1 ΥļơLiquid Temperature烉22.3 ɗ DASY5 Configuration: - Probe: EX3DV4 - SN3976; ConvF(7.26, 7.26, 7.26); Calibrated: 2015/2/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2015/2/20 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch1/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.307 W/kg Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.29 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.385 W/kg SAR(1 g) = 0.201 W/kg; SAR(10 g) = 0.095 W/kg Maximum value of SAR (measured) = 0.288 W/kg Test Laboratory: Sporton International Inc. SAR Testing Lab Date: 2015/8/20 P06 802.11b_Edge3_0cm_Ch1 DUT: 572429 Communication System: WLAN_2.4G; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: B2450_150820 Medium parameters used: f = 2412 MHz; ı = 1.954 S/m; İ r = 51.423; ȡ = 1000 kg/m 3 Ambient Temperature烉23.1 ΥļơLiquid Temperature烉22.3 ɗ DASY5 Configuration: - Probe: EX3DV4 - SN3976; ConvF(7.26, 7.26, 7.26); Calibrated: 2015/2/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2015/2/20 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Ch1/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 0.0831 W/kg Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.679 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.122 W/kg SAR(1 g) = 0.059 W/kg; SAR(10 g) = 0.027 W/kg Maximum value of SAR (measured) = 0.0858 W/kg Test Laboratory: Sporton International Inc. SAR Testing Lab Date: 2015/8/20 P07 802.11b_Edge4_0cm_Ch1 DUT: 572429 Communication System: WLAN_2.4G; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: B2450_150820 Medium parameters used: f = 2412 MHz; ı = 1.954 S/m; İ r = 51.423; ȡ = 1000 kg/m 3 Ambient Temperature烉23.1 ΥļơLiquid Temperature烉22.3 ɗ DASY5 Configuration: - Probe: EX3DV4 - SN3976; ConvF(7.26, 7.26, 7.26); Calibrated: 2015/2/26; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2015/2/20 - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:1238 - Measurem…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report No. :FA572429 SPORTON INTERNATIONAL INC. Page No. : C1 of C1 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix C. DASY Calibration Certificate

FCC Test Report Report No. : FR572429 SPORTON INTERNATIONAL INC. Page No. : 1 of 51 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Equipment : Digital Camera Brand Name : Polaroid Model No. : Cube Plus FCC ID : 2AD2WCUBEPLUS Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz Equipment Class : DTS Applicant : C & A Marketing Inc. 2 Bergen Turnpike Ridgefield Park, NJ 07660, USA Manufacturer : Chicony Electronics (Dong Guan ) Co.,Ltd. San Zhong Guan Li Qu, Qingxi Town, Dongguan City Guangdong 523651 China The product sample received on Jul. 24, 2015 and completely tested on Aug. 28, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Vic Hsiao / Supervisor FCC Test Report Report No. : FR572429 SPORTON INTERNATIONAL INC. Page No. : 2 of 51 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 6dB Bandwidth ..................................................................................................................................... 16 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 21 3.5 Transmitter Radiated Bandedge Emissions ......................................................................................... 23 3.6 Radiated Unwanted Emissions ............................................................................................................ 27 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 50 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR572429 SPORTON INTERNATIONAL INC. Page No. : 3 of 51 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.1758420MHz 41.77 (Margin 22.91dB) - QP 23.17 (Margin 31.51dB) - AV FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 6.46 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 15.93 Power [dBm]:30 Complied 3.4 15.247(e) Power Spectral Density PSD [dBm/100kHz]: -14.44 PSD [dBm/3kHz]:8 Complied 3.5 15.247(d) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2397.13 MHz: 29.13 dB Restricted Bands [dBuV/m at 3m]: 2483.70 MHz 72.81 (Margin 1.19dB) - PK 52.26 (Margin 1.74dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(d) Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 4874.00 MHz 52.79 (Margin 1.21dB) – AV 57.26 (Margin 16.74dB) - PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR572429 SPORTON INTERNATIONAL INC. Page No. : 4 of 51 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR572429 Rev. 02 Initial issue of report Sep. 03, 2015 2500-2690 FCC Test Report Report No. : FR572429 SPORTON INTERNATIONAL INC. Page No. : 5 of 51 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 14.91 2400-2483.5 g 2412-2462 1-11 [11]…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR572429 SPORTON INTERNATIONAL INC. Page No. : A1 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos 1. Photographs of Conducted Emissions Test Configuration Front view Rear view FCC Test Report Report No. : FR572429 SPORTON INTERNATIONAL INC. Page No. : A2 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Side view FCC Test Report Report No. : FR572429 SPORTON INTERNATIONAL INC. Page No. : A3 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz Front view Rear view FCC Test Report Report No. : FR572429 SPORTON INTERNATIONAL INC. Page No. : A4 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Front view Rear view FCC Test Report Report No. : FR572429 SPORTON INTERNATIONAL INC. Page No. : A5 of A5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz Mode 1 Front view Rear view

FCC SAR Test Report Report No. : FA572429 SPORTON INTERNATIONAL INC. Page No. : D1 of D1 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix D. Test setup Photos Front Face Rear Face Edge1 Edge2 Edge3 Edge4
