2AD2XSH03BBluetooth Stereo Headset

SH03B Stereo Bluetooth Headset Specification FCC ID:2AD2XSH03B Basic Specifications ■Size: 31×28×9mm ■Weight: 17.2g（Net Weight） ■Charging port: Micro USB ■Keys: 5 (MFB button, volume+ button, volume- button, backward button, forward button) ■Battery: Rechargeable lithium polymer battery 3.7V; 120mAh ■Charger output: 5V/0.5~1.0A ■Charge indicator: Red LED light (Charging) / Blue LED light (Charging completed) ■Standby time: about 200 hours ■Talk time: about 8 hours ■Music time: about 6 hours ■Charging time: about 2 hours ■Indicator for charge in working stage: Battery voltage lower than 3.3V（the stage of battery lower than 15%)，there will be a warning tone; battery voltage lower than 3.1V ( the stage of battery lower than 5%), the headset will power off directly. Speaker and MIC parameters ■S peaker specifications / mode: Φ9mm ■Impedance: 32Ω/ typ ■Frequency(Hz): 20Hz～20KHz ■MIC Style: c apacitive ■MIC sensitivity: -42±3dB Bluetooth Parameters ■ Bluetooth version: 4.1 ■ Support Profile: HSP, HFP, A2DP, AVRCP ■ The remote control to speaker: MFB (Power ON / Power Off / Play / Pause); Vol+, Vol-, Previous song, Next song. ■ Device Name: SH03B ■ Pass: 0000 ■ RF transmitter: class II (-6dBm ~ +4 dBm) ■ Receive sensitivity:-90dBm ■ Transmission Range (Hz): 2.402GHz ~ 2.480GHz ■ Transmission distance: 10m Certifications (TBD) Mechanical Reliability ■ Button: 10 thousand times ■ Charging Port（Micro USB）: plug 5000 times ■ LED: luminance/light-leaking luminosity must remain the same Operating Instructions Power On When the headset is off, press and hold the multi-function Button (MFB) for 2 seconds. The LED indicator will flash for one second in blue. At this time you will hear the words “Power ON” from the headset. The headset will be paired with the last connected Bluetooth device or mobile phone automatically when turned on. Power Off When the headset is on, press and hold the MFB for 3 seconds. The LED indicator will flash once slowly in red. At this time, you will hear the words “Power Off” from the headset. The headset will disconnect from your phone devices when turned off. Pairing Mode When the headset is off, press and hold MFB for 5 seconds until the LED indicator f lashes red and blue in alternating colors. At this time, you will hear the words “Pairin g” from the headset. ※ If you release the MFB before the headset goes into pairing mode, it will power on and connect with the last paired device. If you want to pair the headset with a new phone device, please power off the headset. or press the vol+ and vol- button concurrently to go into pairing mode again. Easy connection function If the headset doesn’t connect with any phones when it is on, you can enter into speed pairing mode by pressing the vol+ and vol- button concurrently and connect with your phone. Answering calls If a call comes in when listening to music or headset is standing by, press the MFB to answer the incoming call. You will hear the words “Call Answered” form the speaker of the headset. If the music is playing, it will pause automatically during the call, the music will start playing automatically. Reject Calls If a call comes in, press and hold the MFB button for 2 seconds to reject the incoming call. You will hear the words “Call Rejected” from the speaker of the headset. End Calls Press the MFB to terminate when you finished your call, you will hear the words “Call Terminates”. Volume To adjust the volume when talking on the phone, press the vol+ and vol- to make volume do up and down. When you reach the max/min volume, you will hear a warning tone. Last Number Redial When listening to music or headset is standing by, double click MFB to redial the last number. You will hear the words “Last Number Redial” from the speaker of the headset. If you are listening to music, it will pause automatically during the call. Mute When talking on the phone, press and hold vol+ or vol- for 2 seconds to mute your phone. You will hear the caller, but the caller will not hear you. There will be a warning tone every 10 seconds, reminding you that you are in mute mode. Quit Mute Press and hold vol+ or vol- for 2 seconds to exit mute mode. Switching Between Your Mobile Phone and Headset When talking on the phone, double-click the MFB to switch the voice from your headset to your mobile phone. By double-click the MFB again, the voice will switch back to the headset. You will hear the reminding tone. Reconnect When the headset is disconnected from your mobile phone, you will hear the words “Your headset is disconnected”. If you press the MFB, it will reconnect. You will hear the words “Your headset is connected” from the headset. ※ Some mobile phone may have a prompt screen, that will ask you if you would like to pair your device. Voice-Command Dial If your mobile phone supports this function, press and hold vol+ or vol- for 2 seconds to activate voice command. You will hear “voice dial” from the headset. By re-pressing and re-holding vol+ or vol- for 2 seconds during the voice dial mode, voice dial will be canceled. ※ Please refer to the manual of your mobile phone for voice-command dial support. Connect with 2 mobile phones A. First disconnect the Bluetooth device from your phone if it is already connected. B. Press vol+ and vol- concurrently to put the headset in pairing mode. C. Turn on and search Bluetooth device on your second phone until you find “SH03B” and select to begin pairing. D. Please reconnect with your first mobile phone device. E. Now you should have two mobile phones connected with the headset. Transfer Calls When you are talking on the phone and receive another incoming call, press the MFB for 2 seconds to reject the incoming call. If you click vol+ and vol- concurrently(with the reminding tone), you will answer the incoming call. Your first call will be placed on hold. When you click vol+ and vol- concurrently again, you will transfer back to your first call. You should hear a beep. During this time your second cal…

Text truncated - open the document above for the full version.

SH03B Stereo Bluetooth Headset Specification FCC ID:2AD2XSH03B Basic Specifications ■Size: 31×28×9mm ■Weight: 17.2g（Net Weight） ■Charging port: Micro USB ■Keys: 5 (MFB button, volume+ button, volume- button, backward button, forward button) ■Battery: Rechargeable lithium polymer battery 3.7V; 120mAh ■Charger output: 5V/0.5~1.0A ■Charge indicator: Red LED light (Charging) / Blue LED light (Charging completed) ■Standby time: about 200 hours ■Talk time: about 8 hours ■Music time: about 6 hours ■Charging time: about 2 hours ■Indicator for charge in working stage: Battery voltage lower than 3.3V（the stage of battery lower than 15%)，there will be a warning tone; battery voltage lower than 3.1V ( the stage of battery lower than 5%), the headset will power off directly. Speaker and MIC parameters ■S peaker specifications / mode: Φ9mm ■Impedance: 32Ω/ typ ■Frequency(Hz): 20Hz～20KHz ■MIC Style: c apacitive ■MIC sensitivity: -42±3dB Bluetooth Parameters ■ Bluetooth version: 4.1 ■ Support Profile: HSP, HFP, A2DP, AVRCP ■ The remote control to speaker: MFB (Power ON / Power Off / Play / Pause); Vol+, Vol-, Previous song, Next song. ■ Device Name: SH03B ■ Pass: 0000 ■ RF transmitter: class II (-6dBm ~ +4 dBm) ■ Receive sensitivity:-90dBm ■ Transmission Range (Hz): 2.402GHz ~ 2.480GHz ■ Transmission distance: 10m Certifications (TBD) Mechanical Reliability ■ Button: 10 thousand times ■ Charging Port（Micro USB）: plug 5000 times ■ LED: luminance/light-leaking luminosity must remain the same Operating Instructions Power On When the headset is off, press and hold the multi-function Button (MFB) for 2 seconds. The LED indicator will flash for one second in blue. At this time you will hear the words “Power ON” from the headset. The headset will be paired with the last connected Bluetooth device or mobile phone automatically when turned on. Power Off When the headset is on, press and hold the MFB for 3 seconds. The LED indicator will flash once slowly in red. At this time, you will hear the words “Power Off” from the headset. The headset will disconnect from your phone devices when turned off. Pairing Mode When the headset is off, press and hold MFB for 5 seconds until the LED indicator f lashes red and blue in alternating colors. At this time, you will hear the words “Pairin g” from the headset. ※ If you release the MFB before the headset goes into pairing mode, it will power on and connect with the last paired device. If you want to pair the headset with a new phone device, please power off the headset. or press the vol+ and vol- button concurrently to go into pairing mode again. Easy connection function If the headset doesn’t connect with any phones when it is on, you can enter into speed pairing mode by pressing the vol+ and vol- button concurrently and connect with your phone. Answering calls If a call comes in when listening to music or headset is standing by, press the MFB to answer the incoming call. You will hear the words “Call Answered” form the speaker of the headset. If the music is playing, it will pause automatically during the call, the music will start playing automatically. Reject Calls If a call comes in, press and hold the MFB button for 2 seconds to reject the incoming call. You will hear the words “Call Rejected” from the speaker of the headset. End Calls Press the MFB to terminate when you finished your call, you will hear the words “Call Terminates”. Volume To adjust the volume when talking on the phone, press the vol+ and vol- to make volume do up and down. When you reach the max/min volume, you will hear a warning tone. Last Number Redial When listening to music or headset is standing by, double click MFB to redial the last number. You will hear the words “Last Number Redial” from the speaker of the headset. If you are listening to music, it will pause automatically during the call. Mute When talking on the phone, press and hold vol+ or vol- for 2 seconds to mute your phone. You will hear the caller, but the caller will not hear you. There will be a warning tone every 10 seconds, reminding you that you are in mute mode. Quit Mute Press and hold vol+ or vol- for 2 seconds to exit mute mode. Switching Between Your Mobile Phone and Headset When talking on the phone, double-click the MFB to switch the voice from your headset to your mobile phone. By double-click the MFB again, the voice will switch back to the headset. You will hear the reminding tone. Reconnect When the headset is disconnected from your mobile phone, you will hear the words “Your headset is disconnected”. If you press the MFB, it will reconnect. You will hear the words “Your headset is connected” from the headset. ※ Some mobile phone may have a prompt screen, that will ask you if you would like to pair your device. Voice-Command Dial If your mobile phone supports this function, press and hold vol+ or vol- for 2 seconds to activate voice command. You will hear “voice dial” from the headset. By re-pressing and re-holding vol+ or vol- for 2 seconds during the voice dial mode, voice dial will be canceled. ※ Please refer to the manual of your mobile phone for voice-command dial support. Connect with 2 mobile phones A. First disconnect the Bluetooth device from your phone if it is already connected. B. Press vol+ and vol- concurrently to put the headset in pairing mode. C. Turn on and search Bluetooth device on your second phone until you find “SH03B” and select to begin pairing. D. Please reconnect with your first mobile phone device. E. Now you should have two mobile phones connected with the headset. Transfer Calls When you are talking on the phone and receive another incoming call, press the MFB for 2 seconds to reject the incoming call. If you click vol+ and vol- concurrently(with the reminding tone), you will answer the incoming call. Your first call will be placed on hold. When you click vol+ and vol- concurrently again, you will transfer back to your first call. You should hear a beep. During this time your second cal…

Text truncated - open the document above for the full version.

Hamee Corp. 5F, 2-9-39, Sakae-cho, Odawara, Kanagawa, 250-0011, Japan. Tel: +81-465-22-8044 Fax: +81-465-22-8065 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/21/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AD2XSH03B including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Hamee Corp. Contact person: Atsushi Yamashita Title: Manager

Hamee Corp. 5F, 2-9-39, Sakae-cho, Odawara, Kanagawa, 250-0011, Japan. Tel: +81-465-22-8044 Fax: +81-465-22-8065 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/21/2015 Request for Confidentiality Company name: Hamee Corp. FCC ID: 2AD2XSH03B FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, Hamee Corp. hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) detailed parts list These documents contain detailed system and equipment description and related information about the product which Hamee Corp. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Hamee Corp. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature [Atsushi Yamashita] [Manager] Hamee Corp. 5F, 2-9-39, Sakae-cho, Odawara, Kanagawa, 250-0011, Japan

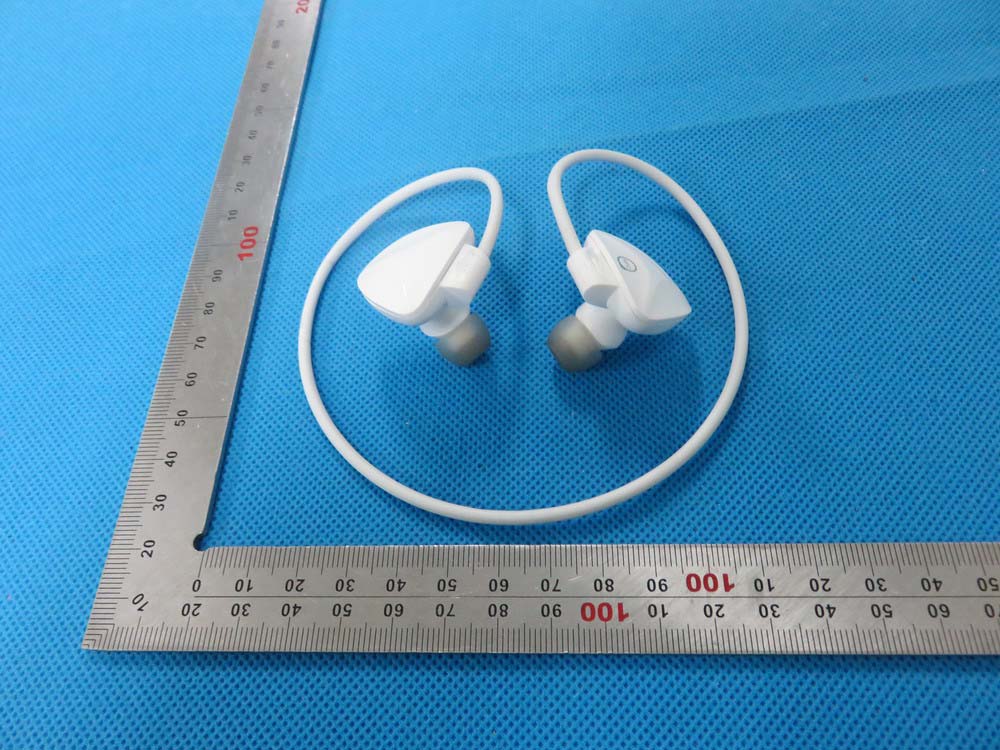

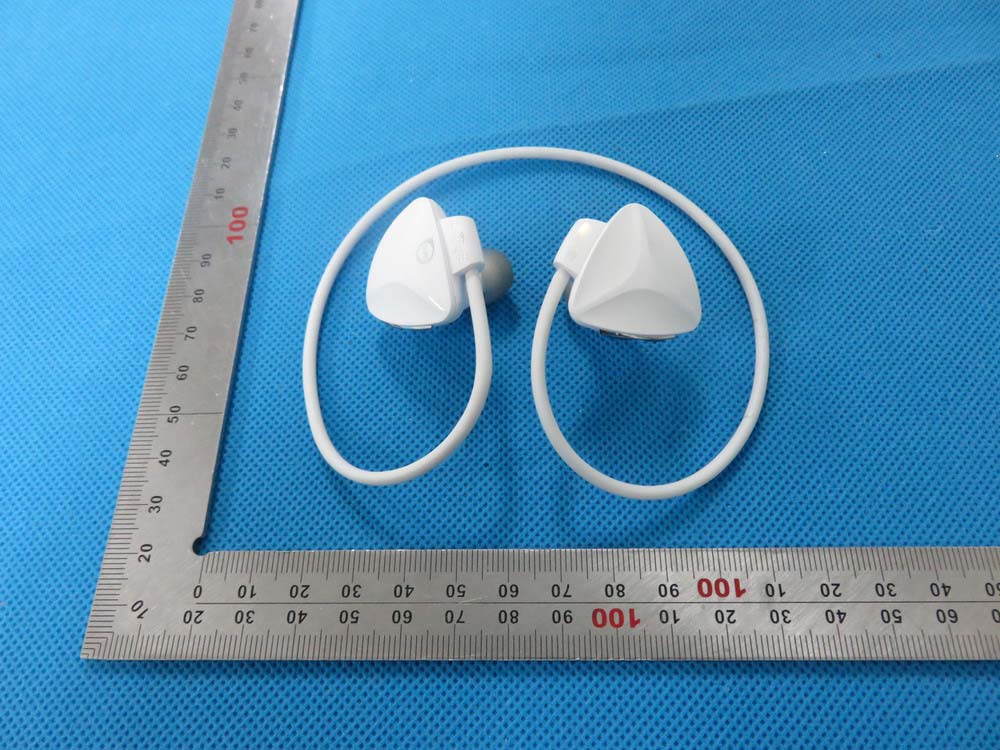

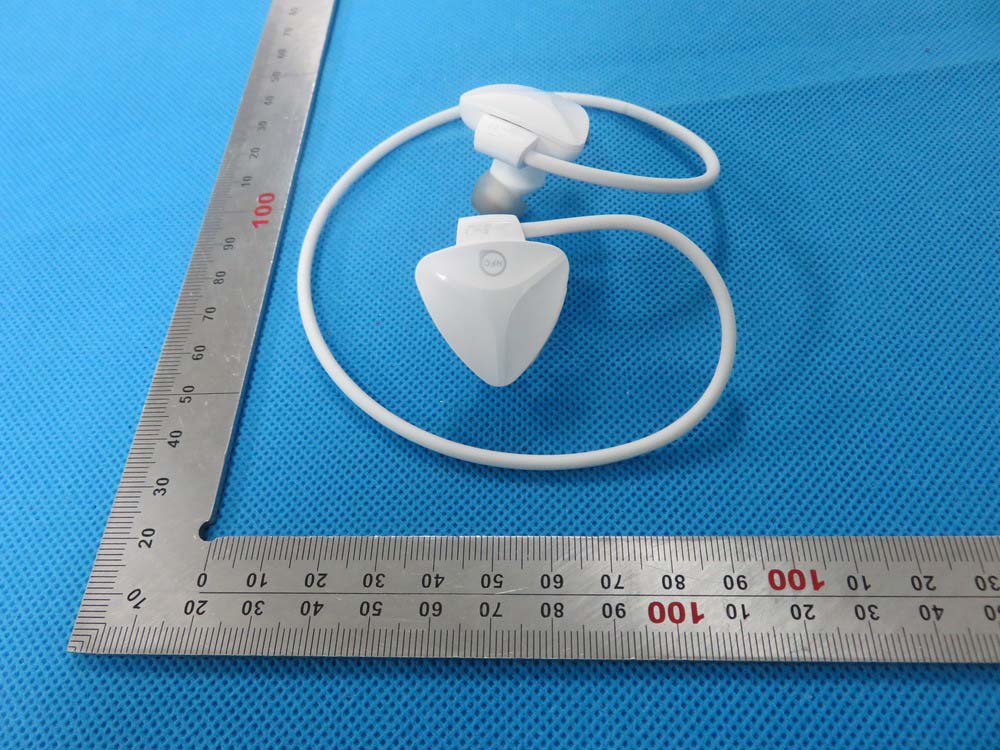

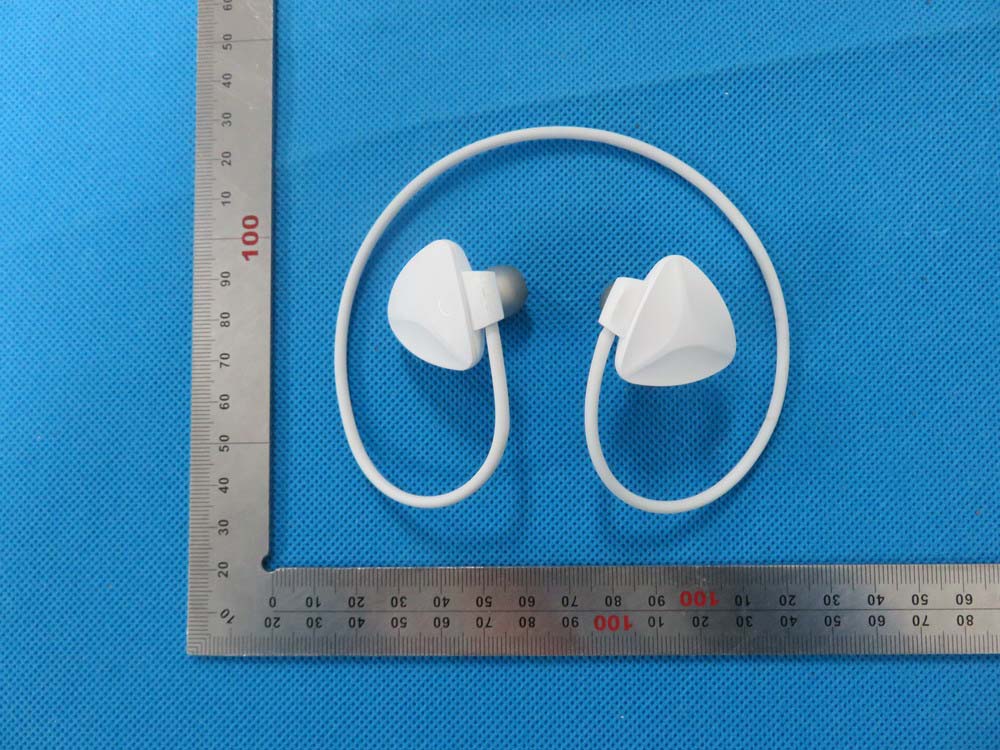

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location FCC ID: 2AD2XSH03B

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6

Hamee Corp. 5F, 2-9-39, Sakae-cho, Odawara, Kanagawa, 250-0011, Japan. Tel: +81-465-22-8044 Fax: +81-465-22-8065 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: SH03B FCC ID: 2AD2XSH03B fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: N/A Type of antenna: Ceramic Antenna Gain of the antenna: 0 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Hamee Corp. Address: 5F, 2-9-39, Sakae-cho, Odawara, City: Kanagawa ZIP / Postal code: 250-0011 Country: Japan Place: Shenzhen Date: Aug.21,2015 Signature:

RF Exposure evaluation Product Description:Bluetooth Stereo Headset Model Number: SH03B FCC ID: 2AD2XSH03B According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=98.78dBuv/m=0.087V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.087x3) 2 /(30x1)=0.002271W=2.27mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -2.27mW output power] (2.27mW /5mm) .[√2.480(GHz)]= 0.715<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 68 FCC Test Report Report No.: AGC00625150701FE03 FCC ID : 2AD2XSH03B APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Stereo Headset BRAND NAME : Hamee MODEL NAME : SH03B CLIENT : Hamee Corp. DATE OF ISSUE : Aug.18,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00625150701FE03 Page 2 of 68 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Aug.18,2015 Valid Original Report Report No.: AGC00625150701FE03 Page 3 of 68 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 7 4. DESCRIPTION OF TEST MODES ........................................................................................ 7 5. SYSTEM TEST CONFIGURATION ...................................................................................... 8 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 8 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 8 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 8 6. TEST FACILITY .................................................................................................................... 9 7 ALL TEST EQUIPMENT LIST ............................................................................................... 9 8. RADIATED EMISSION ....................................................................................................... 10 8.1TEST LIMIT ................................................................................................................................... 10 8.2. MEASUREMENT PROCEDURE ................................................................................................ 11 8.3. TEST SETUP .............................................................................................................................. 13 8.4. TEST RESULT ............................................................................................................................ 15 9. BAND EDGE EMISSION .................................................................................................... 41 9.1. MEASUREMENT PROCEDURE ................................................................................................ 41 9.2 TEST SETUP ............................................................................................................................... 41 9.3 RADIATED TEST RESULT .......................................................................................................... 42 10. 20DB BANDWIDTH .......................................................................................................... 50 10.1. MEASUREMENT PROCEDURE .............................................................................................. 50 10.2. TEST SET-UP ........................................................................................................................... 50 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 50 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 59 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 59 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 59 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 60 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 60 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 60 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 61 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 62 Report No.: AGC00625150701FE03 Page 4 of 68 1. VERIFICATION OF CONFORMITY Applicant Hamee Corp. Address 5F, 2-9-39, Sakae-cho, Odawara, Kanagawa, 250-0011, Japan Manufacturer Shenzhen mees Technology Co., Ltd. Address F2, 3rd North Block, Liutang Qianjin 2nd Road, Xixing, Bao'an, Shenzhen, 518000 China. Product Designation Bluetooth Stereo Headset Brand Name Hamee Test Model SH03B Date of test Aug.10,2015 to Aug.14,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service(Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Tested By Water Zuo(Zuo Yingying) Aug.18,2015 Reviewed By Forrest Lei(Lei Yonggang) Aug.18,2015 Approved By Solger Zhang(Zhang Hongyi) Authorized Officer Aug.18,2015 Report No.: AGC00625150701FE03 Page 5 of …
