2AD2XSP02Bluetooth Stereo Speaker

SP02 Stereo Bluetooth Speaker User Manual Operating Instructions Power On When the speaker is off, press and hold the Multi-function Button(MFB) for 3 seconds,The LED indicator will flash slowly in blue.At this time you will hear “power on” from the speaker . The speaker will be paired with the last connected bluetooth device or mobile phone automatically when turned on. Power Off When the speaker is on, press and hold the MFB for 4 seconds,you will hear a tone. The LED indicator will flash slowly in red. At this time,you will hear “ power off “ from the speaker . The speaker will disconnect from your phone devices when turned off. Pairing Mode When the speaker is OFF,(And confirm the line in port without 3.5mm audio cable) press and hold MFB for 6 seconds until the LED indicator flashes red and blue in alternating colors,and you will hear “ pairing” from the speaker.When the speaker connect with your device,you will hear”pairing completed,connected”. Notes: If you release the MFB before the speaker goes into pairing mode,the speaker will enter the power ON state. Needs to be OFF again to operate the speaker. or press the vol+ and vol- button concurrently to go into pairing mode again. 3mins pairing time,if not connect with any device,it will quit pairing mode and you will hear “pairing not completed” from speaker. Easy connection function If the speakert doesn’t connect with any phones when it is on, you can enter into speed pairing mode by pressing the vol+ and vol- button concurrently and connect with your phone. FCC ID:2AD2XSP02 Answering Calls If a call comes in when listening to music or speaker is standing by, you will hear “incoming call “ from the speaker.press the MFB to answer the incoming call. If the music is playing, it will pause automatically during the call. After finishing your call, the music will start playing automatically. Reject Calls If a call comes in when listening to music or speaker is standing by, press and hold the MFB for 2 seconds to reject the incoming call. After the call has been rejected, your music will start playing automatically. End Calls To end a call, press the MFB. Volume To adjust the volume when talking on the phone, press the V+ or V- to adjust the volume up or down. When you reach the max/min volume, you will hear a warning tone. Last Number Redial When listening to music or speaker is standing by, double click the MFB to redial the last number. If you are listening to music, it will pause automatically during the call. Mute When talking on the phone, press and hold Vol+ or Vol- for 2 seconds to mute your microphone. You will hear the caller, but the caller will not to hear you. Note: There will be a warning tone every 3 seconds, reminding you that you are in mute mode. Quit Mute Hold Vol+ or Vol- for 2 seconds to exit mute mode. Switching Between Your Mobile Phone and Headset When talking on the phone, double-click the MFB to switch the voice from your speaker to your mobile phone. By double clicking the MFB again, the voice will switch back to the speaker. Reconnect When the speaker and mobile phone are disconnected, press MFB, you will hear “connected” ,it will reconnect. Note: Some devices may have a prompt screen, that will ask you if you would like to pair your device. Voice-Command Dial If your mobile phone supports this function, press and hold backward button/ forward button for 2 seconds to activate voice command. If the speakert is playing music, the music will be paused automatically during this time. By double click MFB during the voice dial mode, voice dial will be canceled. Note: Please refer to the manual of your mobile phone for voice-command dial support. Connect with 2 mobile phones A. First disconnect the Bluetooth device from your phone if it is already connected. B. Press vol+ and vol- concurrently to put the headset in pairing mode. C. Turn on and search Bluetooth device on your second phone until you find ZB-VAULT” and select to begin pairing. D. Please reconnect with your first mobile phone device. E. Now you should have two mobile phones connected with the speaker. Transfer Calls When you are talking on the phone and receive another incoming call, press the MFB for 2 seconds, you will answer the incoming call. Your first call will be placed on hold. When press the MFB for 2 seconds again, you will transfer back to your first call. You should hear a beep. During this time your second call will be placed on hold. You can also end the call by clicking the MFB. Pause and Restart Music When listening to music, click MFB to pause music and click MFB again to restart music. Play Previous Song Press backward button. Play Next Song Press forward button. Specifications V3.0+EDR Bluetooth Technology Profile supports: HSF, HFP, A2DP, AVRCP Transmission Distance: 10 meters/33 feet Transmission range: 2.40GHz~2.48GHz Size: 137x10.3x38 mm Net Weight: 176 grams Music Time: 5 hours Talk Time: 6 hours Standby Time: 100 hours Operating Temperature: -20-60 °C Device ID: ZB-VAULT Pin Code: 0000 Charging Red LED Light Charging Complete Red LED light turn off Stand by Blue LED light flashes twice every 5 seconds Power On (Talking) Blue LED light flashes twice every 3 seconds Power On (Incoming Call) Blue LED light flashes continuously Power On (Not Connected) Blue LED light flashes once every 5 seconds Battery Low Red LED light flashes once every 5 seconds Pairing Mode LED light flashes in red and blue alternately N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particula…

Text truncated - open the document above for the full version.

Hamee Corp. 5F, 2-9-39, Sakae-cho, Odawara, Kanagawa, 250-0011, Japan. Tel: +81-465-22-8044 Fax: +81-465-22-8065 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/21/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AD2XSP02 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Hamee Corp. Contact person: Atsushi Yamashita Title: Manager

Hamee Corp. 5F, 2-9-39, Sakae-cho, Odawara, Kanagawa, 250-0011, Japan. Tel: +81-465-22-8044 Fax: +81-465-22-8065 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/21/2015 Request for Confidentiality Company name: Hamee Corp. FCC ID: 2AD2XSP02 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, Hamee Corp. hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) detailed parts list These documents contain detailed system and equipment description and related information about the product which Hamee Corp. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Hamee Corp. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature [Atsushi Yamashita] [Manager] Hamee Corp. 5F, 2-9-39, Sakae-cho, Odawara, Kanagawa, 250-0011, Japan

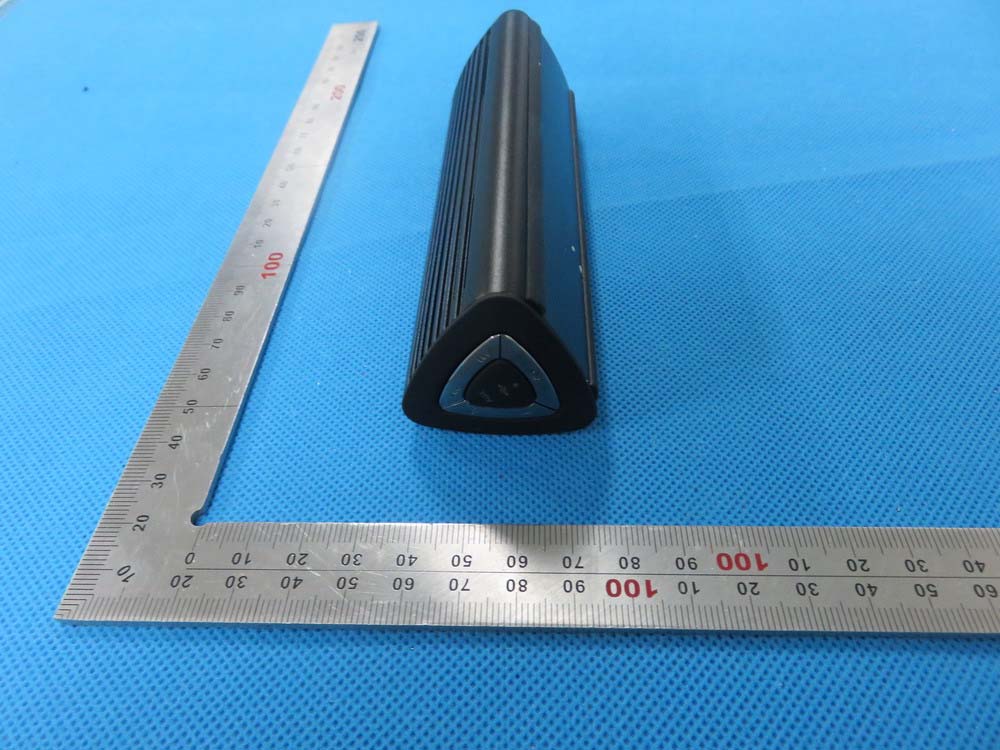

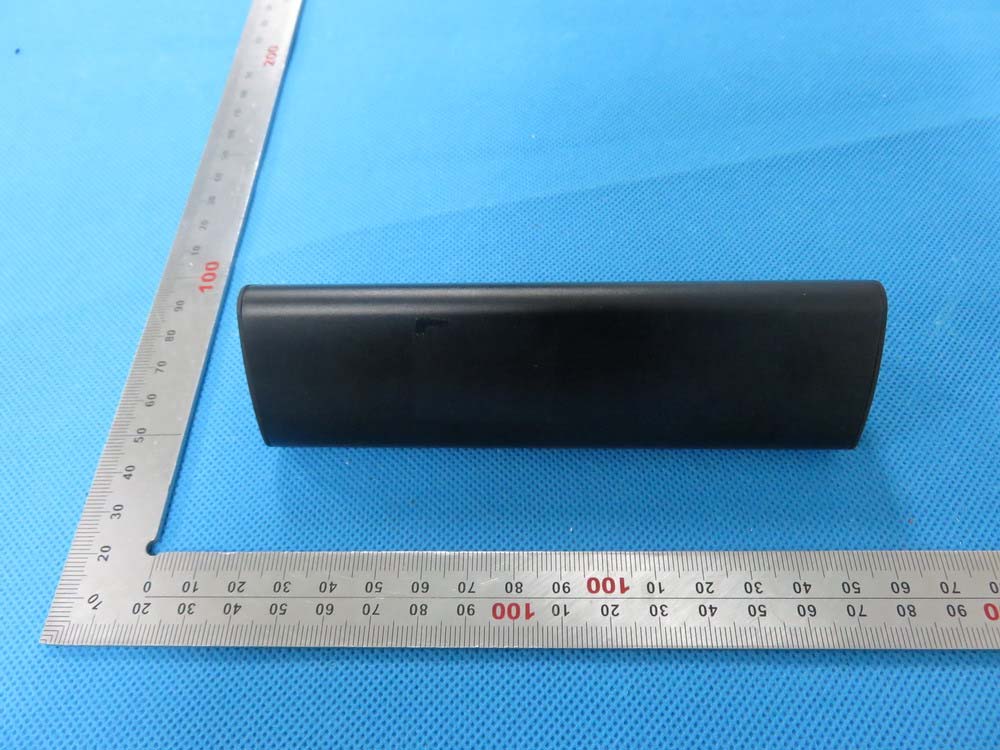

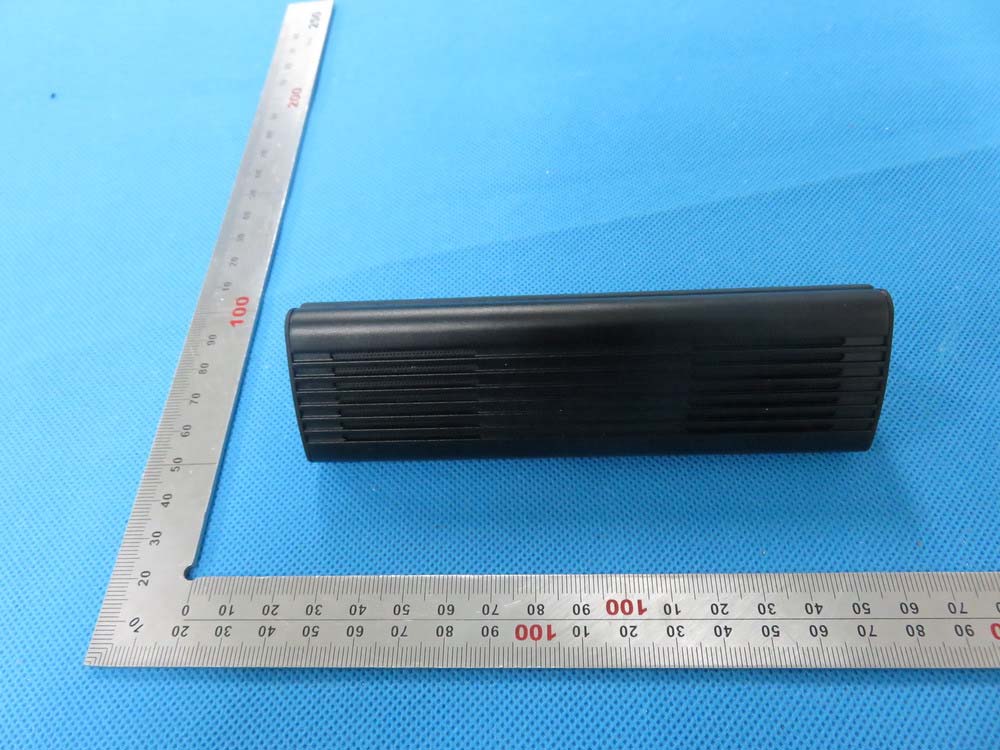

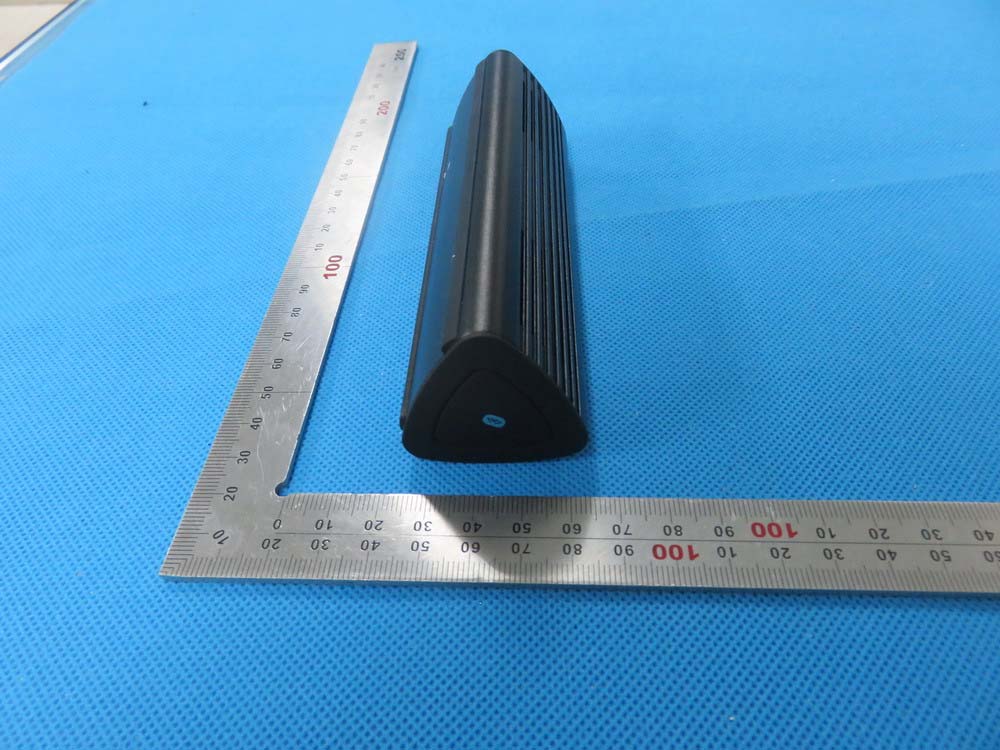

External Photos WHOLE VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location Bluetooth Stereo Speaker Model:SP02 Brand: Hamee FCC ID: 2AD2XSP02

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 OPEN VIEW OF EUT-1 INTERNAL VIEW OF EUT-1 Antenna INTERNAL VIEW OF EUT-2

Hamee Corp. 5F, 2-9-39, Sakae-cho, Odawara, Kanagawa, 250-0011, Japan. Tel: +81-465-22-8044 Fax: +81-465-22-8065 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: SP02 FCC ID: 2AD2XSP02 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: N/A Type of antenna: Ceramic Antenna Gain of the antenna: 0 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Hamee Corp. Address: 5F, 2-9-39, Sakae-cho, Odawara, City: Kanagawa ZIP / Postal code: 250-0011 Country: Japan Place: Shenzhen Date: Aug.21,2015 Signature:

RF Exposure evaluation Product Description:Bluetooth Stereo Speaker Model Number: SP02 FCC ID: 2AD2XSP02 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=91.05dBuv/m=0.036V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.036x3) 2 /(30x1)=0.000389W=0.39mW The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz -0.39mW output power] (0.39mW /5mm).[√2.402(GHz)]= 0.121<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.
