2AD37JUPW3W10W Fast Wireless Charge

Copyright ©2020 j5create Beta Version: 08.17.2020 10W Heat Dissipating Fast Wireless Charger iPhone® & Android™ & AirPods Pro® Compatible MODEL: JUPW1103 The 10W Heat Dissipating Fast Wireless Charger is equipped with Qi™ inductive wireless charging technology to charge your devices at Apple ® or Android™ “Fast Charge” speed, up to 5V/1A , 9V 0.83A or 1.12A of power. For use with Apple ®: iPhone® 12, 11, 11Pro, 11 Pro Max, Xs, Xs Max, XR, X, 8, 8 Plus Samsung® Galaxy™: S20, S20+, S20 Ultra, S10, S10+, S10e, S9+, S9, S8, S8+, Note 10, 10+, 9, 9+ Samsung ® Note 10, 10+, 9, 9+ and more. Use a QC™ 3.0 adapter with your 10W wireless charger for speedy charging at 7.5W or 10W, depending on your phone’s model. For use with Qi™- enabled phones and devices: AirPods ®, AirPods Pro®, Galaxy® Buds, Galaxy® Buds+, Pixel™ 3, Pixel™ 3XL and more. The charger comes with a multi-protection safety system that is equipped with foreign object detection, short circuit protection, and temperature control in a stylish and thin design, complementing any environment perfectly. mightywave™ 10W Heat Dissipating Fast Wireless Charger JUPW1103 Datasheet 1 - 888-689-4088 j5create.com| 1 FEATURES • Qi™ inductive wireless charging technology • Provides 10W fast charging (compatible with Samsung®), 7.5W fast charging (compatible with Apple®), and Qi™ standard 5W charging (compatible with various Qi™ devices) • LED indicator o Connected to power: flashes red and green 3 times and then green stays lit o Actively charging a device: fades from warm white to green o Protection mode: flashes red • Compatible with phone cases that are non-metallic and have a thickness up to 5 mm • Multiple protection safety system is equipped with foreign object detection, short circuit protection, temperature control, overcurrent protection, and overvoltage protection. • The charger pad is equipped with heat dissipation, improving charging efficiency and giving you safe and secure charging. • Stylish and thin design Compatibility • 10W Fast Charge Mode: (using QC™ 2.0/3.0 Adapter) Samsung® Galaxy™ S20, S20+, S20 Ultra, S10, S10+, S10e, S9+, S9, S8, S8+, Note 10, 10+, 9, 9+ Samsung® Note 10, 10+, 9, 9+ • 7.5W Fast Charge Mode: (using QC™ 2.0/3.0 Adapter) Apple® iPhone® 12,11, 11Pro, 11 Pro Max, Xs, Xs Max, XR, X, 8, 8 Plus • 5W Standard Charge Mode: (using 5V/2A Adapter) AirPods®, AirPods Pro®, Galaxy® Buds, Galaxy® Buds+ LG G7, G8, Sony Xperia X23, Pixel™ 3 / Pixel™ 3XL and all other Qi™-enabled phones SYSTEM REQUIREMENTS • Compatible with all Qi™ devices • Fast charge only supports iPhone® and Samsung® devices. For a full list of supported devices please visit www.j5create.com. • For 10W and 7.5W fast charge, the Quick Charge 3.0/2.0 charger (JUPW1103 included) or a standard 2A USB™ Type-A charger must be used (charger and computer ports with less than 2A output are not recommended). mightywave™ 10W Heat Dissipating Fast Wireless Charger JUPW1103 Datasheet 1 - 888-689-4088 j5create.com| 2 HARDWARE Warranty 2 Year Limited Interface 1 - USB-C™ Female Coil 1 Input 5V/2A, 9V/2A Output 5V/1A, 9V/0.83, 9V/1.12A Indicator light Connected to power Flashes red and green 3 times and then green stays lit Actively charging a device Fades from warm white to green Protection mode Flashes red QUICK CHARGE™ 3.0 CHARGER (JUPW1103) Input 100-240V to 50/60 Hz, 0.5A Output 3.6-6V/3A, 6-9V/2A, 9-12V/1.5A PHYSICAL SPECIFICATIONS Color White Enclosure Type Plastic Product Height 3.61 in. (91.7 mm) Product Width 3.61 in. (91.7 mm) Product Depth 0 in. (10.7 mm) Product Weight 3.1 oz (88g) Operating Temperature 32 to 118°F (0 to 48°C) mightywave™ 10W Heat Dissipating Fast Wireless Charger JUPW1103 Datasheet 1 - 888-689-4088 j5create.com| 3 SPECIAL NOTES • A standard 2A USB™ Type-A power adapter is required. Adapters and computer ports with less than 2A output are not recommended. • To ensure the best charging performance, put the mobile device in the center of the 10W wireless charger. If the mobile device is not properly placed on the 10W wireless charger surface, depending on the location of the mobile device’s wireless charging coil, your mobile device may not charge properly. • Do not place foreign materials, such as metal objects, magnets, or magnetic strip cards between the mobile device and the wireless charger. The mobile device may not charge properly or may become damaged due to overheating. • Wireless charging may not work properly if you have attached a thick case to your mobile device. If your case is thick, remove it before placing your mobile device on the wireless charger. • Charge time varies with environmental factors. PACKAGE CONTENTS • 1 -10W Heat Dissipating Fast Wireless Charger • 1 - 3.3 ft./100 cm USB™ 2.0 Micro-B cable • 1 - Quick Installation Guide *Product appearance and specifications are subject to change without notice. JUPW1103 Datasheet 1 -888-689-4088 j5create.com | 4 mightywave™ 10W Heat Dissipating Fast Wireless Charger •62368 and UL62368-1 PSE •IEC62368-1(H30) J3000(H25) and J55032(H29) •62368+J55032 Disclaimer Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to special, incidental, consequential, or other damage. No part of this document may be reproduced or transmitted in any form by any means, electronic or mechanical, including photocopying, recording or information recording and retrieval systems without the expressed written permission of the manufacturer. REGULATORY COMPLIANCE FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. A…

Text truncated - open the document above for the full version.

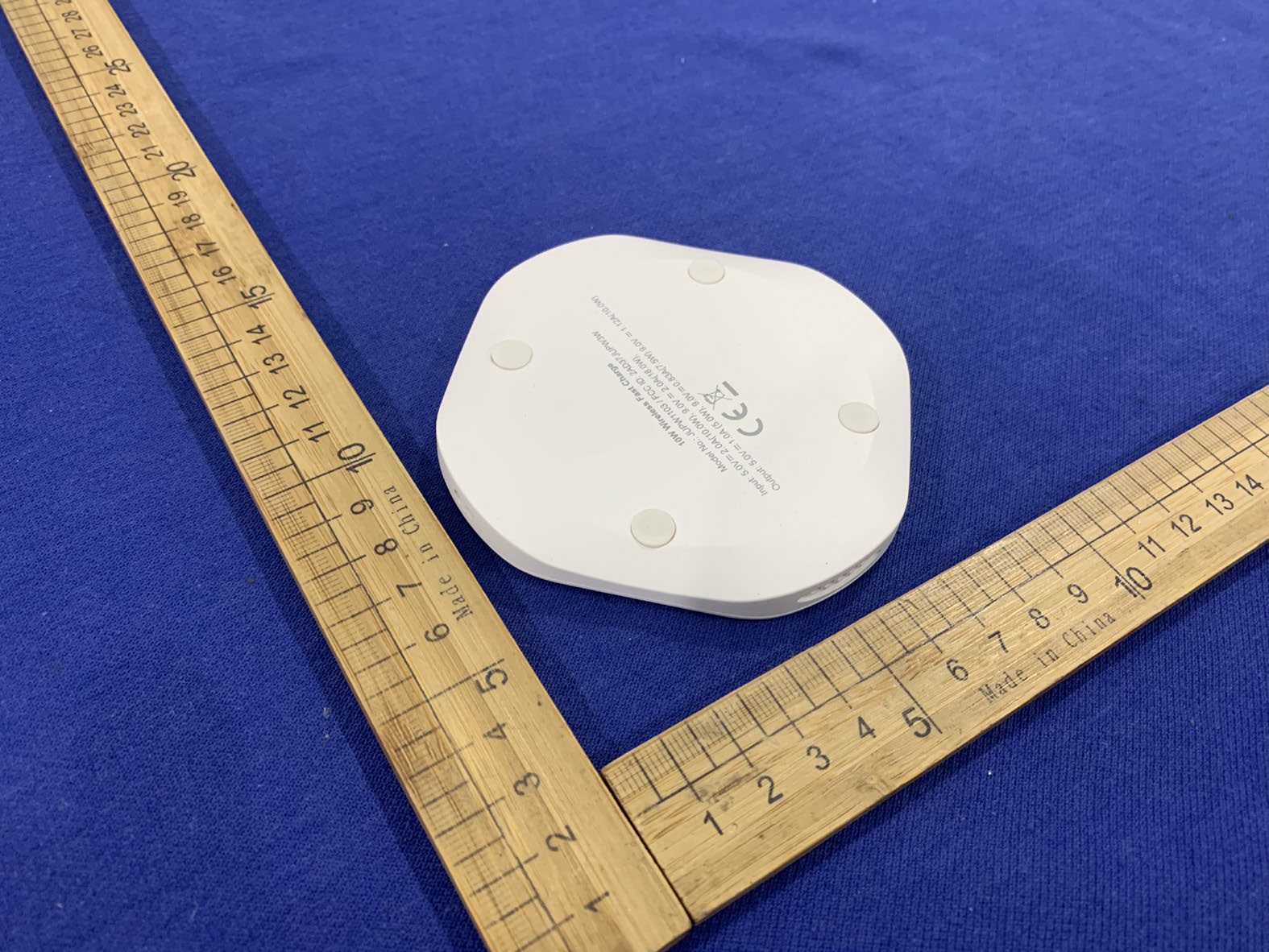

EXTERNAL PHOTOGRAPHS OF EUT 1)EUT Photo 2)EUT Photo FCC ID: 2AD37JUPW3W 3) EUT Photo

10.21 6.4 9.74 22.68 建檔日期：2020-07-15 修改日期：2020-08-28 客戶名稱：j5create 產品名稱：JUPW1103 版 本：V1 需求內容：機構印刷(絲印) 尺 寸：如圖 拿掉12.0V = 1.5A(18.0W) 10W Wireless Fast Charge Model No.: JUPW1103 / FCC ID: 2AD37JUPW3W Input: 5.0V 2.0A(10.0W), 9.0V 2.0A(18.0W) Output: 5.0V 1.0A (5.0W), 9.0V 0.83A(7.5W) 9.0V 1.12A(10.0W) 金屬PANTONE 877

INTERNAL PHOTOGRAPHS OF EUT 1)EUT Photo 2)EUT Photo IC: BJX3448AFG IC: BJEC049FFG-B Coil Antenna FCC ID: 2AD37JUPW3W 3) EUT Photo

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCISE200900302 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page RF Exposure Evaluation Report Applicant: kaiJet Technology International Corporation Address of Applicant: 8F., No 109, Zhongcheng Rd., Tucheng Dist., New Taipei City 236, Taiwan R.O.C. Equipment Under Test (EUT) Product Name: 10W Fast Wireless Charge Model No.: JUPW1103 Trade mark: FCC ID: 2AD37JUPW3W Applicable standards: FCC CFR Title 47 Part 2 Subpart J Section 2.1091 Date of sample receipt: 01 Sep., 2020 Date of Test: 02 Sep., to 10 Sep., 2020 Date of report issue: 11 Sep., 2020 Test Result: PASS* Report No: CCISE200900302 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2009003 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 9 2 Version Version No. Date Description 00 11 Sep., 2020 Original Tested by: Date: 11 Sep., 2020 Test Engineer Reviewed by: Date: 11 Sep., 2020 Project Engineer Report No: CCISE200900302 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2009003 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 9 3 Contents Page 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 GENERAL INFORMATION .................................................................................................................................. 4 4.1 CLIENT INFORMATION ........................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ...................................................................................................................... 4 4.3 OPERATING MODES .............................................................................................................................................. 4 4.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................ 4 4.5 MEASUREMENT UNCERTAINTY ............................................................................................................................. 4 4.6 ADDITIONS TO, DEVIATIONS, OR EXCLUSIONS FROM THE METHOD ...................................................................... 4 4.7 LABORATORY FACILITY ........................................................................................................................................ 5 4.8 LABORATORY LOCATION ...................................................................................................................................... 5 4.9 TEST INSTRUMENTS LIST ....................................................................................................................................... 5 5 TECHNICAL REQUIREMENTS SPECIFICATION IN FCC CFR TITLE 47 PART 2.1091 ............................ 6 5.1 LIMITS .................................................................................................................................................................... 6 5.2 TEST SETUP BLOCK .............................................................................................................................................. 6 5.3 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE ..................................................................... 6 5.4 TEST PROCEDURE ................................................................................................................................................. 7 5.5 RESULT .................................................................................................................................................................. 8 5.6 CONCLUSION ......................................................................................................................................................... 8 6 TEST SETUP PHOTO .......................................................................................................................................... 9 Report No: CCISE200900302 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCISE2009003 No.110~116, Building B, Jinyuan Business Building, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 2311636…
