1 Bluetooth Color Changing LED Speaker BCL-12/2907 INSTRUCTION MANUAL PLEASE READ ALL INSTRUCTIONS CAREFULLY & RETAIN FOR FUTURE USE 2 Getting Started Remove the unit from the box. Remove any packaging from the product. Please retain all packaging until you have checked and counted all the parts and the contents against the parts list. Package Contents Bluetooth Color Changing LED Speaker USB rechargeable cable with Aux pin Instruction manual Features 1. Wireless Bluetooth connectivity to iPad, iPod Touch, Android, Windows Phone, Blackberry, smartphones, tablets, computers and more. 2. Multi-Color Lights jive to the beat of music. 3. Play music through Bluetooth, Auxiliary and Micro SD Card* & USB Flash Drive*. 4. Built-in Microphone 5. FM radio 6. Rechargeable built-in battery *Micro SD Card & USB Flash Drive not included. IMPORTANT SAFETY INFORMATION 1. Read all instructions before using this product. 2. Do not leave this product unattended while connected to the power supply. 3. Do not immerse in water or any other liquids. 4. Do not use if unit has been dropped or damaged in any way. 5. Repairs to electrical equipment should only be performed by qualified personnel. Improper repairs may place user at serious risk. 6. Place unit on sound, even surface, free of vibrations and away from sources of heat. 7. Do not use with wet hands. 8. Do not put objects into openings. 9. Keep free of dust, lint, hair etc. 10. Do not use this unit for anything other than its intended use. 11. Keep this product out of reach of children. 12. This product is not a toy. 13. Do not play music at excessive levels especially near children, as damage to hearing may occur. 3 Description of Parts: Item Function Operation 1 USB Flash Drive slot Plays music from USB Flash Drive (not included) 2 Power ON/OFF switch Turn ON/OFF the speaker 3 DC Charging Port (USB Charging Port)/ AUX To charge the speaker (Charging cord included). AUX mode of operation through audio device. 4 LED light indicator Indicates the Charging or status of operation (Bluetooth/USB/TF/FM/AUX) 5 Speaker Sound output 6 (-/) / (/M) / (+/) button Short press will return to the previous track, short press to previous FM radio station or long press will decrease the volume level. Short press will pause or restart the music. Mode – Long press for changing mode of operation (Bluetooth/USB/TF/FM/AUX), short press for Call Answer / Call End / Redial Button (in Bluetooth mode only), or short press for searching FM stations. Short press will skip to the next track, short press to next FM radio station or long press will increase the volume level. 4 (Note: Some of above function only can be used in Bluetooth mode only. In Aux mode, you may need to control through your source device.) INSTRUCTIONS FOR USE Charging the speaker For best results, fully charge the speaker before its first use. 1. Connect the USB charging cord (included) to the DC 5V charging port of the speaker and insert the other end into a port on your computer or similar power source. 2. The Red LED turns on indicating that the battery is being charged. Once it is fully charged, the Red LED will turn off. It will take around 2-3 hours to fully charge the battery. Note: In order to have better battery life, please do not charge for over 4 hours. Turn the speaker to Bluetooth pairing mode - 1. Slide the Power ON/OFF switch to ON position. 2. You would hear voice message “Bluetooth’s mode”; the speaker is now in pairing mode. (Note: Speaker automatically pairs with the previously paired devices) Pairing your device with Bluetooth Speaker – Your Bluetooth Speaker can wirelessly stream audio from any Bluetooth enabled device within the distance of 27-33 Feet. Simply follow the below steps. 1. Slide the Power ON/OFF switch to ON position. 2. You would hear voice message “Bluetooth mode”; speaker is now in pairing mode. 3. Turn on the Bluetooth on your Mobile Phone or Tablet or Computer. 4. It will search for various devices. 5. The pairing name of our Bluetooth Speaker is “BT Speaker”, pair it with this device. 6. If required, enter the password ‘0000’ to confirm to finalize pairing. 7. Once paired successfully, you would hear voice message “Bluetooth connected successfully”. 8. If you fail to pair it within the time frame or you want to pair it with a new device please follows the steps outlined above. Select your favorite song at the Bluetooth device and music would now stream through Bluetooth speaker. 7 Micro SD (TF) Card slot Plays music from Micro SD (TF) Card (not included) 5 Talking using the Bluetooth Speaker Please ensure that your cell phone is paired with the Bluetooth Speaker to use the below functions. Function Operation Button Answer Incoming Call Incoming Call Press the Mode button once to answer an incoming call. End Call Incoming Call After your phone conversation, short press the Mode button Volume Increase During a call Long press on the V+ button will increase the volume Volume Decrease During a call Long press on the V- button will decrease the volume Listening to Music via Bluetooth (Wireless) Please ensure that your device (iPhone, Tablet or Other Smart Phone) is paired with the Bluetooth Speaker to stream music wirelessly. Once it is paired, play music from your device. Function Operation Button Increase / Decrease Volume Playing music Long press + button to increase the volume or long press - button to decrease the volume Pause Playing music Press once to pause the music Play Pause Press once resume the music Skip Forward / Skip Backward Playing music Short press to skip forward the track. Short press to skip backward the track. (Note: The above functions only can be used in Bluetooth mode only. In Aux mode, you may need to control through your source device.) Listening to FM radio 1. Slide the Power ON/OFF switch to ON position. 2. Long press the Mode button each time until It goes to FM radio mode. 3. Short press the Mode button for searching and recording all radio sta…

Text truncated - open the document above for the full version.

Differences Description We CLEVER BRIGHT INTERNATIONAL (H.K.) LTD. state: Product： Bluetooth Color Changing LED Speaker(Small) Model Name： BCL-12/2907,CB-K100,CB-K998, CB-335053,17659 Trade Name: C&B FCC ID 2AD42BCL-122907 The electrical circuit design, layout, components used and internal wiring for above models are identical, only different in model name. Signatory Date 2015-7-4 Signature Name: Ling zheng Title: manager Company: CLEVER BRIGHT INTERNATIONAL (H.K.) LTD. Address: Rm 1701,Zhuoyue Building,Fuhua Yi Rd.,Futian Central Zone,Shenzhen,P.R.China

CLEVER BRIGHT INTERNATIONAL (H.K.) LTD. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for (FCC ID: 2AD42BCL-122907) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory ----------------------------- Client’s signature Client’s name / title : Ling zheng/ Manager Contact information / address : Rm 1701,Zhuoyue Building,Fuhua Yi Rd.,Futian Central Zone,Shenzhen,P.R.China

CLEVER BRIGHT INTERNATIONAL (H.K.) LTD. 07/04/2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:2AD42BCL-122907 Product Name:Bluetooth Color Changing LED Speaker(Small) Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 07/04/2015 By: Ling zheng Signature Printed Title: Manager On behalf of : CLEVER BRIGHT INTERNATIONAL (H.K.) LTD. Telephone: 008675582877799

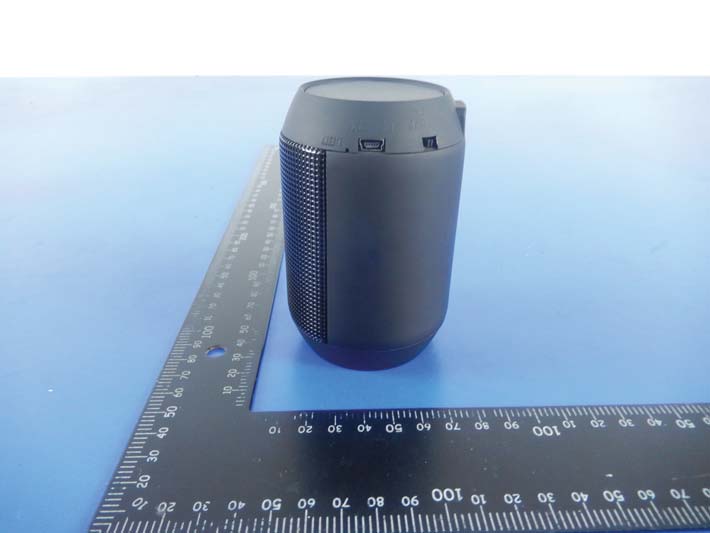

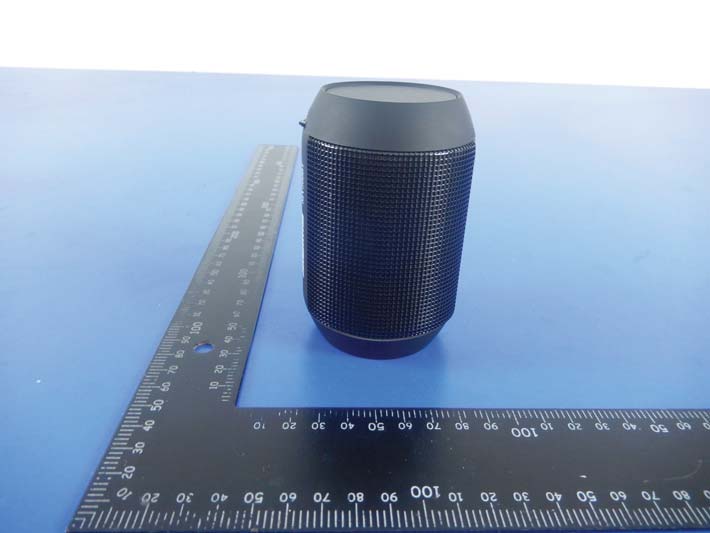

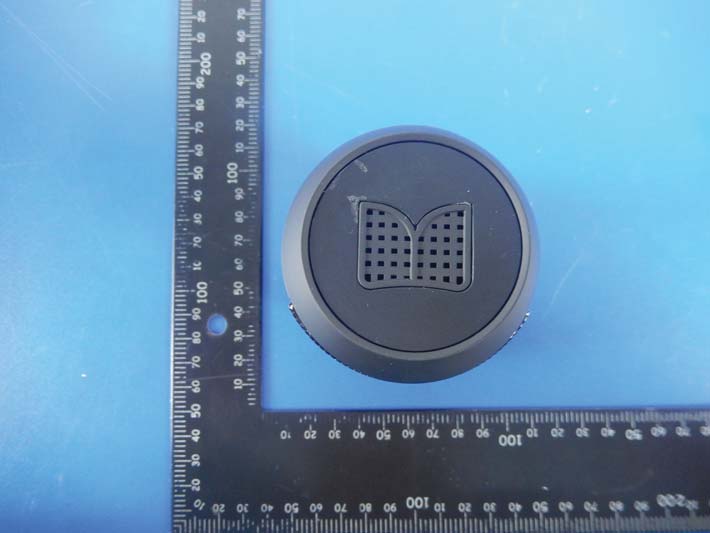

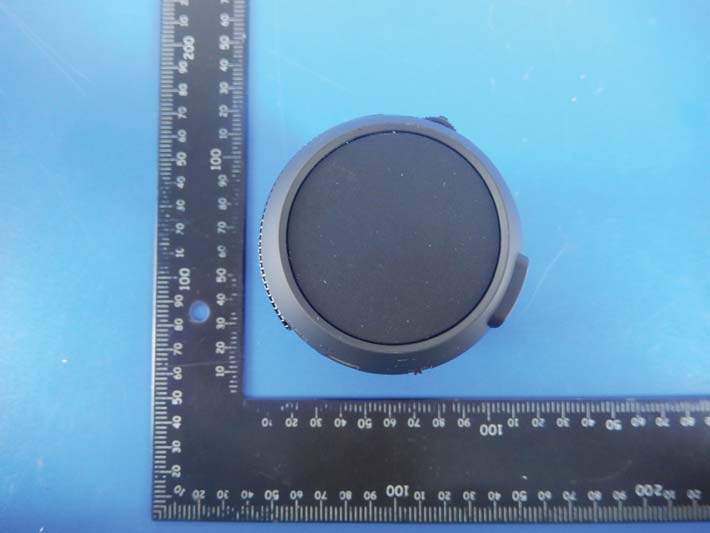

Project No: STS1506090 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Project No: STS1506090 Photo 3 Photo 4 Project No: STS1506090 Photo 5 Photo 6

Label Bluetooth Color Changing LED Speaker(Small) Model name: BCL-12/2907 FCC ID: 2AD42BCL-122907 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. label

Project No: STS1506090 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 BT ANTENNA Project No: STS1506090 Photo 3 Photo 4 Project No: STS1506090 Photo 5

RF exposure letter RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] •[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison Worse case is as below: [2402 MHz -1.943dBm（0.639 mW） output power] ( 0.639mW /5mm) •[√2.402(GHz)]=0.198 <3.0 for 1-g SAR Then SAR evaluation is not required
