2AD56HLK-B40Bluetooth Transparent Transmission Module

Note 4: FCC ID label on the final system must be labeled with “Contains FCC ID: 2AD56HLK-B40” or “Contains transmitter module FCC ID: 2AD56HLK-B40”.

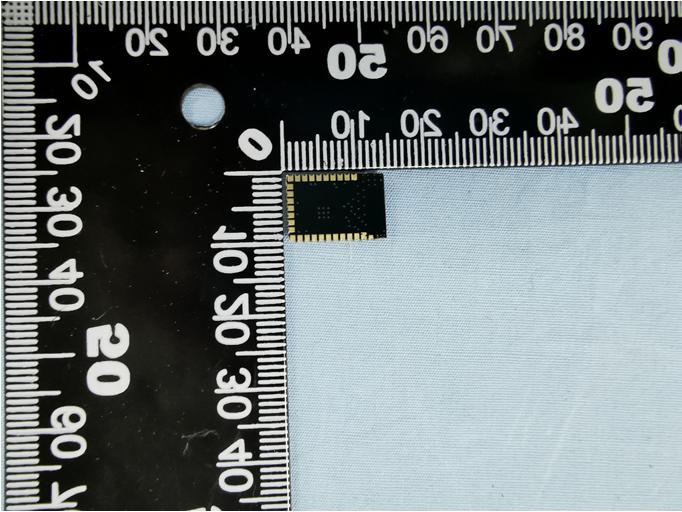

Reference No.: WTX20X11086095W Page 2 of 7 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

Reference No.: WTX20X11086095W Page 1 of 7 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT EUT Housing and Board View Solder Board-Component View Reference No.: WTX20X11086095W Testing Group (Shenzhen) Co., Ltd. www.semtest.com.cn EXHIBIT 3 - EUT EUT Housing and Board View 1 Solder Component View 1 WTX20X11086095W Testing Group (Shenzhen) Co., Ltd. www.semtest.com.cn EUT INTERNAL Component View WTX20X11086095W Testing Group (Shenzhen) Co., Ltd. INTERNAL PHOTOGRAPHS Page 3 of 7 PHOTOGRAPHS 7 PHOTOGRAPHS Reference No.: Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View Antenna Reference No.: WTX20X11086095W Testing Group (Shenzhen) Co., Ltd. www.semtest.com.cn Solder Component View 2 Antenna View WTX20X11086095W Testing Group (Shenzhen) Co., Ltd. www.semtest.com.cn Component View WTX20X11086095W Testing Group (Shenzhen) Co., Ltd. Page 4 of 7 7

RF Exposure Requirements Product Description: Bluetooth Transparent Transmission Module Model No.: HLK-B40 FCC ID: 2AD56HLK-B40 According to the KDB 447498 D01 v06 section 4.3.1, for 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where - f(GHz) is the RF channel transmit frequency in GHz - Power and distance are rounded to the nearest mW and mm before calculation17 - The result is rounded to one decimal place for comparison Calculation Result: Tx frequency range: 2402-2480MHz Min. test separation distance: 5mm Maximum Conducted Output Power: -6.30dBm Tune-Up output power: -6dBm RF channel transmit frequency: 2402MHz Result: 0.3 Limit: 3.0 The exclusion thresholds is 0.3 < 3, so the transmitter complies with the RF exposure requirements and the SAR is not required.

Reference No.: WTX20X11086095W Page 5 of 7 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Reference No.: WTX20X11086095W Page 6 of 7 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (1GHz to 18GHz) Reference No.: WTX20X11086095W Page 7 of 7 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Radiation Emission Test Setup (Above 18GHz) ***** END OF REPORT *****
