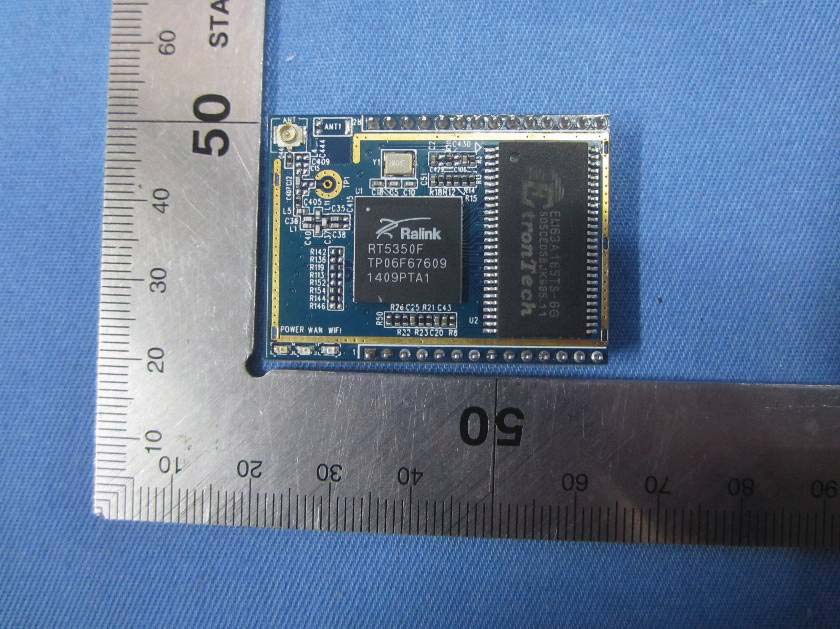

2AD56HLK-RM04-UWifi-Module with antenna

 BOM

® 深圳市华创翔科技有限公司 SHEN ZHEN HUACHUANGXIANG TECHNOLOGY CO, LTD MT-22-008 REV1.0 客 户 名 称： 产 品 名 称： PCB antenna (HLK-TX-PCB-G) 产 品 料 号 ： HCX- P32 1 客 户 料 号： 送 样 日 期： 2015-4-22 工程确认： 核准工程制作签章 Approval Quality Engineer 客户确认： 核准研发品质签章 确认结果：□合格□不合格□其它 ® 深圳市华创翔科技有限公司 SHEN ZHEN HUACHUANGXIANG TECHNOLOGY CO, LTD MT-22-008 REV1.0 承认书项目表 Item Description 1.............................................承认书封面 2.............................................承认书项目表 3.............................................工程图面 4.............................................电性测试报告 ® 深圳市华创翔科技有限公司 SHEN ZHEN HUACHUANGXIANG TECHNOLOGY CO, LTD MT-22-008 REV1.0 RF Antenna Cable Assembly Specification 1. Electrical Properties 1.1 Frequency Range........................2.4GHz-2.5GHz 1.2 Impedance.................................50Ω Nominal 1.3 VSWR..........................................1.92:1MAX 1.4 Return Loss.................................-10dB Max 1.5 Gain(peak).................................2dBi 1.6 Cable loss....................................0.3dBi Max 1.7 Polarization.................................Linear Vertical 1.8 Admitted Power..............................2W 1.9 Cable..........................................O.D 1.13mm 1.10 Conn..........................................IPEX 2. Physical Properties: 2.1 Antenna Material................................. PCB 2.4 Operating Temp..............................-20°C- +65°C 2.5 Storage Temp.................................-30°C- +75°C 2.6 Color.............................................Green ® 深圳市华创翔科技有限公司 SHEN ZHEN HUACHUANGXIANG TECHNOLOGY CO, LTD MT-22-008 REV1.0 RF Antenna Assembly SPEC:2.4~2.5GHz 一 驻波比 ® 深圳市华创翔科技有限公司 SHEN ZHEN HUACHUANGXIANG TECHNOLOGY CO, LTD MT-22-008 REV1.0 3D pattern(wifi频段中间频点2450MHz

® 深圳市华创翔科技有限公司 SHEN ZHEN HUACHUANGXIANG TECHNOLOGY CO, LTD MT-22-008 REV1.0 客户名称： 产品 名称： RP-SMA antenna (HLK-TX-2DB- B) 产品料号：2DBi 外置黑色天线 客户料号： 送样日期：2015-2-3 工程确认： 核准 工程 制作 签章 Approval Quality Engineer 客户确认 ： 核准 研发 品质 签章 确认结果： □ 合格 □ 不合格 □ 其它 ® 深圳市华创翔科技有限公司 SHEN ZHEN HUACHUANGXIANG TECHNOLOGY CO, LTD MT-22-008 REV1.0 承认书项目表 ItemDescription 1.............................................承认书封面 2.............................................承认书项目表 3.............................................工程图面 4.............................................电性测试报告 ® 深圳市华创翔科技有限公司 SHEN ZHEN HUACHUANGXIANG TECHNOLOGY CO, LTD MT-22-008 REV1.0 RFAntennaCableAssembly Specification 1. Electrical Properties 1.1 Frequency Range........................2.4GHz-2.5GHz 1.2 Impedance.................................50ΩNominal 1.3 VSWR..........................................1.92:1MAX 1.4 Return Loss.................................-10dB Max 1.5 Gain(peak).................................2dBi 1.6 Cable loss....................................0.3dBi Max 1.7 Polarization.................................Linear Vertical 1.8 Admitted Power..............................2W 1.9 Cable..........................................RG-178 1.10 Conn.......................................... SMA- Male 2. Physical Properties: 2.1 Antenna Material.................................Cu 2.4 Operating Temp..............................-20°C- +65°C 2.5 Storage Temp.................................-30°C- +75°C ® 深圳市华创翔科技有限公司 SHEN ZHEN HUACHUANGXIANG TECHNOLOGY CO, LTD MT-22-008 REV1.0 RF Antanna Assembly SPEC:2.4~2.5GHz ® 深圳市华创翔科技有限公司 SHEN ZHEN HUACHUANGXIANG TECHNOLOGY CO, LTD MT-22-008 REV1.0

Single Modular approval Declaration letter We ，ShenZhen HaiLingKe Electronic co.,Ltd. apply single modular approval for Product Name: WIFI-MODULE with antenna Model : HLK-RM04-U FCC ID: 2AD56HLK-RM04-U According to 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirement: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; Answer ： YES， both side shielded( according to KDB Inquiry (Tracking Number 635305) ) 2) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Answer ：Yes ；All inputs to the modules are buffered through logic or microprocessor inputs. 3)The modular transmitter must have its own power supply regulation. Answer ：Yes ；A low drop out regulator is used for modular power supply regulation. 4) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer ：Yes ； Device is equipped with integral antenna and external antenna which use reversed polarity antenna port. (5) The module must demonstrate compliance in a stand-alone configuration; Answer ： Yes ，distance between modular and all AEs are longer than 10cm ， refer to setup photo. (6) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); Answer ：Yes ； The modular has a permanent fixed label, and below statement was listed in the Users Manual ; The host device must be labelled to display the FCC ID of the module Contains FCC ID: 2AD56HLK-RM04-U (7) The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer ：Yes ； The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8) The module must comply with RF exposure requirements Answer ：Yes ； Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPE Reports and Refer to modular installation manual

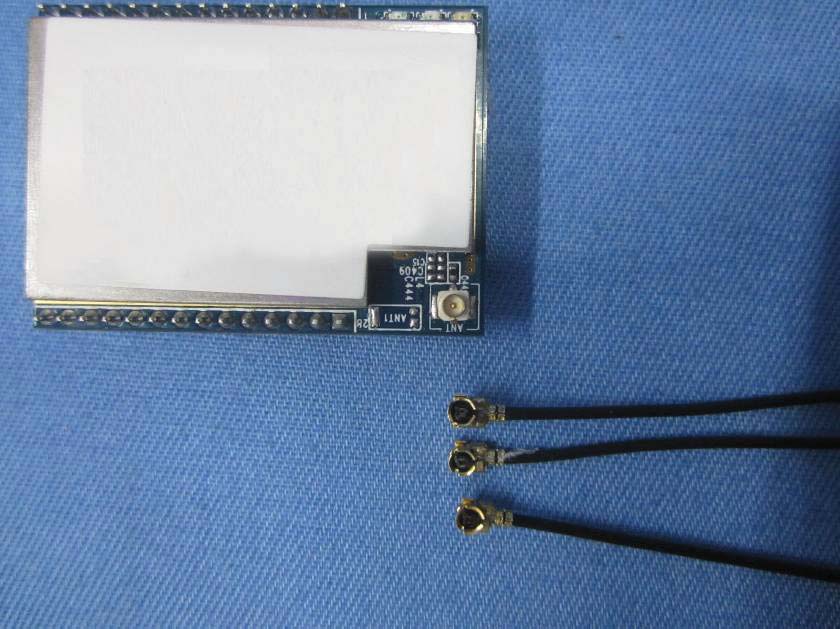

 omni ant pcb ant RP-SMA ant

Label location

Size: 15*8 mm FCC ID: 2AD56HLK-RM04-U

SAR evaluation MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m2) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Omni antenna gain is the biggest one and it is 3.3dBi Calculated Result and Limit(WORSE CASE IS AS BELOW) Antenna Gain (Numeric) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result 2.14 (3.3dBi) 44.57（16.49 dBm） 0.019 1 Compiles
