2AD5K-PSB100Bluetooth Headset

16. Croise.R Reader 애플리케이션 사용하기 Croise.R Reader 전용 애플리케이션을 설치하여 헤드셋 매너모드 전환, 기본 볼륨설정, 메시지 읽기 설정 등 추가 기능을 사용하실 수 있습니다. ※ 안드로이드 계열 스마트폰만 지원 (4.3버전 이상 기기 사용 가능) Croise.R Reader 애플리케이션 사용하기16 Package Contents Package Contents Installation of Cable Clip PrecautionsProduct Warranty and Service Guide for the Paid Service Product Warranty Using the Headset 1. Power On / Off 3. Battery Status Alarm & Alert 4. Low Battery Alarm & Alert 5. Critical Battery 2. Charging 6. Pairing 7. Calling 8. Call Answer / Call End / Call Reject 9. Transferring a Call 10. Setting Waiting Mode while Calling 11. Volume Control 12. Music 14. Multi-Connection 15. Auto Reconnect 16. Using Croise.R Reader Application 17. Button function and status information 17. Button function and status information Product Specifications and features PSB-100 Headset Features Cable Clip Package Contents Description of Parts Installation of Cable Clip Product Specifications and Features How to use Power on/off Charging Pairing Calling Transferring a Call Volume Control Music Play Multi-Connection Using Croise.R Reader Application Button Functions and Status Information Precautions Product Warranty and Service Limited Warranty Product Warranty Certificate PSB-100 User Manual 1. Model Name : Neck Band Bluetooth Headset 2. Part Number : PSB-100 3. Manufacturer : PARTRON Co., Ltd. 4. Country of Origin : Republic of Korea 5. Address : 22, Samsung 1-ro 2-gil, Hwaseong, Gyeonggi 445-170, Korea - Please take the time to follow the instructions in this owner’s guide carefully. - Appearance and specifications of this product are subject to change without prior notice for product improvement. This device must accept any interference received, including interference that may cause undesired operation. Earbud Covers(Large/Small) USB Charger User Manual Placing cable clip to the earphone cable. Power On Recommendations LED indicator Voice Dialing Last Number Dialing Call Answer/Call End Call Reject Setting Waiting mode Volume Up Volume Down Mute To Play/Pause a Music Previous Track Next Track Pairing Calling Listening Music Rewind Music Stop Incoming second call while calling ※ Manual Pairing Power Off Clearing Paired Device Put the clip into the earphone cable firmly. - Place the power slide switch to ‘ ’ - The red + blue LED light flashes for 0.5 second and Power is turned on with voice guide. - Using USB Hub may take extra charging time due to the low current. For Fast charging, please use the 5V 500mA ~ 5V 1A rated charger. - Press Call and Play/Pause button at the same time for a second for audio guidance for the current battery level. - The red LED light flashes 3 times with voice guidance “Battery not enough” if the battery is less than 1 hour use. - The notice continues every 2 minutes if the battery is less than 10 minutes use and power is turned off with voice guidance “Battery Empty” at the critical battery. “Battery Full” “Battery Half” “Battery not enough” - Place the power slide switch to ‘ ’ - The red + blue LED light flashes for 0.5 second and Power is turned off with voice guide. - When the charger is connected, the Red LED is on. - When charging is completed, the Blue LED is on. - Hold Call button for 2 second while placing power slide switch to ON then it will enter to Pairing mode with voice guide “Start pairing”. And Register the PSB-100 in above same way. - Hold call button for 1 second and Volume button while placing power slide switch to ON then paired device will be cleared with voice guide “ Clear Paired List” and enter to Pairing Mode. - Briefly press Call button to activate Voice Dial. - Press Call button for 1 second, the mobile phone will call the last number dialed. - Briefly press Call button to answer the incoming call. - Briefly press Call button to end the call. - During the call, press Call button for 3 second, audio will be transferred from headset to mobile phone. - And press Call button for 3 second again, audio will be transferred from mobile phone to headset. - While calling or listening the music, briefly press Volume ‘+’ button. - While calling or listening the music, press and hold Volume ‘+’ button for continuous volume up. - While calling or listening the music, briefly press Volume ‘-’ button. - While calling or listening the music, press and hold Volume ‘-’ button for continuous volume down. - During the call, press Volume ‘+’, ‘-‘button at the same time for mute. - Press Volume ‘+’, ‘-‘button at the same time again to cancel the mute. - Proceed pairing of the first device manually. - Power off the headset upon registration of the first device is completed. - Power on holding the call button for pairing mode. - Pairing 2nd device for registration. - Connecting 1st device to the headset. - Ring tone sounds when the second device has incoming call while you are talking through first device. - You can operate the same as "Setting Waiting Mode while Calling". - In multi-pairing mode, key control is available for the first played device. - Press Play/Pause button briefly to stop playback from the first device. Then key control is available for 2nd Device. - To play a song or pause playback, press ‘Play/Pause’ button. - Press ‘Play / Pause’ button for 1second. - During the call, briefly press Call button twice and enter to call waiting mode. Pressing Call button twice again back to the call mode. - Briefly press Call button to end the original call and answer the second call. - Briefly press Call button twice to answer the second call without hanging up the original call (Original call will be call waiting mode) Ending a Call - Briefly press Call button. - Press ‘Previous Track’ button to select previous song. - Press ‘Next track’ button to select next song. Multi-connection is useful to link more than a mobile device. - Press and hold ‘Previous Track’ button. Fast Forward Automatic connection when headset is turned on Out Of Range You can use the additional functions through “Croise.R Reader” such as Manner …

Text truncated - open the document above for the full version.

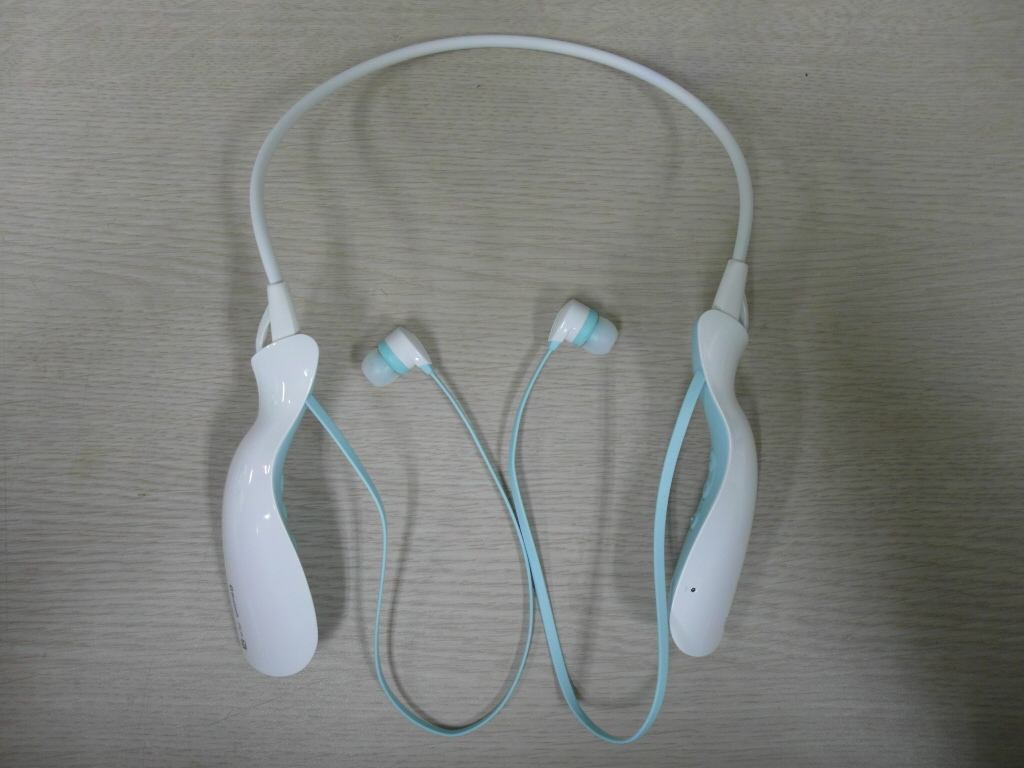

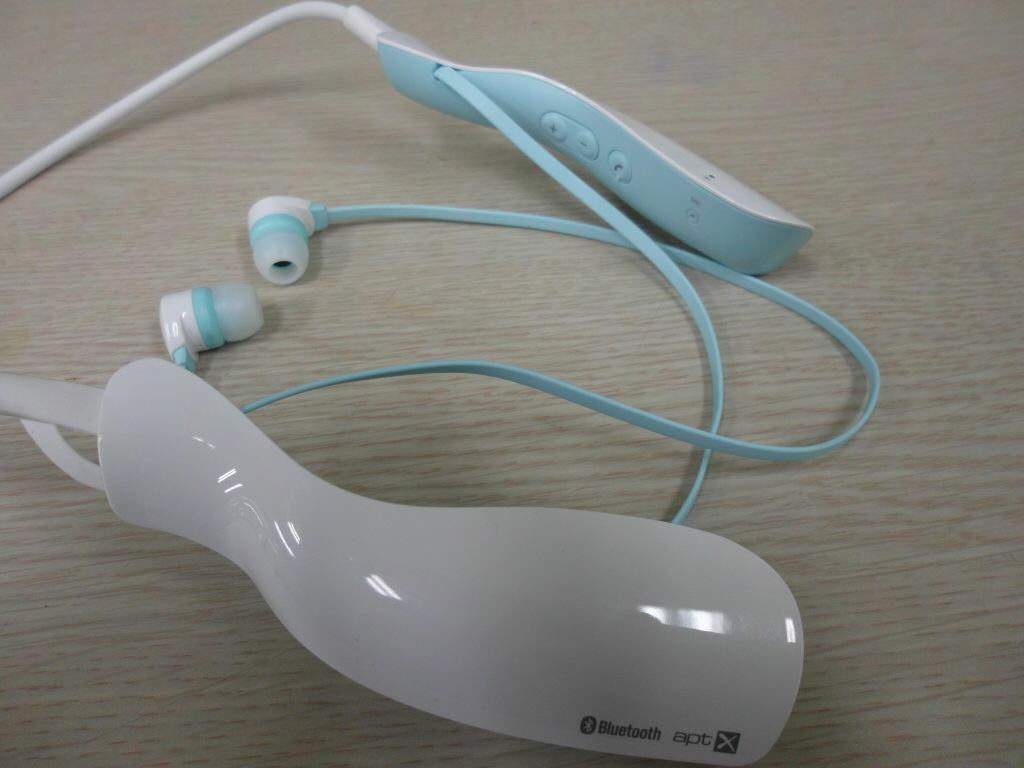

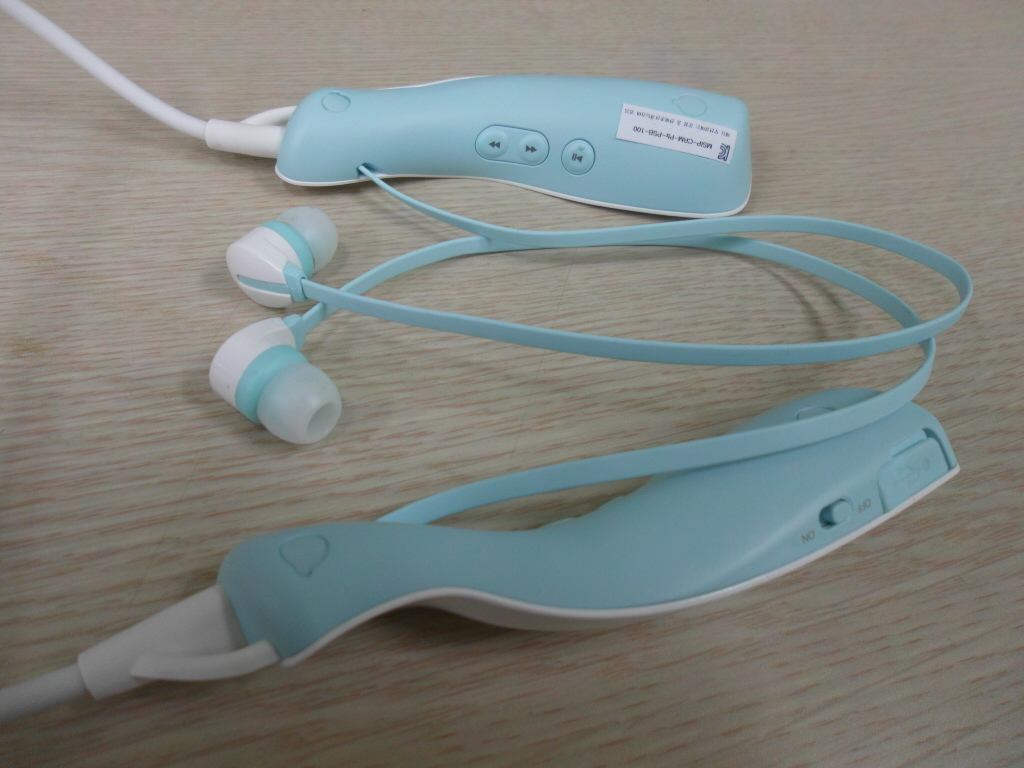

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT External Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Label Photographs

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT Internal Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Antenna

ACS2450HFL57 Ver 1.0 (2014.09.19) 1 / 27 page 22-6, Seokwoo-dong, Hwaseong-si, Gyeonggi-do, 445-170, KOREA Tel : 82-31-201-7870~6 Fax : 82-31-201-7800 www.partron.co.kr ProductsDielectric Chip Antenna CustomerPARTRON ModelBluetooth Headset Customer CODE SupplierPARTRON Supplier CODEACS2450HFL57 PARTRON By designedBy checkedBy approved 피강욱 Antenna 2 Team Quality AssuranceLaboratory Kanguk. PiNam-Sik. MinByoung-Jun.Yim 09/1909/1909/19 2014 . 09. 19 Approval Sheet ACS2450HFL57 Ver 1.0 (2014.09.19) 2 / 27 page DIELECTRIC CHIP ANTENNA SPECIFICATION MODEL : ACS2450HFL57 By designedBy checkedBy approved 피강욱 Antenna 2 TeamQuality AssuranceLaboratory Kanguk. PiNam-Sik. MinByoung-Jun.Yim 09/1909/1909/19 2014 . 09. 19 22-6, Seokwoo-dong, Hwaseong-si, Gyeonggi-do, 445-170, KOREA Tel : 82-31-201-7870~6 Fax : 82-31-201-7800 www.partron.co.kr ACS2450HFL57 Ver 1.0 (2014.09.19) 3 / 27 page - Contents - 1. Revision History......................................................................................................................... 2. Electrical Characteristics........................................................................................................... 3. Mechanical Characteristics........................................................................................................ 4. Measurement Process............................................................................................................. 5. Primary Inspection List.......................................................................................................... 6. Reliability Condition................................................................................................................... 7. Soldering Condition................................................................................................................... 8. Attention................................................................................................................................... 9. Packing.................................................................................................................................... 10. Process Control...................................................................................................................... 11. RoHS Data.............................................................................................................................. 4 p 5 p 9 p 12 p 13 p 14 p 15 p 15 p 16 p 19 p 22 p ACS2450HFL57 Ver 1.0 (2014.09.19) 4 / 27 page 1. Revision Revision NoOriginatorDescription of changesDate of changes Ver 1.0Kanguk. PiIssued2014.09.19 ACS2450HFL57 Ver 1.0 (2014.09.19) 5 / 27 page 2. Electrical Characteristics 2.1 Set Condition ITEMSPEC Frequency Range [MHz]2400 ~ 2485 VSWR [Max]3 : 1 Bandwidth [MHz]85 PolarizationLinear Matching Value of ANT Matching Circuit (Direction, from Antenna to Module) Antenna Matching Circuit Series2 (Feed) 2.2nH T-Matching Circuit (nearby Module) Shunt1.0pF Series11.0nH Gain[dBi] Azimuth Plane Peak1.27 Average-1.37 Elevation1 Plane Peak0.63 Average-4.50 Elevation2 Plane Peak-1.42 Average-5.25 3D Peak1.25 Average-4.21 2.2 Test Fixture Condition ITEMSPEC Frequency Range [MHz] 1840 ~ 1920 SWR [Max] 4.0 : 1 Bandwidth [MHz]80 ACS2450HFL57 Ver 1.0 (2014.09.19) 6 / 27 page 2.3 Graph of Set Condition 2.4 Graph of Test Fixture Condition ACS2450HFL57 Ver 1.0 (2014.09.19) 7 / 27 page 2.5Radiation Pattern Azimuth PlaneElevation 1 PlaneElevation2 Plane Azimuth Plane ACS2450HFL57 Ver 1.0 (2014.09.19) 8 / 27 page Elevation1 Plane Elevation2 Plane ACS2450HFL57 Ver 1.0 (2014.09.19) 9 / 27 page 2.6 3D Radiation Pattern 3D Radiation Pattern 3 33 3 . Mechanical Characteristics - The structure is materialized printing Ag paste at the dielectric block 3.1 Structure and Material Material Dielectric Block 3D Structure Ag Paste Size [mm] W = 2.0±0.1 L = 6.0±0.1 T = 1.2±0.1 Temperature [ °C ] - 40 ~ +80 Humidity [%]At the normal temperature, RH 100 Ag paste L W T Dielectric Block Top-Side ViewBottom-Side View ACS2450HFL57 Ver 1.0 (2014.09.19) 10 / 27 page 3.2 PCB Layout & Soldering Pad Dimension ParameterABCDE Value[mm] 1.24.02.46.06.4 Unit ; mm Unless specified tolerances are ±0.1 3.3 Antenna Pattern Dimension Antenna Pattern View Unit ; mm Unless specified tolerances are ±0.1 Top Side2 Side1 Bottom ACS2450HFL57 Ver 1.0 (2014.09.19) 11 / 27 page 3.3.1 Real Measurement Value (1)(2)(3)(4)(5)(6) Drawing Dimension [m m]1.05±0.10.45±0.11.0±0.10.65±0.10.45±0.11.05±0.1 11.1360.4401.0330.6400.5131.099 20.9620.4600.9530.6340.5091.036 31.0360.5071.0260.6450.4701.108 41.1220.4901.0220.6400.4741.080 50.9820.4610.9700.6690.5031.073 Min [mm]0.9620.4400.9530.6340.4701.036 Max [mm]1.1360.5071.0330.6690.5131.108 Average [mm]1.0480.4721.0010.6460.4941.079 3.4 LOT Notation 2 9 3 ①②③ ① Year ; 1 - 2011, 2 - 2012, .... 9 - 2019, 0 - 2020 .... ② Month ; 1 - January, 2 - February, .... A - October, B - November .... ③ Date ; 1 - 1st, 2 - 2nd, 3 - 3rd .... H - 17th, I - 18th .... 3.5 Marking Marking View ◀ L57 2 9 3 ①②③④⑤ ① Input Signal ② Serial ③ Year ; 1 - 2011, 2 - 2012, .... 9 - 2019, 0 - 2020 .... ④ Month ; 1 - January, 2 - February, .... A - October, B - November .... ⑤ Date ; 1 - 1st, 2 - 2nd, 3 - 3rd .... H - 17th, I - 18th .... ACS2450HFL57 Ver 1.0 (2014.09.19) 12 / 27 page 4. Measurement Process 4.1 SWR/Returnloss -The SWR/Returnloss is measured by Network Analyzer Set ConditionTest Fixture Condition Network Analyzer Agilent HP8753Dor Advantest R3765CGAgilent HP8753D or Advantest R3765CH CableRF cable(300mm)RF cable(300mm) Test condition 4.2 Gain -The Antenna Gain is measured using the set at Anechoic Chamber Anechoic Chamber for Antenna Gain Measurement ACS2450HFL57 Ver 1.0 (2014.09.19) 13 / 27 page 5.Primary Inspection List ItemElectrical Characteristic [MHz] Mechanical Dimension [mm] Standard VSWR 4.0 : 1 [Max] W=2.0±0.1L=6.0±0.1 T=1.2±0.1 1840 MHz1920 MHz 12.211.992.036.021.23 22.062.132.046.011.24 31.962.112.046.001.24 42.092.062.056.011.24 51.982.232.046…

Text truncated - open the document above for the full version.

SAR Test Exclusion Calculator Insert values in yellow highlighted boxes to determine SAR Exclusion Max Power3.397mW Min Separation5mm Frequency2.4GHz Answer1.1 KDB 628591 D01 TCB Exclusion List v16 TCBs are excluded from granting if: Controlled Use: The Answer is equal to or greater than 60 (20x threshold) KDB 447498 D01 General RF Exposure Guidance v05 4.3.1. Standalone SAR test exclusion considerations General Population: The Answer is equal to or greater than 24 (8x threshold) Please also note the following: [FCC KDB quote] These test exclusion conditions are based on source-based time- averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface. [End quote] When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 100 MHz to 6 GHz at separation distance less than or equal to 50 mm Must be less than or equal to 3.0 for SAR Exclusion and, when published RF exposure KDB procedures are not established for SAR testing or when SAR data is not provided to support compliance.

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2015-00118 Date: 2015-02-02 Page 1 of 51 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TEST REPORT FCC Standards : FCC 47CFR part 15 subpart C Test Report No. : CTK-2015-00118 Date of Issue : 2015-02-02 FCC ID : 2AD5K-PSB100 Model/Type No. : PSB-100 Kind of Product : Bluetooth Headset Applicant : PARTRON CO., LTD Applicant Address : 22,Samsung1-ro2-gil, Hwaseong-si, Gyeonggi-do, Korea Manufacturer : PARTRON CO., LTD Manufacturer Address : 22,Samsung1-ro2-gil, Hwaseong-si, Gyeonggi-do, Korea Contact Person : Byun Jae Beom / Researcher Telephone : +82-31-201-7906 Received Date : 2014-12-24 Test period : Start : 2015-01-13 End : 2015-01-26 The test results presented in this report relate only to the object tested. Tested by Reviewed by Won-Jae, Hwang Test Engineer Young-Joon, Park Technical Manager Date: 2015-02-02 Date: 2015-02-02 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2015-00118 Date: 2015-02-02 Page 2 of 51 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) REPORT REVISION HISTORY Date Revision Page No 2015-02-02 Issued (CTK-2015-00118) All This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2015-00118 Date: 2015-02-02 Page 3 of 51 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) TABLE OF CONTENTS REPORT REVISION HISTORY ..........................................................................................2 1.0 General Product Description ...............................................................................4 1.1 Tested Frequency .............................................................................................4 1.2 Tested Mode ....................................................................................................4 1.3 Device Modifications .........................................................................................5 1.4 Peripheral Devices ............................................................................................5 1.5 Calibration Details of Equipment Used for Measurement .........................................5 1.6 Test Facility......................................................................................................5 1.7 Laboratory Accreditations and Listings .................................................................6 2.0 Summary of tests .............................................................................................7 2.1 Transmitter Requirements ..................................................................................8 2.1.1 Carrier Frequency Separation .......................................................................8 2.1.2 Number of Hopping Frequencies ................................................................. 10 2.1.4 Time of Occupancy (Dwell Time) ................................................................. 19 2.1.5 Maximum peak Conducted Output Power...................................................... 25 2.1.6 Band-edge............................................................................................... 30 2.1.7 Field Strength of Emissions ........................................................................ 41 2.1.8 AC Conducted Emissions............................................................................ 48 APPENDIX A – Test Equipment Used For Tests ................................................................ 51 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2015-00118 Date: 2015-02-02 Page 4 of 51 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) 1.0 General Product Description Basic Model/Type No. PSB-100 Serial number Prototype EUT condition Pre-production, not damaged Antenna type Chip antenna Gain 1.27 dBi Frequency Range 2402 MHz - 2480 MHz RF power 3.397 dBm Peak Conducted (GFSK) 2.212 dBm Peak Conducted (8-DPSK) Number of channels 79 Channel Spacing 1 MHz Channel Access Protocol Frequency Hopping Type of Modulation GFSK(1 Mbps), DQPSK(2 Mbps), 8-DPSK(3 Mbps) Power Source DC 3.7 V (Lithium Ion Rechargeable Battery) 1.1 Tested Frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 1.2 Tested Mode - Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between available modulations, data rates and antenna ports (if EUT with antenna diversity architecture). - Following channel(s) was (were) selected for the final test as listed below. Tested Ch Modulation Technology Modulation Type Packet Type Low, Mid, High FHSS GFSK DH 5 Low, Mid, High FHSS 8-DPSK 3DH 5 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2015-00118 Date: 2015-02-02 Page 5 of 51 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 SubpartC(Rev.2) 1.3 Device Modific…

Text truncated - open the document above for the full version.

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Setup Photos and Configuration Radiated Electric Field Emissions CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Conducted Voltage Emissions
