2AD5K-PTD400Infrared body thermometer

Manual Non contact infrared body thermometer [English]The patient is an intended operator Medical Device PTD-400 Written on : 2020 - 11 There is a possibility of radio confusion during operation of the corresponding wireless system. Copyright © 2020 All rights reserved. / Product Overview / Purpose of Use This product is a portable measuring device that can collect infrared radiation energy from the human body (forehead, below ear, etc.) through sensors to measure body temperature and manage the information. This non-contact device is used for measurement by placing the built-in sensor in the top part of the product within 3 cm of the site to be measured. An additional function to measure temperature of general objects is also included. *APP Body temperature information can be checked through synching mobile app after installing GC Healthcare Corporation’s “heat map” app in Play Store for Android and in App Store for iOS. It provides a guide based on body temperature, and you can check the temperature status across the country with the heat map. / Product Composition - Shape and Structure / 1-1. Temperature sensing unit 1. Body (1EA)1-5. Battery cover 1-2. Strap hole 1-4. ON / SCAN button 1 click for measurement/move 2 clicks for selection 1-3. OLED display 2 . User manual 3 . CR2032 coin battery (1EA) 1 FrontBack CR2032 1-1 1-3 1-4 1-5 1-2 3 2 / How to Replace Battery / - Loosen the screw at the bottom of the main body with a screwdriver, press both gaps with your fingertips, then pull down to remove the battery cover. - Place the battery fitting in the direction of insertion, close the cover and screw with screwdriver. STEP 2 STEP 1 STEP 3 *How to Insert Battery - Insert the CR2032 battery diagonally so that the battery cover gets stuck in a bump and press it to close. - Battery should be inserted so that the surface without the specification mark is facing up. - Insert in a way that poles are facing upwards. / How to Use PTD-400 / - Press the button on the main body once briefly. (“HELLO” is displayed and power gets turned on.) - Once the body temperature measurement standby screen is displayed as ( ), body temperature measurement can be started. - If the device is not operated for 20 seconds, the power is automatically turned off. (Pressing the button on the main body for more than 2 seconds will also turn the power off automatically.) 1. Power On / Standby / Power Off Click the button once Power OnStandby 3. Measuring Body Temperature / Checking Previous Measurement Records - Select a temperature measurement on the setting screen. - On the standby screen, place the thermometer in the center of the forehead above the eyebrow and press the button on the main body once. - With vibration, numbers “3, 2, 1” will be displayed and then measurement will be started. - Click the button 3 times on the standby screen to enter the setting screen - After entering the setting screen, temperature ( ) and object ( )can be chosen by clicking twice on the measurement target icon. 2. Setting Target to be Measured (People/Object) Click the button 3 times Click the button twice object temperature Click the button once - Click the button twice on the standby screen to enter the previous measurement records. - On the previous measurement records screen, click the button once to start the temperature measurement. Click the button twice Click the button twice *Check body temperature measurement position before starting measurement. 3cm - Measure at the center or end of the forehead while keeping the thermometer with a distance of about 3 cm to avoid contact with the skin - If the temple or forehead above the eyebrows is covered with hair or cannot be measured, measure the center of the forehead or the back of the ear. - Body temperature may vary depending on the site: left and right temple, or left and right forehead area. It is recommended that you always measure on the higher side according to the measurement method in the manual. - When the temperature measurement is complete, the device will be vibrated, and the measured temperature will be displayed on the screen *If the measured temperature is greater than 42 degrees, it will be displayed as HIGH if less than 32 degrees, it will be displayed as LOW. 4. Display of Body Temperature 42°C ↑32°C ↓ - Select an object temperature measurement on the setting screen. - Click once on the standby screen while maintaining the distance from the measurement target. - With vibration, numbers “3, 2, 1” will be displayed and then measurement will be started. * Object temperature measurement range 0°C to less than 22°C ±3°C 22°C~ 42°C±2°C 43°C to less than 100°C ±3°C 100°C~ 180°C ± 5°C Click the button once 5. Measuring Object Temperature 1) Click the button 3 times on the standby screen to enter the setting screen. 2) Click the button once on the setting screen to enter the temperature unit setting screen. 3) Click the temperature icon °C (or °F) twice to change the temperature unit. 6. Changing Temperature Unit Fahrenheit Celsius The standby screen will be changed to battery warning screen when there is no residual amount and temperature data will still be displayed. (It will remain the same until battery is completely exhausted.) 7. Battery Replacement Alarm Standby In case of battery shortage *Please remove the battery if the device is not in use for a long time. Click the button 3 times Click the button twice Click the button once Error messageAbnormalitySolution It will display this message when the room temperature is outside the operational temperature range of 15°C to 40°C. - Leave the thermometer for at least 30minutes in the ambient temperature environment available before measurement. - If the same message is displayed afterwards, contact the customer service center. / In the Event of Abnormalities / / Product Storage and Care / 1. As the sensor part is very sensitive, always keep it clean and not damaged for accurate measurements. 2. Avoid fire and direct su…

Text truncated - open the document above for the full version.

PARTRON CO., LTD. 22,Samsung1-ro2-gil, Hwaseong-si, Gyeonggi-do South Korea Date: December 11, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Lena Lim / Senior Staff of KCTL Inc. and hereafter referred to as KCTL to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Lena Lim / Senior Staff of KCTL Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KCTL as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Youlim Shin / Associate Research Engineer

PARTRON CO., LTD. 22,Samsung1-ro2-gil, Hwaseong-si, Gyeonggi-do South Korea CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 December 11, 2020 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, PARTRON CO., LTD. requests confidentiality for the following products: FCC ID Number Product Title/Model 2AD5K-PTD400 Infrared body thermometer / PTD-400 The following exhibits contain trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our product. This material is not customarily available to the general public and we request that it be withheld from public inspection. We request that the following information submitted be held permanent confidential treatment. Permanent Confidential Request -. Schematics -. Block Diagram -. Operational Description -. Part lists -. Antenna specification We also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give temporary confidentiality of commercially sensitive information prior to product release. Short-Term Confidential Request -. External Photos -. Internal Photos -. Test set-up photo -. User Manual If you have any questions, please feel free to contact me at the address shown below. Sincerely, Youlim Shin / Associate Research Engineer

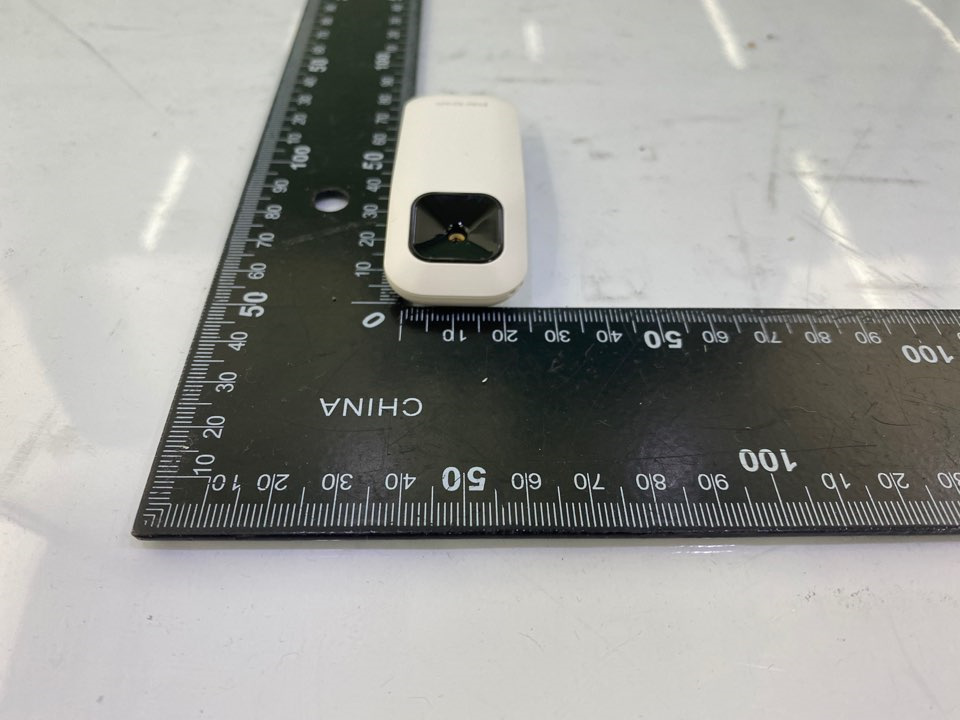

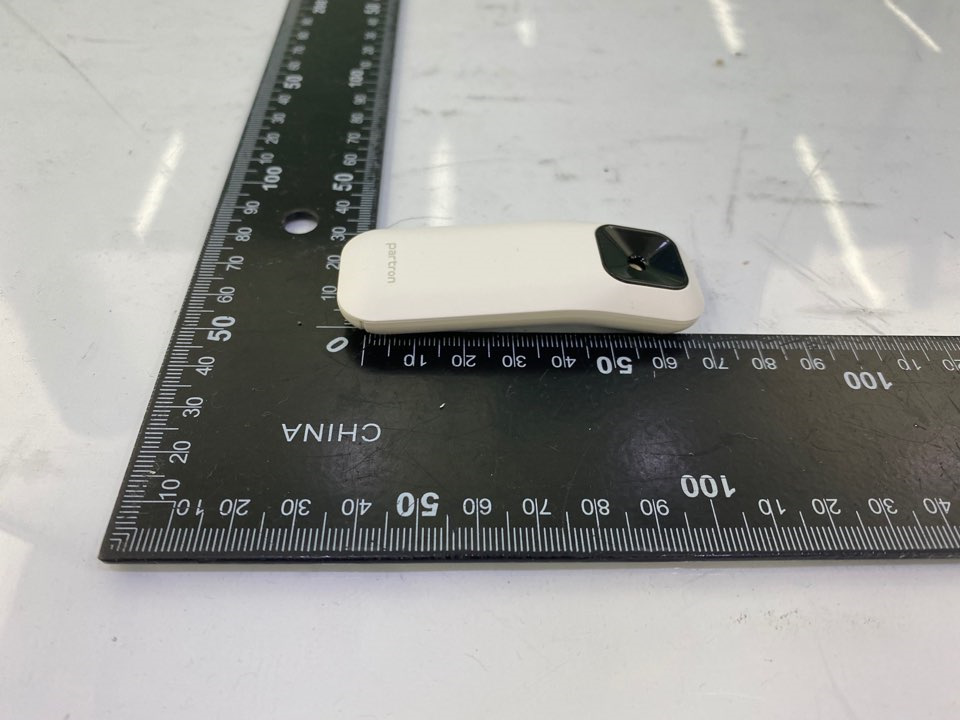

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval External photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

Behind of device FCCID: 2AD5K-PTD400 Model: PTD-400

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Internal photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval PCB Antenna (Bluetooth Low Energy)

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval * RF Exposure 1. Regulation According to the KDB 447498 D01 V06, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance defined in 4.1 f) is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified, typically in the SAR measurement or SAR analysis report, by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting are required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops and tablets, etc. a) For 100 ㎒ to 6 ㎓ and test separation distances ≤ 50 ㎜, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, ㎜)] · [√f(㎓)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR,30 where ● f(㎓) is the RF channel transmit frequency in ㎓ ● Power and distance are rounded to the nearest ㎽ and mm before calculation ● The result is rounded to one decimal place for comparison ● The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 ㎜, and for transmission frequencies between 100 ㎒ and 6 ㎓. When the minimum test separation distance is < 5 ㎜, a distance of 5 ㎜ according to 4.1 f) is applied to determine SAR test exclusion. b) For 100 ㎒ to 6 ㎓ and test separation distances > 50 ㎜, the 1-g and 10-g SAR test exclusion thresholds are determined by the following (also illustrated in Appendix B): 1) {[Power allowed at numeric threshold for 50 ㎜ in step a)] + [(test separation distance – 50 ㎜)·(f(㎒)/150)]} ㎽, for 100 ㎒ to 1500 ㎒ 2) {[Power allowed at numeric threshold for 50 ㎜ in step a)] + [(test separation distance – 50 ㎜)·10]} ㎽, for > 1500 ㎒ and ≤ 6 ㎓ c) For frequencies below 100 ㎒, the following may be considered for SAR test exclusion (also illustrated http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval in Appendix C): 1) For test separation distances > 50 ㎜ and < 200 ㎜, the power threshold at the corresponding test separation distance at 100 ㎒ in step b) is multiplied by [1 + log(100/f(㎒))] 2) For test separation distances ≤ 50 ㎜, the power threshold determined by the equation in c) 1) for 50 ㎜ and 100 ㎒ is multiplied by ½ 3) SAR measurement procedures are not established below 100 ㎒. When SAR test exclusion cannot be applied, a KDB inquiry is required to determine SAR evaluation requirements for any SAR test results below 100 ㎒ to be acceptable. http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval 2. Result 2-1. Calculation Result of RF Exposure Mode Max. tune-up Power [㏈m] Conducted output power [㎽/] Min. test separation distance [㎜] SAR test exclusion thresholds ≤ 3.0 for 1-g SAR BLE/1 Mbps 0 1.00 5.00 0.31 Note: 1. SAR test exclusion thresholds = [(Max. Power of Channel, Including Tune-Up Tolerance/(Min. Test Separation Distance, mm)] · [√f(GHz)] WIFI = [(1.00)/(5)] · [√2.402] =0.31 http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval 3. Target power and tolerance, Max tuneup power Mode Target power [㏈m] Tolerance [㏈] Max tuneup power [㏈m] Average Power [㏈m] BLE_1M_Packet 37_Lowest -0.5 0.5 0 -0.49 BLE_1M_Packet 37_Middle -0.5 0.5 0 -0.62 BLE_1M_Packet 37_Highest -0.5 0.5 0 -0.77 BLE_1M_Packet 255_Lowest -0.5 0.5 0 -0.52 BLE_1M_Packet 255_Middle -0.5 0.5 0 -0.65 BLE_1M_Packet 255_Highest -0.5 0.5 0 -0.79 4. RF Exposure Compliance Issue Therefore, EUT is not required the SAR Evaluation.

verify No.782770010079 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0316 Page (2) of (32) KCTL-TIR001-003/3 KP20-05363 REPORT REVISION HISTORY Date Revision Page No 2020-12-11 Originally issued - This report shall not be reproduced except in full, without the written approval of KCTL Inc. This document may be altered or revised by KCTL Inc. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by KCTL Inc. will constitute fraud and shall nullify the document. This test report is a general report that does not use the KOLAS accreditation mark and is not related to KS Q ISO/IEC 17025 and KOLAS accreditation. General remarks for test reportss Nothing significant to report. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0316 Page (3) of (32) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-05363 CONTENTS 1. General information ...................................................................................................... 4 2. Device information ........................................................................................................ 4 2.1. Frequency/channel operations ................................................................................ 5 2.2. Duty Cycle Factor ................................................................................................... 5 3. Antenna requirement .................................................................................................... 7 4. Summary of tests .......................................................................................................... 8 5. Measurement uncertainty ............................................................................................. 9 6. Measurement results explanation example ................................................................ 10 7. Test results ................................................................................................................. 11 7.1. Maximum peak output power ................................................................................ 11 7.2. Peak Power Spectral Density ............................................................................... 14 7.3. 6 ㏈ Bandwidth(DTS Channel Bandwidth) .......................................................... 16 7.4. Spurious Emission, Band Edge and Restricted bands .......................................... 18 7.5. Conducted Spurious Emission .............................................................................. 30 8. Measurement equipment ............................................................................................ 32 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0316 Page (4) of (32) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-05363 1. General information Client : PARTRON CO., LTD. Address : 22,Samsung1-ro2-gil, Hwaseong-si, Gyeonggi-do South Korea Manufacturer : PARTRON CO., LTD. Address : 22,Samsung1-ro2-gil, Hwaseong-si, Gyeonggi-do South Korea Factory #1 : Elcomtec Co.,Ltd Address : 231, Dongbu-daero, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-862, Korea Factory #2 : PARTRON VINA CO.,LTD Address : Plot 11-Khai Quang IZ, Vinh Yen, Vinh Phuc, Vietnam Laboratory : KCTL Inc. Address : 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Accreditations : FCC Site Designation No: KR0040, FCC Site Registration No: 687132 VCCI Registration No. : R-20080, G-20078, C-20059, T-20056 Industry Canada Registration No. : 8035A KOLAS No.: KT231 2. Device information Equipment under test : Infrared body thermometer Model : PTD-400 Frequency range : 2 402 ㎒ ~ 2 480 ㎒ (Bluetooth Low Energy) Modulation technique : GFSK Number of channels : 40 ch Power source : DC 3.0 V Antenna specification : PCB Antenna Antenna gain : -0.22 ㏈i Software version : PTD-400Rev01 Hardware version : PTD-400Rev01 Test device serial No. : N/A Operation temperature : -10 °C ~ 50 °C KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0316 Page (5) of (32) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-05363 2.1. Frequency/channel operations This device contains the following capabilities: Bluetooth Low Energy Ch. Frequency (㎒) 00 2 402 . . . . 19 2 440 . . . . 39 2 480 Table 2.1.1. Bluetooth Low Energy 2.2. Duty Cycle Factor Test mode Period (㎳) On time (㎳) Duty cycle Duty Cycle Factor (㏈) (Linear) (%) 1M Bits/s, 37 Packet 0.625 0.389 0.622 4 62.24 2.06 1M Bits/s, 255 Packet 2.500 2.132 0.852 8 85.28 0.69 Notes. 1. Duty cycle (Linear) = On time / Period 2. DCF(Duty cycle factor) = 10log(1/duty cycle) 3. DCF is not compensated to average result if the duty cycle is more than 98% KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0316 Page (6) of (32) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-05363 1M Bits/s, 37 Packet 1M Bits/s, 255 Packet KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0316 Page (7) of (32) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/3 KP20-05363 3. Antenna requirement Requirement of FCC part section 15.203: An intentional radiator shall be designed to ensure that no anten…

Text truncated - open the document above for the full version.

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Test setup photos - Below 30 ㎒ (9 ㎑ ~ 30 ㎒) - Below 1 ㎓ (30 ㎒ ~ 1 ㎓) http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval - Above 1 ㎓ (1 ㎓ ~ 18 ㎓) - Above 18 ㎓ (18 ㎓ ~ 40 ㎓)
