Croise E. Urban Band (PWB-100) 1 CONFIDENTIAL 2 PWB-100 Introduction Feature ■ Urban Mode Body condition check & Smart Advice ■ Extreme Mode Activity Set, check & Alarm, Karvonen Excercise ■ Measure mode Measuring Body Condition & Environment ■ Measure objects 1. Steps2. Distance3. Calorie Burns4. Heart Rate5. Body Temperature ■ Goal Setting 1. Running(Walking) Speed & Distance 2. Steps 3. Calorie Burning 4. Sleeping Time 5. Heart Rate 7. Activity Time8. Sleeping Time & Quality9. Altitude Specifications DisplayLanguageSync MethodWater ProofBattery TimeCompatibilityRechargeable BatteryChargingWeight OLED 128*36Korean/English/ChinessBT4.0/BLEIPX44 days @ stand-byAndroid (4.2.2 and higher) / iOS80mAh (Lithium Polymer 3.7V)DC 5V (Micro USB)8.5g (Body), 27g (with Band) 1. Accelerometer 2. Gyro3. Temperature4. Barometer5. Heart Rate Sensor CONFIDENTIAL 3 Urban Mode Providing Smart Advice after Ch ecking Activity, Stress and Slee p CONFIDENTIAL 4 URBAN MODE Index Description Sleep • Showing sleep status of last night • Checking heart rate and turn-over in user’s sleep Stress • Checking user’s lactate by the heart rate sensor Recover • Calculating both yesterday’s sleep/activity and today’s stress/ activity until now Steps • Showing steps from 12AM to now Distance • Showing distance from 12AM to now Calorie Burn • Showing calorie burn from 12AM to now Condition • Showing the gauge of pictogram b y average of sleep/stress/recov er CONFIDENTIAL URBAN MODE Description• Touch on Pictogram(Condition) • Able to check user’s status and history with graphs for 4 items Step Sleep Calorie Heart Rate CONFIDENTIAL 6 URBAN : Smart Advice Smart Advice• Providing advice on the condition when current status is lower t han target Insufficient sleep Lack of exercise CONFIDENTIAL 7 Extreme Mode Providing various data including heart rate for specific exerci se CONFIDENTIAL 8 EXTREME MODE Walking Running Exercise Efficiency thru. Heart rate- Cardio Training Zone-Fat Burning Zone- Warm Up / Cool Down CONFIDENTIAL 9 EXTREME MODE Hiking Biking Exercise Efficiency thru. Heart rate- Cardio Training Zone-Fat Burning Zone- Warm Up / Cool Down CONFIDENTIAL 10 Measure Mode Measuring body temp., altitude, heart rate and etc CONFIDENTIAL 11 MEASURE MODE Heart rate Altitude CONFIDENTIAL 12 MEASURE MODE Body Temp. Swing Part 15.19 statementThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Part15.21 statement &KDQJHVRUPRGL¿FDWLRQVQRWH[SUHVVO\DSSURYHGE\WKHPDQXIDFW XUHU RUSDUW\ responsible) for compliance could void the user’s authority to operate the equipment. Part 15.105 statementThis equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by powering the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

PARTRON Co., Ltd. 22, Samsung 1-ro 2-gil, Hwaseong-Si, Gyeonggi-Do, Korea Tel: 82-(0)31-201-7800 / www.patron.co.kr Date: 25 September 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize Lab Manager Hyunchae, You (or Logan, Lee) of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Hyunchae,You (or Logan,Lee) of S GS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; PARTRON Co., Ltd. 22, Samsung 1-ro 2-gil, Hwaseong-Si, Gyeonggi-Do, Korea Tel: 82-(0)31-201-7800 / www.patron.co.kr e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Ji-Hong Park Principal Research Engineer PARTRON Co., Ltd.

PARTRON Co., Ltd. 22, Samsung 1-ro 2-gil, Hwaseong-Si, Gyeonggi-Do, Korea Tel: 031-201-7800 / www.patron.co.kr D ate: 25 September 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: 2AD5K-P WB100 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, PARTRON Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We a re also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give PARTRON Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. Th e requested Permanent and Temporary Confidential exhibits are listed as follows: C ONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics S hort-Term 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely yours, Ji-Hong Park Principal Research Engineer PARTRON Co., Ltd.

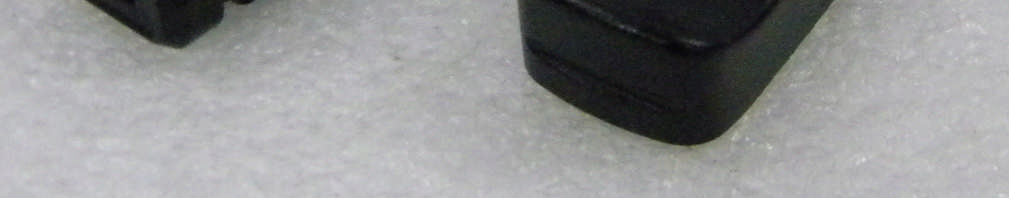

Model :PWB-100 External photos of EUT Model :PWB-100 Top view of EUT Bottom view of EUT

Label Format & Location Model: PWB-100 FCC ID: 2AD5K-PWB100 Rear view of EUT

Model :PWB-100 Internal photos of EUT Model :PWB-100 Top view of EUT Model :PWB-100 Top view of Band Main PCB Bottom view of Band Main PCB Model :PWB-100 Top view of Charger Main PCB Bottom view of Charger Main PCB Model :PWB-100 Antenna FPCB Antenna

FCC ID : 2AD5K-PWB100 According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 At 100㎒to 6㎓and fortest separation distances≤50 mm, the SAR test exclusion threshold is determined according to the following [(max. power of channel, including tune-up tolerance,㎽) / (min. test separation distance, mm)]x [√f (GHz) ]≤ 3.0 1. SAR test exclusion threshold Frequency : 2 480㎒ (min. separation distances = 5 mm) SAR test exclusion thresholds(5 mm) = 3 x 5 / (√ 2.480 ) = 9.525 ㎽ Max. tune-up tolerance(㎽) SAR Test Exclusion Thresholds(5 mm) (㎽) 13.175 Calculation value : 1 (㎽) / 5 (mm) x √ 2.480 = 0.315 So, Calculation value≤ 3.0 Remark: -Max. conducted power (㎽) : maximum tolerance power of EUT (0㏈m) -Max. conducted power 1 (㎽) is closet 1 (㎽), so 1 (㎽)was calculated. 2. Conclusion : No SAR is required.

Report Number :F690501/RF-RTL009157-1 Page:2of34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-20(2015.10.01)(3)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of ContentsPage 1. General Information ---------------------------------------------------------------------------------3 2. Radiated Spurious Emissions and Conducted Spurious Emission----------------------7 3. 6㏈Bandwidth--------------------------------------------------------------------------------------22 4. Maximum Conducted output power -------------------------------------------------------------25 5. Power Spectral Density ----------------------------------------------------------------------------27 6. Transmitter AC Power Line Conducted Emission--------------------------------------------30 7. Antenna Requirement ------------------------------------------------------------------------------34 Report Number :F690501/RF-RTL009157-1 Page:3of34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-20(2015.10.01)(3)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. :+ 82 31 688 0901 Fax No. :+ 82 31 688 0921 1.2. Details of Applicant Applicant:PARTRON Co., Ltd. Address:22, Samsung 1-ro 2-gil, Hwaseong-Si, Gyeonggi-Do, Korea Contact Person:LEE, Deuk Hee Phone No.:+ 82 10 9867 9077 1.3. Description of EUT Kind of Product Croise.E Urban Band Model Name PWB-100 Power Supply DC 3.7 V Frequency Range 2 402㎒~ 2 480㎒(LE) Modulation Technique GFSK Number of Channels 40 channels (LE) Operation Temperature - 20°C~ 60°C Antenna Type FPCB type Antenna Gain 0.02㏈i Report Number :F690501/RF-RTL009157-1 Page:4of34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-20(2015.10.01)(3)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.4.Test Equipment List EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Signal GeneratorAgilentE8257DMY51501169Jul. 13, 2015AnnualJul. 13, 2016 Spectrum AnalyzerAgilentN9020AMY53421758Nov. 04, 2014AnnualNov. 04, 2015 Spectrum AnalyzerR&SFSV30103100Jun. 22, 2015AnnualJun. 22, 2016 High Pass FilterWainwrightWHK3.0/18G-6SS4Jun. 23, 2015AnnualJun. 23, 2016 High Pass FilterWainwrightWHK7.5/26.5G-6SS15Jun. 23, 2015AnnualJun. 23, 2016 Low Pass FilterMini circuitsNLP-1200+V 8979400903-2Mar. 12, 2015AnnualMar. 12, 2016 Power SensorR&SNRP-Z81100748Jun. 08, 2015AnnualJun. 08, 2016 DC Power SupplyAgilentU8002AMY50060028Mar. 23, 2015AnnualMar. 23, 2016 PreamplifierH.P.8447F2944A03909Aug. 27, 2015AnnualAug. 27, 2016 PreamplifierMITEQ Inc.SCU-1810117Apr. 10, 2015AnnualApr. 10, 2016 PreamplifierMITEQ Inc.JS44-18004000-35-8P1546891May 07, 2015AnnualMay 07, 2016 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB 9163396Jun. 18, 2015BiennialJun. 18, 2017 Two-Line V-NetworkR&SENV216100190Dec. 25, 2014AnnualDec. 25, 2015 Loop AntennaR&SHFH2-Z2100118Jun. 04, 2015BiennialJun. 04, 2017 Horn Antenna SCHWARZBECK MESSELEKTRONIK HF906100326 Dec. 10, 2013BiennialDec. 10, 2015 Horn Antenna SCHWARZBECK MESSELEKTRONIK BBHA 9170BBHA9170431May 15, 2014BiennialMay 15, 2016 Antenna MasterINN-COMM4000N/AN/AN/AN.C.R. Turn TableINN-CODS 1200 SN/AN/AN/AN.C.R. Test ReceiverR&SESU26100109Mar. 03, 2015AnnualMar. 03, 2016 Test ReceiverR&S ESCI 7100911Dec. 24, 2014AnnualDec. 24, 2015 Anechoic ChamberSY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN/AN/AN.C.R. Shield RoomSY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/AN.C.R.N/AN.C.R. Report Number :F690501/RF-RTL009157-1 Page:5of34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-20(2015.10.01)(3)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD : FCC Part15 Subpart C Standard sectionTest Item(s)Result 15.205 15.209 15.247(d) Radiated Spurious Emissions and Conducted Spurious Emission Complied 15.247(a)(2)6㏈BandwidthComplied 15.247(b)(3)Maximum Conducted Output PowerComplied 15.247(e)Power Spectral DensityComplied 15.207Transmitter AC Power Line Conducted EmissionComplied 1.6. Test Procedure(s) The measurement procedures described in the American National Standard for Methods of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9㎑to 40㎓ (ANSI C63.4-2009) and the guidance provided in KDB 558074 v03r03 were used in the measurement of the DUT. 1.7.Sample calculation Where relevant, the following sample calculation is provided: 1.7.1. Conducted test Offset value (㏈) = Attenuator (㏈) + Cable loss (㏈) 1.7.2. Radiation test Field strengt…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Radiated Spurious Emission Test (Below 1㎓) B. Photo of Radiated Spurious Emission Test (Above 1㎓) C. Photo of AC Power Line Conducted Emission
