2AD5YBS201502Bluetooth Speaker

“The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Craig is under license. Other trademarks and trade names are those of their respective owners.”

FCC ID: 2AD5YBS201502 PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT FCC ID: 2AD5YBS201502 PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT FCC ID: 2AD5YBS201502 PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

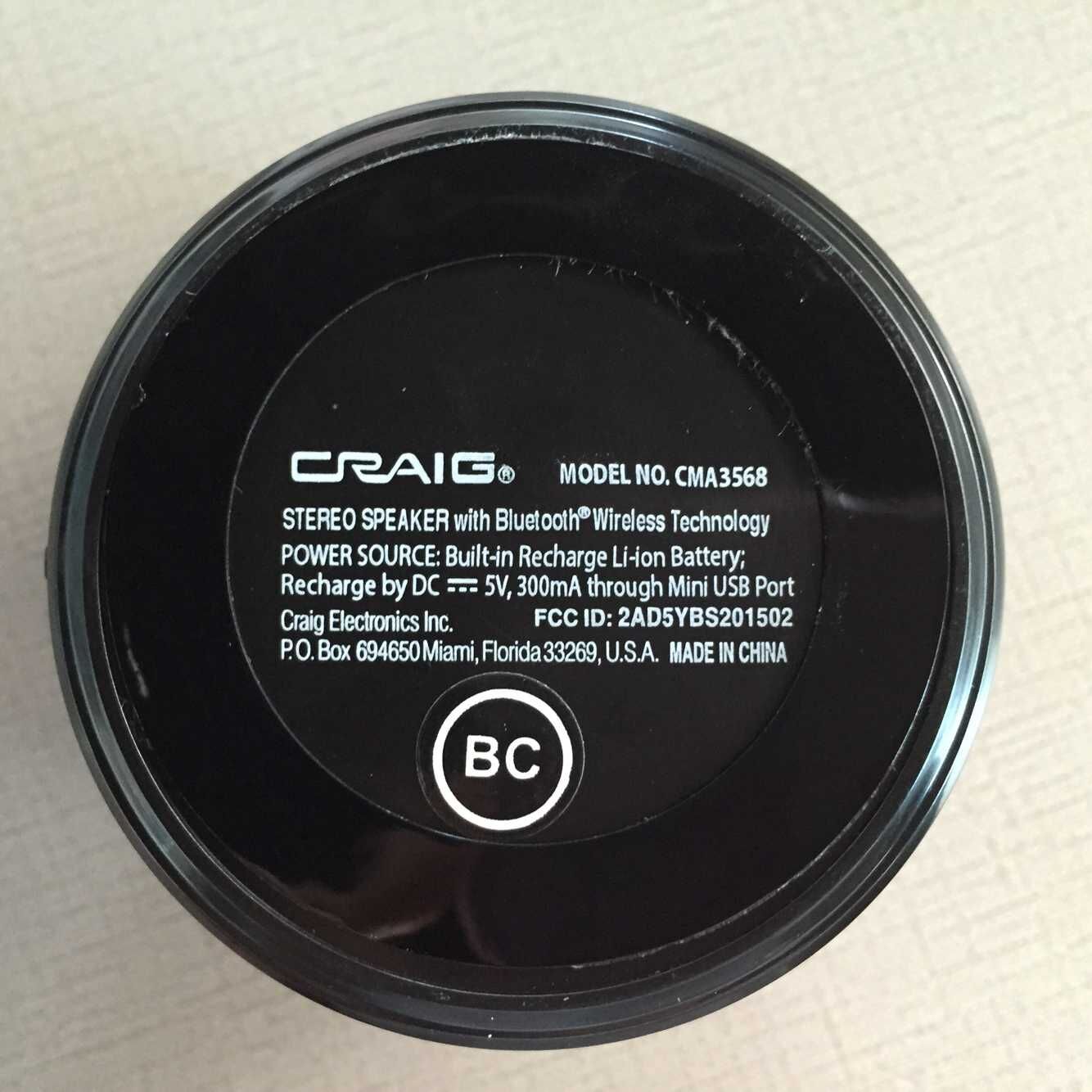

FCC ID: 2AD5YBS201502

FCC ID: 2AD5YBS201502 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW FCC ID: 2AD5YBS201502 PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW FCC ID: 2AD5YBS201502 PHOTOGRAPH OF THE PRODUCT

STC Test Report Date: 2015-08-05 Page 1 of 86 No.: DM120254 Applicant: Shenzhen Orderly Electronics Co., Ltd. 4F, Building 7, Asian Industry Park, Bantian Street, Longgang District, Shenzhen, China Manufacturer: Shenzhen Orderly Electronics Co., Ltd. 4F, Building 7, Asian Industry Park, Bantian Street, Longgang District, Shenzhen, China Description of Sample(s): Product: Bluetooth Speaker Brand Name: CRAIG Model Number: CMA3568 FCC ID: 2AD5YBS201502 Date Sample(s) Received: 2015-07-14 Date Tested: 2015-07-18 to 2015-08-04 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 and ANSI C63.4: 2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- LONG Yun Jian, Along Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of STC (Dongguan) Company Limited STC Test Report Date: 2015-08-05 Page 2 of 86 No.: DM120254 CONTENT: Cover Page 1 of 86 Content Page 2 of 86 1.0 General Details 1.1 Test Laboratory Page 3 of 86 1.2 Equipment Under Test [EUT] Page 3 of 86 Description of EUT operation 1.3 Date of Order Page 3 of 86 1.4 Submitted Sample Page 3 of 86 1.5 Test Duration Page 3 of 86 1.6 Country of Origin Page 3 of 86 1.7 RF Module Details Page 4 of 86 1.8 Antenna Details Page 4 of 86 2.0 Technical Details 2.1 Investigations Requested Page 5 of 86 2.2 Test Standards and Results Summary Page 5 of 86 2.3 Table for Test Modes Page 6 of 86 3.0 Test Results 3.1 Emission Page 7 – 82 of 86 Appendix A List of Measurement Equipment Page 83 of 86 Appendix B Ancillary Equipment Page 83 of 86 Appendix C Photographs Page 84-86 of 86 STC Test Report Date: 2015-08-05 Page 3 of 86 No.: DM120254 1.0 General Details 1.1 Test Laboratory STC (Dongguan) Company Limited EMC Laboratory 68 Fumin Nan Road, Dalang, Dongguan, Guangdong, China Telephone: (86 769) 81119888 Fax: (86 769) 81116222 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: Bluetooth Speaker Manufacturer: Shenzhen Orderly Electronics Co., Ltd. 4F, Building 7, Asian Industry Park, Bantian Street, Longgang District, Shenzhen, China Brand Name: CRAIG Model Number: CMA3568 Rating: 5.0Vd.c. (Powered by USB port) / Li-ion rechargeable battery x1 = 3.7Vd.c- 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a Bluetooth Speaker. The r.f. signal was modulated by IC and type of modulation was frequency hopping spread spectrum Modulation. 1.3 Date of Order 2015-07-14 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2015-07-18 to 2015-08-04 1.6 Country of Origin China STC Test Report Date: 2015-08-05 Page 4 of 86 No.: DM120254 1.7 RF Module Details Module Model Number: CW6685C Module FCC ID: N/A Module Transmission Type: Bluetooth 3.0+EDR Modulation: FHSS (GFSK / π/4-DQPSK / 8DPSK) Data Rates: 1MBps: GFSK 2 MBps: π/4-DQPSK 3 MBps: 8DPSK Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: Meander type PCB antenna Antenna Gain: 1.9dBi STC Test Report Date: 2015-08-05 Page 5 of 86 No.: DM120254 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2014 Regulations. FCC Pubic Notice DA 00-705 and ANSI C63.4: 2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Maximum Peak Conducted Output Power FCC 47CFR 15.247(b)(1) FCC Pubic Notice DA 00-705 N/A Radiated Spurious Emissions FCC 47CFR 15.209 ANSI C63.4:2009 N/A AC Mains Conducted Emissions FCC 47CFR 15.207 ANSI C63.4:2009 N/A Number of Hopping Frequency FCC 47CFR 15.247 (b)(1) FCC Pubic Notice DA 00-705 N/A 20dB Bandwidth FCC 47CFR 15.247(a)(2) FCC Pubic Notice DA 00-705 N/A Hopping Channel Separation FCC 47CFR 15.247(a)(1) FCC Pubic Notice DA 00-705 N/A Band-edge measurement (Radiated) FCC 47CFR 15.247(d) FCC Pubic Notice DA 00-705 N/A Pseudorandom Hopping Algorithm FCC 47CFR 15.247(a)(1) N/A N/A Time of Occupancy (Dwell Time) FCC 47CFR 15.247(a)(1)(iii) FCC Pubic Notice DA 00-705 N/A Antenna requirement FCC 47CFR 15.203 N/A N/A RF Exposure FCC 47CFR 15.247(i) N/A N/A Note: N/A – Not Applicable STC Test Report Date: 2015-08-05 Page 6 of 86 No.: DM120254 2.3 Table for Test Modes Preliminary tests were performed in different data rate to find the worst radiated emission. The data rate in the table below is the worst case rate with respect to the specific test item. Investigation has been done on all the possible configurations for searching the worst cases. The following table is a list of the test modes shown in this test report. Test Items Mode Data Rate Maximum Peak Conducted Output Power GFSK / π/4-DQPSK / 8DPSK 1MBps / 2MBps / 3MBps Hopping Channel Separation GFSK / π/4-DQPSK / 8DPSK 1MBps / 2MBps / 3MBps Number of Hopping Frequency GFSK / π/4-DQPSK / 8DPSK 2MBps Time of Occupancy(Dwell Time) 8DPSK (DH1 / DH3 / DH5) 2MBps Radiated Spurious Emissions GFSK / π/4-DQPSK / 8DPSK 1MBps / 2MBps / 3MBps Band-edge compliance of Conducted Emission GFSK / π/4-DQPSK / 8DPSK 2MBps STC Test Report Date: 2015-08-05 Page 7 of 86 No.: DM120254 3.0 Test Results 3.1 Emission 3.1.1 Maximum Peak Conducted Output Power Test Requirement: FCC 47CFR 15.247(b)(1) Test Method: FCC Pubic Notice DA 00-705 Test Date: 2015-07-21 Mode of Operation: Tx mode Test Method: A temporary antenna connector was soldered to the RF output.The RF output of the EUT was connected to the spectrum analyzer. All the attenuation or cable loss will be added to the measured maximum output power. The results are reco…

Text truncated - open the document above for the full version.

FCC ID: 2AD5YBS201502 PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP FCC ID: 2AD5YBS201502 PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF CONDUCTED EMISSION TEST SET UP
