2AD6M-Z500Z500 dual band 802.11ac Outdoor AP

mn WIRELESS ACCESS POINT USER MANUAL Z500 P2 Mobile Technologies Limited ©2015 All rights reserved Page 1 of 13 Copyright © 2015 P2 Mobile Technologies Limited. All rights reserved. WIRELESS ACCESS POINT USER MANUAL Contents About This Guide ............................................................................................................................................ 2 Product Overview ........................................................................................................................................... 2 Safety Instructions .......................................................................................................................................... 3 Package Contents ............................................................................................................................................ 4 Possible Configurations................................................................................................................................... 5 Explanation of Ports .................................................................................................................................... 5 Installation Procedure ................................................................................................................................. 6 Installation Environment ........................................................................................................................ 6 Pole Mounting Procedure (Pole Size: Ø40-52mm) ................................................................................. 6 SmartMoment—Configuring the AP ............................................................................................................... 8 Purpose ....................................................................................................................................................... 8 Connection Procedure ................................................................................................................................ 8 Wireless Method ..................................................................................................................................... 8 Wired Method ........................................................................................................................................ 8 Default Login Information ....................................................................................................................... 8 Note ............................................................................................................................................................ 8 Configuring and Monitoring the Access Point ................................................................................................ 9 Proper Disposal of Product ...........................................................................................................................10 Waste of Electrical and Electronic Equipment ..........................................................................................10 European Union RoHS ...............................................................................................................................10 China RoHS ................................................................................................................................................10 Safety and Regulatory Compliance ...............................................................................................................11 Basic Troubleshooting ...................................................................................................................................12 Page 2 of 13 Copyright © 2015 P2 Mobile Technologies Limited. All rights reserved. WIRELESS ACCESS POINT USER MANUAL About This Guide This guide explains how to set up the access point Z500 for WLAN access in a general network deployment, and the various LED status indication. Product Overview Z500 is a carrier-grade dual-band 2x2 MIMO 802.11ac outdoor Wi-Fi AP, designed for deployments in outdoor locations. With an integrated high-gain dual-band panel antenna specially optimized for outdoor LOS and NLOS deployment, it is ideal for carrier application of last mile or single hop long distance wireless backhaul and stable outdoor Wi-Fi coverage. Designed and tested for salt spray, vibration, extreme thermal conditions, shock and dust, the IP67-rated Z500 is weather-tolerant and is able to deliver uncompromised performance despite extreme environments. Supporting 16 isolated SSIDs for each radio, Z500 simplifies access policy implementation, particularly useful for office environment or retailers who need to separate staff and guest use for security reason. Client access to different SSIDs are forbidden to visit each other and thus private information can be securely protected. Different QoS policy and authentication method can also be applied to each SSID, making it convenient to classify access roles. Z500 is designed for easy and convenient centralized management through the MeshProvision Server. Better still, unlike the traditional thin AP model, Z500 can continue to operate perfectly even when the MeshProvision Server shuts down for any reason. Page 3 of 13 Copyright © 2015 P2 Mobile Technologies Limited. All rights reserved. WIRELESS ACCESS POINT USER MANUAL Safety Instructions 1. Read these safety instructions carefully before installation or usage. 2. Keep this user manual for later reference. 3. Disconnect the access point from the power source before cleaning. Use a damp cloth for cleaning. Do not use liquid or spray detergents. 4. To avoid risk of injury from electrical shock or energy hazard, installation and service of this product must be performed by qualified service personnel. 5. Install the access point on a reliable surface. Poor installation may cause it to fall onto people or equipment and make body injury and e…

Text truncated - open the document above for the full version.

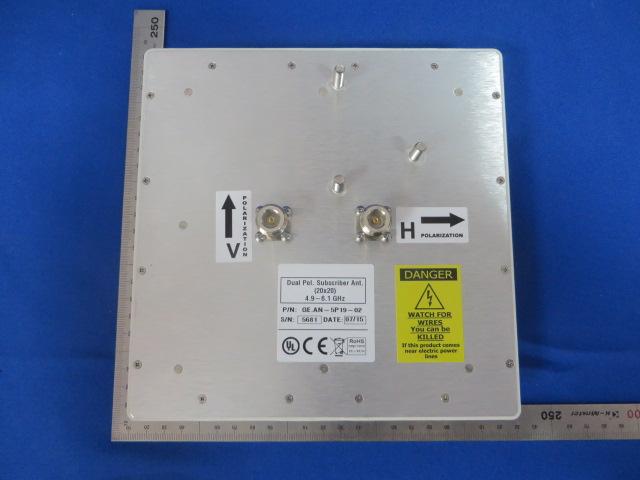

1 of 6 External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo

Label Label Location

1 of 9 Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo (11) EUT Photo (12) EUT Photo (13) EUT Photo (14) EUT Photo (15) EUT Photo (16) EUT Photo (17) EUT Photo (18) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1509RSU00404 Phone: +86-512-66308358 Report Version: V02 Fax: +86-512-66308368 Issue Date: 10-28-2015 Web: www.mrt-cert.com FCC ID: 2AD6M-Z500 Page Number: 1 of 7 RF Exposure Evaluation Declaration FCC ID: 2AD6M-Z500 APPLICANT: P2 Mobile Technologies Limited Application Type: Certification Product: Z500 dual band 802.11ac Outdoor AP Model No.: Z500 FCC Classification: Digital Transmission System (DTS) Unlicensed National Information Infrastructure (UNII) Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1509RSU00404 FCC ID: 2AD6M-Z500 Page Number: 2 of 7 Revision History Report No. Version Description Issue Date 1509RSU00404 Rev. 01 Initial report 10-14-2015 1509RSU00404 Rev. 02 Added some Calculation methods 10-28-2015 Report No.: 1509RSU00404 FCC ID: 2AD6M-Z500 Page Number: 3 of 7 1. PRODUCT INFORMATION 1.1. Equipment Description Product Name Z500 dual band 802.11ac Outdoor AP Model No. Z500 Frequency Range For 2.4GHz Band: 802.11b/g/n: 2412 ~ 2462 MHz For 5GHz Band: For 802.11a/n-HT20/ac-VHT20: 5180~5240MHz, 5745~5825MHz For 802.11n-HT40/ac-VHT40: 5190~5230MHz, 5755~5795MHz For 802.11ac-VHT80: 5210MHz, 5775MHz Type of Modulation 802.11b: DSSS 802.11g/a/n/ac: OFDM Maximum Average Output Power For 2.4GHz: 802.11b: 27.49dBm 802.11g: 27.71dBm 802.11n-HT20: 27.67dBm 802.11n-HT40: 27.55dBm For 5GHz: 802.11a: 29.14dBm 802.11n-HT20: 29.08dBm 802.11n-HT40: 27.25dBm 802.11ac-VHT20: 29.11dBm 802.11ac-VHT40: 27.31dBm 802.11ac-VHT80: 16.05dBm Report No.: 1509RSU00404 FCC ID: 2AD6M-Z500 Page Number: 4 of 7 1.2. Antenna Description Antenna Type Frequency Band (GHz) Tx Paths Max Peak Gain (dBi) Beam Forming Directional Gain (dBi) CDD Directional Gain (dBi) For Power For PSD 2.4 2 12 12 12 12 5 2 19 22 19 22 1. The EUT supports Cyclic Delay Diversity (CDD) mode, and CDD signals are correlated. For CDD transmissions, directional gain is calculated as follows, N ANT = 2, N SS = 1. 1) If all Antennas have the same gain, G ANT , Directional gain = G ANT + Array Gain, where Array Gain is as follows.  For power spectral density (PSD) measurements on all devices, Array Gain = 10 log (N ANT / N SS ) dB = 3.01;  For power measurements on IEEE 802.11 devices, Array Gain = 0 dB for N ANT ≤ 4; 2. The EUT supports Beam Forming technology for 802.11n/ac mode, and exclude 802.11a mode. Correlated signals include, but are not limited to, signals transmitted in any of the following modes: Any transmit Beam Forming mode, whether fixed or adaptive (e.g., phased array modes, closed loop MIMO modes, Transmitter Adaptive Antenna modes, Maximum Ratio Transmission (MRT) modes, and Statistical Eigen Beam Forming (EBF) modes).  All antennas have the same gain, GANT: Directional gain = GANT + 10 log(N ANT /N SS ) dBi, where N SS = the number of independent spatial streams of data and GANT is the antenna gain in dBi. 3. The 2.4GHz antenna is belong to cross-polarized antenna (horizontal and vertical polarizations) refer to antenna specification. For a system in which the antennas have fixed orientations relative to one another that ensure that the antennas are cross-polarized regardless of any user actions, the directional gain is computed as follows.  Cross-polarized antennas with NANT = 2. In the case of a transmitter with only two outputs driving a pair of antennas that are cross-polarized (e.g., vertical and horizontal), directional gain is the gain of an individual antenna. If the two antennas have different gains, the larger gain applies. Report No.: 1509RSU00404 FCC ID: 2AD6M-Z500 Page Number: 5 of 7 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1509RSU00404 FCC ID: 2AD6M-Z500 Page Number: 6 of 7 2.2. Test Result of RF Exposure Evaluation Product Z500 dual band 802.11ac Outdoor AP Test Item Z500 Antenna Gain: The maximum Gain measured in fully anechoic chamber is 12dBi for 2.4GHz, 22dBi for 5.2GHz, and 22dBi for 5.8GHz in logarithm scale. For 2.4GHz ISM Band: Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Limit of Power Density S(mW/cm 2 ) Safety Distance (cm) 802.11b/g/n-HT20 2412 ~ 2462 27.71 1 27.28 802.11n-HT40 2422 ~ 2452 27.55 1 26.79 Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Power Density at R = 129 cm (mW/cm 2 ) Limit (mW/cm 2 ) 802.11b/g/n-HT20 2412 ~ 2462 20.74 0.0090 1 802.11n-HT40 2422 ~ 2452 20.12 0.0078 1 For 5GHz UNII Band: Test Mode Frequency Band (MHz) Maximum Average Output Power (dBm) Limit of Power Density S(mW/cm 2 ) Safety Distance (cm) 802.11a/n-HT20/ ac-VHT20 5180 ~ 5240 29.14 1 101.72 5745 ~ 5825 26.18 1 72.34 802.11n-HT40/ a…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 1509RSU00405 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 10-14-2015 Web: www.mrt-cert.com FCC ID: 2AD6M-Z500 Page Number: 1 of 4 FCC ID: 2AD6M-Z500 APPLICANT: P2 Mobile Technologies Limited Application Type: Certification Product: Z500 dual band 802.11ac Outdoor AP Model No.: Z500 FCC Classification: Digital Transmission System (DTS) Unlicensed National Information Infrastructure (UNII) Test Date: Sep. 13 ~ 25, 2015 Co-location Report Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2014. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1509RSU00405 FCC ID: 2AD6M-Z500 Page Number: 2 of 4 Revision History Report No. Version Description Issue Date 1509RSU00405 Rev. 01 Initial report 10-14-2015 Report No.: 1509RSU00405 FCC ID: 2AD6M-Z500 Page Number: 3 of 4 1. TEST RESULT of Radiated Emissions for Co-located Test Mode: 2.4GHz + 5GHz Transmit Test Site: AC1 Test Engineer: Roy Cheng Polarity: Horizontal Remark: There is the ambient noise within frequency range 9kHz~30MHz and 18GHz~40GHz, the permissible value is not show in the report. No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 4060.000 37.146 36.608 -36.854 74.000 0.538 PK 2 4060.080 24.818 24.280 -29.182 54.000 0.538 AV 3 6907.480 31.635 25.080 -22.365 54.000 6.555 AV 4 6907.500 41.495 34.940 -32.505 74.000 6.555 PK 5 * 10264.970 33.868 21.900 -20.132 54.000 11.968 AV 6 10265.000 45.454 33.486 -28.546 74.000 11.968 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB). Report No.: 1509RSU00405 FCC ID: 2AD6M-Z500 Page Number: 4 of 4 Test Mode: 2.4GHz + 5GHz Transmit Test Site: AC1 Test Engineer: Roy Cheng Polarity: Vertical Remark: There is the ambient noise within frequency range 9kHz~30MHz and 18GHz~40GHz, the permissible value is not show in the report. No Flag Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 4119.460 24.119 23.410 -29.881 54.000 0.709 AV 2 4119.500 36.793 36.084 -37.207 74.000 0.709 PK 3 7995.470 30.340 21.600 -23.660 54.000 8.740 AV 4 7995.500 43.421 34.681 -30.579 74.000 8.740 PK 5 * 10706.920 34.704 22.340 -19.296 54.000 12.364 AV 6 10707.000 46.369 34.005 -27.631 74.000 12.364 PK Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB) Factor (dB) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB). The End

MRT Technology (Suzhou) Co., Ltd Report No.: 1509RSU00402 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 10-14-2015 Web: www.mrt-cert.com FCC ID: 2AD6M-Z500 Page Number: 1 of 385 FCC ID: 2AD6M-Z500 APPLICANT: P2 Mobile Technologies Limited Application Type: Certification Product: Z500 dual band 802.11ac Outdoor AP Model No.: Z500 FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 D02v01, KDB 662911 D01v02r01 KDB 644545 D03v01 Test Date: September 13 ~ 25, 2015 MEASUREMENT REPORT FCC PART 15.407 WLAN 802.11a/n/ac Reviewed by : ( Robin Wu ) Approved by : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 D02v01. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 2 of 385 Revision History Report No. Version Description Issue Date 1509RSU00402 Rev. 01 Initial report 10-14-2015 Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 3 of 385 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 6 1. INTRODUCTION ..................................................................................................................... 7 1.1. Scope ........................................................................................................................... 7 1.2. MRT Test Location ....................................................................................................... 7 2. PRODUCT INFORMATION ..................................................................................................... 8 2.1. Equipment Description .................................................................................................. 8 2.2. Frequency / Channel Operation .................................................................................... 8 2.3. Description of Available Antennas ................................................................................. 9 2.4. Description of Antenna RF Port................................................................................... 10 2.5. Test Mode .................................................................................................................. 10 2.6. Test Software .............................................................................................................. 10 2.7. Device Capabilities ...................................................................................................... 11 2.8. Test Configuration ...................................................................................................... 12 2.9. EMI Suppression Device(s)/Modifications ................................................................... 12 2.10. Labeling Requirements ............................................................................................... 12 3. DESCRIPTION OF TEST ...................................................................................................... 13 3.1. Evaluation Procedure ................................................................................................. 13 3.2. AC Line Conducted Emissions.................................................................................... 13 3.3. Radiated Emissions .................................................................................................... 14 4. ANTENNA REQUIREMENTS ................................................................................................ 15 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 16 6. MEASUREMENT UNCERTAINTY ......................................................................................... 17 7. TEST RESULT ...................................................................................................................... 18 7.1. Summary .................................................................................................................... 18 7.2. 26dB Bandwidth Measurement ................................................................................... 20 7.2.1. Test Limit .................................................................................................................... 20 7.2.2. Test Procedure used ................................................................................................... 20 7.2.3. Test Setting ................................................................................................................. 20 7.2.4. Test Setup .................................................................................................................. 20 7.2.5. Test Result .................................................................................................................. 21 7.3. 6dB Bandwidth Measurement ..................................................................................... 35 7.3.1. Test Limit .................................................................................................................... 35 7.3.2. Test Procedure used ................................................................................................... 35 Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 4 of 385 7.3.3. Test Setting ................................................................................................................. 35 7.3.4. Test Setup ...............................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 40 of 385 802.11a 6dB Bandwidth - Ant 2 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) 802.11n-HT20 6dB Bandwidth - Ant 2 Channel 149 (5745MHz) Channel 157 (5785MHz) Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 41 of 385 Channel 165 (5825MHz) 802.11n-HT40 6dB Bandwidth - Ant 2 Channel 151 (5755MHz) Channel 159 (5795MHz) 802.11ac-VHT20 6dB Bandwidth - Ant 2 Channel 149 (5745MHz) Channel 157 (5785MHz) Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 42 of 385 Channel 165 (5825MHz) 802.11ac-VHT40 6dB Bandwidth - Ant 2 Channel 151 (5755MHz) Channel 159 (5795MHz) 802.11ac-VHT80 6dB Bandwidth - Ant 2 Channel 155 (5775MHz) Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 43 of 385 7.4. Output Power Measurement 7.4.1. Test Limit For an outdoor and fixed point-to-point access point operating in the band 5.15-5.25 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W (30dBm). For fixed point-to-point transmitters that employ a directional antenna gain greater than 23 dBi, a 1 dB reduction in maximum conducted output power and maximum power spectral density is required for each 1 dB of antenna gain in excess of 23 dBi. For the band 5.725-5.85 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W (30dBm). Fixed point-to-point U-NII devices operating in this band may employ transmitting antennas with directional gain greater than 6 dBi without any corresponding reduction in transmitter conducted power. 7.4.2. Test Procedure Used KDB 789033 D02v01 - Section E) 3) b) Method PM-G 7.4.3. Test Setting Average power measurements were perform only when the EUT was transmitting at its maximum power control level using a broadband power meter with a pulse sensor. The power meter implemented triggering and gating capabilities which were set up such that power measurements were recorded only during the ON time of the transmitter. The trace was averaged over 100 traces to obtain the final measured average power. 7.4.4. Test Setup Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 44 of 385 7.4.5. Test Result Output power at various data rates for Ant 1 Test Mode Bandwidth (MHz) Channel Frequency (MHz) Data Rate (Mbps) Average Power (dBm) 802.11a 20 36 5180 6 19.05 24 18.84 54 18.65 802.11n 20 36 5180 6.5 17.36 7.2 17.34 39.0 17.10 43.3 17.03 65.0 16.84 72.2 16.81 802.11n 40 38 5190 13.5 14.01 15.0 13.95 81.0 13.72 90.0 13.70 135.0 13.58 150.0 13.53 802.11ac 20 36 5180 6.5 16.24 7.2 16.21 39.0 16.02 43.3 15.99 78.0 15.78 86.7 15.74 802.11ac 40 38 5190 13.5 13.95 15.0 13.89 81.0 13.65 90.0 13.60 180.0 13.37 200.0 13.31 Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 45 of 385 802.11ac 80 42 5210 29.3 11.83 32.5 11.80 175.5 11.57 195.0 11.52 390.0 11.26 433.3 11.23 Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 46 of 385 Test Mode Data Rate (Mbps) Channel No. Freq. (MHz) Ant 1 Average Power (dBm) Ant 2 Average Power (dBm) Total Average Power (dBm) Limit (dBm) Result Ant 1 11a 6 36 5180 19.05 -- 19.05 ≤ 30 Pass 11a 6 44 5220 25.98 -- 25.98 ≤ 30 Pass 11a 6 48 5240 26.21 -- 26.21 ≤ 30 Pass 11a 6 149 5745 19.41 -- 19.41 ≤ 30 Pass 11a 6 157 5785 24.23 -- 24.23 ≤ 30 Pass 11a 6 165 5825 23.19 -- 23.19 ≤ 30 Pass 11n-HT20 6.5 36 5180 17.36 -- 17.36 ≤ 30 Pass 11n-HT20 6.5 44 5220 25.84 -- 25.84 ≤ 30 Pass 11n-HT20 6.5 48 5240 26.03 -- 26.03 ≤ 30 Pass 11n-HT20 6.5 149 5745 17.61 -- 17.61 ≤ 30 Pass 11n-HT20 6.5 157 5785 24.16 -- 24.16 ≤ 30 Pass 11n-HT20 6.5 165 5825 23.12 -- 23.12 ≤ 30 Pass 11n-HT40 13.5 38 5190 14.01 -- 14.01 ≤ 30 Pass 11n-HT40 13.5 46 5230 23.60 -- 23.60 ≤ 30 Pass 11n-HT40 13.5 151 5755 11.47 11.47 ≤ 30 Pass 11n-HT40 13.5 159 5795 23.07 23.07 ≤ 30 Pass 11ac-VHT20 6.5 36 5180 16.24 -- 16.24 ≤ 30 Pass 11ac-VHT20 6.5 44 5220 25.62 -- 25.62 ≤ 30 Pass 11ac-VHT20 6.5 48 5240 25.81 -- 25.81 ≤ 30 Pass 11ac-VHT20 6.5 149 5745 16.58 -- 16.58 ≤ 30 Pass 11ac-VHT20 6.5 157 5785 24.22 -- 24.22 ≤ 30 Pass 11ac-VHT20 6.5 165 5825 22.62 -- 22.62 ≤ 30 Pass 11ac-VHT40 13.5 38 5190 13.95 -- 13.95 ≤ 30 Pass 11ac-VHT40 13.5 46 5230 23.63 -- 23.63 ≤ 30 Pass 11ac-VHT40 13.5 151 5755 10.93 -- 10.93 ≤ 30 Pass 11ac-VHT40 13.5 159 5795 23.43 -- 23.43 ≤ 30 Pass 11ac-VHT80 29.3 42 5210 11.83 -- 11.83 ≤ 30 Pass 11ac-VHT80 29.3 155 5775 8.47 -- 8.47 ≤ 30 Pass Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 47 of 385 Test Mode Data Rate (Mbps) Channel No. Freq. (MHz) Ant 1 Average Power (dBm) Ant 2 Average Power (dBm) Total Average Power (dBm) Limit (dBm) Result Ant 2 11a 6 36 5180 -- 17.83 17.83 ≤ 30 Pass 11a 6 44 5220 -- 25.65 25.65 ≤ 30 Pass 11a 6 48 5240 -- 25.46 25.46 ≤ 30 Pass 11a 6 149 5745 -- 15.64 15.64 ≤ 30 Pass 11a 6 157 5785 -- 23.90 23.90 ≤ 30 Pass 11a 6 165 5825 -- 18.25 18.25 ≤ 30 Pass 11n-HT20 6.5 36 5180 -- 18.89 18.89 ≤ 30 Pass 11n-HT20 6.5 44 5220 -- 25.58 25.58 ≤ 30 Pass 11n-HT20 6.5 48 5240 -- 25.32 25.32 ≤ 30 Pass 11n-HT20 6.5 149 5745 -- 15.55 15.55 ≤ 30 Pass 11n-HT20 6.5 157 5785 -- 23.78 23.78 ≤ 30 Pass 11n-HT20 6.5 165 5825 -- 17.92 17.92 ≤ 30 Pass 11n-HT40 13.5 38 5190 -- 16.41 16.41 ≤ 30 Pass 11n-HT40 13.5 46 5230 -- 24.37 24.37 ≤ 30 Pass 11n-HT40 13.5 151 5755 7.87 7.87 ≤ 30 Pass 11n-HT40 13.5 159 5795 19.72 19.72 ≤ 30 Pass 11ac-VHT20 6.5 36 5180 -- 18.65 18.65 ≤ 30 Pass 11ac-VHT20 6.5 44 5220 -- 25.85 25.85 ≤ 30 Pass 11ac-VHT20 6.5 48 5240 -- 25.65 25.65 ≤ 30 Pass 11ac-VHT20 6.5 149 5745 -- 14.49 14.49 ≤ 30 Pass 11ac-VHT20 6.5 157 5785 -- 23.78 23.78 ≤ 30 Pass 11ac-VHT20 6.5 165 5825 -- 18.25 18.25 ≤ 30 Pass 11ac-VHT40 13.5 38 5190 -- 16.88 16.88 ≤ 30 Pass 11ac-VHT40 13.5 46 5230 -- 24.39 24.39 ≤ 30 Pass 11ac-VHT40 13.5 151 5755 -- 10.95 10.95 ≤ 30 Pass 11ac-VHT40 13.5 159 5795 -- 20.15 20.15 ≤ 30 Pass 11ac-VHT80 29.3 42 5210 -- 14.44 14.44 ≤ 30 Pass 11ac-VHT80 29.3 155 5775 -- 8.31 8.31 ≤ 30 Pass Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 48 of 385 Test Mode Data Rate (Mbps) C…

Text truncated - open the document above for the full version.

Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 71 of 385 802.11ac-VHT20 Power Spectral Density - Ant 1 / Ant 1 + 2 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 72 of 385 802.11ac-VHT40 Power Spectral Density - Ant 1 / Ant 1 + 2 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 73 of 385 802.11ac-VHT80 Power Spectral Density - Ant 1 / Ant 1 + 2 Channel 42 (5210MHz) Channel 155 (5775MHz) Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 74 of 385 802.11a Power Spectral Density - Ant 2 / Ant 1 + 2 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 75 of 385 802.11n-HT20 Power Spectral Density - Ant 2 / Ant 1 + 2 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 76 of 385 802.11n-HT40 Power Spectral Density - Ant 2 / Ant 1 + 2 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 77 of 385 802.11ac-VHT20 Power Spectral Density - Ant 2 / Ant 1 + 2 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 78 of 385 802.11ac-VHT40 Power Spectral Density - Ant 2 / Ant 1 + 2 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 79 of 385 802.11ac-VHT80 Power Spectral Density - Ant 2 / Ant 1 + 2 Channel 42 (5210MHz) Channel 155 (5775MHz) Report No.: 1509RSU00402 FCC ID: 2AD6M-Z500 Page Number: 80 of 385 7.7. Frequency Stability Measurement 7.7.1. Test Limit Manufactures of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the user’s manual. 7.7.2. Test Procedure Used Frequency Stability Under Temperature Variations: The equipment under test was connected to an external AC or DC power supply and input rated voltage. RF output was connected to a frequen…
