2AD8Y-15693Color Changing Accent Light

REMOTE LAYOUT & INSTRUCTIONS Installing/Replacing the Battery 1. Remove the plastic tab located on the bottom of the remote to activate the battery. 2. To replace the battery - remove the cover from the back of the remote by pushing the tab (A) in and pulling the cover out to release the battery pack (B). 3. Install the new (CR2025) battery. 4. Close the cover – the remote is now be ready for use. FCC Certification This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Color Changing LED Accent Light Owner’s Manual INSTALLATION INSTRUCTIONS The Aqueon ® Color Changing LED Accent Light is fully submersible. It can be installed in the aquarium using the included suction clips and can also be clipped into Aqueon ® LED Strip Lights and Modular LED Light fixtures. Installation Using the Suction Cups 1. Attach the suction cups to each end of the Accent Light. (Fig. 1) 2. Place the Accent Light in the aquarium, using the suction cups to attach it securely. Adjust the light to the desired angle by rotating the light tube in the suction cups. a. The Accent Light can be placed anywhere in the aquarium – just be sure that the control box is not submersed in the water. (Fig. 1). 3. Connect the transformer to the connector on the Accent Light. 4. Plug the transformer into an acceptable outlet. Be sure to incorporate a “drip loop” to prevent water droplets from running down the cord and into the outlet should any water get onto the cord. 5. Turn the Accent Light on using the remote control. Installation into an Aqueon ® LED Fixture 1. Turn the light fixture off and unplug the transformer from the outlet prior to installing or uninstalling the LED Accent Light. Flip the fixture over onto a clean/non abrasive surface so the underside is accessible. 2. Install the Accent light (without the suction cups) on the fixture by snapping both plastic ends of the LED lamp into the lamp clips inside the fixture housing making sure it is completely installed and held securely by the clips. (Fig. 2) a. To uninstall, unclip the plastic ends of the lamp from the lamp clips inside the fixture and remove. 3. For the Aqueon ® Modular LED Light: Be sure to route the light cord under the cover plates so they can slide back into their original position, covering the ends of the LED lamps. 4. Connect the transformer to the connector on the Accent Light. 5. Plug the transformer into an acceptable outlet. Be sure to incorporate a “drip loop” to prevent water droplets from running down the cord and into the outlet should any water get onto the cord. 6. Turn the Accent Light on using the remote control. Color Changing LED Accent Light Fits >> Aqueon ® Modular LED Fixture Aqueon ® LED Strip Light Size 30 LED Accent Light 15612 21102 Size 36 LED Accent Light 15613 21103 Size 48 LED Accent Light 15614 -

FCC ID Label The FCC ID is marked on the back of LED switch by Laser etching.

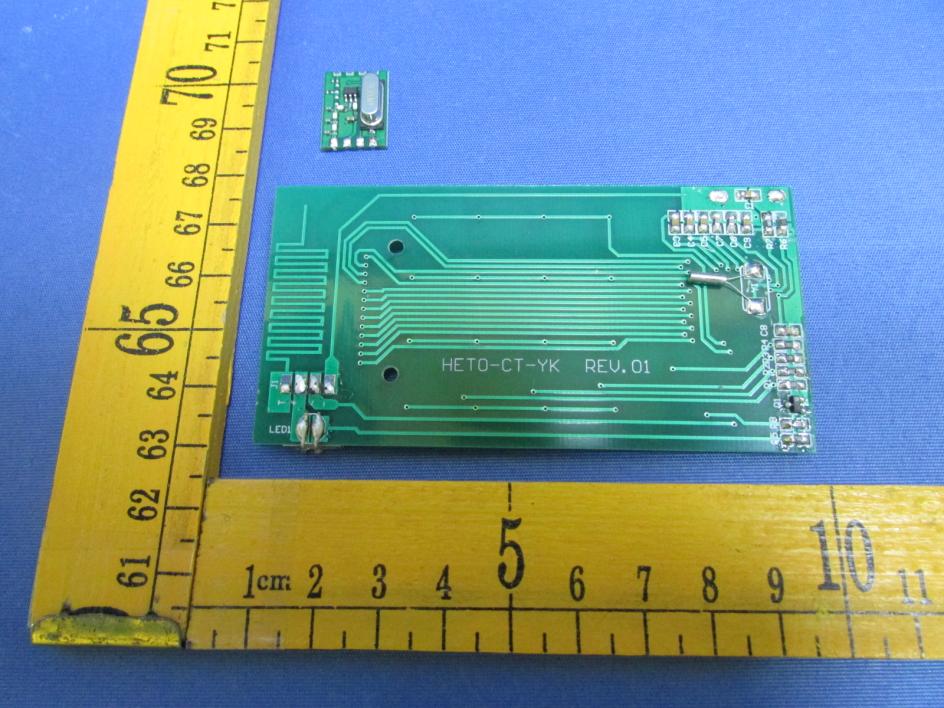

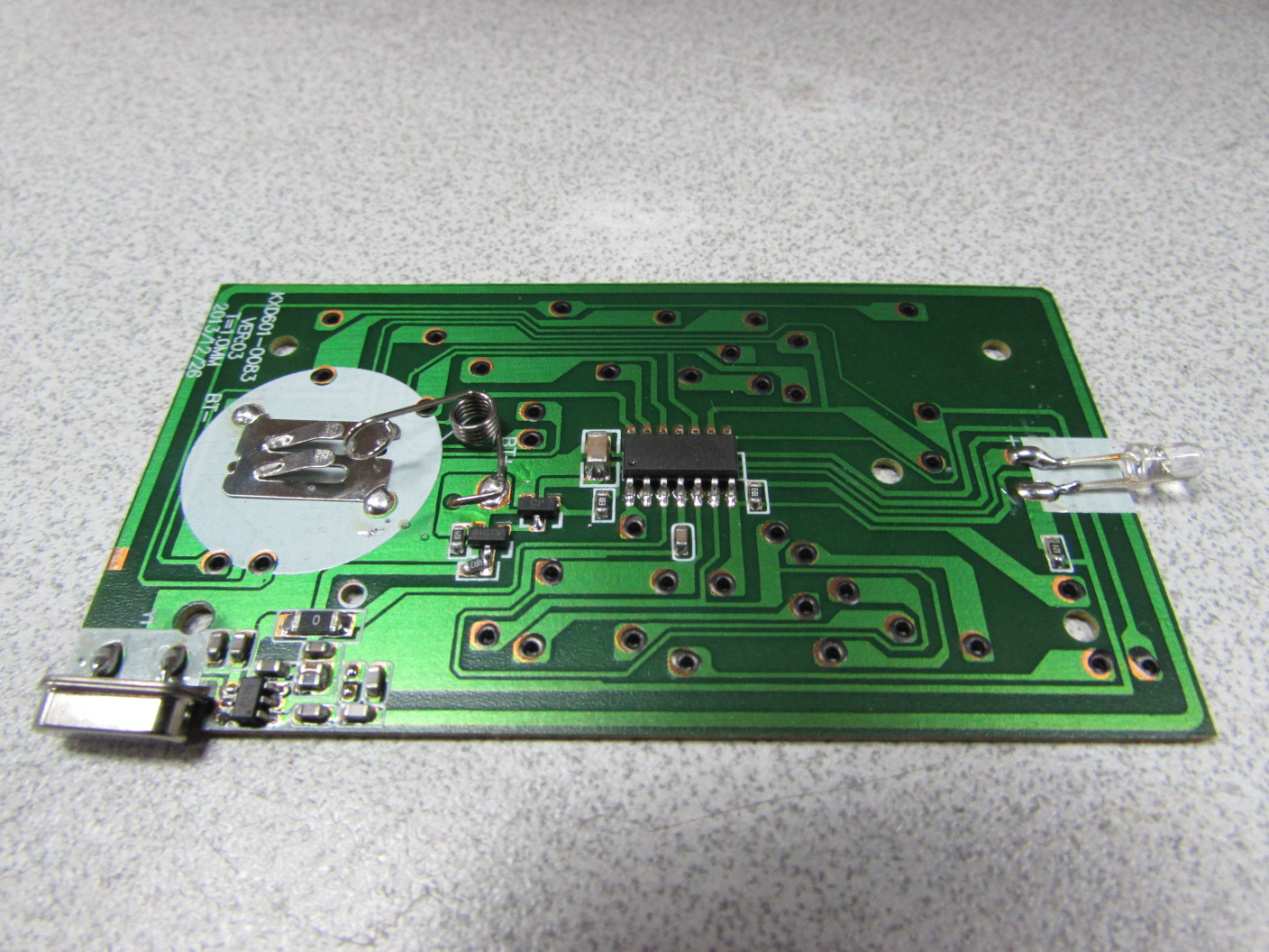

Receiver outside view Receiver PCB view Receiver PCB view Adapter view Adapter view Adapter PCB view Adapter PCB view

Technical Description Part 1: voltage stabilizing circuit, it converts the input DC 12V to DC 5V and power the RF receiving module. Part 2: RF receiving module, it receives signal from antenna and transfer to MCU. Part 3: Data input port for MCU. Part 4: MCU data decoding part, it decodes the signal from Part 2 and control the LED through Q1, Q2 and Q3. Part 5: LED driver. Antenna Used: Super heterodyne antenna An integral antenna has been used. 1. DC 5V voltage stabilizing circuit 2. RF receiving module 3. Data input port 4. MCU data decoding part 5. LED driver circuit RXB35

433M 数据下载口 R1 470 B E C Q1 D882 B E C Q2 D882 B E C Q3 D882 IN OUT GND 1 2 3 U1 78L05 E1 47U LED1 P6.2P6.1P6.0 REST/P6.3 P6.4 P6.5VDD VSS 1 2345 678 U3 ZY163 GNDOUTOUTVDDGNDANT 123456 RF RF-TX R2 470 R3 470 R4 33 C1 104 C2 104 LED2LED3 R7 150 LED4LED5LED6 R5 150 LED7LED8LED9 R6 150 0 ATN P62P63P64P65VDDVSS +5V +12V +12V RF +5V R G B B/P6.2G/P6.1 R +5V RF/P6.3 P6.5P6.4 +12V +12V +5V P6.2P6.3P6.4P6.5 1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:19-Mar-2014Sheet of File:E:\Leo\PCB\My Design\SYN510~433.92M.DDBDrawn By: Y113.52127MHz C4 1uF C3 1.5pF L2 27nH R3 100kohm C6 0.47uF C8 5.6pF L1 22nH C5 0.1uF JP2 open JP1 open JP3 short 1 2 3 4 5 6 J3 CON6 ANT1 172mm DO RSSI SCLK DO SH SCLK SH RSSI +5V +3V GND DO SCL K SH RSSI C7 100P +5V RO1 1 GNDRF 2 ANT 3 GNDRF 4 Vdd 5 SQ 6 SEL0 7 SHDN 8 GND 9 DO 10 SEL1 11 CTH 12 CAGC 13 RSSI 14 SCLK 15 RO2 16 U1 SYN 510R SYN510R 433.92MHZ 11 LEO RXB35 433MHz

Report No.: 150129061GZU-002 Issued: 2015-5-11 FCC ID: 2AD8Y-15693 Page 2 of 18 CONTENT TEST REPORT ....................................................................................................................................................................... 1 CONTENT ............................................................................................................................................................................... 2 1 TEST RESULTS SUMMARY ...................................................................................................................................... 3 2 TEST RESULTS CONCLUSION ................................................................................................................................ 4 3 LABORATORY MEASUREMENTS .......................................................................................................................... 5 4 TEST RESULTS ............................................................................................................................................................ 6 4.1 CONDUCTED DISTURBANCE VOLTAGE AT MAINS PORTS .............................................................................................. 6 4.1.1 Used Test Equipment ......................................................................................................................................... 6 4.1.2 Block Diagram of Test Setup ............................................................................................................................. 6 4.1.3 Test Setup and Procedure .................................................................................................................................. 6 4.1.4 Limit ................................................................................................................................................................... 7 4.1.5 Test Data............................................................................................................................................................ 8 4.1.6 Emission Curve .................................................................................................................................................. 9 4.1.7 Measurement Uncertainty ............................................................................................................................... 10 4.2 RADIATED EMISSION (30 MHZ -1000 MHZ) .............................................................................................................. 10 4.2.1 Used Test Equipment ....................................................................................................................................... 10 4.2.2 Block Diagram of Test Setup ........................................................................................................................... 10 4.2.3 Test Setup and Procedure ................................................................................................................................ 11 4.2.4 Limit ................................................................................................................................................................. 11 4.2.5 Test Data.......................................................................................................................................................... 12 4.2.6 Test Curve ........................................................................................................................................................ 13 4.2.7 Measurement uncertainty ................................................................................................................................ 14 4.3 RADIATED EMISSION ABOVE 1 GHZ ........................................................................................................................... 14 4.3.1 Used Test Equipment ....................................................................................................................................... 14 4.3.2 Block Diagram of Test Setup ........................................................................................................................... 15 4.3.3 Test Setup and Procedure ................................................................................................................................ 16 4.3.4 Limit ................................................................................................................................................................. 16 4.3.5 Test Data.......................................................................................................................................................... 17 4.3.6 Test Curve ........................................................................................................................................................ 18 4.3.7 Measurement uncertainty ................................................................................................................................ 18 Report No.: 150129061GZU-002 Issued: 2015-5-11 FCC ID: 2AD8Y-15693 Page 3 of 18 1 TEST RESULTS SUMMARY Classification of EUT: Class B Test Item Standard Result Conducted disturbance voltage at mains ports FCC Part 15: 2013, Subpart B Pass Radiated emission (30 MHz–1 GHz) FCC Part 15: 2013, Subpart B Pass Radiated emission (Above 1 GHz) FCC Part 15: 2013, Subpart B Pass Remark: Reference publication is used for methods of measurement: ANSI C63.4:2009 Remark: 1. The symbol “N/A” in above table means Not Applicable. 2. When determining the test results, measurement uncertainty of tests has been considered. Report No.: 150129061GZU-002 Issued: 2015-5-11 FCC ID: 2AD8Y-15693 Page 4 of 18 2 Test Results Conclusion (with Justification) RE: EMC Testing Pursuant to FCC Part 15, Subpart B Performed on the Color Changing Accent Light, Models: 15691, 15692, 15693. All models are identical except the long of the produ…
