2AD9XPIRDMotion Sensor

SPECIFICATIONS Range: 12 meters in sensor-facing direction 12 meters at 45°angle from sensor-facing direction Sensor Optical View Pattern (side view, in meters) Optical Fields-of-View: Long-range Mid-range Short-range 44 36 18 Sensor Optical View Pattern (top view, in meters) Note: Specifications are subject to change without notice. VWMSpod-012WPI Motion Sensor Operation and Specifications SUREN ©2010 SUREN Systems, Ltd.. All rights reserved. SUREN™, PYROFLEX™, HighBar™ are trademarks of SUREN. www.surensystems.com IR Sensor: Dual elements Power Supply: CR123A 3V Battery Power Supply Current: 22uA ( no alarm ) Tamper Switch: Sealed dome-contact Housing Material: High-impact ABS Dimensions: 73.5 x 60.5x 43.5mm ( H x W x D ) Approvals/qualification: ( Pending ) Pet immunity:10Kg Events Detection: HighBar™ false alarm rejection processor RF Immunity: 20 V/m, 10-1000 MHz; 10 V/m, 1-2 GHz White Light Immunity: 6500 lux Sensitivity: Selectable: 2-event or 3-event Operating Temperature Range: -40°C to +55° C Accessories: Mounting bracket: MB-100 1.0 2.3 0 3 6 9 12 1.0 3.0 0369 12 2.0 1.0 2.3 036912 Short range Short range Long range Middle range 0 6 9 3 6 0 12 One FOV ( field of view) 9 3 Long range Middle range The VWMSpod-012WPI is a professional state-of-the art motion sensor engineered with the world's best components and materials.starting with a TM SUREN HihgView lens and a top quality infrared detector, Next, a patented modern DSP ASIC directly converts the infrared detector signal into digital form, for best reliability and stability. Finally, the signal is evaluated by a SUREN’s HighBar™ processor, for "best-in-class" false alarm rejection with excellent intrude r detection. SENSOR INITIALIZATION Following power-on, a VWMSpod-012WPI sensor is fully operational after a one-minute warm-up. WALK TEST Note: The VWMSpod-012WPI should be tested once per year. The LED should turn ON (for Alarm) after about two to four normal steps. Each time the LED turns ON, wait for it to turn OFF. Then, wait 12 seconds before continuing the walktest.When there is no motion in the monitored area, the LED should remain OFF. It can be turned off after 5 mins, so it doesn’t continue to e at up power. ALARM PROCESSING Dual-element detector fields-of-view alternate between (+) and (-)polarity. HighBar™-qualified signal events are counted as "pulses"exclusively when polarity alternates. Depending on sensitivitysetting, (+,-), (-,+), (+,-,+) or (- ,+,-) will cause an alarm. PET IMMUNITY The VWMSpod-012WPI is designed to allow the presence of pets (10kg or lighter) without signaling an alarm. It includes a special microelement l e n s a r r a y t h a t p r o d u c e s m u c h s t r o n g e r o p t i c a l s i g n a l s f o r h u m a n s t h a n f o r p e t s 1 0 k g o r l i g h t e r . F u r t h e r m o r e , t h e o p t i c a l sensitivity of each VWMSpod-012WPI is factory-calibrated to ensure accurate discrimination between humans and pets. N o t e : P e t s c o m e i n m a n y v a r i e t i e s . S o m e p e t s ( e s p e c i a l l y l a r g e r ones with very short hair), even if lighter than 10kg, may produce enough infrared radiation to cause alarms. VWMSpod-012WPI users are strongly advised to test the sensor wi th their own pets, in order to verify that the VWMSpod-012WPI will not signal an alarm when their pets are moving within its fields of view. The diagram below shows the VWMSpod-012WPI's zones of greatest human/pet discrimination. The VWMSpod-012WPI should be mounted so that pets will occupy onlythe lighter-colored spaces. SUREN Part no.: 0-ML00-3134-01-1 Rev.3 Limitations of Sensor Products: Sensor products and associated systems do not offer guaranteed anyone for any consequential or incidental damages for breach of this or any other warranty, express or performance in ordinary situations or in special situations including but not limited to burglary, fire, or other implied, or upon any other basis of liability whatsoever, even if the loss or damage is caused by its own emergencies. They may fail to function for diverse reasons, including (but not limited to): power failure, negligence or fault. dead batteries, improper installation, coverag e “blind spots”, coverage areas overlooked during Seller does not represent that the products it sells may not be compromised or circumvented; that the installation, component failure, or inadequate maintenance. Sensors and their associated systems should products will prevent any personal injury or property loss by burglary, robbery, fire or otherwise; or that the be checked weekly to ensure that all devices are working properly. products will in all cases provide adequate war ning or protection. Customer understands that a properly SUREN LIMITED WARRANTY installed and maintained alarm system may only reduce the risk of a burglary, robbery, or fire without SUREN Systems, Ltd., of Fo Tan, Shatin, Hong Kong, warrants its products to be in conformance with its warning, but it is not insurance or a guarantee that such will not occur or that there will be no personal injury own plans and specifications and to be free from defects in materials and workmanshi p under normal use or property loss as a result. and service for twelve months from the date of original purchase. Seller's obligation shall be limited to Consequently, seller shall have no liability for any personal injury; property damage or other loss based on a repairing or replacing, at its option, free of charge for materials or labor, any part which is proved not in claim the product failed to give any warning. However, if seller is held liable, whether directly or indirectly, compliance with Sell er's specifications or proves defective in materials or workmanship under normal use for any loss or damage arising under this limited warranty or otherwise, regardless of cause or origin, and service. Seller shall have no obligation under this Limited Warranty or otherwise if the product is altered seller's max…

Text truncated - open the document above for the full version.

Versa Wireless Inc. Date: Jan. 06, 2021 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AD9XPIRD Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Block Diagram Operational Description Schematics.pdf Block Diagram.pdf Operational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Versa Wireless Inc. Signature Justin Carlson / General Manager Typed name and Title

Versa Wireless Inc. Date: 1/6/2021 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD To Whom It May Concern: We, Versa Wireless Inc., state that our device, FCC ID: 2AD9XPIRD, has a battery, but the battery will not be placed in the battery compartment when delivery, the label is visible to the users as they purchase the products and install the battery. The back cover can be moved away, there is not enough space to print FCC ID label in surface of products, so the label has to be placed in battery compartment. Sincerely, Signature [Justin Carlson (Name)] [General Manager (Title)] [Versa Wireless Inc. (Company name)]

Versa Wireless Inc. FCC ID: 2AD9XPIRD POWER OF ATTORNEY Date: Jan. 06, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on Jan. 05, 2021. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Versa Wireless Inc. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Versa Wireless Inc. Signature Justin Carlson / General Manager Typed name and Title

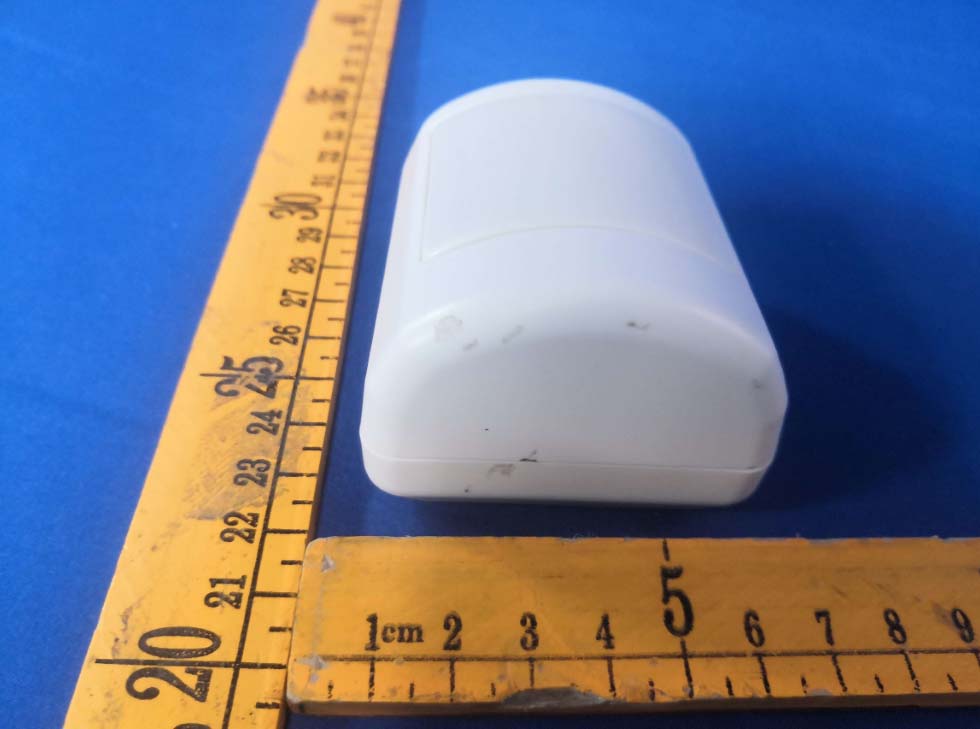

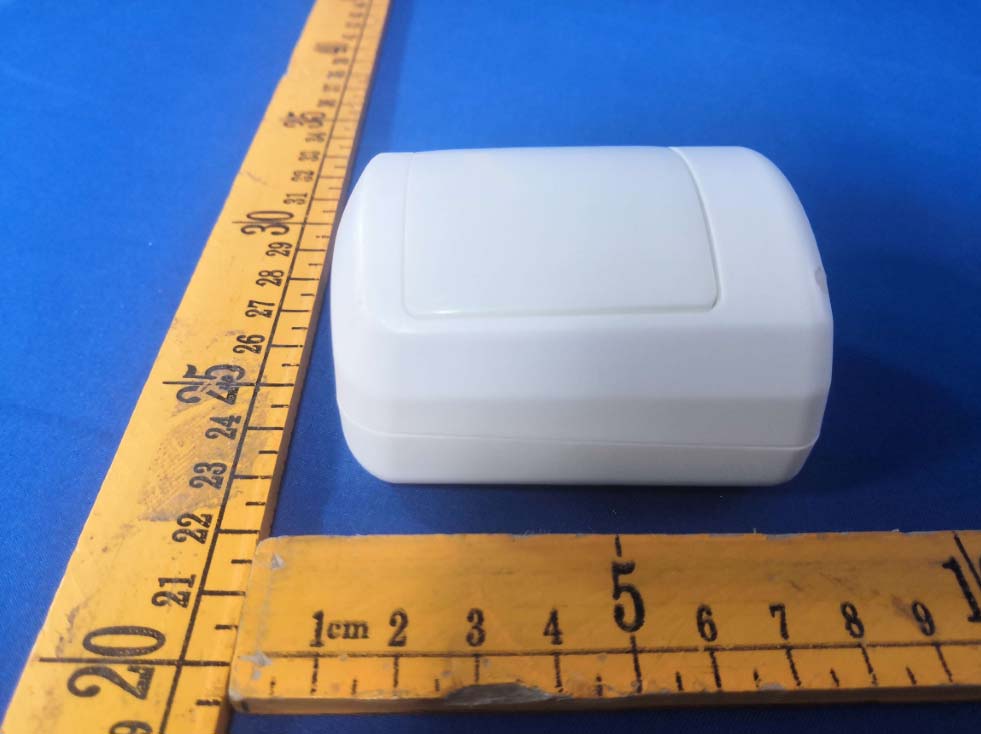

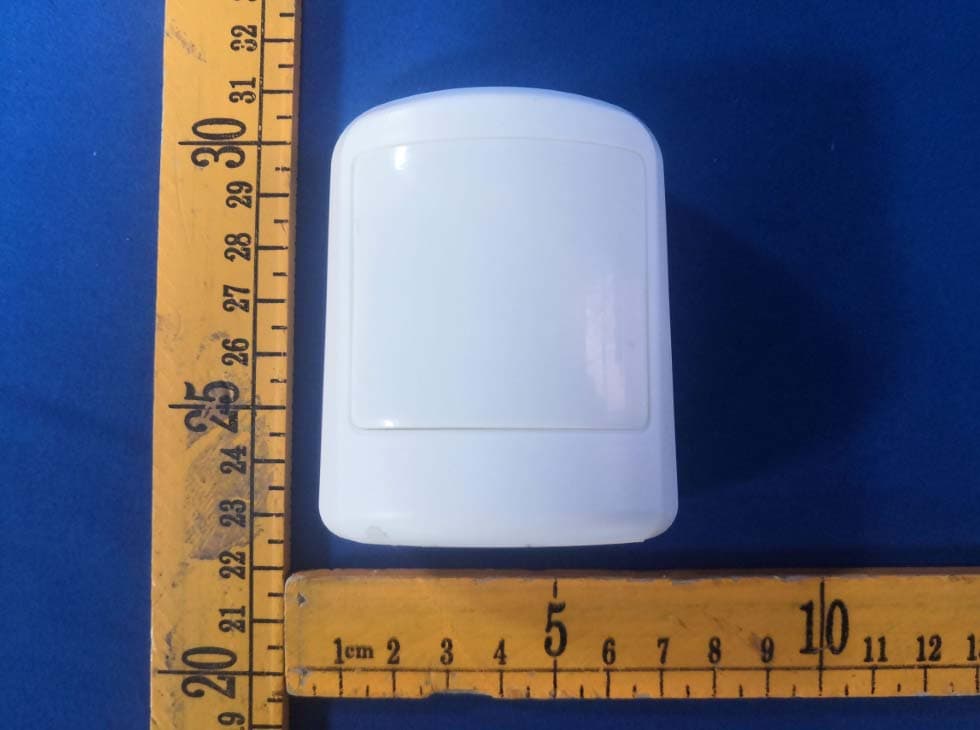

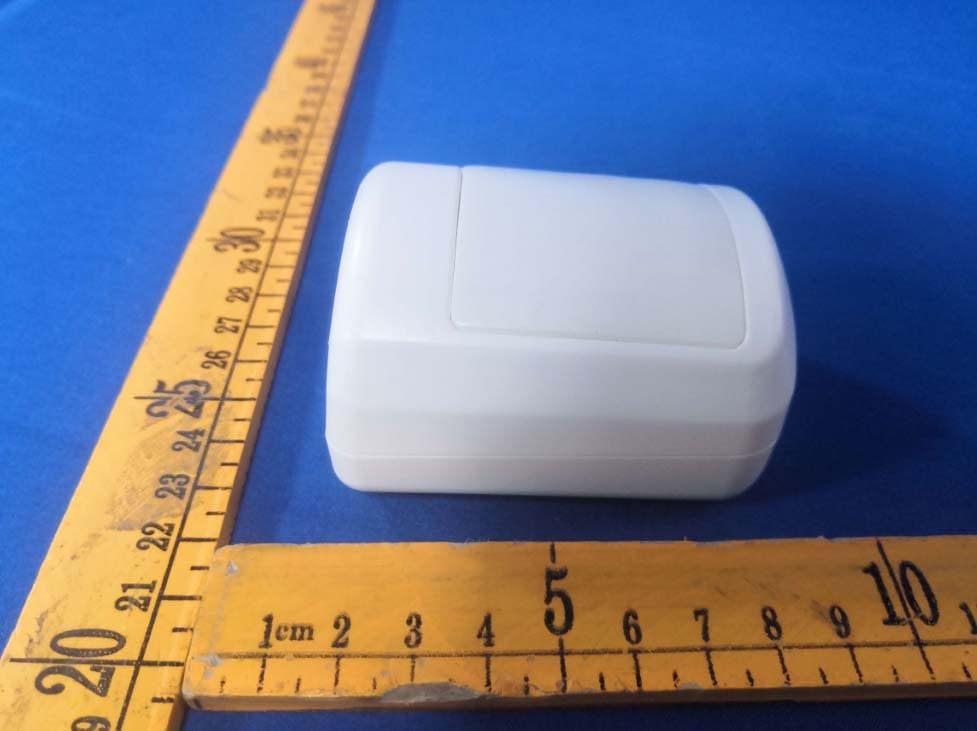

Appendix- PIR-DUAL -Photos Page 1 of 3 Photographs – Constructional Details EUT – Appearance View Model: PIR-DUAL FCC ID: 2AD9XPIRD Appendix- PIR-DUAL -Photos Page 2 of 3 Appendix- PIR-DUAL -Photos Page 3 of 3

Appendix- PIR-DUAL -Photos Page 1 of 2 Photographs – Constructional Details EUT – Open View Model: PIR-DUAL FCC ID: 2AD9XPIRD Appendix- PIR-DUAL -Photos Page 2 of 2 ======End====== ANT.

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 21 TEST REPORT Reference No..................... : WTS20S11089142W V1 FCC ID.............................. : 2AD9XPIRD Applicant.......................... : Versa Wireless Inc. Address............................ : 103 - 19292 60th Ave. Surrey, BC, V3S 3M2 Canada Manufacturer.................... : A&R Technologies Ltd Address............................ : Block 34B, Phase 4, Huaide Cuigang Ind, Park, Fuy ong , Baoan, Shenzhen, China. Product.............................. : Motion Sensor Model(s)........................ : PIR-DUAL Standards......................... : FCC CFR47 Part 15 Section 15.231:2019 Date of Receipt sample.... : 2020-11-26 Date of Test...................... : 2020-11-27 to 2020-12-08 Date of Issue.................... : 2021-01-06 Test Result....................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Levi Xiao / Project Engineer Daniel Liu / Manager Reference No.: WTS20S11089142W V1 Page 2 of 21 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 2 CONTENTS 2 3 REVISION HISTORY 3 4 GENERAL INFORMATION 4 4.1 GENERAL DESCRIPTION OF E.U.T. 4 4.2 DETAILS OF E.U.T. 4 4.3 TEST MODE 4 5 EQUIPMENT USED DURING TEST 5 5.1 EQUIPMENTS LIST 5 5.2 MEASUREMENT UNCERTAINTY 5 5.3 SUBCONTRACTED 6 6 TEST SUMMARY 7 7 RADIATED SPURIOUS EMISSIONS 8 7.1 EUT OPERATION 8 7.2 TEST SETUP 9 7.3 SPECTRUM ANALYZER SETUP 10 7.4 TEST PROCEDURE 11 7.5 SUMMARY OF TEST RESULTS 12 8 PERIODIC OPERATION 14 9 EMISSION BANDWIDTH 17 9.1 TEST PROCEDURE 17 9.2 TEST RESULT 17 10 ANTENNA REQUIREMENT 19 11 PHOTOGRAPHS –TEST SETUP PHOTOS 20 12 PHOTOGRAPHS - CONSTRUCTIONAL DETAILS 21 Reference No.: WTS20S11089142W V1 Page 3 of 21 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 3 Revision History Test report No. Date of Receipt sample Date of Test Date of Issue Purpose CommentApproved WTS20S11089142W 2020-11-26 2020-11-27 to 2020-12-08 2020-12-09Original - Replaced WTS20S11089142W V1 2020-11-26 2020-11-27 to 2020-12-08 2021-01-06Version 1 Updated Valid Reference No.: WTS20S11089142W V1 Page 4 of 21 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4 General Information 4.1 General Description of E.U.T. Product: Motion Sensor Model(s): PIR-DUAL Type of Modulation: OOK Frequency Range: 319.5MHz,345 MHz Antenna installation: Loop antenna Antenna Gain: -15dBi 4.2 Details of E.U.T. Ratings: 3.0VDC From Battery 4.3 Test Mode All test mode(s) and condition(s) mentioned were considered and evaluated respectively by performing full tests, the worst data were recorded and reported. Test mode Test channel Transmitting 319.5MHz Transmitting 345 MHz Reference No.: WTS20S11089142W V1 Page 5 of 21 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 5 Equipment Used during Test 5.1 Equipments List Conducted Emissions Item Equipment Manufacturer Model No. Serial No. Last Calibration Date Calibration Due Date 1. EMI Test Receiver R&S ESCI 100947 2020-09-17 2021-09-16 2. LISN R&S ENV216 101215 2020-09-17 2021-09-16 3. Cable Top TYPE16(3.5M)- 2020-09-17 2021-09-16 3m Semi-anechoic Chamber for Radiation Emissions 1 Test Receiver R&S ESCI 101296 2020.04.20 2021.04.19 2 Trilog Broadband Antenna SCHWARZBECKVULB9160 9160-3325 2020.04.25 2021.04.24 3 Amplifier ANRITSU MH648A M43381 2020.04.20 2021.04.19 4 Cable HUBER+SUHNERCBL2 525178 2020.04.20 2021.04.19 5 Spectrum Analyzer R&S FSP30 100091 2020-04-20 2021.04.19 6 Broad-band Horn Antenna SCHWARZBECKBBHA 9120 D667 2020-04-25 2021.04.24 7 Broadband Preamplifier COMPLIANCE DIRECTION PAP-1G18 2004 2020-08-26 2021-08-25 RF Conducted Testing Item Equipment Manufacturer Model No. Serial No. Last Calibration Date Calibration Due Date 1. Spectrum Analyzer Agilent N9020A MY4910006 0 2020-07-30 2021-07-29 2 Spectrum Analyzer (9k-6GHz) R&S FSL6 100959 2020-07-30 2021-07-29 3 Humidity Chamber GF GTH-225-40-1P IAA061213 2020-07-30 2021-07-29 4 EXA Signal Analyzer Keysight N9010A MY5052020 7526B25MP BW7X 2020-04-20 2021-04-19 “*”: The temporary antenna connector is soldered on the PCB board in order to perform conducted tests and this temporary antenna connector is listed in the equipment list. 5.2 Measurement Uncertainty Parameter Uncertainty Radio Frequency ± 1 x 10 -6 RF Power ± 1.0 dB RF Power Density ± 2.2 dB Radiated Spurious Emissions test ± 5.03 dB (30M~1000MHz) ± 5.47 dB (1000M~25000MHz) Confidence interval：95%. Confidence factor:k=2 Reference No.: WTS20S11089142W V1 Page 6 of 21 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 5.3 Subcontracted Whether parts of tests for the product have been subcontracted to other labs: Yes No If Yes, list the related test items and lab information: Test Lab: N/A Lab address: N/A Test items: N/A Reference No.: WTS20S11089142W V1 Page 7 of 21 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 6 Test Summary Test Items Test Requirement Result Conducted Emissions 15.207 N/A Radiated Spurious Emissions 15.205(a) 15.209 15.231(a) Pass Periodic Operation 15.231(a) Pass Emission Bandwidth 15.231(c) Pass Antenna Requirement 15.203 Pass Note: Pass=Compliance; NC=Not Compliance; NT=Not Tested; N/A=Not Applicable. Reference No.: WTS20S11089142W V1 Page 8 of 21 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 7 Radiated Spurious Emissions Test Requirement: FCC Part15 Paragraph 15.231(a), 15.209, 15.205 Test Method: ANSI C63.10:2013 Test Result: PASS Measurement Distance: 3m Limit: Fundamental Frequency (MHz) Field Strength of Fundamental (uV/m) Field Strength of Fundamental (dBuV/m…
