2ADA4XB562G mobile phone

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Mobiwire Mobile(NingBo) Co.,Ltd 2015-6-9 To: SIEMIC, Inc. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Mobiwire Mobile(NingBo) Co.,Ltd hereby authorize SIEMIC, Inc. to act as Certification Body for certifying for the following project(s): Product description : 2G mobile phone FCC ID : 2ADA4XB56 model name: A1 We affirm that between SIEMIC, Inc. and Mobiwire Mobile(NingBo) Co.,Ltd any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Xu Leander /Manager Contact information / address : No.999 Dacheng East Road, Fenghua, Zhejiang, China

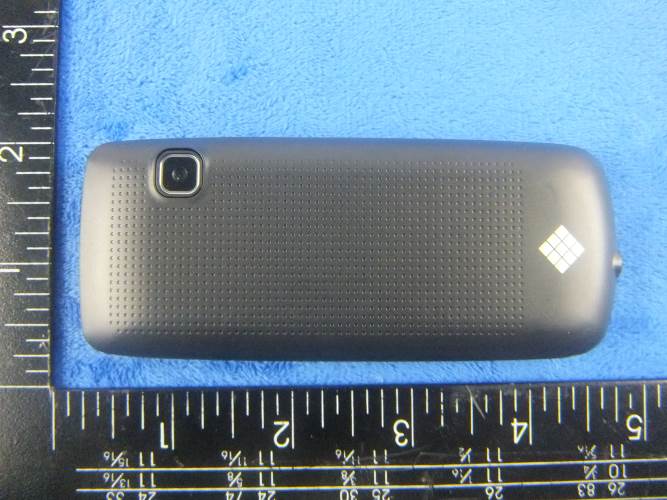

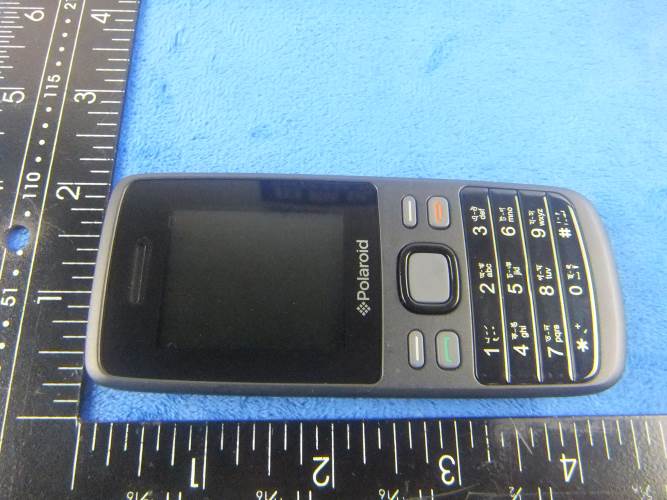

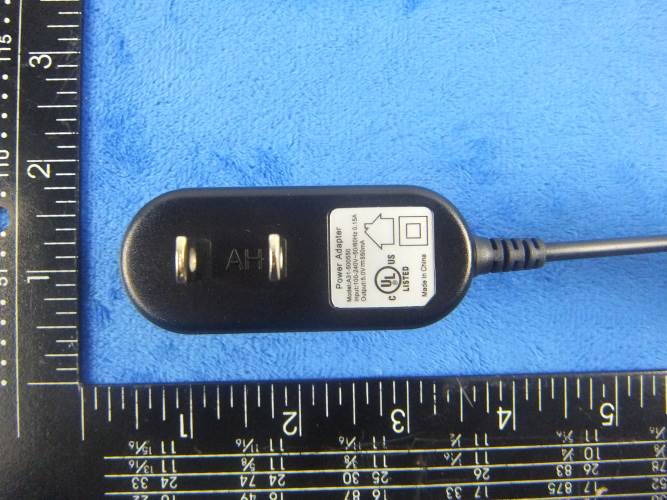

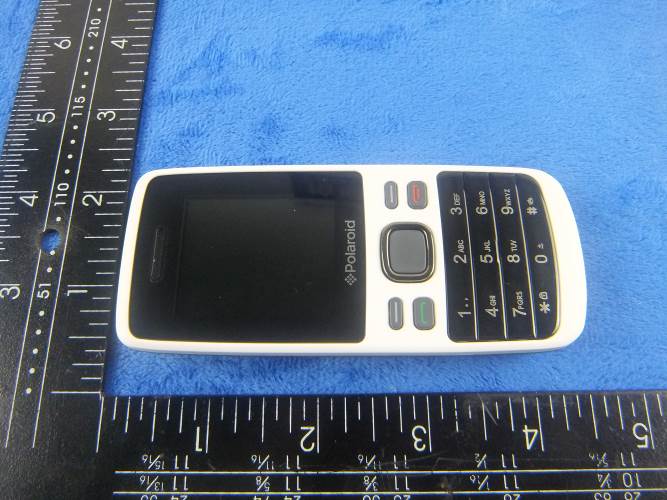

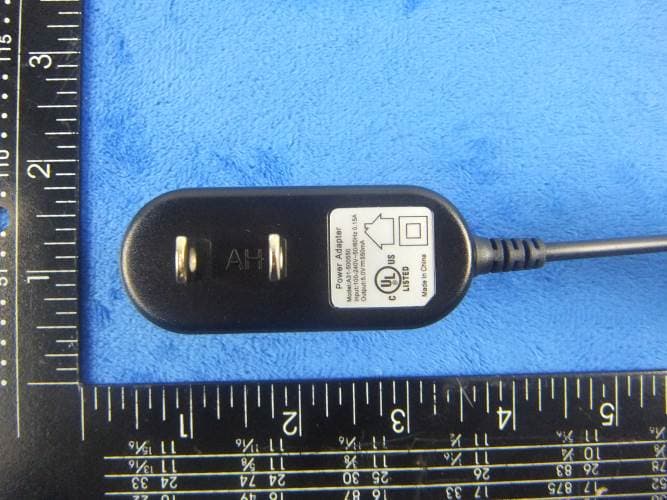

Test Report 15070185-FCC-E1 Page 18 of 27 Annex B. EUT And Test Setup Photographs Annex B.i. Photograph: EUT External Photo Whole Package - Top View Adapter - Front View EUT - Front View （Black phone） EUT - Rear View （Black phone） Test Report 15070185-FCC-E1 Page 19 of 27 EUT - Top View EUT - Bottom View EUT - Left View EUT - Right View EUT - Front View （White phone） EUT - Rear View （White phone）

31.9mm 16.45mm 15.9mm 8.85mm Designed by Southern TeleconAssembled in China. FCC ID:2ADA4XB56 SN:A1WH- Model:A1

Label location

Test Report 15070185-FCC-E1 Page 20 of 27 Annex B.ii. Photograph: EUT Internal Photo Cover Off - Top View 1 Cover Off - Top View 2 Battery - Top View Battery - Bottom View LCD - Front View LCD - Rear View Test Report 15070185-FCC-E1 Page 21 of 27 Mainborad With Shielding - Front View Mainborad With Shielding - rear View Mainborad Without Shielding - Front View Mainborad Without Shielding - rear View GSM/PCS Antenna View Bluetooth Antenna View

RF EXPOSURE REPORT Report No.: 15070185-FCC-H1 Supersede Report No.: N/A Applicant Mobiwire Mobile(NingBo) Co.,Ltd Product Name 2G mobile phone Model No. A1 Serial No. N/A Test Standard FCC 2.1093 Test Date March 16, 2015 Issue Date June 09, 2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Winnie Zhang Test Engineer Chris You Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report 15070185-FCC-H1 Page 2 of 9 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report 15070185-FCC-H1 Page 3 of 9 This page has been left blank intentionally. Test Report 15070185-FCC-H1 Page 4 of 9 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. FCC §2.1093 - MAXIMUM PERMISSIBLE EXPOSURE ................................................................................... 8 5.1 RF EXPOSURE .......................................................................................................................................................... 8 5.2 TEST RESULT ........................................................................................................................................................... 9 Test Report 15070185-FCC-H1 Page 5 of 9 1. Report Revision History Report No. Report Version Description Issue Date 15070185-FCC-H1 NONE Original June 09, 2015 2. Customer information Applicant Name Mobiwire Mobile(NingBo) Co.,Ltd Applicant Add No.999 Dacheng East Road, Fenghua, Zhejiang, China Manufacturer Mobiwire Mobile(NingBo) Co.,Ltd Manufacturer Add No.999 Dacheng East Road, Fenghua, Zhejiang, China 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report 15070185-FCC-H1 Page 6 of 9 4. Equipment under Test (EUT) Information Description of EUT: 2G mobile phone Main Model: A1 Serial Model: N/A Date EUT received: March 30, 2015 Test Date(s): March 16, 2015 Antenna Gain: GSM850: -4 dBi PCS1900: -4 dBi Bluetooth: 0 dBi Type of Modulation: GSM: GMSK EGPRS: GMSK Bluetooth: GFSK RF Operating Frequency (ies): GSM850 TX: 824.2 ~ 848.8 MHz; RX: 869.2 ~ 893.8 MHz PCS1900 TX: 1850.2 ~ 1909.8 MHz; RX: 1930.2 ~ 1989.8 MHz Bluetooth: 2402-2480 MHz Number of Channels: GSM 850: 124CH PCS1900: 299CH Bluetooth: 79CH Port: Power Port, Earphone Port, USB Port Input Power: Battery: Model: BT-P30 Spec: 3.7V 700mAh 2.59Wh Adapter: Model: A31-500550 Input: AC 100-240V; 50/60Hz 0.15A Output: DC 5.0V; 550mA Test Report 15070185-FCC-H1 Page 7 of 9 Trade Name : Polaroid GPRS/EGPRS Multi-slot class N/A FCC ID: 2ADA4XB56 Test Report 15070185-FCC-H1 Page 8 of 9 DFP/ 5. FCC §2.1093 - Maximum Permissible exposure 5.1 RF Exposure Standard Requirement: According to §15.247 (i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’ s guidelines. Routine SAR evaluation refers to that specifically required by § 2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. result = P= Maximum turn-up power in mW F= Channel frequency in GHz D= Minimum test separation distance in mm Test Report 15070185-FCC-H1 Page 9 of 9 5.2 Test Result Bluetooth Mode: Modulation CH Freq (MHz) Conducted Power (dBm) Tune Up Power (dBm) Max Tune Up Power (dBm) Max Tune Up Power (mW) ResultLimit GFSK Low 2402 5.459 5.0±1 6.0 3.98 1.23 3 Mid 2441 5.842 5.0±1 6.0 3.98 1.24 3 High 2480 5.756 5.0±1 6.0 3.98 1.25 3 Result: Compliance No SAR measurement is required.

RF TEST REPORT Report No.: 15070185-FCC-R2 Supersede Report No.: N/A Applicant Mobiwire Mobile(NingBo) Co.,Ltd Product Name 2G mobile phone Model No. A1 Serial No. N/A Test Standard FCC Part 15.247: 2014, ANSI C63.10: 2009 Test Date March 12 to March 17, 2015 Issue Date June 09, 2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Winnie Zhang Test Engineer Chris You Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report 15070185-FCC-R2 Page 2 of 46 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report 15070185-FCC-R2 Page 3 of 46 This page has been left blank intentionally. Test Report 15070185-FCC-R2 Page 4 of 46 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. TEST SUMMARY .................................................................................................................................................... 8 6. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................... 9 6.1 ANTENNA REQUIREMENT ..................................................................................................................................... 9 6.2 CHANNEL SEPARATION ...................................................................................................................................... 10 6.3 20DB BANDWIDTH ................................................................................................................................................. 13 6.4 PEAK OUTPUT POWER ........................................................................................................................................ 16 6.5 NUMBER OF HOPPING CHANNEL ..................................................................................................................... 19 6.6 TIME OF OCCUPANCY (DWELL TIME) ............................................................................................................. 21 6.7 BAND EDGE ............................................................................................................................................................. 24 6.8 AC POWER LINE CONDUCTED EMISSIONS ................................................................................................... 27 6.9 RADIATED SPURIOUS EMISSIONS ................................................................................................................... 31 ANNEX A. TEST INSTRUMENT ................................................................................................................................. 36 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 37 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 42 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PARTLIST .................................................. 45 ANNEX E. DECLARATION OF SIMILARITY ............................................................................................................ 46 Test Report 15070185-FCC-R2 Page 5 of 46 1. Report Revision History Report No. Report Version Description Issue Date 15070185-FCC-R2 NONE Original June 09, 2015 2. Customer information Applicant Name Mobiwire Mobile(NingBo) Co.,Ltd Applicant Add No.999 Dacheng East Road, Fenghua, Zhejiang, China Manufacturer Mobiwire Mobile(NingBo) Co.,Ltd Manufacturer Add No.999 Dacheng East Road, Fenghua, Zhejiang, China 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report 15070185-FCC-R2 Page 6 of 46 4. Equipment under Test (EUT) Information Description of EUT: 2G mobile phone Main Model: A1 Serial Model: N/A Date EUT received: March 30, 2015 Test Date(s): March 12 to March 17, 2015 Equipment Ca…

Text truncated - open the document above for the full version.

Test Report 15070185-FCC-R2 Page 41 of 46 Annex B.iii. Photograph: Test Setup Photo Conducted Emissions Test Setup Front View Conducted Emissions Test Setup Side View Radiated Spurious Emissions Test Setup Below 1GHz Radiated Spurious Emissions Test Setup Above 1GHz
