Kontakt.io Portal Light IR PNR: KHWPO130F001 User Manual The Portal Light IR is Kontakt.io's Bluetooth® Low Energy (LE) RTLS gateway and IR sensor. It scans and detects Kontakt.io BLE devices and sends received BLE data to Kio Cloud over the facility's existing Wi-Fi network. Additionally, it provides IR signal coverage for room level certainty positioning. With a Kontakt.io subscription, BLE beacons, tags, and badges are automatically processed in Cloud and Applications and can receive configuration/firmware updates over their BLE connection to a Portal Light IR. Portal Light IR Installation Pre-requisites  DC power adaptor 4.75 to 28 VDC (including USB)  Signify Luminaire-based brackets or a snap-on ceiling fixture  WiFi network (2.4 or 5 GHz) Main Features ★ Location services, BLE device data in real-time and constant connection to Kontakt.io Cloud via Wi-Fi ★ x4 IR LEDs for room level RTLS ★ Dual BLE: RTK and STM BLE modules ★ Simplified deploymentwith Kontakt.io mobile application ★ Visual status Green LED ★ PIR sensor - power saving and movement detection ★ Over-the-air (OTA) configuration and firmware updates Electrical Specifications - Input: 4.75 – 28VDC power supply - Internal device power: 3.3 VDC - Coin-cell battery for RTC power (keep accurate time for Wi-Fi certificates) CR1025 3.0V, 30mAh Environmental Specifications - Operating Temperature 0C to 65C - Storage Temperature -20C to 85C - Operating Humidity 10%-95% RH(non-condensing) - Storage Humidity 5%-95% RH(non-condensing) - IP 54 Wi-Fi Specifications Wireless Standards: IEEE 802.11 a/b/g/n Frequency range: 2.412-2.484GHz & 5.180-5.825GHz Data Rates: 802.11a : 6,9,12,18,24,36,48,54Mbps / 802.11b : 1,2,5.5,11Mbps /802.11g 6,9,12,18,24,36,48,54Mbps MCS0--MCS7 @ HT20 /2.4GHz and 5GHz band MCS0--MCS7 @ HT40 /2.4GHz and 5GHz band Work Mode: Station Security: WEP, WPA™/ WPA2™ PSK, WPA2 Enterprise, EAP TLS, EAP TTLS, PEAPv0, WPA3™ Personal BLE Specifications ➤RTL8720DN: ARM® V8 MCU / 2.402GHz -2.480GHz ➤BLUENRG-355MC: Cortex®-M0+ / 2.402GHz -2.480GHz ➤Bluetooth LE 5.0 and 5.2 compatible Applications Portal Light IR is used in workspaces and medical indoor spaces applications. Devices are meant to be installed on a ceiling using special Philips luminaires or with a standalone snap-on ceiling clips. It is also possible to mount device horizontally if ceiling installation is not possible. The device is a unique combination of IoT Wi-Fi - BLE gateway and IR sensor. Not only it can connect to any 2.4GHz or 5GHz networks and enable data transfer of scanned BLE signals from surrounding Asset Tags, Smart Badges, Beacons and any BLE deivces; but also is acting as IR emitter, filling room with IR signal that encodes room number, thus enabling room level location mechanism (proprietary to Kontakt.io). Installation & Commissioning - Portal Lights 2 are deployed in the area according to floorplans and RTLS design provided by Kontakt.io. Depending on selected RF density and room size it could require up to several devices to be installed in a single room. - After Portal Light IR is connected to DC power it establishes connected to local Wi-Fi network that was pre-configured at factory. In case Wi-Fi credential are not available before shipping, user is able to use Kontakt.io mobile application to configure Wi-Fi SSID and Password with help of BLE OTA configuration functionality. - User must select location of deployed device on Kontakt.io Smart Location using mobile or web applications. Portal Light IR will show up as online on application layer. Data is accessible via APIs or as outcomes in use-case specific applications. ISED Warning This device complies with Innovation, Science, and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deuxconditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The device is compliance with RF exposure guidelines, users can obtain Canadian information on RFexposure and compliance.The minimum distance from body to use the device is 20cm. Le présent appareil est conformeAprès examen de ce matériel aux conformité ou aux limites d’intensité de champ RF,les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérirles informations correspondantes. La distance minimale du corps à utiliser le dispositif est de 20cm. WARNING Portal Light contains electronic elements which should be properly disposed of. If a Portal Light needs to be disposed of, please contact the manufacturer technical support first. FCC Caution This device complies with part 15 of applicable FCC Rules. Its operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Ho…

Text truncated - open the document above for the full version.

CFR 47 §2.911(d)(5)(i) Attestation Letter Kontakt Micro-Location Sp. z o.o. Address: ul.Stoczniowcow 3, 30-709 Krakow, Poland Email: [email protected] Tel: 0048123793445 Attestation Letter Date: 2024-03-18 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID:2ADAO-KHWPO130F001 Kontakt Micro-Location Sp. z o.o. certifies that the equipment for which authorization is sought, is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature Joanna Wolczanska Ms Doc ID: b4d04cca3dd0f7c0088cd3f6590a86b0f9d47c5f

CFR 47 §2.911 (d)(5)(ii) Attestation Letter Kontakt Micro-Location Sp. z o.o. Address: ul.Stoczniowcow 3, 30-709 Krakow, Poland Email: [email protected] Tel: 0048123793445 Attestation Letter Date: 2024-03-18 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID:2ADAO-KHWPO130F001 Kontakt Micro-Location Sp. z o.o. certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Joanna Wolczanska Ms Doc ID: b4d04cca3dd0f7c0088cd3f6590a86b0f9d47c5f

U.S. AGENT LETTER OF ATTESTATION Date: 2024-03-18 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2ADAO-KHWPO130F001 Kontakt Micro-Location Sp. z o.o. certifies that, as of the date of the filing of the application, Iconsigh Inc. is our designated U.S. agent for service of process for the above referenced FCC ID. Kontakt Micro-Location Sp. z o.o. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Iconsigh Inc. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Signed by (printed name): Benjamin Kaur Signature: Applicant: Kontakt Micro-Location Sp. z o.o. Address: ul.Stoczniowcow 3, 30-709 Krakow, Poland FRN: 0023964000 Tel: 0048123793445 Email: [email protected] Signed by: Joanna Wolczanska Signature:

Kontakt Micro-Location Sp. z o.o. Address: ul.Stoczniowcow 3, 30-709 Krakow, Poland Email: [email protected] Tel: 0048123793445 QA-FR-170-B 7/29/2014 FCC Authorization Date: 2024-03-18 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Kontakt Micro-Location Sp. z o.o., the undersigned, hereby authorizes World Alliance Testing and Certification (Shenzhen) Co., Ltd to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by World Alliance Testing and Certification (Shenzhen) Co., Ltd on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely, Signature Joanna Wolczanska Ms Doc ID: b4d04cca3dd0f7c0088cd3f6590a86b0f9d47c5f

Kontakt Micro-Location Sp. z o.o. Address: ul.Stoczniowcow 3, 30-709 Krakow, Poland Email: [email protected] Tel: 0048123793445 FCC Confidential Authorization Date: 2024-03-18 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ADAO-KHWPO130F001 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Kontakt Micro-Location Sp. z o.o. hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Part list The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature Joanna Wolczanska Ms Doc ID: b4d04cca3dd0f7c0088cd3f6590a86b0f9d47c5f

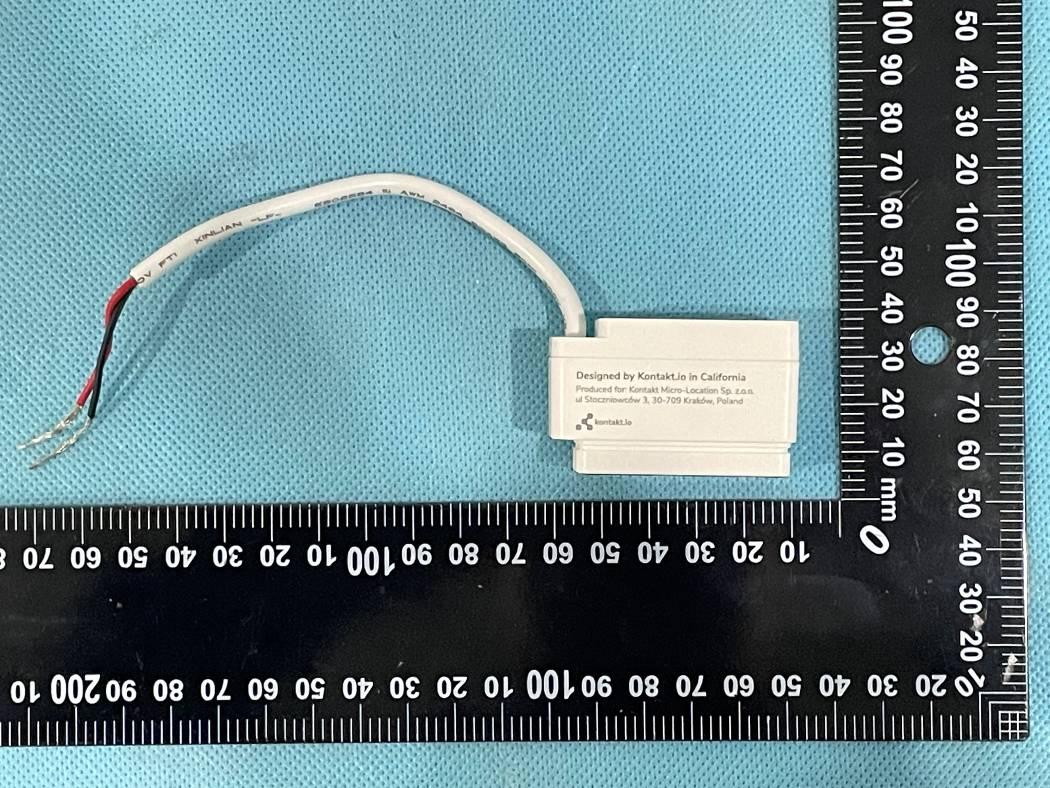

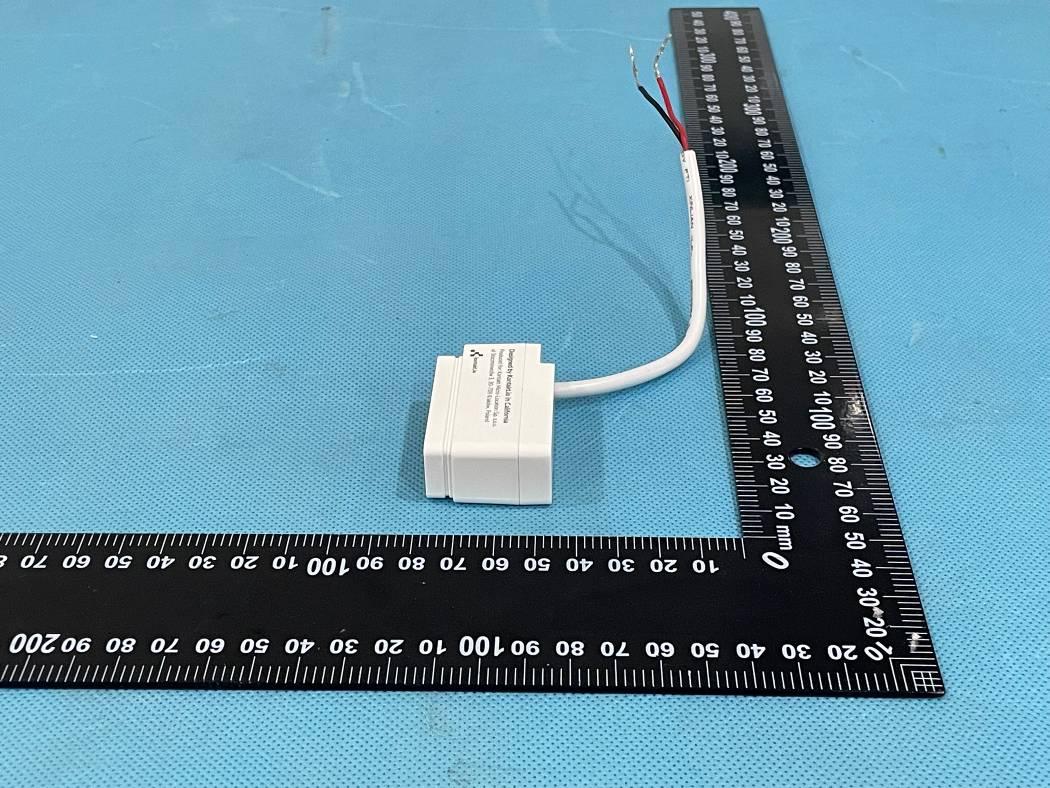

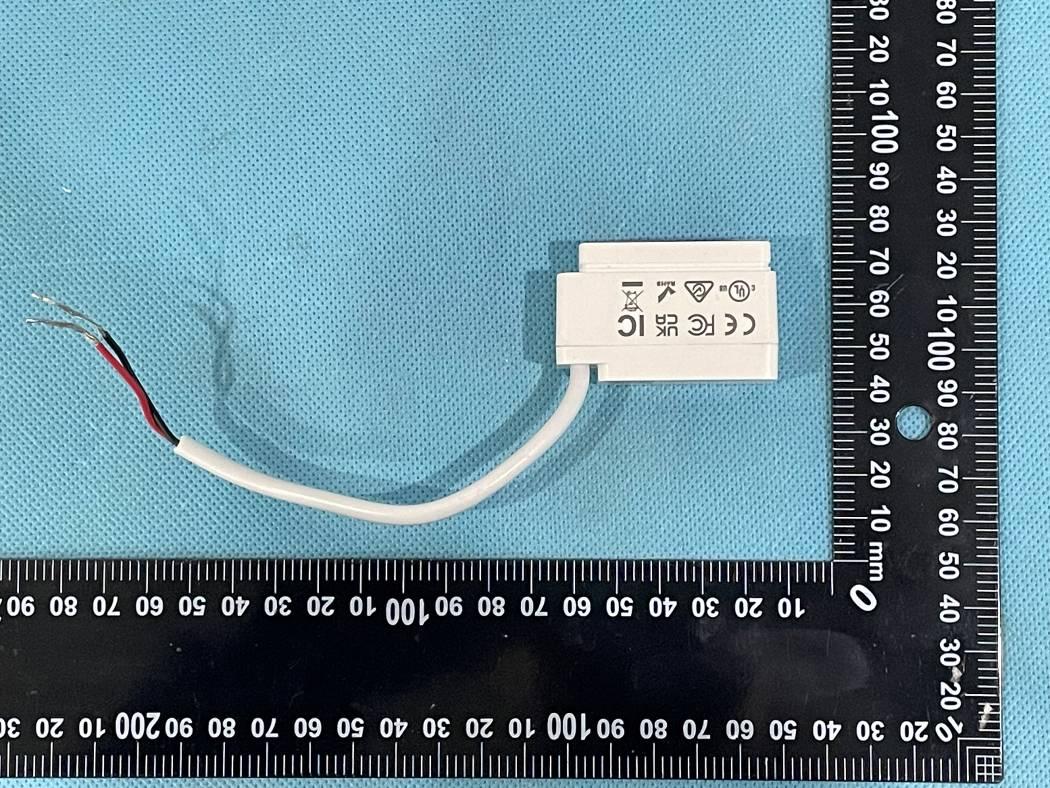

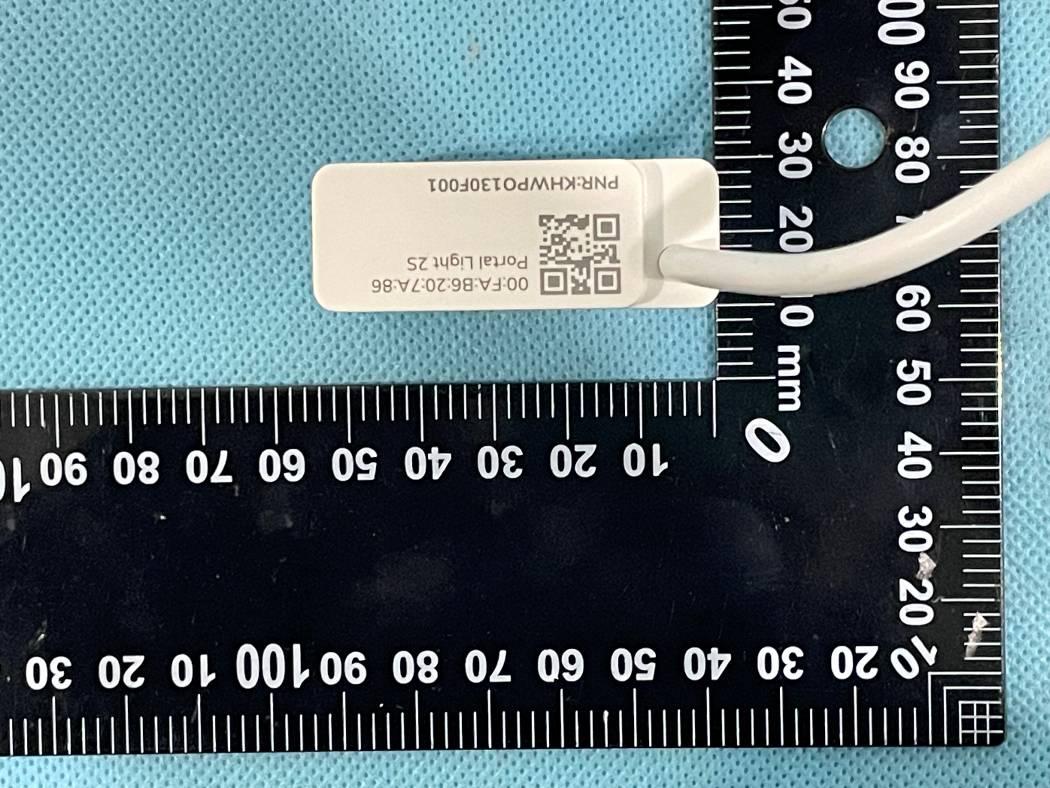

Report No.: RWAQ202400235 Page 1 of 5 EUT EXTERNAL PHOTOGRAPHS Report No.: RWAQ202400235 Page 2 of 5 Report No.: RWAQ202400235 Page 3 of 5 Report No.: RWAQ202400235 Page 4 of 5 Report No.: RWAQ202400235 Page 5 of 5

00:01:02:03:04:05 Portal Light 2 IR PNR:KHWPO130F001 Designed by Kontakt.io in California kontakt.io Produced for: Kontakt Micro-Location Sp. z.o.o. ul Stoczniowców 3, 30-709 Kraków, Poland 00:01:02:03:04:05 Portal Light 2 IR PNR:KHWPO130F001 Designed by Kontakt.io in California kontakt.io Produced for: Kontakt Micro-Location Sp. z.o.o. ul Stoczniowców 3, 30-709 Kraków, Poland Nunito Sans 6.5pt Nunito Sans Bold 6.5pt Nunito Sans Bold 6pt Nunito Sans 5pt IC: 12413A-KHWPO130 FCC ID: 2ADAO-KHWPO130F001 Contains FCC ID: 2AHMR-BW16 Contains IC: 23236-BW16 IC: 12413A-KHWPO130 FCC ID: 2ADAO-KHWPO130F001 Contains FCC ID: 2AHMR-BW16 Contains IC: 23236-BW16

Report No.: RWAQ202400235 Page 1 of 3 EUT INTERNAL PHOTOGRAPHS BT/Wi-Fi ANT Contains FCC ID: 2AHMR-BW16 Contains IC: 23236-BW16 Report No.: RWAQ202400235 Page 2 of 3 Report No.: RWAQ202400235 Page 3 of 3 BLE ANT

Report No.: RWAQ202400235E Report Template: TR-4-E-011/V1.0 Page 1 of 7 RF Exposure Evaluation Report Report No.: RWAQ202400235E Applicant: Kontakt Micro-Location Sp. z o.o. Address: ul.Stoczniowcow 3, 30-709 Krakow, Poland Product Name: Portal Light 2 IR Product Model: KHWPO130F001 Multiple Models: N/A Trade Mark: Kontakt.io FCC ID: 2ADAO-KHWPO130F001 Standards: 47 CFR §1.1307 KDB 447498 D04 Interim General RF Exposure Guidance v01 Test Date: 2024-03-12 Test Result: Complied Report Date: 2024-03-13 Reviewed by: Approved by: Abel Chen Project Engineer Jacob Kong Manager Prepared by: World Alliance Testing & Certification (Shenzhen) Co., Ltd No. 1002, East Block, Laobing Building, Xingye Road 3012, Xixiang street, Bao'an District, Shenzhen, Guangdong, People’s Republic of China This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” Report No.: RWAQ202400235E Report Template: TR-4-E-011/V1.0 Page 2 of 7 Announcement 1．This test report shall not be reproduced in full or partial, without the written approval of World Alliance Testing & Certification (Shenzhen) Co., Ltd 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. 5. The information marked “#” is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. Revision History Version No. Issued Date Description 00 2024-03-13 Original Report No.: RWAQ202400235E Report Template: TR-4-E-011/V1.0 Page 3 of 7 Contents 1 General Information ............................................................................................................................ 4 1.1 Client Information ...................................................................................................................... 4 1.2 Product Description of EUT ....................................................................................................... 4 1.3 Laboratory Location ................................................................................................................... 4 2 RF Exposure Evaluation ..................................................................................................................... 5 2.1 Standard .................................................................................................................................... 5 2.2 Result......................................................................................................................................... 7 Report No.: RWAQ202400235E Report Template: TR-4-E-011/V1.0 Page 4 of 7 1 General Information 1.1 Client Information Applicant: Kontakt Micro-Location Sp. z o.o. Address: ul.Stoczniowcow 3, 30-709 Krakow, Poland Manufacturer: Kontakt Micro-Location Sp. z o.o. Address: ul.Stoczniowcow 3, 30-709 Krakow, Poland 1.2 Product Description of EUT The EUT is Portal Light 2 IR that contains BLE radio and a certified BT/Wi-Fi module. Sample Serial Number 6R-1(assigned by WATC) Sample Received Date 2024-03-11 Sample Status Good Condition Frequency Range BLE1M/2M: 2402MHz - 2480MHz Maximum Conducted Output Power 2402MHz - 2480MHz: 1.34dBm Modulation Technology GFSK Antenna Gain # 2.37dBi Spatial Streams SISO (1TX, 1RX) Power Supply DC 4.75~28V Operating temperature # 0 deg.C to +65 deg.C Adapter Information N/A Modification Sample No Modification by the test lab 1.3 Laboratory Location World Alliance Testing & Certification (Shenzhen) Co., Ltd No. 1002, East Block, Laobing Building, Xingye Road 3012, Xixiang street, Bao'an District, Shenzhen, Guangdong, People’s Republic of China Tel: +86-755-29691511, Email: [email protected] The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 463912, the FCC Designation No. : CN5040. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0160. Report No.: RWAQ202400235E Report Template: TR-4-E-011/V1.0 Page 5 of 7 2 RF Exposure Evaluation 2.1 Standard According to §1.1307(b)(3)(i), For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: (C) Or using Table 1 and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain…

Text truncated - open the document above for the full version.

The Antenna Test Report confidentiality 1 天线型号（ AntennaVersion ）： ANT-BBNCNC23024 产品型号（ ModeloftheDUT ）： KHWPO130F001 PCB编号及版本（PCBnumberandversion）：PL2S_V1.6 责任硬件工程师（HardwareEngineer）：Jovan 测试日期（TestData）：20240221 1、技术指标(TechnicalSpecification) 电性能指标 ElectricalSpecifications 频率范围FrequencyRange（MHz） 2400-2480 频带宽度Bandwidth(-10dB)（MHz） 0.2 输入阻抗InputImpedance（Ω） 50 回波损耗 ReturnLoss （ dB ）＜ -12.939 电压驻波比VSWR＜1.58 增益Gain(@2.44GHz)（dBi） 2.13 峰值增益PeakGain（dBi） 2.37 极化形式PolarizationType 线极化 （Linearpolarization） （注意也有其他极化） 雷电保护LightningProtection 直流接地 （ DCgrounding ） 功率容量 PowerCapacity （ mW ） 1000 机械指标MechanicalSpecifications 天线尺寸AntennaSize(mm) 14.808*5.385 辐射体Radiator铜Cuprum 连接器型号 ConnectType 无 工作温度 WorkingTemperature （°C） -40~85 存储温度 StorageTemperature （°C） -40~85 AntennaManufacturer：ShenzhenMinewTechnologiesCo.,Ltd. Address：No.8inlonRoadLonhuaDistrictShenzhenChina Y-YB-CR-11 The Antenna Test Report 5V001confidentiality 2 2、天线外形和尺寸（theshapeandsizeoftheantenna） The Antenna Test Report confidentiality 3 3、测试结果（Theresultofthetest） The Antenna Test Report confidentiality 4 3.1增益和效率(GainandEfficiency) The Antenna Test Report confidentiality 5 3.2、辐射方向图(RadiationPattern) 表3D方向图 2402MHz2440MHz2480MHz （1）E1，XZ面，phi=0;（E1，XZplane，phi=0°） （2）E2，YZ面，phi=90°;（E2，YZ面，phi=90°） The Antenna Test Report confidentiality 6 （3）H，XY面，theta=90°;（H，XYplane，theta=90°）

Report No.: RWAQ202400235A Report Template: TR-4-E-008/V1.0 Page 1 of 32 FCC Test Report Report No.: RWAQ202400235A Applicant: Kontakt Micro-Location Sp. z o.o. Address: ul.Stoczniowcow 3, 30-709 Krakow, Poland Product Name: Portal Light 2 IR Product Model: KHWPO130F001 Multiple Models: N/A Trade Mark: Kontakt.io FCC ID: 2ADAO-KHWPO130F001 Standards: FCC CFR Title 47 Part 15C (§15.247) Test Date: 2024-03-12 Test Result: Complied Report Date: 2024-03-13 Reviewed by: Approved by: Abel Chen Project Engineer Jacob Kong Manager Prepared by: World Alliance Testing & Certification (Shenzhen) Co., Ltd No. 1002, East Block, Laobing Building, Xingye Road 3012, Xixiang street, Bao'an District, Shenzhen, Guangdong, People’s Republic of China This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” Report No.: RWAQ202400235A Report Template: TR-4-E-008/V1.0 Page 2 of 32 Announcement 1．This test report shall not be reproduced in full or partial, without the written approval of World Alliance Testing & Certification (Shenzhen) Co., Ltd 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. 5. The information marked “#” is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. Revision History Version No. Issued Date Description 00 2024-03-13 Original Report No.: RWAQ202400235A Report Template: TR-4-E-008/V1.0 Page 3 of 32 Contents 1 General Information ............................................................................................................................ 4 1.1 Client Information ...................................................................................................................... 4 1.2 Product Description of EUT ....................................................................................................... 4 1.3 Antenna information .................................................................................................................. 4 1.4 Related Submittal(s)/Grant(s) .................................................................................................... 5 1.5 Measurement Uncertainty ......................................................................................................... 5 1.6 Laboratory Location ................................................................................................................... 5 1.7 Test Methodology ...................................................................................................................... 5 2 Description of Measurement .............................................................................................................. 6 2.1 Test Configuration ...................................................................................................................... 6 2.2 Test Auxiliary Equipment ........................................................................................................... 6 2.3 Test Setup .................................................................................................................................. 7 2.4 Test Procedure .......................................................................................................................... 9 2.5 Measurement Method.............................................................................................................. 10 2.6 Measurement Equipment ........................................................................................................ 10 3 Test Results ....................................................................................................................................... 12 3.1 Test Summary .......................................................................................................................... 12 3.2 Limit ......................................................................................................................................... 13 3.3 AC Line Conducted Emissions Test Data ................................................................................ 14 3.4 Radiated emission Test Data ................................................................................................... 16 3.5 RF Conducted Test Data ......................................................................................................... 23 3.5.1 6 dB Emission Bandwidth and 99% Occupied Bandwidth ........................................... 23 3.5.2 Maximum Conducted Peak Output Power ................................................................... 23 3.5.3 Power Spectral Density ................................................................................................ 23 3.5.4 100 kHz Bandwidth of Frequency Band Edge ............................................................. 24 3.5.5 Duty Cycle .................................................................................................................... 24 4 Test Setup Photo ............................................................................................................................... 31 5 E.U.T Photo ........................................................................................................................................ 32 Report No.: RWAQ202400235A Report Template: TR-4-E-008/V1.0 Page 4 of 32 1 General Information 1.1 Client Information Applicant: Kontakt Micro-Location Sp. z o.o. Address: ul.Stoczniowcow 3, 30-709 Krakow, Poland Manufacturer: Kontakt Micro-Location Sp. z o.o. Address: ul.Stoczniowcow 3, 30-709 Krakow, Poland 1.2 Product…

Text truncated - open the document above for the full version.

Report No.: RWAQ202400235 Page 1 of 3 TEST SETUP PHOTOGRAPHS AC Line Conducted Emission Report No.: RWAQ202400235 Page 2 of 3 Radiated Emission Below 1GHz Above 1 GHz Report No.: RWAQ202400235 Page 3 of 3
