2ADEKJUMPPACKRechargeable Li-ion Battery Pack

user manual Specifications: Design and specification are subject to change without notice. product: Rechargeable Li-ion Battery Pack Model: JUMP Pack Rated capacity: 13Ah/468Wh Discharge temperature:-20~60°C Charging temperature: 0~45°C Storage temperature: -20~23°C Humidity:0~95% RH Max charge voltage: 41.8V Product description: The Pack is a user-swappable battery pack with NFC function for use in shared electric vehicles in urban areas.Notable characteristics include: Compact, rugged and portable, allowing battery swapping by customer and employee operators in the field Associated vehicles such as bicycles, scooters and other Securely locks into the vehicle or charging hub to prevent theft It is not designed to be a serviceable item. Recommended items Please read the instruction and label carefully before use. During the use period, batteries should keep away from heat
source,high pressure, avoiding children toying battery and do not crash or knock batteries. This battery can only be charged with matching charger. Do not leave batteries in the charger over 24 hours. The charging temperature range is between 0°C and 45°C.Charging in an environment over this range may result in batteries performance degradation and reduced life Store battery well if unused for extend period.Keep battery in half charge situation,do not fully charged or fully discharged. Do not use conductive material to pack batteries in order to avoid metal objects touching batteries directly,which will break batteries.Store batteries in cool and dry place. Dispose of discarded batteries safely. Do not thrown batteries into water or fire. Warning Keep batteries away from children. Keep batteries out of reach of children to avoid children biting or swallowing batteries. If children swallow batteries, go to hospital for treatment as soon as possible. D o not disassemble batteries. There are protective structure and circuit in batteries to avoid danger. Improper disassemble will damage the protective function, which will cause batteries to heat, smoke, deform or burn. Do not place leaky batteries near fire. If batteries leak liquid (or have peculiar smell), should keep batteries far from fire. Otherwise, leaky electrolyte will catch fire and even cause other dangers. Do not use abnormal batteries. If batteries found to be smelly, deformed, discolored or distorted, leave batteries out of phone or charger and deprecated. Using of abnormal batteries will cause to heat, smoke, deform or burn. D o not short circuit batteries. Do not connect the anode and cathode with metal objects, nor storing or moving batteries with metal objects. If batteries short circuit, an over-current will flow through and damage batteries. It will cause batteries to heat, smoke or burn. Do not place in microwave ovens or other pressure vessels. Transient heat damage can cause the battery to heat, smoke, deform, or burn. WA R N I N G–Risk of Fire–No User Serviceable Parts. AVERTISSEMENT – Risque d’incendie – Aucune des pièces ne peut être réparée par l’utilisateur FCC Warning a. Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. b. Changes or modification warning. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. c. Information to the user. Note: This equipment has been tested and found to comply with th e limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  -Reorient or relocate the receiving antenna.  -Increase the separation between the equipment and receiver.  -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Social Bicycles LLC Agent Authorization Letter 2019-12-26 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen Huaxia Testing Technology Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Noah Sylvan Position: Manager Company Name: Social Bicycles LLC Address: 55 Prospect St. Suite 410 Brooklyn, NY 11201, United States Tel / Fax 3104026313/3474001263 E-Mail: [email protected]

Social Bicycles LLC Long Term Confidentiality Request Letter 2019-12-26 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (FCC ID: 2ADEKJUMPPACK) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - e.g. Block diagram - e.g. SCH - e.g. Operational Description required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Name: Noah Sylvan Position: Manager Company Name: Social Bicycles LLC Address: 55 Prospect St. Suite 410 Brooklyn, NY 11201, United States Tel / Fax 3104026313/3474001263 E-Mail: [email protected]

FCC ID: 2ADEKJUMPPACK Test Model No.:JUMP Pack FCC ID: 2ADEKJUMPPACK FCC ID: 2ADEKJUMPPACK

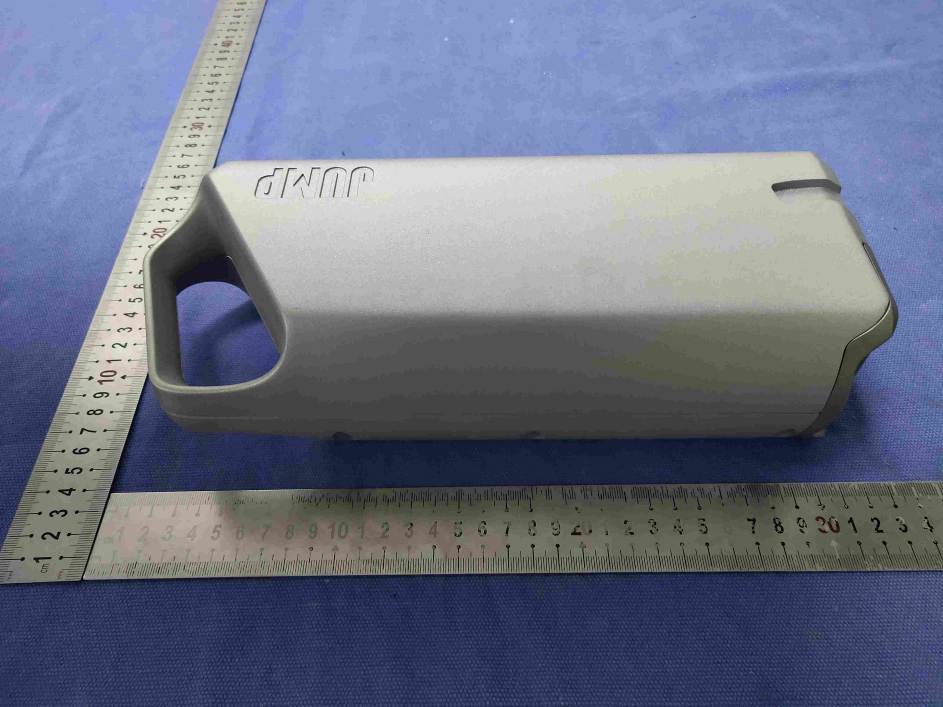

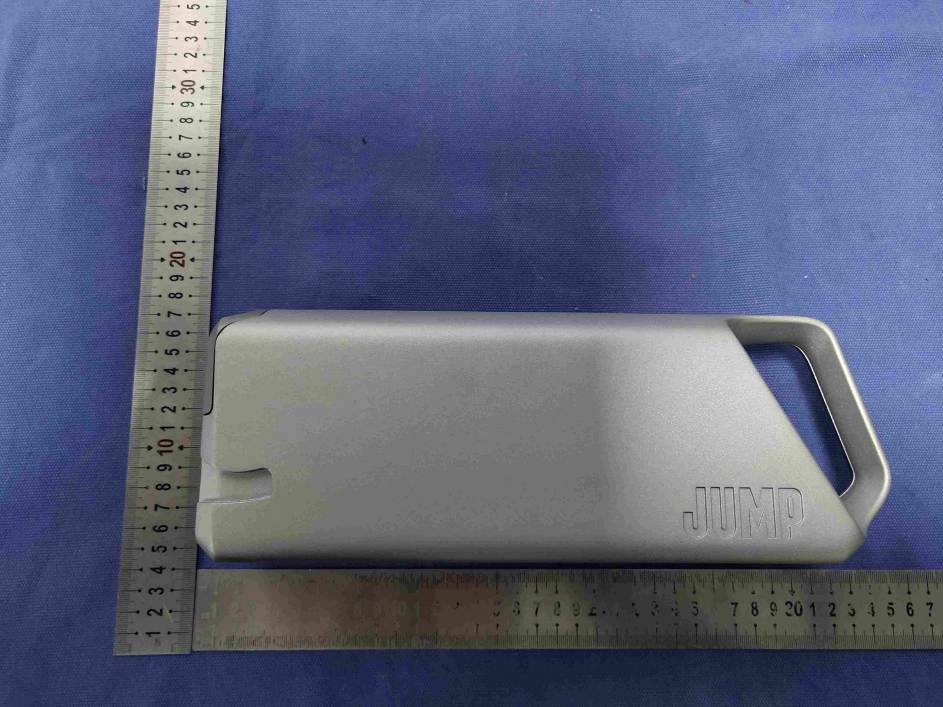

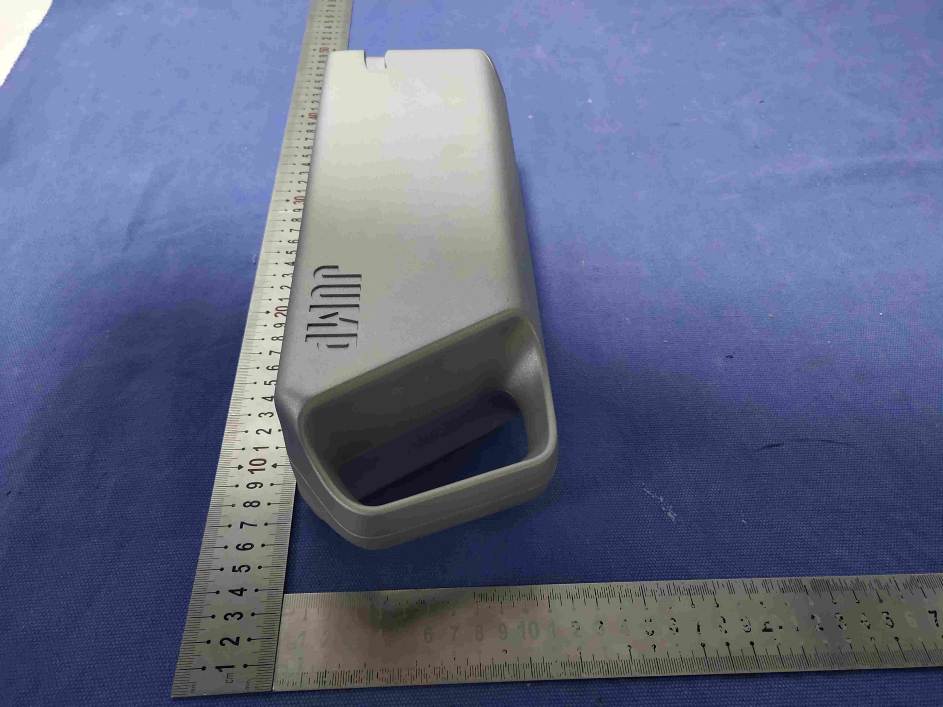

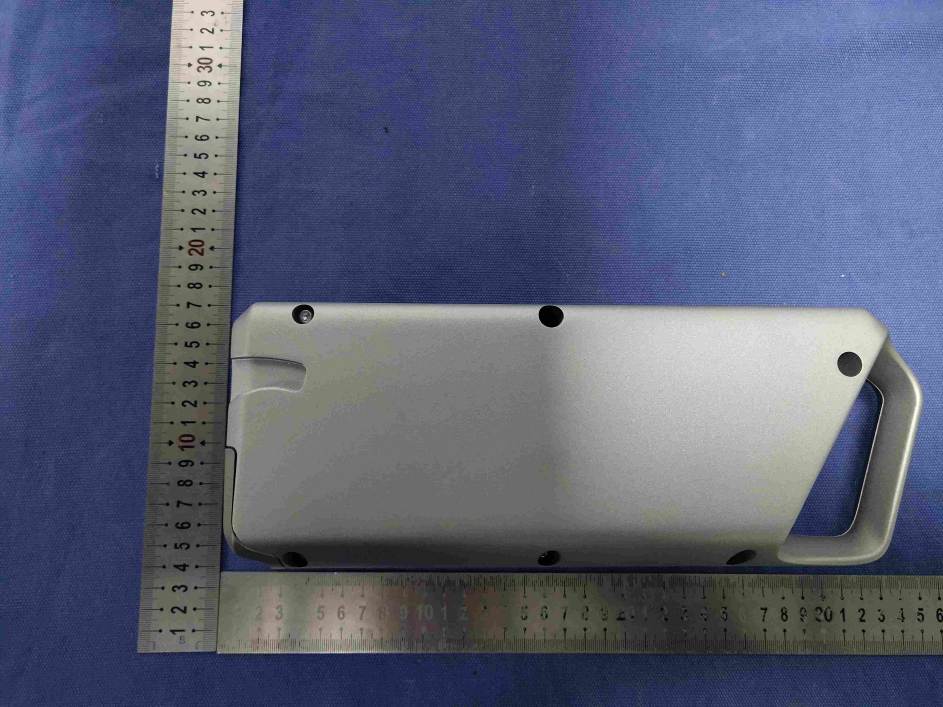

FCC ID: 2ADEKJUMPPACK Test Model No.:JUMP Pack

FCC ID: 2ADEKJUMPPACK FCC ID: 2ADEKJUMPPACK FCC ID: 2ADEKJUMPPACK

Shenzhen Huaxia Testing Technology Co., Ltd 1F., Block A of Tongsheng Technology Building, Huahui Road, Dalang Street, Longhua District, Shenzhen, China Telephone: +86-755-26648640 Fax: +86-755-26648637 Website:www.cqa-cert.com Report Template Version: V04 Report Template Revision Date: 2018-07-06 RF Exposure Evaluation Report The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of CQA, this report can’t be reproduced except in full. Report No. : CQASZ20191201301E-02 Applicant: Social Bicycles LLC Address of Applicant: 55 Prospect St. Suite 410 Brooklyn, NY 11201, United States Equipment Under Test (EUT): EUT Name: Rechargeable Li-ion Battery Pack Model No.: JUMP Pack Brand Name: FCC ID: 2ADEKJUMPPACK Standards: 47 CFR Part 1.1307 47 CFR Part 1.1310 KDB447498D01 General RF Exposure Guidance v06 Date of Receipt: 2019-12-11 Date of Test: 2019-12-11 to 2019-12-16 Date of Issue: 2019-12-16 Test Result : PASS* *In the configuration tested, the EUT complied with the standards specified above Tested By： (Tom Chen) Reviewed By: (Aaron Ma) Approved By: ( Jack Ai) Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20191201301E-02 Page:2 of 6 1 Version Revision History Of Report Report No. Version Description Issue Date CQASZ20191201301E-02 Rev.01 Initial report 2019-12-16 Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20191201301E-02 Page:3 of 6 2 Contents Page 1 VERSION ...................................................................................................................................................... 2 2 CONTENTS .................................................................................................................................................. 3 3 GENERAL INFORMATION .......................................................................................................................... 4 3.1 CLIENT INFORMATION .................................................................................................................................. 4 3.2 GENERAL DESCRIPTION OF EUT ................................................................................................................. 4 3.3 GENERAL DESCRIPTION OF NFC ................................................................................................................. 4 4 SAR EVALUATION ...................................................................................................................................... 5 4.1 RF EXPOSURE COMPLIANCE REQUIREMENT ................................................................................................ 5 4.1.1 Standard Requirement ..................................................................................................................... 5 4.1.2 Limits ................................................................................................................................................ 5 4.1.3 EUT RF Exposure ............................................................................................................................ 6 Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20191201301E-02 Page:4 of 6 3 General Information 3.1 Client Information Applicant: Social Bicycles LLC Address of Applicant: 55 Prospect St. Suite 410 Brooklyn, NY 11201, United States Manufacturer: Fujian SCUD Power Technology Co.,Ltd Address of Manufacturer: No.135, Rujiang East Road, Mawei District, Fuzhou, Fujian 3.2 General Description of EUT Product Name: Rechargeable Li-ion Battery Pack Model No.: JUMP Pack Trade Mark: Hardware Version: U-10S4P-BMS-A06 Software Version: V3.0 Product Type: Mobile Portable Fix Location Power Supply: lithium battery:DC36V 3.3 General Description of NFC Operation Frequency: 13.56MHz Modulation Type: ASK Antenna Type: Induction coil Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20191201301E-02 Page:5 of 6 4 SAR Evaluation 4.1 RF Exposure Compliance Requirement 4.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 4.3.1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 4.1.2 Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where nd distance are rounded to the nearest mW and mm before calculation 17 The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion For frequencies below 100 MHz, the following may be considered for SAR test exclusion (also illustrated in Appendix C): Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20191201301E-02 Page:6 of 6 4.1.3 EUT RF Exposure 1) For NFC eirp = pt x gt = (E x d) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, ---10 ((dBμV/m)/20) /10 6 , d = measurement distance in meters (m)---3m, So pt = (E x d) 2 /30 / gt The worst case (refer to report CQASZ20191201301E-02) is below: Frequency (MHz) Level (dBuV/m) Polarization 13.56 57.24 Peak For 13.56MHz wireless: Field strength = 57.24dBμV/m @3m Ant. gain 0dBi; so Ant numeric gain=1.0 So pt={[10 (57.24) /10 6 x3] 2 /30 /1.0}x1000mW =0.0002mW 0.0002mW<Limit:308mW So the SAR repo…

Text truncated - open the document above for the full version.

Shenzhen Huaxia Testing Technology Co., Ltd 1F., Block A of Tongsheng Technology Building, Huahui Road, Dalang Street, Longhua District, Shenzhen, China Telephone: +86-755-26648640 Fax: +86-755-26648637 Website: www.cqa-cert.com Report Template Version: V04 Report Template Revision Date: 2018-07-06 TEST REPORT The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of CQA, this report can’t be reproduced except in full. Report No. : CQASZ20191201301E-01 Applicant: Social Bicycles LLC Address of Applicant: 55 Prospect St. Suite 410 Brooklyn, NY 11201, United States Equipment Under Test (EUT): EUT Name: Rechargeable Li-ion Battery Pack Model No.: Brand Name: FCC ID: Standards: Date of Receipt: Date of Test: Date of Issue: Test Result : JUMP Pack 2ADEKJUMPPACK 47 CFR Part 15, Subpart C 2019-12-11 2019-12-11 to 2019-12-16 2019-12-16 PASS* *In the configuration tested, the EUT complied with the standards specified above Tested By： (Tom Chen) Reviewed By: (Aaron Ma) Approved By: ( Jack Ai) Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20191201301E-01 Page:2 of 30 1 Version Revision History Of Report Report No. Version Description Issue Date CQASZ20191201301E-01 Rev.01 Initial report 2019-12-16 Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20191201301E-01 Page:3 of 30 2 Contents Page 1 VERSION .................................................................................................................................................... 2 2 CONTENTS ................................................................................................................................................ 3 3 TEST SUMMARY ....................................................................................................................................... 4 4 GENERAL INFORMATION ........................................................................................................................ 5 4.1 CLIENT INFORMATION ................................................................................................................................ 5 4.2 GENERAL DESCRIPTION OF E.U.T. ............................................................................................................ 5 4.3 TEST ENVIRONMENT & TEST MODE .......................................................................................................... 6 4.4 DESCRIPTION OF SUPPORT UNITS ............................................................................................................. 6 4.5 STATEMENT OF THE MEASUREMENT UNCERTAINTY ..................................................................................... 7 4.6 TEST LOCATION ........................................................................................................................................ 8 4.7 TEST FACILITY .......................................................................................................................................... 8 4.8 EQUIPMENT LIST ....................................................................................................................................... 9 5 TEST RESULT AND MEASUREMENT DATA ......................................................................................... 10 5.1 ANTENNA REQUIRMENT ........................................................................................................................... 10 5.2 ELECTRIC FIELD STRENGTH OF FUNDAMENTAL AND OUTSIDE THE ALLOCATED BANDS ............................... 11 5.3 RADIATED EMISSIONS ............................................................................................................................. 14 5.4 FREQUENCY STABILITY ........................................................................................................................... 20 5.5 20DB OCCUPIED BANDWIDTH .................................................................................................................. 22 6 PHOTOGRAPHS - EUT TEST SETUP .................................................................................................... 24 6.1 RADIATED EMISSION ............................................................................................................................... 24 7 PHOTOGRAPHS - EUT CONSTRUCTION DETAILS ............................................................................. 25 Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20191201301E-01 Page:4 of 30 3 Test Summary Test Item FCC Test Requirement Test Method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203 ANSI C63.10 2013 Pass Conducted Emission (150KHz to 30MHz) 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 2013 N/A Electric Field Strength of Fundamental and Outside the Allocated bands 47 CFR Part 15, Subpart C Section 15.225(a)/(b)/(c) ANSI C63.10 2013 Pass Radiated Emission 47 CFR Part 15, Subpart C Section 15.225(d)/15.209 ANSI C63.10 2013 Pass Frequency Tolerance 47 CFR Part 15, Subpart C Section 15.225(e) ANSI C63.10 2013 Pass 20dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.215 ANSI C63.10 2013 Pass N/A: Because the test EUT is power by DC , So Not Applicable Shenzhen Huaxia Testing Technology Co., Ltd Report No.: CQASZ20191201301E-01 Page:5 of 30 4 General Information 4.1 Client Information Applicant: Social Bicycles LLC Address of Applicant: 55 Prospect St. Suite 410 Brooklyn, NY 11201, United States Manufacturer: Fujian SCUD Power Technology Co.,Ltd Address of Manufacturer: No.135, Rujiang East Road, Mawei District, Fuzhou, Fujian 4.2 General Description of E.U.T. Product Name: Rechargeable Li-ion Battery Pack Model No.: JUMP Pack Trade Mark: Hardware Version: U-10S4P-BMS-A06 Software Version: V3.0 Operation Frequency: 13.56MHz Modulation Type: ASK Product Type: Mobile Portable Fix Location Antenna Type: Induction coil Power Supply: li…

Text truncated - open the document above for the full version.

FCC ID: 2ADEKJUMPPACK 1 Photographs - EUT Test Setup 1.1 Radiated Emission 9KHz~30MHz: 30MHz~1GHz:
