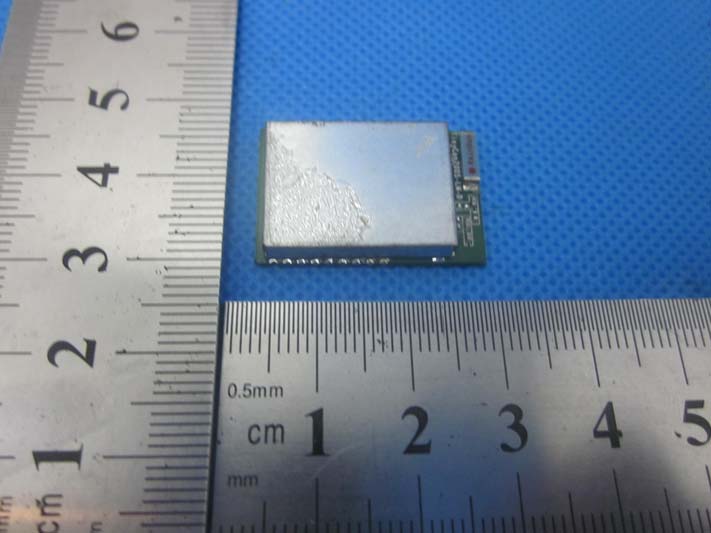

2ADGHCON2005Embedded WiFi Module

OEM INTEGRATION INSTRUCTIONS: (additional information) This device is intended only for OEM integrators under the following conditions: The module must be installed in the host equipment such that 20 cm is maintained between the antenna and users, and the transmitter module may not be co-located with any other transmitter or antenna. The module shall be only used with the external antenna(s) that has been originally tested and certified with this module. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). Validity of using the module certification: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization for this module in combination with the host equipment is no longer considered valid and the FCC ID of the module cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Information that must be placed in the end user manual: The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user's manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. This host device must be kept away from all persons by 20cm or more and installations using less distance, or installations using antennas with gain greater than that with which this was Certified will require additional approvals.

TinyCon_AT Instruction  1 Ralinwi Nanjing Electronic Technology Co., Ltd.  TinyCon_AT Instruction Ver ： V1.1.4 Date ： 2015/06/10 TinyCon_AT Instruction  2 Ralinwi Nanjing Electronic Technology Co., Ltd.  AT Introduce AT is a user terminal interface for TinyCon2005, which provides users a set of the command operation interface, convenient user testing and checking information. How to enable AT Hardware connection AT work on TinyCon2005 UART interface, so you need to TinyCon2005 UART interface and through the derivation of additional circuit or device connected to a computer ； If you are using a TinyWiEV - 1000 development board, then TinyWiEV - 1000 development board has UART derivation, using a mini USB cable to connect to the computer. Enter AT Enter AT ， Must make TinyWiEV - 1000 board dial switch to 1 (high level) or input “$$$”at UART interface. In this case, the TinyCon2005 is powered on or reset automatically enter AT mode. Note: WiFi module to enter configuration mode to enter $$$, frame wait time defaults value is 50 ms. When serial return OK by entering the AT (or at), into command mode. AT Command Introduce TINYCON S2W APP at OK AT OK TinyCon_AT Instruction  3 Ralinwi Nanjing Electronic Technology Co., Ltd.  AT Command Classification TinyCon2005 AT instruction has five instruction set ： l serial port control instruction set l WiFi interface instruction set l Network control instruction set l Auto connect instruction set l Other instruction set Serial port control instruction set AT instruction Description ATB UART parameters take effect after reset ATSn=p Set various adapter interface parameters ATB= Function ： UART parameters take effect after reset. Format Settings ATB=<baudrate> [[,<databits>][,<parity>][,<stopbits>][,<flowcontrol>]] Parameter baudrate Baud rate ： 115200 （ support 9600~921600 ） databits Data bits ： 7 （ 7bit ） 8 （ 8bit ） parity Parity ： n （ none ） e （ even parity ） o （ odd parity ） stopbits Stop bits 1 (1 stop bit) 2 (2 stop bits) flowcontrol Flow control nfc (none) fc （ hardware ） Example: setting up the serial port parameters (baud rate 115200, the data bits of 8, no check, 1 stop bit, and none flow control) ATSn=p Function ： Set various adapter interface parameters Format Settings ATSn=p Parameter n=0 to 2 0=auto frame length 1=auto frame wait time 2=auto frame interval p=parameter value Example: Set the frame trigger a length of 1400 ATB=115200,8,n,1,nfc OK ATS0=1400 OK TinyCon_AT Instruction  4 Ralinwi Nanjing Electronic Technology Co., Ltd.  WiFi interface instruction set AT instruction Description at+wa Associate to specified SSID, optionally using specified security parameters. at+wd Disassociate from the current network. at+ws Network scan, returns list of found networks in the format. at+wcountry Set 802.11 country code. at+wphymode Set 802.11 PHY mode: at+wrssi=? Current RSSI as ASCII at+wsetting=? Adapter reports the current wireless settings to the serial host at+nstat=? Current wireless and network configuration. at+wap Create a network on specified channel (only open and WAP2-PSK supported). at+sc Start the simple-config process. Optionally specify the PIN code to protect the process. at+wa Function ： Associate to specified SSID, optionally using specified security parameters. Format Settings at+wa=< ssid >[,<password>,<wep keyindex>] Parameter ssid specify the SSID to connect the AP password set the key, if the security type for wep type 5 or 13 ASCII characters; If the security type for wpa_psk, wpa2_psk input 8 ~ 32 ASCII characters. wep keyindex set the wep key SN ， for 0 ~ 3 。 Example: Join a AP ,SSID is rlwap, encryption for the open Example: Join a AP , SSID is sytest, the secret key for 123456789, encryption for wpa2 at+wa=rlwap Joining Network... Connected to rlwap DHCP: started IP address: 192.168.1.103 OK at+wa=sytest,123456789 Joining Network... Connected to sytest DHCP: started IP address: 192.168.2.158 OK TinyCon_AT Instruction  5 Ralinwi Nanjing Electronic Technology Co., Ltd.  at+wd Function ： Disassociate from the current network. Format Settings at+wd Example: at+ws Function ： Network scan, returns list of found networks in the format. Format Settings at+ws Example: at+wcountry Function ： Set 802.11 country code (available for US only). Format Settings at+wcountry=< contry string> Parameter contry string : US The United States Example: at+wd Disassociated OK at+ws Scanning... [1] c8:3a:35:49:04:e0 -42 1 6 WPA2 AES SC_TEST_AP [2] 08:10:79:11:cc:5e -44 2 6 Open rlwap [3] 00:22:c3:81:98:3a -52 1 6 WPA2 AES New AP [4] 14:75:90:09:42:26 -52 6 6 WPA2 AES sun [5] d4:ca:6d:87:28:ba -56 1 6 WPA2 AES aibo [6] b8:c7:5d:0c:5d:81 -62 11 6 WPA2 AES AppleYao [7] e4:d3:32:ac:a7:8e -62 11 6 Open testTCP [8] 64:e4:25:11:00:84 -74 1 6 WPA2 AES RLW_LED_64e42511084 [9] 64:e4:25:11:00:9d -84 1 6 WPA2 AES sunwenhaoudptest WLAN SCAN END at+wcountry=us OK TinyCon_AT Instruction  6 Ralinwi Nanjing Electronic Technology Co., Ltd.  at+wphymode Function ： Set 802.11 PHY code. Format Settings at+wphymode=n Parameter n: 1 802.11 b 3 802.11 b/g 11 802.11 b/g/n Example: set up to BG mode at+wrssi=? Function ： Current RSSI as ASCII Format Settings at+wrssi= ？ Parameter none Example: at+wsetting=? Function ： Adapter reports the current wireless settings to the serial host Format Settings at+wsetting= ？ Parameter None Example: at+nstat=? Function ： Current wireless and network configuration. Format at+wphymode=3 OK at+wrssi=? -45 OK at+wsetting=? WMODE=STA SSID=rlwap CHANNEL=2 SECURITY=OPEN PASSWORD= OK TinyCon_AT Instruction  7 Ralinwi Nanjing Electronic Technology Co., Ltd.  Settings at+nstat=? Parameter None Example: at+wap Function ： Create a network on specified channel (only open and WAP2-PSK supported). Format Settings at+wap =<SSID>,<Channel>[,<WPA2Password >] Parameter ssid To create an AP SSID specified channel Channel Settings （ 1~13 ） password 8~32 ASCII character Example: set the AP ssid i…

Text truncated - open the document above for the full version.

RALINWI NANJING ELECTRONIC TECHNOLOGY CO., LTD. FCC Ad-Hoc Declaration Number: CF308 Version: V02 Date: 01-08-2011 (This form must be used and submitted for applications concerning equipment that may risk operating on non-U.S. frequencies that not allowed to use in the U.S., or equipment that may risk operating beyond the frequency channels for which it is certified.) To: Federal Communications Commission 7345 Oakland Mills Road Columbia MD 21046 Attention: Application Examiner / Review Engineer Subject: Ad Hoc Mode Function Declaration Hereby, we: (the applicant company) Company Name RALINWI NANJING ELECTRONIC TECHNOLOGY CO., LTD. Address: Room 404,Building 6,No.6 Su Yuan Road,Xuanwu District Postal/Zip: City: Nanjing State/Province: Country: China declare that this device identified by: Grantee Code (CG) Product Code FCC ID: 2ADGH CON2005 is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. (Attestation) (the applicant company or its authorized representative) City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Nanjing 2015-9-7 Zuokun Liang product manager

RALINWI NANJING ELECTRONIC TECHNOLOGY CO., LTD. FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name RALINWI NANJING ELECTRONIC TECHNOLOGY CO., LTD. Address Room 404,Building 6,No.6 Su Yuan Road,Xuanwu District City Nanjing Country China declare that the following representative (agent): Name (person) [email protected] Company name Shenzhen BCTC Technology Co., Ltd. Address No.101,Yousong Road,Longhua New District, City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Embedded WiFi module Type or Model(s) TinyCon2005-LM-D Tradename or Brand(s) N/A We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Nanjing 2015-9-7 Zuokun Liang product manager

RALINWI NANJING ELECTRONIC TECHNOLOGY CO., LTD. FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name RALINWI NANJING ELECTRONIC TECHNOLOGY CO., LTD. Address Room 404,Building 6,No.6 Su Yuan Road,Xuanwu District City Nanjing Country China request for this certification filing under: Grantee Code Product Number FCC ID: 2ADGH CON2005 to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description x Operational Description explaining the functioning of the block diagram x Block Diagrams showing the systematic building blocks of the EUT x Schematics Diagrams showing components, their values and interconnection Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Nanjing 2015-9-7 Zuokun Liang product manager

RALINWI NANJING ELECTRONIC TECHNOLOGY CO., LTD. FCC Modular Approval Request Number:CF305 Version: V03 Date: 01-08-2011 To the FCC or FCC TCB handling this application Hereby we, Company name (grantee) RALINWI NANJING ELECTRONIC TECHNOLOGY CO., LTD. Addresss Room 404,Building 6,No.6 Su Yuan Road,Xuanwu District City / ZIP / State / Country Nanjing,China request modular approval for the certification of our equipment within this application, identified by: FCC ID: 2ADGHCON2005 The table below contains the justification for modular approval of this equipment: Requirement per DA 00-1407 Explanation from grantee (do not write yes / no, but explain why it complies / how it is achieved) 1. The modular transmitter must have its own RF shielding. YES，the modular transmitter have its own RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. YES, the modular transmitter have buffered modulation data inputs. 3. The modular transmitter must have its own power supply regulation. YES, the modular have its own power supply 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. YES, the modular transmitter 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. YES, The modular can be tested in a stand-alone configuration. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. YES, the ID number on the shielding cover. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. YES, the some operating requirements on manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. YES, the modular transmitter comply with a applicable RF exposure requirements. Attestation (by grantee) City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Nanjing 2015-9-7 Zuokun Liang product manager

M/N: TinyCon2005-LM-D FCC ID: 2ADGHCON2005 Label location

antenna location

MPE Calculation FCC ID: 2ADGHCON2005 Remark: Average ≤ Peak, which means that calculating the power density applying Peak power is worst case. The worst case operation mode generating the highest power in each frequency range is taken for calculation. Frequency range:2412-2462MHzTypical use distance: d ≥20cm Power density limit for mobile devices at 2.4 GHz: S ≤1mW/cm 2 Maximum measured conducted power (Peak): Pconducted =17.36dBm =54.45mW Antenna Gain: G = 1.5dBi =1.41on the linear scale Calculation: P radiated = P conducted + G linear =17.36dBm +1.5dBi =18.86dBm =76.91mW Power density S = (P radiated ) / (4π x d 2 ) =76.91/5026 =0.0153mW/cm 2 <1=> below limit

Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080236 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page1 of 53 FCC Part 15C Test Report FCC ID: 2ADGHCON2005 Product Name: Embedded WiFi module Trademark: N/A Model Name : TinyCon2005-LM-D Prepared For : Ralinwi Nanjing Electronic Technology Co., Ltd. Address : Room 404,Building 6,No.6 Su Yuan Road,Xuanwu District, Nanjing, China Prepared By : Shenzhen BCTC Technology Co., Ltd. Address : No.101,Yousong Road,Longhua New District, Shenzhen,China Test Date: Aug. 26- Aug. 30, 2015 Date of Report : Aug. 31, 2015 Report No.: BCTC-15080236 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080236 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page2 of 53 TEST RESULT CERTIFICATION Applicant’s name ................. : Ralinwi Nanjing Electronic Technology Co., Ltd. Address ................................. : Room 404,Building 6,No.6 Su Yuan Road,Xuanwu District, Nanjing, China Manufacture's Name ............ : Ralinwi Nanjing Electronic Technology Co., Ltd. Address ................................. : Room 404,Building 6,No.6 Su Yuan Road,Xuanwu District, Nanjing, China Product description Product name ........................... : Embedded WiFi module Model and/or type reference : TinyCon2005-LM-D Serial Model .............................. : N/A Standards ............................. : FCC Part15.247 Test procedure ..............................ANSI C63.10-2013 This device described above has been tested by BCTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BCTC, this document may be altered or revised by BCTC, personal only, and shall be noted in the revision of the document. Testing Engineer : (Eric Yang) Technical Manager : (Sophia Lee) Authorized Signatory : (Casey Wang) Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080236 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page3 of 53 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . EMC EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT 11 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 11 3.1.2 TEST PROCEDURE 11 3.1.3 DEVIATION FROM TEST STANDARD 11 3.1.4 TEST SETUP 12 3.1.5 EUT OPERATING CONDITIONS 12 3.1.6 TEST RESULTS 12 3.2 RADIATED EMISSION MEASUREMENT 13 3.2.1 RADIATED EMISSION LIMITS 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 15 3.2.5 EUT OPERATING CONDITIONS 16 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 17 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 18 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 20 4 . POWER SPECTRAL DENSITY TEST 23 4.1 APPLIED PROCEDURES / LIMIT 23 4.1.1 TEST PROCEDURE 23 4.1.2 DEVIATION FROM STANDARD 23 4.1.3 TEST SETUP 23 4.1.4 EUT OPERATION CONDITIONS 23 4.1.5 TEST RESULTS 24 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080236 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page4 of 53 Table of Contents Page 5 . BANDWIDTH TEST 30 5.1 APPLIED PROCEDURES / LIMIT 30 5.1.1 TEST PROCEDURE 30 5.1.2 DEVIATION FROM STANDARD 30 5.1.3 TEST SETUP 30 5.1.4 EUT OPERATION CONDITIONS 30 5.1.5 TEST RESULTS 31 6 . PEAK OUTPUT POWER TEST 37 6.1 APPLIED PROCEDURES / LIMIT 37 6.1.1 TEST PROCEDURE 37 6.1.2 DEVIATION FROM STANDARD 37 6.1.3 TEST SETUP 37 6.1.4 EUT OPERATION CONDITIONS 37 6.1.5 TEST RESULTS 38 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 39 7.1 DEVIATION FROM STANDARD 40 7.2 TEST SETUP 40 7.3 EUT OPERATION CONDITIONS 40 7.4 TEST RESULTS 40 8 . DUTY CYCLE OF TEST SIGNAL 50 8.1 STANDARD REQUIREMENT 50 8.2 FORMULA: 50 9 . ANTENNA REQUIREMENT 51 9.1 STANDARD REQUIREMENT 51 9.2 EUT ANTENNA 51 10 . EUT TEST PHOTO 52 11 . PHOTO OF THE EUT 53 Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080236 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page5 of 53 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080236 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page6 of 53 1.1 TEST FACILITY Shenzhen BCTC Technology Co., Ltd. Add. : No.101,Yousong Road,Longhua New District, Shenzhen,China FCC Registered No.: 187086 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC-15080236 FCC Report Tel: 400-788-9558 0755-33019988 Web:Http//www.bctc-lab.com Page7 of 53 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Embedded WiFi module Trade Name N/A Model Name TinyCon2005-LM-D Serial Model N/A Model Difference All the model are the same circuit and RF module,except model names. Product Description The EUT is a Embedded WiFi module Operation Frequency: 802.11b/g/…
