2ADHZ-MOXEEX1WCDMA/GSM(GPRS) Dual-Mode Digital Mobile Phone

MOXEE X1 Quick Start Guide - 2 - INTRODUCTION Thanks for choosing X1, Dual SIMs Android smart phone based on 1.3 GHz Quad-Core Processor. This smart phone is running on Android OS, v4.4. If you’d like your phone to live a long and fruitful life, please read this guide carefully and keep it for future reference. You never know when you might need it. And don’t worry if the pictures we use to demonstrate your phone’s functions look a little different from what you see on its screen. It’s the functions that matter. * The Manufacturer reserves the right for the changes in the manual without advanced notice. - 3 - Safety Safety Precautions Please read through the following briefings carefully, and act in accordance with these rules, so as to prevent causing any danger or violating any law. Information about the meaning of Logo WEEE (Waste Electrical and Electronic Equipment): The WEEE logo on the product or on its box indicates that this product must not be disposed of or dumped with your other household waste. You are liable to dispose of all your electronic or electrical waste equipment by relocating over to the specified collection point for recycling of such hazardous waste. Isolated collection and proper recovery of your electronic and electrical waste equipment at the time of disposal will allow us to help conserving natural resources. Moreover, proper recycling of the electronic and electrical waste equipment will ensure safety of human health and environment. Caution: risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. Using your phone safely On The Road Using a phone while driving is illegal in many countries. Please follow local laws and drive safely at all times. Near Sensitive Electronics Don’t use your phone near sensitive electronic equipment – - 4 - particularly medical devices such as pacemakers – as it could cause them to malfunction. It can also interfere with the operation of fire detectors and other automatic-control equipment. For more information about how your phone affects pacemakers or other electronic equipment, please contact the manufacturer or your local distributor. Your phone may cause interference when used near TVs, radios or automated office equipment. While Flying Your phone can cause interference with aircraft equipment. So it’s essential you follow airline regulations. And if airline personnel ask you to switch off your phone, or disable its wireless functions, please do as they say. In Hospital Your phone may interfere with the normal operation of medical equipment. Follow all hospital regulations and turn it off when you’re asked to by posted warnings or medical staff. At a Petrol Station Don’t use your phone at petrol stations. In fact, it’s always best to switch off whenever you’re near fuels, chemicals or explosives. Around Water Keep your phone away from water (or any other liquid). It’s not a waterproof model. Making Repairs Never take your phone apart. Please leave that to the professionals. Unauthorized repairs could break the terms of your warranty. Broken Antenna Don’t use your phone if the antenna is damaged, as it could cause injury. Around Children - 5 - Keep your mobile out of children’s reach. It should never be used as a toy and it might not be good for their health. Original Accessories Only use the original accessories supplied with your phone or those approved by the manufacturer. Using unapproved accessories may affect performance, make the warranty void, break national regulations on the use of mobile phones, or even cause injury. Near Explosives Turn off your phone in or near areas where explosive materials are used. Always obey local laws and turn off your phone when requested. Emergency Calls To make an emergency call your phone must be turned on and in an area where there’s network coverage. Dial the national emergency number and press ‘send’. Explain exactly where you are and don’t hang up until help has arrived. Working Temperature The working temperature for the phone is between 0 Degree and 40 Degree Celsius. Please don’t use the phone outside the range. Using the phone under too high or too low temperature might cause problems. To prevent possible hearing damage, do not listen at high volume levels for long periods. FCC Compliance This device complies with part 15 of the FCC Rules. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Operation is subject to the condition that this device does not cause harmful interference. - 6 - Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experi…

Text truncated - open the document above for the full version.

THIS MUST BE SIGNED BY TI{E APPLICANT AND SHOULD BE PLACED ON APPLICANTS LETTERHEAD ONLY IF AGENT IS SUBMITTING APPLICATION Authority to Act as Agent Date: 201411212 American Certification Body, Inc. 6731 Whittier Avenue suite c110 Mclean, Y A 22101 To Whom It May Concern: By: "oot t-t,'t'o ttt"tltutc or r elecommunlcatlons / I ina GonL is authorized to act on our behalf, until otherwise notified, for applications to American c..tin*tion Body, Inc. (ACB). t to denial of federal benefits, that includes FCC benefits, pursuant to buse Act of 1988, 2l u.s.c. g62. Further, no party,as defined in 47 n is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 12 months (Print name) Phillips, Mr. Joseph Title: On behalf of: Telephone: ' - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. 022311 -6 Moxee Technologies (Company Name) (42s)890-7897 THIS MUST BE SIGNED BY TFIE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPzuATE LETTERHEAD Request for Confidentialifv Date: 201411212 Subject: Confi dentiality Request for: 2ADHZ_Xl00 Pursuant to FCC 47 cRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested l_J Short Term I permanent ! Shor term ! Short Term ! Short term ! Short Term ! Short Term ! Short term I Short term ! Short Term n Permanent*2 I Permanent I Permanent I Permanent I Permanent ! Permanent* Exhibit Block Diagrams Extemal Photos Internal Photos Operation Description/Theory of Operation Parts List & Placement/BOM Tune-Up Procedure Schematics Test Setup Photos User's Manual *Note: Micron Electronics LLC. has spent substantial effort in developing this product and it is one of the first of its kind in industry' Having the subject information easily available to "comp"etition" would negate the advantage they have achieved by developing this product. Not protecting the details oithe oesign will result in financial hardshio. Permanent Confi dentiatity: The applicant requests the exhibits listed above as perrnanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confi dentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a ^ days from the date of the Grant of Equipment re release of sensitive information prior to marketing that they are responsible to notify ACB in the event vailable to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC public Notice DA 04-1705. NOTE for Industry Canada Applications: - Must be signed by applicant contact given for applicant on the FCC site, or by the author ized agentifan appropriate authorized agent lefter has been provided. Letters should be placed on appropriate letterhead. 022311 -6 The applicant understands that until such time that IC distinguishes between Short Term and permanent confidentiality' eith{type of marked exhibit above will simpty be marked confidential when submitted to IC. Sincerely, By: Phillips, Mr. Joseph (Print name) '- T:,,?::*5::,'Ii:J?i:q::1" *g11stilc1tion.\rore..oeryalenrconfidentialiry wiu be anowed. rhese arso currently ::11,T:.f:t"Y.Y*.i9: y9"1111"to,1:'-it-But-Ask policy before the grant is iszued and can delay completion of an lrvu uI 4tl 3l?*:'*l; Turtherjustification should be.added to the .rote above. one such example for a potred device would be: .,The :5::iyt-::l?1:_1i,:i'c a non-removable epoxy based material. Removal;ifi;d;;5.iur "uur., irreparable *f:l::: l"."yt 1|cyitrr. See,photographs exhibits that outline the device before anJafter poning.,, Please refer to htto: -Term-V f for complete details.

THIS MUST BE SIGNED BY TFIE APPLICANT/AGENT AND SHOULD BE PLACED ON APPROPRIATE LETTERHEAD Request for Confidentiality Date: 2014/12/l Subj ect : C onfi dentiality Request for : 2 ADHZ-MOXE EX 1 Pursuant to FCC 47 CRF 0.457(d) and0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit E Short Term ! Short Term ! Short Term Ll Snon l errn Ll Snon I errn E Short Term ! Short Term Ll snon I errn E Short Term I Permanent I Permanent*l I Permanent ! Permanent ! Permanent I Permanent ! Permanent* Block Diagrams External Photos Internal Photos Operation Description/Theory of Operation Parts List & Placement/BOM Tune-Up Procedure Schematics Test Setup Photos User's Manual *Note: (lnsert Explanation as Necessary) Moxee Technologies has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as perrnanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Sh ort-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of )2_ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. lo,^ \ $n,\\,p, (Signature/Title3) Ceo require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: "The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting." - Please refer to for comPlete details. - Must be qigned by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. Sincerely, By: (Print name)

External photo: Mobile phone Mobile phone Mobile phone Mobile phone Mobile phone battery battery charger Charger Data cable Earphone

工艺要求： 尺寸：65.85X74.70mm（+/-0.1mm) 材质：50番消银龙 印刷：2+0,哑膜（所附哑膜需能够碳带打印） 卷材来料 65.85 74.7 65.85 74.70 10.33 YOU ARE PROHIBITED TO PLUG-IN/TAKE-OUT THE SIM/MICRO SD CARD WHILE THE DEVICE IS ON. NO STABBING OR HITTING ON THE BATTERY! ANY ACTION ATTEMPTING TO REMOVE THIS LABEL OR THE BATTERY IS PROHIBITED! WARNING: YOU ARE PROHIBITED TO PLUG-IN/TAKE-OUT THE SIM/MICRO SD CARD WHILE THE DEVICE IS ON. NO STABBING OR HITTING ON THE BATTERY! ANY ACTION ATTEMPTING TO REMOVE THIS LABEL OR THE BATTERY IS PROHIBITED! WARNING: MADE IN CHINA IMEI-1:123456789012345 IMEI-2:123456789012345 MODLE: X1 COLOR:Black GSM:850/1800/1900Mhz WCDMA:1700/1900MHz 量产阶段打印示意供应商打印示意 FCC ID:2ADHZ–MOXEEX1

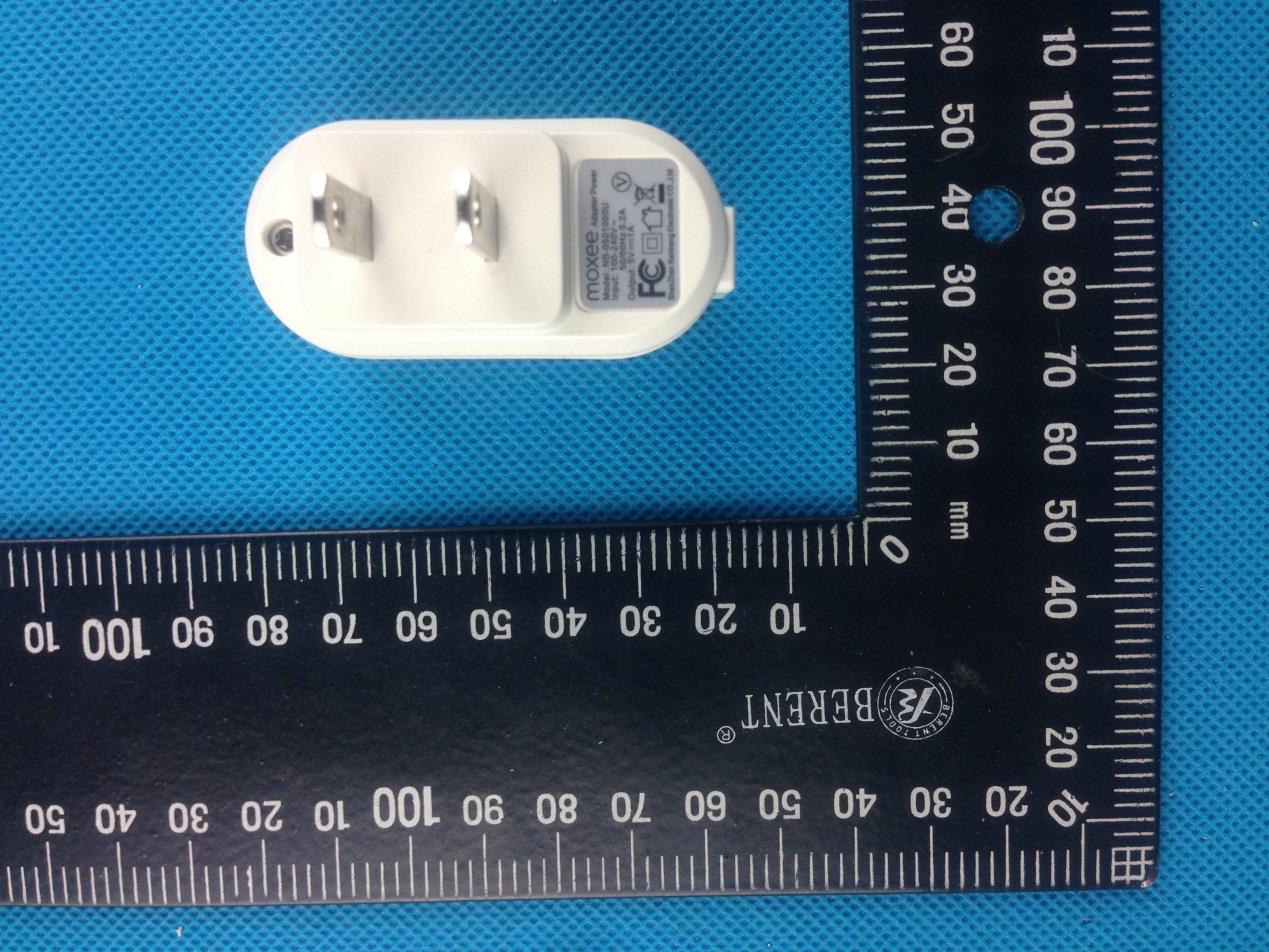

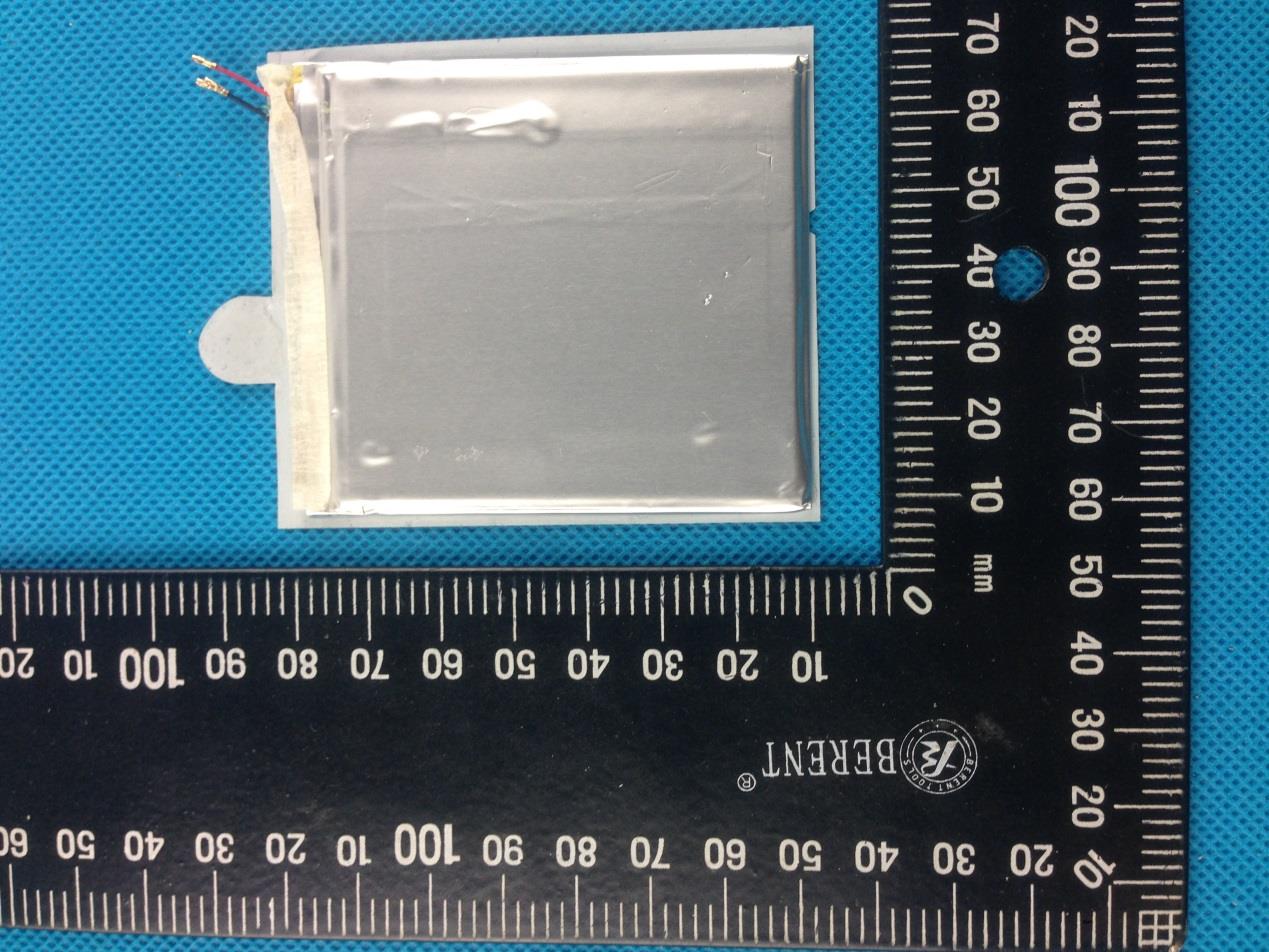

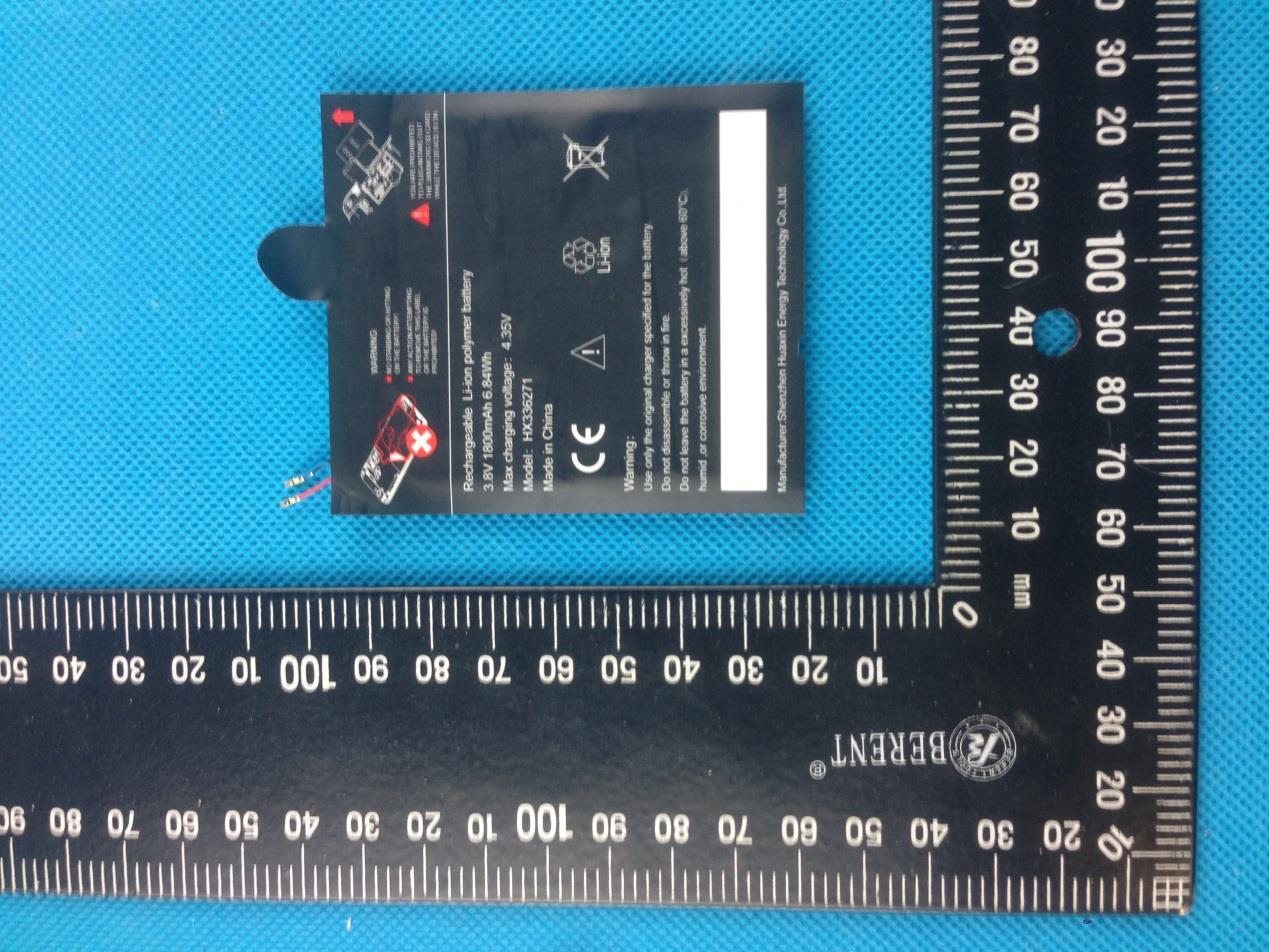

Internal photo charger charger

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I14Z47990-SEM01 For Moxee Technologies WCDMA/GSM ˄GPRS˅Dual-Mode Digital Mobile Phone Model name: X1 With Hardware MBV1.0 Software Version: MOXEE_X1_V1.1 FCC ID: 2ADHZ–MOXEE X1 Issued Date: 2014-12-11 Note: The test results in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No.52, HuayuanNorth Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512,Fax:+86(0)10-62304633-2504 Email:[email protected] , website:www.chinattl.com TESTING CNAS L0570 No. I14Z47990-SEM01 Page 2 of 126 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number RevisionIssue Date Description I14Z47990-SEM01 Rev.0 2014-12-01 Initial creation of test report I14Z47990-SEM01 Rev.1 2014-12-11 Update the Manufacturer Information in section 3.2 on page 7 No. I14Z47990-SEM01 Page 3 of 126 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY ....................................................................................................................5 1.1 TESTING LOCATION........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT................................................................................................................................. 5 1.3 PROJECT DATA............................................................................................................................................... 5 1.4 SIGNATURE..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE ..................................................................................................6 3 CLIENT INFORMATION ................................................................................................................7 3.1 APPLICANT INFORMATION.............................................................................................................................. 7 3.2 MANUFACTURER INFORMATION..................................................................................................................... 7 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) .................................8 4.1 ABOUT EUT ................................................................................................................................................... 8 4.2 INTERNAL IDENTIFICATION OF EUTUSED DURING THE TEST.......................................................................... 8 4.3 INTERNAL IDENTIFICATION OF AEUSED DURING THE TEST............................................................................ 8 5 TEST METHODOLOGY ................................................................................................................9 5.1 APPLICABLE LIMIT REGULATIONS.................................................................................................................. 9 5.2 APPLICABLE MEASUREMENT STANDARDS...................................................................................................... 9 6 SPECIFIC ABSORPTION RATE (SAR)......................................................................................10 6.1 INTRODUCTION............................................................................................................................................. 10 6.2 SAR DEFINITION.......................................................................................................................................... 10 7 TISSUE SIMULATING LIQUIDS .................................................................................................11 7.1 TARGETS FOR TISSUE SIMULATING LIQUID.................................................................................................... 11 7.2 DIELECTRIC PERFORMANCE......................................................................................................................... 11 8 SYSTEM VERIFICATION ............................................................................................................16 8.1 SYSTEM SETUP............................................................................................................................................. 16 8.2 SYSTEM VERIFICATION................................................................................................................................. 17 9 MEASUREMENT PROCEDURES ..............................................................................................18 9.1 TESTS TO BE PERFORMED............................................................................................................................. 18 9.2 GENERAL MEASUREMENT PROCEDURE........................................................................................................ 19 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 20 9.4 BLUETOOTH &WI-FIMEASUREMENT PROCEDURES FOR SAR .................................................................... 21 9.5 POWER DRIFT............................................................................................................................................... 22 10 AREA SCAN BASED 1-G SAR.................................................................................................22 10.1 REQUIREMENT OF KDB.............................................................................................................................. 22 10.2 FAST SAR ALGORITHMS............................................................................................................................ 22 11…

Text truncated - open the document above for the full version.

No. I14Z47990-SEM01 Page 79 of 126 ©Copyright. All rights reserved by CTTL. Picture D.3 Tilt position of the wireless device on the left side of SAM D.2 Body-worn device A typical example of a body-worn device is a mobile phone, wireless enabled PDA or other battery operated wireless device with the ability to transmit while mounted on a person’s body using a carry accessory approved by the wireless device manufacturer. Picture D.4 Test positions for body-worn devices D.3 Desktop device A typical example of a desktop device is a wireless enabled desktop computer placed on a table or desk when used. The DUT shall be positioned at the distance and in the orientation to the phantom that corresponds to the intended use as specified by the manufacturer in the user instructions. For devices that employ an external antenna with variable positions, tests shall be performed for all antenna positions specified. Picture 8.5 show positions for desktop device SAR tests. If the intended use is not specified, the device shall be tested directly against the flat phantom. No. I14Z47990-SEM01 Page 80 of 126 ©Copyright. All rights reserved by CTTL. Picture D.5 Test positions for desktop devices D.4 DUT Setup Photos Picture D.6 No. I14Z47990-SEM01 Page 81 of 126 ©Copyright. All rights reserved by CTTL. ANNEX E Equivalent Media Recipes The liquid used for the frequency range of 800-3000 MHz consisted of water, sugar, salt, preventol, glycol monobutyl and Cellulose. The liquid has been previously proven to be suited for worst-case. The Table E.1 shows the detail solution. It’s satisfying the latest tissue dielectric parameters requirements proposed by the IEEE 1528 and IEC 62209. Table E.1: Composition of the Tissue Equivalent Matter Frequency (MHz) 835 Head 835 Body 1900 Head 1900 Body 2450 Head 2450 Body 5800 Head 5800 Body Ingredients (% by weight) Water 41.45 52.5 55.242 69.91 58.79 72.60 65.53 65.53 Sugar 56.0 45.0 \ \ \ \ \ \ Salt 1.45 1.4 0.306 0.13 0.06 0.18 \ \ Preventol 0.1 0.1 \ \ \ \ \ \ Cellulose 1.0 1.0 \ \ \ \ \ \ Glycol Monobutyl \ \ 44.452 29.96 41.15 27.22 \ \ Diethylenglycol monohexylether \ \ \ \ \ \ 17.24 17.24 Triton X-100 \ \ \ \ \ \ 17.24 17.24 Dielectric Parameters Target Value ε=41.5 σ=0.90 ε=55.2 σ=0.97 ε=40.0 σ=1.40 ε=53.3 σ=1.52 ε=39.2 σ=1.80 ε=52.7 σ=1.95 ε=35.3 σ=5.27 ε=48.2 σ=6.00 Note: There are a little adjustment respectively for 1750 based on the recipe of closest frequency in table E.1. No. I14Z47990-SEM01 Page 82 of 126 ©Copyright. All rights reserved by CTTL. ANNEX F System Validation The SAR system must be validated against its performance specifications before it is deployed. When SAR probes, system components or software are changed, upgraded or recalibrated, these must be validated with the SAR system(s) that operates with such components. Table F.1: System Validation Probe SN. Liquid name Validation date Frequency point Status (OK or Not) 3846 Head 750MHz Mar. 06, 2014 750 MHz OK 3846 Head 850MHz Mar. 06, 2014 850 MHz OK 3846 Head 900MHz Mar. 01, 2014 900 MHz OK 3846 Head 1750MHz Mar. 03, 2014 1750 MHz OK 3846 Head 1810MHz Mar. 03, 2014 1810 MHz OK 3846 Head 1900MHz Mar. 07, 2014 1900 MHz OK 3846 Head 1950MHz Mar. 04, 2014 1950 MHz OK 3846 Head 2000MHz Mar. 04, 2014 2000 MHz OK 3846 Head 2100MHz Mar. 05, 2014 2100 MHz OK 3846 Head 2300MHz Mar. 05, 2014 2300 MHz OK 3846 Head 2450MHz Mar. 02, 2014 2450 MHz OK 3846 Head 2550MHz Mar. 08, 2014 2550 MHz OK 3846 Head 2600MHz Mar. 08, 2014 2600 MHz OK 3846 Head 3500MHz Mar. 09, 2014 3500 MHz OK 3846 Head 3700MHz Mar. 09, 2014 3700 MHz OK 3846 Head 5200MHz Mar. 10, 2014 5200 MHz OK 3846 Head 5500MHz Mar. 10, 2014 5500 MHz OK 3846 Head 5800MHz Mar. 10, 2014 5800 MHz OK 3846 Body 750MHz Mar. 06, 2014 750 MHz OK 3846 Body 850MHz Mar. 06, 2014 850 MHz OK 3846 Body 900MHz Mar. 01, 2014 900 MHz OK 3846 Body 1750MHz Mar. 03, 2014 1750 MHz OK 3846 Body 1810MHz Mar. 03, 2014 1810 MHz OK 3846 Body 1900MHz Mar. 07, 2014 1900 MHz OK 3846 Body 1950MHz Mar. 04, 2014 1950 MHz OK 3846 Body 2000MHz Mar. 04, 2014 2000 MHz OK 3846 Body 2100MHz Mar. 05, 2014 2100 MHz OK 3846 Body 2300MHz Mar. 05, 2014 2300 MHz OK 3846 Body 2450MHz Mar. 02, 2014 2450 MHz OK 3846 Body 2550MHz Mar. 08, 2014 2550 MHz OK 3846 Body 2600MHz Mar. 08, 2014 2600 MHz OK 3846 Body 3500MHz Mar. 09, 2014 3500 MHz OK 3846 Body 3700MHz Mar. 09, 2014 3700 MHz OK 3846 Body 5200MHz Mar. 10, 2014 5200 MHz OK 3846 Body 5500MHz Mar. 10, 2014 5500 MHz OK 3846 Body 5800MHz Mar. 10, 2014 5800 MHz OK No. I14Z47990-SEM01 Page 83 of 126 ©Copyright. All rights reserved by CTTL. ANNEX G Probe Calibration Certificate Probe 3846 Calibration Certificate No. I14Z47990-SEM01 Page 84 of 126 ©Copyright. All rights reserved by CTTL. No. I14Z47990-SEM01 Page 85 of 126 ©Copyright. All rights reserved by CTTL. No. I14Z47990-SEM01 Page 86 of 126 ©Copyright. All rights reserved by CTTL. No. I14Z47990-SEM01 Page 87 of 126 ©Copyright. All rights reserved by CTTL. No. I14Z47990-SEM01 Page 88 of 126 ©Copyright. All rights reserved by CTTL. No. I14Z47990-SEM01 Page 89 of 126 ©Copyright. All rights reserved by CTTL. No. I14Z47990-SEM01 Page 90 of 126 ©Copyright. All rights reserved by CTTL. No. I14Z47990-SEM01 Page 91 of 126 ©Copyright. All rights reserved by CTTL. No. I14Z47990-SEM01 Page 92 of 126 ©Copyright. All rights reserved by CTTL. No. I14Z47990-SEM01 Page 93 of 126 ©Copyright. All rights reserved by CTTL. No. I14Z47990-SEM01 Page 94 of 126 ©Copyright. All rights reserved by CTTL. ANNEX H Dipole Calibration Certificate 835 MHz Dipole Calibration Certificate No. I14Z47990-SEM01 Page 95 of 126 ©Copyright. All rights reserved by CTTL. No. I14Z47990-SEM01 Page 96 of 126 ©Copyright. All rights reserved by CTTL. No. I14Z47990-SEM01 Page 97 of 126 ©Copyright. All rights reserved by CTTL. No. I14Z47990-SEM01 Page 98 of 126 ©Copyright. All rights reserved by CTTL. No. I14Z47990-SEM01 Page 99 of 126 ©Copyright. All rights reserved by CTTL. No. I14Z47990-SEM01 Page 100 of 126 ©Copyright. All rights reserved by C…

Text truncated - open the document above for the full version.

Full TEST REPORT No. I14D00033-RFA For Client : Moxee Technologies Production : WCDMA/GSM（GPRS）Dual-Mode Digital Mobile Phone Model Name : X1 FCC ID: 2ADHZ-MOXEEX1 Hardware Version: MBV1.0 Software Version: MOXEE_X1_V1.1 Issued date: 2014-11-28 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of ECIT Shanghai. Test Laboratory: ECIT Shanghai, East China Institute of Telecommunications Add: 7-8F, G Area, No.668, Beijing East Road, Huangpu District, Shanghai, P. R. China Tel: (+86)-021-63843300, E-Mail: [email protected] RF Test Report Report No.:I14D00033-RFA East China Institute of Telecommunications Page Number : 2of 79 TEL: +86 21 63843300FAX:+86 21 63843301 Report Issued Date :Nov 28 , 2014 Revision Version Report Number Revision Date Memo I14D00033-RFA 00 2014-11-28 Initial creation of test report RF Test Report Report No.:I14D00033-RFA East China Institute of Telecommunications Page Number : 3of 79 TEL: +86 21 63843300FAX:+86 21 63843301 Report Issued Date :Nov 28 , 2014 CONTENTS 1. TEST LABORATORY ............................................................................................................... 5 1.1. TESTING LOCATION ............................................................................................................... 5 1.2. TESTING ENVIRONMENT ....................................................................................................... 5 1.3. PROJECT DATA ....................................................................................................................... 5 1.4. SIGNATURE ............................................................................................................................. 5 2. CLIENT INFORMATION ........................................................................................................... 5 2.1. APPLICANT INFORMATION ................................................................................................... 6 2.2. MANUFACTURER INFORMATION ......................................................................................... 6 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 7 3.1. ABOUT EUT ............................................................................................................................. 7 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ....................................... 7 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ......................................... 7 3.4. STATEMENTS........................................................................................................................... 7 4. REFERENCE DOCUMENTS .................................................................................................... 8 4.1. REFERENCE DOCUMENTS FOR TESTING .......................................................................... 8 5. SUMMARY OF TEST RESULTS .............................................................................................. 9 6. TEST EQUIPMENTS UTILIZED ............................................................................................. 10 7. TEST ENVIRONMENT ........................................................................................................... 12 ANNEX A. MEASUREMENT RESULTS .................................................................................... 14 ANNEX A.1. OUTPUT POWER (§22.913(A)/§24.232(C)) ........................................................... 14 ANNEX A.2. 99%OCCUPIED BANDWIDTH (§2.1049(H)(I)) ....................................................... 16 ANNEX A.3. -26DB EMISSION BANDWIDTH(§22.917(B)/§24.238(B)) ..................................... 29 ANNEX A.4. BAND EDGE AT ANTENNA TERMINALS(§22.917(B)/§24.238(B)) ...................... 40 ANNEX A.5. FREQUENCY STABILITY (§2.1055/§24.235) ......................................................... 47 ANNEX A.6. CONDUCTED SPURIOUS EMISSION .....…

Text truncated - open the document above for the full version.
