2ADHZ-MOXEEX10LTE digital mobile phone

MOXEE X10 Quick Start Guide - 2 - INTRODUCTION Thanks for choosing X10, Dual Sims Android smart phone based on 1.5 GHz Quad-Core Processor. This smart phone is running on Android OS, v4.4. If you’d like your phone to live a long and fruitful life, please read this guide carefully and keep it for future reference. You never know when you might need it. And don’t worry if the pictures we use to demonstrate your phone’s functions look a little different from what you see on its screen. It’s the functions that matter. * The Manufacturer reserves the right for the changes in the manual without advanced notice. - 3 - Safety Safety Precautions Please read through the following briefings carefully, and act in accordance with these rules, so as to prevent causing any danger or violating any law. Information about the meaning of Logo WEEE (Waste Electrical and Electronic Equipment): The WEEE logo on the product or on its box indicates that this product must not be disposed of or dumped with your other household waste. You are liable to dispose of all your electronic or electrical waste equipment by relocating over to the specified collection point for recycling of such hazardous waste. Isolated collection and proper recovery of your electronic and electrical waste equipment at the time of disposal will allow us to help conserving natural resources. Moreover, proper recycling of the electronic and electrical waste equipment will ensure safety of human health and environment. Caution: risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. Using your phone safely On The Road Using a phone while driving is illegal in many countries. Please follow local laws and drive safely at all times. Near Sensitive Electronics Don’t use your phone near sensitive electronic equipment – - 4 - particularly medical devices such as pacemakers – as it could cause them to malfunction. It can also interfere with the operation of fire detectors and other automatic-control equipment. For more information about how your phone affects pacemakers or other electronic equipment, please contact the manufacturer or your local distributor. Your phone may cause interference when used near TVs, radios or automated office equipment. While Flying Your phone can cause interference with aircraft equipment. So it’s essential you follow airline regulations. And if airline personnel ask you to switch off your phone, or disable its wireless functions, please do as they say. In Hospital Your phone may interfere with the normal operation of medical equipment. Follow all hospital regulations and turn it off when you’re asked to by posted warnings or medical staff. At a Petrol Station Don’t use your phone at petrol stations. In fact, it’s always best to switch off whenever you’re near fuels, chemicals or explosives. Around Water Keep your phone away from water (or any other liquid). It’s not a waterproof model. Making Repairs Never take your phone apart. Please leave that to the professionals. Unauthorized repairs could break the terms of your warranty. Broken Antenna Don’t use your phone if the antenna is damaged, as it could cause injury. Around Children - 5 - Keep your mobile out of children’s reach. It should never be used as a toy and it might not be good for their health. Original Accessories Only use the original accessories supplied with your phone or those approved by the manufacturer. Using unapproved accessories may affect performance, make the warranty void, break national regulations on the use of mobile phones, or even cause injury. Near Explosives Turn off your phone in or near areas where explosive materials are used. Always obey local laws and turn off your phone when requested. Emergency Calls To make an emergency call your phone must be turned on and in an area where there’s network coverage. Dial the national emergency number and press ‘send’. Explain exactly where you are and don’t hang up until help has arrived. Working Temperature The working temperature for the phone is between 0 Degree and 40 Degree Celsius. Please don’t use the phone outside the range. Using the phone under too high or too low temperature might cause problems. To prevent possible hearing damage, do not listen at high volume levels for long periods. FCC Compliance This device complies with part 15 of the FCC Rules. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Operation is subject to the condition that this device does not cause harmful interference. - 6 - Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an expe…

Text truncated - open the document above for the full version.

THIS MUST BE SIGNED BY TFIE APPLICANT/AGENT AND PLACED ON APPROPRIATE_TPTTPN}IEAO Request for Confidentiality Date: 2015_01_23 Subject: Confi dentiality Request for: 2ADHZ_MOXEEXI0 i,n::lU""g,Lt"rt"H: fl:iJ?"1?|o3"1,'u? and IC RSP-r 00, section r 0, the appricant requests that a parr orthe ,__^,TyprofConfidentpli:r-Requested Exhibir L_J Short Term I Fermanent Slock Diagrams ! Short Term Extemal photos Internal photos Operation Description/Theory of Operation pafts List & placementiBoM Tune_Up procedure Schematics Test Setup photos *Note: User's Manual Moxee Technologies industry. uauingTtre this product and it is one of the first of its kind in achieved by dev-eropi H;'J[|;J"#ff iJ,Tnr;f#Iffij:.G;; Permanent Confi dentialitv: The applicant requests tfre extriOits listed abo review'due,o,ul.,iul that contain,;";;,;l;::ffil3i,",:iff?lflxiljifl"r:ffffiilHlnl,'3?3;,jrTffir,fi. |IOTE for Industry Canada Apptications: 3:#331ffii1il[1,T:1",1**'J*:::3,",fl:'11]. distingu.ishes erween short rerm and permanenr conndentiaritr,qither tvpe of marked ;;tbt,;#;;iii.#;,rt"J':iffit:1i1.,;:#;ill:ffifi'[:: . ,.. Vc Phillips, Mr. Joseph (Print name) SHOULD BE (Signature/Titlea) for complete 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been ptoui"d.d. Letters should be placed on appropriate letterhead. 022311_6

THIS MUST BE SIGNED BY APPLICANTS LETTERFIEAD Date: 2015-l-23 American Certification Body, Inc. 6731 Whittier Avenue Suite C1l0 Mclean, V A 22101 To Whom It May Concern: TI{E APPLICANT AND SHOULD BE PLACED ON ONLY IF AGENT IS SUBMITTING APPLICATIOI.{ is authorized to act on our behalf, until ody, [nc. (ACB). I of federal benefits, that includes FCC benefits, pursuant to of 1988, 21 U.S.C. g62. Further, no party,as defined in 47 ct to denial of federal benefits, that incluies FCC benefits. Thank you, Agency By: Title: On behalf of: Telephone: 12 months (Print name) Phillips, Mr. Joseph Certification Manager Moxee Technologies (Company Name) (42s)890-7897 I - Must be signed by app-licant contact given for applicant on the FCC site, or by the author ized, agentif an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. 022311-6 t China Insti otherwise notified.

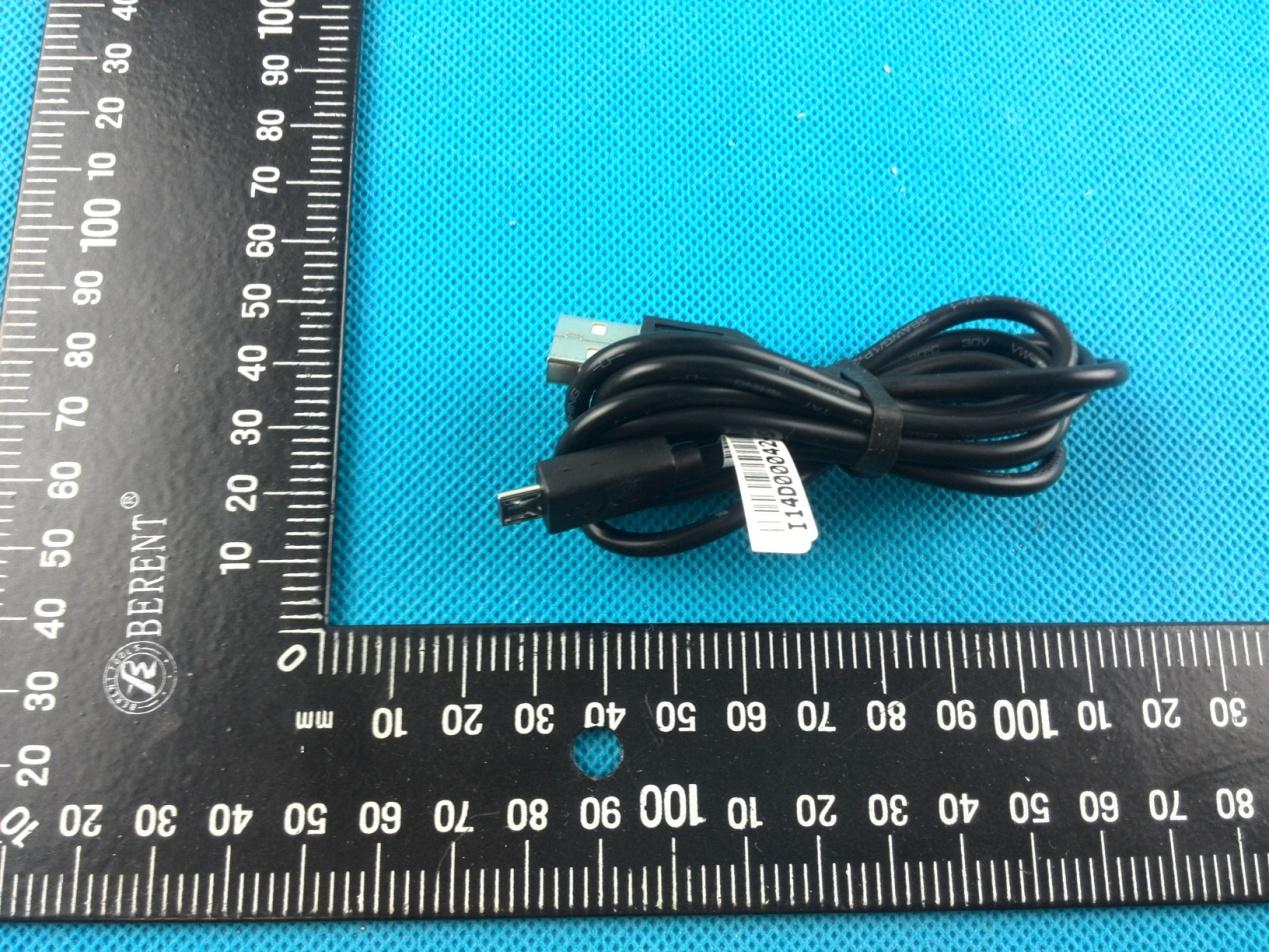

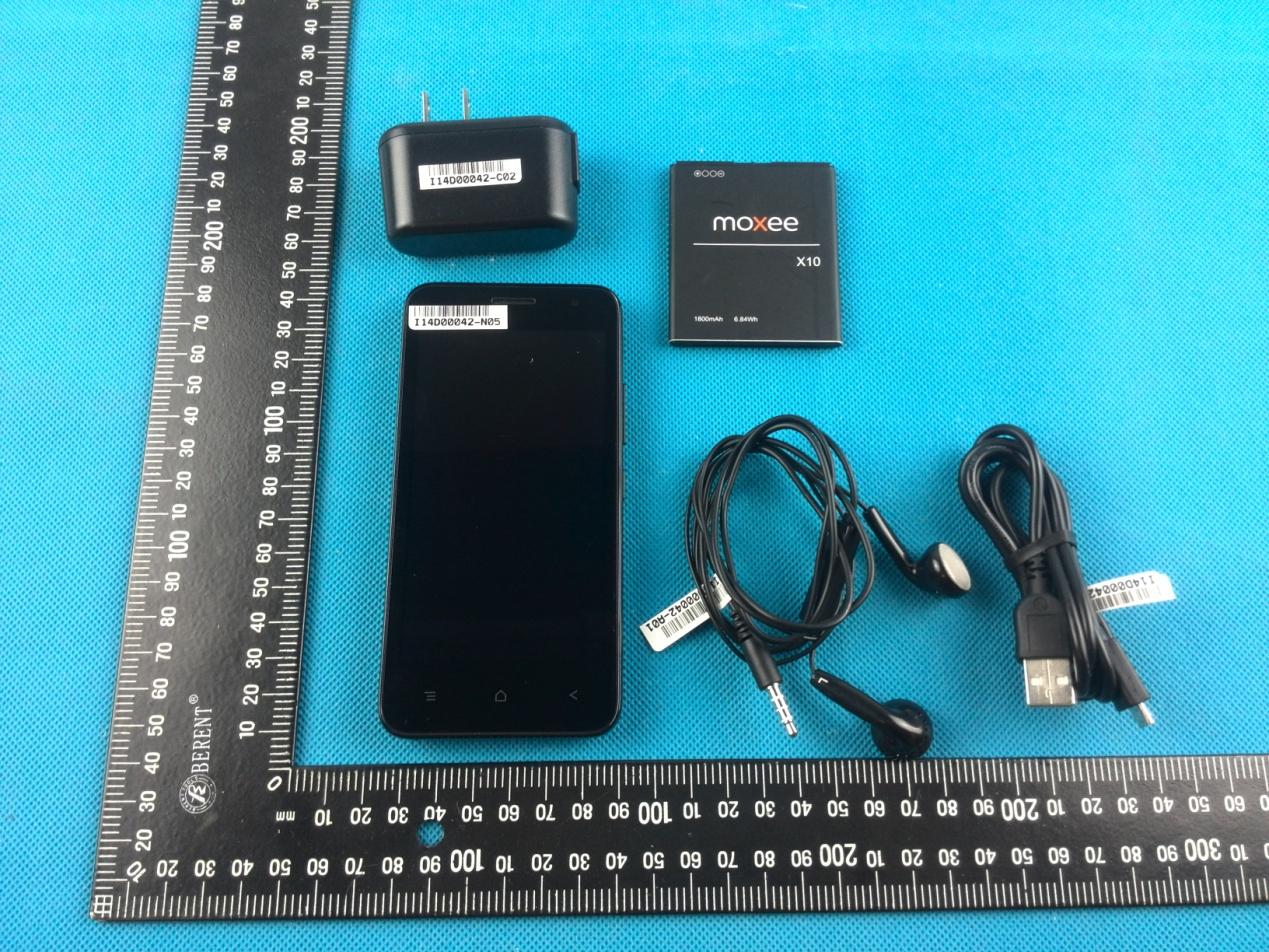

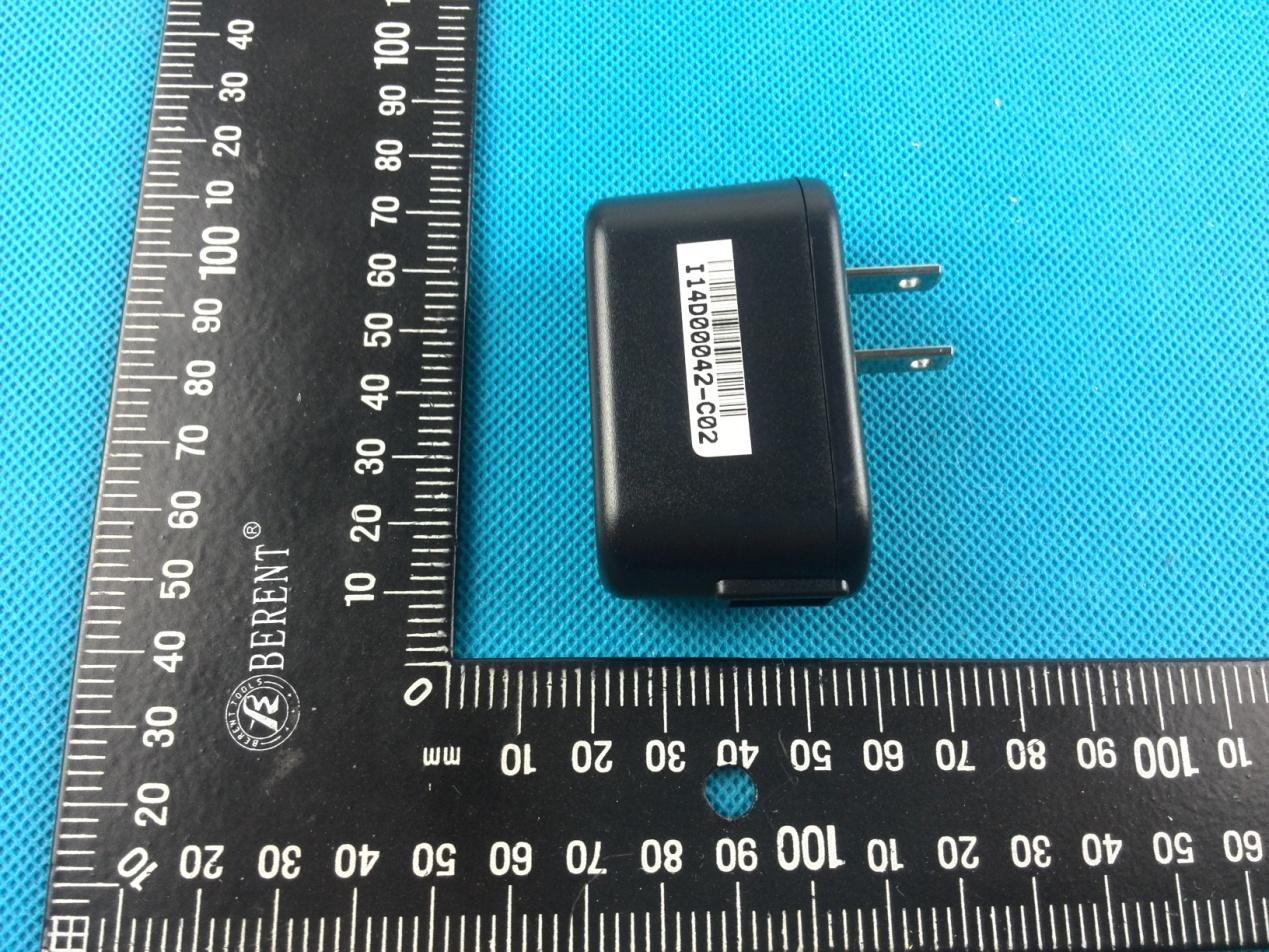

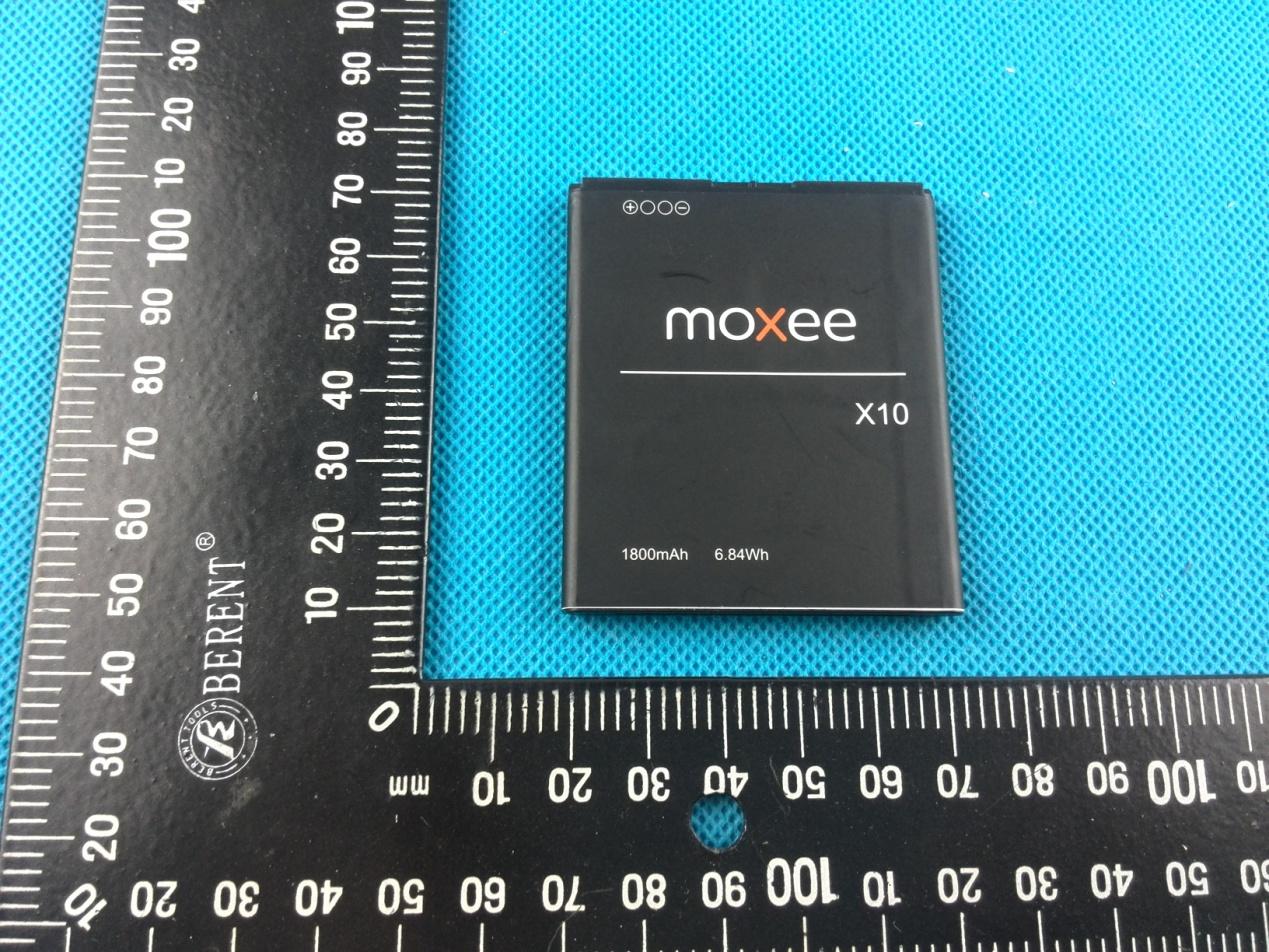

External photo Mobile Phone Mobile phone Mobile phone Mobile phone Mobile phone Mobile phone Battery Battery USB Cable Earphone Charger Charger

IMEI-1:123456789012345 IMEI-2:123456789012345 ` ` FCC ID:XXXXXXXXXXXXXXXX MADE IN CHINA MODEL:X10 COLOR:Black GSM:850/900/1800/1900Mhz WCDMA:850/1900/1700MHz FDD-LTE:735/1900/2100MHz ` ` 材质：50#合成纸，过哑胶. 尺寸：53.90X62.75mm 工艺：一色印刷。 公差：±0.1mm 量产阶段打印示意供应商打印示意

Internal Photo Mobile phone Mobile phone Mobile phone Mobile phone Mobile phone Mobile phone Charger Charger

©Copyright. All rights reserved by CTTL. SAR TEST REPORT No. I14Z48837-SEM01 For Moxee Technologies LTE Digital Mobile Phone Modelname: X10 With Hardware Version: S10 Software Version: MOXEE_X10_V1.0 FCC ID: 2ADHZ–MOXEEX10 Issued Date: 2015 -01-23 Note: The test results in this test report relate only to the devices specified in this report.This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, Academy of Telecommunication Research, MIIT No. 51 Shouxiang Science Building, Xueyuan Road, Haidian District, Beijing, P. R. China100191 Tel :+86(0)10-62304633 -2512,Fax:+86(0)10-62304633 -2504 Email:cttl_terminals@catr .cn, website:www.chinattl.com TESTING CNAS L0570 No.I14Z48837-SEM01 Page 2 of 172 ©Copyright. All rights reserved by CTTL. REPORT HISTORY Report Number Revision Issue Date Description I14Z48837-SEM01 Rev.0 2015-01-23 Initial creation of test report No.I14Z48837-SEM01 Page 3 of 172 ©Copyright. All rights reserved by CTTL. TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 5 1.1 TESTING LOCATION ........................................................................................................................................ 5 1.2 TESTING ENVIRONMENT ................................................................................................................................. 5 1.3 PROJECT DATA ............................................................................................................................................... 5 1.4 SIGNATURE ..................................................................................................................................................... 5 2 STATEMENT OF COMPLIANCE .................................................................................................. 6 3 CL IENT INFORMATION ................................................................................................................ 8 3.1 APPLICANT INFORMATION .............................................................................................................................. 8 3.2 MANUFACTURER INFORMATION ..................................................................................................................... 8 4 EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ................................. 9 4.1 ABOUT EUT ................................ ................................................................................................................... 9 4.2 INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST .......................................................................... 9 4.3 INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ............................................................................ 9 5 TEST METHODOLOGY .............................................................................................................. 10 5.1 APPLICABLE LIMIT REGULATIONS ................................................................................................................ 10 5.2 APPLICABLE MEASUREMENT STANDARDS .................................................................................................... 10 6 SPECIFIC ABSORPTION RATE (SAR) ...................................................................................... 11 6.1 INTRODUCTION ............................................................................................................................................. 11 6.2 SAR DEFINITION .......................................................................................................................................... 11 7 TISSUE SIMULATING LIQUIDS ................................................................................................. 12 7.1 TARGETS FOR TISSUE SIMULATING LIQUID .................................................................................................... 12 7.2 DIELECTRIC PERFORMANCE ......................................................................................................................... 12 8 SYSTEM VERIFICATION ............................................................................................................ 18 8.1 SYSTEM SETUP ............................................................................................................................................. 18 8.2 SYSTEM VERIFICATION ................................................................................................................................. 19 9 ME ASUREMENT PROCEDURES .............................................................................................. 20 9.1 TESTS TO BE PERFORMED ............................................................................................................................. 20 9.2 GENERAL MEASUREMENT PROCEDURE ........................................................................................................ 21 9.3 WCDMA MEASUREMENT PROCEDURES FOR SAR ...................................................................................... 22 9.4 SAR MEASUREMENT FOR LTE ..................................................................................................................... 23 9.5 BLUETOOTH & WI-FI MEASUREMENT PROCEDURES FOR SAR .................................................................... 24 9.6 POWER DRIFT ............................................................................................................................................... 24 10 AREA SCAN BASED 1-G SAR ................................................................................................. 25 10.1 REQUIREMENT OF KDB .............................................................................................................................. 25 10.2 FAST SAR ALGORITHMS .............................…

Text truncated - open the document above for the full version.

No.I14Z48837-SEM01 Page 58 of 172 ©Copyright. All rights reserved by CTTL. 16 Measurement Uncertainty 16.1 Measurement Uncertainty for Normal SAR Tests (300MHz~3GHz) No. Error Description Type Uncertainty value Probably Distribution Div. (Ci) 1g (Ci) 10g Std. Unc. (1g) Std. Unc. (10g) Degree of freedo m Measurement system 1 Probe calibration B 5.5 N 1 1 1 5.5 5.5 ∞ 2 Isotropy B 4.7 R 3 0.7 0.7 1.9 1.9 ∞ 3 Boundary effect B 1.0 R 3 1 1 0.6 0.6 ∞ 4 Linearity B 4.7 R 3 1 1 2.7 2.7 ∞ 5 Detection limit B 1.0 R 3 1 1 0.6 0.6 ∞ 6 Readout electronics B 0.3 R 3 1 1 0.3 0.3 ∞ 7 Response time B 0.8 R 3 1 1 0.5 0.5 ∞ 8 Integration time B 2.6 R 3 1 1 1.5 1.5 ∞ 9 RF ambient conditions-noise B 0 R 3 1 1 0 0 ∞ 10 RFambient conditions-reflection B 0 R 3 1 1 0 0 ∞ 11 Probe positioned mech. restrictions B 0.4 R 3 1 1 0.2 0.2 ∞ 12 Probe positioning with respect to phantom shell B 2.9 R 3 1 1 1.7 1.7 ∞ 13 Post-processing B 1.0 R 3 1 1 0.6 0.6 ∞ Test sample related 14 Test sample positioning A 3.3 N 1 1 1 3.3 3.3 71 15 Device holder uncertainty A 3.4 N 1 1 1 3.4 3.4 5 16 Drift of output power B 5.0 R 3 1 1 2.9 2.9 ∞ Phantom and set-up 17 Phantom uncertainty B 4.0 R 3 1 1 2.3 2.3 ∞ 18 Liquid conductivity (target) B 5.0 R 3 0.64 0.43 1.8 1.2 ∞ 19 Liquid conductivity (meas.) A 2.06 N 1 0.64 0.43 1.32 0.89 43 20 Liquid permittivity (target) B 5.0 R 3 0.6 0.49 1.7 1.4 ∞ 21 Liquid permittivity (meas.) A 1.6 N 1 0.6 0.49 1.0 0.8 521 No.I14Z48837-SEM01 Page 59 of 172 ©Copyright. All rights reserved by CTTL. Combined standard uncertainty    21 1 22' i iic ucu 9.25 9.12 257 Expanded uncertainty (confidence interval of 95 %) ce uu2 18.5 18.2 16.2 Measurement Uncertainty for Normal SAR Tests (3~6GHz) No. Error Description Type Uncertainty value Probably Distribution Div. (Ci) 1g (Ci) 10g Std. Unc. (1g) Std. Unc. (10g) Degree of freedo m Measurement system 1 Probe calibration B 6.5 N 1 1 1 6.5 6.5 ∞ 2 Isotropy B 4.7 R 3 0.7 0.7 1.9 1.9 ∞ 3 Boundary effect B 2.0 R 3 1 1 1.2 1.2 ∞ 4 Linearity B 4.7 R 3 1 1 2.7 2.7 ∞ 5 Detection limit B 1.0 R 3 1 1 0.6 0.6 ∞ 6 Readout electronics B 0.3 R 3 1 1 0.3 0.3 ∞ 7 Response time B 0.8 R 3 1 1 0.5 0.5 ∞ 8 Integration time B 2.6 R 3 1 1 1.5 1.5 ∞ 9 RF ambient conditions-noise B 0 R 3 1 1 0 0 ∞ 10 RFambient conditions-reflection B 0 R 3 1 1 0 0 ∞ 11 Probe positioned mech. restrictions B 0.8 R 3 1 1 0.5 0.5 ∞ 12 Probe positioning with respect to phantom shell B 6.7 R 3 1 1 3.9 3.9 ∞ 13 Post-processing B 4.0 R 3 1 1 2.3 2.3 ∞ Test sample related 14 Test sample positioning A 3.3 N 1 1 1 3.3 3.3 71 15 Device holder uncertainty A 3.4 N 1 1 1 3.4 3.4 5 16 Drift of output power B 5.0 R 3 1 1 2.9 2.9 ∞ Phantom and set-up 17 Phantom uncertainty B 4.0 R 3 1 1 2.3 2.3 ∞ 18 Liquid conductivity (target) B 5.0 R 3 0.64 0.43 1.8 1.2 ∞ 19 Liquid conductivity (meas.) A 2.06 N 1 0.64 0.43 1.32 0.89 43 No.I14Z48837-SEM01 Page 60 of 172 ©Copyright. All rights reserved by CTTL. 20 Liquid permittivity (target) B 5.0 R 3 0.6 0.49 1.7 1.4 ∞ 21 Liquid permittivity (meas.) A 1.6 N 1 0.6 0.49 1.0 0.8 521 Combined standard uncertainty    21 1 22' i iic ucu 10.8 10.7 257 Expanded uncertainty (confidence interval of 95 %) ce uu2 21.6 21.4 16.3 Measurement Uncertainty for Fast SAR Tests (300MHz~3GHz) No. Error Description Type Uncertainty value Probably Distribution Div. (Ci) 1g (Ci) 10g Std. Unc. (1g) Std. Unc. (10g) Degree of freedo m Measurement system 1 Probe calibration B 5.5 N 1 1 1 5.5 5.5 ∞ 2 Isotropy B 4.7 R 3 0.7 0.7 1.9 1.9 ∞ 3 Boundary effect B 1.0 R 3 1 1 0.6 0.6 ∞ 4 Linearity B 4.7 R 3 1 1 2.7 2.7 ∞ 5 Detection limit B 1.0 R 3 1 1 0.6 0.6 ∞ 6 Readout electronics B 0.3 R 3 1 1 0.3 0.3 ∞ 7 Response time B 0.8 R 3 1 1 0.5 0.5 ∞ 8 Integration time B 2.6 R 3 1 1 1.5 1.5 ∞ 9 RF ambient conditions-noise B 0 R 3 1 1 0 0 ∞ 10 RFambient conditions-reflection B 0 R 3 1 1 0 0 ∞ 11 Probe positioned mech. Restrictions B 0.4 R 3 1 1 0.2 0.2 ∞ 12 Probe positioning with respect to phantom shell B 2.9 R 3 1 1 1.7 1.7 ∞ 13 Post-processing B 1.0 R 3 1 1 0.6 0.6 ∞ 14 Fast SAR z-Approximation B 7.0 R 3 1 1 4.0 4.0 ∞ Test sample related 15 Test sample positioning A 3.3 N 1 1 1 3.3 3.3 71 16 Device holder uncertainty A 3.4 N 1 1 1 3.4 3.4 5 17 Drift of output power B 5.0 R 3 1 1 2.9 2.9 ∞ No.I14Z48837-SEM01 Page 61 of 172 ©Copyright. All rights reserved by CTTL. Phantom and set-up 18 Phantom uncertainty B 4.0 R 3 1 1 2.3 2.3 ∞ 19 Liquid conductivity (target) B 5.0 R 3 0.64 0.43 1.8 1.2 ∞ 20 Liquid conductivity (meas.) A 2.06 N 1 0.64 0.43 1.32 0.89 43 21 Liquid permittivity (target) B 5.0 R 3 0.6 0.49 1.7 1.4 ∞ 22 Liquid permittivity (meas.) A 1.6 N 1 0.6 0.49 1.0 0.8 521 Combined standard uncertainty    22 1 22' i iic ucu 10.1 9.95 257 Expanded uncertainty (confidence interval of 95 %) ce uu2 20.2 19.9 16.4 Measurement Uncertainty for Fast SAR Tests (3~6GHz) No. Error Description Type Uncertainty value Probably Distribution Div. (Ci) 1g (Ci) 10g Std. Unc. (1g) Std. Unc. (10g) Degree of freedo m Measurement system 1 Probe calibration B 6.5 N 1 1 1 6.5 6.5 ∞ 2 Isotropy B 4.7 R 3 0.7 0.7 1.9 1.9 ∞ 3 Boundary effect B 2.0 R 3 1 1 1.2 1.2 ∞ 4 Linearity B 4.7 R 3 1 1 2.7 2.7 ∞ 5 Detection limit B 1.0 R 3 1 1 0.6 0.6 ∞ 6 Readout electronics B 0.3 R 3 1 1 0.3 0.3 ∞ 7 Response time B 0.8 R 3 1 1 0.5 0.5 ∞ 8 Integration time B 2.6 R 3 1 1 1.5 1.5 ∞ 9 RF ambient conditions-noise B 0 R 3 1 1 0 0 ∞ 10 RFambient conditions-reflection B 0 R 3 1 1 0 0 ∞ 11 Probe positioned mech. Restrictions B 0.8 R 3 1 1 0.5 0.5 ∞ 12 Probe positioning with respect to phantom shell B 6.7 R 3 1 1 3.9 3.9 ∞ 13 Post-processing B 1.0 R 3 1 1 0.6 0.6 ∞ 14 Fast SAR z-Approximation B 14.0 R 3 1 1 8.1 8.1 ∞ Test sample related No.I14Z48837-SEM01 Page 62 of 172 ©Copyright. All rights reserved by CTTL. 15 Test sample positioning A 3.3 N 1 1 1 3.3 3.3 71 16 Device holder uncertainty A 3.4 N 1 1 1 3.4 3.4 5 17 Drift of output power B 5.0 R 3 1 1 2.9 2.9 ∞ Phantom and set-up 18 Phantom uncertainty B 4.0 R 3 1 1 2.3 2.3 ∞ 19 Liquid conductivity (target) B 5.0 R…

Text truncated - open the document above for the full version.

No.I14Z48837-SEM01 Page 157 of 172 ©Copyright. All rights reserved by CTTL. No.I14Z48837-SEM01 Page 158 of 172 ©Copyright. All rights reserved by CTTL. No.I14Z48837-SEM01 Page 159 of 172 ©Copyright. All rights reserved by CTTL. No.I14Z48837-SEM01 Page 160 of 172 ©Copyright. All rights reserved by CTTL. No.I14Z48837-SEM01 Page 161 of 172 ©Copyright. All rights reserved by CTTL. No.I14Z48837-SEM01 Page 162 of 172 ©Copyright. All rights reserved by CTTL. No.I14Z48837-SEM01 Page 163 of 172 ©Copyright. All rights reserved by CTTL. No.I14Z48837-SEM01 Page 164 of 172 ©Copyright. All rights reserved by CTTL. 2450 MHz Dipole Calibration Certificate No.I14Z48837-SEM01 Page 165 of 172 ©Copyright. All rights reserved by CTTL. No.I14Z48837-SEM01 Page 166 of 172 ©Copyright. All rights reserved by CTTL. No.I14Z48837-SEM01 Page 167 of 172 ©Copyright. All rights reserved by CTTL. No.I14Z48837-SEM01 Page 168 of 172 ©Copyright. All rights reserved by CTTL. No.I14Z48837-SEM01 Page 169 of 172 ©Copyright. All rights reserved by CTTL. No.I14Z48837-SEM01 Page 170 of 172 ©Copyright. All rights reserved by CTTL. No.I14Z48837-SEM01 Page 171 of 172 ©Copyright. All rights reserved by CTTL. No.I14Z48837-SEM01 Page 172 of 172 ©Copyright. All rights reserved by CTTL. ANNEX I Accreditation Certificate

Full TEST REPORT No. I14D00042-RFA For Client : Moxee Technologies Production : LTE digital mobile phone Model Name : X10 FCC ID: 2ADHZ–MOXEEX10 Hardware Version: S10 Software Version: MOXEE_X10_V1.0 Issued date: 2015-01-29 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of ECIT Shanghai. Test Laboratory: ECIT Shanghai, East China Institute of Telecommunications Add: 7-8F, G Area, No.668, Beijing East Road, Huangpu District, Shanghai, P. R. China Tel: (+86)-021-63843300, E-Mail: [email protected] RF Test Report Report No.: I14D00042-RFA East China Institute of Telecommunications Page Number : 2 of 102 TEL: +86 21 63843300 FAX: +86 21 63843301 Report Issued Date : Jan.29, 2015 Revision Version Report Number Revision Date Memo I14D00042-RFA 00 2014-12-24 Initial creation of test report I14D00042-RFA 01 2015-01-29 Second creation of test report RF Test Report Report No.: I14D00042-RFA East China Institute of Telecommunications Page Number : 3 of 102 TEL: +86 21 63843300 FAX: +86 21 63843301 Report Issued Date : Jan.29, 2015 CONTENTS 1. TEST LABORATORY .............................................................................................................. 5 1.1. TESTING LOCATION .............................................................................................................. 5 1.2. TESTING ENVIRONMENT ...................................................................................................... 5 1.3. PROJECT DATA ..................................................................................................................... 5 1.4. SIGNATURE ............................................................................................................................ 5 2. CLIENT INFORMATION .......................................................................................................... 6 2.1. APPLICANT INFORMATION .................................................................................................. 6 2.2. MANUFACTURER INFORMATION ........................................................................................ 6 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 7 3.1. ABOUT EUT ............................................................................................................................ 7 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ....................................... 7 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ......................................... 7 3.4. STATEMENTS ......................................................................................................................... 7 4. REFERENCE DOCUMENTS .................................................................................................. 8 4.1. REFERENCE DOCUMENTS FOR TESTING ......................................................................... 8 5. SUMMARY OF TEST RESULTS ............................................................................................. 9 6. TEST EQUIPMENTS UTILIZED ............................................................................................ 10 7. TEST ENVIRONMENT .......................................................................................................... 12 ANNEX A. MEASUREMENT RESULTS ................................................................................... 14 ANNEX A.1. OUTPUT POWER ................................................................................................... 14 ANNEX A.2. PEAK-TO-AVERAGE POWER RATIO ................................................................... 17 ANNEX A.3. OCCUPIED BANDWIDTH ...................................................................................... 19 ANNEX A.4. -26DB EMISSION BANDWIDTH ............................................................................ 36 ANNEX A.5. BAND EDGE AT ANTENNA TERMINALS ............................................................. 54 ANNEX A.6. FREQUENCY STABILITY ....................................................................................... 64 RF Test Report Report No.: I14D00042-RFA East China Institute of Telecommunications Page Number : 4 of 102 TEL: +86 21 63843300 FAX: +86 21 63843301 Report Issued Date : Jan.29, 2015 ANNEX A.7. CONDUCTED SPURIOUS EMISSION ................................................................... 70 ANNEX A.8. RADIATED .............................................................................................................. 88 ANNEX B. DEVIATIONS FROM PRESCRIBED TEST METHODS ........................................ 102 RF Test Report Report No.: I14D00042-RFA East China Institute of Telecommunications Page Number : 5 of 102 TEL: +86 21 63843300 FAX: +86 21 63843301 Report Issued Date : Jan.29, 2015 1. Test Laboratory 1.1. Testing Location Company Name: ECIT Shanghai, East China Institute of Telecommunications Address: 7-8F, G Area, No. 668, Beijing East Road, Huangpu District, Shanghai, P. R. China Postal Code: 200001 Telephone: (+86)-021-63843300 Fax: (+86)-021-63843301 FCC Registration NO.: 489729 1.2. Testing Environment Normal Temperature: 15-35°C Extreme Temperature: -10/+55°C Relative Humidity: 30-60% 1.3. Project data Project Leader: Wang Yaqiong Testing Start Date: 2014-11-20 Testing End Date: 2014-12-12 1.4. Signature Wang Daming (Prepared this test report) Liu Jianquan (Reviewed this test report) Zheng Zhongbin Director of the laboratory (Approved this test report) RF Test Report Report No.: I14D00042-RFA East China Institute of Telecommunications Page Number : 6 of 102 TEL: +86 21 63843300 FAX: +86 21 63843301 Report Issued Date : Jan.29, 2015 2. Client Information 2.1. Applicant Information Company Name: Moxee Technologies Address: 10900 NE 8th Street, #1000 Telephone: Joe Phillips Postcode: 98004 2.2. Manufacturer Information…
