2ADLSWLSK-W314001Wall Socket-Outlet

Rev 11/20/07 Nanjing IOT Sensor Technology Co.,Ltd NO.12, Mozhou East Road, Nanjing, PRC. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ADLSWLSK- W314001 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics 2ADLSWLSK-W314001_FCCID_Schematics Block Diagram 2ADLSWLSK-W314001_FCCID_BlockDiagram Operational Description 2ADLSWLSK-W314001_FCCID_OperationalDescription The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name External Photos 2ADLSWLSK-W314001_FCCID_ExternalPhotos Test Setup Photos 2ADLSWLSK-W314001_FCCID_TestSetupPhotos Internal Photos 2ADLSWLSK-W314001_FCCID_InternalPhotos Users Manuals 2ADLSWLSK-W314001_FCCID_UsersManuals Sincerely, Nanjing IOT Sensor Technology Co., Ltd. (Eaton Wang) (Certification engineer)

Nanjing IOT Sensor Technology Co.,Ltd NO.12, Mozhou East Road, Nanjing, PRC. -------------------------------------------------------------------------------- (FCC ID：2ADLSWLSK-W314001) POWER OF ATTORNEY DATE: 2014-12-18 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen SEM.Test Technology Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen SEM.Test Technology Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Nanjing IOT Sensor Technology Co.,Ltd, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Nanjing IOT Sensor Technology Co., Ltd. ------------------------- (Eaton Wang) (Certification engineer)

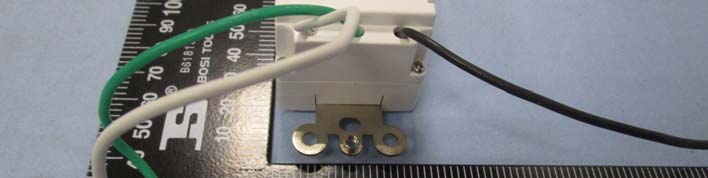

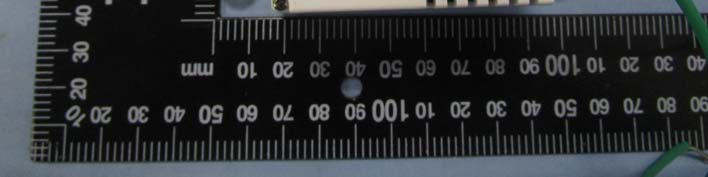

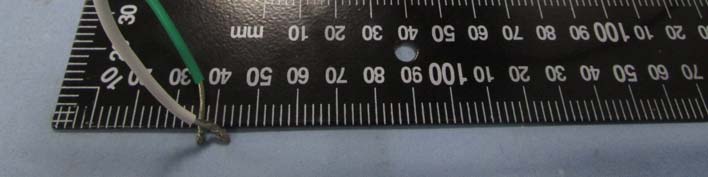

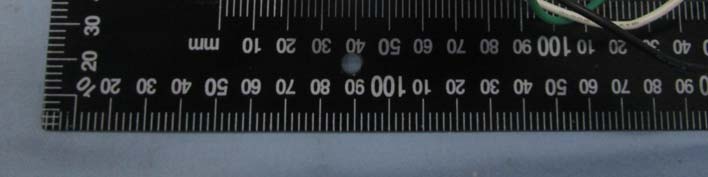

Nanjing IOT Sensor Technology Co., Ltd. Model: WL-ZSKWNPW-W3140-01 REPORT NO.: STRD14118099I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Nanjing IOT Sensor Technology Co., Ltd. Model: WL-ZSKWNPW-W3140-01 REPORT NO.: STRD14118099I FCC PART 15.247 EUT View 3 EUT View 4 Nanjing IOT Sensor Technology Co., Ltd. Model: WL-ZSKWNPW-W3140-01 REPORT NO.: STRD14118099I FCC PART 15.247 EUT View 5 EUT View 6

Nanjing IOT Sensor Technology Co., Ltd. Model: WL-ZSKWNPW-W3140-01 REPORT NO.: STRD14118099I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ADLSWLSK-W314001 Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location (Rear of EUT)

Nanjing IOT Sensor Technology Co., Ltd. Model: WL-ZSKWNPW-W3140-01 REPORT NO.: STRD14118099I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ADLSWLSK-W314001 Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location (Rear of EUT)

Nanjing IOT Sensor Technology Co., Ltd. Model: WL-ZSKWNPW-W3140-01 REPORT NO.: STRD14118099I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Zigbee Antenna Nanjing IOT Sensor Technology Co., Ltd. Model: WL-ZSKWNPW-W3140-01 REPORT NO.: STRD14118099I FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 Nanjing IOT Sensor Technology Co., Ltd. Model: WL-ZSKWNPW-W3140-01 REPORT NO.: STRD14118099I FCC PART 15.247 Solder Board-Component View 4 Solder Board-Component View 5 Nanjing IOT Sensor Technology Co., Ltd. Model: WL-ZSKWNPW-W3140-01 REPORT NO.: STRD14118099I FCC PART 15.247 Solder Board-Component View 6

RF Exposure Requirements Product Description: Wall Socket-Outlet Model No.: WL-ZSKWNPW-W3140-01 FCC ID: 2ADLSWLSK-W314001 According to the KDB-447498 D01 V05r02, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Zigbee Tx frequency range: 2405~2480MHz Device category: Fixed device Maximum Conducted Output Power: 0.18 dBm Maximum Output Power: 1.0423 mW Minimum Distance: 5mm Limit: 10mW Source-based time-averaged output power is 1.0423 mW < 10 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

Nanjing IOT Sensor Technology Co., Ltd. Model: WL-ZSKWNPW-W3140-01 REPORT NO.: STR14118099I PAGE 1 OF 38 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Nanjing IOT Sensor Technology Co., Ltd. NO. 12 , Mozhou East Road, Nanjing, PRC. FCC ID: 2ADLSWLSK-W314001 FCC Rule(s): FCC Part 15.247 Product Description: Wall Socket-Outlet Tested Model: WL-ZSKWNPW-W3140-01 Report No.: STR14118099I Tested Date: 2014-11-12 to 2014-12-16 Issued Date: 2014-12-16 Tested By: Mark chen / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. Nanjing IOT Sensor Technology Co., Ltd. Model: WL-ZSKWNPW-W3140-01 REPORT NO.: STR14118099I PAGE 2 OF 38 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 4 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. RF EXPOSURE ......................................................................................................................................................... 7 3.1 STANDARD APPLICABLE ......................................................................................................................................... 7 3.2 TEST RESULT.......................................................................................................................................................... 7 4. ANTENNA REQUIREMENT .................................................................................................................................. 8 4.1 STANDARD APPLICABLE ......................................................................................................................................... 8 4.2 EVALUATION INFORMATION .................................................................................................................................. 8 5. POWER SPECTRAL DENSITY ............................................................................................................................. 9 5.1 STANDARD APPLICABLE ......................................................................................................................................... 9 5.2 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 9 5.3 TEST PROCEDURE ................................................................................................................................................... 9 5.4 ENVIRONMENTAL CONDITIONS .............................................................................................................................. 9 5.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 6. 6DB BANDWIDTH ................................................................................................................................................. 13 6.1 STANDARD APPLICABLE ....................................................................................................................................... 13 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 13 6.3 TEST PROCEDURE ................................................................................................................................................. 13 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 13 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 14 7. RF OUTPUT POWER ............................................................................................................................................ 17 7.1 STANDARD APPLICABLE ....................................................................................................................................... 17 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 17 7.3 TEST PROCEDURE ................................................................................................................................................. 17 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 17 7.5 SUMMARY OF TEST RESULTS/PLOTS .............…

Text truncated - open the document above for the full version.

Nanjing IOT Sensor Technology Co., Ltd. Model: WL-ZSKWNPW-W3140-01 REPORT NO.: STRD14118099I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Nanjing IOT Sensor Technology Co., Ltd. Model: WL-ZSKWNPW-W3140-01 REPORT NO.: STRD14118099I FCC PART 15.247 Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
