2ADLSWLSP-PI1101Smart PIR Motion Detector

Network Setting 1. Add to network Quick click [Multi-functional Key] 4 times and [System Indicator]would flash in green to request to add to the ZigBee network. Then [System Indicator] goes out after staying green for 2s when it is added to the ZigBee network. Front of body Back of body Quick click [Multi-functional Key] 4 times Flash in searching for the network Go out after staying on for 2s when added to the network 12 8 2.Exit the network. Long press [Multi-functional Key ]for 10s and [System Indicator] goes out after flashing 4 times to exit the ZigBee network successfully and restore to factory settings at the same time. Long press for 10s 1 Front of BodyBack of Body Goes out after flashing 4 times 2 9 Note: ●First make sure ZigBee network of the wireless gateway (additional purchase) is working well. Meanwhile, make sure this product is connected to power and is placed within the effective communication distance of the gateway. If remote control is needed, connect the gateway to WAN. ●When need adding this product to other gateways, please exit the current gateway ZigBee network then add it to the new gateway following above instruction. ●Factory settings defaults to out of ZigBee network. 10 How to use Under normal conditions [System Indicator] would not flash. In the state of “armed”, once motion is detected in detection area, [System Indicator] would flash red for once. And at the same time, the mobile smart terminal would receive alarm notification. 11 Cautions ●This product shall be installed according to the height specified in the user manual. Installing too high or too low would cause adverse effect to the angle and distance of detection. The shield, furniture, potted plant and other partitions shall not be placed in the detective range of this product. ●This product shall be placed away from air conditioners, refrigerators, stoves and other places as it is sensitive to change in temperature. It is recommended to not install in position with strong airflow to avoid false alarm caused by hot airflow and human movement. ●This product shall be inspected regularly to avoid malfunction and ensure proper operation. ●Do not drop this product in hight or smash it to avoid damage to internal components. ●Do not dissemble or refit this product and the accessories by yourself. ●In case of malfunction, do not dissemble this product by non-professionals, instead, deliver it to local service center or contact with our customer service directly. 12 ! RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Specifications Communication Protocol Detection Range Detection Sensitivity Detection Speed Standby Consumption/Standby Current Mounting Heightm Power Supply DimensionsDiameter×Height, mm Detection Angle IEEE 802.15.4 ZigBee/SmartRoom Once event 0.23.5m/s 30μA 2.3-5 CR2*1 DC 3V 64×38 120° 13 Circumference with 6m of Diameter ( Installation Height 3m) Net Weightg Material& Color Flame Retardant Rating Operating Temperature Operating Humidity 50 PCWhite UL94 V-2 -10+45 ≤95%RH (Noncondensing) 14 Statement: Hereby, Nanjing IOT Sensor Technology Co., Ltd declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The following marking is included in the product : You can help protect the environment! Please remember to respect the local regulations:hand in the non-working electrical equipments to an appropriate waste disposal centre Disposal and Recycling Information 0700 15

Step Three: Attach the body directly to the base and adjust it to a suitable angle to complete the installation. Note: Set the network before installation is completed. Wall/Ceiling 7

Smart PIR Motion Detector WL -ZSPWBPW-PI11-01 User User User Manual ©Nanjing IOT Sensor Technology Co., Ltd. Federal Communications Commission (FCC) Compliance Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: ●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. 1 Federal Communications Commission (FCC) Caution: Federal Communications Commission (FCC) Radiation Exposure Statement: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2)This device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm during normal operation. 2 Function Illustration Back of body Multi-functional Key Battery Compartment Magnet Front of body System Indicator Detection Area Base 3 Features ●Realize remote monitoring and management via APP Client. ●In the state of “Armed” , when motion is detected in detection area, the mobile smart terminal would receive alarm notifications immediately. This product could also interwork with security devices to secure your home in all aspect. ●Wireless alarm notification, quick response, robust to interference, low false alarm rate. ●Self-adjustment to sensitivity in case of environment temperature change. ●Wide detection range, adjustable detection angle, which could be adjusted easily and conveniently. 4 Note: it is recommended to install this product 2.4m to 5m above ground. Option APlace it on any fixed flat surface Option BWall/Ceiling-mounted Step One: Mount two expansion plugs on the desired location of the wall/ceilings. Then fix the base with the self-tapping screws. Wall/Ceiling Base Self-tapping screw Expansion plug Installation Steps 5 Cell Cover CR2 battery Back of Body Step Two: Open the cell cover and put in a CR2 battery. 6

Nanjing IOT Sensor Technology Co., Ltd Statement We hereby state that these models are identical in interior structure, electrical circuits and components, and just product appearance design and models are different for the marketing requirement. Your assistance on this matter is highly appreciated. FCC ID:2ADLSWLSP-PI1101 Name: Smart PIR Motion Detector Model Number: WL-ZSPWBPW-PI11-01 Multiple Listing Model Number: WL-ZSPWBPW-PI11-xx (xx denotes 95~99) Sincerely, Name: Eaton Wang Title: Product Certification Manager Signature:

Nanjing IOT Sensor Technology Co., Ltd. FCC ID: 2ADLSWLSP-PI1101 POWER OF ATTORNEY Date: August 31, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on August 30, 2016. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Nanjing IOT Sensor Technology Co., Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Nanjing IOT Sensor Technology Co., Ltd. ................................................................................. Signature Eaton Wang / Product Certification Manager ................................................................................. Typed name and Title

Nanjing IOT Sensor Technology Co., Ltd. Date: August 31, 2015 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ADLSWLSP-PI1101 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Block Diagram Operational Description SCH.pdf BlockDiagram.pdf CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Nanjing IOT Sensor Technology Co., Ltd. Signature Eaton Wang / Product Certification Manager Typed name and Title

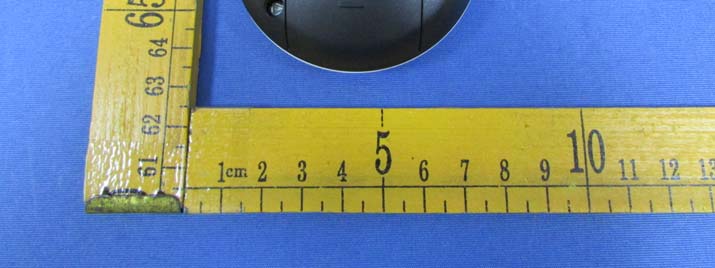

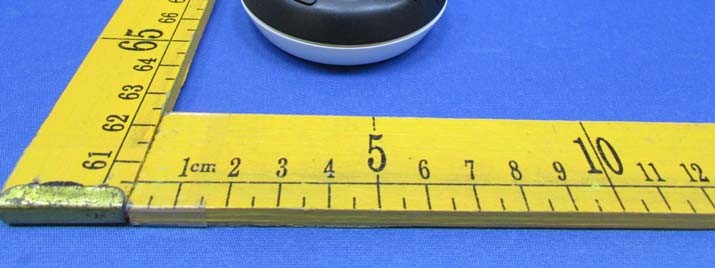

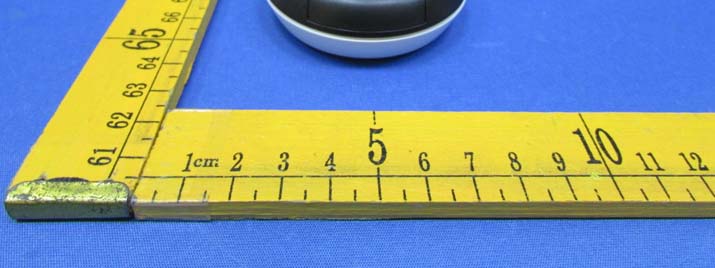

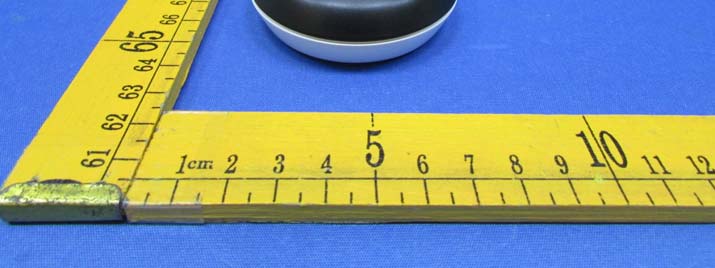

Reference No.: WTS15S0832859E Waltek Services (Shenzhen) Co.,Ltd. http://www.wa ltek.com.cn 14 Photographs - Constructional Details 14.1 Model WL-ZSPWBPW-PI11-01 – External Photos Reference No.: WTS15S0832859E Waltek Services (Shenzhen) Co.,Ltd. http://www.wa ltek.com.cn Reference No.: WTS15S0832859E Waltek Services (Shenzhen) Co.,Ltd. http://www.wa ltek.com.cn Reference No.: WTS15S0832859E Waltek Services (Shenzhen) Co.,Ltd. http://www.w altek.com.cn

Industrial Design Department 工业设计部 标签说 标签内容 明 南京物联传感技术有限公司 魏晓晖 A1 15951909857SR红外入侵探测器_WBPW_PI11 颜色参考：PANTONE CoolGray 6C 24.5mm 13.5mm 材质：合成纸覆膜 整体厚度：0.15mm 4xR1.0mm Name:Smart PIR Motion Detector Model:WL-ZSPWBPW-PI11-01 FCC ID:2ADLSWLSP-PI1101 Name:Smart PIR Motion Detector Model:WL-ZSPWBPW-PI11-01 FCC ID:2ADLSWLSP-PI1101

Reference No.: WTS15S0832859E Waltek Services (Shenzhen) Co.,Ltd. http://www.wa ltek.com.cn 14.2 Model WL-ZSPWBPW-PI11- 01 – Internal Photos Reference No.: WTS15S0832859E Waltek Services (Shenzhen) Co.,Ltd. http://www.w altek.com.cn ANT Reference No.: WTS15S0832859E Waltek Services (Shenzhen) Co.,Ltd. http://www.w altek.com.cn

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn TEST REPORT Referen ce No. .................... : WTS15S0832895E FCC ID................................. : 2ADLSWLSP-PI1101 Applicant ............................ : Nanjing IOT Sensor Technology Co., Ltd. Address .............................. : No. 12, Mozhou East Road, Nanjing, China Manufacturer ..................... : Nanjing IOT Sensor Technology Co., Ltd Address .............................. : B11 Software Valley, No.15, Fengji Avenue, Yuhuatai District, Nanjing, China Product Name .................... : Smart PIR Motion Detector Model No. ........................... : WL-ZSPWBPW-PI11-01, WL-ZSPWBPW-PI11-xx (xx denotes 95~99) Brand .................................. : Wulian Standards ........................... : FCC CFR47 Part 15 C Section 15.247:2014 Date of Receipt sample ..... : Aug. 28, 2015 Date of Test ........................ : Aug. 29, 2015 – Sep. 09, 2015 Date of Issue ...................... : Sep. 09, 2015 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Zero Zhou / Test Engineer Philo Zhong / Manager Reference No.: WTS15S0832895E Page 3 of 15 Waltek Services (Shenzhen) Co.,Ltd. http://www.w altek.com.cn 2 Test Summary Test Items Test Requirement Result Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1)PASS Reference No.: WTS15S0832895E Page 3 of 15 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS ............................................................................................................................................................ 3 4 GENERAL INFORMATION .................................................................................................................................. 4 4.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................ 4 4.2 DETAILS OF E.U.T. ......................................................................................................................................... 4 4.3 CHANNEL LIST ................................................................................................................................................. 4 4.4 TEST FACILITY ................................................................................................................................................. 4 5 EQUIPMENT USED DURING TEST .................................................................................................................. 5 5.1 EQUIPMENTS LIST ........................................................................................................................................... 5 5.2 DESCRIPTION OF SUPPORT UNITS ................................................................................................................. 5 5.3 MEASUREMENT UNCERTAINTY ....................................................................................................................... 6 5.4 TEST EQUIPMENT CALIBRATION ..................................................................................................................... 6 6 RF EXPOSURE ...................................................................................................................................................... 7 6.1 REQUIREMENTS ............................................................................................................................................... 7 6.2 THE PROCEDURES / LIMIT ................................................................................................................................ 7 6.3 MPE CALCULATION METHOD ......................................................................................................................... 8 7 PHOTOGRAPHS - CONSTRUCTIONAL DETAILS ........................................................................................ 9 7.1 MODEL WL-ZSPWBPW-PI11-01 – EXTERNAL PHOTOS ............................................................................. 9 7.2 MODEL WL-ZSPWBPW-PI11-01 – INTERNAL PHOTOS ............................................................................ 13 Reference No.: WTS15S0832895E Page 3 of 15 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 4 General Information 4.1 General Description of E.U.T. Product Name: Smart PIR Motion Detector Model No.: WL-ZSPWBPW-PI11-01, WL-ZSPWBPW-PI11-xx (xx denotes 95~99) Model Difference: These models are identical in interior structure, electrical circuits and components, and just product appearance design and models are different for the marketing requirement. Operation Frequency: 2405MHz ~ 2480MHz The Lowest Oscillator: 32.768KHz Antenna Gain: 1.0 dBi 4.2 Details of E.U.T. Technical Data: DC 3V powered by CR2 Lithium Battery 4.3 Channel List Channel No. Frequency (MHz) Channel No. Frequency (MHz) Channel No. Frequency (MHz) Channel No. Frequency (MHz) 1 2405 2 2410 3 2415 4 2420 5 2425 6 2430 7 2435 8 2440 9 2445 10 2450 11 2455 12 2460 13 2465 14 2470 15 2475 16 2480 4.4 Test Facility The test facility has a test site registered with the…

Text truncated - open the document above for the full version.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 33 TEST REPORT Referen ce No. .................... : WTS15S0832859E FCC ID................................. : 2ADLSWLSP-PI1101 Applicant ............................ : Nanjing IOT Sensor Technology Co., Ltd. Address .............................. : No. 12, Mozhou East Road, Nanjing, China Manufacturer ..................... : Nanjing IOT Sensor Technology Co., Ltd Address .............................. : B11 Software Valley, No.15, Fengji Avenue, Yuhuatai District, Nanjing, China Product Name .................... : Smart PIR Motion Detector Model No. ........................... : WL-ZSPWBPW-PI11-01, WL-ZSPWBPW-PI11-xx (xx denotes 95~99) Brand .................................. : Wulian Standards ........................... : FCC CFR47 Part 15 C Section 15.247:2014 Date of Receipt sample ..... : Aug. 28, 2015 Date of Test ........................ : Aug. 29, 2015 – Sep. 09, 2015 Date of Issue ...................... : Sep. 09, 2015 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Zero Zhou / Test Engineer Philo Zhong / Manager Reference No.: WTS15S0832859E Page 2 of 33 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Radiated Emissions 15.247 15.205(a) 15.209(a) PASS Conducted Emissions 15.207(a) N/A 6dB Bandwidth 15.247(a)(2) PASS Maximum Peak Output Power 15.247(b)(3),(4) PASS Power Spectral Density 15.247(e) PASS Band Edge 15.247(d) PASS Antenna Requirement 15.203 PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Reference No.: WTS15S0832859E Page 3 of 33 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................................ 2 3 CONTENTS .......................................................................................................................................................... 3 4 GENERAL INFORMATION ................................................................................................................................ 4 4.1 GENERAL DESCRIPTION OF E.U.T. .............................................................................................................. 4 4.2 DETAILS OF E.U.T. ....................................................................................................................................... 4 4.3 CHANNEL LIST ............................................................................................................................................... 4 4.4 TEST MODE ................................................................................................................................................... 5 4.5 TEST FACILITY ............................................................................................................................................... 5 5 EQUIPMENT USED DURING TEST ................................................................................................................ 6 5.1 EQUIPMENTS LIST ......................................................................................................................................... 6 5.2 DESCRIPTION OF SUPPORT UNITS ............................................................................................................... 7 5.3 MEASUREMENT UNCERTAINTY ..................................................................................................................... 7 5.4 TEST EQUIPMENT CALIBRATION ................................................................................................................... 7 6 RADIATED EMISSIONS..................................................................................................................................... 8 6.1 EUT OPERATION ........................................................................................................................................... 8 6.2 TEST SETUP .................................................................................................................................................. 9 6.3 SPECTRUM ANALYZER SETUP .................................................................................................................... 10 6.4 TEST PROCEDURE ...................................................................................................................................... 11 6.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................... 11 6.6 SUMMARY OF TEST RESULTS ..................................................................................................................... 12 7 BAND EDGE MEASUREMENT ...................................................................................................................... 15 7.1 TEST PRODUCE ........................................................................................................................................... 15 7.2 TEST RESULT .............................................................................................................................................. 16 8 6 DB BANDWIDTH MEASUREMENT…

Text truncated - open the document above for the full version.

Reference No.: WTS15S0832859E Waltek Services (Shenzhen) Co.,Ltd. http://www.w altek.com.cn 13 Photographs – Model WL-ZSPWBPW-PI11-01 Test Setup 13.1 Radiated Emission Test frequency below 30MHz at Test Site 2# Tes t frequency from 30MHz to 1GHz at Test Site 2# Reference No.: WTS15S0832859E Waltek Services (Shenzhen) Co.,Ltd. http://www.w altek.com.cn Test frequency above 1GHz at Test Site 1#
