2ADMB-AIRCUBE-BTBT Device

Please carefully read the safety instructions to prevent any unintentional injuries. The pictures in this manual may differ from the actual product. SN-100T / SN-100C 23 [What’s included] • Air Cube• Quick Guide• Micro USB Calbe 23 [Air Cube Overview] Power/Charging LED When charging battery, red LED lights up. It will turn to green when the bat- tery has been completely charged. Power Button Pressing the power button more than one second will turn on/off the power. When an alarm goes off, press the button to turn off the alarm. Fine Dust(PM) Density LED This LED shows Fine Dust measure- ments in five(5) different levels. Bluetooth LED When connected with smartphone, the LED will turn to blue. CO 2 / Discomfort Index LED This LED shows CO2 / Discomfort Index measurements in five(5) different levels. Charging Socket Charge the Air Cube with micro 5-pin smartphone charger or micro USB cable. 45 [Turn Power On/Off] [On] Press the power button for more than one second. All the LED lights will blink three times simultaneously. Then the Bluetooth LED will blink turning into standby pairing mode. Once it’s paired up with a smartphone, whenever the power turns on, the Air Cube will automatically start to measure once every fif- teen(15) seconds. In addition, the device will measure once more if you shake the device. [Off] Press the power button for more than two seconds. All the LED lights will blink once and the device will turn off. 45 [LED Display Measurements] Dangerous Warning Average Normal Very Good Air Quality Discomfort Index (DI) CO 2 (ppm) Fine dust μg/m 3 Very Good ~ 67 ~ 450 ~ 30 Normal68 ~ 74451 ~ 70031 ~ 80 Average75 ~ 79701 ~ 100081 ~ 120 Warning80 ~ 841001 ~ 2000121 ~ 200 Dangerous 85 ~ 2001 ~ 201 ~ 67 [Air Cube Application] Using the Air Cube app, you can check the air quality conditions measured by Air Cube in real time. In addi- tion, the Air Cube app provides action guide in accord- ance with each air quality level. You can easily download the mobile application from our Air Cube website (www.aircube.io). After installing the app, you can use it with the Air Cube device. Air Cube app offers convenient features such as setting country-specific air quality standards or alarm notifications depending on the user’s environment. 67 [Bluetooth Pairing (connection)] 1. Press the power button more than one second. 2. Bluetooth LED will turn to blue and blink, turning into standby pairing mode. 3. When running the air check application, you can ac- tivate the smartphone’s Bluetooth simply by following the instructions. 4. In the application settings menu, choose the available pairing device. Then, press the ‘pair’ button. It is paired up when the message ‘connected with the Air cube’ is displayed. 5. When it’s paired up, Bluetooth LED will turn to blue. When running the Air Cube application, you won’t need to pair up your Air Cube and the smartphone again if you have paired it up once before. (Bluetooth 4.0 or above / Coverage: maximum 11 meters) 89 [Charging] You can charge the device with a micro 5-pin smartphone charger or micro USB cable. The power LED will turn red while charging and it turns green when it is complete. If the battery LED flashes, it means that the battery has less than 10% power. Please charge the device immediately then. Smartphone Charger Micro USB cable 89 [Safety Instructions] ※ These safety precautions is to prevent any damage, malfunction or injuries. Failure to follow these instructions could result in fire, electric shock, injury or even death Do not place the Air Cube on an unstable surface. The product may be damaged if dropped. Do not disassemble, crush, puncture or shred the Air Cube. Please contact the service center when it needs to be repaired. (If you dis- assemble the product yourself, warranty will not apply.) Keep the Air Cube dry. Wipe the device with clean dry cloth. (Using oil washing detergent, paint thinner or wet wipes may cause exte- rior damages, electric shock, breakdown or even a fire.) Please ensure that no substances gets inside the product, such as drinks or water. Also, please avoid from flooding. (This may cause a breakdown or electric shock.) If the product is wet when charging, disconnect the product right away with caution. (This product is made for indoor use and is not water proof.) Do not use the Air Cube in a damp place. (This may cause a fire or electrical shock.) 1011 Please do not place the device in a vehicle under direct sunlight, on an electric blanket or on a rug. Also, avoid placing it in hot and humid environment such as sauna for a long time. (Panel disfigu- ration or it may cause malfunction.) Caution : Failure to follow these instructions may result in injury or product damage. Measurements are reliable data but it is for reference purposes. Therefore, the manufacturer and seller will not be held legally re- sponsible. Do not let the device be placed in a cold environment such as out- doors during winter or in a cold storage. It may not work properly. (Recommended operating environment: 0 ~ 45°C) Do not place the Air Cube close to objects with magnets or mag- netic components. This can cause damage or malfunction. Avoid dropping or knocking it down on hard surface. It may damage the board inside as well as increase the risk of injury by breakdown. Unplug charging accessories and store the device in a safe place when not being used for a long time. Do not connect the unit to other devices in a manner that is not described in the manual. 1011 [When Air Cube doesn’t work properly] Please refer to the following actions for different symptoms that may occur and also refer to the user manual enclosed before reporting a device failure. SymptomsAction Power is not turned on Make sure to press the power button more than one second. Check whether the battery is charged.. If you are using USB port, it may not work because of power shortage. Please charge the device by connecting directly to the USB port. Not pairing up Ch…

Text truncated - open the document above for the full version.

SK Telecom Co., Ltd. SK T-Tower, 65, Eulji-ro, Jung-gu, Seoul 100-999 South Korea Date: May. 12, 2015 SIEMIC 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: 2ADMB-AIRCUBE-BT signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from SK Telecom Co., Ltd. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Ji young Park Manager

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 May. 12, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, SK Telecom Co., Ltd. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (BT Device, SN-100C) FCC ID: 2ADMB-AIRCUBE-BT Sincerely, Client’s signature: Client’s name / title: Ji young Park / Manager Contact information / address: 82-2-6100-7346 / SK T-Tower, 65, Eulji-ro, Jung-gu, Seoul 100-999 South Korea

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 4.0 May. 12, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ADMB-AIRCUBE-BT We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name & title : Ji young Park / Manager Contact information / address: 82-2-6100-7346 / SK T-Tower, 65, Eulji-ro, Jung-gu, Seoul 100-999 South Korea SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 4.0 May. 12, 2015 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: 2ADMB-AIRCUBE-BT To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - e.g. User Manual - e.g. Ext Photo - e.g. Int Photo - e.g. Test Photo The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : Client’s name & title : Jiyoung Park / Manager Contact information / address : 82-2-6100-7346 / SK T-Tower, 65, Eulji-ro, Jung-gu, Seoul 100-999 South Korea

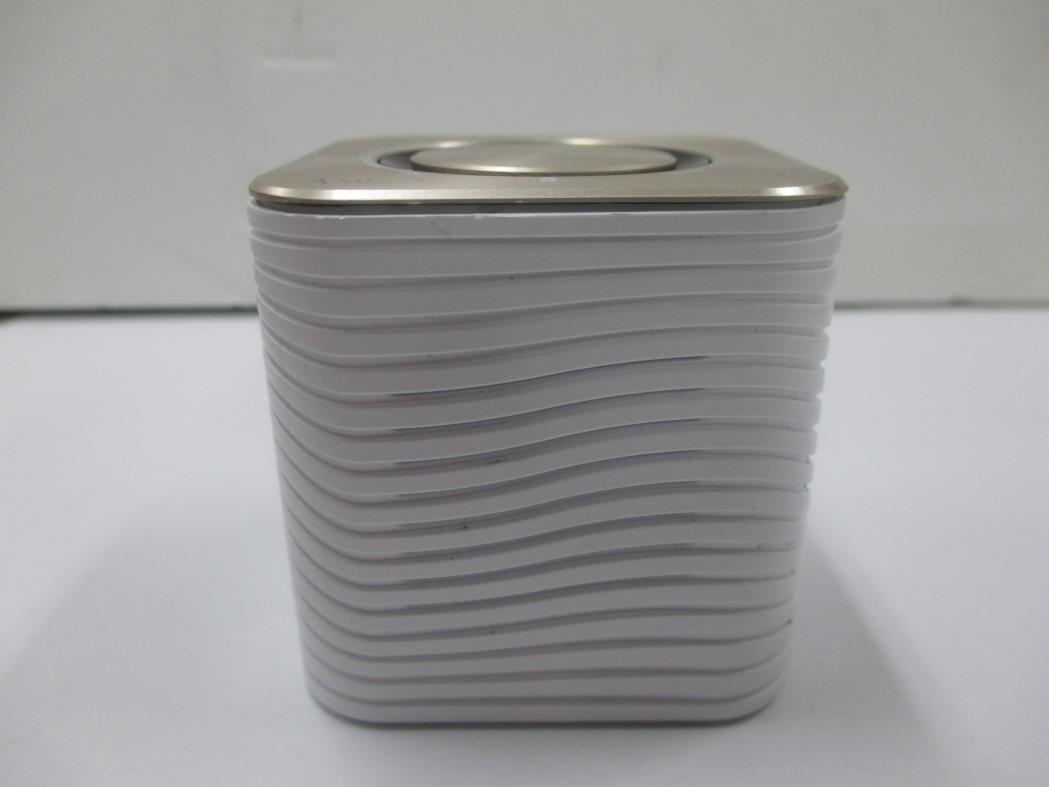

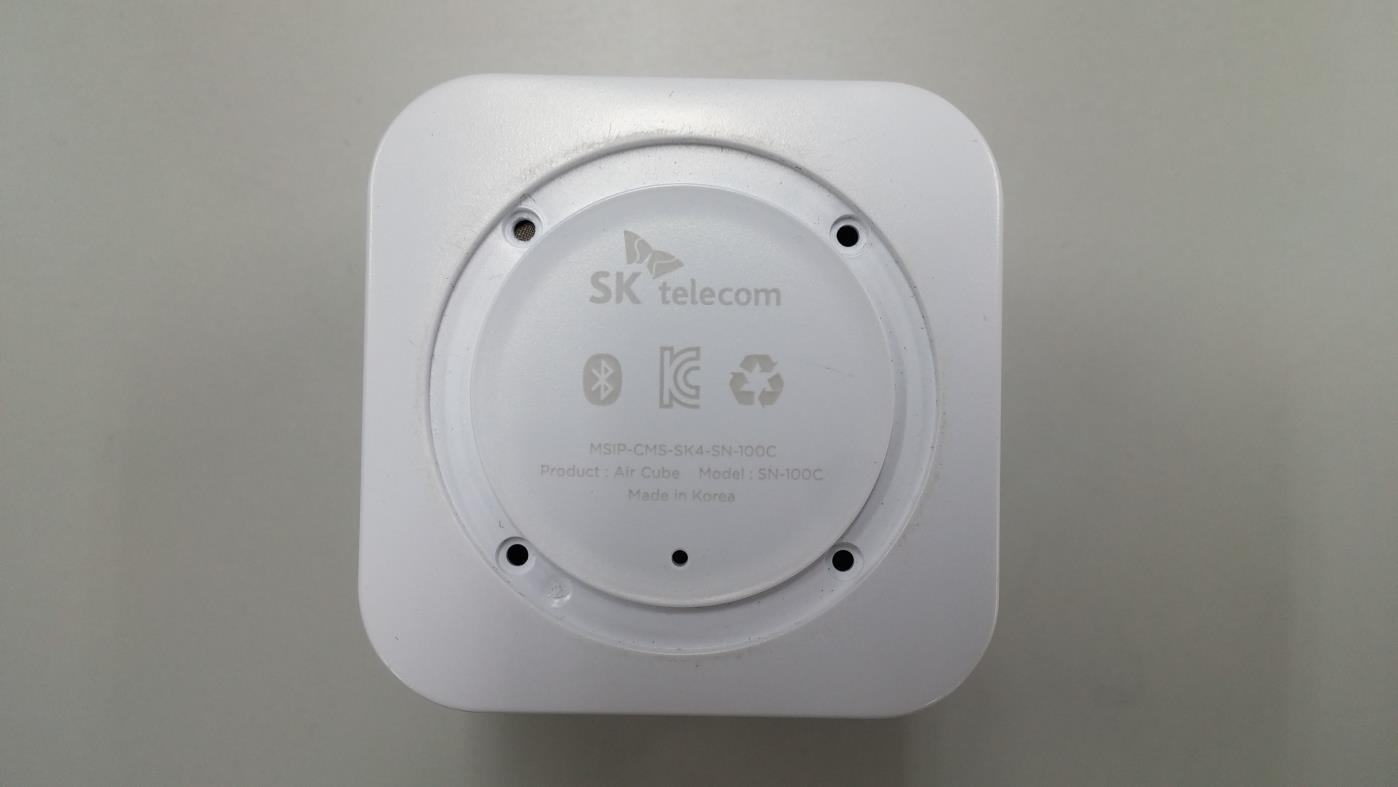

FCCID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Page 1 / 3 View 1 FCCID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Page 2 / 3 View 2 FCCID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Page 3 / 3 View 3

FCCID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Page 1 / 11 View 1 FCCID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Page 2 / 11 View 2 FCCID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Page 3 / 11 View 3 FCCID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Page 4 / 11 View 4 FCCID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Page 5 / 11 View 5 FCCID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Page 6 / 11 View 6 FCCID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Page 7 / 11 View 7 FCCID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Page 8 / 11 View 8 FCCID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Page 9 / 11 View 9 FCCID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Page 10 / 11 View 10 FCCID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Page 11 / 11 View 11 <Antenna>

-~ - -±&dBm ) - - The MPE calculation for this exposure is shown below. ▪=+- =+ == - ▪S=- = = The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . 0.000186 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. Power density at the specific separation EIRP / ( 4 R 2 π ) Note 0.934 / ( 4 X 20 2 X π )S = Maximum power dencity(mW/cm 2 ) P = Power input to the antenna(dBm) -0.30dBm0.934mWG = Power gain of the antenna(dBi) The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. EIRPPGNote 0.00dBm-0.30dBi -2 Maximum antenna peak gain :dBi Maximum output power for the calculation :0.00dBm dB (Max. -0.30 0dBmMin. Measured RF output power :dBm Target Power & Tolerance :dBm -0.178 -1.001 MHz MPE Calculations :(Bluetooth) SK Telecom Co., Ltd. FCCID: 2ADMB-AIRCUBE-BT Frequency range :2402MHz2480 TRF-RF-206(01)140415

FCCID: 2ADMB-AIRCUBE-BT DTNC1504-01753 Report No.: DRTFCC1505-0094 TRF-RF-219(00)130701 Page2 / 33 Copyright ○ C 2015, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1505-0094 May. 11, 2015 Initial issue FCCID: 2ADMB-AIRCUBE-BT DTNC1504-01753 Report No.: DRTFCC1505-0094 TRF-RF-219(00)130701 Page3 / 33 Copyright ○ C 2015, DT&C Co., Ltd. Table of Contents 1. GENERAL INFORMATION ........................................................ 4 2. EUT DESCRIPTION ................................................................... 4 3. SUMMARY OF TESTS ............................................................... 5 4. TEST METHODOLOGY ............................................................. 6 4.1 EUT CONFIGURATION ..................................................................................... 6 4.2 EUT EXERCISE ................................................................................................. 6 4.3 GENERAL TEST PROCEDURES ...................................................................... 6 4.4 DESCRIPTION OF TEST MODES ..................................................................... 6 5. INSTRUMENT CALIBRATION ................................................... 7 6. FACILITIES AND ACCREDITATIONS ........................................ 7 6.1 FACILITIES ........................................................................................................ 7 6.2 EQUIPMENT ...................................................................................................... 7 7. ANTENNA REQUIREMENTS ..................................................... 7 8. TEST RESULT ........................................................................... 8 8.1 6dB Bandwidth Measurement .......................................................................... 8 8.2 Maximum Peak Conducted Output Power .................................................... 11 8.3 Maximum Power Spectral Density. ................................................................ 14 8.4 Out of Band Emissions at the Band Edge/ Conducted Spurious Emissions17 8.5 Radiated Measurement. .................................................................................. 26 8.5.1 Radiated Spurious Emissions. .................................................................. 26 8.6 POWERLINE CONDUCTED EMISSIONS ........................................................ 29 8.7 Occupied Bandwidth ...................................................................................... 30 9. LIST OF TEST EQUIPMENT .................................................... 31 APPENDIX I ................................................................................. 32 APPENDIX II ................................................................................ 33 FCCID: 2ADMB-AIRCUBE-BT DTNC1504-01753 Report No.: DRTFCC1505-0094 TRF-RF-219(00)130701 Page4 / 33 Copyright ○ C 2015, DT&C Co., Ltd. 1. GENERAL INFORMATION Applicant : SK Telecom Co., Ltd. Address : SK T-Tower, 65, Eulji-ro, Jung-gu, Seoul 100-999 South Korea FCC ID : 2ADMB-AIRCUBE-BT EUT : BT Device Model : SN-100C Additional Model(s) : SN-100T Data of Test : 2015-04-13 ~ 2015-04-28 Contact person : Ji young Park 2. EUT DESCRIPTION Product Motorcycle Bluetooth Communication System Model Name SN-100C, SN-100T Power Supply DC 3.7 V Battery type Standard Battery: Lithium Ion Battery Hardware Version V2.0 Software Version V2.1 Frequency Range 2402 ~ 2480MHz (40 channels) Max. RF Output Power -0.18 dBm Modulation Type GFSK Antenna Specification Antenna Type: Internal Antenna Gain: -0.3 dBi(PK) FCCID: 2ADMB-AIRCUBE-BT DTNC1504-01753 Report No.: DRTFCC1505-0094 TRF-RF-219(00)130701 Page5 / 33 Copyright ○ C 2015, DT&C Co., Ltd. 3. SUMMARY OF TESTS FCC Part Section(s) RSS Section(s) Parameter Limit Test Condition Status Note 1 I. Transmitter Mode (TX) 15.247(a) RSS-210 [A8.2] 6 dB Bandwidth > 500 kHz Conducted C 15.247(b) RSS-210 [A8.4] Transmitter Output Power < 1Watt C 15.247(d) RSS-210 [A8.5] Out of Band Emissions / Band Edge 20dBc in any 100kHz BW C 15.247(e) RSS-210 [A8.2] Transmitter Power Spectral Density < 8dBm / 3kHz C - RSS Gen [6.6] Occupied Bandwidth (99%) RSS-Gen [6.6] NA 15.205 15.209 RSS-210 [A8.5] General Field Strength Limits (Restricted Bands and Radiated Emission Limits) < FCC 15.209 limits Radiated C Note3 15.207 RSS-Gen [8.8] AC Conducted Emissions < FCC 15.207 limits AC Line Conducted NA Note 2 15.203 - Antenna Requirements FCC 15.203 - C Note 1: C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable Note 2: The power of this device is only DC(Internal Battery) and Bluetooth LE function is disabled in charging status. Note 3: This test item was performed in each axis and the worst case data was reported. FCCID: 2ADMB-AIRCUBE-BT DTNC1504-01753 Report No.: DRTFCC1505-0094 TRF-RF-219(00)130701 Page6 / 33 Copyright ○ C 2015, DT&C Co., Ltd. 4. TEST METHODOLOGY Generally the tests were performed according to the KDB558074 v03r02. And ANSI C63.10-2013 was used to reference appropriate EUT setup and maximizing procedures of radiated spurious emission and AC line conducted emission testing. 4.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 4.2 EUT EXERCISE The EUT was operated in the test mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 4.3 GENERAL TEST PROCEDURES Conducted Emissions According to the requirements in Section 6.2 of ANSI C63.10, the EUT is placed on the wooden table, which is 0.8 m above ground plane and the conducted emissions from the EUT are measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and Average det…

Text truncated - open the document above for the full version.

FCC ID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photographs EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCC ID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (below 1000MHz) Material of Black plate: Plastic (Non-conductive material) FCC ID: 2ADMB-AIRCUBE-BT Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz)
