2ADMB-LB2010Beacon

1 Document Number : 14-D-0001 Beacon LB2010 (Type marBLE) Product Document Writer: Richard Jung Date: 2014. 11. 26 2 Document Purpose This document was produced for Users’ understanding and guide Contact For inquiries: [email protected] Document version and History No Version Release Date History Etc 1 v1.0 2014.09.20 First Release 2 v1.1 2014.11.26 Revised 3 v1.2 2015.09.09 Revised Beacon Resale Site http://beacon.diointeractive.com/ 3 Table of Content 1. Product Specification ...........................................................................................4 4 1. PRODUCT SPECIFICATION A. Product Overview ● Compatible with Bluetooth Low Energy®, Android 4.3. ● Battery lasts over 1 year ● Android Mobile SDK ●Bluetooth API available: Battery, Device Information, Proximity 5 B. Product Specification l Frequency operating range : 2.402GHz to 2480GHz l Version : BT4.0 (Bluetooth Low Energy) l Operating Voltage : 3.6V l Modulation Techniques : GFSK l Programmable Output Power Ranging From (dBm) : -23 to 4dBm l Receiver sensitivity : -93 dBm l Weight : Main Body 133g, Battery 99g l Dimension : 117 X 117 X 34.5mm l Supported O/S : Android 4.3+, iOS 7+ l Read Range : 5~20m (Distance Controllable/LOS) l Temperature Range : -10 ~ 60 °C C. Product components l Main Product l Battery: 2ea (SB-C02) 6 Power Supply · Use two batteries. Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. l Use switch to turn on/off the power 7 l PG port is for Download purposes only and used by manufacturer l RLV switch is for operators only. Notice: Please don’t remove the label. Device will be inactivated Operational Description To operate LB2010, minimum voltage of 2.1V is required. Included battery (SBC02) has 3.6V and current of 8.5Ah. LB2010 has LDO and Step-down converter. With input of 3.6V, LDO outputs 3.3V. Output voltage from the LDO will be inserted to Step-down converter, which will output 2.1V to BLE(Bluetooth low energy) IC(CC2540F256). When the voltage is supplied to BLE IC, LED will blink for two seconds. Status check l In normal state, LED lamp will blink in green l When the battery is low, LED lamp will blink in red and they need to be replaced ※ Download port and Function Key are not for general users PG port RVL switch Power On/OFF switch 8 Mount l Tighten the screws on the wall. l Mounting the LB2010(marBLE) to the screw. Cautions l This is a wireless-installation device and may cause interference between radio waves. This device cannot be used for safety-related services. Mount hole 9 D. Product Support Application l Sample App: https://play.google.com/store/apps/details?id=com.wizturn.manager Bluetooth 4.0 Low Energy(BLE) app for Wizturn Beacon-Type pebBLE. Try to test Wizturn Beacon with this app and learn more about beacon based service. - Scan marBLE (device discovery) 10 E. Safety Precautions This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help. · Only shielded interface cable should be used. Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacture could void the user’s authority to operate such equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 11 CE WARNING · Changes and modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. · It is desirable that it be installed and operated with at least 20 cm or more between the radiator and person’s body(excluding extremities: hand, wrists, feet, and ankles) FCC ID : 2ADMB-LB2010 For A/S & other inquiries: l Technical Support : [email protected] l Sales & Others Support : http://beacon.diointeractive l A/S Support : (Tel) +82-2-6100-7334 - End of document –

SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 October 22, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, SK Telecom Co., Ltd. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Beacon / LB2010 FCC ID: 2ADMB-LB2010 Sincerely, Sihnho ROH / Senior Manager SK Telecom Co., Ltd. SK T-Tower, 65, Eulji-ro, Jung-gu, Seoul, 04539, South Korea

SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 October 22, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ADMB-LB2010 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Sihnho ROH / Senior Manager SK Telecom Co., Ltd. SK T-Tower, 65, Eulji-ro, Jung-gu, Seoul, 04539, South Korea

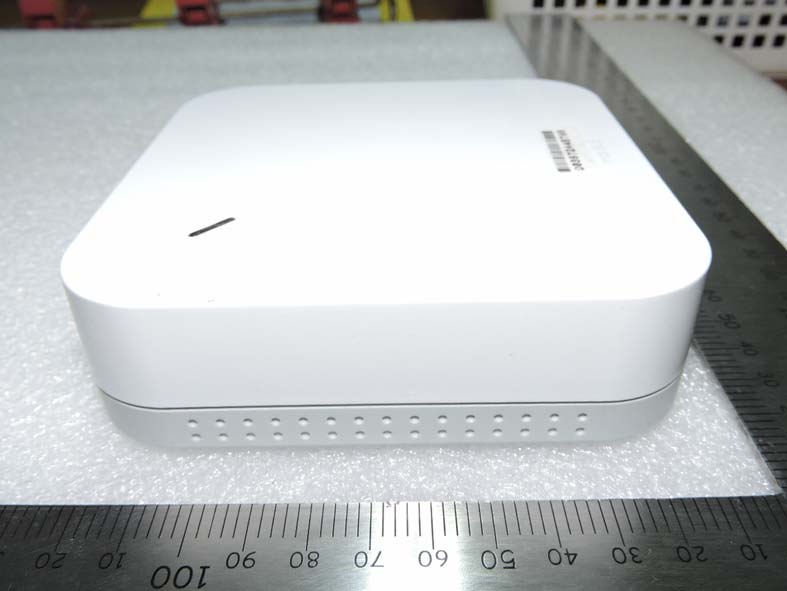

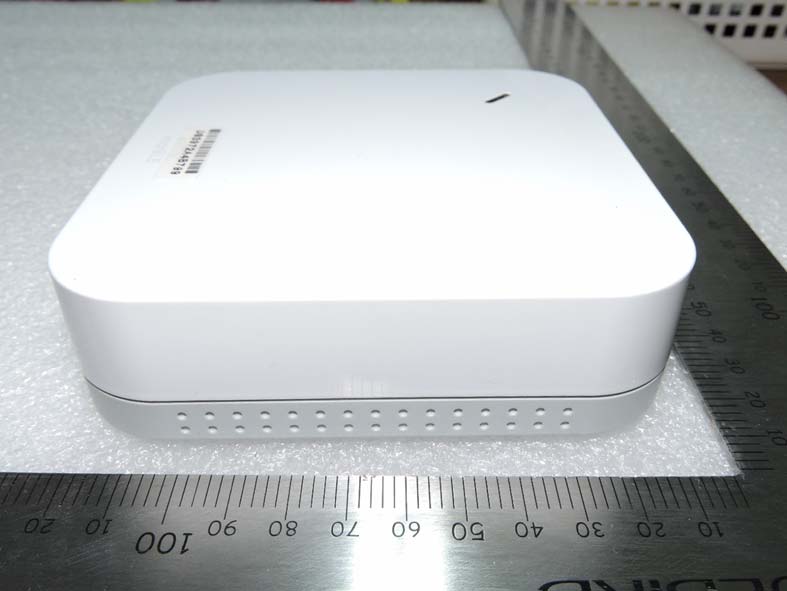

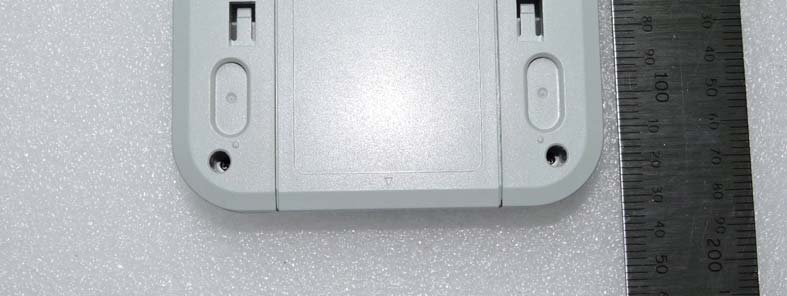

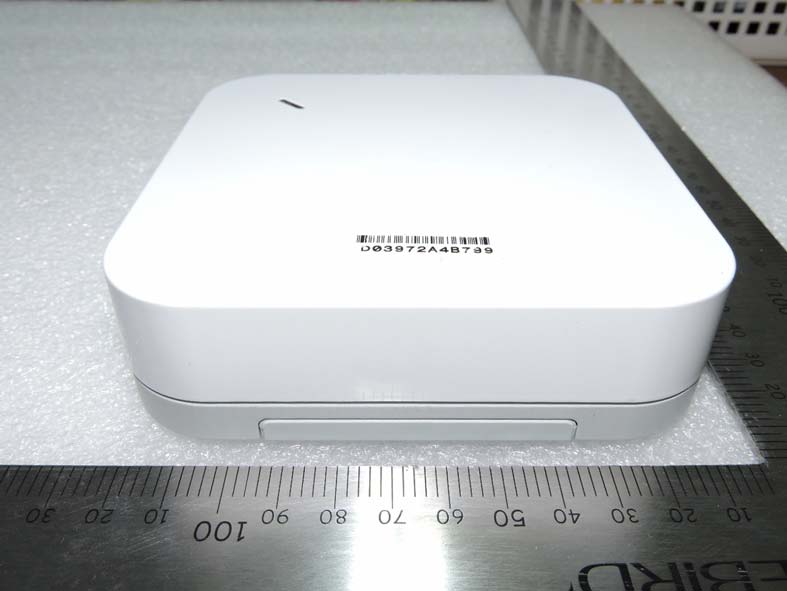

Appendix C. External Photographs Report no. ETLT150914.0073, Page C1 of C3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:2ADMB-LB2010 Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLT150914.0073, Page C2 of C3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:2ADMB-LB2010 Top view of EUT Bottom view of EUT Appendix C. External Photographs Report no. ETLT150914.0073, Page C3 of C3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:2ADMB-LB2010 Side view of EUT

Appendix A. FCC ID Label and Location Report no. ETLT150914.0073, Page A1 of A1 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:2ADMB-LB2010 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLT150914.0073, Page D1 of D3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:2ADMB-LB2010 Inside view of EUT Appendix D. Internal Photographs Report no. ETLT150914.0073, Page D2 of D3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:2ADMB-LB2010 Top side view of main board Appendix D. Internal Photographs Report no. ETLT150914.0073, Page D3 of D3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:2ADMB-LB2010 Bottom side view of main board

Appendix J. Radio Frequency Exposure Report no. ETLE150914.0073, Page J1 of J1 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID: 2ADMB-LB2010 Standard Applicable: According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device with its physical nature to be used nearby, the distance between radiating structure and human is less than 20 cm. As per KDB 447498 D01, The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Measurement Result: This is a portable device and the Max peak output power is (0.32 mW) lower than the threshold given and derived as above, where = 0.32 (mW) / 5 (mm) * √2.440 (GHz) = 0.10 < 3.00 As the result of calculation result indicates, the RF exposure generating from given transmitter (transmitter employed digital modulation) can be excluded from SAR measurement, and is deemed compliant with RF exposure as per FCC. Frequency [MHz] Output Power [dBm] Ta r g e t p o w e r [dBm] Allowed tolerance [dB] Max tune up power [dBm] Max tune up power [mW] Separation distance [mm] RF exposureLimit 2 402 -5.61 -3.50 ± 2.00 -5.50 0.28 5 0.09 3.00 2 440 -5.42 -3.00 ± 2.00 -5.00 0.32 5 0.10 3.00 2 480 -5.89 -3.50 ± 2.00 -5.50 0.28 5 0.09 3.00

Report no. ETLE150914.0073, Page 2 of 33 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: 2ADMB-LB2010 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 6 dB Bandwidth 5.3 Maximum Peak Output Power 5.4 Bandwidth of Frequency Band Edges 5.5 Power Spectral Density 5.6 Spurious Emissions 5.7 Conducted Emissions Test 5.8 Radio Frequency Exposure 6. Sample Calculation 7. List of test Equipment used for Measurement Report no. ETLE150914.0073, Page 3 of 33 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: 2ADMB-LB2010 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : Beacon  Model Number : LB2010  S/N : Proto type  Modulation Technique : FHSS (GFSK)  Frequency Channel : 2 402 MHz to 2 480 MHz and Channel Spacing 2 MHz (40 Ch, BT 4.0 LE)  Air Data Rate : GFSK (1 Mbps)  Antenna Type : PCB Antenna (Integral)  Antenna Gain : 1.90 dBi max  RF Power : 0.29 mW  Environmental of Tests : Temperature: (27.8 ± 5.5) °C Humidity: (42 ± 5) % R.H. Atmospheric Pressure: (101.6 ± 0.2) kPa  FCC Rule Part(s) : FCC Part 15 Subpart C  Test Procedure : ANSI C63.10-2009  FCC Classification : DTS (Part 15 Digital Transmission System)  Place of Tests : ETL Inc. Testing Lab. (FCC Designation Number : KR0022) Radiated Emission test 1; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Radiated Emission test 2 and Conducted Emission test; #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Applicant Name : SK Telecom Co., Ltd. Address : SK T-Tower, 65, Eulji-ro, Jung-gu, Seoul, 04539, South Korea Attention : Sihn-ho ROH / Senior Manager Report no. ETLE150914.0073, Page 4 of 33 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: 2ADMB-LB2010 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.10-2009 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.10-2009 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.10-2009) was used in determining radiated and conducted emissions from the SK Telecom Co., Ltd. Model: LB2010 Report no. ETLE150914.0073, Page 5 of 33 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: 2ADMB-LB2010 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Beacon (model: LB2010). The model LB2010 is basic model that was tested. 2.2 General Specification  High Internal Frequency: X-tal  32 MHz Report no. ETLE150914.0073, Page 6 of 33 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: 2ADMB-LB2010 3. DESCRIPTION OF TESTS The tests documented in this report were performed in accordance with ANSI C63.10-2009 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 Radiated Emission Measurement Radiated emission measurements were made in accordance with § 13 in ANSI C63.10-2009 "Measurement of Intentional radiators” The measurements were performed over the frequency range of 30 MHz to 40 GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak, Quasi-peak, Average" within a bandwidth of 120 kHz and above 1 GHz is 1 MHz. Preliminary measurements were made at 3 m using broadband antennas, and spectrum analyzer to determine the frequency producing the maximum emission in shielded room. Appropriate precaution was taken to ensure that all emission from the EUT were maximized and investigated. The system configuration, mode of operation, turntable azimuth and height with respect to the antenna were noted for each frequency found. The spectrum was scanned from 30 MHz to 1 000 MHz using Log-Bicon antenna. Above 1 GHz, linearly polarized double ridge horn antennas were used. Final measurements were made open site or SVSWR chamber at 3 m. The test equipment was placed on a styrofoam table. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating condition. Each frequency found during pre- scan measurements was re-examined by manual. The EUT, support equipment and interconnecting cables were re-configured to the set-up producing the maximum emission for the frequency and were placed on top of a 0.8 m high non…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLT150914.0073, Page B1 of B3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:2ADMB-LB2010 Radiated Emission Test Setup (Below 30 MHz) Appendix B. Test Setup Photographs Report no. ETLT150914.0073, Page B2 of B3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:2ADMB-LB2010 Radiated Emission Test Setup (Below 1 GHz) Appendix B. Test Setup Photographs Report no. ETLT150914.0073, Page B3 of B3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:2ADMB-LB2010 Radiated Emission Test Setup (Above 1 GHz)
