SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Revised wording (obsolete)1.02.0Sept–25-2007 Updated company template (obsolete)2.03.0Jan-31-2012 Updated letter information (obsolete)3.04.0May-23-2014 Added FCC ID field (current)4.05.0Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2Rev 5.0 Worldlinks Communications, L.L.C. 2015/04/01 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ____WorldlinksCommunications, L.L.C.____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name) FCC ID: 2ADNIBTS100 Sincerely, Client’s signature Client’s name / title：Elie Maloof/Manager Contact information / address 270 Center Drive Suite 230, Vernon Hills, IL. 60061

SCS-F19: Confidentiality Request LetterPage 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date FromTo Initial Release (obsolete)1.01.0Nov-14-2006 Adding CFR 2.459 (obsolete)1.02.0August – 11 - 2008 Updated company template & Added text box (obsolete) 2.03.0Jan-31-2012 Added IC confidentiality letter form (current)3.04.0March-26-2015 SCS-F19: Confidentiality Request LetterPage 2 of 2 Rev 4.0 Worldlinks Communications, L.L.C. 2015/04/01 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject:Permanent Confidentiality Requestfor FCC ID:2ADNIBTS100 We hereby request confidential treatment of information accompanying this application as outlined below: -e. g.BlockDiagram -e.g. Schematics - e.g. Operational Description The above materials contain trade secrets and proprietary information not customarilyreleased to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Elie Maloof/Manager Contact information / address:270 Center Drive Suite 230, Vernon Hills, IL. 60061

RedDot Mobile Bluetooth Speaker Model No.:BTS100 FCC ID: 2ADNIBTS100 Input: DC 5V 500mAh Designed by RedDot Mobile in U.S.A., Assembled in China

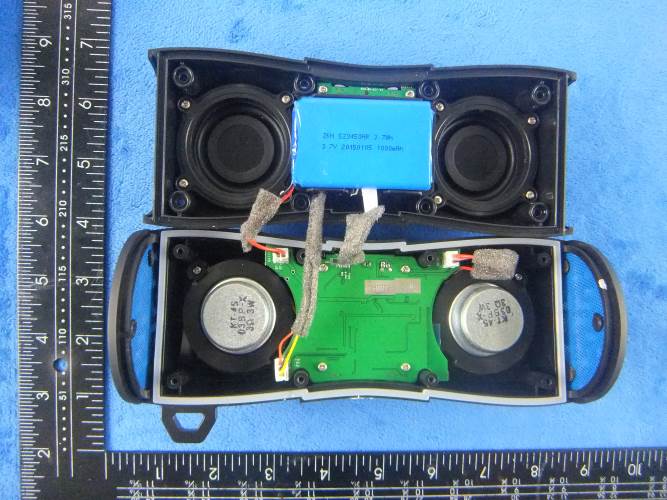

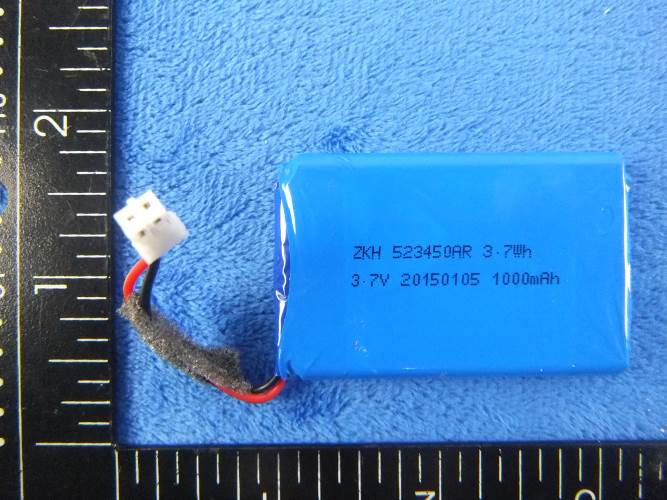

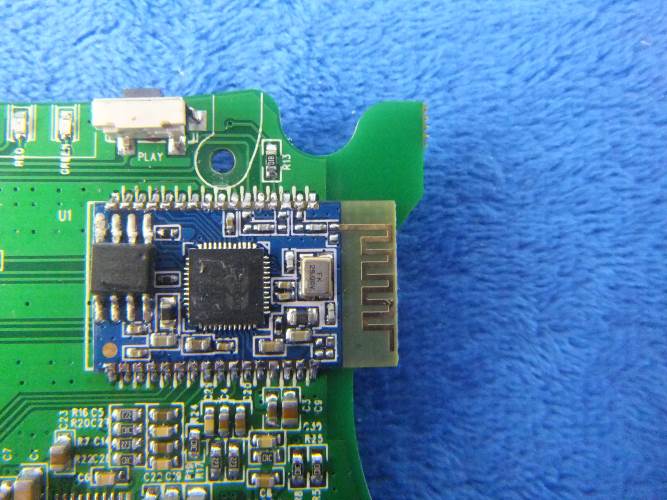

Test Report 15070156-FCC-E1 Page 18 of 25 Annex B.ii. Photograph: EUT Internal Photo Cover Off - Top View Mainborad With Shielding - Front View Mainborad Without Shielding - Rear View Battery - Front View Battery - Rear View LCD - Rear View Test Report 15070156-FCC-E1 Page 19 of 25 BT Antenna View

RF EXPOSURE REPORT Report No.: 15070156-FCC-H1 Supersede Report No.: N/A Applicant Worldlinks Communications, L.L.C. Product Name Speaker Model No. BTS100 Serial No. N/A Test Standard FCC 2.1093 Test Date March 16, 2015 Issue Date March 31, 2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Wiky Jam Test Engineer Alex Liu Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report 15070156-FCC-H1 Page 2 of 8 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report 15070156-FCC-H1 Page 3 of 8 This page has been left blank intentionally. Test Report 15070156-FCC-H1 Page 4 of 8 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. FCC §2.1093 - MAXIMUM PERMISSIBLE EXPOSURE ................................................................................... 7 5.1 RF EXPOSURE .......................................................................................................................................................... 7 5.2 TEST RESULT ........................................................................................................................................................... 8 Test Report 15070156-FCC-H1 Page 5 of 8 1. Report Revision History Report No. Report Version Description Issue Date 15070156-FCC-H1 NONE Original March 31, 2015 2. Customer information Applicant Name Worldlinks Communications, L.L.C. Applicant Add 270 Center Drive Suite 230, Vernon Hills, IL. 6006 Manufacturer KINGTA TECHNOLOGY CO.,LIMITED Manufacturer Add Floor 4,Building 9, Futing Industrial Zone, Zhucun, Guanlan, Bao'an ,Shenzhen,Guangdong,China 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report 15070156-FCC-H1 Page 6 of 8 4. Equipment under Test (EUT) Information Description of EUT: Speaker Main Model: BTS100 Serial Model: N/A Date EUT received: March 13, 2015 Test Date(s): March 16, 2015 Antenna Gain: Bluetooth: 0 dBi Type of Modulation: Bluetooth: GFSK, π /4DQPSK, 8DPSK RF Operating Frequency (ies): Bluetooth: 2402-2480 MHz Number of Channels: Bluetooth: 79CH Port: Power Port, Earphone Port, USB Port Input Power: Battery: Model: ZKH523450AR Spec: 3.7V 1000mAh Limited charger voltage: 4.2V Trade Name : REDDOTMOBILE GPRS/EGPRS Multi-slot class N/A FCC ID: 2ADNIBTS100 Test Report 15070156-FCC-H1 Page 7 of 8 DFP/ 5. FCC §2.1093 - Maximum Permissible exposure 5.1 RF Exposure Standard Requirement: According to §15.247 (i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’ s guidelines. Routine SAR evaluation refers to that specifically required by § 2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. result = P= Maximum turn-up power in mW F= Channel frequency in GHz D= Minimum test separation distance in mm Test Report 15070156-FCC-H1 Page 8 of 8 5.2 Test Result Bluetooth Mode: Modulation CH Freq (MHz) Conducted Power (dBm) Tune Up Power (dBm) Max Tune Up Power (dBm) Max Tune Up Power (mW) ResultLimit GFSK Low 2402 -8.505 -8.5±1 -7.5 0.18 0.06 3 Mid 2441 -9.502 -9.5±1 -8.5 0.14 0.04 3 High 2480 -10.35 -10.5±1 -9.5 0.11 0.03 3 π /4 DQPSK Low 2402 -9.554 -9.5±1 -8.5 0.14 0.04 3 Mid 2441 -11.35 -11.5±1 -10.5 0.09 0.03 3 High 2480 -12.06 -12.5±1 -11.5 0.07 0.02 3 8-DPSK Low 2402 -9.732 -9.5±1 -8.5 0.14 0.04 3 Mid 2441 -10.08 -10.5±1 -9.5 0.11 0.03 3 High 2480 -10.43 -10.5±1 -9.5 0.11 0.03 3 Result: Compliance No SAR measurement is required.

RF TEST REPORT Report No.: 15070156-FCC-R1 Supersede Report No.: N/A Applicant Worldlinks Communications, L.L.C. Product Name Speaker Model No. BTS100 Serial No. N/A Test Standard FCC Part 15.247: 2014, ANSI C63.10: 2009 Test Date March 12 to March 17, 2015 Issue Date March 31, 2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Wiky Jam Test Engineer Alex Liu Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report 15070156-FCC-R1 Page 2 of 52 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report 15070156-FCC-R1 Page 3 of 52 This page has been left blank intentionally. Test Report 15070156-FCC-R1 Page 4 of 52 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. TEST SUMMARY .................................................................................................................................................... 7 6. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................... 8 6.1 ANTENNA REQUIREMENT ..................................................................................................................................... 8 6.2 CHANNEL SEPARATION ........................................................................................................................................ 9 6.3 20DB BANDWIDTH ................................................................................................................................................. 13 6.4 PEAK OUTPUT POWER ........................................................................................................................................ 17 6.5 NUMBER OF HOPPING CHANNEL ..................................................................................................................... 21 6.6 TIME OF OCCUPANCY (DWELL TIME) ............................................................................................................. 23 6.7 BAND EDGE ............................................................................................................................................................. 27 6.8 AC POWER LINE CONDUCTED EMISSIONS ................................................................................................... 34 6.9 RADIATED SPURIOUS EMISSIONS ................................................................................................................... 38 ANNEX A. TEST INSTRUMENT ................................................................................................................................. 42 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 43 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 48 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PARTLIST .................................................. 51 ANNEX E. DECLARATION OF SIMILARITY ............................................................................................................ 52 Test Report 15070156-FCC-R1 Page 5 of 52 1. Report Revision History Report No. Report Version Description Issue Date 15070156-FCC-R1 NONE Original March 31, 2015 2. Customer information Applicant Name Worldlinks Communications, L.L.C. Applicant Add 270 Center Drive Suite 230, Vernon Hills, IL. 6006 Manufacturer KINGTA TECHNOLOGY CO.,LIMITED Manufacturer Add Floor 4,Building 9, Futing Industrial Zone, Zhucun, Guanlan, Bao'an ,Shenzhen,Guangdong,China 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report 15070156-FCC-R1 Page 6 of 52 4. Equipment under Test (EUT) Information Description of EUT: Speaker Main Model: BTS100 Serial Model: N/A Date EUT received: March 13, 2015 Test Date(s): Marc…

Text truncated - open the document above for the full version.

Test Report 15070156-FCC-R1 Page 47 of 52 Annex B.iii. Photograph: Test Setup Photo Conducted Emissions Test Setup Front View Conducted Emissions Test Setup Side View Radiated Spurious Emissions Test Setup Below 1GHz Radiated Spurious Emissions Test Setup Above 1GHz
