2ADQFBEHT3ADBLE Tracker

Do not pressure wash WARNING Changes or modifications to the unit must only be performed by an authorized technician. For outdoor use only. Explosion Hazard - Do not open when an explosive atmosphere is present. Potential electrostatic charging hazard - wipe only with a damp cloth. INSTALLATION Always follow your local regulations and standards. If locally required, consult with certified personnel to ensure your installation is compliant. BATTERY REPLACEMENT Please contact Otodata Support or your representative for battery replacement programs. IMPORTANT It is critical in all installations to ensure monitors’ antenna is positioned vertically. This will achieve optimal signal strength, ensuring that you receive data in a timely manner and prolong the battery life of the monitor. PLEASE TAKE A MOMENT TO CAREFULLY READ THE INSTALLATION INSTRUCTIONS INCLUDED WITH YOUR MONITORS, AND ENSURE YOU UNDERSTAND AND RESPECT LOCAL REGULATIONS. Installation Procedure Bluetooth Elite Scales for Industrial Gas Tanks GRA-0048 - EN - IM Rev: 002 ES3022 ES3026 2 CANADA INTERNATIONAL PLAINS & NORTHEAST SOUTH WEST WEST MEXICO SUPPORT 1-514-673-0244 | 1-844-763-3344 (Toll-free) [email protected] EMERGENCY SUPPORT 1-833-529-9499 Available 24 hours, 7 days a week. 3 CANADA INTERNATIONAL PLAINS & NORTHEAST SOUTH WEST WEST MEXICO Bluetooth Elite scale to weigh small-size industrial tanks up to 300kg Input Weight sensors data via Bluetooth Reporting & Outputs ReportingMeasured parameter (5% variation) Low battery High/Excessive draw Temperature Data InterfaceRaw data Client mobile app Automated TestingConnection status Battery status Electrical Specifications Battery PackHybrid LTC 8.5Ah ~ 3.6 Vdc Radio Specifications ReceiverFreq.: 2402.000MHz ~ 2480.000MHz Modulation: GFSK TransmitterFreq.: 2402.000MHz ~ 2480.000MHz Modulation: GFSK Output: 4.73dBm Features Auto-pairing to any Otodata ready sensor Android and IOS apps Ready to install Environmental Specifications Operating & storage temp. range -40�C to 85�C -40�F to 185�F Relative humidity range0% to 100% Enclosure ratingIP67 Warranty1 year Certifications ISED RSS-247, Issue 2IC Registration: 12649A-BEHT3AD FCC Part 15 Subpart CFCC ID: 2ADQFBEHT3AD Dimensions Height114 mm4.5 in Width406 mm16 in Depth508 mm20 in Ordering ES3022 Small Elite Scale with BT 650lb (300kg), no monitor TM5030BG-VA00-CNEE-ES3022 Small Elite Scale with BT and Gen2 monitor 650lb (300kg) This device complies with part 15 of the FCC Rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is compliant with Industry Canada's RSS standards for licence-exempt radio apparatuses. Authorized use depends on the following two conditions: (1) the device must not create radio interference, and (2) the device user must accept all radio interference, even if this interference could potentially impair its functioning. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Specifications 4 Bluetooth Elite scale to weigh industrial tanks up to 1,000kg Input Weight sensors data via Bluetooth Reporting & Outputs ReportingMeasured parameter (5% variation) Low battery High/Excessive draw Temperature Data InterfaceRaw data Client mobile app Automated TestingConnection status Battery status Electrical Specifications Battery PackHybrid LTC 8.5Ah ~ 3.6 Vdc Radio Specifications ReceiverFreq.: 2402.000MHz ~ 2480.000MHz Modulation: GFSK TransmitterFreq.: 2402.000MHz ~ 2480.000MHz Modulation: GFSK Output: 4.73dBm Features Auto-pairing to any Otodata ready sensor Android and IOS apps Ready to install Environmental Specifications Operating & storage temp. range -40�C to 85�C -40�F to 185�F Relative humidity range0% to 100% Enclosure ratingIP67 Warranty1 year Certifications ISED RSS-247, Issue 2IC Registration: 12649A-BEHT3AD FCC Part 15 Subpart CFCC ID: 2ADQFBEHT3AD Dimensions Height114 mm4.5 in Width749 mm29.5 in Depth749 mm29.5 in Ordering ES3026 Large Elite Scale with BT 2200lb (1000kg), no monitor TM5030BG-VA00-CNEE -ES3026 Large Elite Scale with BT and Gen2 monitor 2200lb (1000kg) This device complies with part 15 of the FCC Rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is compliant with Industry Canada's RSS standards for licence-exempt radio apparatuses. Authorized use depends on the following two conditions: (1) the device must not create…

Text truncated - open the document above for the full version.

Installation Procedure C020 BLE—ES3016 ES3016 Telemetry I2C interface with BT transceiver for multiple sensor and control capabilities INPUT I2C bus with Bulk M12 for Hall effect, Thermal or level sensors REPORTING & OUTPUTS Measured parameter (5% variation) Low battery High/Excessive variation Temperature Data Interface Raw data Client mobile app Automated Testing Connection status Battery status ELECTRICAL SPECIFICATIONS Battery Pack Hybrid LTC 8.5Ah ~ 3.6 Vdc RADIO SPECIFICATIONS Receiver Freq. : 2402.000MHz ~ 2480.000MHz Modulation : GFSK Transmitter Freq. : 2402.000MHz ~ 2480.000MHz Modulation : GFSK Output: 4.73dBm FEATURES • Auto-Pairing to any Otodata ready sensor • Android and IOS apps • Ready to install ENVIRONMENTAL SPECIFICATIONS Operating & storage -40C to +85C -40F to 185F temp. range Relative humidity range 0% to 100% Enclosure rating IP67 Warranty 1 year CERTIFICATIONS ISED RSS-247, Issue 2 IC Registration: 12649A-BEHT3AD FCC Part 15 Subpart C FCC ID: 2ADQFBEHT3AD DIMENSIONS Height 41mm[1.6in], Width 130mm[5.1in], Depth 66mm [2.6in] ORDERING OPTIONS ES3016-DH - Digital Hall sensor ES3016-DT - Digital Temperature sensor ES3016-DL - Digital Lidar sensor This device complies with part 15 of the FCC Rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is compliant with Industry Canada's RSS standards for licence-exempt radio apparatuses. Authorized use depends on the following two conditions: (1) the device must not create radio interference, and (2) the device user must accept all radio interference, even if this interference could potentially impair its functioning. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. M/N: ES3016 F/W: 1.0 IC: 12649A-BEHT3AD FCC ID: 2ADQFBEHT3AD FAIT AU CANADA Barcode ISED non-interference disclaimer This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. RF Exposure statement for ISED This equipment complies with ISED RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm (7.6 inches) between the radiator and any part of your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Our se conformer aux exigences de conformité ISED RSS-102 RF exposition, une distance de séparation d'au moins 20 cm doit être maintenue entre l'antenne de cet appareil et toutes les personnes. Lanceurs ou ne peuvent pas coexister cette antenne ou capteurs avec d'autres. RF Exposure statement for FCC This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, this equipment should be installed and operated with minimum distance 20 cm (7.8 inches) between the antenna and your body during normal operation. Users must follow the specific operating instructions for satisfying RF exposure compliance. Label on Device: Installation of the device 3. Proceed to the Bluetooth pairing by downloading the Otodata TechApp, available for Android or IOS. 3.1 Start the app on your phone Sensor Connector 1. Unpack your device and ensure all parts look good with no damage. 2. If the sensor was shipped disconnected from the box, you can connect it now. Look for the correct position of the connector by aligning the half moon marks. 3.5 Once the process is finished you will be able to use your device in the regular Nee-Vo app. BLE Pairing 3.3 Confirm This process will link your Otodata ES3016 to this Smartphone. 3.4 Select your device from the displayed list 3.2 Select BLE Pairing My Tank

1180 Rue de Louvain O, Montréal, Québec, Canada, H4N 1G5. T: +1 (514) 745-8241 F: +1 (514) 745-8630 January 25 2022 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent FCC On our behalf, I appoint Spencer Zhong of Nemko Canada, Inc. 303 River Road, Ottawa ON K1V 1H2 Canada, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with TAG TRACKING INC. at 9280 boul. de l’Acadie, Montreal, QC, H4N 3C5 Canada. Dated this 25th Day of January 20 22 Agency agreement expiration date: January 25, 2024 By: Simon Noel Signature Printed Title: VP R&D On behalf of: OTODATA Wireless Network Inc. Telephone: 514-745-8241 Simon Noel, VP R&D. Otodata Wireless Network Inc.

1180 Rue de Louvain O, Montreal, Quebec, Canada, H4N 1G5 T: +1 (514) 673-0244 F: +1 (514) 745-8630 Family Certification Attestation Letter 3/25/2022 Nemko Canada Inc 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer IC: 12649A-BEHT3AD Model Name: C020 BLE HVINs/Models: ES3016, ES3022, ES3026 The ES3022 and ES3026 have identical circuit design, PCB layout, shielding and interface and only the plastic housings have slight variations for their installation on different scales. Only the model ES3016 is different. This model is a stripped-down version and is missing an interface PCB. Therefore, this application can be regarded as identical in performance to the submitted test sample. Signed: Printed name: Julien Renaud Title: Compliance Manager Date: 4/5/2022

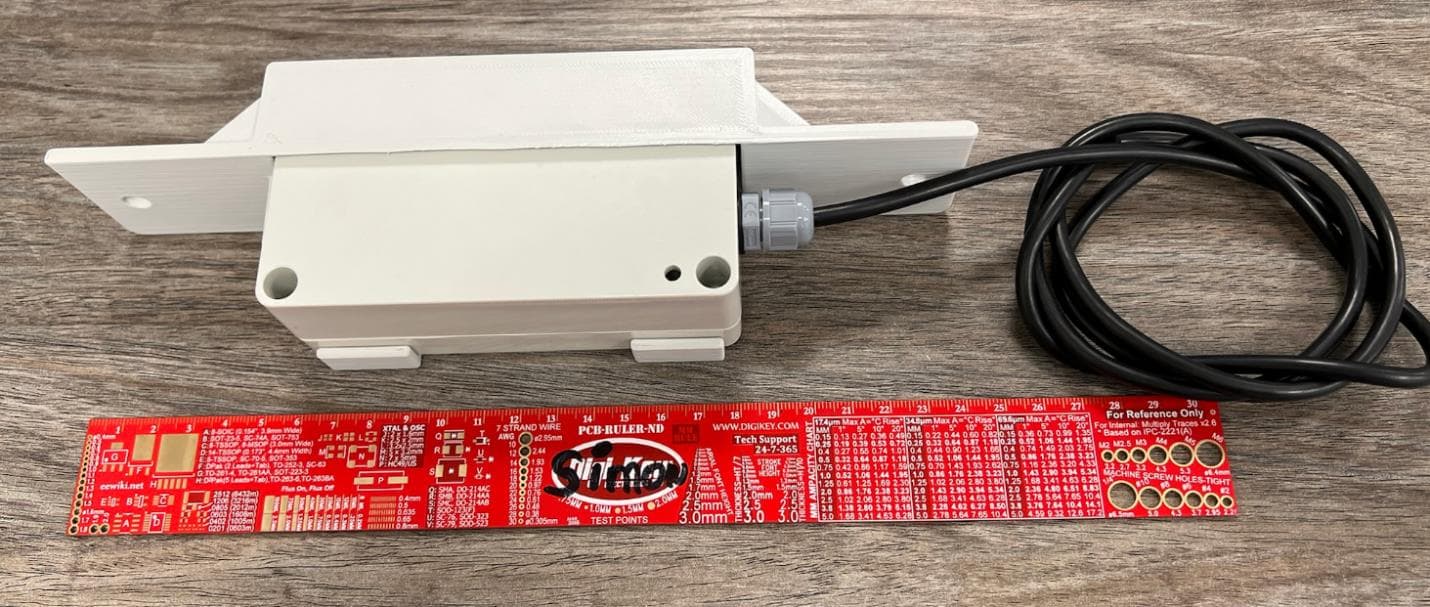

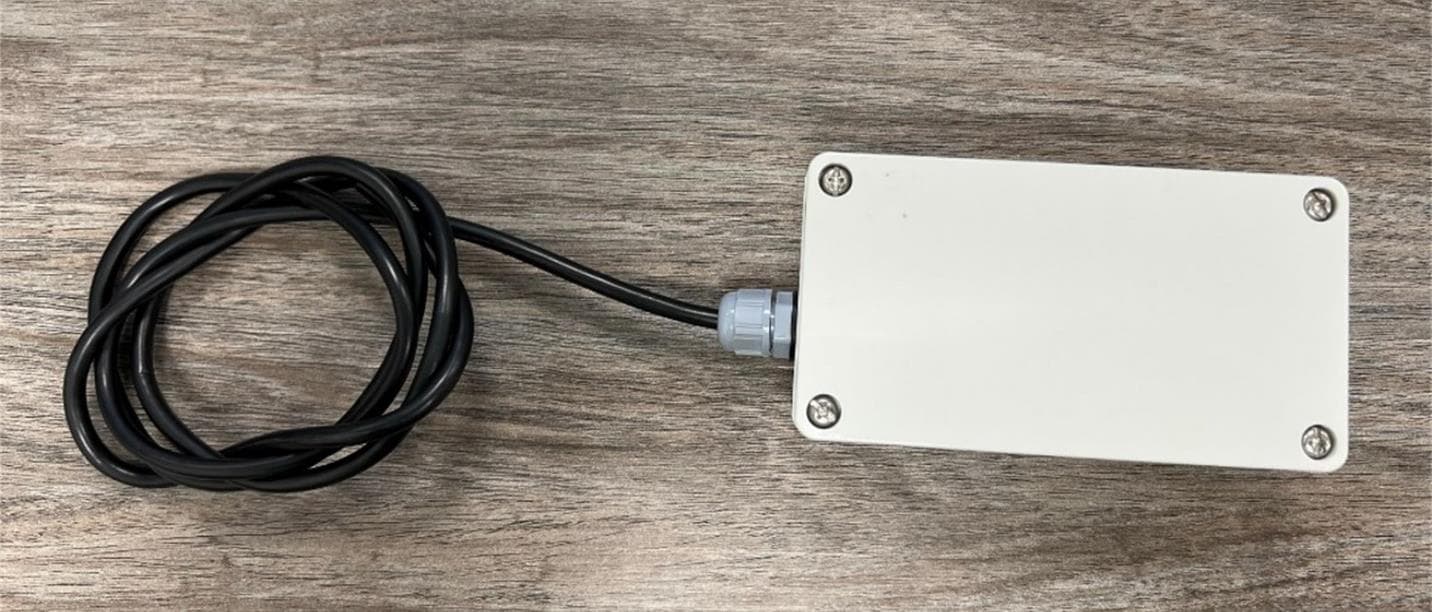

ES3016 Top view: Bottom view: ES3022 Top view: Bottom view: ES3026 Front view with harness: Back view with harness: Top view: Bottom view:

ES3016— Label location ES3016— Label location ES3016— Label ES3022— Label location ES3022— Label location ES3022— Label ES3026— Label location ES3026— Label location ES3026— Label

ES3016 ES3022 ES3026

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The SCC Accreditation Symbol is an official symbol of the Standards Council of Canada, used under licence. SCC File Number: 15064 (Ottawa/Almonte); 151100 (Montreal); 151097 (Cambridge) FCC and RSS-102 Annex C – MPE Calculation; Date: May 2021 Choose Scandinavian trust RADIO TEST REPORT – APFWL Type of assessment: MPE Calculation report Manufacturer: Hardware Version Identification Number (HVIN): Otodata Wireless Network Inc. ES3016, ES3022, ES3026 Product Marketing Name (PMN): C020 BLE FCC ID: IC certification number: 2ADQFBEHT3AD 12649A-BEHT3AD Specification:  FCC 47 CFR Part 1 Subpart I, §§1.1307, 1.1310  FCC 47 CFR Part 2 Subpart J, §2.1091  FCC KDB 447498 D01 General RF Exposure Guidance v06  ISED Canada RSS-102 Issue 5 Amendment 1, (February 2021) RSS-102 Annex B - Declaration of RF Exposure Compliance ATTESTATION: I attest that the information provided in Annex A is correct; that the Technical Brief was prepared and the information contained therein is correct; that the device evaluation was performed or supervised by me; that applicable measurement methods and evaluation methodologies have been followed; and that the device meets the SAR and/or RF field strength limits of RSS-102. Date of issue: March 24, 2022 Yong Huang, EMC/RF Specialist Prepared by Signature Report reference ID: MPE calculation Page 2 of 6 Lab locations Company name Nemko Canada Inc. Facilities Ottawa site: 303 River Road Ottawa, Ontario Canada K1V 1H2 Tel: +1 613 737 9680 Fax: +1 613 737 9691 Montréal site: 292 Labrosse Avenue Pointe-Claire, Québec Canada H9R 5L8 Tel: +1 514 694 2684 Fax: +1 514 694 3528 Cambridge site: 1-130 Saltsman Drive Cambridge, Ontario Canada N3E 0B2 Tel: +1 519 650 4811 Almonte site: 1500 Peter Robinson Road West Carleton, Ontario Canada K0A 1L0 Tel: +1 613 256-9117 Test site identifier Organization Ottawa/Almonte Montreal Cambridge FCC: CA2040 CA2041 CA0101 ISED: 2040A-4 2040G-5 24676 Website www.nemko.com Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contained in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: MPE calculation Page 3 of 6 Table of Contents Table of Contents ......................................................................................................................................................................................................... 3 Evaluation summary ........................................................................................................................................................................... 4 1.1 MPE calculation for standalone transmission ........................................................................................................................................................... 4 Section 1.2 MPE calculation for simultaneous transmission Report reference ID: MPE calculation Page 4 of 6 Evaluation summary 1.1 MPE calculation for standalone transmission 1.1.1 References, definitions and limits FCC §2.1091(d) (2) (2) For operations within the frequency range of 300 kHz and 6 GHz (inclusive), the limits for maximum permissible exposure (MPE), derived from whole-body SAR limits and listed in Table 1 in paragraph (e)(1) of this section, may be used instead of whole-body SAR limits as set forth in paragraphs (a) through (c) of this section to evaluate the environmental impact of human exposure to RF radiation as specified in §1.1307(b) of this part, except for portable devices as defined in §2.1093 of this chapter as these evaluations shall be performed according to the SAR provisions in §2.1093. Table 1.1-1: Table 1 to §1.1310(e)(1)—Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (i) Limits for Occupational/Controlled Exposure 0.3–3.0 614 1.63 *(100) ≤6 3.0–30 1842 / f 4.89 / f *(900 / f 2 ) <6 30–300 61.4 0.163 1.0 <6 300–1500 f / 300 <6 1500–100000 5 <6 (ii) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) <30 1.34–30 824 / f 2.19 / f *(180 / f 2 ) <30 30–300 27.5 0.073 0.2 <30 300–1500 f / 1500 <30 1500–100000 1.0 <30 Notes: f = frequency in MHz. * = Plane-wave equivalent power density. RSS-102, Section 2.5.2 RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: • below 20 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1 W (adjusted for tune- up tolerance); • at or above 20 MHz and below 48 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 4.49/ƒ 0.5 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 48 MHz and below 300 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 0.6 W (adjusted for tune-up tolerance); • at or above 300 MHz and below 6 GHz and the source…

Text truncated - open the document above for the full version.

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The SCC Accreditation Symbol is an official symbol of the Standards Council of Canada, used under licence. SCC File Number: 15064 (Ottawa/Almonte); 151100 (Montreal); 151097 (Cambridge) FCC 15.247 and RSS-247; Date: February 2021 Choose Scandinavian trust RADIO TEST REPORT – 455603-1TRFWL Type of assessment: Final product testing Type of radio equipment: Bluetooth Device Equipment class: DTS Applicant: Product name (PMN) Otodata Wireless Network Inc. C020 BLE Model (HVIN): Product description: ES3016, ES3022, ES3026 BLE Tracker FCC ID: IC Registration number: 2ADQFBEHT3AD 12649A-BEHT3AD Specifications:  FCC 47 CFR Part 15 Subpart C, §15.247  RSS-247, Issue 2, Feb 2017, Section 5 Date of issue: March 24, 2022 Yong Huang, EMC/RF Specialist Tested by Signature Andrey Adelberg, Senior EMC/RF Specialist Reviewed by Signature Report reference ID: 455603-1TRFWL Page 2 of 45 Lab locations Company name Nemko Canada Inc. Facilities Ottawa site: 303 River Road Ottawa, Ontario Canada K1V 1H2 Tel: +1 613 737 9680 Fax: +1 613 737 9691 Montréal site: 292 Labrosse Avenue Pointe-Claire, Québec Canada H9R 5L8 Tel: +1 514 694 2684 Fax: +1 514 694 3528 Cambridge site: 1-130 Saltsman Drive Cambridge, Ontario Canada N3E 0B2 Tel: +1 519 650 4811 Almonte site: 1500 Peter Robinson Road West Carleton, Ontario Canada K0A 1L0 Tel: +1 613 256-9117 Test site identifier Organization Ottawa/Almonte Montreal Cambridge FCC: CA2040 CA2041 CA0101 ISED: 2040A-4 2040G-5 24676 Website www.nemko.com Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contained in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 455603-1TRFWL Page 3 of 45 Table of Contents Table of Contents ......................................................................................................................................................................................................... 3 Report summary ................................................................................................................................................................................. 4 1.1 Test specifications .................................................................................................................................................................................................... 4 1.2 Test methods ............................................................................................................................................................................................................ 4 1.3 Exclusions ................................................................................................................................................................................................................. 4 1.4 Statement of compliance .......................................................................................................................................................................................... 4 1.5 Test report revision history ....................................................................................................................................................................................... 4 Engineering considerations ................................................................................................................................................................. 5 2.1 Modifications incorporated in the EUT for compliance ............................................................................................................................................ 5 2.2 Technical judgment .................................................................................................................................................................................................. 5 2.3 Model variant declaration ........................................................................................................................................................................................ 5 2.4 Deviations from laboratory tests procedures ........................................................................................................................................................... 5 Test conditions ................................................................................................................................................................................... 6 3.1 Atmospheric conditions ............................................................................................................................................................................................ 6 3.2 Power supply range .................................................................................................................................................................................................. 6 Measurement uncertainty .......................................................................................................................................…

Text truncated - open the document above for the full version.

www.nemko.com setup photos.docx; Date: May 2013 ONE WORLDOURAPPROVAL Setup photos 455603RADWL Date of issue: March 24, 2022 Applicant: Otodata Wireless Network Inc. Product name: C020 BLE Models: ES3016, ES3022, ES3026 FCC ID: IC Registration number: 2ADQFBEHT3AD 12649A-BEHT3AD Section 1: setup photos Report reference ID: -455603RADWL Page 2 of 3 Section 1. Setup photos 1.1 Radiated Front view Section 1: setup photos Report reference ID: -455603RADWL Page 3 of 3 1.2 Radiated back view
