2ADQFVM30X0Volumetric Meter

Installation Procedure Smart Volumetric Adapter for Diaphragm Gas Meter Volumetric Meter Models: VM3010, VM3020 Do not pressure wash WARNING In order to guarantee a safe, explosion-proof environment and ensure conformity to the Certifications (page 1), the below requirements must be fulfilled without fail: 1. Ambient temperature range is -40ºC ≤ Tamb ≤ +60ºC, 2. The device shall not be installed in a location where the external conditions are conducive to the build-up of electrostatic charge (under certain extreme circumstances, the plastic enclosure may store an ignition-capable level of electrostatic charge), 3. DO NOT RUB. The equipment shall only be cleaned with a damp cloth. INSTALLATION Always follow your local regulations and standards. If locally required, consult a certified expert to ensure your installation is compliant. GRA-0094-EN_005 IM_VM3010-3020 2024-06-26 Support +1 (514) 673-0244 +1 (844) 763-3344 (toll-free) [email protected] otodatatankmonitors.com/support Emergency Support Available 24/7 1-833-529-9499 1 This device complies with part 15 of the FCC Rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is compliant with Industry Canada's RSS standards for license-exempt radio apparatuses. Authorized use depends on the following two conditions: (1) the device must not create radio interference, and (2) the device user must accept all radio interference, even if this interference could potentially impair its functioning. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. To comply with FCC RF exposure compliance recommendations, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. Specifications Smart Volumetric Adapter for Diaphragm Gas Meter Input Hall effect detection of turns on gas meter’s axle Reporting & Outputs ReportingGas consumption in cubic feet Low battery Temperature Data InterfaceAPI Email (to supplier and/or consumer) Raw data Online dashboard Client mobile app Automated TestingNetwork status Battery status Radio Specifications TechnologiesVM3010: Bluetooth BLE VM3020: Bluetooth BLE, LTE-M, NB-IoT Environmental Specifications Operating and storage temperature range -40�C to 60�C -40�F to 140�F Relative humidity range0% to 100% Enclosure ratingIP68 Warranty2 years Features Ready to install, long lasting battery, hardware installation included. Certifications Hazardous Location Classification Otodata's volumetric gas meters are certified by QPS Evaluation Services Inc. for use in North America. I.S. Class I, Div 1, Groups CD, T3. Class I, Zone 0, AEx ia IIB T3 Ga. Standards applied: UL 60079- 0:2019; Ed. 7 and CSA C22.2 NO. 60079-0:19, UL 60079-11:2013; Ed.6 and CSA-C22.2 NO. 60079-11:14, UL/CSA 61010-1-12. Volumetric gas meters are certified by Ośrodek Badań Atestacji i Certyfikacji OBAC for use in the European Union and internationally. IECEx Classification: Ex ia IIB T3 Ga, Certificate: IECEx OBAC 23.0007X, Standards applied: IEC 60079-0:2017 – IEC 60079-11:2011 ATEX Classification: II 1G Ex ia IIB T3 Ga, Certificate: OBAC ATEX 0311X Standards applied: EN 60079-0:2017 – EN 60079-11:2011 Radio Certifications FCC ID: 2ADQFVM30X0, IC ID: 12649A-VM30X0 Adapter Dimensions Height: 13.9 cm (5.5 in), Width: 8.4 cm (3.3 in), Depth: 3.6 cm (1.4 in) Ordering Options VM3020-VSXX-CBLK* Smart Volumetric Adapter for gas meter with Bluetooth interface and cellular network modem. VM3010-V0XX-CBLK* Smart Volumetric Adapter for gas meter with Bluetooth interface. Volumetric Meter Models: VM3010, VM3020 * Replace "XX" with the appropriate regional code. If available, replace "CBLK" with client branding code. 2 Safety requirements Prior to installation and use, it is essential to read and understand this instruction manual; paying particular attention to the Ex marking,* special conditions of use, and technical parameters. The device can only be connected to equipment with proper, fitted, intrinsically-safe parameters. NEVER carry out any service manipulations in the presence of an explosive atmosphere. The Volumetric Meter (VM3010 or VM3020) is delivered with connected batteries. Start-up of the device requires only proper use of user interface. Activities related to starting up of the device do not have influence on Ex safety. This device was not designed to be maintained or repaired. This device was not design to be adjusted. During installation or deinstallation, it is imperative to protect the device from building an electrostatic charge on its surface. The device is designed for fixed mounting. Otodata VM3010 and VM3020 are ONLY compatible with the following diaphragm gas meters: AC…

Text truncated - open the document above for the full version.

Directives d’installation Adaptateur volumétrique intelligent pour compteur de gaz à membrane Compteur de gaz volumétrique Modèles : VM3010, VM3020 Ne pas laver à pression AVERTISSEMENT Afin de garantir un environnement sûr et antidéflagrant et d'assurer la conformité aux certifications (page 1), les exigences ci-dessous doivent être remplies sans faute : 1. La plage de température ambiante est de -40 ºC ≤ Tamb ≤ +60 ºC, 2. L’appareil ne doit pas être installé dans un endroit où les conditions extérieures sont propices à l’accumulation de charge électrostatique (dans certaines circonstances extrêmes, le boitier de plastique pourrait accumuler un niveau de charge électrostatique pouvant s'enflammer), 3. Ne pas frottez. L’équipement ne doit être nettoyé qu’avec un chiffon humide. INSTALLATION Respectez toujours les réglementations et normes locales. Si nécessaire, consultez un expert certifié pour vous assurer que votre installation est conforme. GRA-0094-FR_004 IM_VM3010-3020 2024-06-13 Soutien +1 (514) 673-0244 +1 (844) 763-3344 (sans frais) [email protected] otodatatankmonitors.com/soutien Service d’urgence après les heures d’ouverture +1 (833) 529-9499 1 Cet appareil est conforme au paragraphe 15 des normes FCC. Toute modification n’ayant pas été approuvée expressément par la partie responsable de la conformité peut invalider le droit d’employer cet équipement accordé à l’utilisateur. Son opéra- tion est sujettes aux deux conditions suivantes : (1) cet appareil ne doit pas occasionner de brouillage préjudiciable et (2) cet appareil doit accepter toutes les interférences reçues, notamment les interférences pouvant provoquer un fonctionnement non désiré. Ce dispositif est conforme aux normes CNR d’Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Cet équipement a été testé et déclaré conforme aux limites imposées aux périphériques numériques de classe B stipulées au chapitre 15 du règlement FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les interférences nuisibles dans un environnement résidentiel. Cet équipement génère, utilise et peut émettre des fréquences radio et, s’il n’est pas installé et utilisé conformément aux instructions, peut créer des interférences nuisibles perturbant les communications radio. Toutefois, rien ne permet de garantir l’absence totale d’interférence dans une installation donnée. Si l’équi- pement perturbe la réception de radios ou de télévisions, ce qui peut être vérifié en éteignant et en rallumant l’équipement, l’utilisateur est invité à tenter de faire disparaître ces interférences en recourant à l’une des mesures suivantes: - réorienter ou déplacer l’antenne de réception ; - augmenter l’écart entre l’équipement et le récepteur ; -brancher l’équipement sur une prise située sur un circuit autre que celui auquel est raccordé le récepteur ; - consulter le revendeur ou un technicien expérimenté pour obtenir de l’aide. Pour se conformer aux recommandations de conformité de la FCC/ISDE en matière d’exposition RF, une distance de séparation d’au moins 20 cm doit être maintenue entre l’antenne de cet appareil et toutes personnes. Spécifications Adaptateur volumétrique intelligent pour compteur de gaz à membrane Entrée Détection par effet Hall des tours de l’axe du compteur de gaz Rapports et sorties RapportsConsommation de gaz en pieds cubes Batterie faible Températures Interface de donnéesAPI Courriel (au fournisseur et/ou au consommateur) Données brutes Tableau de bord en ligne Application mobile client Test automatiséÉtat du réseau État de la batterie Caractéristiques de la radio TechnologiesVM3010: Bluetooth BLE VM3020: Bluetooth BLE, LTE-M, NB-IoT Spécifications environnementales Plage de température de fonctionnement et de rangement -40�C à 60�C -40�F à 140�F Plage d’humidité relative0% à 100% Indice de protection du boîtier IP68 Garantie2 ans Caractéristiques Prêt à installer, batterie longue durée, installation matérielle incluse. Certifications Classification pour les emplacements dangereux Les compteurs de gaz volumétrique sont certifiés par QPS Evaluation Services Inc. pour une utilisation en Amérique du Nord. I.S. Classe I, Div 1, Groupes CD, T3. Classe I, Zone 0, AEx ia IIB T3 Ga. Normes appliquées : UL 60079-0:2019 ; Éd. 7 et CSA C22.2 NO. 60079-0:19, UL 60079-11:2013 ; Ed.6 et CSA-C22.2 NO. 60079-11:14, UL/CSA 61010-1-12. Les compteurs de gaz volumétrique sont certifiés par Ośrodek Badań Atestacji i Certyfikacji OBAC pour une utilisation dans l'Union européenne et à l’international. IECEx Classification : Ex ia IIB T3 Ga, Certificat : IECEx OBAC 23.0007X, Normes appliquées : CEI 60079-0:2017 – CEI 60079- 11:2011 ATEX Classification : II 1G Ex ia IIB T3 Ga, Certificat : OBAC ATEX 0311XNormes appliquées : EN 60079-0:2017 – EN 60079-11:2011 Certifications Radio ID FCC : 2ADQFVM30X0, IC ID : 12649A-VM30X0 Dimensions facultatif Hauteur : 13,9 cm (5,5 po), largeur : 8,4 cm (3,3 po), profondeur : 3,6 cm (1,4 po) Options de commande VM3020-VSxx-CBLK* Adaptateur volumétrique intelligent pour compteur de gaz avec interface Bluetooth et modem de réseau cellulaire. VM3010-V0xx-CBLK* Adaptateur volumétrique intelligent pour compteur de gaz avec interface Bluetooth. Compteur de gaz volumétrique Modèles : VM3010, VM3020 * Remplacez « xx » par le code de régionalité approprié. Si disponible, remplacez « CBLK » par le code client. 2 Exigences de sécurité Avant l’installation et l’utilisation, il est essentiel de lire et de comprendre ce manuel d’instructions ; en portant une attention particulière au marquage Ex*, aux conditions spéciales d’utilisation et aux paramètres techniques. L'appareil ne peut être connecté qu'à un équipement intrinsèque avec des para…

Text truncated - open the document above for the full version.

1180 Rue de Louvain O, Montreal, Quebec, Canada, H4N 1G5 T: +1 (514) 673-0244 F: +1 (514) 745-8630 * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter June 27, 2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2ADQFVM30X0 FRN: 0024127557 Per section 2.911(d)(7) of the FCC rules, Otodata Wireless Network Inc. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: Otodata Technologies USA Physical U.S. Company Address: 130 Technology Dr, Canonsburg, PA 15317-9563 US Agent name: Eric Wise Telephone No: 1 (412) 779-9998 Agent Email Address: [email protected] FRN: Does not do business with the FCC. The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: Jason M Gallovich Printed name: Eric Wise Title: Executive Vice-President Title: Click here to enter text. Company Name: Otodata Wireless Network Inc. Company Name: Otodata Technologies USA Date: June 17, 2024 Date: June 17, 2024 Vice President of Industrial Solutions

1180 Rue de Louvain O, Montreal, Quebec, Canada, H4N 1G5 T: +1 (514) 673-0244 F: +1 (514) 745-8630 Covered Equipment Certification Attestation Letter 6/17/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2ADQFVM30X0 Otodata Wireless Network Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Otodata Wireless Network Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Jason M Gallovich Title: Executive Vice-President Company Name: Otodata Wireless Network Inc. Date: 6/17/2024

1180 Rue de Louvain O, Montreal, Quebec, Canada, H4N 1G5 T: +1 (514) 673-0244 F: +1 (514) 745-8630 6/27/2024 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ Building 7, Baiwang Idea Factory, No.1051, Songbai Road, Yangguang Community, Xili Subdistrict, Nanshan District, Shenzhen, Guangdong, China / Xu Yang, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Printed name: Jason M Gallovich

1180 Rue de Louvain O, Montreal, Quebec, Canada, H4N 1G5 T: +1 (514) 673-0244 F: +1 (514) 745-8630 Differences declaration To whom concern: Our company Otodata Wireless Network Inc. Here by declares: Multi-model differences are as follows: Main model: Listed model: VM3010 Schematic diagram 电路原理图 PCB layout PCB走线 Appearance 外观结构 Model name 型号命名 Other 其它 VM3020 ∆ ∆  ∆  Note: 1. If it is a same, mark it as  如相同, 则标识为 2. If there is a difference, mark it as ∆; If there are differences other than model name differences, please describe them in detail 如有差异，则标注为∆; 除了型号命名差异外，如有其它差异则需要在下面详细描述 Model No.: Differences describe VM3010 1/2 VM3020 The V3020 has more LTE features than the V3010, and LTE uses a way to reference the FCC ID of the module. By: Jason M Gallovich Signature Printed Title: Executive Vice-President On behalf of : Otodata Wireless Network Inc.

1180 Rue de Louvain O, Montreal, Quebec, Canada, H4N 1G5 T: +1 (514) 673-0244 F: +1 (514) 745-8630 June 27, 2024 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: 2ADQFVM30X0 Pursuant to Sections 0.457(d) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request permanent confidential treatment of exhibits identified as such in the table below and request they are permanently withheld from public review based on the documents containing trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. Exhibit Type of Confidentiality Requested Block Diagrams ☒ Permanent ☐ Short Term External Photos ------------------ ☐ Short Term Internal Photos ☐ Permanent* ☐ Short Term Operation Description ☒ Permanent ☐ Short Term Parts List & Placement/BOM ☐ Permanent ☐ Short Term Tune-Up Procedure ☐ Permanent ☐ Short Term Schematic Diagrams ☒ Permanent ☐ Short Term Test Setup Photos ------------------ ☐ Short Term User’s Manual ☐ Permanent* ☐ Short Term The asterisked items (*) require further information to be provided in this justification letter before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. Note: any documents held under the Short-Term confidentiality will automatically become public after the requested time if an appropriate extension request has not been received. Any exhibits (i.e., schematic diagrams) that may have already been requested to have “Permanent” confidentiality as shown above need not be repeated under Short-Term confidentiality request. Sincerely, Signed: Printed name: Jason M Gallovich Title: Executive Vice-President Company Name: Otodata Wireless Network Inc.

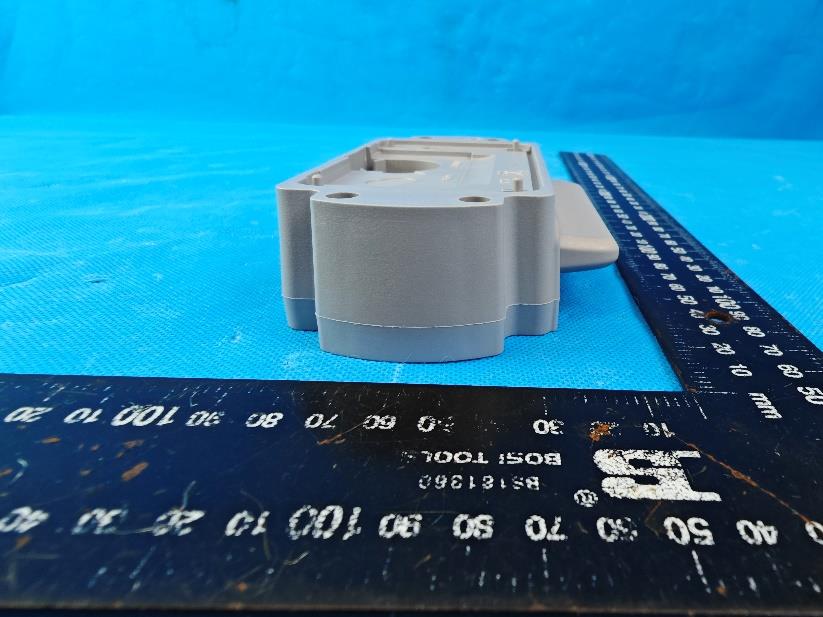

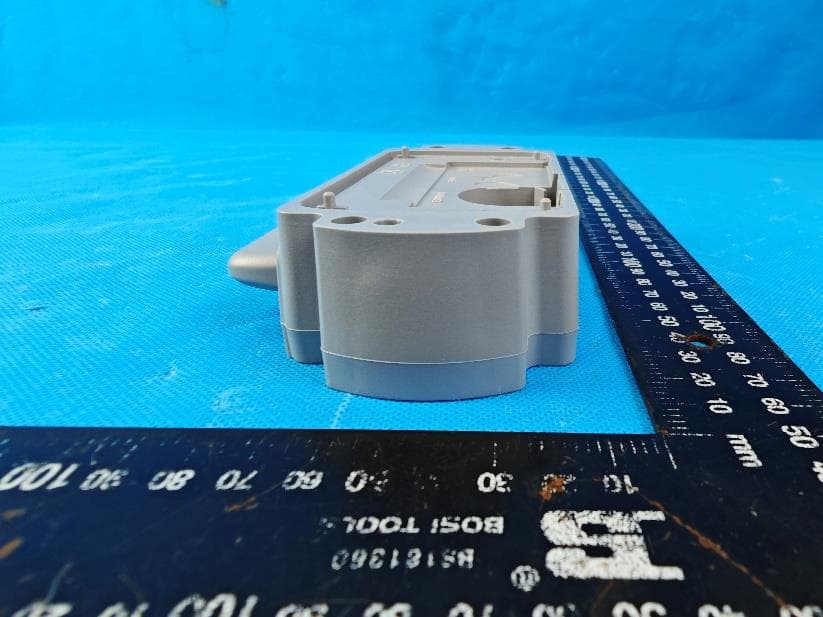

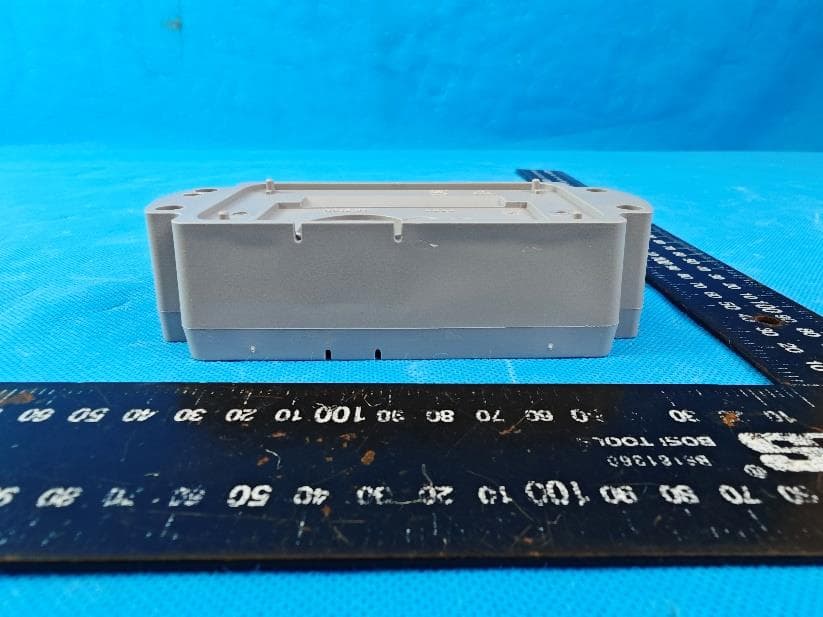

External Photos VM3010 VM3020

Label&label Location Label shall be permanently affixed to the equipment.

Label&label Location Label shall be permanently affixed to the equipment.

Internal Photos VM3010 VM3010 VM3020 VM3020 VM3020 VM3020 VM3020 VM3020

FCC ID:2ADQFVM30X0 RF Exposure Evaluation LIMIT ◎ Single transmitter: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 - - f/300 6 1500–100,000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 - - f/1500 30 1500–100,000 - - 1.0 30 Note: f = frequency in MHz ◎ Simultaneous transmission: Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in a host device is≤1.0. EVALUATION METHOD Transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW, G = gain of antenna in linear scale; Pi = 3.1416, R = distance between observation point and center of the radiator in cm TEST RESULT Passed Not Applicable FCC ID:2ADQFVM30X0 Single transmitter: Type Maximum Output Power(dBm) #1 Maximum Duty Cycle (%) Antenna Gain #2 (dBi) Minimum use distance (cm) Power density (mW/cm 2 ) Power density limit (mW/cm 2 ) Result LTE Cat M/NB Band 2 22.00 100.0 5.21 20 0.105 1.000 PASS LTE Cat M/NB Band 4 22.00 100.0 5.26 20 0.106 1.000 PASS LTE Cat M/NB Band 5 22.00 100.0 2.08 20 0.051 0.549 PASS LTE Cat M/NB Band 12 22.00 100.0 0.74 20 0.037 0.466 PASS LTE Cat M/NB Band 13 22.00 100.0 1.56 20 0.045 0.518 PASS BLE 4.00 100.0 1.95 20 0.0008 1.000 PASS Note: #1: LTE Cat M, LTE Cat NB Refer to module FCC ID: RI7ME310G1W1. The product only uses the frequency bands listed in this report, and other frequency bands of the module have been disabled by software. #2: The antenna gain is provided by the applicant, and the applicant should be responsible for its authenticity, HTW lab has not verified the authenticity of its information. Simultaneous transmission (Worst Case): Radio Type Power density (mW/cm 2 ) Power density level (mW/cm 2 ) Computed result Limit Result LTE Cat M/NB Band 4 0.105 1.000 0.1058 1.0 PASS BLE 0.0008 1.000

Page: 1 of 36 TEST REPORT For Bluetooth-LE Report No. ...................................... : CHTEW23120009 Report Verification: Project No.................................： SHT2310053703EW FCC ID ............................................. : 2ADQFVM30X0 Applicant’s name ........................... : Otodata Wireless Network Inc. Address ............................................. : 1180 Rue De Louvain Ouest, Montreal (Quebec), H4N 1G5, Canada Product Name ................................ : Volumetric Meter Trade Mark ....................................... : Model No. ......................................... : VM3010 Listed Model(s) ................................. : VM3020 Standard ......................................... : FCC CFR Title 47 Part 15 Subpart C § 15.247 Date of receipt of test sample..........: Oct. 26, 2023 Date of testing.............................: Oct. 27, 2023- Nov. 18, 2023 Date of issue...............................: Dec. 08, 2023 Result .................. ........................: PASS Compiled by ( Position+Printed name+Signature): File administrator Xiaodong Zhao Supervised by (Position+Printed name+Signature): Project Engineer Xiaodong Zhao Approved by (Position+Printed name+Signature): RF Manager Xu Yang Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : Building 7, Baiwang Idea Factory, No.1051, Songbai Road, Yangguang Community, Xili Subdistrict, Nanshan District, Shenzhen, Guangdong, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW23120009 Page: 2 of 36 Date of issue: 2023-12-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03) Contents 1. TEST S T A N D A R D S A N D R E P O R T V E R S I O N 3 1.1. Test Standards 3 1.2. Report version 3 2. TEST DESCRIPTION 4 3. SUMMARY 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Radio Specification Description 5 3.4. Testing Laboratory Information 6 4. TEST CONFIGURATION 7 4.1. Test frequency list 7 4.2. Descriptions of Test mode 7 4.3. Test sample information 7 4.4. Support unit used in test configuration and system 8 4.5. Testing environmental condition 8 4.6. Statement of the measurement uncertainty 8 4.7. Equipment Used during the Test 9 5. TEST CONDITIONS AND RESULTS 10 5.1. Antenna Requirement 10 5.2. AC Conducted Emission 11 5.3. Peak Output Power 12 5.4. Power Spectral Density 13 5.5. 6dB bandwidth 14 5.6. 99% Occupied Bandwidth 15 5.7. Duty Cycle 16 5.8. Conducted Band edge and Spurious Emission 17 5.9. Radiated Band edge Emission 18 5.10. Radiated Spurious Emission 21 6. TEST SETUP PHOTOS 27 7. EXTERNAL AND INTERNAL PHOTOS 29 7.1. External Photos 29 7.2. Internal Photos 33 8. APPENDIX REPORT 36 Report No.: CHTEW23120009 Page: 3 of 36 Date of issue: 2023-12-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03) 1. TEST STANDARDS AND REPORT VERSION 1.1. Test Standards The tests were performed according to following standards: ‒ FCC CFR Title 47 Part 15 Subpart C § 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz ‒ ANSI C63.10:2020: American National Standard for Testing Unlicensed Wireless Devices ‒ KDB 558074 D01 15.247 Meas Guidance v05r02: Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of The FCC Rules 1.2. Report version Revision No. Date of issue Description N/A 2023-12-08 Original Report No.: CHTEW23120009 Page: 4 of 36 Date of issue: 2023-12-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03) 2. TEST DESCRIPTION Report clause Test Items Standard Requirement Result Test Engineer 5.1 Antenna Requirement 15.203/15.247(c) PASS Xiangyu Wei 5.2 AC Conducted Emission 15.207 PASS Xiangyu Wei 5.3 Peak Output Power 15.247(b)(3) PASS Xiangyu Wei 5.4 Power Spectral Density 15.247(e) PASS Xiangyu Wei 5.5 6dB Bandwidth 15.247(a)(2) PASS Xiangyu Wei 5.6 99% Occupied Bandwidth - PASS *1 Xiangyu Wei 5.7 Duty cycle - PASS *1 Xiangyu Wei 5.8 Conducted Band Edge and Spurious Emission 15.247(d)/15.205 PASS Xiangyu Wei 5.9 Radiated Band Edge Emission 15.205/15.209 PASS Yifan Wang 5.10 Radiated Spurious Emission 15.247(d)/15.205/15.209 PASS Yifan Wang Note: ‒ The measurement uncertainty is not included in the test result. ‒ *1: No requirement on standard, only report these test data. Report No.: CHTEW23120009 Page: 5 of 36 Date of issue: 2023-12-08 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V05(2023-03) 3. SUMMARY 3.1. Client Information Applicant: Otodata Wireless Network Inc. Address: 1180 Rue De Louvain Ouest, Montreal (Quebec), H4N 1G5, Canada Manufacturer: Otodata Wireless Network Inc. Address: 1180 Rue De Louvain Ouest, Montreal (Quebec), H4N 1G5, Canada 3.2. Product Description Main unit information: Product Name: Volumetric Meter Trade Mark: Model No.: VM3010 Listed Model(s): VM3020 Power supply: DC 3.6V from lithium battery Hardware version: C039-1R0 Software version: v.01 3.3. Radio Specification Description Bluetooth version: V5.1 Support function: BLE Data Rate: 1Mbps 2Mbps Modulation: GFSK Operation frequency: 2402MHz~2480MHz Channel number: 40 Channel separation: 2MHz Antenna type: PCB Antenna Antenna gain: 1.95dBi Report No.: CHTEW231200…
