2ADRQNXTBFVT4FVT4 Touchscreen

Nextbike GmbH Nextbike FVT4 Touchscreen Instruction Manual 13.01.2015 1 Read me first o Before using the device, please read the entire manual and all safety instructions to ensure safe and proper use. o The descriptions in this manual is based on the default settings of the device. o The images and screenshots used in this manual may differ from the actual product. o The contents of this manual may differ from the product, or from software provided, software versions are individually created based on the requirements of the particular bicycle rental system. o Formatting and delivery of this manual is based on nextbike operating systems. o Functions of this terminal may vary by region or hardware specifications. o Please keep this manual for future reference. Copyright © 2014 nextbike GmbH This manual is protected under international copyright laws. No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of nextbike GmbH. 2 1. Table of contents 1. Table of contents ......................................................................................................................................... 2 2. Summary...................................................................................................................................................... 3 3. Applications ................................................................................................................................................. 3 4. Hardware Description ................................................................................................................................. 3 5. Functional Description ................................................................................................................................ 6 6. Specification ................................................................................................................................................ 7 7. Usage ........................................................................................................................................................... 8 8. Cautions ....................................................................................................................................................... 9 9. FCC Statement ............................................................................................................................................ 9 3 2. Summary The nextbike FVT4 Touchscreen is integrated into the nextbike terminal kiosk. This Touchscreen enables the customers to register, rent and return smart bikes directly through its interface via Smart Card and mobile number including PIN code, automating the release and lock process for all registered customers. Customers without Smart Cards or personal log in information also have the choice to activate the rental via App or phone call to the IVR-service hotline. Furthermore, the system is connected to the nextbike Office Software via existing GSM/GPRS network in smartbox FVZ2, which permits locating and monitoring bicycle in real time on kiosk terminals, App or calling the IVR-service hotline. 3. Applications o Bicycle rental/return o Registration o Payment option 4. Hardware Description 4.1 Nextbike’s components: The terminal FVT4 consists of following main components: o Plastic housing o Main PCB o Display o Touch sensor o 2 cables for connecting FVZ2 (smart box) Components on main pcb Main pcb contains following components: o Interface to smart box (FVZ2) – HDMI-interface and additional 8-pin-connector with: o Power supply (12V and Gnd) 4 o RS232-interface (RxD and TxD) o 2 IRQ-lines (MCU IRQ and Touch IRQ) o I²C-interface to touch sensor o Power supply o 3.3V switching regulator for main logic o 3.3V switching regulator for HDMI converter and display o Current regulator for cathodes of display background illumination o 5V linear regulator for 125 kHz RFID o RS232 converter o HDMI converter for adapting HDMI signal to RGB signal o 13.56 MHz RFID system o 125 kHz RFID system o Microcontroller with LEDs, buzzer, sensors for humidity and brightness, serial flash memory Display Display has following features: o Size: 7 inch o Resolution: 800x480p o Connector: Standard HDMI connector o EEPROM for storing EDID data o Type: Samsung LMS700KF21 or LMS700KF15 Touch sensor For user interaction a projected capacitive touch sensor of vendor Rocktouch is used. Cautions: A. Are developed with particular focus on vandalism and weather resistance (temperature range between 14 °F and 122 °F). 5 B. Is developed for energy efficiency. As a standard the terminal rests in sleep modus. With activating the unit via touch sensor or card reader the unit wakes up. C. The units are fixed in the terminal rack. D. The electric components are covered by a waterproof glued acrylic box. 4.2 Design Extern 6 4.3 Block Diagramm 5. Functional Description Powermanagement After powering FVT4 main 3.3V regulator is automatically running. It supplies main logic components including microcontroller. Clock source for controller is a 22.1184 MHz crystal. All other regulators are switched on/off by microcontroller. This is done after appropriate command coming from smart box FVZ2 via RS232. 7 After receiving sleep-command FVT4 goes to sleep mode. In this state it is no longer accessible via RS232, but the only wake up sources are Touch sensor and RFID reader. In sleep mode RFID reader cyclically provides an hf field, measures phase on antenna and wakes up system, if difference between measured phase and average value is greater than predefined threshold. RFID 13.56 MHz Data from RFID reader are transparently transmitted to smart box FVZ2. So using different protocols and applications on the card is possible. RFID reader AS3911 (vendor Au…

Text truncated - open the document above for the full version.

PCB Bottom PCB Top PCB mounted on Touchscreen Touchscreen Backside Touchscreen Frontside

SLG Prüf- und Zertifizierungs GmbH Burgstädter Straße 20 D – 09232 Hartmannsdorf Test report Terminal unit with 13.56 MHz RFID reader [Terminaleinheit mit 13,56 MHz RFID-Reader] FVT4 FCC rules, Part 15, Subpart C Radio test 1418-14-EE-15 -PB001 Testing is a confidential matter Test report no. [Prüfbericht- Nr.]: 1418-14-EE-15-PB001 Date [Datum]: 2015-03-27 Revised by [geprüft]: Tested by [gemessen]: Svadlenka Puder Head of EMC laboratory [Leiter EMV-Labor] EMC laboratory [EMV-Labor] SLG Prüf- und Zertifizierungs GmbH Burgstädter Straße 20 D-09232 Hartmannsdorf EMC laboratory Phone: +49 (0) 37 22 / 73 23 - 760 Fax: +49 (0) 37 22 / 73 23 - 899 e-mail: [email protected] http://www.slg.de.com This report consists of [Dieser Bericht besteht aus]: 40 Pages [Seiten] Customer [Auftraggeber] nextbike GmbH Represented by [vertreten durch] Thomasiusstraße 16-18 Mr. [Herr] Vockeroth 04109 Leipzig, Germany [Deutschland] Order [Auftrag] Dated: 2014-12-22 [vom:] Aim of test [Zweck der Prüfung] Verification of conformity to the radio requirements according to customer’s test plan [Nachweis der Einhaltung der Funk- Anforderungen nach Prüfplan des Auftraggebers] Product [Erzeugnis] terminal unit with 13.56 MHz RFID reader [Terminaleinheit mit 13,56 MHz RFID-Reader] Type [Typ] FVT4 Manufacturer [Hersteller] nextbike GmbH Thomasiusstraße 16-18 04109 Leipzig, Germany [Deutschland] Date of test [Prüfzeitraum] 2015-03-07 – 2015-03-23 Location of test [Prüfungsort] Accredited EMC laboratory of the SLG Prüf- und Zertifizierungs GmbH Hartmannsdorf [akkreditiertes EMV-Labor der SLG Prüf- und Zertifizierungs GmbH Hartmannsdorf] Test according to [Prüfung nach] Customer’s specifications / test plan [Lastenheft / Prüfplan des Auftraggebers] Test base [Prüfgrundlage] 47 CFR Ch. I (14-1-10 Edition) FCC Part 15, Subpart C, §15.225 Test result [Prüfergebnis] The sample tested fulfills the radio requirements according to test plan of customer. [Der vorgestellte Prüfling erfüllt die Funk- Anforderungen nach Prüfplan des Auftraggebers] The test results refer to the tested samples only. Authorisation for the copying of details of this report must be obtained from the SLG Prüf- und Zertifizierungs GmbH. [Die Prüfergebnisse beziehen sich ausschließlich auf die in diesem Bericht genannten Prüfungsgegenstände. Die auszugsweise Ver- vielfältigung dieses Berichtes für Dritte ist nur mit schriftlicher Genehmigung der SLG Prüf- und Zertifizierungs GmbH gestattet.] Test report no. [Prüfbericht-Nr.]: 1418-14-EE-15-PB001 Page [Seite] 3 Details of accreditation / recognition status [Einzelheiten zu Akkreditierungen / Anerkennungen] The SLG EMC laboratory is accredited by the German Accreditation Body (DAkkS) [Das SLG EMV-Labor ist akkreditiert durch die Deutsche Akkreditierungsstelle GmbH (DAkkS)] DAkkS registration number [DAkkS-Registriernummer]: D-PL-15110-01-01 The SLG EMC laboratory is appointed as technical service of category A by the Federal Motor Transport Authority (KBA) [Das SLG EMV-Labor ist benannt als Technischer Dienst der Kategorie A von der Benennungsstelle des Kraftfahrt-Bundesamtes (KBA)] Registration number [Registriernummer]: KBA-P 00030-01 The Notified Body according to EMC directive is recognized by the Federal Network Agency for Electricity, Gas, Telecommunications, Post and Railway [Die Benannte Stelle nach EMV-Richtlinie ist anerkannt durch die Bundesnetzagentur für Elektrizität, Gas, Telekommunikation, Post und Eisenbahn (Bundesnetzagentur)] BNetzA registration number [Registriernummer]: BnetzA-bS-07/61-13/1 The SLG EMC laboratory is listed by the Federal Communications Commission (FCC) [Das SLG EMV-Labor ist gelistet bei der Federal Communications Commission (FCC)] Registration number [Registrierungsnummer]: 883849 The SLG EMC laboratory is listed by the Industry Canada Certification and Engineering Bureau [Das SLG EMV-Labor ist gelistet beim Industry Canada Certification and Engineering Bureau] Company number [Firmennummer]: 6114A Test report no. [Prüfbericht-Nr.]: 1418-14-EE-15-PB001 Page [Seite] 4 Contents [Inhalt] 1 General information [Allgemeines] ................................................................................................. 5 1.1 Report chronology [Berichtschronologie] ............................................................................... 5 1.2 Declaration concerning the translation German / English [Erklärung zur Übersetzung Deutsch / Englisch] .................................................................... 5 1.3 General test conditions [Allgemeine Prüfbedingungen] ......................................................... 5 2 Summary of radio test results [Übersicht über die Funk-Prüfergebnisse] ................................. 7 3 Description of the test sample [Angaben zum Prüfling] ............................................................... 8 4 Emission tests [Störaussendungsprüfungen] ............................................................................. 11 4.1 Field strength in the band 13.110 – 14.010 MHz (spectrum mask) [Feldstärke in dem Frequenzband 13,110 – 14,010 MHz (Spektrum- Maske)] ................... 11 4.2 Field strength outside of the 13.110 – 14.010 MHz band (field stength < 30 MHz) [Feldstärke außerhalb dem 13,110 – 14,010 MHz Band (Feldstärke < 30 MHz)] ............... 17 4.3 Field strength outside of the 13.110 – 14.010 MHz band (field stength > 30 MHz) [Feldstärke außerhalb dem 13,110 – 14,010 MHz Band (Feldstärke > 30 MHz)] ............... 22 4.4 Frequency tolerance of the carrier signal, temperature variation [Frequenzabweichung des Trägersignals, Temperaturänderung] ....................................... 31 4.5 Frequency tolerance of the carrier signal, voltage variation [Frequenzabweichung des Trägersignals, Spannungsänderung] ........................................ 35 4.6 Signal bandwidth [Signalbandbreite] .................................................................................... 37 5 List of test equipment [Messmittel …

Text truncated - open the document above for the full version.

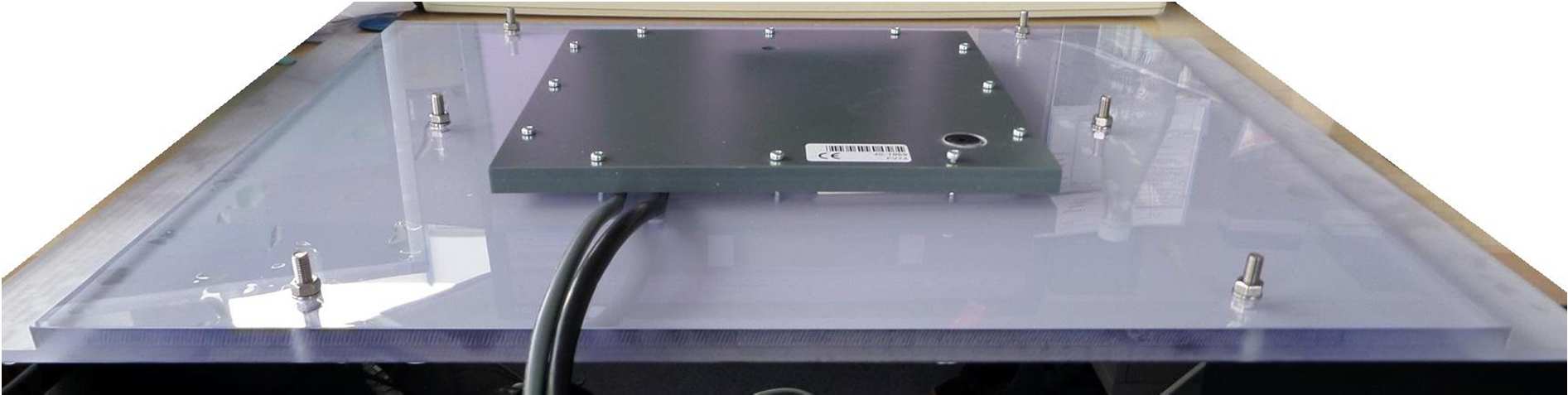

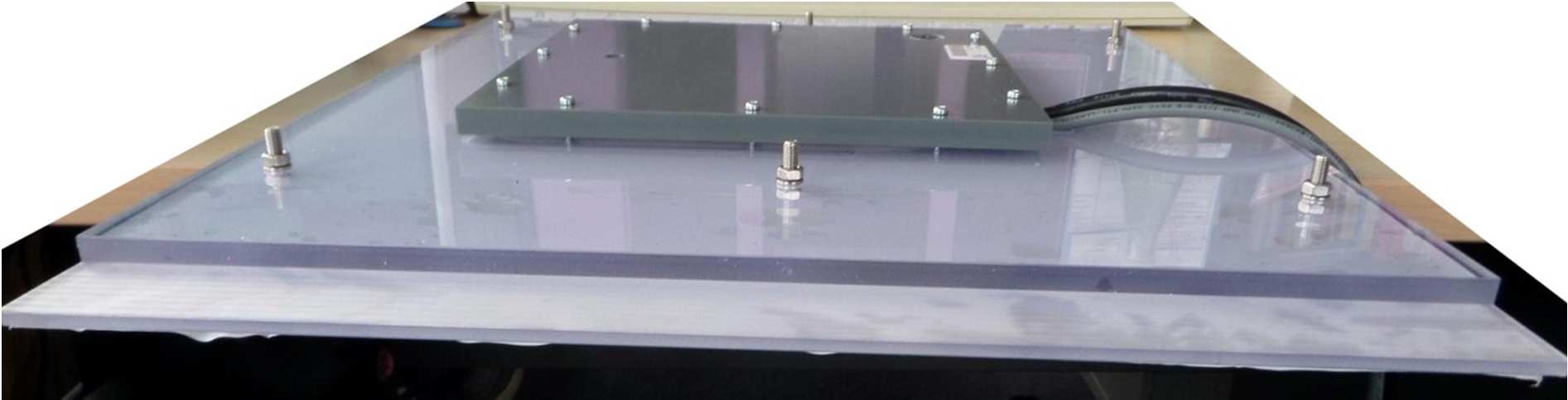

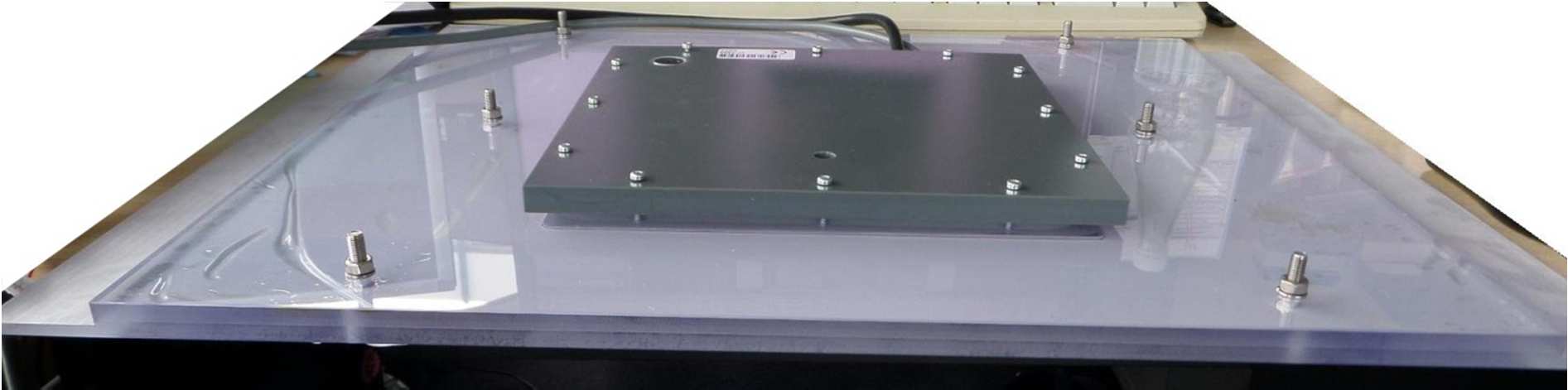

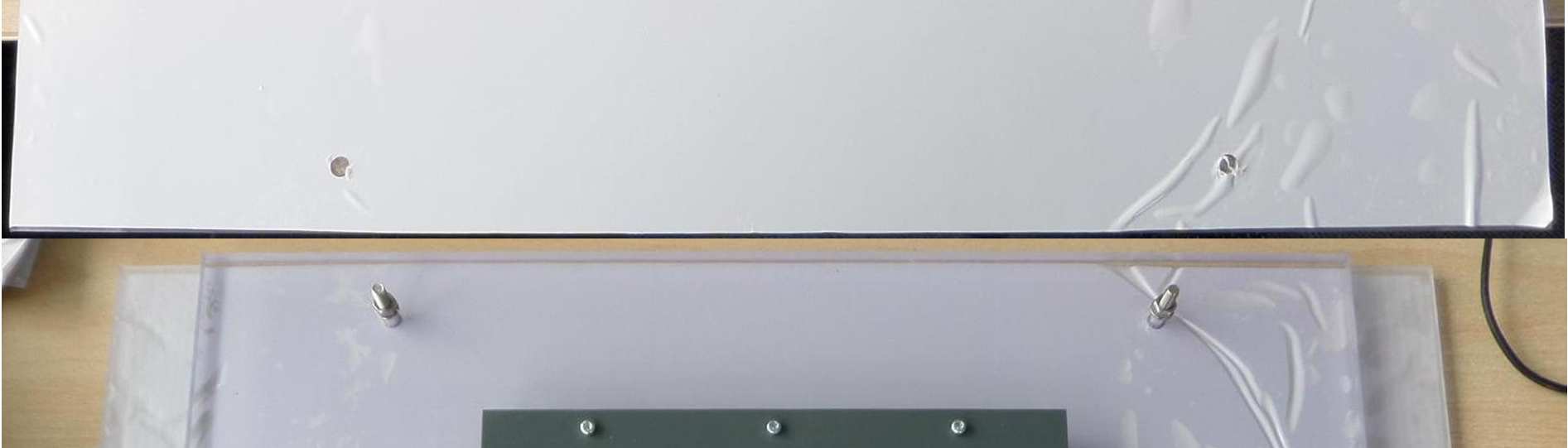

Pictures-1418-14-EE-15-PB001.pdf Page [Seite] 1 View of the EUT [Prüflingsansicht] Figure 1: Front view of test sample [Vorderansicht Prüfmuster] Figure 2: Back view of test sample [Rückansicht Prüfmuster] Figure 3: Detailed view of test sample [Detailansicht Prüfmuster] Figure 4: Detailed view of test sample [Detailansicht Prüfmuster] Figure 5: Detailed view of test sample [Detailansicht Prüfmuster] Figure 6: RFID cards [RFID-Karten] Pictures-1418-14-EE-15-PB001.pdf Page [Seite] 2 Figure 7: Measurement of field strength acc. to following sections of the report 1418-14-EE-15-PB001: section 4.1, section 4.2 Figure 8: Measurement of field strength acc. to following sections of the report 1418-14-EE-15-PB001: section 4.3 Pictures-1418-14-EE-15-PB001.pdf Page [Seite] 3 Figure 9: Measurement of frequency tolerance acc. to following sections of the report 1418-14-EE-15-PB001: section 4.4, section 4.5 Figure 10: Measurement of signal bandwidth acc. to following sections of the report 1418-14-EE-15-PB001: section 4.6
