2ADSYRF07HB3GoBe3

Model No.: GoBe3

E-label Declaration The “ welcome ” home page appears after boot ， and swipe right.

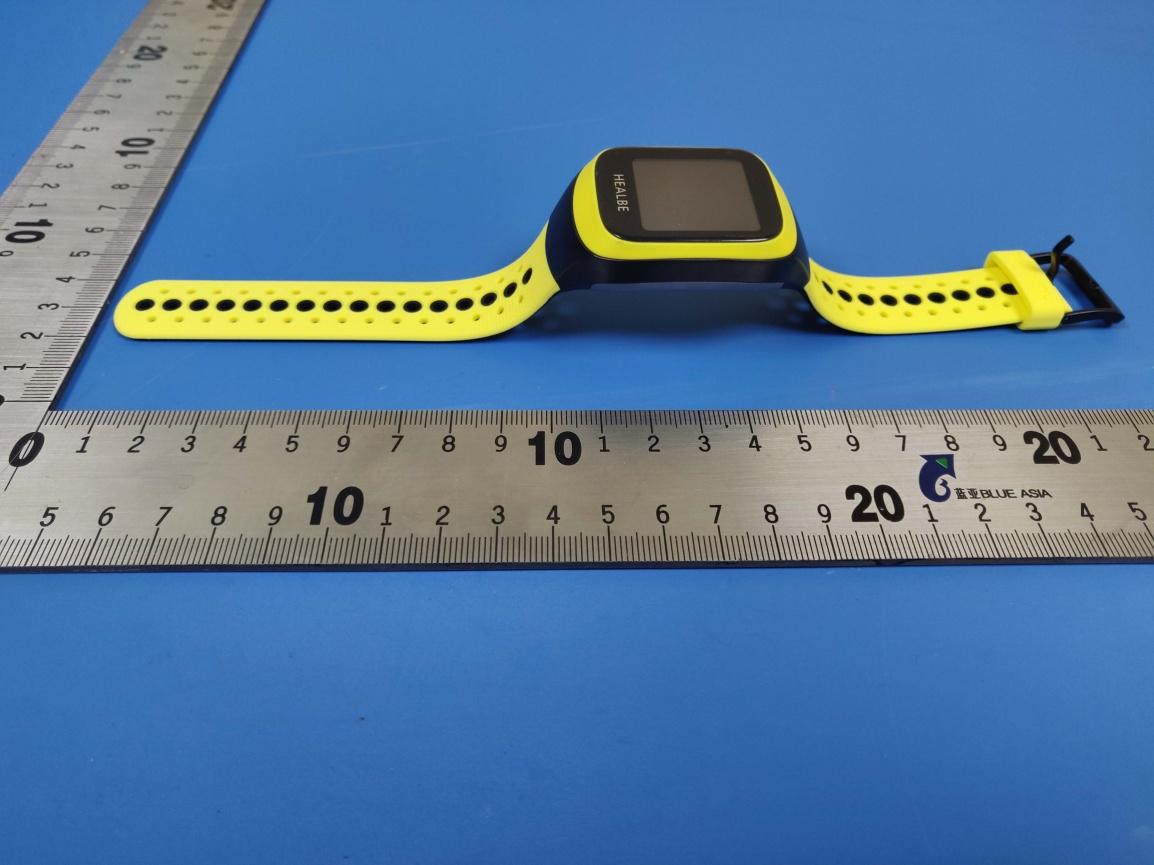

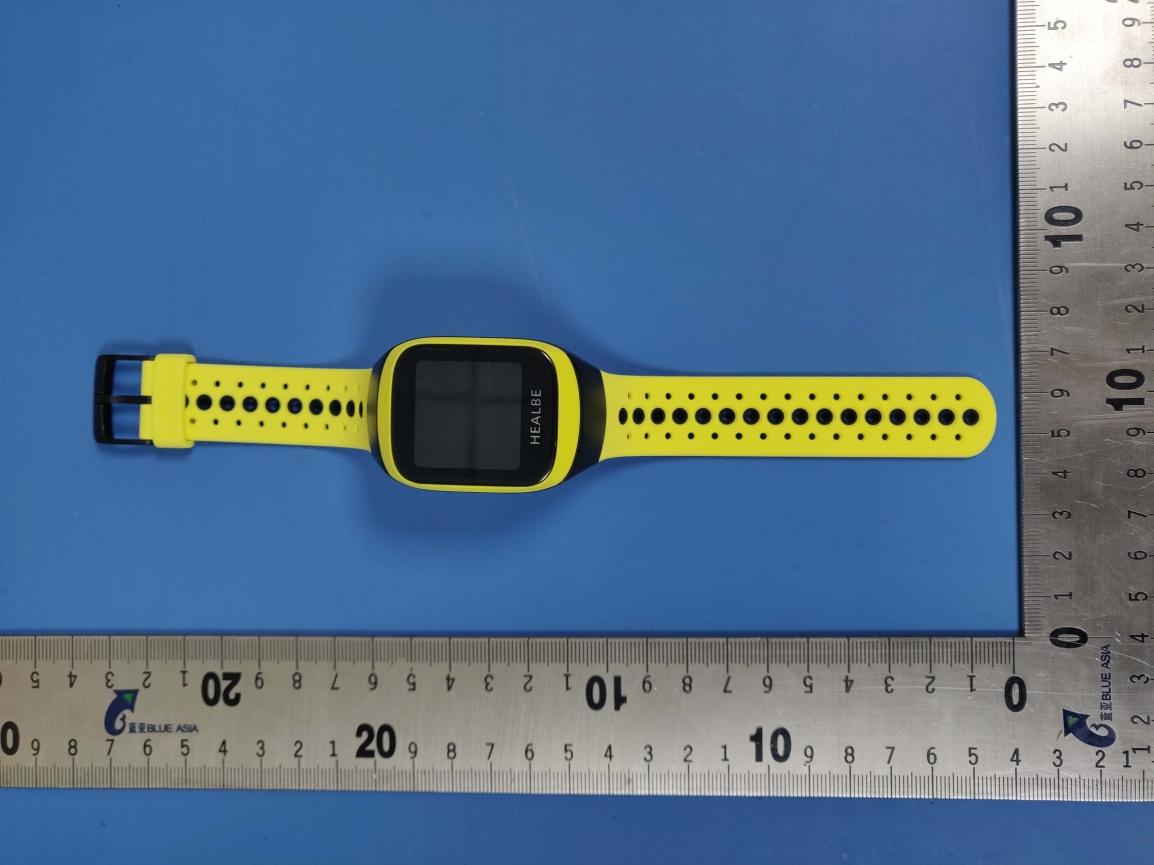

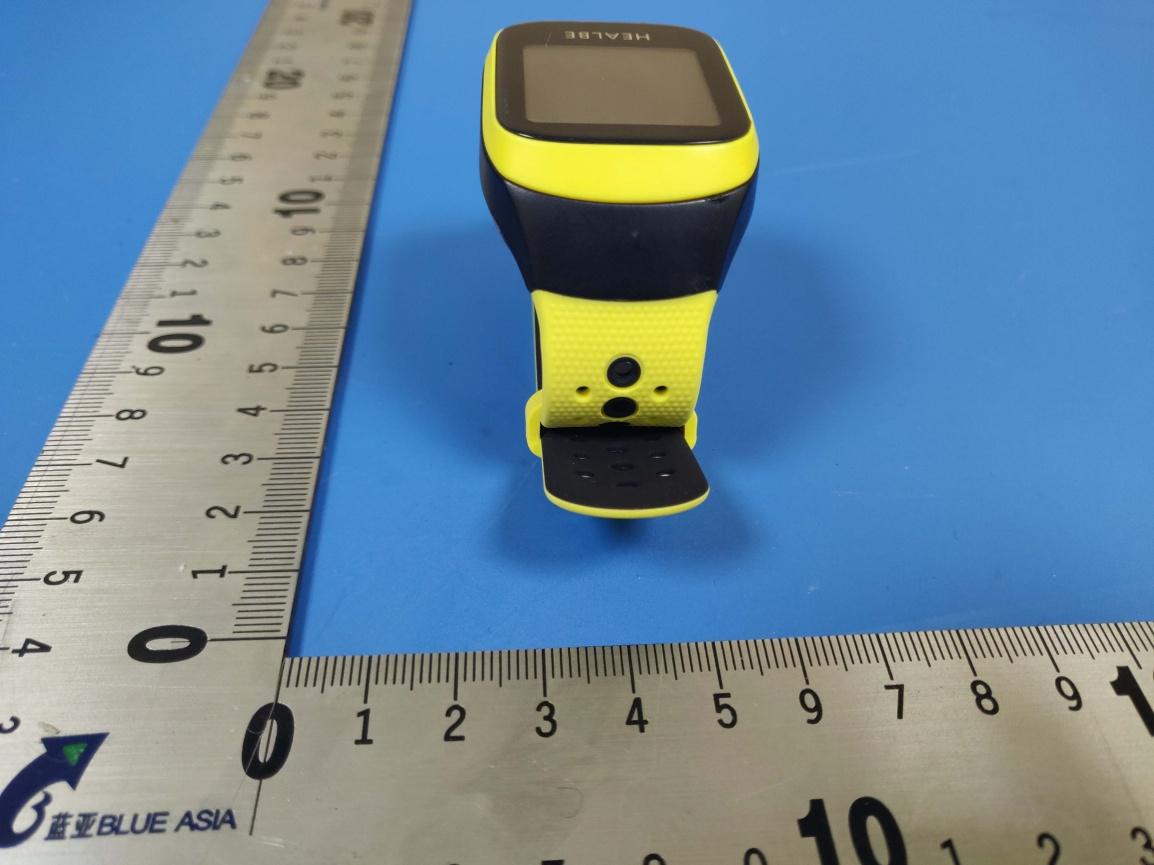

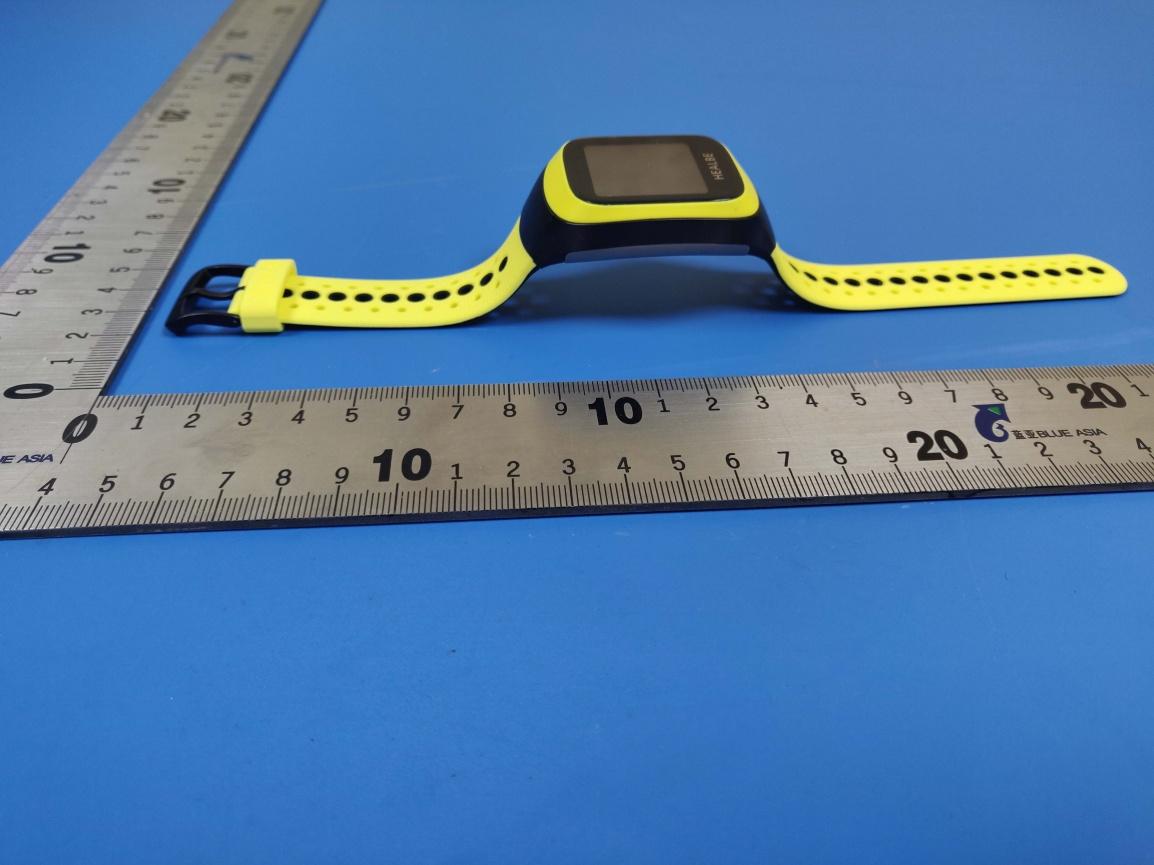

Model No.: GoBe3

RF Exposure Evaluation Statement 1.1 RF Exposure Compliance Requirement 1.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 1.1.2 Limits The 1 -g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion 1.1.3 EUT RF Exposure Operational Mode: WIFI 802.11b（worst case） Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) 2412MHz 8.45 ±1 9.45 8.81 2.74 3.0 2437MHz 8.61 ±1 9.61 9.14 2.85 2462MHz 8.25 ±1 9.25 8.41 2.64 Conclusion: the calculated value ≤3.0, SAR is exempted.

Report No. : BLA-EMC-201909-A13-02 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia, No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 FCC Report (Bluetooth) Product Name : HealBe GoBe3 Trade mark : Healbe Model No. : GoBe3 FCC ID : 2ADSYRF07HB3 Report Number : BLA-EMC-201909-A13-02 Date of sample receipt : November 01, 2019 Date of Test : November 01, 2019–December 31, 2019 Date of Issue : January 16, 2020 Test standard : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Test result : PASS Prepared for: Healbe corporation(healbe US) 541 Jefferson Avenue, Suite 100, Redwood City, CA 94063, US Prepared by: BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China TEL: +86-755-28682673 FAX: +86-755-28682673 Compiled by: Review by: Approved by: Date: January 16, 2020 Report No. : BLA-EMC-201909-A13-02 Page 2 of 35 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia, No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 2 Version Version No. Date Description 00 January 16, 2020 Original Report No. : BLA-EMC-201909-A13-02 Page 3 of 35 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia, No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION ...................................................................................................................................................2 3 CONTENTS ...............................................................................................................................................3 4 TEST SUMMARY ......................................................................................................................................4 5 GENERAL INFORMATION .......................................................................................................................5 5.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................5 5.2 TEST MODE .........................................................................................................................................7 5.3 DESCRIPTION OF SUPPORT UNITS ........................................................................................................7 5.4 TEST FACILITY ....................................................................................................................................7 5.5 TEST LOCATION ..................................................................................................................................7 6 TEST INSTRUMENTS LIST ......................................................................................................................8 7 TEST RESULTS AND MEASUREMENT DATA .....................................................................................10 7.1 ANTENNA REQUIREMENT ....................................................................................................................10 7.2 CONDUCTED EMISSIONS ....................................................................................................................11 7.3 CONDUCTED OUTPUT POWER ............................................................................................................15 7.4 CHANNEL BANDWIDTH .......................................................................................................................17 7.5 POWER SPECTRAL DENSITY ..............................................................................................................19 7.6 BAND EDGES .....................................................................................................................................21 7.6.1 Conducted Emission Method ......................................................................................................21 7.6.2 Radiated Emission Method .........................................................................................................22 7.7 SPURIOUS EMISSION .........................................................................................................................24 7.7.1 Conducted Emission Method ......................................................................................................24 7.7.2 Radiated Emission Method .........................................................................................................26 8 TEST SETUP PHOTO .............................................................................................................................33 9 EUT CONSTRUCTIONAL DETAILS .......................................................................................................35 Report No. : BLA-EMC-201909-A13-02 Page 4 of 35 BlueAsia of Technical Services(Shenzhen) Co., Ltd. IOT Test Centre of BlueAsia, No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen, China Telephone: TEL: +86-755-28682673 FAX: +86-755-28682673 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203/15.247 (c) Pass AC Power Line Conducted Emission 15.207 Pass Conducted Output Power 15.247 (b)(3) Pass Channel Bandwidth 15.247 (a)(2) Pass Power Spectral Density 15.247 (e) Pass Band Edge 15.247(d) Pass Spurious Emission 15.205/15.209 Pass Pass: The EUT complies with the essential requirements in the standard. Remark: Test according to ANSI C63.10:2013. Measurement Uncertainty Test Item Frequency Range Measurement Uncertainty Notes Radiated Emission 9kHz ~ 30MHz  4.34dB (1) Radiated Emiss…

Text truncated - open the document above for the full version.

Model No.: GoBe3
