2ADUL-0382Body Fat Scale

1 2 3 4 Physical Features Measuring Units lb.pound kgkilogram Setting The Measuring Unit By pressing the UNIT button on the back of the scale, you can switch between lb. (pound) and kg (kilogram). 5 6 Please see page 7 for setup instructions if you plan on using Bluetooth to sync measurements to your smartphone. IMPORTANT: Place your scale on a hard flat surface, and be ready with bare feet to record your first weight entry on the last step. This scale can be customized for up to 8 users. Scale Only Setup (No Bluetooth Connection) 1. Press-Awake your scale on. Simply step on then off to begin. 2. Press and hold SET. 3. Use and to make selections, then tap SET to select and continue for each option below. User NumberChoose a user profile number, tap SET Athlete Mode Male Male Athlete Female Female Athlete (See description below) HeightSelect your height, tap SET AgeSelect your age, tap SET IMPORTANT: YOU MUST NOW WEIGH TO RECORD YOUR INITIAL WEIGHT ENTRY WeightStep on the scale with bare feet, evenly distributing your weight. Make sure that your feet are making good contact with all four conductors. *At any time in the setup process, if you have to leave or the screen shuts off due to inactivity, just start over from number one above. Athlete Mode An athlete is defined as a person who is involved in intense physical activity approximately 12 hours per week and who has a resting heart rate of approximately 60 beats or less per minute. 7 Get The App Search for the Weight Gurus app in your smartphone’s app store. Install and register an account to get started tracking. Pair Your Scale With Your App On The App 1. Make sure your phone’s Bluetooth ( ) is turned on. 2. From the Weight Gurus app menu ( ), select Bluetooth Setup. 3. Follow the setup steps within the app to finish setting up your user information and pair with your scale. When attempting to pair, press and hold the UNIT button on the back of your scale to enter Bluetooth pairing mode. You will see the screens shown below animating back and forth. Brackets on your scale’s display indicate you have properly paired your device to your scale. E1 indicates an error pairing your device to your scale. Press and hold the UNIT button and try again. On The Scale After pairing your scale, manually select your new profile and weigh to complete the setup process. 1. Tap SET. 2. Use and to find your user number, tap SET to select. 3. Step on your scale and weigh. 8 Weigh to Sync Once setup has been completed, simply weigh to sync measurements to your device. Syncing will occur to your user account as long as your phone is within Bluetooth range and the Weight Gurus app is running. After weighing, the Bluetooth symbol will begin flashing as it attempts to pair to the correct device. A solid Bluetooth symbol indicates a successful connection to your device. The data symbol indicates measurement data is waiting to be synced to your device. Upon successfully syncing, this will go away. If measurements are not synced, it will display the next time you weigh, indicating unsynced measurements. Tips Your scale will give an audible beep when it turns on, when measurements are completed, and once again when it has successfully synced to your device. If syncing cannot be completed at the time, three short beeps will indicate a failed sync. If a failure occurs, your measurements will store in the scale and attempt to sync the next time you complete weighing. Although it’s possible to view your results from many devices (such as both your mobile phone and your tablet), only one device can pair and sync to a scale for each user. Below are a few examples to further explain how pairing may work for you. Pairing Examples Multiple devices can pair with one scale - e.g. Husband and wife with separate phonesYe s Multiple users can share one device and pair to one scale - e.g. Husband and wife sharing one tablet Ye s One user can pair to many scales - e.g. You own more than one Weight Gurus Bluetooth scale Ye s One user can pair to one scale from multiple devices - e.g. You cannot pair both your phone and tablet to the same scale. No 9 WeightBody FatMuscleWaterBoneBMI 10 Body Fat % AgeFemaleMale LowNormalAbove Avg. HighLowNormalAbove Avg. High 20-29<1920-2829-31>31<1314-2021-23>23 30-39<2021-2930-32>32<1415-2122-24>24 40-49<2122-3031-33>33<1617-2324-26>26 50-59<2223-3132-34>34<1718-2425-27>27 60+<2324-3233-35>35<1819-2526-28>28 Water Weight % Body Fat %Water % Male 4 - 14%63 - 70% 15 - 21%57 - 63% 22 - 24%55 - 57% 25 and over37 - 55% Female 4 - 20%58 - 70% 21 - 29%52 - 58% 30 - 32%49 - 52% 33 and over37 - 49% Bone Mass % FemaleMale Weight<100100-135>135<135135-165>165 Bone3.94.1444.44.2 BMI BMIWeight Status <18.5Underweight 18.5 - 24.9Normal 25 - 29.9Overweight 30+Obese Muscle Mass % FemaleApprox. 30% MaleApprox. 40% 11 12 Symbol for “THE OPERATION GUIDE MUST BE READ” Symbol for “MANUFACTURER” Symbol for “ENVIRONMENT PROTECTION“ – Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. Symbol for “TYPE BF APPLIED PARTS” The Bluetooth Combination Mark Symbol for “SERIAL NUMBER” Symbol for “MANUFACTURE DATE” Symbol for “DIRECT CURRENT” 13 A GREATER GOODS BRAND

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Design Manufacture Distribution, LLC 2015-12-23 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Design Manufacture Distribution, LLC. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product name: Body Fat Scale Model Number: 0382 FCC ID: 2ADUL-0382 Sincerely, signature Christopher Chupp / CEO E-mail: [email protected] Phone: 3149918494-33 Fax: 3149917988 Address: 125 N Main St , Suite 202, St Charles, Missouri, United States

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template& Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.0 5.0 Nov 19 2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 5.0 Design Manufacture Distribution, LLC. 2015-12-23 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ADUL-0382 Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name & title : Christopher Chupp / CEO Contact information / address: 125 N Main St , Suite 202, St Charles, Missouri,United States

Label Location Proposed Label Location on EUT

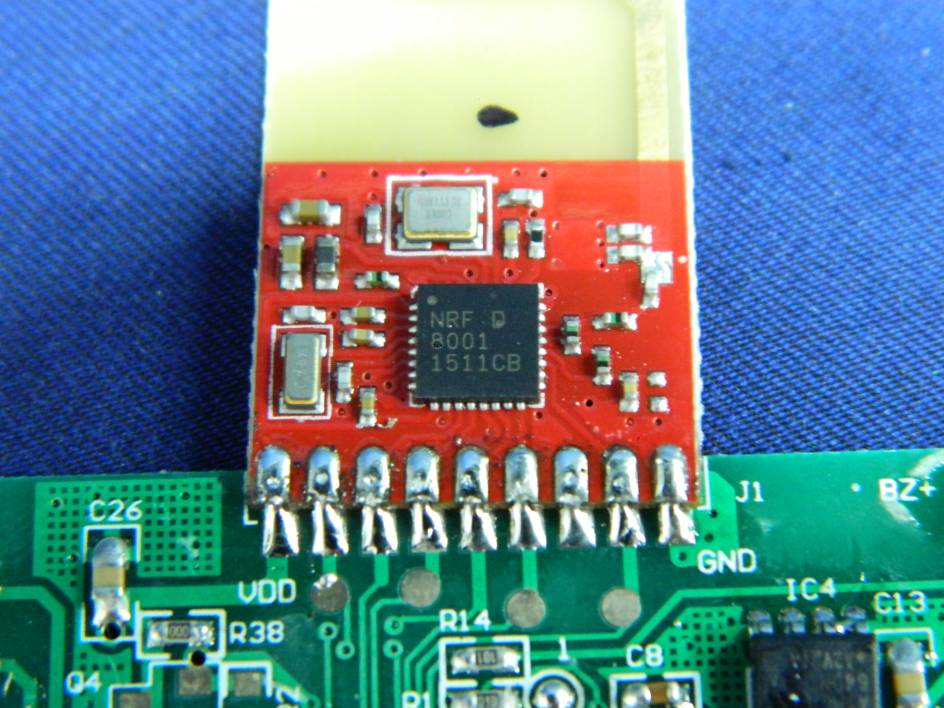

BT Antenna

FCC ID: 2ADUL-0382 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. Maximum measured transmitter power: BT DTS: Transmit Frequency (GHz) Mode Max Conducted Power (dBm) Max tune-up power (dBm) Result calculation 1-g SAR 2. 402GFSK -2 .854 -2 0 .196 3.0 2. 440GFSK -2 .700 -2 0 .197 3.0 2. 480GFSK -3 .721 -3 0 .158 3.0 Co nclusion: For the max result : 0.197≤ 3.0 for 1-g SAR extremity SAR, No SAR is required.

TRF No.:FCC 15.247/A Page 1 of 39 Report No.: ES150928029E Ver.1.0 Access to the World FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For Body Fat Scale Model No.: 0382 FCC ID: 2ADUL-0382 Trademark: N/A REPORT NO.: ES150928029E ISSUE DATE: November 10, 2015 Prepared for DESIGN MANUFACTURE DISTRIBUTION LLC 125 N MAIN STREET SUITE 202, SAINT CHARLES, UNITED STATES Prepared by Emtek (Shenzhen) Co., Ltd. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.:FCC 15.247/A Page 2 of 39 Report No.: ES150928029E Ver.1.0 Access to the World Table of Contents 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION .................................................................................................................... 4 3 SUMMARY OF TEST RESULT ........................................................................................................................... 6 4 TEST METHODOLOGY ...................................................................................................................................... 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED ..................................................................................................... 7 4.3 DESCRIPTION OF TEST MODES ............................................................................................................. 8 5 FACILITIES AND ACCREDITATIONS ............................................................................................................. 9 5.1 FACILITIES ................................................................................................................................................. 9 5.2 LABORATORY ACCREDITATIONS AND LISTINGS ............................................................................. 9 6 TEST SYSTEM UNCERTAINTY ...................................................................................................................... 10 7 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 11 7.1 RADIO FREQUENCY TEST SETUP 1 ...................................................................................................... 11 7.2 RADIO FREQUENCY TEST SETUP 2 ...................................................................................................... 11 7.3 CONDUCTED EMISSION TEST SETUP ................................................................................................. 12 7.4 SUPPORT EQUIPMENT ........................................................................................................................... 12 8 TEST REQUIREMENTS .................................................................................................................................... 13 8.1 DTS (6DB) BANDWIDTH ........................................................................................................................ 13 8.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................ 16 8.3 MAXIMUM POWER SPECTRAL DENSITY .......................................................................................... 19 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ......................................... 22 8.5 RADIATED SPURIOUS EMISSION ........................................................................................................ 27 8.6 ANTENNA APPLICATION ...................................................................................................................... 39 TRF No.:FCC 15.247/A Page 3 of 39 Report No.: ES150928029E Ver.1.0 Access to the World 1 TEST RESULT CERTIFICATION Applicant: DESIGN MANUFACTURE DISTRIBUTION LLC 125 N MAIN STREET SUITE 202, SAINT CHARLES, UNITED STATES Manufacturer: DESIGN MANUFACTURE DISTRIBUTION LLC 125 N MAIN STREET SUITE 202, SAINT CHARLES, UNITED STATES Product Description: Body Fat Scale Model Number: 0382 File Number: ES150928029E Date of Test: September 28, 2015 to November 10, 2015 Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J, June 11, 2015 FCC 47 CFR Part 15, Subpart C, May 9, 2015 PASS The above equipment was tested by Emtek (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report Date of Test : September 28, 2015 to November 10, 2015 Prepared by : Andy Wei/Editor Reviewer : Joe Xia/Supervisor Approve & Authorized Signer : Lisa Wang/Manager TRF No.:FCC 15.247/A Page 4 of 39 Report No.: ES150928029E Ver.1.0 Access to the World 2 EUT TECHNICAL DESCRIPTION Characteristics Description Device Type: Portable device Data Rate 1Mbps Modulation: 1Mbps for GFSK modulation Operating Frequency Range(s): 2402-2480MHz Number of Channels: 40 Channels Transmit Power Max: -2.700 dBm Antenna Type : PIFA Antenna Antenna Gain: 0dBi; Power supply: 6V internal battery Temperature Range: 0°C ~ +40°C Note: for more details, please refer to the User’s manual of the EUT. TRF No.:FCC 15.247/A Page 5 of 39 Report No.: ES150928029E Ver.1.0 Access to the World Modified Information Version. Summary Date of Rev. Report No. Ver.1.0 Original Report 2015-11-10 ES150928029E TRF No.:FCC 15.247/A Page 6 of 39 Report No.: ES150928029E Ver.1.0 Access to the World 3 SUMMARY OF TEST RESULT FCC Part Clause Te s t P a r a m e t e r Verdict Rema…

Text truncated - open the document above for the full version.

Radiated Emission Test
