2ADUL0385WIFI Smart Scale

1 Important Safety Notes 3 Warnings Introduction 4 Scale Description 5 Physical Features Measuring Units Setting the Measuring Unit LCD Icons Things to Know Before Using Your Scale 6 Install Batteries Get the App Measuring Auto-On Auto-Detection Press-Awake What Happens if My Scale Can’t Auto-Detect? Setup with Wi-Fi 7 Get the App Set Up the Scale Record Your First Weight Entry Remove a Wi-Fi User Setup Without Wi-Fi 8 Scale Only Setup (No Wi-Fi Connection) Athlete Mode Sync With Your Scale 9 Weigh to Sync Force Sync Tips Reading Your Results 10 For Best Results Table of Contents 2 Typical Results 11 BMI Body Fat % Water Weight % Muscle Mass % Bone Mass % Troubleshooting 12 Low Battery Overload Measuring Error Resolving An Auto-Detection Conflict How Do I Clear A User Profile On My Scale? Wi-Fi Troubleshooting / Error Codes 13-15 FCC Information 16 Maintenance / Technical Specifications 17 Manufacturer’s Warranty 18 Contact Information Symbol for “THE OPERATION GUIDE MUST BE READ ” Symbol for “MANUFACTURER” Symbol for “ENVIRONMENT PROTECTION“ – Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. Symbol for “TYPE BF APPLIED PARTS” Symbol for “SERIAL NUMBER” Symbol for “MANUFACTURE DATE” Symbol for “DIRECT CURRENT” 3 Important Safety Notes Warnings • Never use, or allow others to use this unit in combination with the following medical electronic devices: • Medical electronic implants such as pacemakers • Electronic life support systems such as an artificial heart/lung • Portable electronic medical devices such as an electrocardiograph • This scale passes a harmless and unnoticeable electrical current through your body when taking a measurement. This electrical current is not felt while using the scale. This unit may cause the abovementioned medical devices to malfunction. • This product is not intended for use by pregnant women. • This product is not intended for use by infants, toddlers, and children under 10 years of age. • Do not step on the edge of the scale while getting on or off– otherwise it may tip. • Do not jump on scale. • Protect scale from hard knocks, temperature fluctuations and heat sources that are too close (e.g. stoves, heating units). • Do not drop scale or drop any objects on it, as this may damage the sensors. • Do not step or stand on the scale when your body and/or feet are wet– for example, after taking a shower. • Do not step on the scale when the surface is wet. There is a danger of slipping. • Please be aware that the measurements obtained from this body analysis scale represent only an approximation. • Do not step on this scale if you weigh more than 400 lbs. • Place the scale on level flooring– otherwise it may tip. • Clean the scale with a slightly damp cloth. DO NOT immerse the scale in water or use chemical/abrasive cleaning agents. 4 Welcome to your new Weight Gurus Scale. Being healthy is worth the effort! That’s why we’ve designed the Weight Gurus Scale to be more than just another scale. It’s a beautifully designed, fully featured body composition scale that, when desired, connects directly to Weight Gurus and other health apps. This lets you track your progress over time, helping you stay motivated and reach your goals. To automatically sync your results to these apps, download the free “Weight Gurus” app for iOS (Apple) or Android (see more information on page 7). Introduction OUR PROMISE We’re committed to creating 5-star products. If we haven’t delivered on our promise, please contact us. For the best possible experience with your product, please visit greatergoods.com/0385. 5 Wi-Fi Connection (p. 9)BMI (Results p. 10-11) Data Sync (p. 9)Body Fat Athlete Modes (p. 8) Muscle Mass Water Weight Low Battery (p. 12)Bone Mass UNIT Scale Description Physical Features LCD Display Up Button SET Button Down Button Conductors Measuring Units lbpound kgkilogram Setting The Measuring Unit By pressing the UNIT button on the back of the scale, you can switch between lb. (pound) and kg (kilogram). LCD Icons Radiator 6 Install Batteries Make sure to install the four included AAA batteries before using the scale for the first time. Get the App Search for the “Weight Gurus” app in your device’s app store. Install and register an account to get started tracking. Measuring Measuring your weight and calculating body composition is easy. Simply step on your scale with bare feet, and evenly distribute your weight. Make sure that your feet are making good contact with all four conductors. Body composition can only be displayed if you have properly set up a user profile on your scale (page 7). Auto-On Auto-On is the easiest way to use your scale. Simply step on the weighing surface with both feet and evenly distribute your weight. Once you complete user set up (page 7), Auto-Detection will match you to your profile automatically. If no match is made to a user profile, then the scale will only display your weight information. Body composition calculations require specific variables such as your height, gender, and activity level, so a user profile must be setup in order to display those measurements. Auto-Detection Once a profile has been set up, your scale will automatically match you to your correct profile by weight. The scale determines who the user is by using a range of 10 lbs and in some cases a conflict may arise if two or more users are within 10 lbs of each other (see “Troubleshooting” for resolving an Auto- Detection conflict). Press-Awake Another easy way to turn on your scale is to briefly step on then off the weighing area of your scale. Press-Awake allows you to enter setup mode to create or edit a new user (see User Setup, page 7). If needed, it also allows you to select your user profile manually. What Happens if My Scale Can’t Auto-Detect? Only the weight data is shown and the scale will turn off after a few seconds. Please manually …

Text truncated - open the document above for the full version.

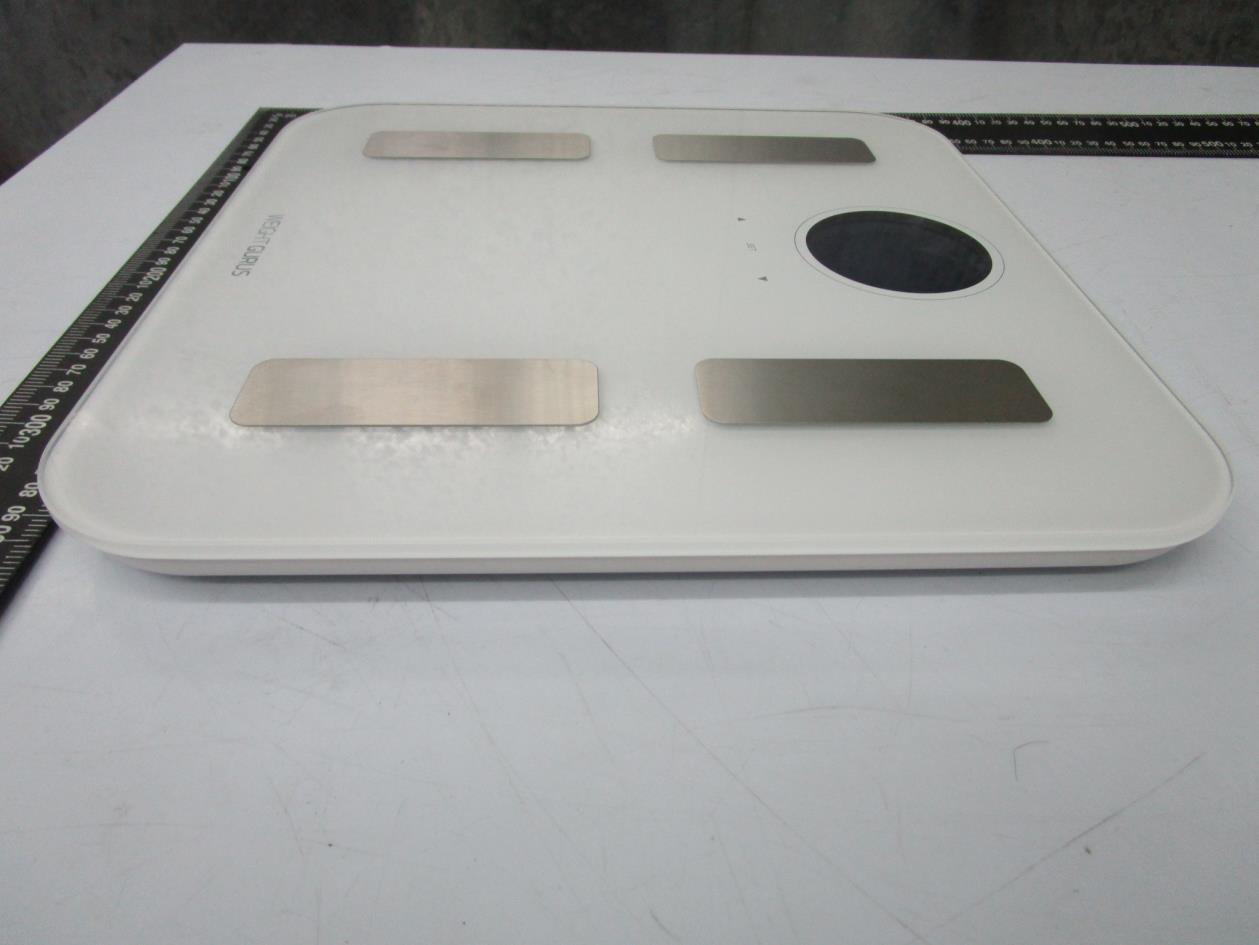

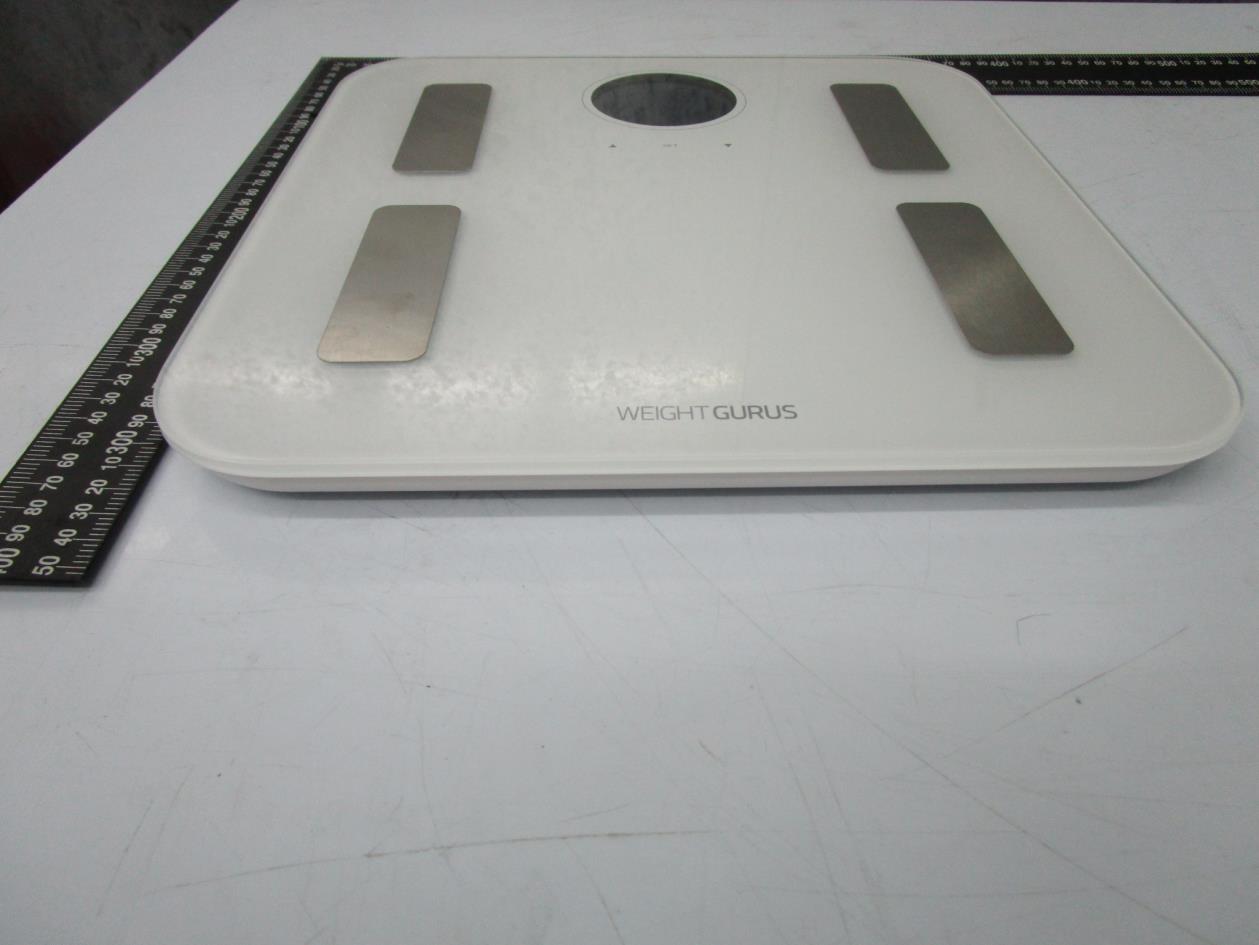

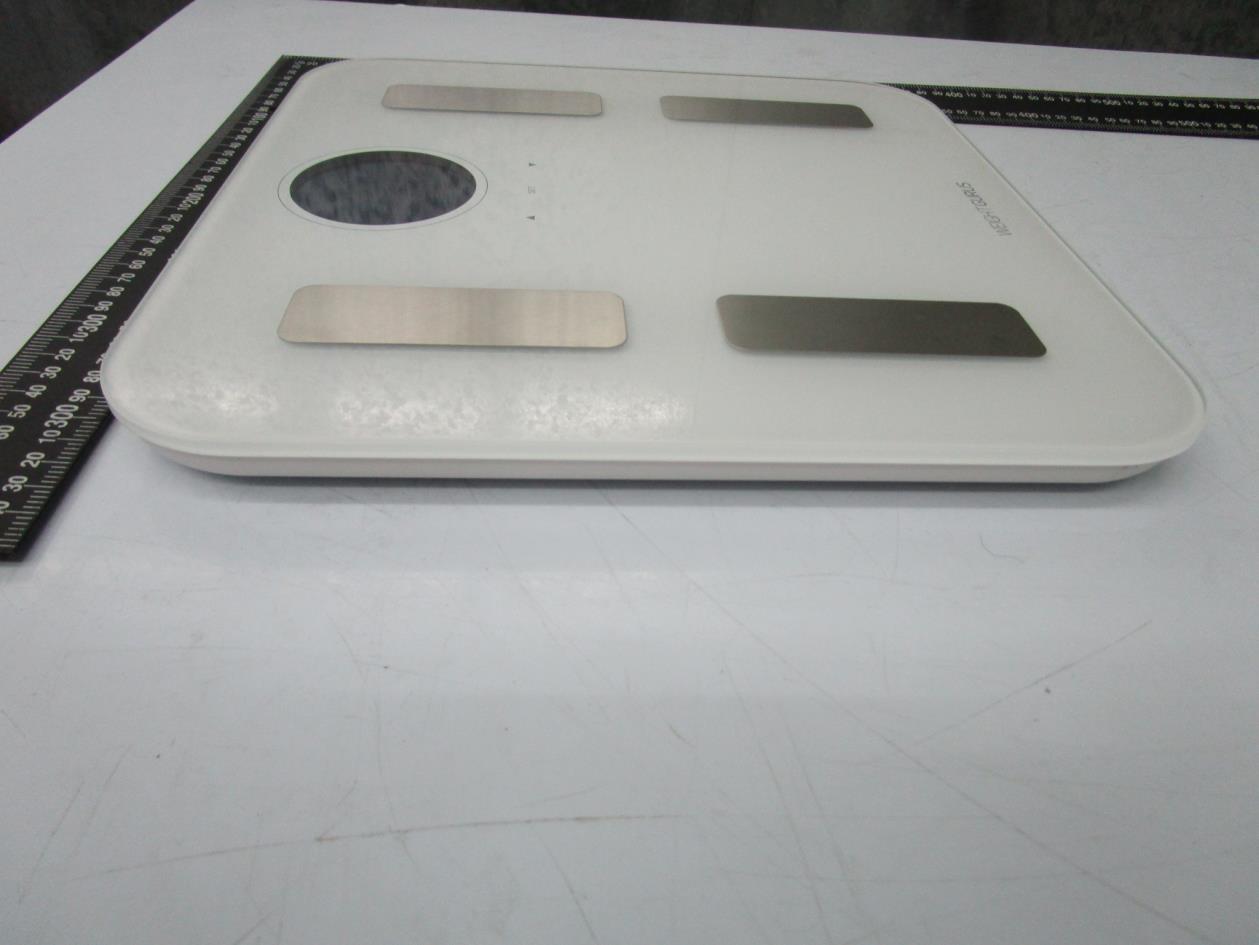

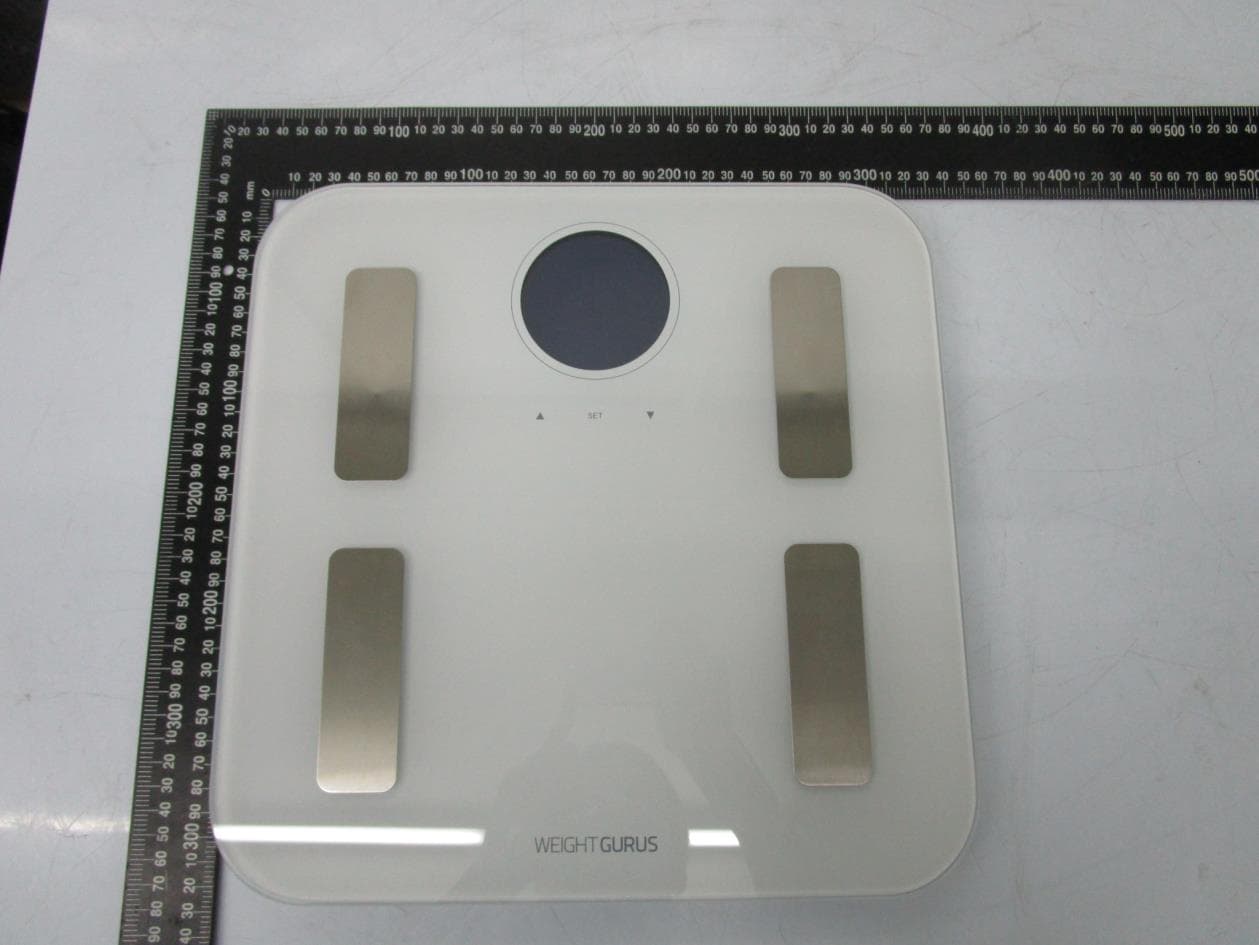

External photo

External photo

FA1280418C00001M 2019-01 20YY-DD

Internal photo

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 61 of 89 2.Maximum peak conducted output power Test Mode Test Channel Ant Power[dBm] Limit[dBm] Verdict 11B 2412 Ant1 14.71 30 PASS 11B 2442 Ant1 13.53 30 PASS 11B 2462 Ant1 13.23 30 PASS 11G 2412 Ant1 18.26 30 PASS 11G 2442 Ant1 16.43 30 PASS 11G 2462 Ant1 16.56 30 PASS 11N20SISO 2412 Ant1 17.75 30 PASS 11N20SISO 2442 Ant1 16.57 30 PASS 11N20SISO 2462 Ant1 16.06 30 PASS TEST PLOT Maximum peak conducted output power_11B_2412_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 62 of 89 Maximum peak conducted output power_11B_2442_Ant1 Maximum peak conducted output power_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 63 of 89 Maximum peak conducted output power_11G_2412_Ant1 Maximum peak conducted output power_11G_2442_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 64 of 89 Maximum peak conducted output power_11G_2462_Ant1 Maximum peak conducted output power_11N20SISO_2412_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 65 of 89 Maximum peak conducted output power_11N20SISO_2442_Ant1 Maximum peak conducted output power_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 66 of 89 3.Maximum Peak power spectral density Test Mode Test Channel Ant Result Limit[dBm/3kHz] Verdict 11B 2412 Ant1 -4.988 8.00 PASS 11B 2442 Ant1 -13.67 8.00 PASS 11B 2462 Ant1 -5.863 8.00 PASS 11G 2412 Ant1 -17.619 8.00 PASS 11G 2442 Ant1 -18.722 8.00 PASS 11G 2462 Ant1 -20.189 8.00 PASS 11N20SISO 2412 Ant1 -17.256 8.00 PASS 11N20SISO 2442 Ant1 -18.672 8.00 PASS 11N20SISO 2462 Ant1 -20.615 8.00 PASS TEST PLOT Maximum Peak power spectral density_11B_2412_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 67 of 89 Maximum Peak power spectral density_11B_2442_Ant1 Maximum Peak power spectral density_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 68 of 89 Maximum Peak power spectral density_11G_2412_Ant1 Maximum Peak power spectral density_11G_2442_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 69 of 89 Maximum Peak power spectral density_11G_2462_Ant1 Maximum Peak power spectral density_11N20SISO_2412_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 70 of 89 Maximum Peak power spectral density_11N20SISO_2442_Ant1 Maximum Peak power spectral density_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 71 of 89 4.Band-edge for RF Conducted Emissions Test Mode Test Channel Ant Carrier Power[dBm] Max. Spurious Level [dBm] Limit [dBm] Verdict 11B 2412 Ant1 2.796 -48.037 -17.2 PASS 11B 2462 Ant1 1.395 -47.789 -18.61 PASS 11G 2412 Ant1 -0.917 -46.561 -20.92 PASS 11G 2462 Ant1 -2.845 -47.393 -22.85 PASS 11N20SISO 2412 Ant1 -0.720 -47.256 -20.72 PASS 11N20SISO 2462 Ant1 -2.589 -47.533 -22.59 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 72 of 89 TEST PLOT Band-edge for RF Conducted Emissions_11B_2412_Ant1 Band-edge for RF Conducted Emissions_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 73 of 89 Band-edge for RF Conducted Emissions_11G_2412_Ant1 Band-edge for RF Conducted Emissions_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 74 of 89 Band-edge for RF Conducted Emissions_11N20SISO_2412_Ant1 Band-edge for RF Conducted Emissions_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 75 of 89 5.RF Conducted Spurious Emissions Test Mode Test Channel Ant StartFre [MHz] StopFre [MHz] RBW [kHz] VBW [kHz] Pref[dBm] Max. Level [dBm] Limit [dBm] Verdict 11B 2412 Ant1 30 10000 100 300 2.951 -54.332 <-17.049 PASS 11B 2412 Ant1 10000 26000 100 300 2.951 -51.565 <-17.049 PASS 11B 2442 Ant1 30 10000 100 300 1.703 -53.930 <-18.297 PASS 11B 2442 Ant1 10000 26000 100 300 1.703 -52.018 <-18.297 PASS 11B 2462 Ant1 30 10000 100 300 1.38 -53.535 <-18.62 PASS 11B 2462 Ant1 10000 26000 100 300 1.38 -51.857 <-18.62 PASS 11G 2412 Ant1 30 10000 100 300 -1.149 -53.852 <-21.149 PASS 11G 2412 Ant1 10000 26000 100 300 -1.149 -52.034 <-21.149 PASS 11G 2442 Ant1 30 10000 100 300 -1.979 -54.607 <-21.979 PASS 11G 2442 Ant1 10000 26000 100 300 -1.979 -50.836 <-21.979 PASS 11G 2462 Ant1 30 10000 100 300 -2.261 -54.308 <-22.261 PASS 11G 2462 Ant1 10000 26000 100 300 -2.261 -51.580 <-22.261 PASS 11N20SISO 2412 Ant1 30 10000 100 300 -0.784 -53.978 <-20.784 PASS 11N20SISO 2412 Ant1 10000 26000 100 300 -0.784 -51.838 <-20.784 PASS 11N20SISO 2442 Ant1 30 10000 100 300 -2.469 -54.203 <-22.469 PASS 11N20SISO 2442 Ant1 10000 26000 100 300 -2.469 -51.319 <-22.469 PASS 11N20SISO 2462 Ant1 30 10000 100 300 -2.492 -53.333 <-22.492 PASS 11N20SISO 2462 Ant1 10000 26000 100 300 -2.492 -51.925 <-22.492 PASS SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 76 of 89 TEST PLOT RF Conducted Spurious Emissions_11B_2412_Ant1 Pref CSE_1 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 77 of 89 CSE_2 RF Conducted Spurious Emissions_11B_2442_Ant1 Pref SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 78 of 89 CSE_1 CSE_2 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 79 of 89 RF Conducted Spurious Emissions_11B_2462_Ant1 Pref CSE_1 SGS-CSTC Sta…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 1 of 89 FCC ID: 2ADUL0385 Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZEM2007013771CR Applicant: Greater Goods, LLC Address of Applicant: 4427 Chouteau Ave.St.Louis, Mo, 63110, Unite States Manufacturer: Zhongshan Transtek Electronics Co., Ltd Address of Manufacturer: No.23, Jin'an Road, Minzhong, Zhongshan, Guangdong, China Factory: Zhongshan Transtek Electronics Co., Ltd Address of Factory: No.23, Jin'an Road, Minzhong, Zhongshan, Guangdong, China Equipment Under Test (EUT): FCC ID: 2ADUL0385 EUT Name: WIFI Smart Scale Model No.: 0385, 0396 ¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Standard(s): 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2020-07-16 Date of Test: 2020-07-20 to 2020-07-22 Date of Issue: 2020-07-28 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 2 of 89 Revision Record Version Chapter Date Modifier Remark 01 2020-07-28 Original Authorized for issue by: Tested By 2020-07-20 to 2020-07-22 Jackson_Yuan /Project Engineer Date Checked By 2020-07-28 Ricky_Liu /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 3 of 89 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(c) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass ¤ Declaration of EUT Family Grouping: Model No.: 0385, 0396 According to the declaration from the applicant, the electrical circuit design, layout, components used and internal wiring were identical for all models, with only difference on the outer appearance and model name. Therefore only one model 0385 was tested in this report. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM200701377102 Page: 4 of 89 3 Contents Page 1 Cover Page .................................................................................................................................................... 1 2 Test Summary ............................................................................................................................................... 3 3 Contents ........................................................................................................................................................ 4 4 General Information ..................................................................................................................................... 6 4.1 Details of E.U.T. ..................................................................................................................................... 6 4.2 Description of Support Units .................................................................................................................. 6 4.3 Measurement Uncertainty ...................................................................................................................... 7 4.4 Test Location ......................................................................................................................................... 7 4.5 Test Facility ............................................................................................................................................ 8 4.6 Deviation from Standards ...................................................................................................................... 9 4.7 Abnormalities from Standard Conditions ............................................................................................... 9 5 Equipment List ............................................................................................................................................ 10 6 Radio Spectrum Technical Requirement ................................................................................................. 13 6.1 Antenna Requirement .......................................................................................................................... 13 6.1.1 Test Requirement: ........................................................................................................................... 13 6.1.2 Conclusion ....................................................................................................................................... 13 7 Radio Spectrum Matter Test Results ........................................................................................................ 14 7.1 Minimum 6dB Bandwidth ..................................................................................................................... 14 7.1.1 E.U.T. Operation ........…

Text truncated - open the document above for the full version.

Test Setup photo 1.1 RF Conducted Test Setup 1.2 Radiated Spurious Emissions & Radiated Emissions which fall in the restricted bands Test Setup
