2ADUL0397WI-FI SMART SCALE

version:1.0 User Manual Wi-Fi Smart Scale GBF-1270-F2 Please do read the user manual carefully and thoroughly so as to ensure the safe usage of this product, and keep the manual well for further reference in case you have problems. Thank you very much for selecting the Transtek Wi-Fi Smart Scale GBF-1270-F2. TEL:86-760-88282982 www.transtek.cn ZHONGSHAN TRANSTEK ELECTRONICS CO., LTD No.23,Jin'an Road, Minzhong, Zhongshan, 528441, Guangdong, China 1 Table of Contents Table of Contents Safety Information Safety and Usage Information Your Scale and Its Environment Efficient Use of Your Scale Overview Device Components List LCD Display Initial Start-Up General Instructions Insert the Batteries Set Up Your Profile Configure the Wi-Fi Password Select Measurement Unit Initialising Your Scale Weight Only Operation Start Measuring First Measurement Daily Measurement Manage Your Health Data Transmission Troubleshooting Error Prompt When Measuring ... When Data Transmitting... Specifications Maintenance Warranty FCC Regulations Appendix Health Tips – About Body Fat Health Tips – About Body Water Health Tips – About Muscle Mass Health Tips – About Bone Mass Health Tips – About BMI EMC Guidance 2 3 3 4 4 5 6 6 7 8 9 10 10 11 12 13 14 14 16 17 18 18 19 20 21 22 22 23 24 ............................................................................................... .................................................................................................. ................................................................................................................. .......................................................................................................................................... ................................................................................................................. ................................................................................................. ........................................................................................................ ................................................................................................................... ............................................................................................................................. .................................................................................................................... .................................................................................................................. .................................................................................................................. ........................................................................................................ ............................................................................................................................ ............................................................................................................................... ...................................................................................................................................... ................................................................................................................. ............................................................................................ ......................................................................................................... ......................................................................................................................... .................................................................................................. .............................................................................................................................. ................................................................................................................... ............................................................................................... ............................................................................................. ............................................................................................................... .............................................................................................................. ........................................................................................................ ......................................................................................................................... 23 Safety InformationSafety Information The Transtek Wi-Fi Smart Scale measures weight and estimate BMI, and uses bio-electrical impedance analysis (BIA) technology to estimate body fat, total body water percentage, bone mass, and muscle mass in generally healthy children 10-17 years old and healthy adults. It is intended for use in the domestic setting only. The warning signs and symbols are essential to ensure your correct and safe use of this product and protect you and others from injury. Please kindly find the meanings of the warning signs and symbols, which you may encounter in the label and user manual, as follows: Safety and Usage Information CAUTION Symbol for “THE OPERATION GUIDE MUST BE READ” Symbol for “MANUFACTURER” Symbol for “ENVIRONMENT PROTECTION – Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice” Symbol for “TYPE BF APPLIED PARTS” Symbol for “SERIAL NUMBER” Symbol for “DIRECT CURRENT” The Wi-Fi Smart Scale GBF-1270-F2 offers you a seamless way to manage your health. Please be aware that this device is designed for adults’ self-measuring and self-monitoring body fat level. Any information provided by this device is in no way meant to treat, cure or prevent any disease or illness from happening. This device should not be used by anyone who is acutely or chronically ill, suffering from a diseas…

Text truncated - open the document above for the full version.

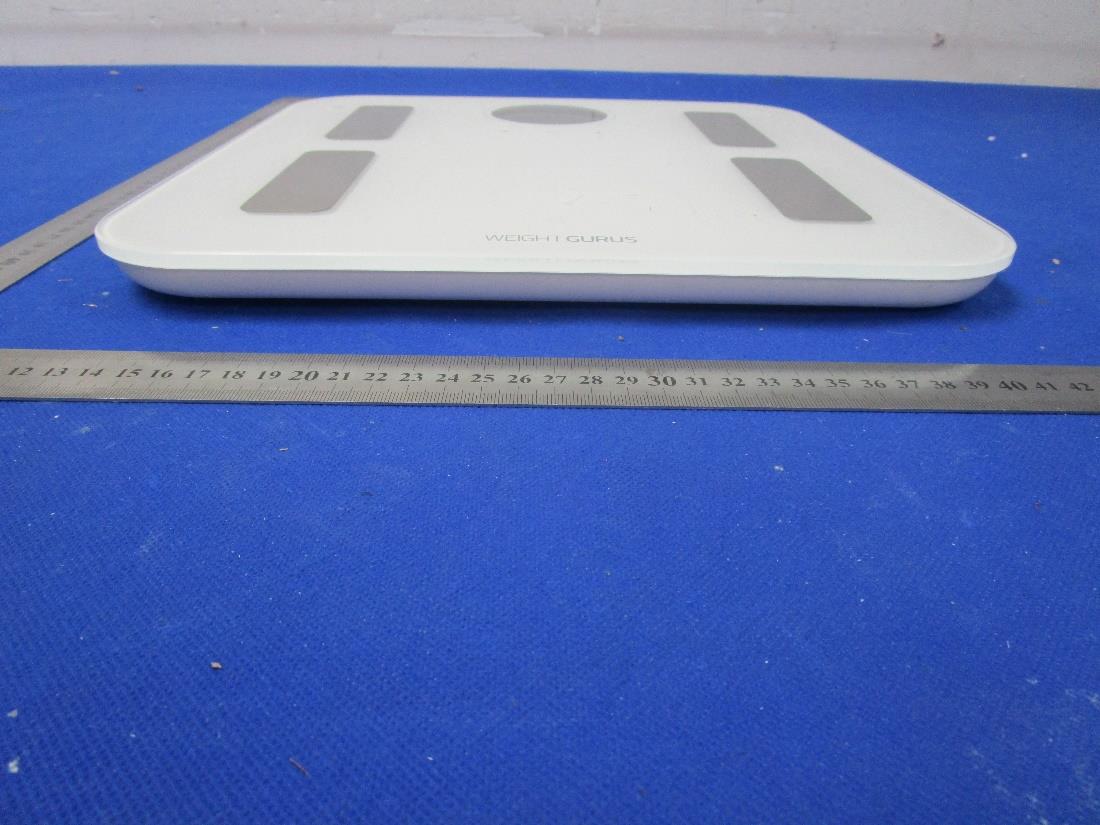

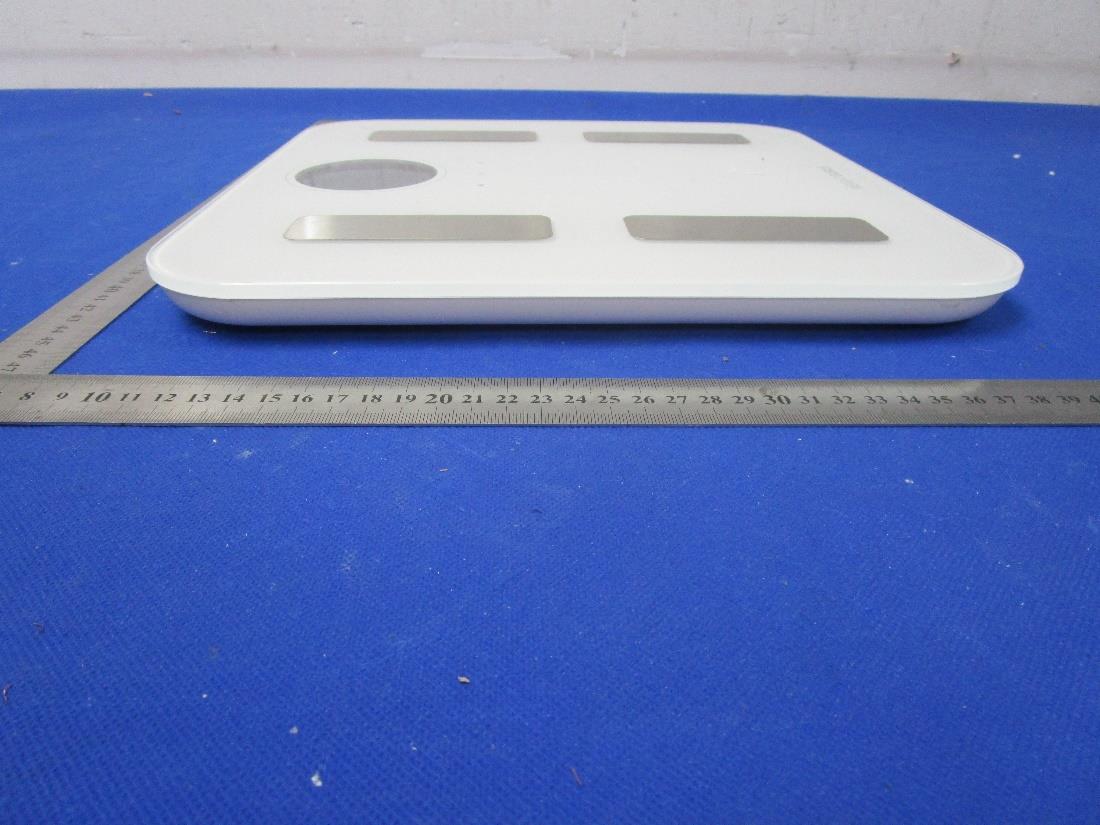

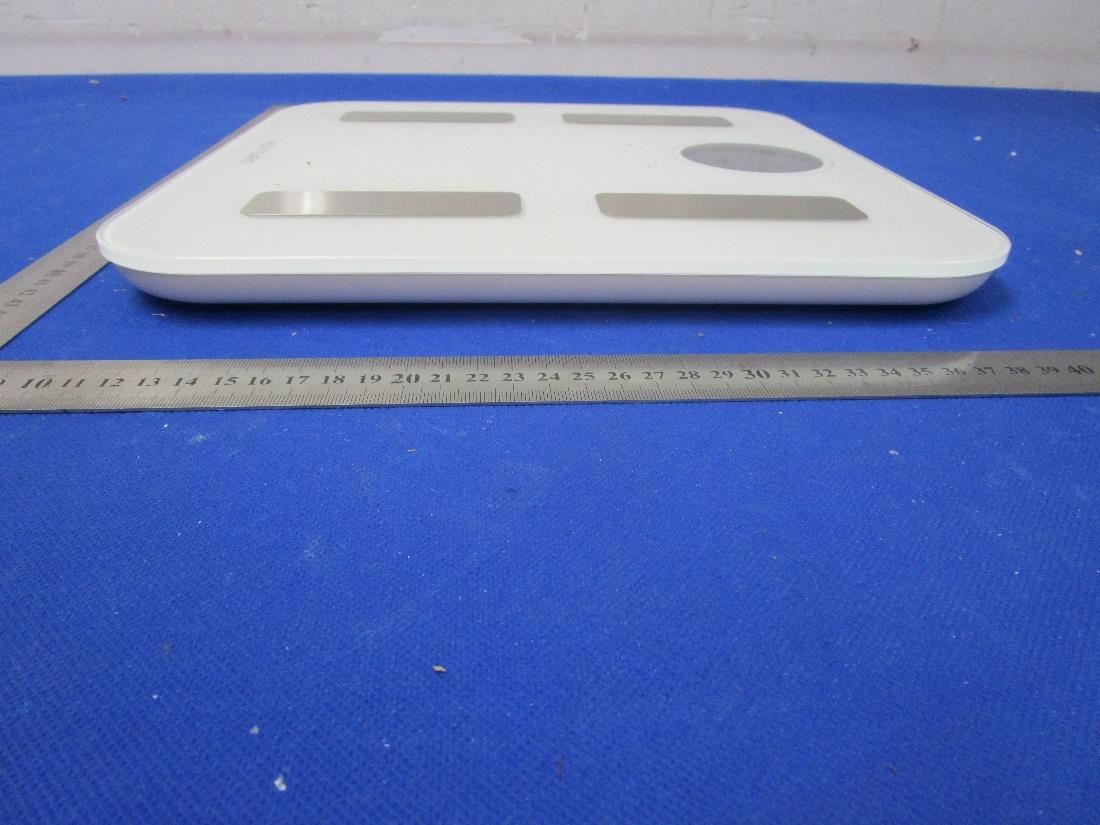

P1 of P3 External photos Front view Back view P2 of P3 Side view Side view P3 of P3 Side view Side view

2020-04 GBF-1270-F2 2020-04 GBF-1270-F2

P1 of P7 Internal Photos P2 of P7 P3 of P7 P4 of P7 P5 of P7 P6 of P7 P7 of P7

Report Number: 64.790.18.02285.01-RF Page 1 of 1 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 RF exposure Estimation 1. Introduction GBF-1270-F2, 0395, GBF-1270-F3, 0397 are WI-FI SMART SCALE, which contain WIFI function inside. FCC ID: 2ADUL0397 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 Mobile Portable RF Exposure v05r02, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 3. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 Conducted Power + tune up tolerance = 1.25mW Distance = 5 mm f = 2.412 GHz [1.25/5] * SQRT(2.412) =0.39 0.39 ≤ 3.0 Therefore, excluded from SAR testing. TUV SUD China, Guangzhou Branch Reviewed by: Prepared By: Tony Liu / Project Reviewer Kevin Ouyang / Project Handler Date: 2020-12-09 Date: 2020-12-09

Report Number: 64.790.18.02285.01 Page 1 of 44 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 FCC - TEST REPORT Report Number : 64.790.18.02285.01 Date of Issue: December 8, 2020 Model : GBF-1270-F2, 0395, GBF-1270-F3, 0397 Product Type : WI-FI SMART SCALE Applicant : Greater Goods,LLC Address : 4427 Chouteau Ave.St.Louis, Missouri,63110, United States Manufacturer : Zhongshan Transtek Electronics Co.,Ltd Address : No. 23,Jin'an Road, Minzhong, Zhongshan ,Guangdong, China Test Result : ◼ Positive  Negative Total pages including Appendices : 44 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 64.790.18.02285.01 Page 2 of 44 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 1 Table of Contents 1 Table of Contents .................................................................................................................................... 2 2 Details about the Test Laboratory ........................................................................................................... 3 3 Description of the Equipment Under Test .............................................................................................. 4 4 Summary of Test Standards .................................................................................................................... 5 5 Summary of Test Results ........................................................................................................................ 6 6 General Remarks ..................................................................................................................................... 7 7 Test Setups .............................................................................................................................................. 8 8 Systems test configuration ...................................................................................................................... 9 9 Technical Requirement ......................................................................................................................... 10 9.1 Conducted peak output power ....................................................................................................... 10 9.2 Power spectral density ................................................................................................................... 11 9.3 6 dB Bandwidth ............................................................................................................................. 15 9.4 Spurious RF conducted emissions ................................................................................................. 19 9.5 Band edge testing ........................................................................................................................... 30 9.6 Spurious radiated emissions for transmitter .................................................................................. 34 10 Test Equipment List .......................................................................................................................... 43 11 System Measurement Uncertainty .................................................................................................... 44 Report Number: 64.790.18.02285.01 Page 3 of 44 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Telephone: 86 755 8828 6998 Fax: 86 755 8828 5299 FCC Registration No.: 514049 IC registration number: 10320A Report Number: 64.790.18.02285.01 Page 4 of 44 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 3 Description of the Equipment Under Test Product: WI-FI SMART SCALE Model no.: GBF-1270-F2, 0395, GBF-1270-F3, 0397 FCC ID: 2ADUL0397 Options and accessories: Nil Rating Input: DC 1.5V*4 RF Transmission Frequency: 2412MHz-2462MHz No. of Operated Channel: 802.11b/g/n20: 11 channel Modulation: 802.11b: CCK DSSS 802.11g: OFDM 802.11n20: OFDM Antenna Type: Integral Antenna Antenna Gain: 3.22dBi Description of the EUT: The EUTs are WI-FI SMART…
