2ADW3-28005Bluetooth Headphone

28005 Sports Neckband Bluetooth Headphone INSTRUCTIONS Redial the last dial-out number On standby mode, double press the multifunction button. Play / Pause In the process of playing music, press the multifunction button to pause or play music. Volume Control 1.Press the V+ button to raise the volume while in use. 2.Press the V- button to lower the volume while in use. FCC Warning Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Start-up For best results on your Bluetooth headset, please follow steps below. 1.Fully charge headset before first use. 2.Pair the headset with any Bluetooth-enabled device. Charge Plug the charging cable into the headset and then connect the charging cable to the USB port of your PC. The red LED light will light up during charging. Turn On Press the multifunction button and hold for 4 seconds until “ power on” is heard and the blue light flashes. Turn Off Press the multifunction button and hold for 3 seconds. The red LED light will flash quickly. Please Note: It is strongly recommended that you turn off the headset and Bluetooth on the device while not in use. Pairing Please check to make sure the device to which you are pairing has Bluetooth capabilities. This information should be included in your phone or device’s instructions or packaging. Multifunctional button/ Play/Pause Volume+ Volume- Charging Port Answer / Reject / End a call When a call comes in, the ring will be heard through the headset. 1.Press the multifunction button to answer the call. You may also answer through your phone. 2.To reject a call, press the multifunction button . You may also accept or decline a call using your phone’s functions. 3.To end a call, press the multifunction button during the call. You may also end the call using your phone’s functions. 1. Make sure that the headset is turned off. 2. Place the headset and the device in proximaty so that both devices are in view. 3. Press and hold the multifunction button for 4 seconds until headset power is on. Red and blue LED lights will flash and “pairing” is heard. 4. To activate the Bluetooth mode and functions on your phone or device, see the instructions for that device. 5. Set the phone or device to search for Bluetooth devices and select. 6. Enter the pass code 0000 and press OK to pair your headset with the device. When the pairing is complete, the LED will flash blue regularly while the headset is in standby mode. 7. The headset is now ready for listening to music or answering calls. Note: Some mobile phones or other devices may pair automatically when re-started. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

DATE : Jan 13, 2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADW3-28005 Product Name: Bluetooth Headphone Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Jan 13, 2015 Agency agreement expiration date: Usually Give 8 - 12 Months By: Youkiy Lou Signature Printed Title: Manager On behalf of : LEADER INNOVATIONS LTD. Telephone: 0574-87723018

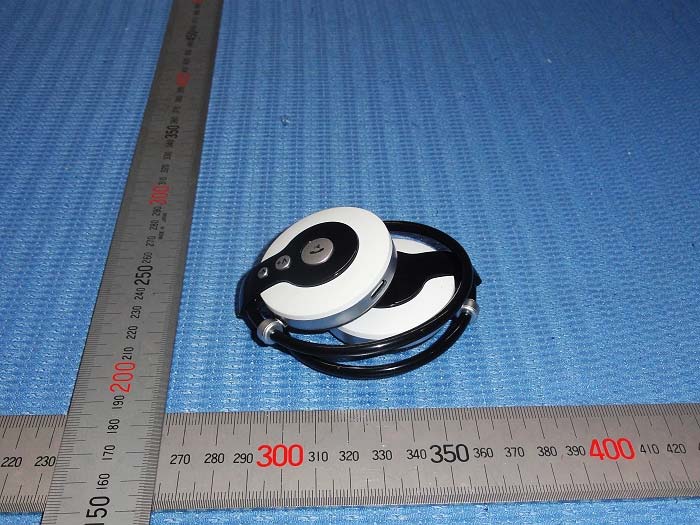

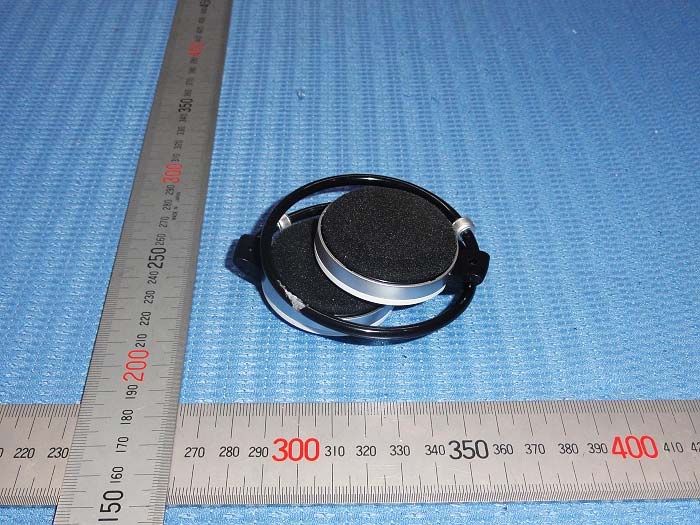

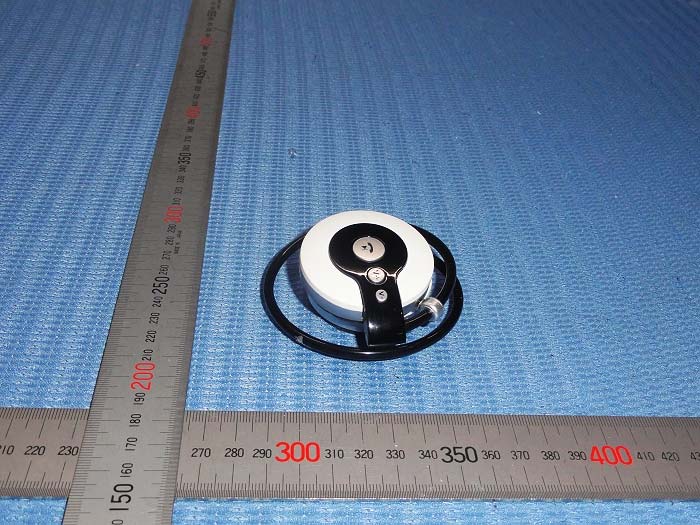

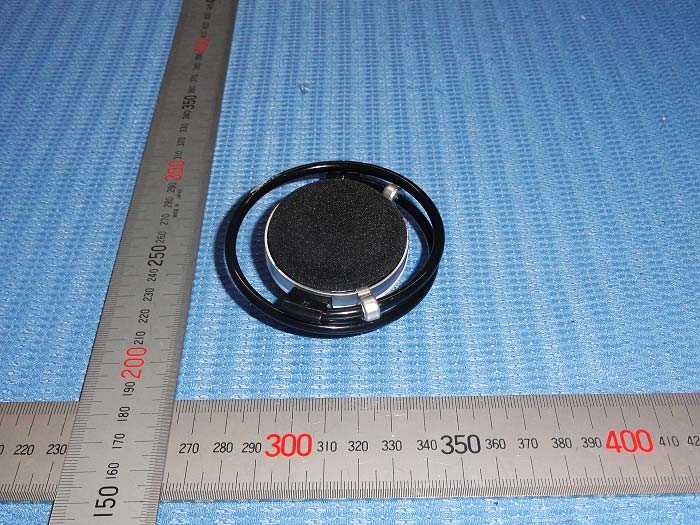

Outside view Outside view Outside view

FCC ID: 2ADW3-28005

Label Location

Inside view Inside view Inside view

RF Exposure Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. The Section 4.3.1 and Appendix A of KDB447498 D01 V05 was used as the guidance. Calculation Result (Worse Case): GFSK Mode: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] =0.977/5 * 1.57= 0.31, this value is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. The SAR measurement is not necessary.

ISO/IEC17025Accredited Lab. Report No.: FCC 1412180 File reference No.: 2015-01-09 Applicant: LEADER INNOVATIONS LTD. Product: Bluetooth Headphone Model No.: 28005 Trademark: N/A Test Standards: FCC Part 15 Subpart C, Paragraph 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.247 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: January 09, 2015 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA. Tel (+86 755)8344 8688 Fax (+86 755)8344 2996 Email:[email protected] Report No: FCC1412180 Page 2 of 80 Date: 2015-01-09 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement˖ The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC-Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205A-02. Report No: FCC1412180 Page 3 of 80 Date: 2015-01-09 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 4 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition.............................…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup: Radiated Emission Test Setup:
