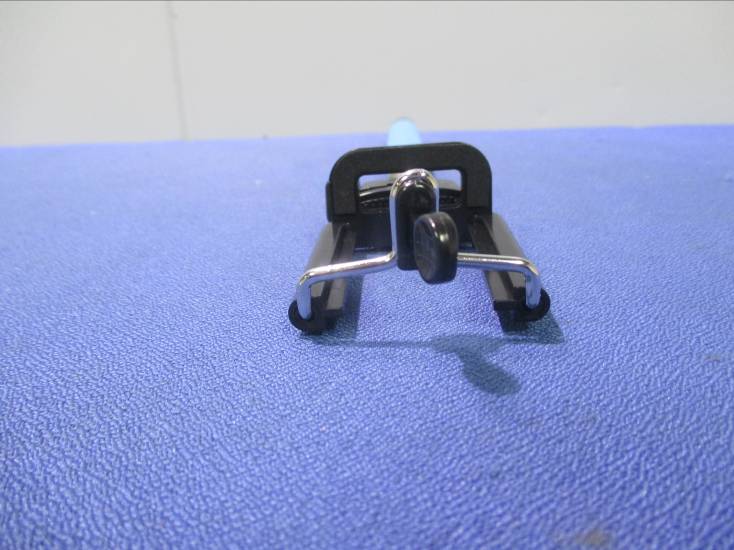

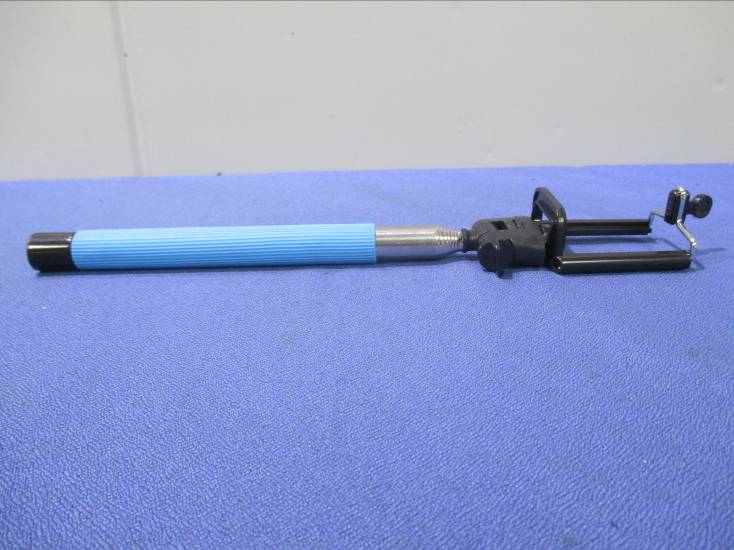

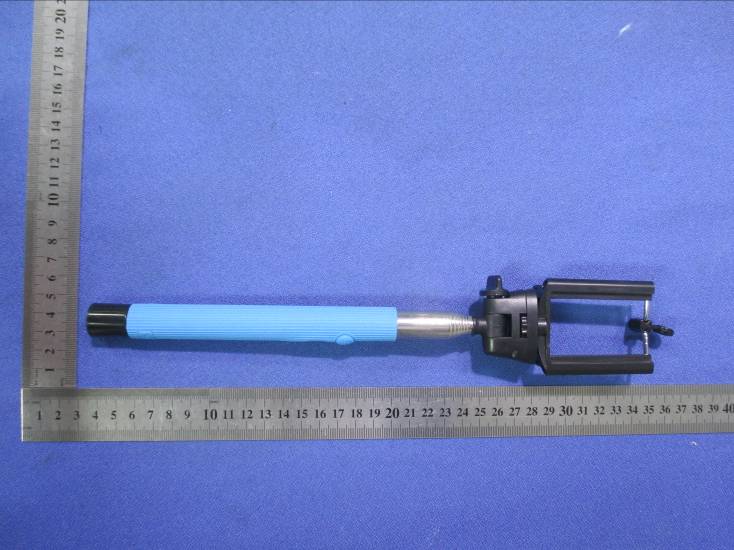

2ADXM-13009BTWIRELESS SELF CAMERA MONOPOD

INSTRUCTION MANUAL PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE GETTING STARTED • Remove the Bluetooth Selfie Stick with Built-in Shutter Button and other accessories from the box. • Remove any packaging from the product. • Please read all instructions and retain all packaging until you have checked and counted all of the parts. PACKAGE CONTENTS • Bluetooth Selfie Stick with Built-in Shutter Button • Phone mount • USB charging cable • Instruction manual FEATURES • Mounts most mobile phones & cameras • Ideal for taking great quality selfies & group pictures • Capture photos or video above the crowds or in hard to reach places • Pairs with your iOS and Android devices, once paired just press Shutter button to take photos • Non-slip soft rubber handle • Made with high quality stainless steel and plastic material • Adjustable ball head and thumb screw locks for multiple angle shooting • Extends up to 41 inches DESCRIPTION OF PARTS OPERATING INSTRUCTIONS CHARGING THE SELFIE STICK a.Please use the USB Recharging Cable that is included in the box. Connect one end of the cable to the Micro USB Charging Port as shown in the figure. The other end should be connected to your computer USB Port or other suitable USB source. b.While charging the Selfie Stick, red LED light turns on. Once it is fully charged, red LED light turns off. c.Note: Before using the product for the first time, please charge the Selfie Stick for around an hour or until the red LED light turns off. INSTALLING THE PHONE ONTO THE PHONE MOUNT a.Place the phone mount onto the Selfie Stick and turn clockwise, until it mounts securely. b.Place your phone onto the phone mount and secure it tight. PAIRING a.Slide the On/Off switch at the bottom of the Selfie Stick, to On position. b.The blue LED indicator will begin to flash rapidly. This enables the Bluetooth function. c.Switch on Bluetooth function in your phone setting and search for available devices. d.Select “SL SELFIESTICK” from the list of available devices, to pair your phone with the Selfie Stick. e.After you have successfully paired your phone to the Selfie Stick, you are ready to take photos by pressing the Shutter button on the Selfie Stick. Note: For iOS 6.0 or above and Android devices OS 4.2 or above, you DO NOT need any external App to use the Selfie Stick. It would take photos on the click of the Shutter button, once paired with Bluetooth. SELECT APPS While, you DO NOT need any external App to take photos through your Phone’s built-in Camera using the Selfie Stick, you can download and install the “Camera360” App (from Google Play) if the built-in camera doesn’t support the Selfie Stick. TECHINCAL SPECIFICATION FCC Instructions Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the product. NOTE: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the product and receiver. - Connect the product into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. LIMITED WARRANTY This manufacturer's product warranty extends to the original consumer purchaser of the product. Neither the retailer nor any other company involved in the sale or promotion of this product is a co-warrantor of this manufacturer warranty. WARRANTY DURATION: All materials and workmanship are warranted to the original consumer purchaser for a period of ninety (90) days from the original purchase date. WARRANTY COVERAGE: This product is warranted against defective materials or workmanship. This warranty is void if the product has been damaged by accident, in shipment, unreasonable use, misuse, neglect, improper service, commercial use, repairs by unauthorized personnel or other causes not arising out of defects in materials or workmanship. This warranty doesn’t cover the following which may be supplied with this product, including but not limited to; LCD Screens, glass parts, lenses, bulbs etc. This warranty is effective only if the product is purchased and operated in USA and Canada, and does not extend to any units which have been used in violation of written instructions furnished by manufacturer or to units which have been altered or modified or, to damaged products or parts thereof which have had the serial number removed, altered, defaced or rendered illegible. WARRANTY DISCLAIMERS: This warranty is in lieu of all warranties expressed or implied and no representative or person is authorized to assume for manufacturer any other liability in connection with the sale of our products. There shall be no claims for defects or failure under any theory of tort, contractor commercial law including but not limited to, negligence, gross negligence, strict liability, breach of warranty and breach of contract. Under no circumstances will Manufacturer’s / Distrib…

Text truncated - open the document above for the full version.

SHENZHEN TEKSUN TECHNOLOGY CO., LTD 3F, Bldg F7, F518 Idea Land, Baoyuan Road, Xixiang Avenue, Bao’an District, Shenzhen, China TEL: +86-755-29402650 FAX: +86-755-29402650 DATE 04-06-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADXM-13009BT Product Name: WIRELESS SELF CAMERA MO NOPOD Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 04-06-2015 By: Mandy Peng Signature Printed Title: PMC On behalf of : SHENZHEN TEKSUN TE CHNOLOGY CO., LTD Telephone: +86-755-29402650

SHENZHEN TEKSUN TECHNOLOGY CO.,LTD 3F, Bldg F7, F518 Idea Land, Baoyuan Road, Xixiang Avenue, Bao’an District, Shenzhen, China TEL: +86-755-29402650 FAX: +86-755-29402650 Series Models Description FCC ID: 2ADXM-13009BT Date: Apr. 06, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: To whom concern: The device (Product Name: WIRELESS SELF CAMERA MO NOPOD) Models Name: 13009BT,13001BT have same electrical, PCB and BOM, only the model’s name and colour are different for marketing requirements. Sincerely, Mandy Peng / PMC 13009BT,13001BT are electrically identical , only the model’s name and colour are different for marketing requirements.

SHENZHEN TEKSUN TECHNOLOGY CO., LTD 3F, Bldg F7, F518 Idea Land, Baoyuan Road, Xixiang Avenue, Bao’an District, Shenzhen, China TEL: +86-755-29402650 FAX: +86-755-29402650 USB Port Statement FCC ID: 2ADXM-13009BT Date: Apr. 06, 2015 To whom it may concern: We, the undersigned, state that the device's (Model: 13009BT,13001BT) USB port only used for charge, no any data transfer to PC. Sincerely, Mandy Peng / PMC

FCC ID Label Information 1. Label location: 2. FCC ID Label: Model: 13009BT FCC ID: 2ADXM-13009BT FCCID Label Location

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 86.13dBuV/m @3m Ant gain 0dBi; so Ant numeric gain=1 So pt={[10 (86.13/20) /10 6 x3] 2 /30x1}x1000mW = 0.123mW So (0.123mW/5mm)x √2.48GHz = 0.0387<3 Then SAR evaluation is not required

- Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Report Reference No......................: CTL1503050554-WF Compiled by ( position+printed name+signature)..: File administrators Happy Guo Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Nice Nong Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Apr. 01, 2015 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: SHENZHEN TEKSUN TECHNOLOGY CO.,LTD Address.............................................: 3F, Bldg F7, F518 Idea Land, Baoyuan Road, Xixiang Avenue, Bao’an District, Shenzhen, China Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : WIRELESS SELF CAMERA MONOPOD Trade Mark .......................................: N/A Models/Type reference.....................: 13009BT,13001BT Modulation .......................................: FHSS Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: internal FCC ID .............................................: 2ADXM-13009BT Result................................................: Positive V1.0 Page 2 of 48 Report No.: CTL1503050554-WF T E S T R E P O R T Test Report No. :CTL1503050554-WF Apr. 01, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : WIRELESS SELF CAMERA MONOPOD Model /Type : 13009BT Listed Modes 13001BT Difference Description Only the color and model's name is different Applicant : SHENZHEN TEKSUN TECHNOLOGY CO.,LTD Address : 3F, Bldg F7, F518 Idea Land, Baoyuan Road, Xixiang Avenue, Bao’an District, Shenzhen, China Manufacturer SHENZHEN TEKSUN TECHNOLOGY CO.,LTD Address 3F, Bldg F7, F518 Idea Land, Baoyuan Road, Xixiang Avenue, Bao’an District, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 48 Report No.: CTL1503050554-WF Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.General Remarks 5 2.2.Equipment Under Test 5 2.3.Short description of the Equipment under Test (EUT) 5 2.4.EUT operation mode 6 2.5.EUT configuration 6 2.6.Related Submittal(s) / Grant (s) 6 2.7.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2.Fundamental Emissions 13 4.3.Transmitter Radiated Unwanted Emissions 14 4.4.Band Edge Measurement 30 4.5.Occupied Bandwidth Measurement 39 5. ANTENNA REQUIREMENT ....................................................... 41 6.TEST SETUP PHOTOS OF THE EUT .......................................... 42 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 44 V1.0 Page 4 of 48 Report No.: CTL1503050554-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 V1.0 Page 5 of 48 Report No.: CTL1503050554-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Mar. 05, 2015 Testing commenced on : Mar. 05, 2015 Testing concluded on : Mar. 31, 2015 2.2.Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ƽ Other (specified in blank below) DC 3.7V from battery 2.3. Short description of the Equipment under Test (EUT) The EUT is a WIRELESS SELF CAMERA MONOPOD work at 2402~2480 MHz support Bluetooth 3.0. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444 69 2471 16 2418 43 2445 70 2472 17 2419 44 2446 71 2473 18 2420 45 2447 72 2474 19 2421 46 2448 73 2475 20 2422 47 2449 74 2476 21 2423 48 2450 75 2477 22 2424 49 2451 76 2478 23 2425 50 2452 77 2479 24 2426 51 2453 78 2480 25 2427 52 2454 26 2428 53 2455 Modulation: 1Mbps(GFSK), 2Mbps(Pi/4 DQPSK), 3Mbps(8DPSK) For more deta…

Text truncated - open the document above for the full version.
