1 Bluetooth Speaker Model: 56108BT INSTRUCTION MANUAL PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE Getting Started • Remove the speaker from the box. • Remove any packaging from the product. • Please retain all packaging until you have checked and counted all the parts and the contents against the parts list. 2 Package Contents • Bluetooth Capsule Speaker • USB rechargeable cable • 3.5mm AUX cable • Carabiner • Instruction Manual Key Features • Rechargeable Bluetooth Speaker • Stream music, wireless • Built‐in Microphone allows you to answer calls through the Bluetooth speaker • Compatible with all Bluetooth enabled devices such as Smart Phones, Tablets, etc • 3.5mm AUX wired Connection for MP3/MP4 Players, iPods, computers, netbooks, laptops, etc • Wireless Range – 26 to 33 Feet • Carabiner comes in handy for those summer trips & more SAFETY INSTRUCTIONS • Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquids. • Do not operate the unit if it has been exposed to water, moisture or any other liquids to prevent against electric shock, explosion and/or injury to yourself and damage to the unit. • Do not use the unit if it has been dropped or damaged in any way. • Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs may place the user at serious risk. • Do not use the unit with wet hands. • Do not put objects into any of the openings. • Keep the unit free from dust, lint etc. • Do not use this unit for anything other than its intended use. • Keep the unit out of reach of children. • This appliance is not a toy. • Do not use the handset at excessive levels as damage to hearing may occur. • Batteries (battery pack or batteries installed) shall not be exposed to excessive heat place, such as sunshine, fire or the like. 3 Description of Parts Buttons Function Operation 1 Mic Built‐In Microphone for Hands‐Free Conversation 2 Carabiner Secure, hang the speaker anywhere you like 3 Multi‐Function Button (MFB) Answer Call / Hang Up / Redial Button 4 AUX‐Input Port Play music through AUX 5 LED Light Charge Indicator 6 Micro USB Charging Port Charges the speaker 7 LED Light Operation Indicator 8 Power ON/OFF To Turn On/Off the speaker INSTRUCTIONS FOR USE Turn ON/OFF the Speaker – Before Turning ON the device, please ensure that the speaker is fully charged. To Turn ON the device – Slide the On/Off button to “ON” position. To Turn OFF the device – Slide the On/Off Button to “OFF” position. 4 Connect using Bluetooth Technology manually • Turn On the speaker. A beep sound and flashing blue LED light indicate that you’re in Bluetooth Pairing Mode. • Activate the Bluetooth function on your Bluetooth Device (Mobile Phone or Tablet). Please refer to manufacturer’s instructions for instructions on enabling Bluetooth on your device. • Once you have activated Bluetooth on your mobile phone / tablet etc, select the device “SL CAPSULE” from the list of available Bluetooth devices. • If required, enter the password ‘0000’ to confirm to finalize pairing. (Password is required only during pairing devices for the first time) • Once paired successfully, the LED light flashes slowly. • Choose music from your Bluetooth® device and play music wireless through the speakers. Talking using the Bluetooth Speaker Please ensure that you are paired with the Bluetooth Speaker to use the below functions. Function Operation Button Answer Incoming Call Incoming Call Press the MFB once to answer an incoming call Reject Incoming Call Incoming Call Long press the MFB button End Call Incoming Call After your phone conversation, short press the MFB button. Redial last number Standby mode and connected to a device Short press the MFB button twice Note: MFB stands for Multi‐functional Button Listening to Wireless Music Please ensure that your device (iPhone, Tablet or Other Smart Phone) is paired with the Bluetooth Speaker to stream wireless music. Once it is paired, play music from your device. Function Operation Button Pause Playing music A short press on the MFB button will pause the music Play Pausing A short press on the MFB button will resume the music Note: a. The above functions only can be used in Bluetooth mode only. In Aux mode, you may need to control through your source device. b. The sound volume can only be controlled through your source device. 5 Play music using “Aux‐In” Port 1. Turn ON the device. 2. Insert the 3.5 mm Aux in cable (included) to the Aux‐in Port of the speaker. And, the other end of the cable connects to the audio device (such as computer / tablet etc.). 3. Solid, Blue LED would turn on. 4. Select your favourite song at the source device Note: a. When you insert 3.5 mm Aux in cable into the Line‐in jack of the speaker, the Bluetooth of the speaker will Turn Off at once. b. The sound volume can only be controlled through your source device. Charging the speaker This Speaker has built‐in rechargeable battery. When the battery is drained out, device would turn OFF automatically. You would have to recharge the battery. Plug the Micro USB end of the included USB cable into the charging port. Plug the other end into a USB port on your computer or other devices suitable for USB charging. The Red LED Light illuminates indicating that the device is being charged. It takes up to 3 hours to fully charge the device. Once the device is fully charged, LED Light would turn OFF. Specifications – Bluetooth® Version: V2.1+EDR Wireless Distance: 26 to 33 Feet Speaker: 3 Watts Power Input: DC 5V Built‐In Rechargeable Battery: 300mAh Built‐in 3.7V rechargeable Li‐ion battery Play Time: Up to 1 Hour Charging Time: Up to 3 Hours Care and maintenance Read the following recommendations before using the Oval Bluetooth Stereo Speaker. Following these you will be able to enjoy the product for many years. • Do not expose the unit to liquid, moisture or humidity to avoid the product’s internal circuit being affected. • Don’t use …

Text truncated - open the document above for the full version.

Antenna CW6651 Crystal 26M Charge circle (USB Port) Battery Audio Power Amplifier Mic EEPROM AUX 2402~2480MHz PCB Bluetooth:

SHENZHEN TEKSUN TECHNOLOGY CO.,LTD Address: 3F, bldg F7, F518 Idea Land ,Baoyuan Road, Xixiang Avenue, Bao’an District, Shenzhen, China Tel: 0755-29402650 Fax: 0755-29402650 2015-01-07 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2ADXM-56108BT We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Mandy Peng / PMC Contact information / address : 3F, bldg F7, F518 Idea Land ,Baoyuan Road, Xixiang Avenue, Bao’an District, Shenzhen, China Tel: 0755-29402650 Fax: 0755-29402650

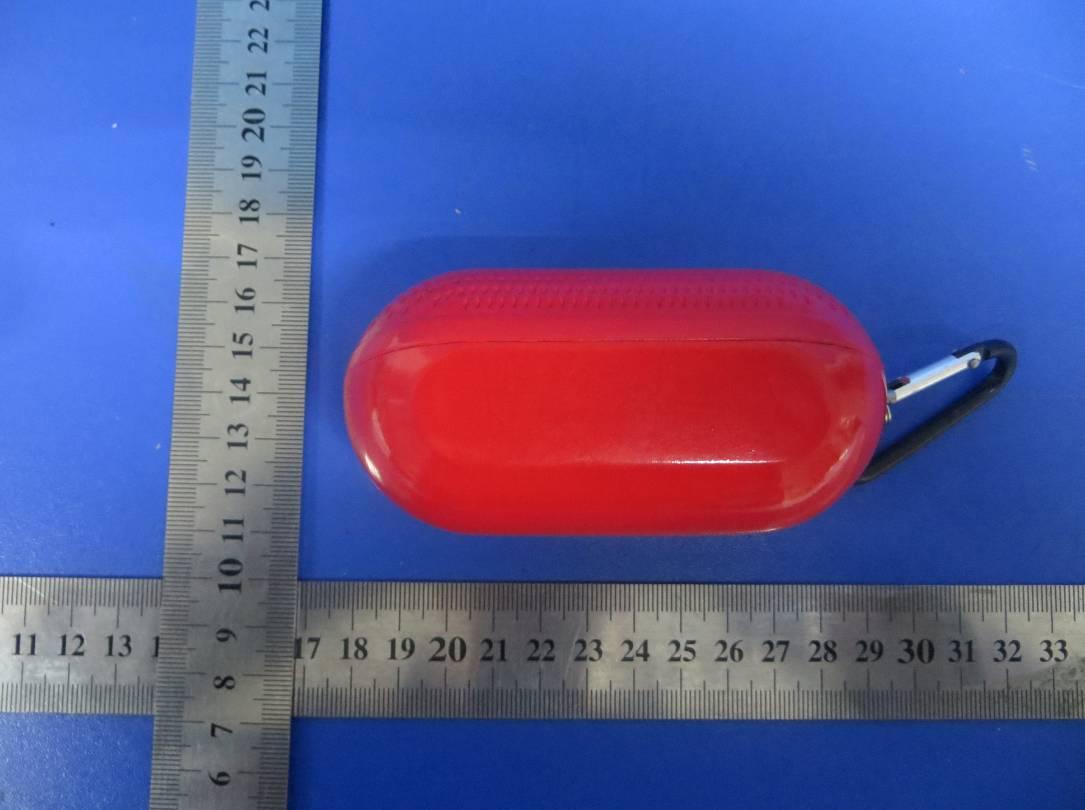

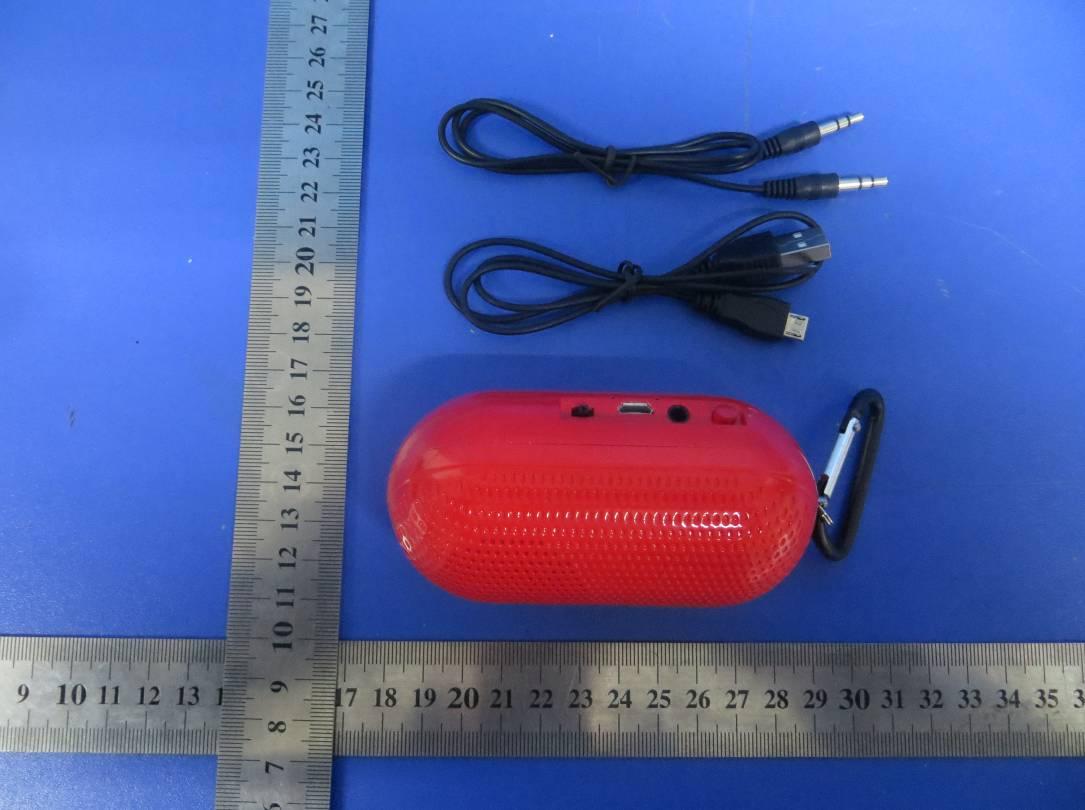

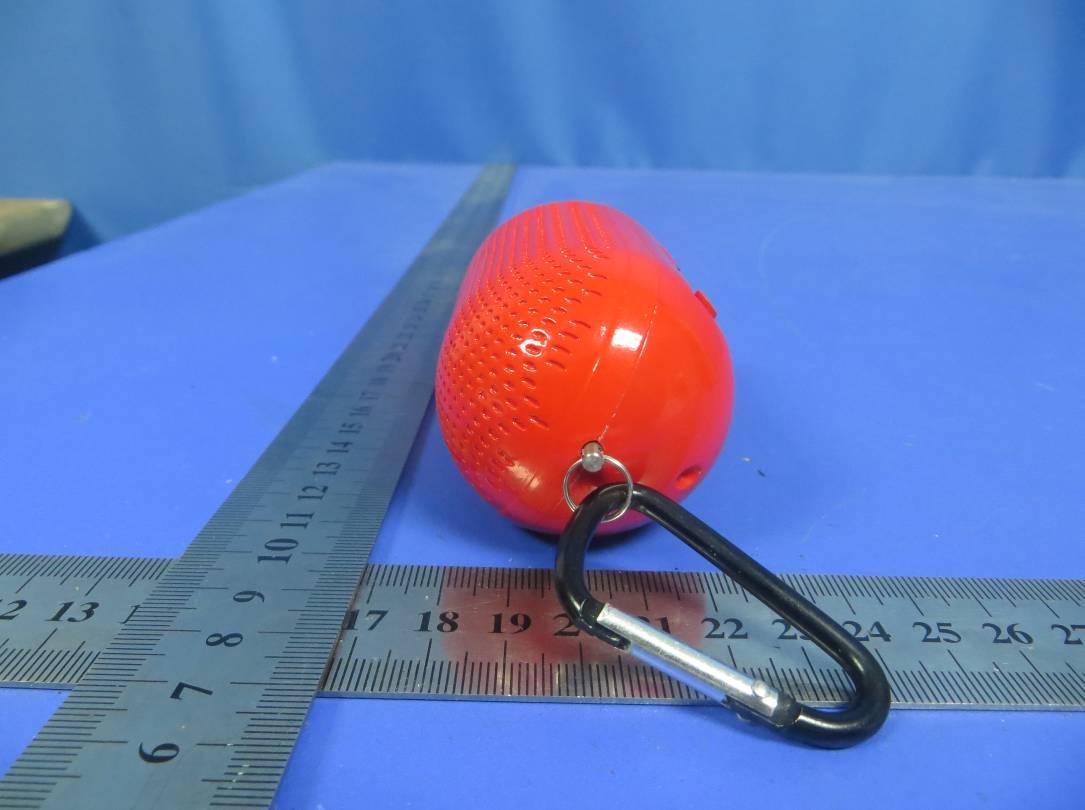

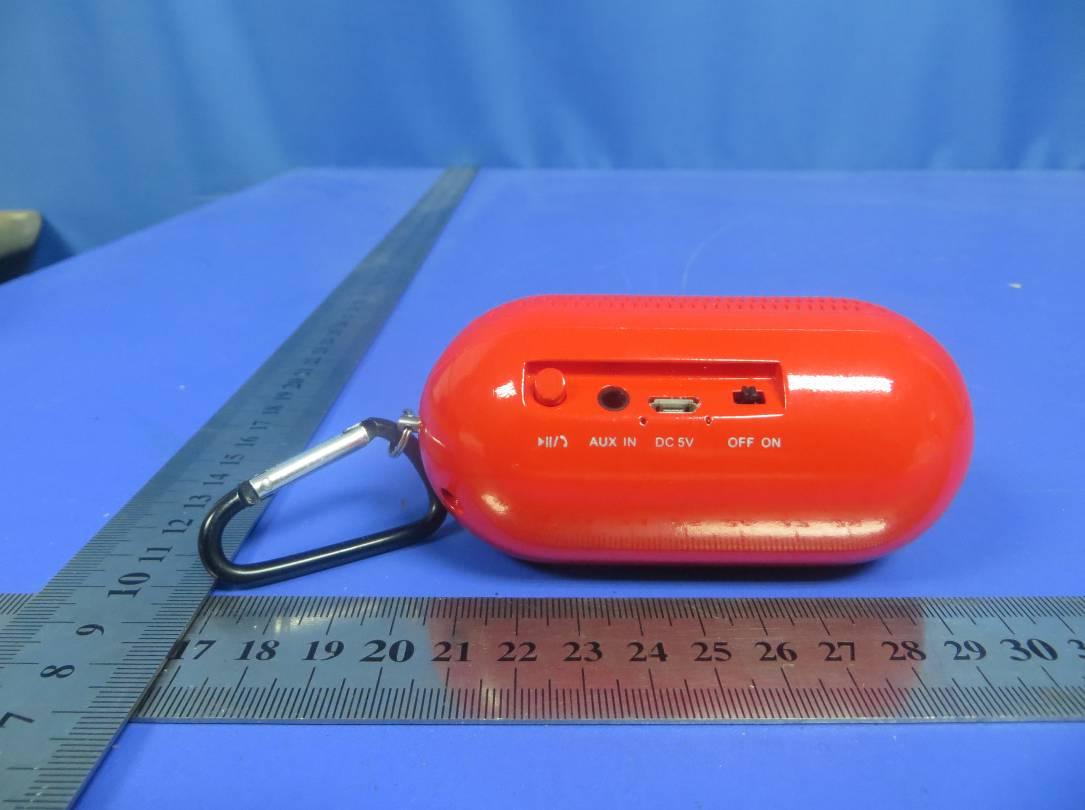

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADXM-56108BT Report No.: LCS1501040042E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADXM-56108BT Report No.: LCS1501040042E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADXM-56108BT Report No.: LCS1501040042E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADXM-56108BT Report No.: LCS1501040042E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L4.0cm*W1.5cm Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label And Location SHENZHEN TEKSUN TECHNOLOGY CO.,LTD Product Name: Bluetooth Speaker Model No.: 56108BT FCC ID: 2ADXM-56108BT

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADXM-56108BT Report No.: LCS1501040042E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 PCB Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADXM-56108BT Report No.: LCS1501040042E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3

Operation Of Description This product is a Bluetooth speaker. The EUT received DC 3.7V power by li-ion battery(300mAh) and the recharged voltage is DC 5V/1000mA. The USB 2.0 port is only used for charging and can not used for exchange data with PC. It works in the 2.4GHz worldwide ISM band. Operation Frequency: 2402M-2480MHz (Bluetooth V2.1+EDR), which transmit by 79 frequency hopping signal between 2402MHz and 2480MHz, (Channel Frequency=2402+1(K-1), K=1, 2, 3 ......79). Using a PCB antenna and the antenna gain is 0dBi(Max.). Modulation Type: GFSK (1Mbps), π/4-DQPSK (2Mbps), 8-DPSK (3Mbps). Using a standard Bluetooth radio system in the 2.4GHz ISM band, based on the RF chipset CW6651 which is derived by crystal 26MHz. Feature description ●Compliant with Bluetooth V2.1+EDR specification ● about -90dBm sensitivity ●Operates in 2.402-2.480 GHz ISM band ● Easy to build using simple SMD

D C B A 123456 A C D 654321 EEPROM AUX 1 PWR_KEY 2 MIC+ 3 MIC- 4 AVDD18 5 VCM2 6 AVSS 7 VCM 8 DACVDD 9 AVDD 10 LOUT 11 ROUT 12 VCMBUFF 13 VBSS 14 VBAT 15 IOVDD 16 UVSS 17 RSTB 18 TXD/AUX1L 19 RXD/AUX1R 20 P10/BATDECT 21 P11/ADKEY 22 P12/PWSTATE 23 P13/BTSTATE 24 P14/IICSCL 25 P15/IICSDA 26 AUX2L 27 AUX2R 28 P02/SPICLK 29 P03/SPIDI 30 P04/SPIDO 31 P05/SPICS/WP 32 P31 33 P32/AUXDECT 34 P35/RXD1 35 P36/CTS1 36 P37/RTS1 37 TEST_EN 38 VDD_IF_RF 39 GND_ANT1 40 RXTX 41 GND_ANT1 42 NC 43 VCC_VCO18 44 VCC_XO_VDDQ 45 XO_P 46 XO_N 47 P53/MUTE 48 VSS/IOVSS 49 RVSS/LVSS 50 RVDD18 51 VSS 52 VDD18 53 BVSS1 54 LX 55 BVIN 56 VOUT 57 GND U1 CW6651 Y1 26M C12 NC L2 0R C13 NC 1 2 C10104 C1225 C21 9P C20 9P C2105 C4225 C3 105 C5225 C6105 C7104 R1 1M C8105 R2 1M R3 100K C9 105 C14 104 C15 104 C16 225 C17 105 L1 1 VBUS 2 D- 3 D+ 4 ID 5 GND 6 SHIELD1 7 SHIELD2 8 SHIELD3 9 SHIELD4 USB1 USB_A BAT1 3.4V~4.2V D1SS14 R13 R1206 1.5R R15 2.2K Q1 8550 R48 4.7K 1 A0 2 A1 3 NC 4 GND 5 SDA 6 SCL 7 WP 8 VCC U2 24C08 R17 1K 1 2 J5 CON2 C26104 R520K C29 104 C30 10UF R160R R211K R221K C24 105 C25 105 R374.7K R384.7K R9 5.6K R10 5.6K 1 2 3 SW1 SW SPDT 3 4 2 1 J2 AUX JACK C18 22UF C19 22UF + 1 2 M1 MIC R8 3.3K C28 105 C27 105 R4 3.3K C22 NC C23 105 R7 1K D2 BT_LED D3 DC_LED S1 P/P R141K 1 SHDN 2 VREP 3 MODE 4 IN- 5 OUT- 6 VCC 7 GND 8 OUT+ U5 8871 R1820K R12 0R MD_RF PWR_KEY MIC+ MIC- LOUT ROUT BAT_DECT IOVDD RSTB BAT_DECTBT_STATE IIC_SCLIIC_SDA AUX2LAUX2R WP AUX_DECT PLAY RVDD RVDDVDD18 MUTE RVDD VOUT VOUTVBATVDD18 DACVDD VCM AVDD AVDD18 VBAT V_BAT IIC_SDA IIC_SCL WP IOVDD VBAT PWR_KEY OUT+ OUT- VBAT OUT- OUT+ VBAT LOUT ROUT AUX_DECT AUX2R AUX2L VBAT MIC+ MIC- DACVDD PLAY BT_STATE MUTE VBAT

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADXM-56108BT Report No.: LCS1501040042E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 43 FCC TEST REPORT FOR SHENZHEN TEKSUN TECHNOLOGY CO.,LTD Bluetooth Speaker Test Model: 56108BT Additional Model No.: 14015BT Prepared for : SHENZHEN TEKSUN TECHNOLOGY CO.,LTD Address : 3F, bldg F7, F518 Idea Land ,Baoyuan Road, Xixiang Avenue, Bao’an District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Date of receipt of test sample : January 04, 2015 Number of tested samples : 1 Serial number : Prototype Date of Test : January 04, 2015 - January 07, 2015 Date of Report : January 07, 2015 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADXM-56108BT Report No.: LCS1501040042E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 43 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247): 2013 / RSS-210 Issue 8 / RSS-Gen Issue 3 Report Reference No. ............... : LCS1501040042E Date of Issue ................................ : January 07, 2015 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : SHENZHEN TEKSUN TECHNOLOGY CO.,LTD Address ........................................ : 3F, bldg F7, F518 Idea Land ,Baoyuan Road, Xixiang Avenue, Bao’an District, Shenzhen, China Test Specification Standard ....................................... : FCC CFR 47 PART 15 C(15.247): 2013 / RSS-210 Issue 8 / RSS-Gen Issue 3 Test Report Form No. .................. : LCSEMC-1.0 TRF Originator............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : Bluetooth Speaker Trade Mark................................... : N/A Model/ Type reference ................. : 56108BT Ratings ......................................... : DC 3.7 by build-in battery(300mAh) Recharge Voltage: DC 5.0V/1000mA Result ......................................... : Positive Compiled by: Supervised by: Approved by: Leo Lee/ File administrators Danny Huang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADXM-56108BT Report No.: LCS1501040042E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 43 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1501040042E January 07, 2015 Date of issue Type / Model........................... : 56108BT EUT......................................... : Bluetooth Speaker Applicant............................... : SHENZHEN TEKSUN TECHNOLOGY CO.,LTD Address.................................. : 3F, bldg F7, F518 Idea Land ,Baoyuan Road, Xixiang Avenue, Bao’an District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : SHENZHEN AOB ELECTRONICS CO., LTD Address................................... : Bldg. A4, Third Industry Area, Huang Ma Bu Village, Xixiang Town, Bao An District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : SHENZHEN AOB ELECTRONICS CO., LTD Address................................... : Bldg. A4, Third Industry Area, Huang Ma Bu Village, Xixiang Town, Bao An District, Shenzhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADXM-56108BT Report No.: LCS1501040042E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 43 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ................................................................................................ 5 1.1 Description of Device (EUT) ........................................................................................................... 5 1.2 Support equipment List .................................................................................................................... 6 1.3 External I/O ..................................................................................................................................... 6 1.4 Description of Test Facility ............................................................................................................. 6 1.5 Statement of The Measurement Uncertainty ................................................................................... 7 1.6 Measurement Uncertainty .................…
