User Manual Bluetooth Speaker 14021BT Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by SHENZHEN TEKSUN TECHNOLOGY CO.,LTD may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

SHENZHEN TEKSUN TECHNOLOGY CO.,LTD 3F, Bldg F7, F518 Idea Land, Baoyuan Road, Xixiang Avenue, Bao'an District, Shenzhen, China TEL: 86-755-29402650 FAX: 86-755-29402650 DATE 03-10-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADXM14021BT Product Name: Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 03-10-2015 By: Mandy Peng Signature Printed Title: PMC On behalf of : SHENZHEN TEKSUN TECHNOLOGY CO.,LTD Telephone: +86-755-29402650

SHENZHEN TEKSUN TECHNOLOGY CO.,LTD 3F, Bldg F7, F518 Idea Land, Baoyuan Road, Xixiang Avenue, Bao'an District, Shenzhen, China TEL: 86-755-29402650 FAX: 86-755-29402650 USB Port Statement FCC ID: 2ADXM14021BT Date: March 10, 2015 To whom it may concern: We, the undersigned, state that the device's (Model: 14021BT, 13020BT, 13013BT, 522041BT) USB port only used for charge, no any data transfer to PC. Sincerely, Mandy Peng/PMC All Models 14021BT, 13020BT, 13013BT, 522041BT are electrically identicalonly model no is different. Statement

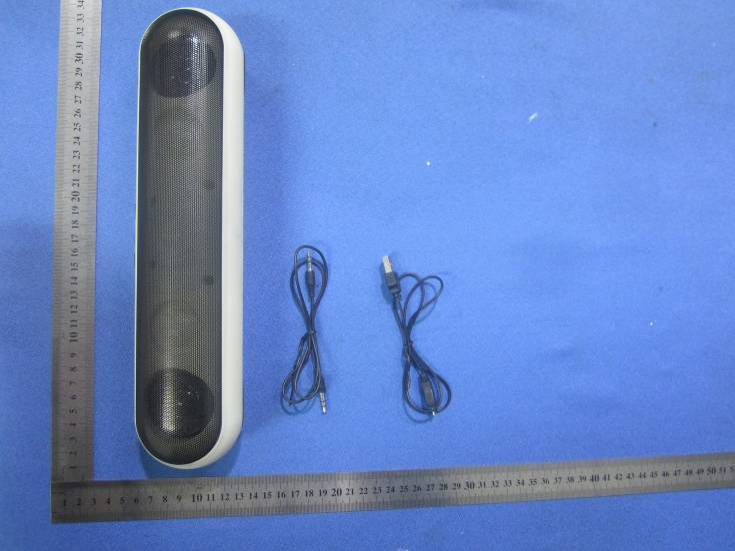

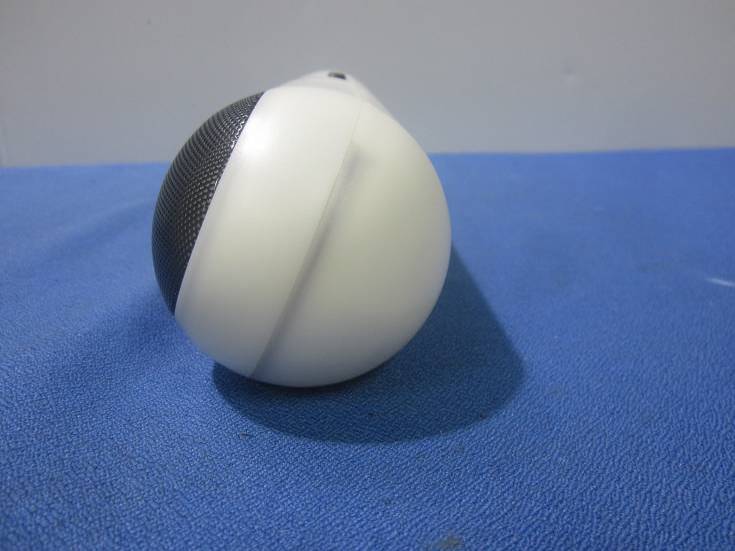

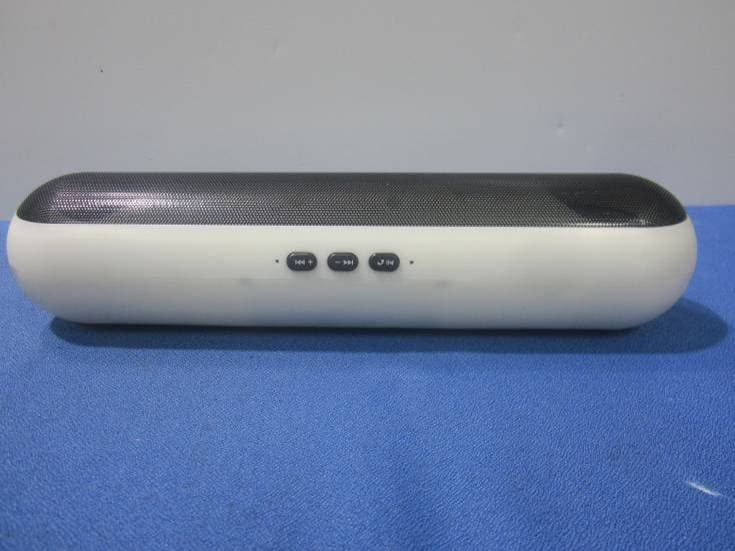

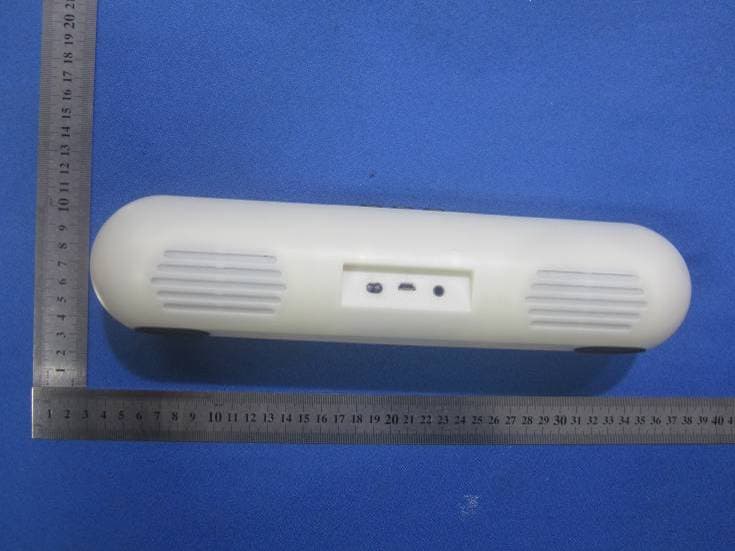

External Photos of EUT

FCC ID Label Information 1. Label location: 2. FCC ID Label: Bluetooth Speaker Model: 14021BT FCC ID: 2ADXM14021BT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos of EUT

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Ant gain 1.2dBi ;so Ant numeric gain=1.32 Field strength = 95.29 dBuV/m @3m So Pt={ [10 (95.29 /20) /10 6 x3] 2 /30x1.32 }x1000 mW = 0.77 mW So ( 0.77mW/5mm)x √2.402 GHz = 0.24 < 3 Then SAR evaluation is not required
