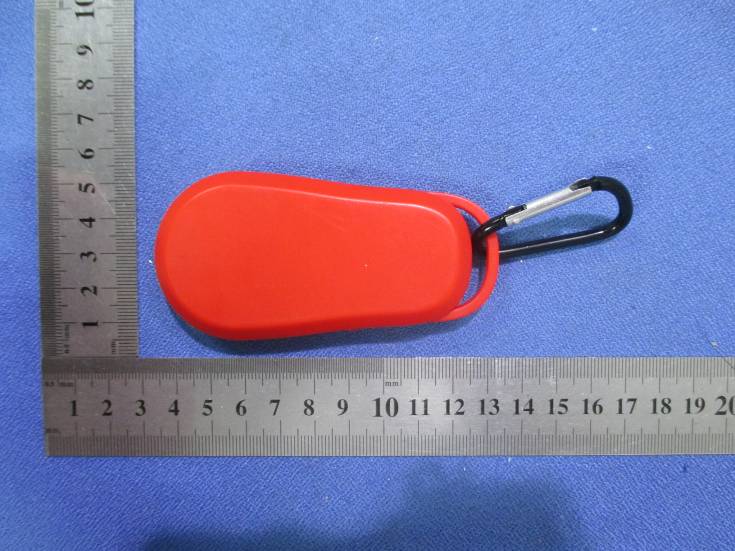

1 56902BT Bluetooth Speaker INSTRUCTION MANUAL PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE 2 Getting started • Remove the speaker from the packaging. • Please retain all packaging until you have checked and counted all the parts and the contents against the parts list. Package Contents • Slimmest Selfie Speaker with carabineer • USB Charging Cable • Instruction Manual Features • Connects via Bluetooth wireless to most smart phones, tablets, computers and more • Stream wireless music via Bluetooth • Built-in microphone to answer phone calls through speaker • Built-in selfie clicker to take perfect selfies • Every time the speaker is turned on, it connects to last connected device automatically • Bonus carabineer to play your favorite music almost anywhere Safety Instructions Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquids. Do not operate the unit if it has been exposed to water, moisture or any other liquids to prevent against electric shock, explosion and/or injury to yourself and damage to the unit. Do not use the unit if it has been dropped or damaged in any way. Repairs to electrical equipment should only be performed by a qualified electrician. Improper repairs may place the user at serious risk. Do not use the unit with wet hands. Do not put objects into any of the openings. Keep the unit free from dust, lint etc. Do not use this unit for anything other than its intended use. Keep the unit out of reach of children. This product is not a toy. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat place, such as sunshine, fire or the like. 3 Description of Parts INSTRUCTIONS FOR USE Charging Instructions The speaker comes with a built in rechargeable battery. When the battery is drained out, device turns OFF automatically. Please recharge the battery every time it drains out. Connect the USB cable (included) to a computer USB port and the other end to the charging port of the speaker. The Red LED illuminates while the speaker is being charged. It takes around 2 hours for the speaker to fully charge. When the battery is fully charged, the red LED will turn off. Turning on/off the speaker There is an on/off switch on the right side of the speaker. You can turn on/off the speaker with this switch. In order to save power, put the switch to off position when the speaker is not in use. 1 Microphone 2 Selfie Clicker button 3 Play / Pause / Call Answer button 4 LED Indicator 5 USB Charging Port 6 ON/OFF Switch 4 Pairing the speaker with Bluetooth devices (phone or music device) • Switch on the speaker, you would hear a start-up tone, and Blue operation LED light would flash rapidly, indicating that you are now in Bluetooth Pairing Mode. • Place the speaker and Bluetooth device (phone or music device) so that they are no further than 3 feet apart. • Activate the Bluetooth function on your Bluetooth device (phone or music device). Please refer to the manufacturer’s instructions for instructions on enabling Bluetooth on your device. • Once you have activated Bluetooth on your device, select the speaker “SL SELFIE SPKR” from the list of available Bluetooth devices. If required, enter the password ‘0000’ to confirm & finalize pairing. • Once paired successfully, the blue LED will stay on (and will stop flashing) indicating pairing has been successful. You can now start to use the speaker. Additional Information • If pairing is unsuccessful, turn off the speaker first and then re-pair following the above steps. • Once you have paired the speaker with a device, the speaker will remember this device and will pair automatically when the device’s Bluetooth is activated and in range. You do not need to re-pair any previously connected devices. • The speaker will attempt to automatically connect to the last device it was paired with when switched on. If you want to pair it with a new device, please follow the steps outlined above. • Once the speaker is paired with your device the music will transmit directly to the speaker. Please refer to your device’s user manual for further information. Function Summary Listening to Music Once the speaker is paired with your device you can stream wireless music through the speaker. Select the track you wish to listen to and it will be streamed to your Bluetooth speaker. Should you encounter any problems while streaming please refer your device’s user manual for further information. Function Operation Button Pause Playing music short press the Play / Pause button will pause the music Play Pausing short press the Play / Pause button will resume the music (Note: The above functions can only be used in Bluetooth mode. Volume, Skip forward / Skip backward functions can be controlled from your source device.) 5 Making a call with the speaker Basic operation Function Operation Button Answer a Call Incoming Call Short press the Call Answer button to answer an incoming call Reject a call Incoming Call Press and hold the Call Answer button for 2 seconds End a call Incoming Call After your phone conversation, short press the Call Answer button. (Note: The above functions can only be used when speaker is paired with your phone via Bluetooth) Please Note • Not all mobile phones support all the functions listed above. Please refer to your cell phone’s user’s manual for further information. • Certain functions and indication tones maybe vary depending on your mobile phone. Using the Wireless Selfie Clicker (iOS Users) 1. Please ensure that your device (iPhone, iPad etc) is paired with the Bluetooth Speaker. Press and hold the Shutter Remote button for around 3 seconds, and wait for a further few seconds for it switch from Speaker mode to Wireless Selfie Clicker mode. Blue light will flash while device is switching from Speaker to Selfie Clicker mode. Once the device is on Selfie Clicker mode blue light will turn solid and stop flashing. 2. Turn on camera on your iPhone / iPad and then p…

Text truncated - open the document above for the full version.

SHENZHEN TEKSUN TECHNOLOGY CO., LTD 3F, Bldg F7, F518 Idea Land, Baoyuan Road, Xixiang Avenue, Bao’an District, Shenzhen, China TEL: +86-755-29402650 FAX: +86-755-29402650 DATE 06-11-2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADXM56902BT Product Name: Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 06-11-2015 By: Mandy Peng Signature Printed Title: PMC On behalf of : SHENZHEN TEKSUN TE CHNOLOGY CO., LTD Telephone: +86-755-29402650

SHENZHEN TEKSUN TECHNOLOGY CO., LTD 3F, Bldg F7, F518 Idea Land, Baoyuan Road, Xixiang Avenue, Bao’an District, Shenzhen, China TEL: +86-755-29402650 FAX: +86-755-29402650 USB Port Statement FCC ID: 2ADXM56902BT Date: June 11, 2015 To whom it may concern: We, the undersigned, state that the device's (Model: 56902BT) USB port only used for charge, no any data transfer to PC. Sincerely, Mandy Peng / PMC

FCC ID Label Information 1. Label location: 2. FCC ID Label: Model: 56902BT FCC ID: 2ADXM56902BT FCCID Label Location

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 92.17 dBuV/m @3m Ant gain 1.2dBi; so Ant numeric gain=1.32 So pt={[10 (92.17/20) /10 6 x3] 2 /(30x1.32)}x1000mW = 0.375mW So (0.375mW/5mm)x √2.441GHz =0.117<3 Then SAR evaluation is not required

- Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Report Reference No......................: CTL1505261387-WF Compiled by ( position+printed name+signature)..: File administrators Happy Guo Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Nice Nong Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: June 11, 2015 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: SHENZHEN TEKSUN TECHNOLOGY CO.,LTD Address.............................................: 3F, Bldg F7, F518 Idea Land, Baoyuan Road, Xixiang Avenue, Bao’an District, Shenzhen, China Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Bluetooth Speaker Trade Mark .......................................: N/A Models/Type reference.....................: 56902BT Modulation .......................................: FHSS Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: internal FCC ID .............................................: 2ADXM56902BT Result................................................: Positive V1.0 Page 2 of 47 Report No.: CTL1505261387-WF T E S T R E P O R T Test Report No. :CTL1505261387-WF June 11, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : Bluetooth Speaker Model /Type : 56902BT Applicant : SHENZHEN TEKSUN TECHNOLOGY CO.,LTD Address : 3F, Bldg F7, F518 Idea Land, Baoyuan Road, Xixiang Avenue, Bao’an District, Shenzhen, China Manufacturer SHENZHEN TEKSUN TECHNOLOGY CO.,LTD Address 3F, Bldg F7, F518 Idea Land, Baoyuan Road, Xixiang Avenue, Bao’an District, Shenzhen, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 47 Report No.: CTL1505261387-WF Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.General Remarks 5 2.2.Equipment Under Test 5 2.3.Short description of the Equipment under Test (EUT) 5 2.4.EUT operation mode 6 2.5.EUT configuration 6 2.6.Related Submittal(s) / Grant (s) 6 2.7.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2.Fundamental Emissions 13 4.3.Transmitter Radiated Unwanted Emissions 14 4.4.Band Edge Measurement 30 4.5.Occupied Bandwidth Measurement 39 5. ANTENNA REQUIREMENT ....................................................... 41 6.TEST SETUP PHOTOS OF THE EUT .......................................... 42 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 44 V1.0 Page 4 of 47 Report No.: CTL1505261387-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 V1.0 Page 5 of 47 Report No.: CTL1505261387-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : May 26, 2015 Testing commenced on : May 26, 2015 Testing concluded on : June 11, 2015 2.2.Equipment Under Test Power supply system utilised Power supply voltage : o 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC ƽ Other (specified in blank below) DC 3.7V from battery 2.3. Short description of the Equipment under Test (EUT) The EUT is a Bluetooth Speaker work at 2402~2480 MHz support Bluetooth 2.1+EDR. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444 69 2471 16 2418 43 2445 70 2472 17 2419 44 2446 71 2473 18 2420 45 2447 72 2474 19 2421 46 2448 73 2475 20 2422 47 2449 74 2476 21 2423 48 2450 75 2477 22 2424 49 2451 76 2478 23 2425 50 2452 77 2479 24 2426 51 2453 78 2480 25 2427 52 2454 26 2428 53 2455 Modulation: 1Mbps(GFSK), 2Mbps(Pi/4 DQPSK), 3Mbps(8DPSK) For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 47 Report No.: CTL1505261387-WF 2.4. EUT oper…
