2ADZR4G0812WAFastMile 4G Gateway

Nokia — Proprietary and confidential Use pursuant to applicable agreements FastMile 2.1.04 Nokia FastMile 4G Gateway Product Overview 3TG-00743-ABEA-TCZZA Issue: 02 May 2020 Nokia FastMile 4G Gateway Product Overview 2 Nokia FastMile 4G Gateway Product Overview 3TG-00743-ABEA-TCZZAIssue: 02 Nokia is a registered trademark of Nokia Corporation. Other products and company names mentioned herein may be trademarks or tradenames of their respective owners. The information presented is subject to change without notice. No responsibility is assumed for inaccuracies contained herein. © 2020 Nokia. Contains proprietary/trade secret information which is the property of Nokia and must not be made available to, or copied or used by anyone outside Nokia without its written authorization. Not to be used or disclosed except in accordance with applicable agreements. Nokia FastMile 4G Gateway Product OverviewPreface Issue: 023TG-00743-ABEA-TCZZA3 1Preface This preface provides general information about the Product Overview for the Nokia FastMile 4G Gateway. 1.1 Summary of document issue changes Changes between document issues are cumulative. Therefore, the latest document issue contains all changes made to previous issues. Issue 01 is the first issue of the document for this release of the FastMile 4G Receiver. Issue 02 incorporated the following changes: •replaced table in section 6.7 with two tables, and added indication to contact your Nokia representative for output power information that is not provided in the tables •updated RF exposure information in section 16.1 •added chapter 17 as an appendix that has FCC statements and label instructions 1.2 Scope This document provides an overview of the Nokia FastMile 4G Gateway along with information about safety. 1.3 Audience This document is intended for planners, administrators, operators, and maintenance personnel involved in installing, upgrading, or maintaining the Nokia FastMile 4G Gateway. 1.4 Required knowledge The reader must be familiar with general telecommunications principles. 1.5 Acronyms and initialisms The expansions and optional descriptions of most acronyms and initialisms used in this document appear in the glossary at the back of the document. Preface 4 Nokia FastMile 4G Gateway Product Overview 3TG-00743-ABEA-TCZZAIssue: 02 1.6 Assistance and ordering For technical support, go to https://customer.nokia.com/support/s/ For ordering information, contact your Nokia sales representative. 1.7 Nokia quality processes Nokia’s FastMile 4G Gateway quality practices are in compliance with TL 9000 requirements.These requirements are documented in the Fixed Networks Quality Manual 3FQ-30146-6000-QRZZA. The quality practices adequately ensure that technical requirements and customer end-point requirements are met. The customer or its representatives may be allowed to perform on-site quality surveillance audits, as agreed upon during contract negotiations. 1.8 Safety information For safety information, see the appropriate safety guideline chapters. 1.9 Documents Documents are available from the Nokia Documentation Center. Procedure 1 To access a document on the Nokia Documentation Center Individual PDFs of FastMile customer documents are accessible through the Nokia Documentation Center. 1Go to https://documentation.nokia.com Log in as required. 2Enter FastMile 4G Gateway in the Product box. 3Select the search criteria as needed (Release, Content Type, Sort by, etc.) and Click on Search. 4Click on the PDF document icon to access a document. Nokia FastMile 4G Gateway Product OverviewPreface Issue: 023TG-00743-ABEA-TCZZA5 1.10 Special information The following are examples of how special information is presented in this document. 1.10.1 Steps with options or substeps When there are options in a step, they are identified by letters. When there are required substeps in a step, they are identified by roman numerals. Procedure 2 Example of options in a step At step 1, you must choose option a or b. 1This step offers two options. You must choose one of the following: aThis is one option. bThis is another option. 2You must perform this step. Danger — Danger indicates that the described activity or situation may result in serious personal injury or death; for example, high voltage or electric shock hazards. Warning — Warning indicates that the described activity or situation may, or will, cause equipment damage or serious performance problems. Caution — Caution indicates that the described activity or situation may, or will, cause service interruption. Note — A note provides information that is, or may be, of special interest. Preface 6 Nokia FastMile 4G Gateway Product Overview 3TG-00743-ABEA-TCZZAIssue: 02 Procedure 3 Example of required substeps in a step At step 1, you must perform a series of substeps within the step. 1This step has a series of substeps that you must perform to complete the step. You must perform the following substeps: iThis is the first substep. iiThis is the second substep. iiiThis is the third substep. 2 You must perform this step. 1.11 Multiple PDF document search You can use Adobe Reader Release 6.0 and later to search multiple PDF files for a common term. Adobe Reader displays the results in a single display panel. The results are grouped by PDF file, and you can expand the entry for each file. Procedure 4 To search multiple PDF files for a common term 1Open Adobe Acrobat Reader. 2Choose Edit→Search from the Acrobat Reader main menu. The Search PDF panel appears. 3Enter the search criteria. 4Click on the All PDF Documents In radio button. 5Select the folder in which to search using the drop-down menu. 6Click on the Search button. Note — The PDF files in which you search must be in the same folder. Nokia FastMile 4G Gateway Product OverviewPreface Issue: 023TG-00743-ABEA-TCZZA7 Acrobat Reader displays the search results. You can expand the entries for each document by clicking on the + symbol. Preface 8 Nokia FastMile 4G Gateway Pr…

Text truncated - open the document above for the full version.

Nokia Shanghai Bell Co., Ltd 388#, Ningqiao Road, China (Shanghai) Pilot Free Trade Zone, Shanghai 201206, China Date: April 26, 2020 Federal Communications Commission Authorization and Evaluation Division FCC ID: 2ADZR4G0812WA ATTESTATION Product: FastMile 4G Gateway Model: 4G08-12W-A Nokia Shanghai Bell Co., Ltd does not provide any means to control or software to allow operation on channel 12 ~ 13 in 2.4GHz band & LTE Band 42, 43 and outside of the USA frequency band when sold in the United States and Sincerely, Tu Yong / Engineer Nokia Shanghai Bell Co., Ltd

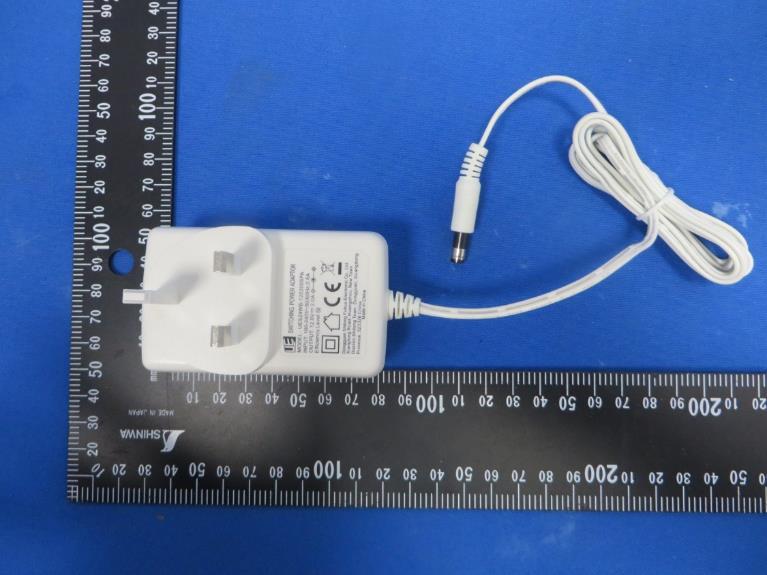

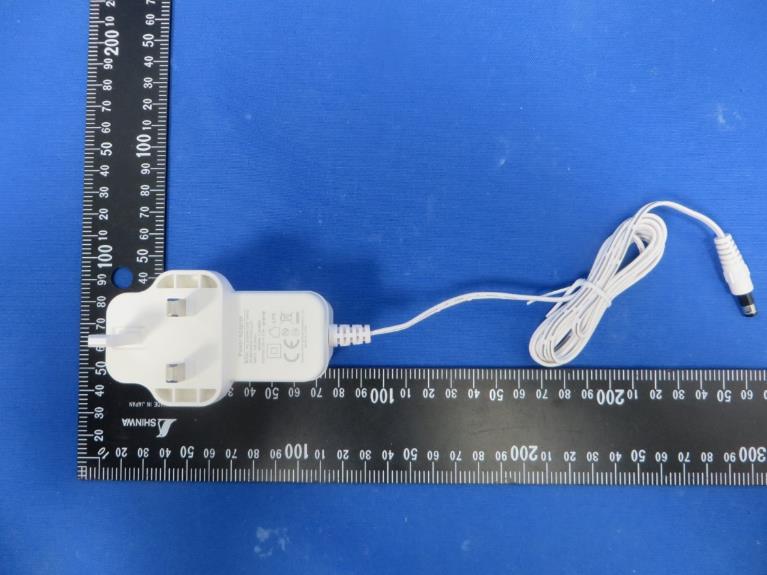

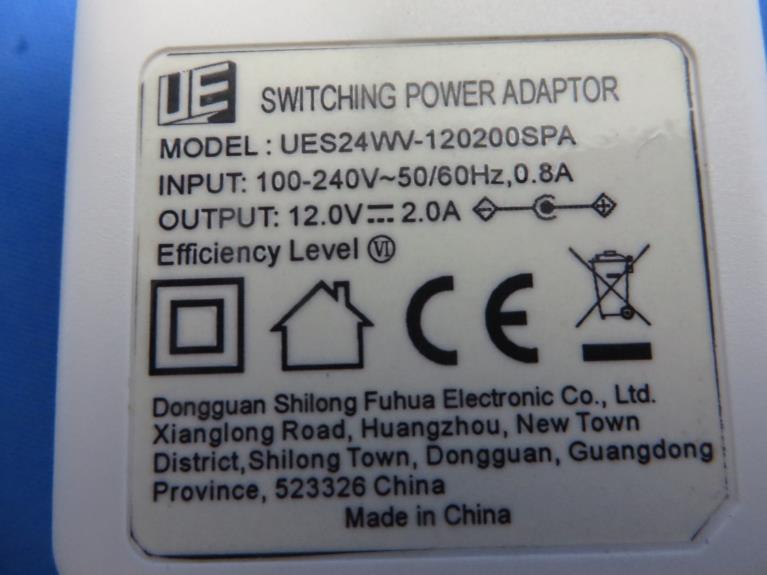

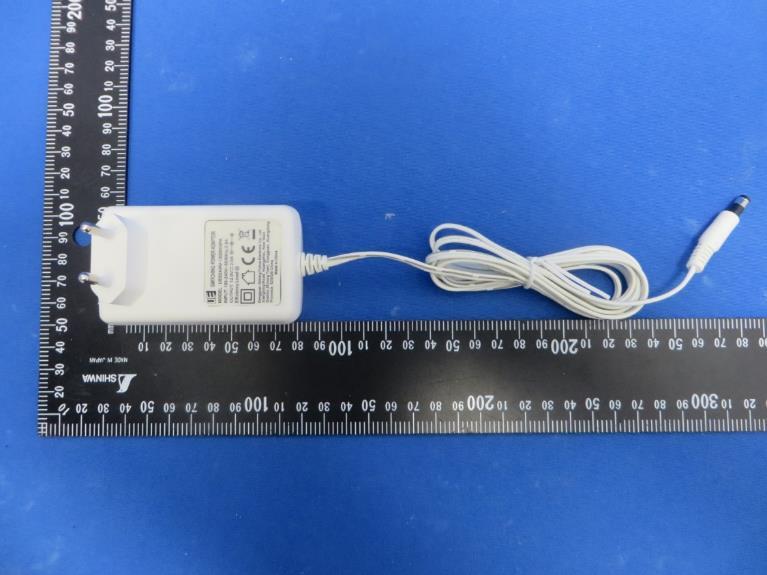

NOKIA Page Number: 1 of 9 Appendix - External Photo (1) EUT Photo (2) EUT Photo NOKIA Page Number: 2 of 9 (3) EUT Photo (4) EUT Photo NOKIA Page Number: 3 of 9 (5) EUT Photo (6) EUT Photo NOKIA Page Number: 4 of 9 (7) Adapter (RD1202000-C55-154OG) (8) Adapter (RD1202000-C55-154OG) NOKIA Page Number: 5 of 9 (9) Adapter (RD1202000-C55-154YG) (10) Adapter (RD1202000-C55-154YG) NOKIA Page Number: 6 of 9 (11) Adapter (RD1202000-C55-154MG) (12) Adapter (RD1202000-C55-154MG) NOKIA Page Number: 7 of 9 (13) Adapter (UES24WV-120200SPA) (14) Adapter (UES24WV-120200SPA) NOKIA Page Number: 8 of 9 (15) Adapter (UES24WB-120200SPA) (16) Adapter (UES24WB-120200SPA) NOKIA Page Number: 9 of 9 (17) Adapter (UES24WU-120200SPA) (18) Adapter (UES24WU-120200SPA)

Label Label Location

NOKIA Page Number: 1 of 23 Appendix - Internal Photo (1) EUT Photo (2) EUT Photo NOKIA Page Number: 2 of 23 (3) EUT Photo (4) EUT Photo NOKIA Page Number: 3 of 23 (5) EUT Photo (6) EUT Photo NOKIA Page Number: 4 of 23 (7) EUT Photo (8) EUT Photo NOKIA Page Number: 5 of 23 (9) EUT Photo (10) EUT Photo NOKIA Page Number: 6 of 23 (11) EUT Photo (12) EUT Photo NOKIA Page Number: 7 of 23 (13) EUT Photo (14) EUT Photo NOKIA Page Number: 8 of 23 (15) EUT Photo (16) EUT Photo NOKIA Page Number: 9 of 23 (17) EUT Photo (18) EUT Photo NOKIA Page Number: 10 of 23 (19) EUT Photo (20) EUT Photo NOKIA Page Number: 11 of 23 (21) EUT Photo (22) EUT Photo NOKIA Page Number: 12 of 23 (23) EUT Photo (24) EUT Photo NOKIA Page Number: 13 of 23 (25) EUT Photo (26) EUT Photo NOKIA Page Number: 14 of 23 (27) EUT Photo (28) EUT Photo NOKIA Page Number: 15 of 23 (29) EUT Photo (30) EUT Photo NOKIA Page Number: 16 of 23 (31) EUT Photo (32) EUT Photo NOKIA Page Number: 17 of 23 (33) EUT Photo (34) EUT Photo NOKIA Page Number: 18 of 23 (35) EUT Photo (36) EUT Photo NOKIA Page Number: 19 of 23 (37) EUT Photo (38) EUT Photo NOKIA Page Number: 20 of 23 (39) EUT Photo (40) EUT Photo NOKIA Page Number: 21 of 23 (41) EUT Photo (42) EUT Photo NOKIA Page Number: 22 of 23 (43) EUT Photo (44) EUT Photo NOKIA Page Number: 23 of 23 (45) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1911 RSU040-U6 Phone: +886-3-3288388 Re p or t Ve r sio n: V01 Web: www.mrt-cert.com Issue Date : 04-27-2 0 20 Page Number: 1 of 8 RF Exposure Evaluation Declaration FCC ID: 2ADZR4G0812WA APPLICANT: Nokia Shanghai Bell Co., Ltd Application Type: Certification Product: FastMile 4G Gateway Model No.: 4G08-12W-A Brand Name: NOKIA FCC Classification: Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) Citizens Band End User Devices (CBE) PCS Licensed Transmitter (PCB) Test Procedure(s): KDB 447498 D01v06 Test Date: November 02, 2019 ~ April 12, 2020 Reviewed By: ( Sunny Sun ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1911RSU040-U6 Page Number: 2 of 8 Revision History Report No. Version Description Issue Date Note 1911RSU040-U6 Rev. 01 Initial Report 04-27-2020 Valid Report No.: 1911RSU040-U6 Page Number: 3 of 8 General Information Applicant: Nokia Shanghai Bell Co., Ltd Applicant Address: 388#, Ningqiao Road, China (Shanghai) Pilot Free Trade Zone, Shanghai 201206, China Manufacturer: Nokia Shanghai Bell Co., Ltd Manufacturer Address: 388#, Ningqiao Road, China (Shanghai) Pilot Free Trade Zone, Shanghai 201206, China Test Site: MRT Technology (Suzhou) Co., Ltd Test Site Address: D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Test Device Serial No.: N/A Production Pre-Production Engineering Test Facility / Accreditations Measurements were performed at MRT Laboratory located in Tian’edang Rd., Suzhou, China.  MRT facility is a FCC accredited (MRT Designation No. CN1166) test facility with the site description report on file and has met all the requirements specified in ANSI C63.4-2014.  MRT facility is an IC registered (MRT Reg. No. 11384A-1) test laboratory with the site description on file at Industry Canada.  MRT facility is a VCCI registered (R-20025, G-20034, C-20020, T-20020) test laboratory with the site description on file at VCCI Council.  MRT Lab is accredited to ISO 17025 by the American Association for Laboratory Accreditation (A2LA) under the American Association for Laboratory Accreditation Program (A2LA Cert. No. 3628.01) in EMC, Telecommunications, Radio and SAR testing. Report No.: 1911RSU040-U6 Page Number: 4 of 8 1. PRODUCT INFORMATION 1.1. Equipment Description 1.2. Description of Available Antennas Technology Frequency Range (MHz) Antenn a Type Max Peak Gain (dBi) Directional Gain (dBi) CDD Mode Beam-Forming Mode Ant 8 Ant 9 For Power For PSD For Power For PSD 2.4GHz Wi-Fi 2400 ~ 2483.5 PCB 3.81 3.95 3.95 6.96 6.96 6.96 5GHz Wi-Fi 5150 ~ 5350 Dipole 4.13 3.99 4.13 7.14 7.14 7.14 5470 ~ 5725 4.42 4.65 4.65 7.66 7.66 7.66 5725 ~ 5850 4.56 4.67 4.67 7.68 7.68 7.68 Technology Frequency Range (MHz) Antenna Type Max Peak Gain (dBi) LTE Band 2 1850 ~ 1910 PCB 4.27 LTE Band 4 1710 ~ 1755 4.49 LTE Band 5 824 ~ 849 0.10 LTE Band 7 2500 ~ 2570 4.70 LTE Band 25 1850 ~ 1915 4.27 LTE Band 38 2570 ~ 2620 4.70 LTE Band 48 3550 ~ 3700 4.80 LTE Band 66 1710 ~ 1780 4.49 Note 1: The EUT supports Cyclic Delay Diversity (CDD) with 802.11a/g/n/ac, CDD signals are correlated. If all antennas have the same gain, GANT, Directional gain = GANT + Array Gain, where Array Gain is as follows. ⚫ For power spectral density (PSD) measurements on all devices, Array Gain = 10 log (NANT/ NSS) dB = 3.01; ⚫ For power measurements on IEEE 802.11 devices, Array Gain = 0 dB for NANT ≤ 4; If antenna gains are not equal, Directional gain may be calculated by using the formulas applicable to equal gain antennas with GANT set equal to the gain of the antenna having the highest gain. Product Name: FastMile 4G Gateway Model No.: 4G08-12W-A Brand Name: NOKIA Wi-Fi Specification: 802.11a/b/g/n/ac LTE Specification: Band 2, 4, 5, 7, 25, 38, 48, 66 Operating Temperature: 0 ~ 45 °C Power Type: AC adapter input Report No.: 1911RSU040-U6 Page Number: 5 of 8 Note 2: The EUT supports Beam Forming mode with 802.11n/ac. The directional gain = 10*log[(10 G1/20 + 10 G2/20 + ... + 10 GN/20 ) 2 /NANT]dBi. Report No.: 1911RSU040-U6 Page Number: 6 of 8 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- f/1500 6 1500-100,000 -- -- 1 30 f= Frequency in MHz Calculation Formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 r = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1911RSU040-U6 Page Number: 7 of 8 2.2. Test Result of RF Exposure Evaluation Product FastMile 4G Gateway Test Item RF Exposure Evaluation Test Mode Frequency Band (MHz) Maximum EIRP (dBm) Safety Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Wi-Fi 2412 ~ 2462 31.59 25 0.1836 1 5180 ~ 5320 34.44 0.3539 5500 ~ 5720 29.80 0.1216 5745 ~ 5825 34.52 0.3605 LTE Band 5 824 ~ 849 25.96 0.0502 LTE Band 7 2500 ~ 2570 30.01 0.1276 LTE Band 25/2 1850 ~ 1915 31.65 0.18…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 1911RSU040-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 04-27-2020 FCC ID: 2ADZR4G0812WA Page Number: 1 of 274 FCC ID: 2ADZR4G0812WA APPLICANT: Nokia Shanghai Bell Co., Ltd Application Type: Certification Product: FastMile 4G Gateway Model No.: 4G08-12W-A Brand Name: NOKIA FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part15 Subpart E (Section 15.407) Test Procedure(s): ANSI C63.10-2013, KDB 789033 D02v02r01, KDB 662911 D01v02r01 Test Date: November 02, 2019 ~ January 22, 2020 MEASUREMENT REPORT FCC 15.407 WLAN 802.11a/n/ac Reviewed By: ( Sunny Sun ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 2 of 274 Revision History Report No. Version Description Issue Date Note 1911RSU040-U2 Rev. 01 Initial Report 04-27-2020 Valid Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 3 of 274 CONTENTS Description Page General Information.................................................................................................................................. 6 1. INTRODUCTION ................................................................................................................................ 7 1.1. Scope ...................................................................................................................................... 7 1.2. MRT Test Location ................................................................................................................. 7 2. PRODUCT INFORMATION............................................................................................................... 8 2.1. Equipment Description........................................................................................................... 8 2.2. Product Specification Subjective to this Report ................................................................... 8 2.3. Working Frequencies for this Report .................................................................................... 9 2.4. Description of Available Antennas....................................................................................... 10 2.5. Description of Antenna RF Port .......................................................................................... 11 2.6. Test Mode ............................................................................................................................. 11 2.7. Description of Test Software................................................................................................ 11 2.8. Device Capabilities............................................................................................................... 12 2.9. EMI Suppression Device(s)/M odifications.......................................................................... 13 2.10. Labeling Requirem ents ........................................................................................................ 13 3. DESCRIPTION OF TEST ................................................................................................................ 14 3.1. Evaluation Procedure........................................................................................................... 14 3.2. AC Line Conducted Emissions............................................................................................ 14 3.3. Radiated Emissions ............................................................................................................. 15 4. ANTENNA REQUIREMENTS ......................................................................................................... 16 5. TEST EQUIPMENT CALIBRATION DATE ................................................................................... 17 6. MEASUREMENT UNCERTAINTY ................................................................................................. 19 7. TEST RESULT ................................................................................................................................. 20 7.1. Summary ............................................................................................................................... 20 7.2. 26dB Bandwidth M easurement ........................................................................................... 21 7.2.1. Test Limit ............................................................................................................................... 21 7.2.2. Test Procedure used ............................................................................................................ 21 7.2.3. Test Setting ........................................................................................................................... 21 7.2.4. Test Setup ............................................................................................................................. 21 7.2.5. Test Result ............................................................................................................................ 22 7.3. 6dB Bandwidth Measurem ent ............................................................................................. 36 7.3.1. Test Limit ............................................................................................................................... 36 7.3.2. Test Procedure used ............................................................................................................ 36 Report No.: 1…

Text truncated - open the document above for the full version.

Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 39 of 274 802.11n-HT20 6dB Bandwidth - Ant 8 / Ant 8 + 9 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) 802.11n-HT40 6dB Bandwidth - Ant 8 / Ant 8 + 9 Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 40 of 274 802.11ac-VHT20 6dB Bandwidth - Ant 8 / Ant 8 + 9 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) 802.11ac-VHT40 6dB Bandwidth - Ant 8 / Ant 8 + 9 Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 41 of 274 802.11ac-VHT80 6dB Bandwidth - Ant 8 / Ant 8 + 9 Channel 155 (5775MHz) Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 42 of 274 7.4. Output Power Measurement 7.4.1.Test Limit For an indoor access point operating in the band 5.15-5.25 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W provided the maximum antenna gain does not exceed 6 dBi. For the 5.25-5.35 GHz and 5.47-5.725 GHz bands, the maximum conducted output power over the frequency bands of operation shall not exceed the lesser of 250 mW (23.98dBm) or 11dBm +10 log (26dB BW). For the 5.25-5.35 GHz and 5.47-5.725 GHz bands, the maximum conducted output power over the frequency bands of operation shall not exceed the lesser of 250 mW or 11 dBm + 10 log B, where B is the 26 dB emission bandwidth in megahertz. If transmitting antennas of directional gain greater than 6dBi are used, the maximum conducted output power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. For the band 5.725-5.85 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W (30dBm). If transmitting antennas of directional gain greater than 6dBi are used, the maximum conducted output power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 7.4.2.Test Procedure Used KDB 789033 D02v02r01 - Section E) 3) b) Method PM-G 7.4.3.Test Setting Average power measurements were performed only when the EUT was transmitting at its maximum power control level using a broadband power meter with a pulse sensor. The power meter implemented triggering and gating capabilities which were set up such that power measurements were recorded only during the ON time of the transmitter. Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 43 of 274 7.4.4.Test Setup Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 44 of 274 7.4.5.Test Result Power output test was verified over all data rates of each mode shown as below table, and then choose the maximum power output (yellow marker) for final test of each channel. Pre-Test RF Output Power at various data rates for Ant 8 Ant 8 - 802.11a - Channel 64 (5320MHz) Date Rate (Mbps) 6 9 12 18 24 36 48 54 Power (dBm) 16.79 16.73 16.69 16.65 16.64 16.59 16.55 16.53 Ant 8 / Ant 8 + 9 - 802.11n-HT20 - Channel 64 (5320MHz) Date Rate MCS0 MCS1 MCS2 MCS3 MCS4 MCS5 MCS6 MCS7 Power (dBm) 18.16 18.08 18.02 17.96 17.90 17.87 17.85 17.83 Ant 8 / Ant 8 + 9 - 802.11n-HT40 - Channel 62 (5310MHz) Date Rate MCS0 MCS1 MCS2 MCS3 MCS4 MCS5 MCS6 MCS7 Power (dBm) 17.42 17.38 17.30 17.28 17.25 17.22 17.16 17.09 Ant 8 / Ant 8 + 9 - 802.11ac-VHT20 - Channel 64 (5320MHz) Date Rate MCS0 MCS1 MCS2 MCS3 MCS4 MCS5 MCS6 MCS7 MCS8 Power (dBm) 18.01 17.98 17.95 17.90 17.86 17.83 17.76 17.71 17.69 Ant 8 / Ant 8 + 9 - 802.11ac-VHT40 - Channel 62 (5310MHz) Date Rate MCS0 MCS1 MCS2 MCS3 MCS4 MCS5 MCS6 MCS7 MCS8 MCS9 Power (dBm) 17.63 17.61 17.58 17.54 17.52 17.50 17.49 17.48 17.46 17.45 Ant 8 / Ant 8 + 9 - 802.11ac-VHT80 - Channel 58 (5290MHz) Date Rate MCS0 MCS1 MCS2 MCS3 MCS4 MCS5 MCS6 MCS7 MCS8 MCS9 Power (dBm) 18.51 18.48 18.44 18.40 18.36 18.34 18.32 18.29 18.25 18.23 Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 45 of 274 Product FastMile 4G Gateway Temperature 23 ~ 25°C Test Engineer Cloud Guo Relative Humidity 44 ~ 58% Test Site TR3 Test Date 2019/11/20 ~ 2019/12/08 Test Mode Data Rate/ MCS Channel No. Freq. (MHz) Ant 8 Average Power (dBm) Ant 9 Average Power (dBm) Total Average Power (dBm) Average Power Limit (dBm) Result 802.11a 6Mbps 36 5180 23.48 -- 23.48 ≤ 30.00 Pass 802.11a 6Mbps 44 5220 24.41 -- 24.41 ≤ 30.00 Pass 802.11a 6Mbps 48 5240 23.53 -- 23.53 ≤ 30.00 Pass 802.11a 6Mbps 52 5260 16.50 -- 16.50 ≤ 23.98 Pass 802.11a 6Mbps 60 5300 16.68 -- 16.68 ≤ 23.98 Pass 802.11a 6Mbps 64 5320 16.79 -- 16.79 ≤ 23.98 Pass 802.11a 6Mbps 100 5500 16.19 -- 16.19 ≤ 23.98 Pass 802.11a 6Mbps 120 5600 16.30 -- 16.30 ≤ 23.98 Pass 802.11a 6Mbps 140 5700 16.18 -- 16.18 ≤ 23.98 Pass 802.11a 6Mbps 144 5720 16.23 -- 16.23 ≤ 22.79 Pass 802.11a 6Mbps 149 5745 22.23 -- 22.23 ≤ 30.00 Pass 802.11a 6Mbps 157 5785 23.41 -- 23.41 ≤ 30.00 Pass 802.11a 6Mbps 165 5825 20.55 -- 20.55 ≤ 30.00 Pass 802.11n-HT20 MCS0 36 5180 21.03 21.34 24.20 ≤ 30.00 Pass 802.11n-HT20 MCS0 44 5220 23.88 24.07 26.99 ≤ 30.00 Pass 802.11n-HT20 MCS0 48 5240 24.07 24.22 27.16 ≤ 30.00 Pass 802.11n-HT20 MCS0 52 5260 18.29 18.72 21.52 ≤ 23.98 Pass 802.11n-HT20 MCS0 60 5300 18.02 18.71 21.39 ≤ 23.98 Pass 802.11n-HT20 MCS0 64 5320 18.16 18.55 21.37 ≤ 23.98 Pass 802.11n-HT20 MCS0 100 5500 17.69 18.51 21.13 ≤ 23.98 Pass 802.11n-HT20 MCS0 120 5600 17.63 18.24 20.96 ≤ 23.98 Pass 802.11n-HT20 MCS0 140 5700 17.11 17.92 20.54 ≤ 23.98 Pass 802.11n-HT20 MCS0 144 5720 16.92 17.65 20.31 ≤ 22.79 Pass 802.11n-HT20 MCS0 149 5745 22.47 22.88 25.69 ≤ 30.00 Pass 802.11n-HT20 MCS0 157 5785 23.25 23.65 26.46 ≤ 30.00 Pass 802.11n-HT20 MCS0 165 5825 19.89 20.53 23.23 ≤ 30.00 Pass Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 46 of 274 Test Mode Data Rate/ MCS Channel No. Freq. (MHz) Ant 8 Average Power (dBm) Ant 9 Average Power (dBm) Total Average Power (dBm) Average Power Limit (dBm) Result 802.11n-HT40 MCS0 38 5190 17.81 18.15 20.99 ≤ 30.00 Pass 802.11n-HT40 MCS0 46 5230 24.30 24.12 27.22 ≤ 30.00 Pass 802.11n-HT40…

Text truncated - open the document above for the full version.

Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 64 of 274 802.11ac-VHT80 Power Spectral Density - Ant 8 / Ant 8 + 9 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 65 of 274 802.11a Power Spectral Density - Ant 9 / Ant 8 + 9 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Channel 100 (5500MHz) Channel 100 (5600MHz) Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 66 of 274 802.11a Power Spectral Density - Ant 9 / Ant 8 + 9 Channel 140 (5700MHz) Channel 144 (5720MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 67 of 274 802.11n-HT20 Power Spectral Density - Ant 9 / Ant 8 + 9 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Channel 100 (5500MHz) Channel 100 (5600MHz) Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 68 of 274 802.11n-HT20 Power Spectral Density - Ant 9 / Ant 8 + 9 Channel 140 (5700MHz) Channel 144 (5720MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 69 of 274 802.11n-HT40 Power Spectral Density - Ant 9 / Ant 8 + 9 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 118 (5590MHz) Channel 134 (5670MHz) Channel 142 (5710MHz) Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 70 of 274 802.11n-HT40 Power Spectral Density - Ant 9 / Ant 8 + 9 Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 71 of 274 802.11ac-VHT20 Power Spectral Density - Ant 9 / Ant 8 + 9 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Channel 100 (5500MHz) Channel 100 (5600MHz) Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 72 of 274 802.11ac-VHT20 Power Spectral Density - Ant 9 / Ant 8 + 9 Channel 140 (5700MHz) Channel 144 (5720MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 73 of 274 802.11ac-VHT40 Power Spectral Density - Ant 9 / Ant 8 + 9 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 118 (5590MHz) Channel 134 (5670MHz) Channel 142 (5710MHz) Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 74 of 274 802.11ac-VHT40 Power Spectral Density - Ant 9 / Ant 8 + 9 Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 75 of 274 802.11ac-VHT80 Power Spectral Density - Ant 9 / Ant 8 + 9 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) Report No.: 1911RSU040-U2 FCC ID: 2ADZR4G0812WA Page Number: 76 of 274 7.7. Frequency Stability Measurement 7.7.1.Test Limit Manufactures of NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all con…
